VLFS820 - TV wall mount SANUS - Free user manual and instructions

Product type	TV wall mount
Brand	SANUS
Model	VLFS820
Maximum load capacity	56.6 kg (125 lb)
Compatible wall types	Wood studs, solid concrete, concrete blocks
Tilt adjustment	Yes (up/down)
Height adjustment	Yes (via locking screw)
Lateral shift	Yes (only for wood studs)
Cable management	Extendable arm for cable slack
Installation required	Two people (heavy TV)
Required tools (wood studs)	Measuring tape, pencil, level, screwdriver, power drill, 13 mm socket wrench, stud finder, 5.5 mm awl, wood drill bit
Required tools (concrete)	Measuring tape, pencil, level, screwdriver, power drill, 13 mm socket wrench, 10 mm concrete drill bit, hammer, CMK1 kit (not included)
Safety precautions	Do not install alone on drywall; wall must support 5x total weight
Included parts	Mounting brackets, wall plate, arm, screws, spacers, covers

Frequently Asked Questions - VLFS820 SANUS

What is the maximum weight supported by the SANUS VLFS820 wall mount?

The SANUS VLFS820 wall mount can support a TV weighing up to 56.6 kg (125 lb).

What types of walls can I install this mount on?

This mount is designed for installation on wood studs, solid concrete, or concrete blocks. Do not install it alone on drywall.

What tools are required for installation?

You will need a measuring tape, a pencil, a level, a screwdriver, a power drill, a 13 mm socket wrench, a stud finder, a 5.5 mm awl, and a wood drill bit (for wood studs) or a 10 mm concrete drill bit and a hammer (for concrete).

How to attach the mounting brackets to the TV?

Select the screw size suitable for your TV (usually the same size). Use short screws if the back is flat, or long screws with spacers if the back is irregular or needs more space. Tighten screws by hand, without power tools, to avoid over-tightening.

Can I adjust the tilt of the TV after installation?

Yes, the mount allows tilt adjustment. If the TV tilts naturally up or down, loosen the Ⓣ screws, adjust the angle, then retighten. You can also tighten the screws to prevent unwanted movement.

How to adjust the height of the TV?

Loosen the locking screw 13, adjust the TV height, then retighten the screw. Make sure it is tight to hold the TV in place.

Can I shift the TV laterally?

Yes, for installation on wood studs only. You must remove the TV, open the covers, remove screws 12, slide the arm to the desired position, then secure with screws 12. For concrete, the arm must remain centered.

How to manage cables with this mount?

The arm can be fully extended to leave enough slack for cables. Make sure not to stretch the cables when moving the arm.

How to remove the TV from the mount?

You will need assistance because the TV is heavy. Follow the reverse procedure of installation: loosen locking screw 13, lift the TV to unhook it from the arm.

What should I do if I need to install the mount on concrete?

For concrete installation, you will need the #CMK1 kit (not included). Contact customer service. Drill 10 mm holes into concrete (not mortar), insert anchors, attach the wall plate with lag bolts. The arm must remain centered on the plate.

USER MANUAL VLFS820 SANUS

Technical line drawing of a mechanical assembly with vertical supports and a central control panel (no text or symbols)

Person holding a digital play button with a white play symbol on a black surface (no text or symbols visible)

Want to watch a video that shows how easy this is?

Get it right the first time. HeightFinder™ shows you where to drill.

Group of employees in a modern office environment, one wearing a headset, others seated in the background (no visible text or symbols)

Our live install experts are standing by to help.

Watch it now at: SANUS.com/3119

Use it now: SANUS.com/2567

Call us at: US: [phone] EMEA: [phone] UK: [phone]

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ MANUAL PRIOR TO USE - SAVE THESE INSTRUCTIONS

CAUTION: Avoid potential personal injuries and property damage!

• This product is designed ONLY to be installed into wood studs, solid concrete or concrete block
  — DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV
  • This product is designed for INDOOR USE ONLY
• The wall must be capable of supporting five times the weight of the TV and mount combined
• Do not use this product for any purpose not explicitly specified by manufacturer
  ● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

Please read through these instructions completely to be sure you're comfortable with this easy install process.

Check your TV owner's manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service.

TV Weight Limit

(including accessories)

DO NOT EXCEED

If your TV (plus accessories) weighs MORE, this mount is NOT compatible.

Visit SANUS.com or call customer service to find a compatible mount.

Wall Construction

ONLY install on these acceptable wall types.

Unsure

Call Customer Service

US: 1-800-359-5520

EMEA: [phone]

UK: [phone]

CAUTION:

DO NOT install in drywall alone

Drywall alone will NOT hold the weight of your TV.

wood studs Solid concrete

Diagram showing a wooden fence structure with four posts and a magnified inset of a rectangular block (no text or symbols)

ACCEPTABLE

or

concrete block

Illustration of a brick wall next to a magnified inset showing a single cinder block (no text or symbols)

Concrete anchors Required (NOT INCLUDED)

Call Customer Service

US: 1-800-359-5520

EMEA: [phone]

UK: [phone]

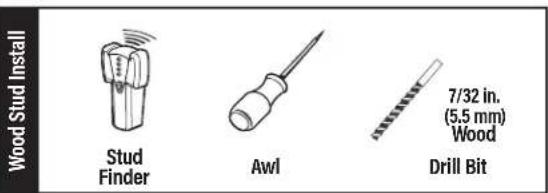

Tools Needed

Tape Measure

Pencil Level Tape

Screwdriver

Electric Drill

Socket Wrench

Concrete Install

Drill Bit

Hammer

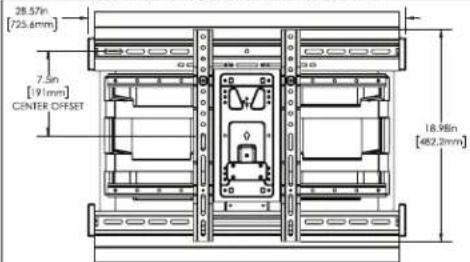

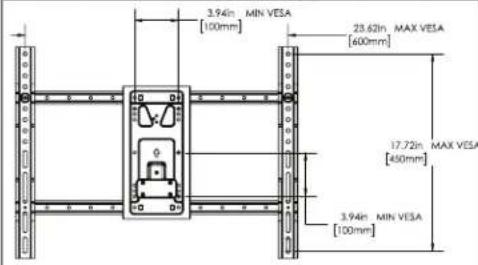

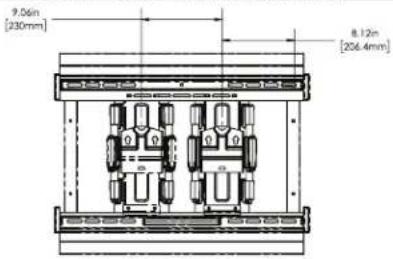

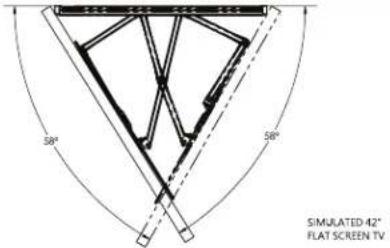

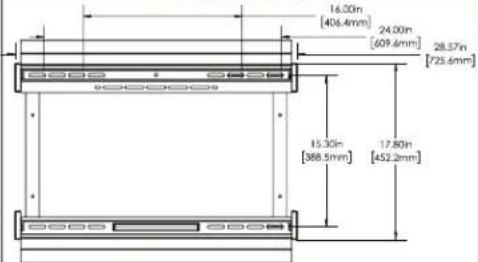

Dimensions

TV INTERFACE

3-D

Isometric line drawing of a structural framework with beams and supports (no text or symbols)

WALL PLATE

TOP VIEW - EXTENDED

SIDE VIEW - EXTENDED

FULLY ASSEMBLED MOUNT

FRONT VIEW - LATERAL SHIFT

SIDE VIEW RETRACTED

BEFORE YOU BEGIN

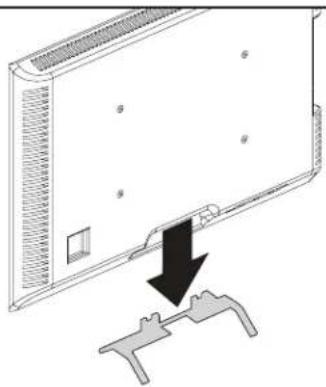

Remove the stand

from your TV — if attached.

Diagram of a device with a black arrow pointing to a mechanical component (no text or symbols present)

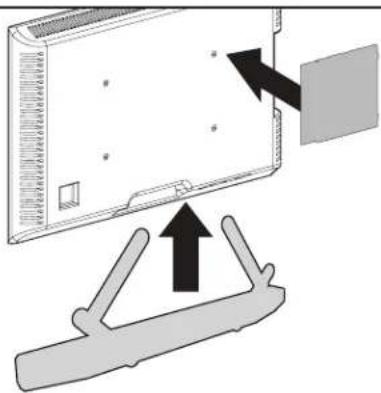

Install any accessories

you may have purchased, if they require TV removal prior to assembly. The TV is removable for future accessory purchases.

Diagram showing a device with an arrow pointing to a component, and a bracket with an upward arrow (no text or symbols present)

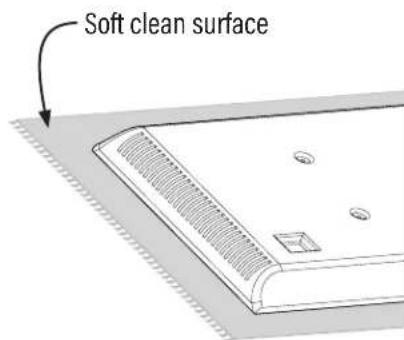

Protect the face

of your TV when laying it down for installation.

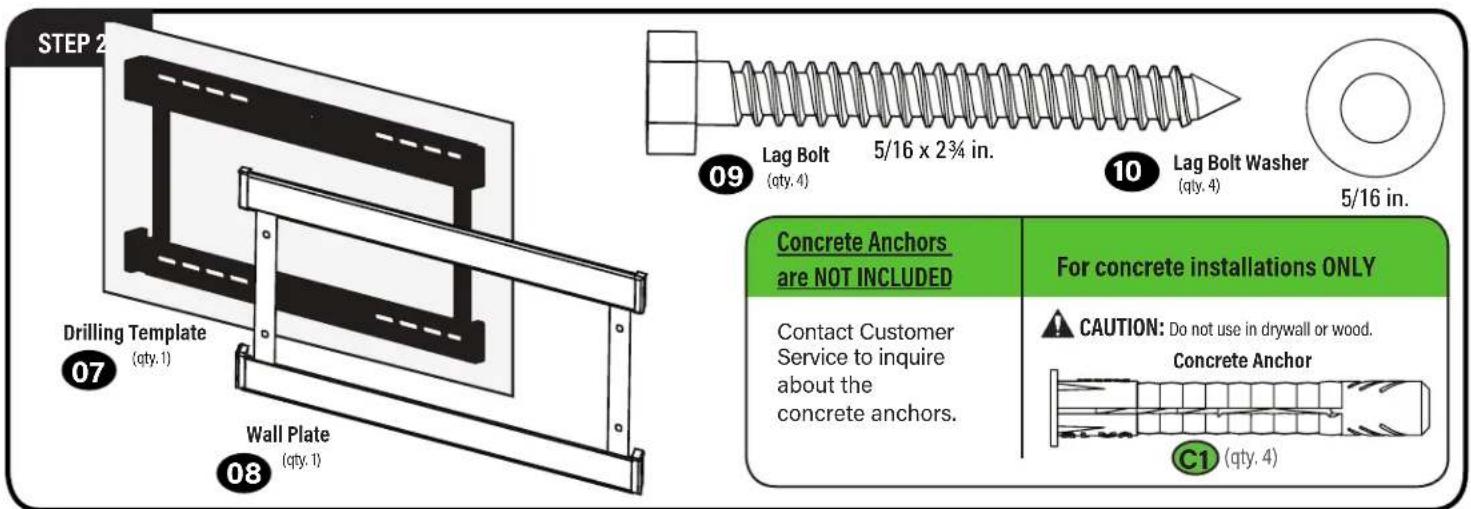

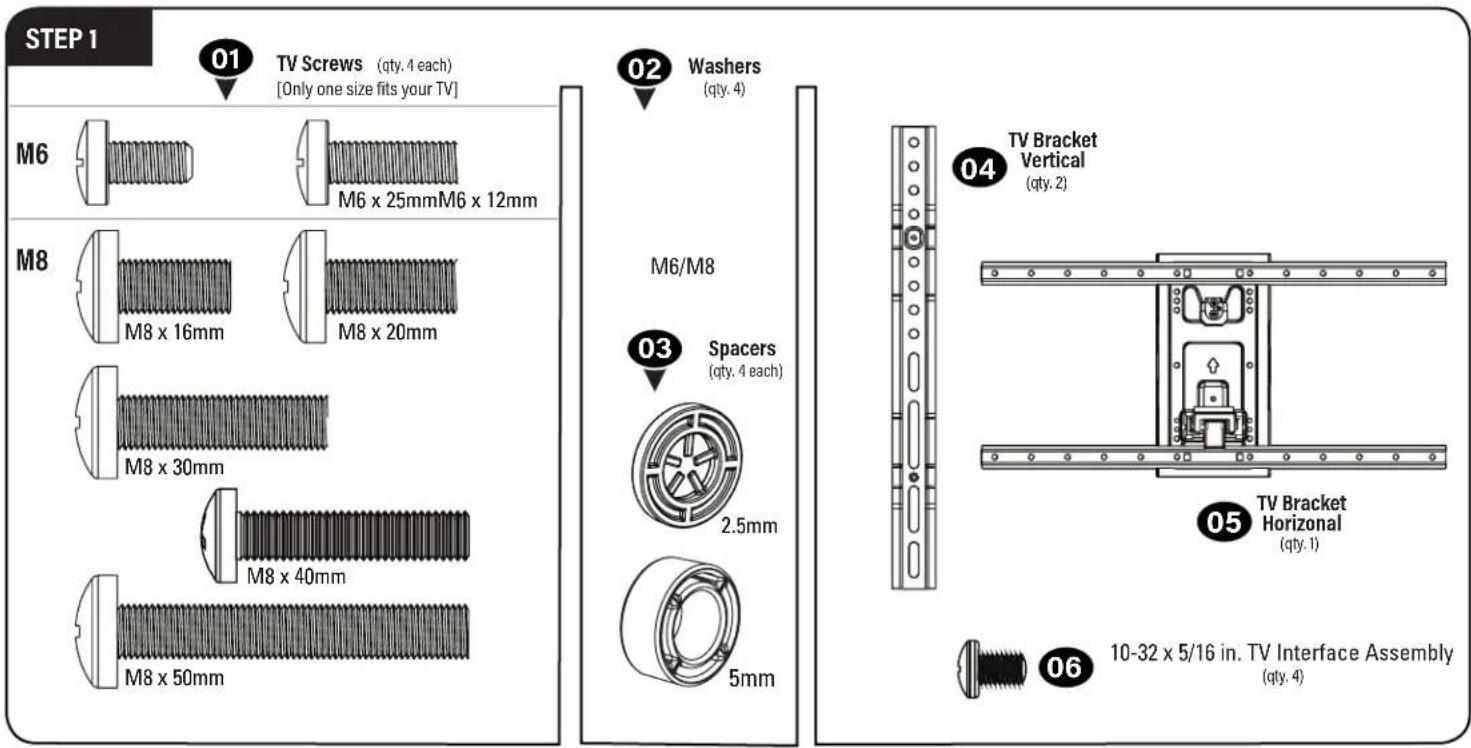

Supplied Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

STEP 1 Attach TV Brackets to TV

Only one screw size fits your TV.

NOTE: If your TV included inset spacers or adapters, use them UNDER the mount hardware.

1.2 Select TV Screw Length and Spacers1.1 Select TV Screw Diameter

A

NO SPACER SPACER NEEDED

B

- Flat Back TV

[TV brackets lay flat on your TV]

Use short TV screws01, Spacers03 not needed.

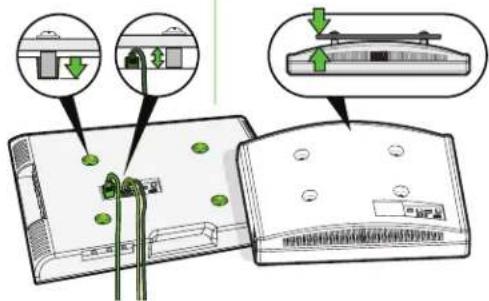

- Flat Back TV with extra space needed [for deep inset holes or cable interference]

- Rounded or Irregular Back TV [TV brackets NOT resting flat on your TV]

Diagram of a device with a green arrow pointing to a component, showing no text or symbols.

Use long TV screws 01 and spacers 03 to create extra space between the TV and TV bracket.

CAUTION: Verify adequate thread engagement with your screw 01, washer 02, spacer 03 combination AND TV bracket 04. — Too short will not hold your TV. — Too long will damage your TV.

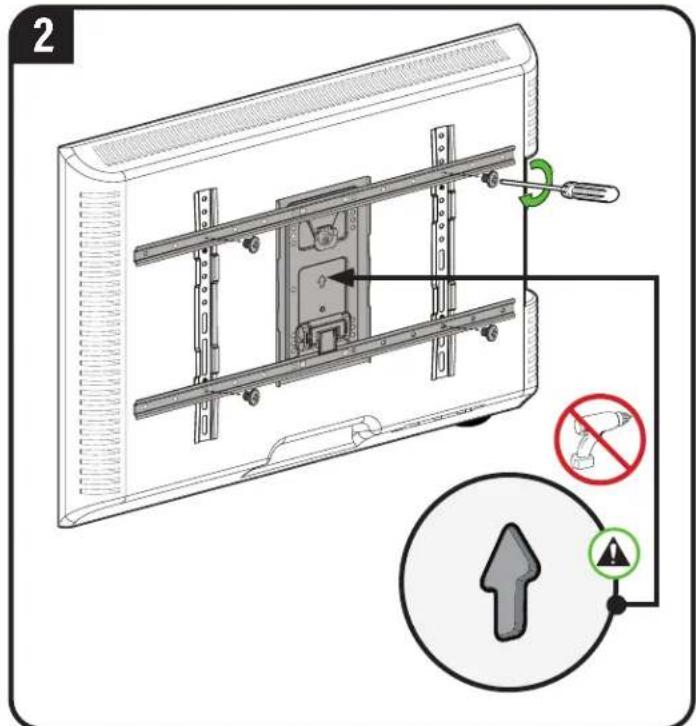

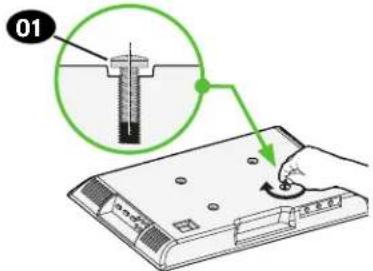

1.3 Attach TV Brackets to Your TV

CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step. Tighten the screws 06 only enough to secure the TV brackets to the TV.

STEP 2A Attach Wall Plate

Wood Stud Installation

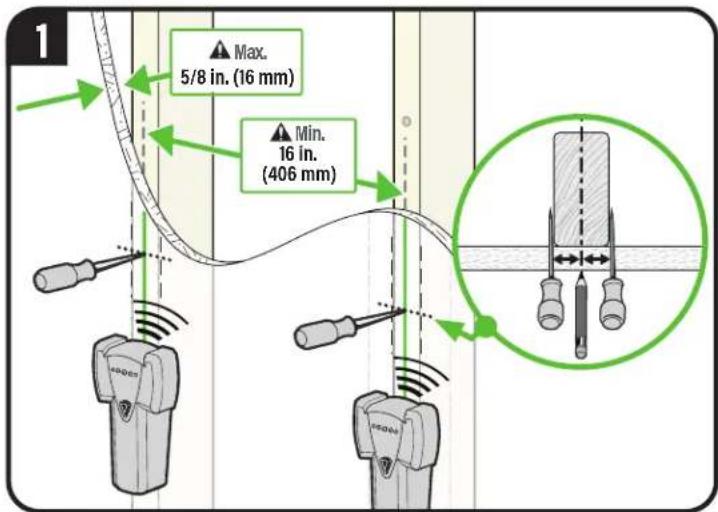

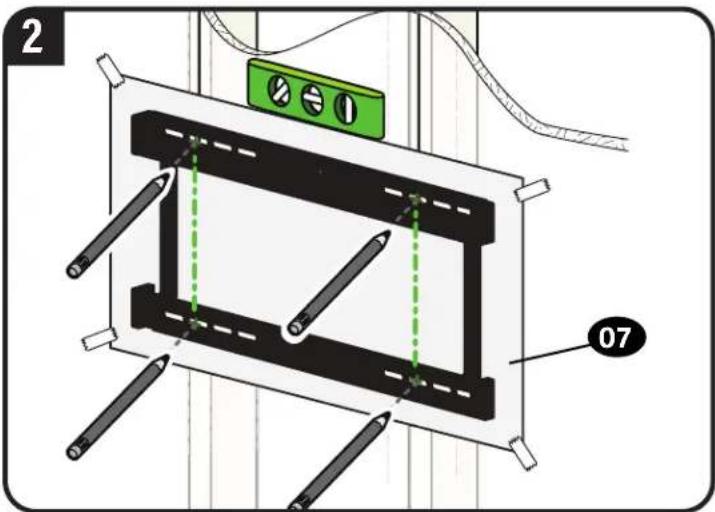

AUTION: Avoid potential personal injury or property damage!

• Drywall covering the wall must not exceed 5/8 in. (16 mm)
• Minimum wood stud size: nominal 2 x 4 in. (51 x 102 mm) actual 1 12 × 3 12 in. (38 x 89 mm)
  • Minimum spacing between studs: 16 in. (406mm)
  • Stud center must be verified

IMPORTANT: Be sure to drill into the center of the stud.

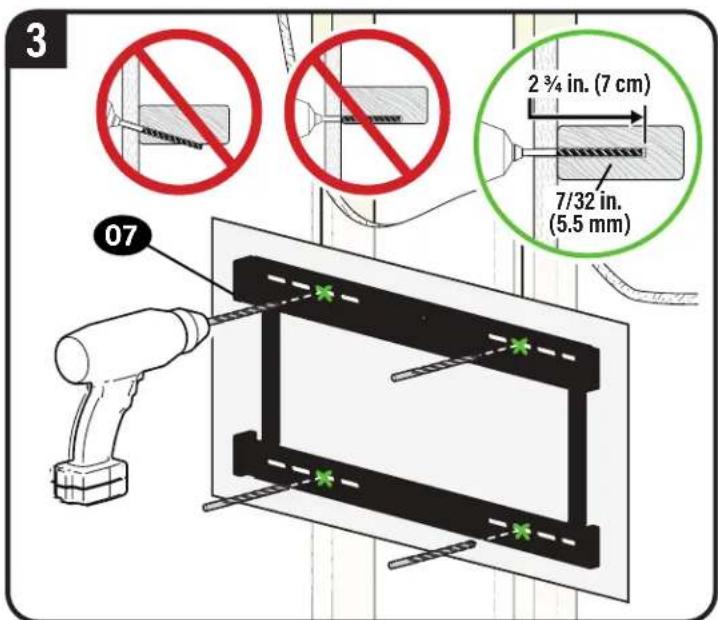

IMPORTANT: Pilot holes must be drilled to a depth of 2 34 in. (7 cm), using a 7/32 in. (5.5 mm) diameter drill bit.

CAUTION: Avoid potential personal injury or property damage! Improper use could reduce the holding power of the lag bolt 09.

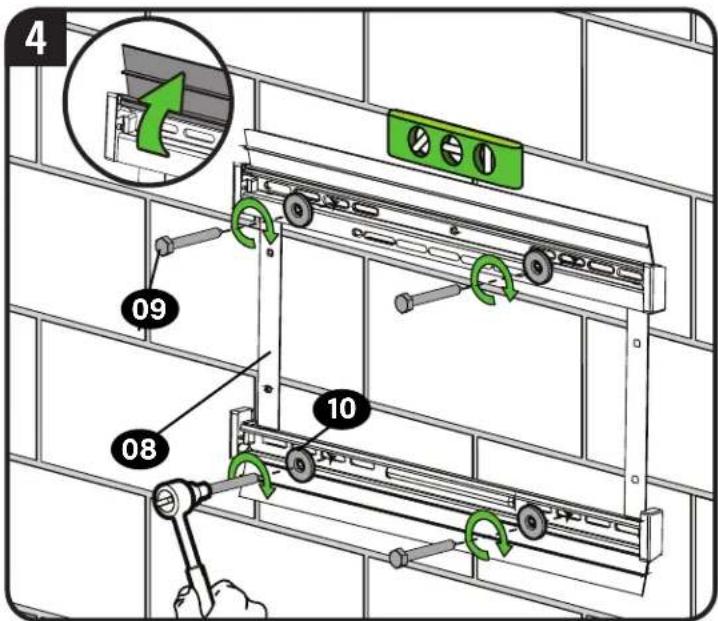

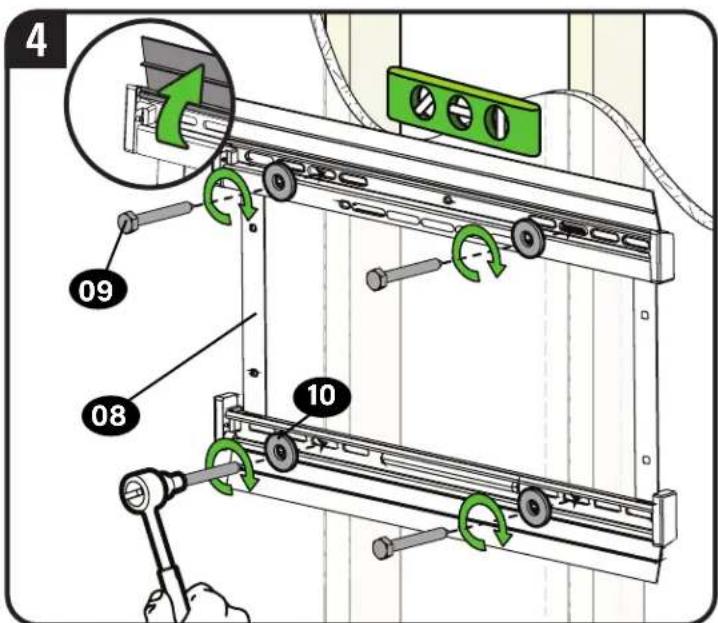

Tighten the lag bolts 09 and lag washers 10 only until they are pulled FIRMLY against the wall plate 08.
DO NOT over-tighten the lag bolts 09. Go to STEP 3 on PAGE 8.

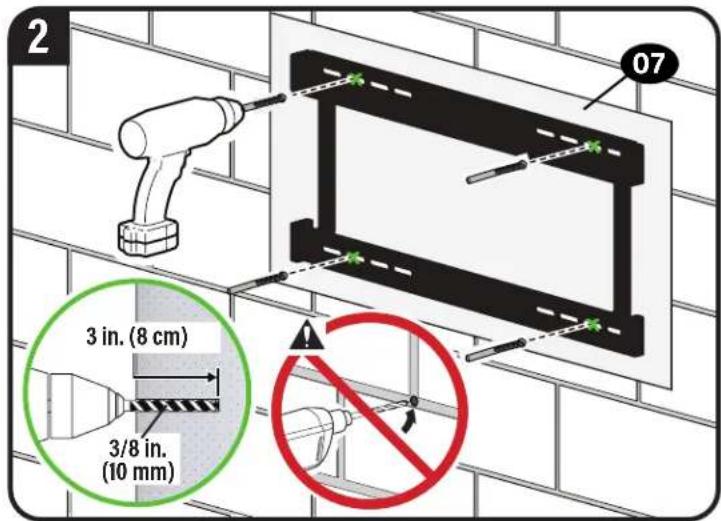

STEP 2B Attach Wall Plate

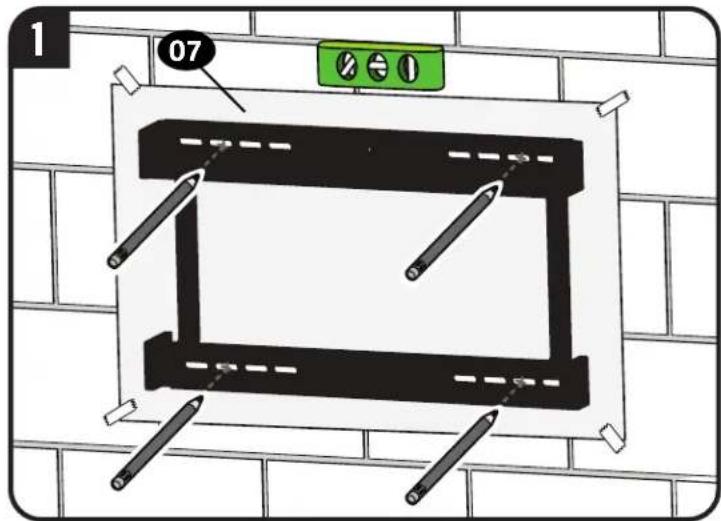

Solid Concrete or Concrete Block Installation

AUTION: Avoid potential personal injury or property damage!

• Mount wall plate 08 directly onto concrete surface (no wall covering)
  ● Minimum solid concrete thickness: 8 in. (203 mm)
  ● Minimum concrete block size: 8 x 8 x 16 in. (203 x 203 x 406 mm)
  • Minimum spacing between lag bolts is 16 in.
• For concrete applications, arm assembly 11 (STEP 3) must remain centered in wall plate 08. Keep this in mind when selecting wall plate location

Concrete Anchors are not included

Contact Customer Service:

US: 1-800-359-5520

EMEA: [phone]

UK: [phone]

to inquire about the concrete anchors.

CAUTION: Never drill into the mortar between blocks.

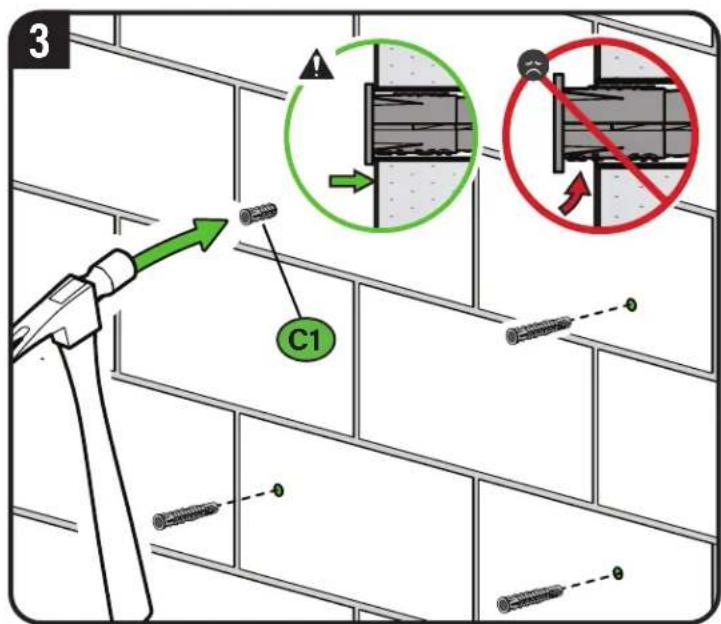

CAUTION: Be sure the anchors C1 are seated flush with the concrete surface.

Concrete achors (Fischer UX10 x 60R) C1 available through Customer Service.

CAUTION: Avoid potential personal injury or property damage! Improper use could reduce the holding power of the lag bolt 09. Tighten the lag bolts 09 and lag washers 10 only until they are pulled FIRMLY against the wall plate 08. DO NOT over-tighten the lag bolts 09.

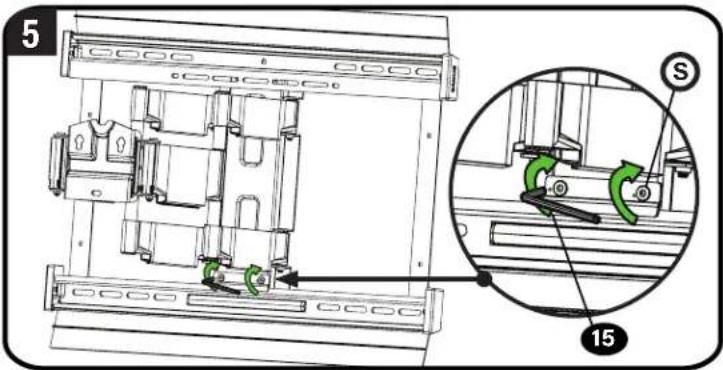

STEP 3 Hang TV onto Wall Plate

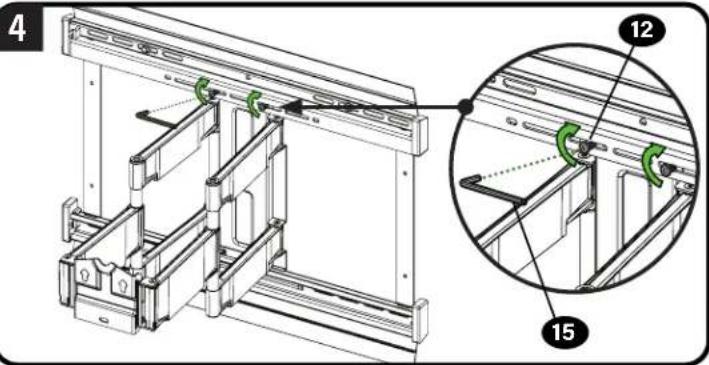

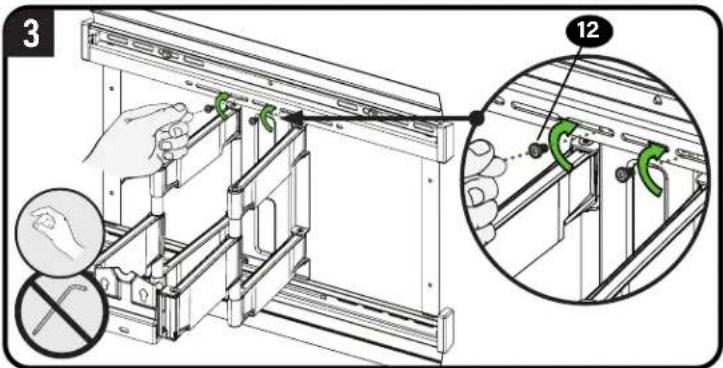

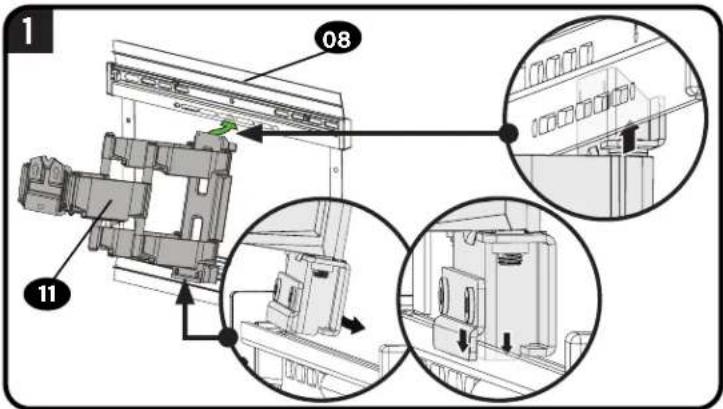

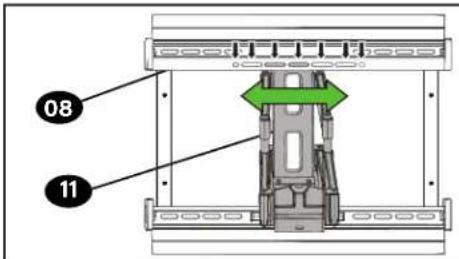

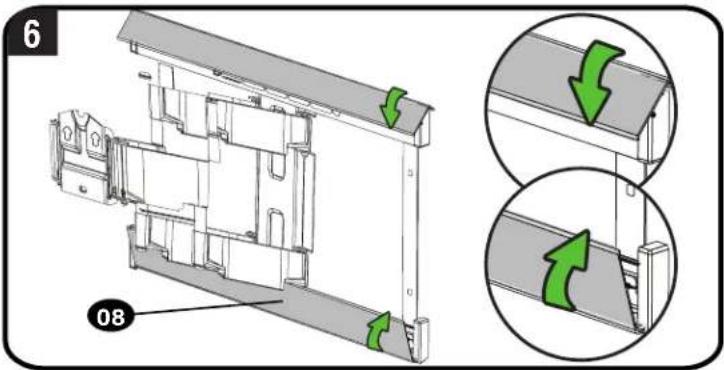

3.1 Attach Arm Assembly to Wall Plate

HEAVY! You may need assistance with this step.

2 CAUTION: Avoid potential personal injury or property damage!
For CONCRETE APPLICATIONS:

The arm assembly 11 MUST remain centered in wall plate 08.

NOTE: For WOOD STUD APPLICATIONS, the arm assembly 11 can be slid anywhere along wall plate 08 for optimal positioning of your TV.

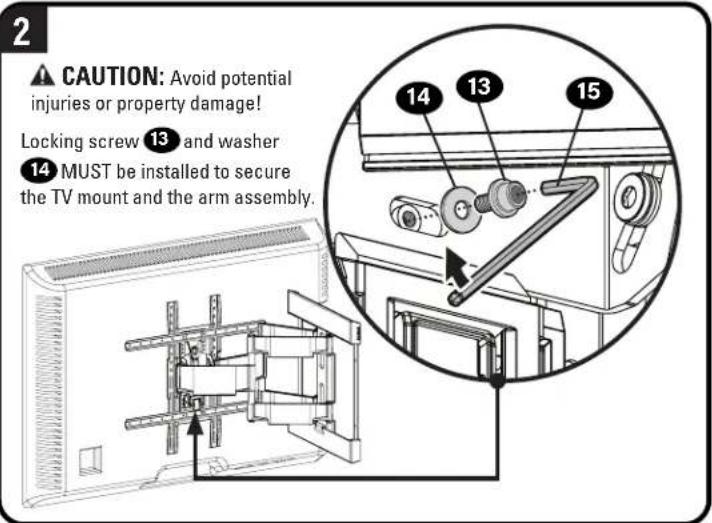

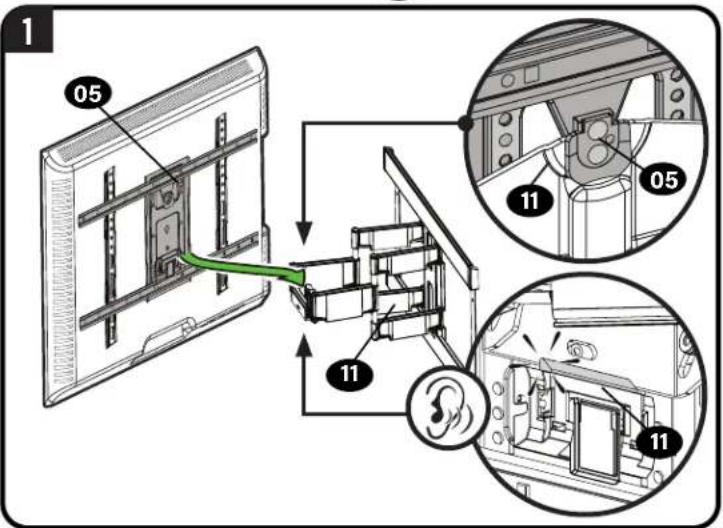

3.2 Attach TV to Arm Assembly

HEAVY! You may need assistance with this step.

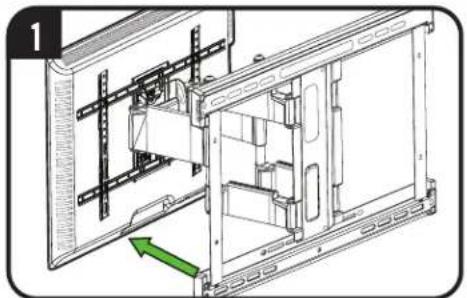

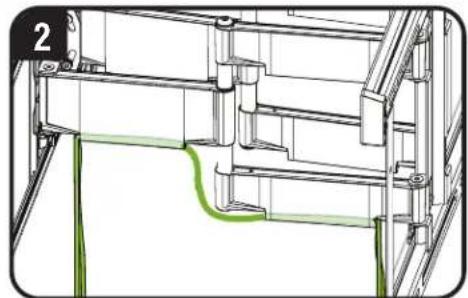

Manage Cables

1. IMPORTANT: Fully extend arm assembly 11 to ensure enough slack in cables.
2. Route your cables through the arm assembly shown. 11 as

Technical diagram of a mechanical assembly with a green arrow indicating direction (no text or symbols present)

Technical line drawing of a structural frame with green highlighted section (no text or symbols)

TV Adjustments

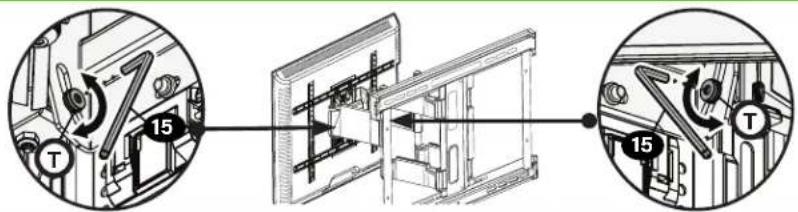

TILT ADJUSTMENT

Your TV should adjust easily when moved, then stay in place. If your TV is too loose or too tight use the hex key 15 for additional tightening of the right and left tilt tension screws T.

LEVEL ADJUSTMENT

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Loosen security screw 13


1. Level TV.


Technical line drawing of a mechanical assembly or enclosure with internal components (no text or symbols)

1. Retighten security screw 13.

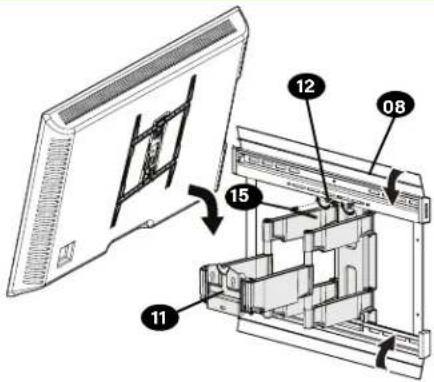

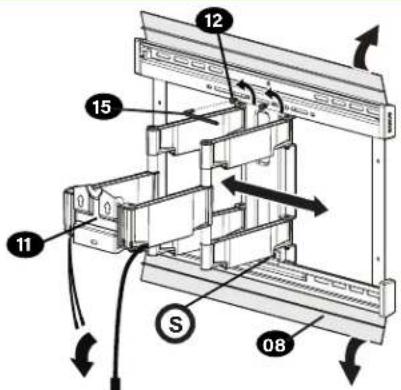

LATERAL SHIFT

HEAVY! You may need assistance with this step.

CAUTION: Avoid potential injuries or property damage! Do NOT adjust the arm position from center for concrete applications. Arm 11 MUST remain centered in wall plate 08 for all concrete applications!

1. Remove your TV (PAGE 9).
2. Open the cover plates, remove two screws 12 and loosen screws at bottom of arm to release arm assembly 11
3. Reposition the arm assembly 11 on the wall plate (STEP 3.1).
4. Reattach the two screws 12 (STEP 3.1), tigthen the screws at the bottom of arm S, and close the cover plates.
5. Hang your TV onto the arm assembly 11 following STEP 3.2.

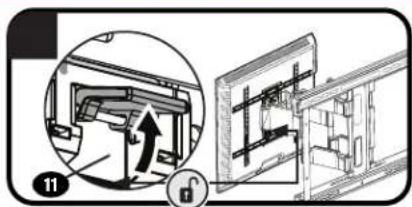

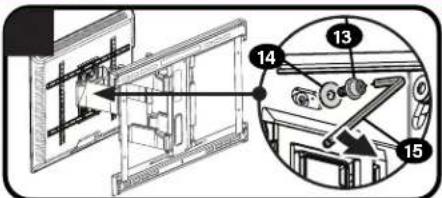

REMOVING THE TV

HEAVY! You may need assistance with this step.

Architectural diagram showing a window with structural elements and a green arrow pointing to a component (no text or symbols present)

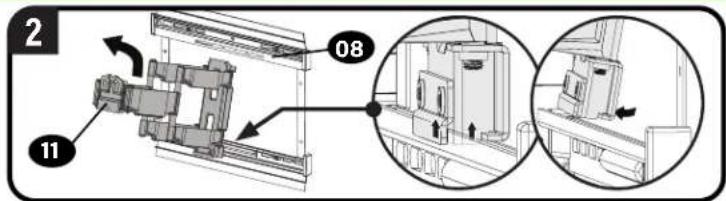

REMOVING THE ARM

ESPAÑOL
