Product type	Callus foot file
Brand	Medel
Model	Soft roll
Power supply	100-240 V ~ 50/60 Hz, output 5.0 V = 1000 mA (power adapter); Li-Ion battery 3.7 V, 2000 mAh
Battery life	Approximately 25 minutes without cable
Charging time	Approximately 3 hours
Dimensions	16.8 x 7.3 x 5.0 cm
Weight	Approximately 150 g
Speed levels	2 speeds
Included attachments	Coarse roller, fine roller, stainless steel file, protective cap
LED light	Yes, integrated for optimal lighting
Charge indicator	Yes: green light (full charge) / red light (low battery)
Use	On dry or wet skin (more effective on dry skin)
Maximum continuous use time	15 minutes, then a minimum 15-minute break
Maintenance	Clean attachments with the included brush and alcohol; clean the device with a soft cloth and mild detergent
Protection class	Double insulation, safety class 2
Intended use	Domestic / private use only
Package contents	Base device, coarse roller, fine roller, stainless steel file, power adapter, cleaning brush, micro-USB cable, instruction manual
Spare parts and consumables	Available from Medel customer service

Frequently Asked Questions - Soft roll Medel

How to charge the Medel Soft roll?

Plug the supplied power adapter into the switched-off device. Full charging takes about 3 hours. The LED blinks green during charging and stays solid green when fully charged.

What is the battery life?

A full charge allows approximately 25 minutes of cable-free use. You can also use it while plugged into the mains.

How to change the roller?

Hold the file in one hand and push the roller to the left while pulling it upward to remove it. Insert the new roller by pressing it until it clicks.

Can I use the device in the shower?

No, the device is designed for indoor dry use only. Never use it in the bathtub, shower, or near a filled sink.

Is the device suitable for diabetics?

People with diabetes must use the device with extreme caution as they are less sensitive to pain. Consult your doctor before use.

How to clean the attachments?

Use the supplied cleaning brush. It is recommended to rub the attachments with alcohol for hygienic cleaning. Make sure they are dry before reattaching.

What should I do if the device does not turn on?

First check the battery charge. Plug in the power adapter and wait a few minutes. If the LED does not light up, contact customer service.

How long can I use the device continuously?

Do not exceed 15 minutes of continuous use. Then allow at least a 15-minute break to prevent overheating.

Can the device be used on wet skin?

Yes, but it is more effective on dry skin. Avoid using creams before filing.

Where to buy spare parts?

Spare parts and consumables (rollers, files) are available from Medel customer service (see addresses in the manual).

USER MANUAL Soft roll Medel

Product photo of a medical or cleaning brush tool with teal and white body, showing a black inner blade and control knob (no text or symbols visible)

① Levigatore per talloni Istruzioni per l'uso 2-10
GB Callus remover Instructions for use.....11-18
D Hornhautentferner Gebrauchsanweisung......19-26

Line drawing of a hand holding a small object with an arrow indicating motion (no text or symbols)

1. Intended use....13
2. Safety notes....13
3. Unit description....16
4. Initial use....16

5. Operation....17

6. Maintenance and storage.....18

7. Replacement parts and wearing parts...18
8. Technical Data....18

Dear customer,

Thank you for choosing one of our products. Our name stands for high-quality, thoroughly tested products for applications in the areas of weight, blood pressure, body temperature, pulse, beauty, baby and air.

Please read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain.

With kind regards,

Your Medel team

Included in delivery

• Base device
• Coarse roller
• Fine roller
• Stainless steel rasp
• Mains part plug
• Cleaning brush
• Micro-USB charging cable
• Mains adapter
• These instructions for use

WARNING

• The unit is only intended for domestic/private use, not for commercial use.
• This device may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and are fully aware of the consequent risks of use.
  • Children must not play with the device.
• Cleaning and user maintenance must not be performed by children unless supervised.
• If the mains connection cable of this device is damaged, it must be disposed of. If it cannot be removed, the device must be disposed of.

Signs and symbols

The following symbols appear in the instructions for use and on the type plate:

	WARNING Warning instruction indicating a risk of injury or damage to health.
	IMPORTANT	Safety note indicating possible damage to the unit/accessory.
	Note Note on important information.
	Observe the instructions for use
	Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE
	Manufacturer
	The device is double protected and therefore corresponds to protection class 2.
	Only use indoors.

1. Intended use

With this callus remover you can remove unwanted hard or rough skin and calluses simply, quickly and effectively.

A coarse and fine callus attachment as well a stainless steel rasp are included in delivery.

Use these attachments to treat the affected areas with optimum results.

The device is only intended for the purpose described in these instructions for use. The manufacturer is not liable for damage resulting from improper or careless use.

2. Safety notes

Read these instructions for use carefully. Non-observance of the following information may result in personal injury or material damage. Store these instructions for use and make them accessible to other users. Make sure you include these instructions for use when handing over the device to third parties.

WARNING

• Keep packaging material away from children! Choking hazard.
• Children must be supervised at all times whilst using the device.

IMPORTANT

During use, a considerable amount of heat may be generated on the skin.

- Check results regularly during treatment. This is particularly advisable in the case of diabetics, as they are less sensitive to pain and are liable to become injured more easily. Always use with extreme care. If in doubt, ask your doctor.

• Any improper use can be dangerous.
• In case of prolonged intensive use (e.g. milling of dead skin from your feet) the device might get very hot. In order to prevent skin burns in these situations, there should be longer breaks between each application. For your own safety, constantly monitor heat build up in the device.

This particularly applies to people who are insensitive to heat.

• The device is only for private use and is not intended for medical or commercial purposes.
• For reasons of hygiene, the device should only be used on one person.
• Before making a claim, please check the batteries first and replace them if necessary.
• On no account try to repair the instrument yourself!
• Use the instrument only with the accessories provided.
• Do not use on small animals/animals.
• Keep the instrument away from sources of heat.
• Do not use the device for periods longer than 15 minutes without a pause. After this time, wait an interval of at least 15 minutes to prevent the motor from overheating.
• Hands must always be dry when using the device.
• Before use, ensure that the device and accessories show no visible damage. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.
• Do not pull, twist or bend the mains cable.
• Ensure that the mains cable is not routed or pulled over pointed or sharp objects.

• Insert the mains adapter into a socket that has been installed in compliance with applicable regulations.
• Never open the housing.
• Keep the device away from pointed or sharp objects.
• If the device has been dropped or has suffered any other damage, it must no longer be used.
• The device must be switched off and disconnected from the mains every time after use and before cleaning.

WARNING: Electric shock

As with every electrical device, use this device carefully and cautiously, in order to avoid hazards due to electric shock.

Therefore, observe the following instructions for use:

• Only with the mains adapter provided and only with the mains voltage specified on the mains part,
• Never use the device if it or its accessories show visible signs of damage,
• Do not use the device during pregnancy.

In the case of defects or operational faults, switch the device off immediately and disconnect the device from the mains socket. Do not pull on the mains cable or on the device to disconnect the mains part from the socket. Never hold or carry the device by the mains cable. Keep the cables away from hot surfaces.

Make sure that the plug and cable do not come into contact with water or other liquids. Observe the following when using the device:

• Only use the charger in dry interior rooms.
• Only use the charger with dry hands.
• Never use the charger in the bath, shower or near a filled wash basin.
• Never use the charger in a swimming pool, jacuzzi or sauna.
• Never use the charger outdoors.

Never try to retrieve the device if it has fallen into water and is connected to the power supply.

WARNING: Repairs

• Only specialist personnel may perform repairs on electrical devices. Improper repairs may subject users to considerable danger.
  In the event of a fault or damage, have the device repaired by a certified specialist workshop.

WARNING: Risk of fire

There is a risk of fire if the device is used improperly or these instructions for use are ignored.

Therefore, observe the following instructions for use:

• Always supervise the device when it is in use, especially if there are children nearby.
• Never use the device underneath a cover, such as blanket, pillow, etc.
• Never use the device near petrol or other highly flammable substances.

Notes on handling rechargeable batteries

• If your skin or eyes come into contact with fluid from the battery cell, flush out the affected areas with water and seek medical assistance.
• Choking hazard! Small children may swallow and choke on rechargeable batteries. Store rechargeable batteries out of the reach of small children.
• Observe the plus (+) and minus (-) polarity signs.
• If a battery has leaked, put on protective gloves and clean the battery compartment with a dry cloth.
• Protect batteries from excessive heat.

- Risk of explosion! Never throw batteries into a fire.

- Do not disassemble, split or crush the rechargeable batteries.

- Only use chargers specified in the instructions for use.

- Batteries must be charged correctly prior to use. The instructions from the manufacturer and the specifications in these instructions for use regarding correct charging must be observed at all times.

- Fully charge the battery prior to initial use (see Chapter 4).

- In order to achieve as long a battery service life as possible, fully charge the battery at least twice per year.

Rechargeable battery disposal

For environmental reasons, do not dispose of the device in the household waste at the end of its useful life. Dispose of the unit at a suitable local collection or recycling point. Dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

The empty, completely flat rechargeable batteries must be disposed of using specially designated collection boxes, recycling points or electronics retailers. You are legally required to dispose of the rechargeable batteries.

The codes below are printed on rechargeable batteries containing harmful substances:

Pb = Battery contains lead, Cd = Battery contains cadmium, Hg = Battery contains mercury.

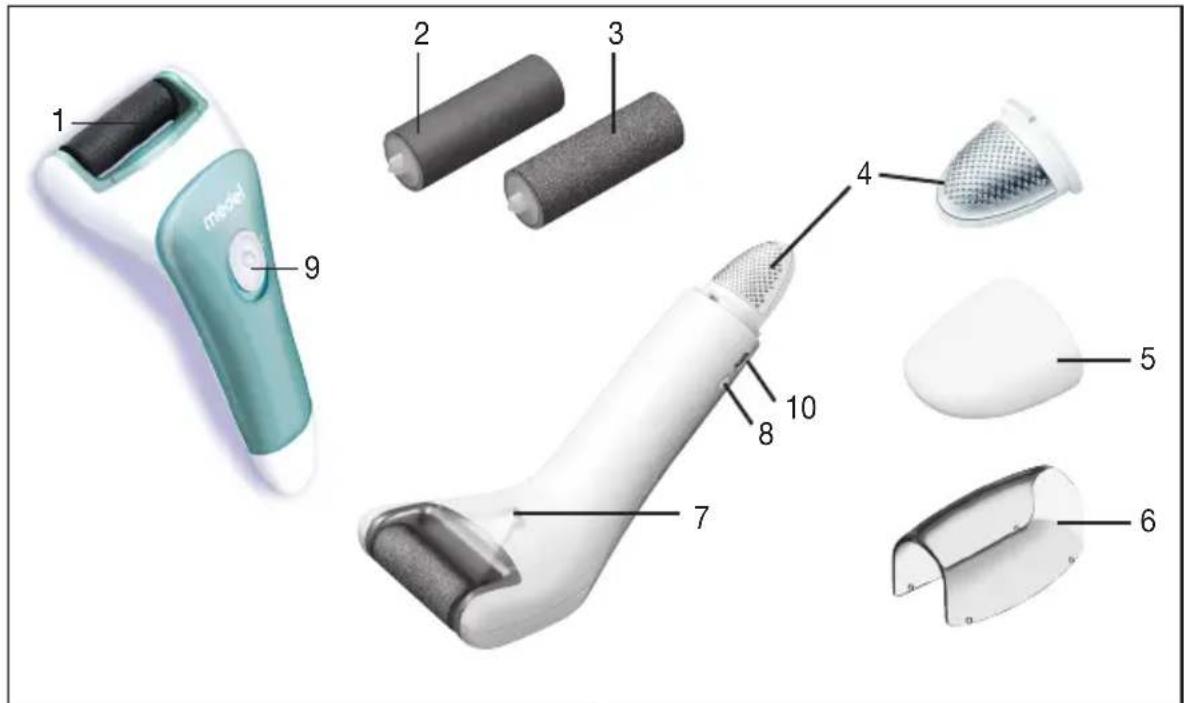

3. Unit description

1 model 2 3 4 5 6 7 8 9

1. Base device 6. Protective cap
2. Fine roller 7. LED light
3. Coarse roller 8. Battery level indicator
4. Callus rasp 9. On/off switch with 2 speed settings
5. Rasp protective cap 10. Micro USB connection

4. Initial use

• Remove the packaging.
• Check the device, mains plug and cable for damage.
• Connect the device to the mains. When doing so, the device must be switched off.
• Ensure that the cable does not pose a trip hazard.
• Charge the device for approximately 3 hours before the first use. When the charger indicator lamp flashes green, the battery is charging. The device is fully charged when the lamp shows solid green. You can then use the device either on battery power or with the mains cable.
• If the charger indicator lamp flashes red when running on battery power, it means that the battery is empty. Charge the device by connecting it to the mains adapter.
• One charge is sufficient for approx. 25 minutes of cordless operation. After that you can continue to use the device via mains operation.

IMPORTANT

• For hygiene reasons, you should not share the attachments with anyone else.
• When switched on, the device should not come into contact with other areas of skin (e.g. eyelashes, head hair, etc.), or with clothes or cords, to avoid injury as well as blockages or damage to the device.
• Do not use the device on irritated skin, varicose veins, rashes, spots, (hairy) birthmarks or wounds without consulting a doctor beforehand. The same applies to patients with weakened immune systems, diabetes, haemophilia and immune insufficiency.

Note

• The callus remover can be used on dry or wet skin. Removal of calluses is more effective on dry skin.
• When used on dry skin, the skin must be completely dry and free from grease.
• Do not use any cream before removing calluses.
• Do not remove too much of a callus as it may otherwise grow back again more strongly.

5. Operation

• Make sure that the abrasive roller is correctly inserted into the device.
• To switch on the device, move the On/Off switch to the desired speed setting.
• The LED light ensures optimal lighting conditions so that you can see and remove calluses better.
• You can use the callus rasp at the end of the handle to pre-treat heavily callused areas of skin on your feet.
• You can now remove severe calluses using the coarse abrasive roller
• If you wish to remove slightly callused areas or smooth your skin, use the fine callus attachment.
• Do not use the device for longer than 3–4 seconds on one area of the skin.
• Do not use the callus remover on irritated, sore or broken skin.
• Move the device slowly and evenly over the callus. Make sure you hold the device vertically at a 90^ angle to the callus. To achieve optimum results, it may help to move the device over the callus in different directions.

Changing the roller:

Proceed as follows to change the roller:

• Hold the callus remover in your hand as shown.
• SWith your other hand, push the roller to the left and pull it up and off.

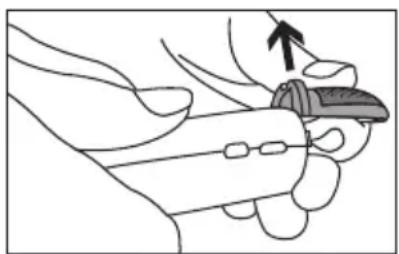

Changing the manual rasp:

Proceed as follows to change the rasp at the end of the handle:

• Hold the callus remover in your hand as shown.
• Pull the protective cap off the device.
• Now pull the rasp forwards off the device.

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols present)

Line drawing of a hand holding a small object with an arrow indicating motion (no text or symbols)

6. Maintenance and storage

WARNING

• Unplug the device each time before cleaning.
• Clean the device using only the methods specified. Under no circumstances may liquid enter the device or the accessory.
• Clean the callus attachment with the cleaning brush. We recommend that you moisten this beforehand with alcohol to guarantee a hygienic clean.
• Make sure that the relevant callus attachment is completely dry before you put it back on the device.
• Do not use the device again until it is completely dry.
• Do not clean the device in the dishwasher.
• Do not use any abrasive cleaning products or hard brushes.

Clean the unplugged device once it has cooled down using a soft, slightly damp cloth and a mild cleaning agent. Then wipe dry with a soft, lint-free cloth.

7. Replacement parts and wearing parts

Replacement parts and wearing parts are available from the corresponding service address (according to the service address list).

1. Technical Data

Disposal	Input: 100-240 V ~ 50/60 HzOutput: 5.0 V = 1000 mA
Dimensions	16.8 x 7.3 x 5.0 cm
Weight	approx. 150 g
Battery:Capacitynominal voltagetype designation	2000 mAh3.7 VLi-Ion

DEUTSCH

Inhalt

Illustration of a hand holding a small object with an arrow indicating motion or force (no text or symbols present)

Line drawing of a hand holding a small object with an arrow indicating motion (no text or symbols)

Remarques relatives aux batteries

Illustration of a hand holding a small object with an arrow indicating direction (no text or symbols present)

Line drawing of a hand holding a small object with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating motion or force (no text or symbols present)

Line drawing of a hand holding a small object with an arrow indicating motion (no text or symbols)

Gradient bar transitioning from black to white with no text or symbols

Color palette bar with eight distinct color swatches (yellow, magenta, cyan, blue, green, red, black, yellow, pink, cyan, gray) arranged horizontally.

REV.00-NOVEMBER2016-CODE 100135
