USER MANUAL KFF 400-M Koenic

Close-up of a metal-framed air conditioner fan with visible blades and mounting base (no text or symbols)

Deutsch 1-5

50μs:5 10

Fig.11-15

Ex.04.15.20

[401-67] 25

M428125 30

1.40031 35

Vecerande 58 - 40

213k/1-45

Portugues 46 - 50

Svenska 51-55

Torkpe 56 - 60

mtr cn Ginal

Markets

185246 ngolat

KIT400V_46_121205 xcb 1 5/12'12 4.53'1M

KE40012.12.05(1 4)

CE

Diagram of a four-tiered industrial fan with numbered parts for identification

KIT400M_46_121205scb 25/12/12 4537M

Sicherheitshinweise

Close-up of a metallic tool tip with a red arrow pointing to a small object, no visible text or symbols

Close-up of a transparent glass tube with a red arrow pointing to a small circular feature (no text or symbols visible)

Vorsicht

Front view of a modern office air conditioner fan with visible blades and mounting base (no text or symbols)

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a metallic grid structure with four small circular components at the base (no text or symbols visible)

Hand-drawn sketch of a mechanical component with red arrows indicating rotation or direction (no text or symbols)

Close-up of a pen tip with a red arrow indicating direction (no text or symbols)

Close-up of a wire mesh structure with a red arrow pointing to a specific area (no text or symbols visible)

Abstract grayscale image with red downward arrows and grid pattern, no text or symbols present

Close-up of a mechanical component with a red arrow pointing to a bolt (no visible text or symbols)

Close-up of a transparent fan with internal blades and a red arrow pointing to the blade (no text or symbols visible)

Close-up of a metallic object with a red arrow pointing to a small dark component, no visible text or symbols.

Close-up of a transparent glass tube with a red arrow pointing to a small circular feature (no text or symbols visible)

Front view of a modern office air conditioner fan with visible blades and mounting base (no text or symbols)

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

Close-up of a metallic curved structure with four small circular components at the base (no visible text or symbols)

Hand-drawn sketch of a mechanical component with red arrows indicating rotation or direction (no text or symbols)

Close-up of a metallic tool tip with a red arrow indicating direction (no text or symbols)

Close-up of a wire mesh structure with a red arrow pointing to a specific area (no text or symbols visible)

Abstract grayscale image showing a textured surface with two red downward arrows and a small droplet-like shape at the base (no text or symbols)

Close-up of a mechanical component with a red arrow pointing to a bolt (no visible text or symbols)

Close-up of a mechanical fan with a red arrow pointing to the side panel (no text or symbols visible)

• This product is not intended to be used by persons (including children) with reduced physical, sensory or mental abilities or lack of experience and / or lack of knowledge unless they are supervised by a person responsible for their safety or have received instructions on how to use the product.
• Children should be supervised to ensure that they do not play with the product.

- A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.

• Read this manual before first use thoroughly. It contains important information for your safety as well as for the use and maintenance of the equipment.
• Keep this manual for future reference and pass it on with the product.
• Pay particular attention to the warnings on the product and in this manual.
• Use the product only for its intended purpose. Improper use may lead to hazards.
• In the event of improper use or wrong operation, we do not accept any liability for resulting damages.
• The use of accessories and components not expressly recommended by the manufacturer may result in injuries or damages and voids the warranty.

• Never leave the product unsupervised while it is switched on.

• Do not place heavy objects on top of the product.

• Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
• The mains voltage must match the information on the rating label of the product.
• The power plug is used as the disconnect device. Please be sure that the power plug is in operable condition.
• Only unplug from the power socket can separate the product completely from the mains.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

English

Safety instructions

• Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing devices/objects.
• Only unplug from the power socket by the plug itself. Do not pull on the cord.
• Unplug the product ...
• when the product is not being used,
• in case of malfunctions,
• before attaching / detaching accessories and
• before cleaning the product.
• If the power cord or the casing of the product is damaged or if the product is dropped, the product may not be used before it is examined by an authorised service agent.
• Place the product on a flat, sturdy and slip-resistant surface.
• Use this product in dry indoor areas only and never outdoors.
• Warning! Do not use this product near water or heavy moisture; e.g. in a damp basement or beside a swimming pool or bathtub.
• Keep this product away from all heat sources like for example, ovens, hot plates and other heat-producing devices/objects.
• Protect this product from extreme heat and cold as well as from direct sunlight and dust.

• Do not remove the guard or insert any object during operation.

• Before cleaning, always let the product come to a complete stop and disconnect it from the mains.

• In order to avoid overheating, do not cover the product.
• Small children, children and older people should not be exposed to cold air currents for a long time.
• Keep product away from loose objects such as plants, curtains, etc.
• The product may only be connected to the mains once it has been completely assembled.

Congratulations!

Thanks for your purchase of KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The product is only intended for circulating room air. Only use according to these instructions. Any other use can lead to damages to product or injuries.

Before first time use

• Carefully take the product and its accessories out of the original packaging.
• Retain the original packaging in case you would like to store the product away or transport it at a later date. If you choose to dispose of the original packaging, then please do so according to the applicable legal regulations.
• Check the packaging contents for completeness and damages. Should the contents in the packaging not be complete or be damaged, do not use the product. Return it to your retail outlet immediately.
  • After unpacking, please refer to chapter Cleaning and care

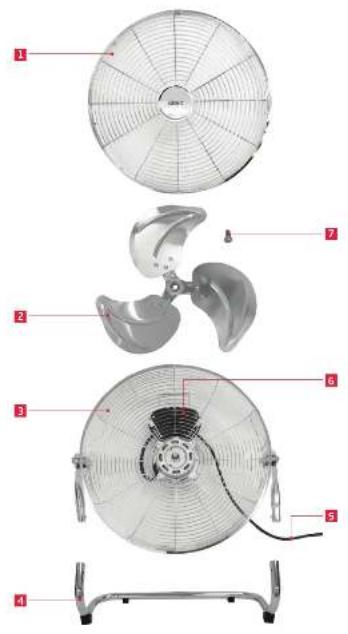

Part list

1 Front guard
2 Fan blade
3 Rear guard
4 Stand
5 Supply cord
6 Control buttons
7 Screw

Content

1 x Floor fan
1 x User manual

Technical data

Rated voltage 220 - 240 V\~, 50 Hz

Rated power 100 W

Fan diameter 40 cm

Weight approx. 4.6 kg

Description Symbol	Value Unit
Maximum fan flow rate	F 79.65 m		3/min
Fan power input P 64.20 W
Service value SV 1.24 (m)			7min)/W
Standby power consumption	P_SB	0.00 W
Fan sound power level	L_WA	64.20 dB(A)
Maximum air velocity	c	3.20 m/s
Measurement standard for service value	COMMISSION REGULATION (EU)No 206/2012IEC 60879:1986EN 50564:2011EN 60704-2-7:1998EN 60704-1:2010
Contact details for obtaining more information	Imtron GmbHWankelstraße 5D-85046 Ingolstadt

EN

Assembly

1. Install the stand to the fan and ensure that left and right side snap in correctly.
2. Ensure the knob (with arrow) comes out from the hole after installing the stand to the fan

Caution

Never connect the product to the mains when it is not completely assembled.

Installation

1. Place on a stable, level surface.
2. Connect the power plug to a suitable electrical outlet.

Caution

The product may never be operated without the stand or in a horizontal position.

Operation

1. To switch on the fan, press 1-3. To switch off, press 0.

0 Switch off

1 Low speed

2 Medium speed

3 High speed

1. Adjust it to the desired angle.

Note

Switch off and disconnect the product before adjusting height or desired angle.

Close-up of a metallic tool with a red arrow pointing to a detail (no text or symbols visible)

Close-up of a transparent glass tube with a red arrow pointing to a small circular feature (no text or symbols visible)

Front view of a metallic multi-panel office fan with visible blades and mounting base (no text or symbols)

1. Place on a stable, level surface

Close-up of a black plug inserted into a white socket, with a red arrow pointing to the plug (no text or symbols visible)

1. Plug in the product.

Close-up of a metallic grid structure with four small circular components at the base (no text or symbols visible)

Hand-drawn sketch of a mechanical component with red arrows indicating rotational motion (no text or symbols)

1. Select speed. 2. Adjust desired angle.

Caution

The guard must be completely closed when operating the product.

During operation, do not put fingers or other objects in the guard.

Cleaning and care

Caution

Before cleaning, always let the product come to a complete stop and disconnect it from the mains.

Please follow the disassembly instruction below.

1. Open the clips.
2. Uninstall the screw and nut to unlock the guard.
3. Take off the front guard from the rear guard.
4. Uninstall the screw from the groove.
5. Remove the fan blade from the motor shaft.

6. After cleaning, assemble the fan in reverse order of disassembly steps.

7. Use a soft piece of cloth for cleaning. If the dirt or contamination proves hard to remove, use mild detergent.

8. Do not use solvents or abrasives, metal utensils or hard brushes for cleaning.
9. Do not immerse the fan in water or other liquid. Do not allow water to drip on or into the fan motor housing.
   • Dry all parts thoroughly before storage.
10. Store the product in a cool, dry and clean place, out of the reach of children and pets.

Close-up of a pen tip with a red arrow pointing downward (no text or symbols)

Close-up of a wire mesh structure with a red arrow pointing to a specific area (no text or symbols visible)

Abstract grayscale pattern with red downward arrows and curved shapes on a textured background (no text or symbols)

Close-up of a mechanical component with a red arrow pointing to a bolt (no visible text or symbols)

Close-up of a mechanical fan with a red arrow pointing to the side panel (no text or symbols visible)

Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.
