USER MANUAL BP 40 K Comet

POMPE A MEMBRANE PER USO AGRICOLO

text_image Warning sign with exclamation mark inside a triangle

Comet BP 40 K - 1

EN • WARNING. Read the instructions before use and assembly

(EN) First of all read the General Section and then this Specific Manual.

ATTENTION!

BP 105 BP 125 BP 110BP 115 BP 135
Comet BP 40 K - ATTENTION! - 1[kW]5,5 6,8 6,0 6,0 7,1
[CV]4,0 5,0 4,4 4,4 5,2
Comet BP 40 K - ATTENTION! - 2[RPM] max.550
[RPM] min.400
Comet BP 40 K - ATTENTION! - 3AGIP SAE 20W/40
Comet BP 40 K - ATTENTION! - 4[°C]40
[°F]104
Comet BP 40 K - ATTENTION! - 5[°C]5
[°F]41
Comet BP 40 K - ATTENTION! - 6[l/min]104,0 117,0 110,0 110,0 124,0
max [US gpm]27,5 30,929,0 29,0 33,0
Comet BP 40 K - ATTENTION! - 7[l/min]107,0 121,0 116,0 116,0 132,0
bar [US gpm]28,3 32,031,0 31,0 35,0
Comet BP 40 K - ATTENTION! - 8[bar]20
[psi]290
Comet BP 40 K - ATTENTION! - 9[dB(A)]<70
Comet BP 40 K - ATTENTION! - 10[kg]12,9 13,013,0 14,3 14,3
[lb]28,4 28,728,7 31,5 31,5
BP 151 K BP 171 K BP 205 K BP 241 K BP 281 K
Comet BP 40 K - ATTENTION! - 11[kW]7,8 9,6 10,2 12,9 14,1
[CV]5,7 7,0 7,5 9,5 10,4
Comet BP 40 K - ATTENTION! - 12[RPM] max.550
[RPM] min.400
Comet BP 40 K - ATTENTION! - 13AGIP SAE 20W/40
Comet BP 40 K - ATTENTION! - 14[°C]40
[°F]104
Comet BP 40 K - ATTENTION! - 15[°C]5
[°F]41
Comet BP 40 K - ATTENTION! - 16[l/min]138,0 162,0 193,0 222,0 248,0
max [US gpm]36,5 42,8 51,0 59,0 66,0
Comet BP 40 K - ATTENTION! - 17[l/min]142,0 168,0 197,0 226,0 265,0
bar [US gpm]37,5 44,4 52,0 60,0 70,0
Comet BP 40 K - ATTENTION! - 18[bar]20
[psi]290
Comet BP 40 K - ATTENTION! - 19[dB(A)]<70
Comet BP 40 K - ATTENTION! - 20[kg]24,0 24,0 32,0 38,0 38,0
[lb]52,9 52,9 70,5 84,0 84,0
BP 251 HS BP 291 HS BP 330 HS
Comet BP 40 K - ATTENTION! - 21[kW]12,9 14,7 17,8
[CV]9,5 10,8 13,1
Comet BP 40 K - ATTENTION! - 22[RPM] max.800
[RPM] min.650
Comet BP 40 K - ATTENTION! - 23AGIP SAE 20W/40
Comet BP 40 K - ATTENTION! - 24[°C]40
[°F]104
Comet BP 40 K - ATTENTION! - 25[°C]5
[°F]41
Comet BP 40 K - ATTENTION! - 26[l/min]245,0 278,0335,0
max bar [US gpm]65,0 73,0 88,0
Comet BP 40 K - ATTENTION! - 27[l/min]253,0 286,0341,0
bar [US gpm]67,0 76,0 90,0
Comet BP 40 K - ATTENTION! - 28[bar]20
[psi]290
Comet BP 40 K - ATTENTION! - 29[dB(A)]<70
Comet BP 40 K - ATTENTION! - 30[kg]38,0 38,0 50,0
[lb]84,0 84,0 110,0

Comet BP 40 K - ATTENTION! - 31

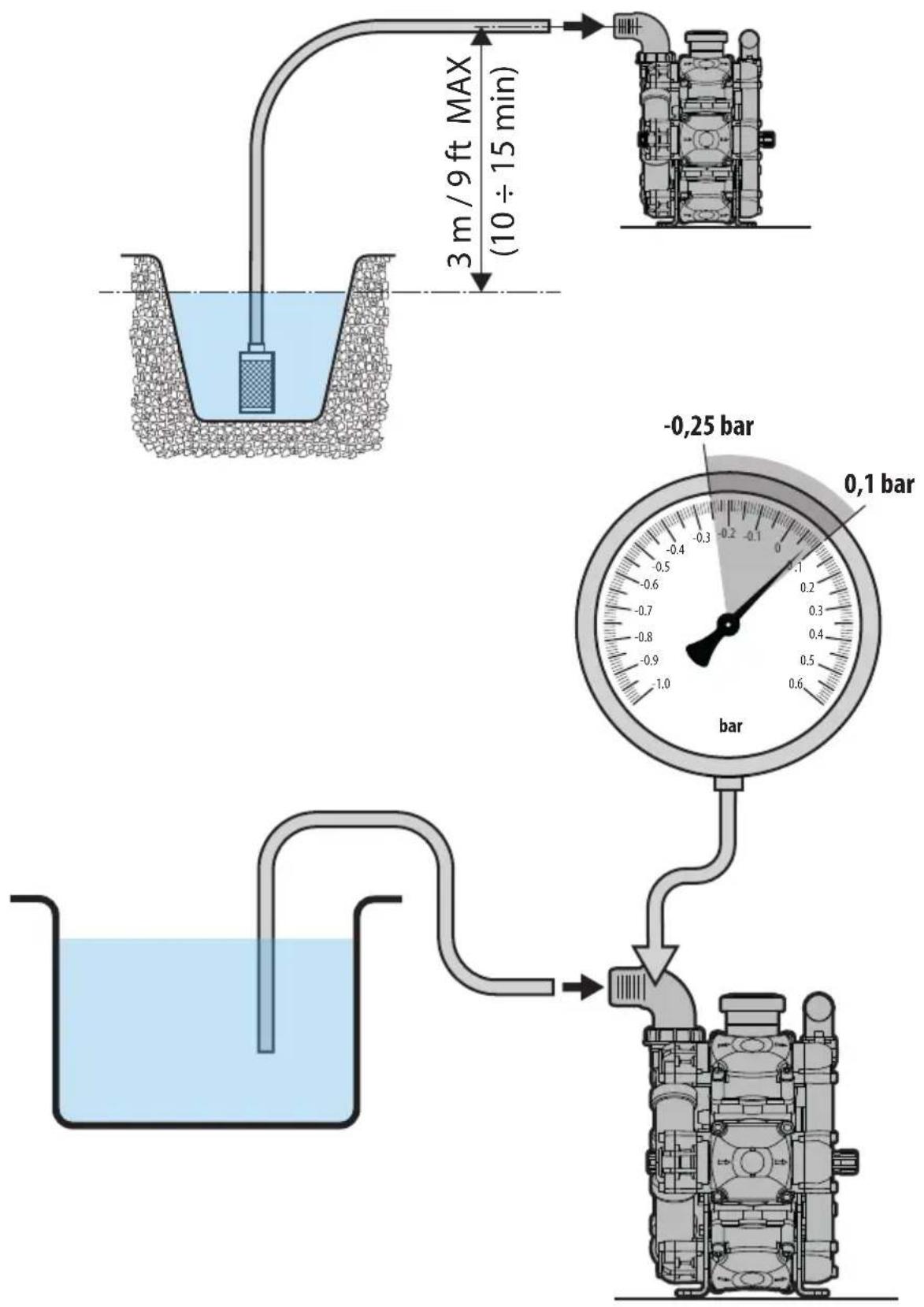

text_image 3 m / 9 ft MAX (10 ÷ 15 min) -0,25 bar 0,1 bar bar

Comet BP 40 K - ATTENTION! - 32

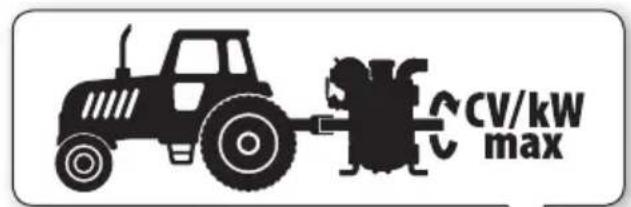

text_image CV/kW max

(IT) Tipo albero passante ■ (EN) Through-shaft type ■ (FR) Type d'arbre passant ■
(ES) Tipo de cigüeñal pasante ■ (CS) Typ průchozí hřídele ■ (DE) Typ durchgehende Welle ■
(EL) Τύπος περαστού άξονα ■ (HU) Üreges szivattyú ■ (NL) Type doorvoerende as ■
(PL) Typ wału przelotowego ■ (PT) Tipo de eixo passante ■ (SK) Typ prechodného hriadel'a ■
(SL) S pomočjo vrste valja ■ (FI) Kulkuakselin tyyppi ■ (SV) Genomgående axeltyp ■
(RU) Тип сквозного вала ■ (RO) Prin tipul arborelui

BP 151 KBP 171 KBP 205 KComet BP 40 K - ATTENTION! - 331" 3/8 MComet BP 40 K - ATTENTION! - 34 11,0
BP 241BP 281BP 251 HSBP 291 HSBP 330 HSComet BP 40 K - ATTENTION! - 351" 3/8 MComet BP 40 K - ATTENTION! - 36 22,0
BP 330 HSComet BP 40 K - ATTENTION! - 371" 3/8 MComet BP 40 K - ATTENTION! - 38 8,4
BP 330 HSComet BP 40 K - ATTENTION! - 391" 3/8 MComet BP 40 K - ATTENTION! - 40 4,7
BP 75BP 105 KBP 125 KBP 115BP 135Comet BP 40 K - ATTENTION! - 411" 3/8 MComet BP 40 K - ATTENTION! - 42
BP 151 KBP 171 KBP 205 KComet BP 40 K - ATTENTION! - 431" 3/8 MComet BP 40 K - ATTENTION! - 44 11,0
BP 241BP 281BP 251 HSBP 291 HSBP 330 HSComet BP 40 K - ATTENTION! - 451" 3/8 MComet BP 40 K - ATTENTION! - 4622,0

NOTE:

Comet BP 40 K - ATTENTION! - 47

text_image QR code image containing encoded data, no visible human-readable text

Comet BP 40 K - ATTENTION! - 48

COMET

AGRICULTURAL DIVISION

COMET S.p.A. - Via G. Dorso, 4 - 42124 Reggio Emilia - ITALY

Tel. +39 0522 386111

E-Mail Italia: vendite@comet.re.it - fax +39 0522 386300

E-Mail Export: export@comet.re.it - fax +39 0522 386286

www.comet-spa.com

1610 1744 00 - 02/2016 - REV. 00
