USER MANUAL MTP FW2 MISTING Comet

Two industrial electric motors shown from different angles, no visible text or labels

Warning symbol image with exclamation mark inside a triangle

(EN) WARNING. Read the instructions before using and assembling.

Technical diagram of a mechanical component with labeled parts 8 and 9, showing a bolted joint and housing structure.

15

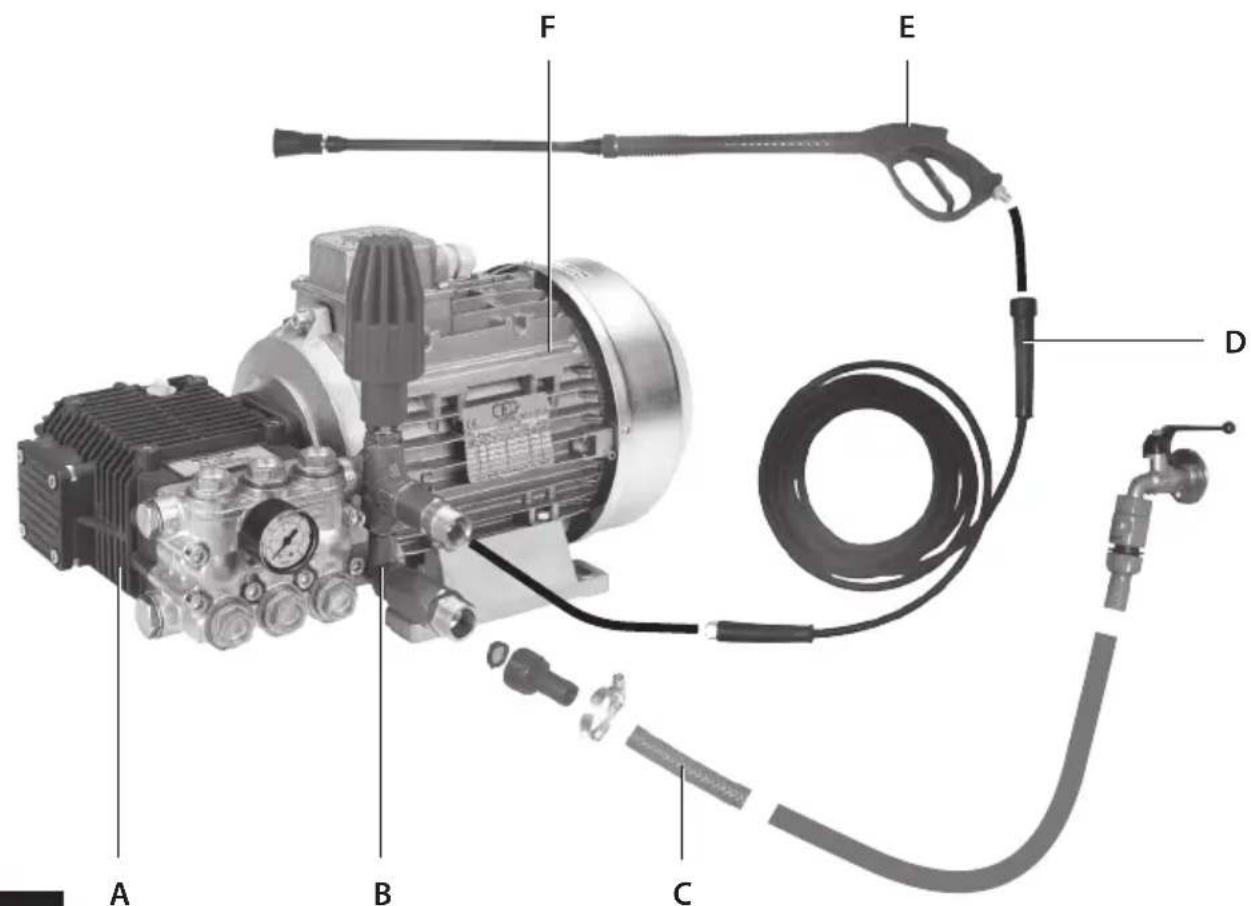

A B C D E F

16

PREMESSA

MOBIL - Delvac MX 15W-40;

SHELL - Rimula R4 15W-40;

TOTAL - Rubia TIR 7400 15W-40;

ENI - I-Sigma Performance E7 15W-40.

(solo MTP KSR, MTP KSR Misting)

1. Pulsante"PRIMING"

This manual consists of two distinct parts.

The first is intended for both the end user and the Skilled Technician and contains the motor pump operation and maintenance instructions; the second is dedicated to the Skilled Technician only and provides instructions for the correct integration of the motor pump in the end machine.

By Skilled Technician is meant:

• the Manufacturer of the machine (e.g., high pressure cleaner) in which the motor pump is integrated (from now on, when reference is made to “machine in which the motor pump is integrated”, this may also refer to “system in which the motor pump is integrated”, such as, for example, in the case of a pumping station);
• a person, normally belonging to the after-sales centre, specifically trained and authorised to perform special maintenance jobs and repairs on the motor pump and on the machine in which this is integrated. It should be remembered that jobs on the electrical parts must be performed by a Skilled Technician who is also a Qualified Electrician, meaning a person professionally qualified and trained to check, install and repair electrical apparatus in a “workmanlike” manner and in accordance with the laws applicable in the country where the motor pump and the machine integrating it are installed.

PART ONE

GENERAL INFORMATION

Carefully read this manual and the manual of the machine in which the motor pump is integrated: always carefully comply with the instructions contained in them.

Special care must be given to reading the parts of the text marked by the symbol:

WARNING

inasmuch as these contain important safety instructions concerning motor pump operation.

The Manufacturer disclaims all liability relating to damage caused by:

• failure to abide by the contents of this manual and the manual of the machine in which the motor pump is integrated;
• the motor pump being used in ways other than those indicated in the "INTENDED USE" paragraph;
• the motor pump being used in ways contrary to applicable laws on safety and prevention of work accidents;
• tampering with the safety devices and with max operating pressure limitation;
• incorrect assembly and installation;
• incorrect maintenance;
• changes made or jobs done on the pump without the permission of the Manufacturer;
• use of non-original spare parts or which are not suitable for the motor pump model;
  • repairs not performed by a Skilled Technician.

USING AND LOOKING AFTER THE MANUAL

WARNING

- This manual completes that of the machine in which the motor pump is integratedread all the manuals carefully.

The manual must be deemed an integral part of the motor pump and must be looked after for future reference and kept in a protected place where it can easily be referred to in case of need.

The manual contains safety precautions for the operator and those surrounding him/her and for the protection of the environment.

In case of deterioration or loss, a new copy must be requested from the Manufacturer or from a Skilled Technician

In the event of the machine in which the motor pump is integrated being transferred to another user, please include also this manual.

The Manufacturer reserves the right to make all the amendments required to update and correct this publication without prior notice.

SYMBOLS

EN

The symbol:

WARNING

marking certain parts of the text indicates a likely chance of injury to persons unless the relative prescriptions and indications are followed.

The symbol:

CAUTION

marking certain parts of the text indicates the possibility of damaging the motor pump unless the relative instructions are followed.

SPECIFICATIONS AND TECHNICAL DATA

The motor pumps consist of a piston pump, including a pressure limiting/unloader valve (also see "SAFETY DEVICES" paragraph), coupled to an electric motor (single phase if the plate shows the MNF code; three phase if the plate shows the TRF code). Versions are also available featuring electric box, power cable, ON/OFF switch and Total-Stop device.

POWER CONNECTION	Power voltage, frequency and power are shown on the plate (12).
PUMP OIL• MTP TW 500 GAZPROMNEFT SUPER OIL GTD 15-W40• Other motor pumps ENI MULTITECH THT	(*)(**)
HYDRAULIC CONNECTIONMax water supply temperature• MTP KTR - MTP KTR Misting - MTP KMR - MTP KSR - MTP KSR Misting• Other motor pumps 60 °C - 140 °F	50 °C - 122 °F
Min water supply temperature 5 °C - 41 °F
Max water supply pressure 0,8 MPa - 8 bar - 116 psi
Min water supply flow rate 1.3 x max motor pump flow rate
Max priming depth• MTP KTR - MTP KTR Misting - MTP KMR - MTP KSR - MTP KSR Misting - MTP AX Misting - MTP LW Misting• MTP LWR-K 250 - MTP LWR-K - MTP ZWR-K - MTP AXR 0,5 m - 1,7 ft• Other motor pumps 1,0 m - 3,3 ft	0 m - 0 ft

(continued on next page)

PERFORMANCEMax. level of sound pressure - uncertainty 74,6 dB(A) - 1 dB(A)Max. level of sound power - uncertainty 88 dB(A) - 1 dB(A)

Max. pressure and flow rate are shown on the motor pump plate (12).

MAX WEIGHTMTP LW-K 250 - MTP LWR-K 250 - MTP LW Misting 35,0 kgMTP ZW-K 32,0 kg - 71,6 lbMTP FW2 - MTP FW2 Misting 45,0 kg - 99,2 lbMTP RW 50,0 kg - 110,2 lbMTP TW - MTP TW Misting 120,0 kg - 264,5 lbMTP TW 500 128,0 kg - 282,2 lbMTP KSR - MTP KSR Misting 13,0 kg - 28,6 lbMTP AXR - MTP AX Misting 20,5 kg - 45,2 lbMTP KTR - MTP KTR Misting 18,2 kg - 40,1 lbMTP KMR 13,1 kg - 28,9 lbMTP LW-K - MTP LWR-K - MTP ZWR-K 35,0 kg - 77,2 lb

- 77,2 lb

Specifications and details are approximate. The Manufacturer reserves the right to make all changes to the appliance as deemed necessary.

(*) Corresponding oils ▶ GAZPROMNEFT SUPER OIL GTD 15W-40:

MOBIL - Delvac MX 15W-40;

SHELL - Rimula R4 15W-40;

TOTAL - Rubia TIR 7400 15W-40;

ENI - I-Sigma Performance E7 15W-40.

(**) Corresponding oils ▶ ENI MULTITECH THT:

MOBIL - Mobilfluid 424;

MOBIL - Mobilfluid 426;

PETRONAS - Arbor MTF Special 10W-30;

SHELL - Spirax S4 TXM;

TOTAL - Dynatrans MPV;

ELF - Tractelf BF16;

CASTROL - Agri Trans Plus 80W;

CHEVRON - Textran THD Premium;

Q8 - Roloil Multivariax 35 HP.

IDENTIFICATION OF COMPONENTS

Refer to Figures from 1 to 15 at the beginning of the manual.

1. ON/OFF switch

2. Pressure adjustment knob

3. Delivery fitting

4. Suction fitting

5. Detergent suction hose connection

6. Pressure gauge

7. Oil level indicator

8. Oil cap without vent

9. Oil cap with vent

10. Ammeter protection RESET button (only MTP KSR, MTP KSR Misting)

11. "PRIMING" button" (only MTP AXR featuring Total Stop)

12. Motor pump identification plate

WARNING

- Should the identification plate deteriorate during use, contact the Manufacturer or Skilled Technician to have it restored.

The identification plate (12) shows the motor pump model, the serial number, the year of manufacture and the main electrical and mechanical specifications (max rotation speed, max pressure, weight, power supply voltage, input, etc.). It is located on the electric motor casing or on the power box.

SAFETY DEVICES

EN

WARNING

- If the machine in which the motor pump is integrated features a safety valve, i.e., a max. pressure valve, suitably calibrated, which discharges excess pressure in case of a fault in the high-pressure circuit, in the event of the safety valve tripping frequently, immediately stop using the machine in which the motor pump is integrated and have it checked by a Skilled Technician.

a) Pressure unloader/regulation valve.

This valve is suitably set by the Manufacturer and allows regulating the operating pressure and permits the pumped fluid to flow back towards the bypass duct, thus preventing the accumulation of dangerous pressures when the delivery line is closed or when attempts are made to set pressure values above the maximum ones allowed.

WARNING

- The pressure unloader/regulation valve is set either by the motor pump Manufacturer or by that of the machine in which the motor pump is integrated. Never try and adjust the pressure unloader/regulation valve to alter the setting: only operate on this by means of the knob (2).

b) Thermal or ampere cut-out protection device (only motor pumps with Total Stop).

This device stops motor pump operation in the event of overheating of the electric motor or excessive power absorption respectively.

In case of tripping, proceed as follows, keeping to the indications shown in the manual of the machine in which the motor pump is integrated:

• stop the machine and remove the plug from the power socket;
• release any residual pressure in the high-pressure circuit;
• wait 10 ÷ 15 minutes for the motor pump to cool down;
• fit the plug back in the socket and repeat the start procedure.

- make sure the instructions have been followed in the paragraph "CHECKING AND CONNECTING UP TO THE POWER SUPPLY", with special reference to any extension used;

WARNING

- In case these safety devices trip frequently, do not use the motor pump (and therefore the machine in which it is integrated) without first having it checked by aSkilled Technician

INTENDED USE

WARNING

• The motor pump must not be run by itself. It is only meant to be integrated in a machine.

• The motor pump must be integrated in machines used for the following purposes:

• pumping of water at high pressure in washing machines (high pressure cleaners);

• pumping water for non-edible use.

- The motor pump must not be integrated in machines for pumping:

• unfiltered water or with impurities;
• detergents, paints and chemical substances, both pure and in aqueous solution;
• seawater or water with high salt concentration;
• fuels and lubricants of all kinds and types;
• inflammable liquids or liquefied gases;
• edible liquids;
• solvents and thinners of all kinds and types;
• paints of all kinds and types;
• water with temperatures above 60 °C/140 °F (50 °C/122 °F for MTP KTR, MTP KTR Misting, MTP KMR, MTP KSR, MTP KSR Misting) or below 5 °C/41 °F;

• liquids containing granules or solid parts in suspension.

• The motor pump must not be integrated in machines designed to wash: people, animals, energized electrical apparatus, delicate objects, the motor pump itself or the machine in which it is integrated.

• The motor pump is not suitable for being integrated in machines designed to operate in environments with special conditions such as, for example, corrosive or explosive atmospheres.
• For integration in machines designed to operate on board vehicles, ships or planes, contact the Manufacturer's Technical After-Sales Service, inasmuch as additional requirements may be necessary.

All other uses are to be deemed incorrect.

The Manufacturer disclaims all liability for any damage deriving from incorrect or erroneous uses.

PRELIMINARY ACTIVITIES

WARNING

• The motor pump cannot be operated unless the machine in which it is integrated conforms to the safety requirements laid down by European directives. Such conformity is indicated by C€ markings and by the declaration of conformity of the Manufacturer of the machine in which the motor pump is integrated.
• Also follow the instructions contained in the use and maintenance manual of the machine in which the motor pump is integrated.
• Make sure all deliveries are off or connected to accessories that have been turned off (e.g., closed spray gun).
• Make sure that the moving parts of the motor pump are suitably protected and that they are not accessible to unauthorised persons.

• Do not use the motor pump (and therefore the machine in which it is integrated) in the event of:

• the supply cable or other important parts such as the high-pressure pipes and the safety devices being damaged;

• its having suffered heavy knocks;
• evident oil leaks;
• evident leaks of pumped liquid.

In such cases, have the motor pump and the machine in which it is integrated checked by a Skilled Technician.

• Have a Skilled Technician perform the inspections required by special maintenance.
• Wear clothing and personal protective equipment able to provide adequate protection from any high-pressure jets and chemical products used.

Carry out the preliminary activities indicated in the manual of the machine in which the motor pump is integrated; unless otherwise indicated, with respect to the motor pump, always remember the following.

a) Replace the oil cap without vent (8) with the oil cap with vent (9) (see Fig. 15). This operation could already have been performed by the Manufacturer of the machine in which the motor pump is integrated.
b) With the engine off and the motor pump completely cooled down, make sure the oil level is at mid-point of the oil level indicator (7).

For any touch ups, refer to the types of lubricants indicated in the paragraph "SPECIFICATIONS AND TECHNICAL DATA".

CAUTION

• In case of operation at very low temperatures, make sure there is no ice inside the pump and pipes.
• Perform the checks required by routine maintenance, with special reference to those relating to the oil.

CHECKING AND CONNECTING UP TO THE POWER SUPPLY

WARNING

• Also follow the instructions contained in the manual of the machine in which the motor pump is integrated.
  • A Skilled Technician must:

- make sure the power supply of the motor pump features a suitable fuse and is in conformity with the details shown on the plate (12): in particular, the power voltage must not be outside the ± 5% range;

- connect a plug in compliance with the laws applicable in the country where the machine in which the motor pump is integrated is installed, in the case of the power lead being without such plug and of the motor pump not being permanently connected to a power supply source.

- The connection to the power source must be made by a Skilled Technician and must be in compliance with the requirements of IEC 60364-1.

The power supply line of the motor pump must be fitted with a switch able to interrupt the power supply whenever ground dispersion exceeds 30 mA for 30 ms or with a device for testing the earth circuit.

- If the motor pump does not have a power lead and plug, or another device for disconnecting it from the mains, with a contact opening distance that allows complete disconnection in overvoltage III category conditions, such disconnection devices must be fitted to the supply mains in compliance with installation regulations.

Note: in this use and maintenance manual, for the sake of simplicity, the motor pump shall always be deemed connected to the power mains by means of a plug.

If the motor pump is permanently connected to the power supply, this means:

- the mains disconnection device in off ("0") position is equivalent to removing the plug from the power socket; - the mains disconnection device in on ("1") position is equivalent to fitting the plug in the power socket.

• In the event of the power cable being too short, an extension can be used as long as this does not exceed 10 m/32.8 ft, and that the cross section of the leads is at least 1.5 mm ^2 (motor pumps with inputs below 13 A), or 2.5 mm ^2 .
• WARNING. If an extension is used, the plug and the socket must be of the sealed-immersion type.
• WARNING. Inadequate extensions can be dangerous.
• Do not use reductions or adapters between power plug and socket.

CHECKING AND CONNECTING UP TO WATER MAINS

WARNING

• Also follow the instructions contained in the manual of the machine in which the motor pump is integrated.
• Follow the water mains connection instructions applicable in the country where the machine in which the motor pump is integrated is installed.

CAUTION

• Follow the water mains connection instructions shown in the "SPECIFICATIONS AND TECHNICAL DATA" paragraph, with special reference to the priming depth and supply pressure and temperature: in case of any doubts, contact a Skilled Technician.
• The suction of motor pump must always be equipped with a suitably-sized filter: frequently make sure this is clean.
• Never operate the motor pump:

- without water supply;

- with salt water or water containing impurities: if this occurs, have it operate for a few minutes with clean water.

WARNING

• Also follow the instructions contained in the manual of the machine in which the motor pump is integrated with special reference to the parts relating to the safety precautions, any use of personal protective equipment (protective eyewear, ear muffs, etc.) and handling.
• Before starting up the machine in which the motor pump is integrated, carefully read the machine's manual and this manual. In particular, make sure you have fully understood how the motor pump and the machine in which it is integrated work as regards liquid on/off operations.
• The motor pump and the machine in which it is integrated are not intended to be used by people (including children) with reduced physical, sensorial or mental capacities, or who lack the experience and expertise, unless they are able to benefit, through the intermediation of a person responsible for their safety, from supervision or instructions concerning the use of the motor pump and of the machine in which it is integrated.
• Children must be supervised to make sure they do not play with the motor pump and with the machine in which it is integrated.

• During operation:

• always keep an eye on the motor pump and the machine in which it is integrated and out of the reach of children; in particular, be very careful when using near nurseries, clinics and old-people's homes, in case of children, elderly people or disabled people without supervision;

• do not direct high-pressure jets against materials containing asbestos or other substances harmful for the health;
• do not cover the motor pump and the machine in which it is integrated and do not place them where ventilation is prevented (remember this above all when using the machine in closed environments);
• when not in operation and before doing any jobs, perform the operations described in the "STOP" paragraph. In particular, do not leave the motor pump and the machine in which it is integrated with the plug in the power socket;
• operating pressure must never exceed the maximum set for the motor pump (see also "SPECIFICATIONS AND TECHNICAL DATA" paragraph);
• in the case of a thermal cut-out or automatic setting ammeter tripping, always move the master switch to "0" position and, if present, remove the plug from the power socket because, once cooled, the motor pump could start up again on its own;

• use adequate personal protective equipment to safeguard against noise emissions (e.g., ear muffs).

• WARNING Do not use the motor pump or the machine in which it is integrated near people if these are not wearing personal protective equipment.

• WARNING. Do not direct high-pressure jets against yourself or other people to clean clothes or footwear.
• WARNING. High-pressure jets can be hazardous if incorrectly used. High-pressure jets must not be directed against people, energized electrical appliances or the motor pump itself or the machine in which it is integrated.
• WARNING. Explosion risk - Do not spray inflammable liquids.
• Do not use the motor pump under the rain.
• Read the "CHECKING AND CONNECTING UP TO THE POWER SUPPLY" paragraph carefully.
• Read the "OPERATION WITH DETERGENT" paragraph carefully.
• Do not remove the plug from the power socket by pulling the power cable.
• Keep the power cable, any extensions, the plugs and the sockets dry. Do not touch with wet hands.
• Keep clear of moving parts of the motor pump and of the machine in which it is integrated, even if these are adequately protected.
• Do not remove the guards of the moving parts.
• Do not touch pipes containing liquids under pressure.
• Do not perform maintenance operations on the motor pump and on the machine in which it is integrated if this is operating.
• Read the "INTENDED USE" paragraph carefully.
• Do not modify in any way the installation conditions of the motor pump. In particular, do not modify the fastening, the hydraulic connections and the guards.
• Do not operate any taps on the motor pump unless these are connected to an accessory that prevents the

accidental escape of the pumped liquid.

- Do not deactivate or tamper with the controls and the safety devices and the pressure unloader/regulation valve.

Perform the steps relating to the high-pressure operation indicated in the manual relating to the machine in which the motor pump is integrated; unless otherwise indicated, in relation to the motor pump, the following should be remembered.

a) In the case of a motor pump with Total Stop, on the power box is an omnipolar disconnection switch (1) for starting it and switching it off.
b) The motor pump can only be primed if the pressure of the delivery circuit is reset, e.g., by opening an accessory (spray gun in the case of the high pressure cleaner).

NOTE.

In the case of MTP AXR with Total Stop, priming is only possible if the “PRIMING” button (11) is kept pressed.

c) Pressure adjustment is by means of the knob (2).
d) If fitted, the pressure is shown on the pressure gauge (6).

CAUTION

• To permit fast motor pump priming, proceed as indicated at point b) every time the pump has to be primed again.
• During the first hours of operation, it is best to check the oil level and, if necessary, top up the level, following the instructions in the "PRELIMINARY ACTIVITIES" paragraph.
• In the case of the models not featuring Total Stop or if work is being done at pressure so low as not to trigger the device, do not keep the delivery line closed for more than three minutes (e.g., with spray gun closed), to avoid the water re-circulating in the pump head from overheating, with consequent damage to the seals.
• Do not operate the motor pump:

- if it is too noisy and/or water or oil is dripping from it: in this case have it checked by a Skilled Technician

- when exposed directly to sunlight, with ambient temperature above 40 °C .

OPERATION WITH DETERGENT

WARNING

- Follow the instructions in the manual of the machine in which the motor pump is integrated.

• The motor pump has been designed to be used with the detergents recommended by the Manufacturer. The use of different detergents or chemical products could cause safety problems. In particular, never suck up liquids containing solvents, petrol, thinners, acetone and fuel oils, because the nebulized product is highly inflammable, explosive and toxic.
• Carefully read the instructions and safety precautions on the detergent packs, so as to be able to implement the necessary measures in case of hazards threatening individuals and the environment. In particular, never exceed the maximum recommended concentrations and only prepare the quantity of product needed to prevent it spreading on the ground and in waters.
• Store the detergents in a safe place out of reach of children.
• In case of contact with the eyes, wash immediately with water. In case of ingestion, do not provoke vomiting: immediately contact a doctor and show him/her the detergent pack. Avoid inhaling any produced gases.

Perform the steps relating to operation with detergent shown in the manual of the machine integrating the motor pump; unless otherwise indicated, in relation to the motor pump, the following should be remembered.

a) Reduce the pressure of the motor pump to below 30 bar/435 psi (e.g., in the case of a high pressure cleaner, by moving the nozzle head to low-pressure position).
b) The possibility of sucking up detergent is not contemplated for MTP KTR Misting, MTP KMR, MTP KSR 1600, MTP KSR Misting: for these machines, special accessories must be used.

CAUTION

- To prevent scale and/or deposits, after using with detergent, it is best to wash the flow ducts by sucking up some water.

STOPPING OPERATION: MODELS WITHOUT TOTAL STOP

By closing the delivery line, the motor pump switches to bypass operation and remains in this condition until the delivery line is opened again.

CAUTION

- Never leave the motor pump in bypass for more than three minutes, and avoid the water re-circulating in the pump head from overheating, with consequent damage to seals.

STOPPING OPERATION: MODELS WITH TOTAL STOP

By closing the delivery line, the motor pump stops instantly (MTP KTR, MTP KTR Misting, MTP KMR, MTP KSR, MTP KSR Misting, MTP AXR, MTP AX Misting, MTP LW-K 250, MTP LWR-K 250), or switches to bypass operation and if it remains in this condition, it stops automatically after about 13 seconds (remaining motor pumps). The motor pump starts operating again normally as soon as the delivery line is opened.

CAUTION (ONLY MTP AXR AND MTP AX MISTING)

- The Total Stop device does not trip for pressure values below 20-30 bar and, when the delivery line is closed, the motor pump remains in bypass condition: never leave the motor pump in bypass condition for more than three minutes and avoid the water re-circulating in the pump head from overheating with consequent damage to seals.

WARNING

• Remember that when the motor pump is in Total Stop it is operating to all effects, so any accidental start-ups must be avoided.
• Never leave the motor pump in Total Stop without supervision, even for short periods of time: in this case perform the stop procedure, making sure no residual pressure remains in the delivery circuit.

STOPPING, CLEANING AND DECOMMISSIONING

WARNING

- Follow the instructions regarding stopping, cleaning and decommissioning contained in the manual of the machine in which the motor pump is integrated.

STOP

WARNING

- Always make sure that, once stop operations have been performed, no part of the motor pump and of the machine in which it is integrated is moving and no pipes contain liquid under pressure.

Perform the stop operations contained in the manual of the machine in which the motor pump is integrated; unless otherwise indicated, in relation to the motor pump, remember the following.

a) Close the water supply and reset the delivery pressure as described at b) of the "STANDARD OPERATION (HIGH PRESSURE)" paragraph.
b) Remove the plug of the machine integrating the motor pump from the power socket.
c) Wait for the motor pump and the machine in which it is integrated to cool down.

WARNING

• Once the motor pump and the machine in which it is integrated have cooled down, be careful:
• not to leave them unattended in the presence of children, elderly people or disabled persons without supervision;
• to arrange them in a stable position without any risk of falling;
• not to put them in contact or in the immediate vicinity of inflammable materials.

CLEANING AND DECOMMISSIONING

WARNING

- WARNING. All cleaning jobs must only be performed after carrying out the operations described in the "STOP" paragraph, meaning without any moving parts, no pipe full of liquid under pressure and only after complete cooling.

In particular, always remember to disconnect the power supply.

• Any cleaning jobs must be performed in conditions of total stability.
• To clean, do not use thinners or solvents.

CAUTION

- The motor pump must be protected against freezing.

In very cold environments, to prevent the ice from forming inside, before decommissioning, it is best to suction a car anti-freeze product (after contacting a Skilled Technician inasmuch as the liquid could damage the high-pressure pump seals) and then proceed to fully expel it. If it is not possible to protect the motor pump this way, before starting it, take it to a warm environment for long enough to melt any ice inside. Failure to do so could cause serious damage to the motor pump.

WARNING

- The antifreeze liquid must be suitably disposed of and not discarded in the environment.

NOTE.

After a prolonged stop, slight water dripping could occur underneath the motor pump. Such dripping normally disappears after a few hours of operation. Should it persist, contact a Skilled Technician.

MAINTENANCE

WARNING

• Follow the maintenance instructions contained in the manual of the machine in which the motor pump is integrated.
• All maintenance jobs must only be performed after carrying out the operations described in the "STOP" paragraph, meaning without any moving parts, no pipe full of liquid under pressure and only after complete cooling.
  In particular, always remember to disconnect the power supply.
• Any maintenance jobs must be performed in conditions of total stability.
• WARNING. To ensure the safety of the motor pump, only use original spare parts supplied by the Manufacturer or approved by it.

ROUTINE MAINTENANCE

Perform the routine maintenance jobs shown in the manual of the machine in which the motor pump is integrated; unless otherwise indicated, in relation to the motor pump, remember the following.

MAINTENANCE SCHEDULE JOB
After every use • Check pump oil according to instructions in“PRELIMINARY ACTIVITIES” paragraph.• Check any power cable, high-pressure pipes, tightness of fittings.In the event of one or more parts being damaged, do not use the machine and contact a Skilled Technician.
Every 50 hours • Check the integrity of the suction circuit.• Check and, if necessary, clean the suction filter.• Check the fastening of the motor pump to the structure of the machine in which it is integrated.In the event of such fastening being precarious, do not use the machine and contact a Skilled Technician (1).

(1) Checks must be made more frequently if the motor pump operates where there are strong vibrations

SPECIAL MAINTENANCE

WARNING

• Special maintenance jobs must only be performed by a Skilled Technician
  • Used oil must be adequately disposed of and not discarded in the environment.

Perform the special maintenance jobs shown in the manual of the machine in which the motor pump is integrated; unless otherwise indicated, in relation to the motor pump, remember the following.

MAINTENANCE SCHEDULE JOB
Every 100 hours (only MTP KTR, MTP KTR Misting, MTP KMR, MTP KSR, MTP KSR Misting)Every 200 hours (only MTP AXR, MTP AX Misting)Every 500 hours (remaining motor pumps).	Check the pump suction/delivery valves.Check the tightness of the motor pump screws (*).Oil change (**).Check the pressure limiting/unloader valve.

(*) Checks should be made more frequently if the motor pump operates where there are strong vibrations.

(**) The first oil change is best made after 50 hours.

CAUTION

- The data shown on the chart are approximate. More frequent jobs may be necessary in case of particularly heavy-duty use.

DISMANTLING AND DISPOSAL

Only qualified persons must be allowed to dismantle the motor pump and this operation must be performed in compliance with the laws applicable in the country where the machine in which it is integrated has been installed.

WARNING

- Before scrapping the motor pump, make it unusable, for example by cutting the power cable and render harmless those parts that could be hazardous for children playing with the motor pump.

WARNING

• Also follow the instructions contained in the manual of the machine in which the motor pump is integrated.
• Before doing any jobs, perform the operations described in the "STOP" paragraph.

In the event of not being able to restore the correct operation of the motor pump with the aid of the information contained on the following table, contact a Skilled Technician

PROBLEMS CAUSES	ES REMEDIES
The electric motor fails to start or stops during operation.	One of the safety devices has triggered of the plant to which the machine that integrates the motor pump is connected (fuse, differential switch, etc.).The thermal or ammeter cut-out has triggered.The power cable plug is not properly fitted.	Reset the safety device.If it triggers again, do not use the machine and contact a Skilled Technician.Follow the instructions in the “SAFETY DEVICES” paragraph.Disconnect the plug from the socket and fit it back correctly.
The electric motor hums but does not start.	The electrical system and/or the extension are inadequate.	Follow the instructions in the “CHECKING AND CONNECTING UP TO THE POWER SUPPLY” paragraph.
The pump does not prime.	Suction of air. Check the integrity of the suction line closed (e.g., spray gun closed).“PRIMING” button (11) not pressed (only MTP AXR and MTP AX Misting with Total Stop)	ction circuit.Reset the delivery pressure (e.g., spray gun open).Keep the button pressed for all the time required for priming.
The pump fails to reach max pressure.	Pressure adjustment knob (2) not tightened enough.Not enough water supply or priming too deep.Suction circuit blockages. Check the suction conditions of use (e.g., nozzle worn, lance in low-pressure position, etc.)	Turn the knob clockwise until required pressure is achieved.Make sure the water supply flow rate or priming depth is in compliance with the indications in the “SPECIFICATIONS AND TECHNICAL DATA” paragraph.on circuit (especially make sure the suction filter is clean).Restore the correct conditions of use.
Irregular pressure and flow rate (pulsating).	Air suction. Check the integrity of the suction filter dirty. Clean the filter.Not enough water supply or priming too deep.The motor pump has not completed priming.Clogged accessory (e.g. clogged nozzle)	tion circuit.Make sure the water supply flow rate or priming depth is in compliance with the indications in the “SPECIFICATIONS AND TECHNICAL DATA” paragraph.Prime the pump according to the indications of the “STANDARD OPERATION (HIGH PRESSURE)” paragraph.Restore the correct use of the accessory.

(continued on next page)

PROBLEMS CAUSES REMEDIES
Too much noise.	Suction circuit blockages.Water supply temperature too high. Keep to the temperatures indicated in the “SPECIFICATIONS AND TECHNICAL DATA” paragraph.	Check the suction circuit (especially make sure the suction filter is clean).
Low detergent suction. Use of the accessory not in low-pressure mode (e.g., lance not in low-pressure position).Use of detergent which is too viscous. Keep to uses and dilutions shown on detergent plate.		Restore the correct use of the accessory.

PART TWO

(for Skilled Technicians only)

WARNING

- This part of the manual is dedicated to Skilled Technicians and is not intended for users of the machine in which the motor pump is integrated.

UNPACKING

WARNING

• During unpacking, wear gloves and protective eyewear, to prevent injuring hands and eyes.
• Some motor pumps are heavy components (also refer to the "SPECIFICATIONS AND TECHNICAL DATA" paragraph) and these are therefore best unpacked by cutting away the bottom of the cardboard box.
• The packaging elements (plastic bags, staples, etc.) must not be left within reach of children as they represent potential hazard sources.
• Packaging components must be disposed of according to the regulations in force in the country where the machine in which the motor pump is integrated has been manufactured.
  Plastic packaging must not be discarded in the environment.
• After unpacking the motor pump, make sure no parts are missing and that all parts are in perfect condition, and that the identification plate is in place and legible.
  In case of any doubt, do not install the motor pump, but contact the Manufacturer or dSkilled Technician
• This manual and the warranty certificate must always accompany the machine in which the motor pump is integrated and made available to the end user.

STANDARD FITTINGS

Make sure the purchased product consists of the following elements:

• motor pump;
• oil cap with vent (9);
• motor pump manual;
• warranty certificate.
  In case of problems, contact the Manufacturer or a Skilled Technician.

INSTALLATION

WARNING

• The Skilled Technician must abide by the installation instructions in this manual.
• The machine in which the motor pump is integrated must be made in such a way as to ensure conformity with the safety requirements indicated in the European Directives. This fact is guaranteed by CE markings and by the Declaration of Conformity of the Manufacturer of the machine in which the motor pump is integrated.
• The motor pump must be installed and allowed to operate horizontally (for any exceptions in merit, contact the Manufacturer).
  • The motor pump must be stably fastened.

APPLICATIONS

WARNING

- Adequately protect the moving parts with suitable guards.

- The motor pump must operate without exceeding the pressure limits as shown on the plate (12). In particular, always make sure the pressure limiting/unloader valve is correctly set and that this setting is guaranteed, e.g., by paint coating.

The pump applications must be made following good mechanical engineering practices. The Manufacturer's After-Sales Service is at the disposal of the Skilled Technician to provide all necessary information.

HYDRAULIC CONNECTION

For the hydraulic suction, delivery and bypass connections, refer to the following table and to Fig. 16, which represents a generic diagram of a possible machine integrating the motor pump.

A. Pump
B. Pressure limiting/unloader valve
C. Suction circuit
D. Delivery circuit
E. Lance (example of accessory)
F. Engine

CAUTION

- Follow the connection instructions already indicated in the "CHECKING AND CONNECTING UP TO THE WATER SUPPLY" and "SPECIFICATIONS AND TECHNICAL DATA" paragraphs.

In particular, the suction circuit must be sized so as not to determine on the motor pump suction fitting:

- a pressure higher than 8 bar/116 psi;

- a vacuum higher than 0 bar/0 psi (MTP KTR - MTP KTR Misting - MTP KMR - MTP KSR - MTP KSR Misting - MTP AX Misting - MTP LW Misting); 0,05 bar/7,25 psi (MTP LWR-K 250 - MTP LWR-K - MTP ZWR-K - MTP AXR); 1 bar/14,5 psi (remaining motor pumps).

- At motor pump suction, a filter of adequate dimensions must be fitted. In case of doubts, contact the Manufacturer.

- The suction pipes must have a suitable internal diameter and a nominal pressure of 10 bar/145 psi.

- The delivery pipes must have a nominal pressure not below the motor pump max. pressure.

- Do not supply the motor pump with liquids at a temperature above 60^ / 140^ (50 °C/ 122 °F for MTP KTR, MTP KTR Misting, MTP KMR, MTP KSR, MTP KSR Misting) or below 5^ / 41^ .

AVANT-PROPOS

MOBIL - Delvac MX 15W-40;

SHELL - Rimula R4 15W-40;

TOTAL - Rubia TIR 7400 15W-40;

ENI - I-Sigma Performance E7 15W-40.

(**) Huiles correspondantes ▶ ENI MULTITECH THT :

MOBIL - Mobilfluid 424;

MOBIL - Mobilfluid 426;

PETRONAS - Arbor MTF Special 10W-30;

SHELL - Spirax S4 TXM;

TOTAL - Dynatrans MPV;

ELF - Tractelf BF16;

CASTROL - Agri Trans Plus 80W;

CHEVRON - Textran THD Premium;

Q8 - Roloil Multivariax 35 HP.

IDENTIFICATION DES ÉLÉMENTS

FONCTIONNEMENT AVEC DÉTERGENT

ATTENTION

INTERRUPTION DU FONCTIONNEMENT: MODÈLES AVEC TOTAL STOP

PROBLÈMES, CAUSES ET SOLUTIONS

ATTENTION

MOBIL - Delvac MX 15W-40;

SHELL - Rimula R4 15W-40;

TOTAL - Rubia TIR 7400 15W-40;

ENI - I-Sigma Performance E7 15W-40.

(**) Aceites correspondientes ▶ ENI MULTITECH THT:

MOBIL - Mobilfluid 424;

MOBIL - Mobilfluid 426;

PETRONAS - Arbor MTF Special 10W-30;

SHELL - Spirax S4 TXM;

TOTAL - Dynatrans MPV;

ELF - Tractelf BF16;

CASTROL - Agri Trans Plus 80W;

CHEVRON - Textran THD Premium;

Q8 - Roloil Multivariax 35 HP.

MOBIL - Delvac MX 15W-40;

SHELL - Rimula R4 15W-40;

TOTAL - Rubia TIR 7400 15W-40;

ENI - I-Sigma Performance E7 15W-40.

QR code image containing encoded data, no visible human-readable text

COMET

INDUSTRIAL PUMPS DIVISION

COMET S.p.A. - Via G. Dorso, 4 - 42124 Reggio Emilia - ITALY

Tel. [phone]

E-Mail Italia: [e-mail] - fax [phone]

E-Mail Export: [e-mail] - fax [phone]

www.comet.re.it

1610 1382 00 - 01/2017 - Rev. 02
