USER MANUAL BP 20/15 Comet

POMPE A MEMBRANE PER USO AGRICOLO

text_image Warning sign with exclamation mark inside a triangle

Comet BP 20/15 - 1

EN • WARNING. Read the instructions before use and assembly

(EN) First of all read the General Section and then this Specific Manual.

ATTENTION!

BP 105 BP 125 BP 110 BP 115 BP 135
Comet BP 20/15 - ATTENTION! - 1[kW]5,5 6,8 6,0 6,0 7,1
[CV]4,0 5,0 4,4 4,4 5,2
Comet BP 20/15 - ATTENTION! - 2[RPM] max.550
[RPM] min.400
Comet BP 20/15 - ATTENTION! - 3AGIP SAE 20W/40
Comet BP 20/15 - ATTENTION! - 4[°C]40
[°F]104
Comet BP 20/15 - ATTENTION! - 5[°C]5
[°F]41
Comet BP 20/15 - ATTENTION! - 6[l/min]104,0 117,0 110,0 110,0 124,0
max bar [US gpm]27,5 30,9 29,0 29,0 33,0
Comet BP 20/15 - ATTENTION! - 7[l/min]107,0 121,0 116,0 116,0 132,0
bar [US gpm]28,3 32,0 31,0 31,0 35,0
Comet BP 20/15 - ATTENTION! - 8[bar]20
[psi]290
Comet BP 20/15 - ATTENTION! - 9[dB(A)]<70
Comet BP 20/15 - ATTENTION! - 10[kg]12,9 13,0 13,0 14,3 14,3
[lb]28,4 28,7 28,7 31,5 31,5
BP 151 K BP 171 K BP 205 K BP 241 K BP 281 K
Comet BP 20/15 - ATTENTION! - 11[kW]7,8 9,6 10,2 12,9 14,1
[CV]5,7 7,0 7,5 9,5 10,4
Comet BP 20/15 - ATTENTION! - 12[RPM] max.550
[RPM] min.400
Comet BP 20/15 - ATTENTION! - 13AGIP SAE 20W/40
Comet BP 20/15 - ATTENTION! - 14[°C]40
[°F]104
Comet BP 20/15 - ATTENTION! - 15[°C]5
[°F]41
Comet BP 20/15 - ATTENTION! - 16[l/min]138,0 162,0 193,0 222,0 248,0
max [US gpm]36,5 42,8 51,0 59,0 66,0
Comet BP 20/15 - ATTENTION! - 17[l/min]142,0 168,0 197,0 226,0 265,0
bar [US gpm]37,5 44,4 52,0 60,0 70,0
Comet BP 20/15 - ATTENTION! - 18[bar]20
[psi]290
Comet BP 20/15 - ATTENTION! - 19[dB(A)]<70
Comet BP 20/15 - ATTENTION! - 20[kg]24,0 24,0 32,0 38,0 38,0
[lb]52,9 52,9 70,5 84,0 84,0
BP 251 HS BP 291 HS BP 330 HS
Comet BP 20/15 - ATTENTION! - 21[kW]12,9 14,7 17,8
[CV]9,5 10,8 13,1
Comet BP 20/15 - ATTENTION! - 22[RPM] max.800
[RPM] min.650
Comet BP 20/15 - ATTENTION! - 23AGIP SAE 20W/40
Comet BP 20/15 - ATTENTION! - 24[°C]40
[°F]104
Comet BP 20/15 - ATTENTION! - 25[°C]5
[°F]41
Comet BP 20/15 - ATTENTION! - 26[l/min]245,0 278,0335,0
max bar [US gpm]65,0 73,0 88,0
Comet BP 20/15 - ATTENTION! - 27[l/min]253,0 286,0341,0
bar [US gpm]67,0 76,0 90,0
Comet BP 20/15 - ATTENTION! - 28[bar]20
[psi]290
Comet BP 20/15 - ATTENTION! - 29[dB(A)]<70
Comet BP 20/15 - ATTENTION! - 30[kg]38,0 38,0 50,0
[lb]84,0 84,0 110,0

Comet BP 20/15 - ATTENTION! - 31

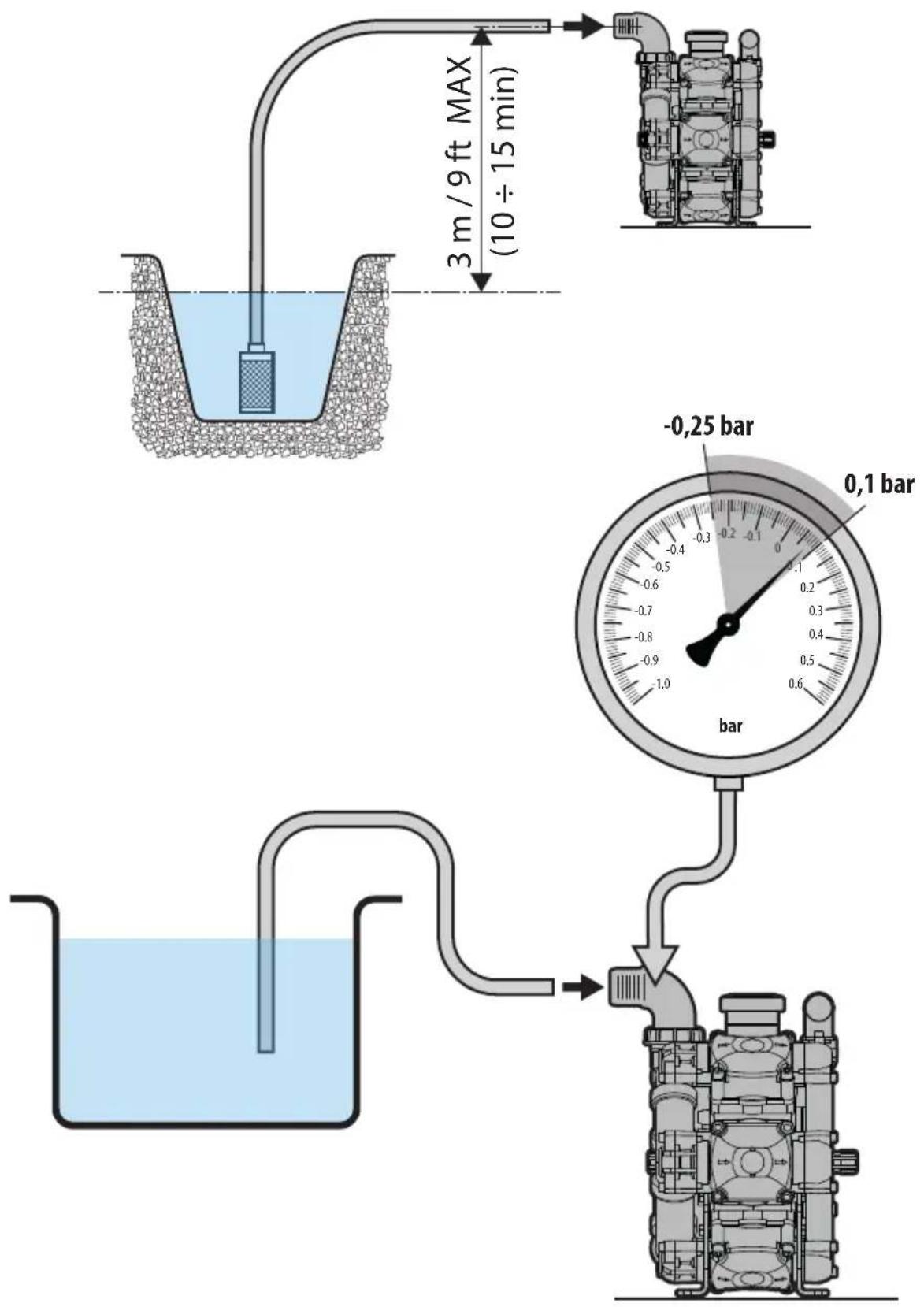

text_image 3 m / 9 ft MAX (10 ÷ 15 min) -0,25 bar 0,1 bar bar

Comet BP 20/15 - ATTENTION! - 32

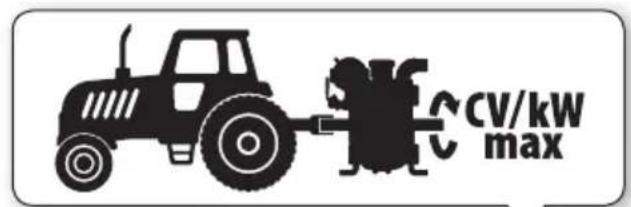

text_image CV/kW max

(IT) Tipo albero passante ■ (EN) Through-shaft type ■ (FR) Type d'arbre passant ■
(ES) Tipo de cigüeñal pasante ■ (CS) Typ průchozí hřídele ■ (DE) Typ durchgehende Welle ■
(EL) Τύπος περαστού άξονα ■ (HU) Üreges szivattyú ■ (NL) Type doorvoerende as ■
(PL) Typ wału przelotowego ■ (PT) Tipo de eixo passante ■ (SK) Typ prechodného hriadel'a ■
(SL) S pomočjo vrste valja ■ (FI) Kulkuakselin tyyppi ■ (SV) Genomgående axeltyp ■
(RU) Тип сквозного вала ■ (RO) Prin tipul arborelui

BP 151 KBP 171 KBP 205 KComet BP 20/15 - ATTENTION! - 331" 3/8 MComet BP 20/15 - ATTENTION! - 34 11,0
BP 241BP 281BP 251 HSBP 291 HSBP 330 HSComet BP 20/15 - ATTENTION! - 351" 3/8 MComet BP 20/15 - ATTENTION! - 36 22,0
BP 330 HSComet BP 20/15 - ATTENTION! - 371" 3/8 MComet BP 20/15 - ATTENTION! - 38 8,4
BP 330 HSComet BP 20/15 - ATTENTION! - 391" 3/8 MComet BP 20/15 - ATTENTION! - 40 4,7
BP 75BP 105 KBP 125 KBP 115BP 135Comet BP 20/15 - ATTENTION! - 411" 3/8 MComet BP 20/15 - ATTENTION! - 42
BP 151 KBP 171 KBP 205 KComet BP 20/15 - ATTENTION! - 431" 3/8 MComet BP 20/15 - ATTENTION! - 44 11,0
BP 241BP 281BP 251 HSBP 291 HSBP 330 HSComet BP 20/15 - ATTENTION! - 451" 3/8 MComet BP 20/15 - ATTENTION! - 46 22,0

NOTE:

Comet BP 20/15 - ATTENTION! - 47

text_image QR code image containing encoded data, no visible human-readable text

Comet BP 20/15 - ATTENTION! - 48

COMET

AGRICULTURAL DIVISION

COMET S.p.A. - Via G. Dorso, 4 - 42124 Reggio Emilia - ITALY

Tel. +39 0522 386111

E-Mail Italia: vendite@comet.re.it - fax +39 0522 386300

E-Mail Export: export@comet.re.it - fax +39 0522 386286

www.comet-spa.com

1610 1744 00 - 02/2016 - REV. 00
