USER MANUAL BP 75 Comet
POMPE A MEMBRANE PER USO AGRICOLO
EN • WARNING. Read the instructions before use and assembly
(EN) First of all read the General Section and then this Specific Manual.
ATTENTION!
| BP 105 BP 125 BP 110 BP 115 BP 135 | ||||||
 | [kW] | 5,5 6,8 6,0 6,0 7,1 | ||||
| [CV] | 4,0 5,0 4,4 4,4 5,2 | |||||
 | [RPM] max. | 550 | ||||
| [RPM] min. | 400 | |||||
 | AGIP SAE 20W/40 | |||||
 | [°C] | 40 | ||||
| [°F] | 104 | |||||
 | [°C] | 5 | ||||
| [°F] | 41 | |||||
 | [l/min] | 104,0 117,0 110,0 110,0 124,0 | ||||
| max bar [US gpm] | 27,5 30,9 29,0 29,0 33,0 | |||||
 | [l/min] | 107,0 121,0 116,0 116,0 132,0 | ||||
| bar [US gpm] | 28,3 32,0 31,0 31,0 35,0 | |||||
 | [bar] | 20 | ||||
| [psi] | 290 | |||||
 | [dB(A)] | <70 | ||||
 | [kg] | 12,9 13,0 13,0 14,3 14,3 | ||||
| [lb] | 28,4 28,7 28,7 31,5 31,5 | |||||
| BP 151 K BP 171 K BP 205 K BP 241 K BP 281 K | ||||||
 | [kW] | 7,8 9,6 10,2 12,9 14,1 | ||||
| [CV] | 5,7 7,0 7,5 9,5 10,4 | |||||
 | [RPM] max. | 550 | ||||
| [RPM] min. | 400 | |||||
 | AGIP SAE 20W/40 | |||||
 | [°C] | 40 | ||||
| [°F] | 104 | |||||
 | [°C] | 5 | ||||
| [°F] | 41 | |||||
 | [l/min] | 138,0 162,0 193,0 222,0 248,0 | ||||
| max [US gpm] | 36,5 42,8 51,0 59,0 66,0 | |||||
 | [l/min] | 142,0 168,0 197,0 226,0 265,0 | ||||
| bar [US gpm] | 37,5 44,4 52,0 60,0 70,0 | |||||
 | [bar] | 20 | ||||
| [psi] | 290 | |||||
 | [dB(A)] | <70 | ||||
 | [kg] | 24,0 24,0 32,0 38,0 38,0 | ||||
| [lb] | 52,9 52,9 70,5 84,0 84,0 | |||||
| BP 251 HS BP 291 HS BP 330 HS | ||||
 | [kW] | 12,9 14,7 17,8 | ||
| [CV] | 9,5 10,8 13,1 | |||
 | [RPM] max. | 800 | ||
| [RPM] min. | 650 | |||
 | AGIP SAE 20W/40 | |||
 | [°C] | 40 | ||
| [°F] | 104 | |||
 | [°C] | 5 | ||
| [°F] | 41 | |||
 | [l/min] | 245,0 278,0 | 335,0 | |
| max bar [US gpm] | 65,0 73,0 88,0 | |||
 | [l/min] | 253,0 286,0 | 341,0 | |
| bar [US gpm] | 67,0 76,0 90,0 | |||
 | [bar] | 20 | ||
| [psi] | 290 | |||
 | [dB(A)] | <70 | ||
 | [kg] | 38,0 38,0 50,0 | ||
| [lb] | 84,0 84,0 110,0 | |||


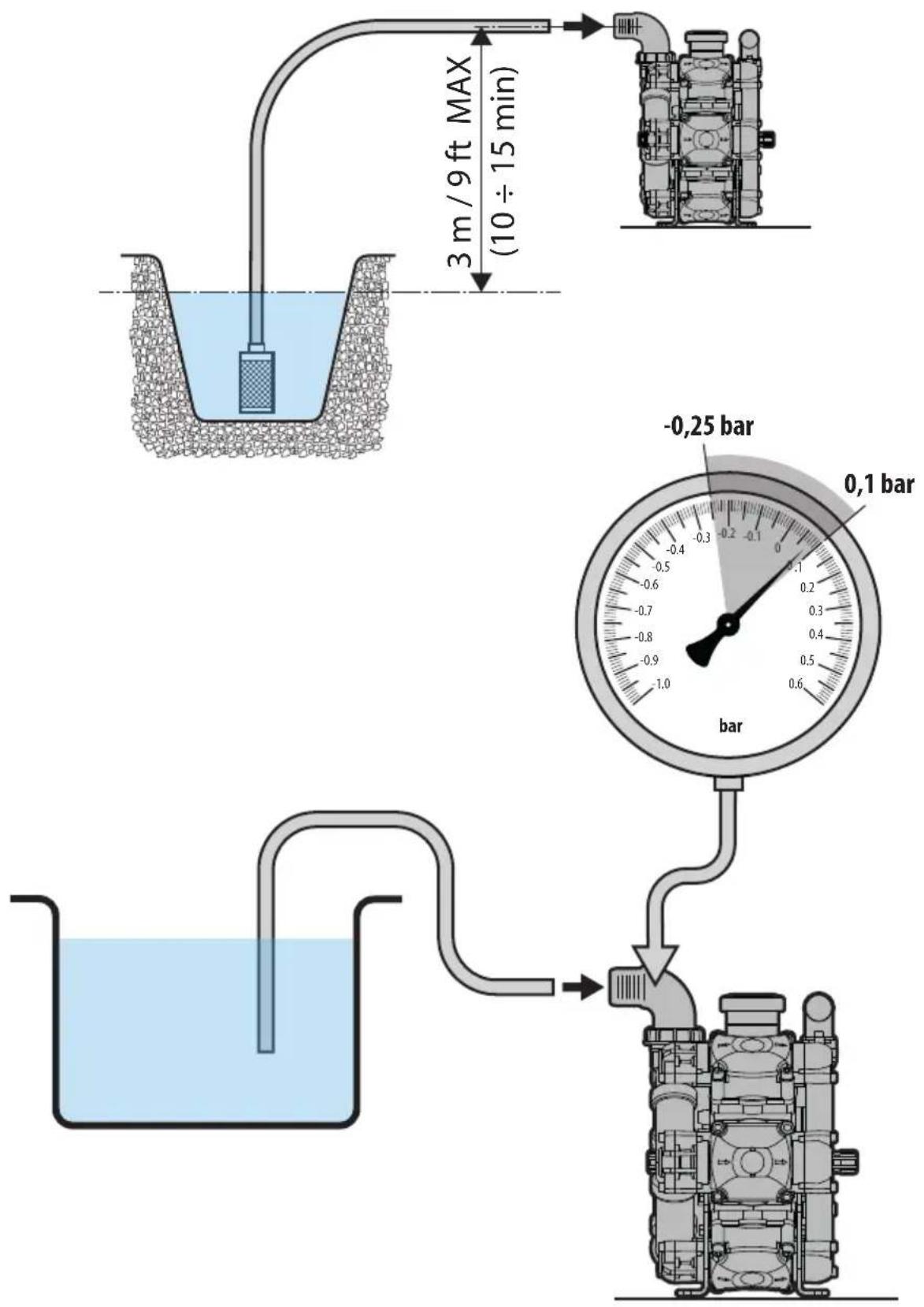

3 m / 9 ft MAX (10 ÷ 15 min) -0,25 bar 0,1 bar bar


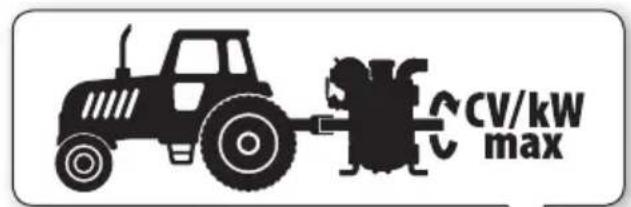

CV/kW max(IT) Tipo albero passante ■ (EN) Through-shaft type ■ (FR) Type d'arbre passant ■
(ES) Tipo de cigüeñal pasante ■ (CS) Typ průchozí hřídele ■ (DE) Typ durchgehende Welle ■
(EL) Túpoç περαστού άξονα ■ (HU) Üreges szivattyú ■ (NL) Type doorvoerende as ■
(PL) Typ wału przelotowego ■ (PT) Tipo de eixo passante ■ (SK) Typ prechodného hriadel'a ■
(SL) S pomočjo vrste valja ■ (FI) Kulkuakselin tyyppi ■ (SV) Genomgående axeltyp ■
(RU) Тип сквозного вала ■ (RO) Prin tipul arborelui
| BP 151 KBP 171 KBP 205 K |  | 1" 3/8 M |  | 11,0 | |
| BP 241BP 281BP 251 HSBP 291 HSBP 330 HS |  | 1" 3/8 M |  | 22,0 | |
| BP 330 HS |  | 1" 3/8 M |  | 8,4 | |
| BP 330 HS |  | 1" 3/8 M |  | 4,7 | |
| BP 75BP 105 KBP 125 KBP 115BP 135 |  | 1" 3/8 M |  | ||
| BP 151 KBP 171 KBP 205 K |  | 1" 3/8 M |  | 11,0 | |
| BP 241BP 281BP 251 HSBP 291 HSBP 330 HS |  | 1" 3/8 M |  | 22,0 |
NOTE:
COMET
AGRICULTURAL DIVISION
COMET S.p.A. - Via G. Dorso, 4 - 42124 Reggio Emilia - ITALY
Tel. +39 0522 386111
E-Mail Italia: vendite@comet.re.it - fax +39 0522 386300
E-Mail Export: export@comet.re.it - fax +39 0522 386286
www.comet-spa.com
1610 1744 00 - 02/2016 - REV. 00
