Bolero CoolMarket SBS 430 - Fridge CECOTEC - Free user manual and instructions

Product type	Combined refrigerator-freezer (side-by-side)
Brand	Cecotec
Model	Bolero CoolMarket SBS 430
Dimensions (W x D x H)	912 x 704 x 1770 mm
Installation dimensions (A x B x C)	1524 x 1062 x 160 mm (door opening)
Supply voltage	220-240 V ~
Frequency	50/60 Hz
Rated current	1,6 A
Climate class	SN/N/ST/T (10 °C to 43 °C)
Refrigerant gas	R600a (78 g)
Insulation	Cyclopentane
Main functions	Smart, Quick Freeze, Child lock, Door open alarm, Power failure memory, Delayed start
Display	LED screen with digital indicators
Defrosting	Automatic
Cleaning	Soft cloth and warm water; regular cleaning of the gasket and shelves
Safety	Child lock, delayed compressor start, door alarm, LED lighting
Box contents	Refrigerator, instruction manual
Warranty and after-sales service	Official Cecotec after-sales service: [phone]

Frequently Asked Questions - Bolero CoolMarket SBS 430 CECOTEC

How to install the refrigerator?

Place the refrigerator on a stable, level surface, away from heat sources and direct sunlight. Leave at least 300 mm of free space on top, 100 mm on the sides, and 50 mm at the back. Level it with the adjustable feet. Wait 4 hours before plugging it in.

How to adjust the temperature?

Press the Temp. Zone icon to select the desired compartment (refrigerator or freezer), then use the temperature icon to choose the value. Confirm with OK. For the refrigerator: from 2 °C to 8 °C. For the freezer: from -16 °C to -24 °C.

What to do if an error code (E0, E1, EH, EC) is displayed?

These codes indicate a sensor or communication malfunction. Contact the Official Cecotec After-Sales Service at [phone]. Do not attempt to repair it yourself.

How to activate Smart mode?

Press the Function icon until the Smart icon flashes, then press OK within 5 seconds. The temperature will be automatically set to 5 °C for the refrigerator and -18 °C for the freezer.

How to use the quick freeze function?

Press Function until the Fast Freeze icon flashes, then confirm with OK. The freezer temperature goes to -32 °C. It deactivates automatically after 26 hours.

How to clean the refrigerator?

Unplug the appliance. Remove the shelves and drawers, clean them with a damp soft cloth and warm water. Dry thoroughly. Regularly clean the door seals and interior. Do not use abrasive products.

What to do in case of a power outage?

The refrigerator retains settings in memory. After power is restored, the compressor starts with a 5-minute delay to protect it. If the freezer temperature exceeds -10 °C, a warning will flash; press an icon to clear it.

How to disable the child lock?

Press the Unlock icon for 3 seconds. The child lock activates automatically after 3 minutes of inactivity.

How to store food for optimal preservation?

Let hot foods cool before placing them. Wrap foods to avoid odors. Place fruits and vegetables in the designated drawer. Do not overload the shelves. For the freezer, divide food into small portions and use freezer bags.

The refrigerator makes noise, is this normal?

Operating noises are normal (compressor, refrigerant circulation). If the noise is excessive, check that the appliance is level and not in contact with the wall or objects. Adjust the feet if necessary.

USER MANUAL Bolero CoolMarket SBS 430 CECOTEC

Frigorífico americano Side by Side / American Refrigerator Side by Side

Exterior view of a modern double-door refrigerator with a single door (no visible text or symbols)

Front view of a stainless steel refrigerator with a single door on the side (no visible text or symbols)

Front view of a modern stainless steel refrigerator with two doors and a front panel (no visible text or symbols)

Front view of a modern stainless steel refrigerator with a small door and side table (no visible text or symbols)

Exterior view of a modern office building (no signage)

bolero

Safety instructions 11

1. Parts and components 80

2. Before use 80

3. Installation 81

4. Operation 82

5. Instructions on food storage 85

6. Cleaning and maintenance 87

7. Troubleshooting 88

8. Technical specifications 90

9. Disposal of old electrical and electronic appliances 91

10. Technical support and warranty 92

11. Copyright 92

SOMMAIRE

Read the instructions carefully before using the appliance for the first time and keep this instruction manual for future reference or new users.

• It is important to make sure all users are familiar with the operation and safety features of the appliance to prevent faults and unnecessary accidents.
• Make sure that the mains voltage in your house matches the voltage stated on the rating label of the appliance.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Do not store explosive substances such as aerosol cans with flammable propellant in this appliance.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• To avoid food contamination, please follow the instructions below:
• Opening the door for a long period of time may cause a significant increase in temperature in the appliance's compartments.
• Regularly clean the surfaces that might be in contact with food and accessible evacuation systems.

• If the freezer appliance remains empty for a long period of time, unplug it, defrost it, clean it, dry it, and leave the door open to prevent interior mould formation.

• WARNING: when positioning the appliance, make sure the power cable does not get trapped or damaged. A crushed or damaged connector may heat up and cause a fire.

• Make sure the appliance plug is accessible after installation.
• WARNING: do not attach multi-socket adaptors or multiple power supplies to the rear part of the appliance.
• WARNING: keep the ventilation grilles on the enclosure of the appliance or the cabinet in which the appliance is located clear.
• WARNING: do not use mechanical appliances or other means to accelerate the defrosting process other than those recommended by Cecotec.
• WARNING: do not use electrical appliances inside the refrigerator.
• WARNING: do not damage the refrigeration circuit.
• If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards.
• We recommend you check the power cable regularly to detect any sign of possible damage. Do not use the appliance if the cable is damaged.
• WARNING: to avoid any risk due to the instability of the refrigerator, you must install it according to the instructions.
• WARNING! It is dangerous for anyone other than authorised personnel to carry out maintenance or repairs involving the removal of covers. To prevent the electric shock risk do not attempt to repair the appliance yourself.
• Do not place carbonated beverages in the freezer compartment. Ice cream can cause "freezer burns". This can happen if they are ingested after removal from the freezer.
• Do not remove items from the freezer with wet/moist hands, as this may cause skin abrasions or "frostbites". Bottles and

cans should not be placed in the freezer, as they may burst when their contents freeze.

• Frozen food can cause ice burns if consumed right after removing it from the freezer compartment.
• See the storage times recommended by the manufacturer.
• Do not allow children to play with the controls or the freezer. The appliance is a heavy appliance. Caution must be taken when moving the appliance. It is dangerous to alter specifications or attempt to modify this appliance in any way.
• WARNING: doors or covers fitted with locks and keys must be kept out of the reach of children and not in the vicinity of the freezing appliance to prevent children from being locked inside.
• WARNING: the refrigerant used in your appliance and the insulation materials must be disposed of correctly.
• Keep the packaging material away from children, as there is a risk of suffocation.
• WARNING: if the interior light is damaged,

contact the official Cecotec Technical Support Service. Do not try to repair it on your own.

• Make sure the appliance plug is accessible after installation.
• Do not place food directly against the air outlet on the interior of the appliance.
• Do not place hot food or drinks in the refrigerator, allow them to cool down to room temperature beforehand.
• This appliance has a built-in earthed plug. Make sure the power supply in your house is properly earthed.
• Keep the ventilation openings clear from obstructions.

• Wait 5 minutes after a power failure before turning the appliance back on. Otherwise, the compressor may get damaged.

• Do not place carbonated or fizzy drinks in the freezer compartment, as this creates pressure in the container, which could explode and damage the appliance.

• To avoid injuries or death caused by electric shock, do not use the appliance with your hands wet or over a wet surface.
• You should never use this refrigerator with an extension lead or a multi-socket adaptor. Make sure the appliance is plugged in directly to a power supply.
• When positioning the appliance, make sure there is enough free space at the rear, as it is the main heat outlet. This will allow for adequate ventilation.
• Do not place any other appliance on the refrigerator and do not wet it.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• It is advisable to wait for at least four hours before connecting the appliance to allow oil to flow through the compressor.
• Do not use the appliance outdoors or in damp environments.
• Always handle the appliance carefully to avoid any damage on it.
• Never use the base, drawers, or door as support.
• Do not overload the door shelves or place too much food on the drawers to prevent items from falling off and damaging the appliance.
• Store raw meat and fish in proper containers in the freezer, so they do not come into contact with or leak on other food.
• The two-star compartments are suitable for storing pre-frozen food, storing, or making ice cream, and making ice cubes.
• Compartments with one, two, or three stars are not suitable for freezing fresh food.
• Air must flow around the appliance. Lack of air leads

to overheating. To achieve good ventilation, follow the installation instructions.

• Make sure the power cord is accessible after installation.
• All electrical work required to maintain this appliance must be carried out by a qualified electrician.

Temperature range

The appliance temperature range information can be found on its marking. Indicates the optimum room temperature for proper operation of the appliance.

Climate range Optimum room temperature

SN From +10 °C to +32 °C

N From +16 °C to +32 °C

ST From +16 °C to +38 °C

T From +16 °C to +43 °C

- WARNING: if the refrigerator is operated outside the climate class for which it is rated (SN/N/ST/T), it may not be able to maintain satisfactory internal temperatures.

Note:

- Bearing in mind the limiting values of the room temperature range for the climates for which the cooling appliance is designed and that internal temperatures may be affected by factors such as the location of the cooling appliance, room temperature and frequency of door opening, it may be necessary to modify the setting of any temperature-control device according to these factors.

- If the appliance is operated in an environment other than the specified climate type (i.e. beyond the rated ambient temperature range), it may not be able to maintain the desired compartment temperatures.

Refrigerant

• This refrigerator uses freon-free refrigerant (R600a) and foaming insulation material (cyclopentane), which are environmentally friendly, do not cause damage to the ozone layer, and have a very low impact on global warming. R600a is flammable and does not leak during normal use when sealed in a refrigeration system. In the event of refrigerant leakage due to damage to the refrigerant circuit, be sure to keep the appliance away from open flames and open the windows to ventilate as soon as possible.
• WARNING: the refrigerant and the insulator gas are flammable. When disposing of the appliance, only dispose of it at an authorised waste-disposal facility. Do not expose it to flames.
• WARNING: the appliance contains refrigerant and gases in the insulation. The appliance and gases must be disposed of professionally, as they may cause injuries to eyes or ignition. Make sure the refrigeration-circuit pipe is not damaged before disposing of it correctly.
• This symbol means: Warning: Risk of fire/flammable materials
• If the refrigeration circuit is damaged:

- Avoid open flames and sources of ignition.

- Completely air the room where the appliance is located.

INSTRUCTIONS DE SÉCURITÉ

1. LED indicator light
2. Door shelves (freezer compartment)
3. Shelves (freezer compartment)
4. Drawer covers
5. Freezer-compartment drawer
6. Refrigerator-compartment drawer
7. Egg holder
8. Shelves (refrigerator compartment)

9. Door shelves (refrigerator compartment)

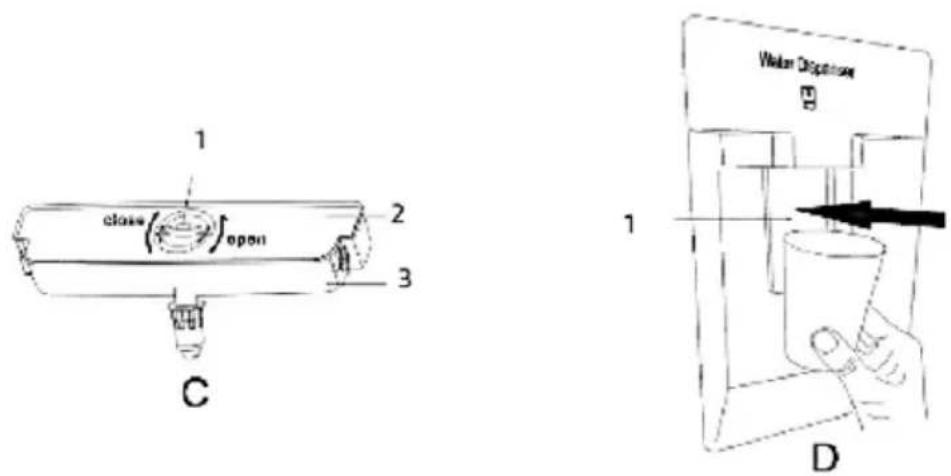

10. Water dispenser (only for models 02443_Bolero CoolMarket SBS 559 Inox D and 02443_Bolero CoolMarket SBS 559 Dark D)

Note

• The graphics in this manual are schematic representations and may not exactly match the device.
• To make the most out of the refrigerator in terms of energy, place all the shelves and drawers in their original position, that is, as shown in Figure 1.

2. BEFORE USE

• This refrigerator includes a packaging designed to protect it during transport. Take the refrigerator out of the box. You can keep the original box and other elements in a safe place, this will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or not in good condition, immediately contact the official Cecotec Technical Support Service.

Levelling

• Make sure you level your refrigerator with the front levelling feet. If it is not levelled, the refrigerator performance will be affected, or it can even cause a malfunction.
• After installing the refrigerator, wait 4 hours before using it to allow the refrigerant to stabilise.

Box content

• Refrigerator
• Instruction manual

3. INSTALLATION

• The location you choose for the refrigerator must be properly ventilated and away from heat sources. Do not place the refrigerator near heat sources, like a hob, and avoid direct sunlight to ensure the cooling effect and save on energy consumption. It is not recommended to place the refrigerator in a wet place, as it may rust and cause electrical leakage.
• During operation, the refrigerator releases heat into the environment. Therefore, you should leave at least 300 mm of free space at the top, more than 100 mm on both sides, and more than 50 mm at the rear of the refrigerator.

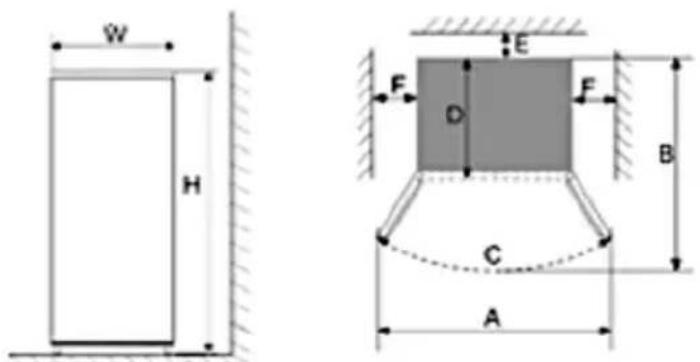

Width (mm)	Depth (mm)	Height (mm)	A (mm)	B (mm)	C (°)	E (mm)	F (mm)
912	704	1770	1524	1062	160	50	100

Figure 2 only illustrates the space required for the refrigerator installation.

Stable surface

• Place the freezer on a solid, flat surface to keep it stable, otherwise vibrations and noises will occur.
• Ensure a ventilation free of obstacles around the refrigerator.

Preparing for use

Waiting time

Once the refrigerator is installed and clean, do not turn it on immediately, wait at least 4 hours before connecting it to the power supply.

Cleaning

Check the position of the shelves and drawers in the interior of the refrigerator and clean the interior with a soft cloth.

Switch on

Connect the plug into a power socket to switch on the refrigerator. After one hour, open the freezer compartment door: if the temperature inside the freezer compartment has dropped, the cooling system is running normally.

Food storage

• Once the refrigerator is running, insert the food.
• When the temperature is high, food may take longer to cool down completely (try to open the refrigerator doors as infrequently as possible).

ENGLISH

• If the refrigerator is installed in a wet place, you must check the earth wire and the circuit breaker are working normally. If vibration noises occur due to contact of the refrigerator with the wall or if the wall turns black due to air convection around the compressor, keep the refrigerator further away from the wall.
• The installation of the refrigerator may cause noise interference or image problems in mobile phones, landline phones, radio receivers, or televisions near the refrigerator, so in this case, keep the refrigerator as far away from these objects as possible.

4. OPERATION

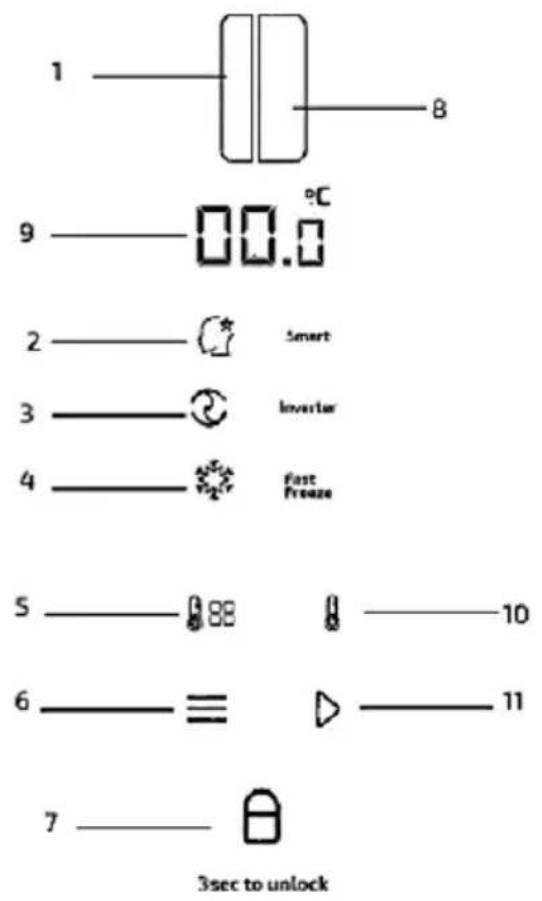

Fig. 3. Control panel

1. Freezer-compartment indicator light
2. Smart indicator light (Holiday mode)
3. Inverter indicator light
4. Fast freezing indicator light
5. Temp. Zone icon
6. Function icon
7. Unlock icon
8. Refrigerator-compartment indicator light
9. Digital temperature indicator
10. Temperature setting icon
11. OK icon

- When you connect the refrigerator to the power supply for the first time, all indicator lights on the display will light up for 2 seconds, and the system will activate the Smart function by default. When all doors are closed, the display will automatically switch off if no icon is pressed within 3 minutes. The display will light up if you open a door or press an icon. Please note that the child lock is activated after 3 minutes of inactivity, so the icons will be inactive until you deactivate the child lock.

- The Inverter indicator light will light up when the refrigerator is connected to the mains and the compressor starts.

Functions

Temperature setting

Setting the refrigerator compartment temperature

- Press the Temp. icon. until the refrigerator-compartment indicator light starts flashing, then press the Temp. icon to select the desired temperature; finally, press the OK icon to confirm the setting.

• The temperature setting cycles of the refrigerator compartment are: 5 ^ 6 ^ 7 ^ 8 ^ OFF 2 ^ 3 ^ 4 ^ 5 ^
• OFF means the refrigerator compartment is off, and when you activate this function, the refrigerator will stop cooling.
• Make sure you remove all the food from the refrigerator compartment before setting this function.

Setting the freezer compartment temperature

• Press the Temp. Zone icon until the freezer-compartment indicator light starts flashing, then press the Temp. icon to select the desired temperature; finally, press the OK icon to confirm the setting.
• The temperature setting cycles of the freezer compartment are:

$$ - 1 8 ^ {\circ} \mathrm{C} \rightarrow - 1 7 ^ {\circ} \mathrm{C} \rightarrow - 1 6 ^ {\circ} \mathrm{C} \rightarrow - 2 4 ^ {\circ} \mathrm{C} \rightarrow - 2 3 ^ {\circ} \mathrm{C} \rightarrow - 2 2 ^ {\circ} \mathrm{C} \rightarrow - 2 1 ^ {\circ} \mathrm{C} \rightarrow - 2 0 ^ {\circ} \mathrm{C} \rightarrow - 1 9 ^ {\circ} \mathrm{C} \rightarrow - 1 8 ^ {\circ} \mathrm{C} $$

Fast freezing

• When you activate the Fast freezing function, the freezer-compartment temperature will be set to -32^ automatically. The Fast freezing function is used to prevent loss of nutritional quality and to preserve food freshness.
• With the Fast freezing function, you cannot set the freezer compartment temperature.

Activating the Fast freezing function

Press the Function icon until the Fast freezing indicator light starts flashing, then press the OK icon within 5 seconds to confirm your choice. If you do not press the OK icon within 5 seconds, this function will not be activated.

Deactivating the Fast freezing function

• After 26 hours of operation, the Fast freezing function will be automatically deactivated.
• With the Fast freezing function activated, press the Function icon until the Fast freezing indicator light starts flashing, then press the OK icon to confirm and the Fast freezing function will be deactivated
• When you activate the Smart function, the Fast freezing function deactivates automatically.

Smart

• When you activate the Smart function, the temperature in the refrigerator compartment will be set to 5 °C and the temperature in the freezer compartment will be set to -18 °C, so that food will be preserved in the best possible conditions and the refrigerator will operate as efficiently as possible.
• With the Smart function, you cannot modify the temperature of any compartment.

Activating the Smart function

Press the Function icon until the Smart indicator light starts flashing, then press the OK icon

ENGLISH

within 5 seconds to confirm your choice. If you do not press the OK icon within 5 seconds, this function will not be activated.

Deactivating the Smart function

• With the Smart function activated, press the Function icon until the Smart indicator light starts flashing, then press the OK icon within 5 seconds to confirm your choice. The Smart function will be deactivated.
• When you activate the Fast freezing function, the Smart function deactivates automatically.

Child Lock

• When you activate the child lock, you will not be able to modify the temperature and function to avoid undesired changes.
• If you do not press any icon within 3 minutes, the child lock function will be activated automatically.

Manual deactivation of the child lock

Hold down the Unlock icon for 3 seconds to deactivate the child lock.

Note:

The child lock function is not available on the model with glass door, 02445_Bolero CoolMarket SBS 559 Glass D.

Open door alarm

If any door is open for more than 3 minutes, the refrigerator will emit an alarm sound, which can be stopped by pressing any icon, but will sound again if the door is still open 3 minutes later. The alarm sound will not stop until you close the door.

Function memory after power failure

In the event of a power failure, the refrigerator will save the functions set before the power failure and will activate them when the power is restored.

Delay Start

To prevent damage to the refrigerator compressor in the event of a short power failure (i.e. less than 5 minutes), the compressor will not start immediately after switch-on.

Overheating warning (only after a power failure)

When the refrigerator cooling system is on, if the freezer-compartment temperature is above -10 ^ , the freezer-compartment temperature digits will flash on the display. The display will show the freezer-compartment temperature when you press any icon, and it will return to its usual state when you press any icon again or after 10 seconds.

Fault alarm

If the display shows E0, E1, E2, EH, or EC, it indicates there's a fault in the refrigerator. Contact the official Cecotec Technical Support Service.

5. INSTRUCTIONS ON FOOD STORAGE

Use precautions

- The refrigerator may not operate consistently (there may be some defrosting of the contents, or the temperature may become too hot in the freezer compartment) if placed in locations with a temperature outside of the temperature range for which it's designed for a long period of time.

- The internal temperature may be affected by factors such as the location of the refrigerator, room temperature, and door opening frequency, etc., and you should take these factors into account if you decide to use any temperature-control device.

- Effervescent or carbonated drinks should not be stored in the freezer compartment or drawer of the refrigerator.

Food location

- Due to the circulation of cold air in the refrigerator, the temperature in each zone is different, so food must be placed in different zones.

- The refrigerator compartment is suitable to store food that does not need to be frozen, cooked food, beer, eggs, some seasonings that need to be kept cold, milk, fruit juice, etc. The crisper drawer is the best place to store fruit and vegetables.

- The freezer compartment is suitable to store ice cream, frozen foods, and foods that need to be kept for a long time.

Using the refrigerator compartment

- Shelves: to remove the shelves, first lift them up and then pull them out; to put them back, put them into their position before lowering them. Keep the rear edge of the shelf facing upwards to prevent food from coming into contact with the wall. When removing and fitting shelves, hold them firmly and handle them carefully to avoid damage.

- Refrigerator-compartment drawer: pull out the fruit and vegetable crisper drawer to access the food. After using or cleaning the bottom shelf of the refrigerator (the drawer cover), put it back in place so that the internal temperature of the drawer is not affected.

Drawer-humidity control (depending on model)

- If your refrigerator is equipped with a drawer-humidity regulator, follow the instructions below:

- The humidity regulator of the drawer is designed to preserve the humidity and freshness of the vegetables.

ENGLISH

• If you slide the humidity regulator to the right, more gaps will be exposed, and the drawer will have a lower humidity level.
• If you slide the humidity regulator to the left, less gaps will be exposed, and the drawer will have a higher humidity level.

Care for food storage

• Clean and dry food completely before storing it in the refrigerator. Before introducing food in the refrigerator, it is advisable to seal it to prevent water evaporation and thus keep fruit and vegetables fresh on the one hand, and to prevent odours on the other.
• Leave enough space between the food; if they are too close together, they will block the flow of cold air, which will affect the cooling effect. Do not store too much or too heavy food to prevent the shelves from bending. When storing food, leave a distance from the interior wall; do not place water-rich food too close to the inner wall of the refrigerator to prevent it from freezing on the interior wall.
• Food storage by category: place daily food items at the front of the shelf so that you can reduce the door opening time and avoid food spoilage due to expiry.
• Energy saving tips: let hot food cool down to room temperature before putting it in the refrigerator. Place frozen food in the refrigerator compartment to defrost it.

Storing fruits and vegetables

- Please note that some types of fresh vegetables and fruits are sensitive to cold and therefore not suitable for storage in the refrigerator crisper drawer.

Using the freezer compartment

• The freezer-compartment temperature is kept at -18^ , so it is advisable to store food that you wish to keep for a long period of time in the freezer compartment, always respecting the storage time indicated on the food packaging.
• The freezer-compartment drawers are suitable to store food which needs to be frozen. Large fish and meat should be cut into small pieces and placed in freezer bags before placing them in the freezer-compartment drawers.
• Let hot food cool down to room temperature before putting it in the freezer compartment.
• Do not place a glass container with liquid or sealed canned liquid in the freezer compartment to prevent them from exploding due to volume expansion after freezing the liquid.
• Divide food into small portions.
• Food should be packed or covered with suitable materials that are firm, tasteless, impermeable to air and water, non-toxic, and non-polluting to avoid cross-contamination and odour transfer.

Using the ice cube tray

- Place the ice cube tray in the upper part of the freezer compartment so that it freezes as quickly as possible.

Tips on the water dispenser (only for models 02441\_Bolero CoolMarket SBS 559 Inox D and 02443\_Bolero CoolMarket SBS 559 Dark D)

If your refrigerator includes a water dispenser, follow these instructions:

1. Open the refrigerator door and make sure the water dispenser is properly fixed.
2. Turn the water tank cap to the left to open the water-tank filling cap and fill the water tank avoiding spillage until full. Finally, close the water tank. Fig. 4
3. Once the water tank is full, set the temperature on the lower mode or the Fast freezing mode, and after an hour you will be able to dispense cold water. Fig. 5
4. When you use the water dispenser, it may drip and some water may accumulate on the lower part of the dispenser. Clean it with a cloth if necessary.

Figure 4:

1. Water-tank cap
2. Water-tank filling cap
3. Water tank

Figure 5:

1. Water dispenser lever

Please note

• Do not exceed the maximum filling line.
• Do not remove the container until water stops dripping.

6. CLEANING AND MAINTENANCE

If the refrigerator will not be used for a long period of time

• Turn off the refrigerator and unplug it from the power supply.
• Remove all the food.
• Clean and dry the interior completely. To prevent mould or unpleasant odours, leave the door slightly open: lock it open or remove it if necessary.
• Store the appliance in a ventilated and dry place, away from heat sources; place the appliance carefully and do not place heavy objects on it.
• The unit must be kept out of the reach of children to prevent them from playing with it.
• Before cleaning, disconnect the power plug; do not connect or disconnect the power plug with your hands wet, as there is a risk of electric shock and injury. Do not spill water directly on the refrigerator to avoid rust, electrical leakage and accidents. Do not reach into the bottom of the refrigerator, as you may get scratched by the sharp metal corners.

Cleaning the interior and exterior

- Food residues in the refrigerator can cause undesired odours, so you should clean the refrigerator regularly. The refrigerator compartment should be cleaned once a month.

ENGLISH

• Remove all shelves, the crisper drawer, etc., and clean them with a soft cloth or sponge dampened with warm water or neutral detergent.
• Clean the dust that accumulates on the rear panel and side plates of the refrigerator regularly.
• After using detergent, make sure you rinse it with clean water, and then dry it with a cloth.
• Do not use bristle brushes, steel wire brushes, detergent, soap powder, alkaline detergent, benzine, petrol, acid, hot water, or other corrosive elements to clean the refrigerator surface, door gasket, plastic decorative parts, etc. to avoid damage.
• Carefully dry the door gasket and clean the slot with a wooden stick wrapped with cotton. After cleaning, fix the four corners of the door gasket and then gradually push it into the slot in the door.

Power failure or cooling system fault

• If you receive an early power failure warning:
• Activate the fast freezing function, so that food is completely frozen. Set the temperature back to the original setting when the power supply returns to normal.

Please note

It is advisable to run the refrigerator uninterruptedly once you start using it.

Defrost

This refrigerator includes an automatic defrost function, so there is no need to defrost it manually.

Replacing the light bulb

The refrigerator has a LED light with low consumption and a long shelf life. In case of malfunction, contact the official Cecotec Technical Support Service. The light bulb can only be replaced by the manufacturer.

Please note

If the power cord and/or plug are damaged or dusty, electric shock and fire may occur. If there is any malfunction, disconnect the cord and contact the official Cecotec Technical Support Service.

7. TROUBLESHOOTING

For the following minor malfunctions, please try to solve the problem by yourself before contacting the official Cecotec Technical Support Service.

Fault Possible causes	Possible solutions
The refrigerator does not work	The refrigerator is not connected to the mains.The circuit breakers or fuses are damaged.There is no electricity or there has been a power cut.	Plug the refrigerator into the mains.Open the door and check the light is on.
Abnormal noise The	refrigerator is not stable.The refrigerator is in contact with the wall.	Set the adjustable feet of the refrigerator.Separate the refrigerator from the wall.
Low cooling efficiency	The food inside is hot or there is too much food.You open the door too often.The door gasket has objects that do not allow to close it completely.The refrigerator receives direct sunlight or is close to a heat source.The refrigerator is not well ventilated.The selected temperature is too high.	Store food in the refrigerator when at room temperature.Check and close the door.Remove the refrigerator from the heat source.Keep the recommended distances in the installation section so the refrigerator is well ventilated.Set a suitable temperature.
Unpleasant smells in the refrigerator	There is spoiled food inside.The refrigerator is dirty.Food with a strong odour stored inside the refrigerator.	Dispose of food which is spoiled.Clean the refrigerator.Pack food, especially if it has a strong smell.
The icons do not work	Check if the child lock is active. Hold down the Unlock icon for 3 seconds to deactivate the child lock and press any icon (to get more information, read the instructions on the child lock).
You cannot set the temperature	Check if the Smart or fast freezing functions are not active on the control panel.	Deactivate the special functions and then set the temperature (for more details, check the Functions section).
The freezer-compartment temperature is shown on the panel, but it flashes	Check that the power supply has not been cut off before.	Press any icon to activate the alarm (check the overheating warning section) and check that the food inside the refrigerator is not spoiled.

ENGLISH

Please note

If none of these situations match your problem, do not attempt to disassemble, or repair the refrigerator yourself. Repairs carried out by unqualified persons may result in injury or serious malfunctions. Please contact the place where you bought the appliance or the official Cecotec Technical Support Service. The repair must be carried out by an authorised technician, and you must use only original spare parts

Error code Error type
E0 (while the freezer-compartment indicator light is lit up)	Fault of the freezer compartment sensor
E0 (while the refrigerator-compartment indicator light is lit up)	Fault of the refrigerator compartment sensor
E1 Fault of the refrigerator evaporator	sensor
EC Fault in the communication
EH Fault of the room temperature sensor

• If faults E0 and E1 should light up simultaneously, E2 will light up instead.
• In case the sensor or compartment faults are more than two, the number will be shown.
• If any of these codes is shown, contact the Technical Support Service of Cecotec.

8. TECHNICAL SPECIFICATIONS

You can find more information on this model by scanning the QR code on the energy label

Product	Bolero CoolMarket SBS 562 Dark D	Bolero CoolMarket SBS 562 Inox D
Reference 01972 02098
QR code
Voltage 220-240 V~
Rated frequency 50/60 Hz

Rated current 1.6 A
Climate class SN/N/ST/T*
Refrigerant R600a (78 g)
Base plate Cyclopentane
Product Bolero	CoolMarket SBS559 Inox D		Bolero CoolMarketSBS 559 Dark D	Bolero CoolMarket SBS559 Glass D
Reference 02443 02443 02445
QR code
Voltage 220-240 V~
Ratedfrequency	50/60 Hz
Rated current 0.92 A
Climate class SN/N/ST/T*
Refrigerant R600a (78 g)
Base plate Cyclopentane

(*) Refrigerator intended for use at room temperatures between 10 °C and 43 °C.
This appliance features a light source with an energy efficiency grade G.

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

ENGLISH

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording, or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

7. PROBLEEMOPLOSSING

Technical diagram of a multi-chamber refrigerator with numbered components for identification

Fig./Img./Abb./Afb./Rys.1

W H E F D F B C A

Fig./Img./Abb./Afb./Rys.2

1 8 9 —— 00.0 °C 2 —— 📋 Smart 3 —— Ⓤ Inverter 4 —— 🌿 Fast Freeze 5 —— 88 —— 10 6 —— ≡ ▷ —— 11 7 —— 🔒 3sec to unlock

Fig./Img./Abb./Afb./Rys. 3

1 close ( open ) 2 3 C Water Disponser 1 D

Fig./Img./Abb./Afb./Rys. 4 Fig./Img./Abb./Afb./Rys. 5

www.cecotec.es
