USER MANUAL ProClean 3010 CECOTEC

Microondas mecánico / Microwave with mechanical controls

1. Parts and components 57
2. Before use 57
3. Operation 58
4. Tips 59
5. Cleaning and maintenance 61
6. Troubleshooting 62
7. Technical specifications 62
8. Disposal of old electrical and electronic appliances 63
9. Technical support and warranty 63
10. Copyright 63
11. Simplified EU Declaration of Conformity 64

SOMMAIRE

Overeenstemming. 105

SPIS TREŚCI

EN · The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Ensure that the mains voltage matches the voltage specified on the device rating label and that the plug is earthed.
• Do not use outdoors.

- This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

- This symbol means: CAUTION: hot surface. Accessible

surfaces of the microwave may reach high temperatures during operation. Be careful not to ourself.

- WARNING: if the door or its gaskets are damaged, do not operate the appliance until it has been repaired by a qualified person.

- WARNING: it is dangerous for anyone other than a qualified person to perform maintenance or repair tasks involving the removal of a cover that provides protection against exposure to microwave energy.

- WARNING: liquids and other food should not be heated up in sealed containers, as they may explode.

- Use this appliance only for its intended purpose, as described in this manual. Do not use corrosive chemicals or vapours in this appliance. It is not designed for industrial or laboratory use.

- This appliance is intended for heating beverages and food. Drying of food or clothing and heating of pillows, shoes, sponges, wet clothes, and similar items may involve risk of injury, ignition, or fire.

- Heating up beverages may cause them to boil. For this reason, precautions must be taken when handling the container.

- The contents of bottles and jars of baby food should be swirled or shaken, and the temperature should be checked before consumption to avoid burns.

- Eggs in their shell and whole hard-boiled eggs should not be heated in microwaves, since they may explode even after microwave heating has ended.

• Do not operate the microwave when empty.

• This microwave is not intended to be built-in or installed in furniture. It must be freely positioned ensuring the following separation distances:

• Top: at least 20 cm apart.

• Between the appliance and any adjacent wall: at least 5 cm.
• Rear: leave 10 cm of separation.

• From the microwave to the ground: 85 cm.

• Check the power cable regularly for visible damage. If the cable is damaged, it must be replaced by the official Cecotec Technical Support Service or by similarly qualified personnel to avoid hazards or injuries.

• Do not operate the microwave if it has a defective cord or plug or if it is not working properly. If the cable is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• You must be careful to ensure that the turntable does not shift when the containers are removed from the appliance.
• Only use cookware that is suitable for microwave use. Make sure cookware does not touch the interior walls during operation.
• Do not use the appliance for storage purposes.
• Do not attempt to fry food in the microwave.
• In order to reduce fire risk:

a. Do not overcook food.
b. Remove wire twist-ties from paper or plastic bags before placing them inside the microwave.
c. The microwave should be watched when heating food in plastic or paper containers.

- In case of smoke or fire inside the appliance, keep the door closed, turn the appliance off, and unplug it from the power supply.

• Do not place hot or frozen food or cookware on the turntable to prevent breakage.
• After operation, the container is likely to be very hot. Use gloves to avoid burns and injuries.
• The appliance must be cleaned regularly, and you must remove any food remains. You must clean the door gaskets, cavities, and adjacent parts of the microwave as indicated in the cleaning and maintenance section.
• The appliance cannot be cleaned with steam.
• Failure to keep the microwave clean could lead to deterioration of the surface and could adversely affect the shelf life of the appliance and cause hazards.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• This appliance is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. Class B equipment is suitable for domestic use and in establishments directly connected to a low voltage power supply network, which supplies buildings used for domestic purpose.
• Metal food and beverage containers must not be used during microwave cooking.
• The appliance is not intended to be operated by means of external timers or separate remote control systems.

INSTRUCTIONS DE SÉCURITÉ

1. Door lock system
2. Door
3. Turntable shaft
4. Turntable ring assembly
5. Turntable
6. Control panel

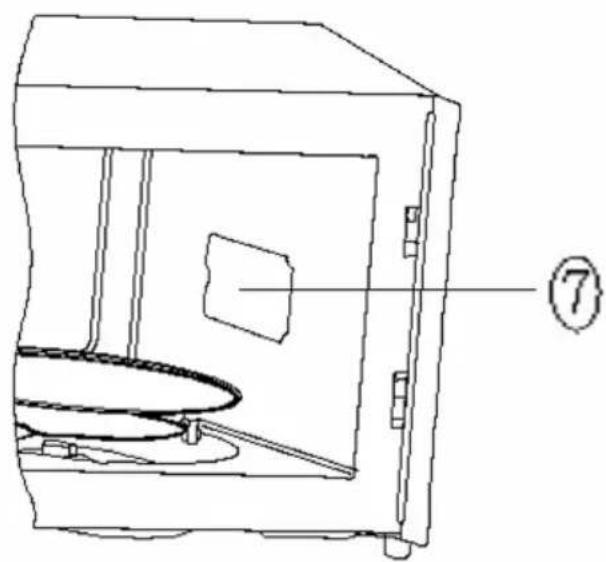

7. Mica plate

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.
• Remove all parts from the packaging. If the microwave is protected with a protective film, remove it before use. Check if the microwave is damaged.
• The appliance must be placed on a flat, stable, and dry place and kept away from corrosive materials, heat, and humidity-producing substances or appliances, such as burners or water.
• The appliance must be placed at least 5 m away from TVs, radios, or antennas.
• The appliance must be placed in such way that the plug is accessible, and the socket must be properly earthed to avoid electric shocks.
• Make sure to close the microwave door for proper operation.
• In case there are any manufacturing remains in the microwave cavity or on the heating elements, leave the microwave open to ensure good ventilation. In such case, it is recommended to heat a glass of water at high power for several times.
• Do not place the microwave inside a cupboard. This appliance is not suitable for built-in installation.

ENGLISH

Box content

• Microwave
• Turntable
• Instruction manual

3. OPERATION

1) Timer

The timer maximum time is 30 minutes.

When the time is up, the microwave will beep, and the timer knob will return to the 0 position.

2) Function/power knob

This microwave features 6 power levels.

Setting Power level Function
HIGHHigh/maximum power	100 % power output Quick cooking
M. HIGHMedium-high power	85% power output Normal cooking
MEDMedium power	66% power output Simmer
M. LOWMedium-low power	40% power output Beverages or soup
DEFROSTDefrost	37% power output Defrost
LOWLow power	17% power output Keep warm

The following table shows different food's approximate defrosting time according to their weight.

	Weight Defrosting duration
Meat 0.1~1.0 kg	1:30~26:00

Poultry 0.2~1.0 kg 2:30~22:00
Seafood 0.1~0.9 kg 1:30~14:00

3) Microwave operation

1. Plug in the power cable.

Note:

• Before connecting it, make sure the timer knob is set on 0 position.
• Do not block the ventilation openings.
• Place the food inside the microwave. It must be inside a container.
• Select the desired power level
• If you wish to select a time value of less than 10 minutes, first set the timer knob to 10 minutes and then set the desired time.
• After this, cooking will begin. If you wish to pause cooking, simply open the door. When you close it again, cooking resumes.
• When the time is up and cooking is finished, a warning beeping will sound and the interior light will switch off. If you remove the food before the time is up, be sure to return the timer to the 0 position. This will prevent the microwave from starting without food inside.

4. TIPS

The following factors may affect the cooking result:

Food location

Place the thicker parts of the food to be cooked towards the outside of the base and the thinner parts towards the inside. Make sure that the food is properly distributed, i.e. that no food is too close together or stuck together.

Cooking time duration

Select a short time setting and, once cooking is complete, add more minutes if necessary. If you overheat food, it may burn and smoke.

Cooking food evenly

If you are cooking chicken, burgers or steaks, turn them over halfway through the cooking process.

There are some foods that need to be stirred (from the outside to the inside) once or twice during the cooking process.

ENGLISH

Do not remove the food from the microwave immediately after cooking is complete

After the cooking time has elapsed, do not remove the food from the microwave immediately. In this way, it will finish cooking thoroughly and cool gradually.

Knowing if the food has been cooked correctly

The colour and hardness of the food help to determine whether it is properly cooked. The following cases indicate good cooking:

Steam comes out evenly from the food, not just from the ends.

Bird parts are not rigid.

There is no trace of blood on pieces of meat or poultry.

The fish pieces can be cut with a fork.

Using a browning pan

When using a specific browning pan or a self-heating pan, always place a heat insulator underneath (e.g. a porcelain plate).

Microwave-safe plastic film

When cooking foods with a high fat content, avoid contact with the plastic film, otherwise the film will melt.

Microwave-safe plastic cookware

Some microwave-safe plastic cookware may not be suitable for cooking foods with a high fat or sugar content. In addition, it must always be ensured that the preheating time specified in the cookware's instruction manual is not exceeded.

Microwave-safe containers

Only use containers that are suitable for the microwave. In general, heat-resistant ceramic, glass or plastic ones are. Never use metal containers, as sparks may be produced. If you are in doubt as to whether or not a container is suitable for the microwave, please refer to the table below.

Container material Microwave	wave-safe Comments
Heatproof ceramics Yes		Never use ceramics decorated with metallic or enamelled elements.
Heatproof plastic Yes Avoid prolonged heating of this container.
Heat-resistant glass Yes
Plastic film Yes		It must not be used for cooking meat, as excessive heat can damage the film.
Rack No
Metal container No		Do not put metal containers in the microwave. Microwaves cannot penetrate through metal.
Lacquer No		They are not very resistant to heat. Not suitable for high temperature cooking.
Cannot be used for high-temperature cooking	No	These materials are not very heat resistant. Therefore, they are not suitable for high temperature cooking.

5. CLEANING AND MAINTENANCE

Warning

The appliance, as well as food remains, must be cleaned and removed regularly. Lack of maintenance of the microwave may affect operation and could damage the microwave.

• Unplug the appliance
• Do not immerse in water or any other liquid when cleaning.
• If you do not clean the microwave regularly, its service life will be affected.
• Do not use abrasive cleaning products or scouring pads to clean the microwave.
• If you notice that the microwave is emitting unpleasant odours, follow one of the 3 cleaning methods below:
• Place several lemon slices in a cup and heat them at high power for 2 to 3 minutes.
• Place a cup of red tea and heat it on high power.
• Put in some orange peels and heat on high power for 1 minute.
• When the microwave is not in use, place it in a dry and ventilated place.
• Wipe up splashes or spilled liquids with a damp cloth.
• Do not use strong detergents, powder abrasives, or metal brushes to clean the appliance.
• Do not allow the control panel to get wet.

ENGLISH

• If steam builds up inside or around the outside of the microwave door, wipe it with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and is normal.
• Also clean the exterior, door, seals, viewing window and adjacent parts.
• When you have finished using the microwave, wipe the inside surfaces that have come into contact with food with a damp cloth to remove any residue and then dry them thoroughly. Accumulated grease can overheat and start to smoke or catch fire.

6. TROUBLESHOOTING

If the appliance does not work:

• Make sure the appliance is properly plugged to the socket. If not, unplug it, wait 10 seconds, and properly re-plug it.
• Check that no fuse has blown and that no short circuit occurred. If not, test the socket with another appliance.
• Check that the door is properly closed and that the door locking system is properly engaged.

If none of the above options solve the problem, please contact the official Cecotec Technical Support Service. Do not try to repair the appliance by yourself.

If the appliance causes interference with radio, television, or other electrical appliances:

1. Clean the door and the sealing surface of the appliance.
2. Reorient the receiving antenna of the radio or television.
3. Move the microwave.
4. Place the microwave away from the receiver.
5. Plug the appliance into a different outlet so that it and the receiver are on different branch circuits.

7. TECHNICAL SPECIFICATIONS

Product reference:

EU01_101121

EU01_101122

EU01_101123

EU01_101124

Product:

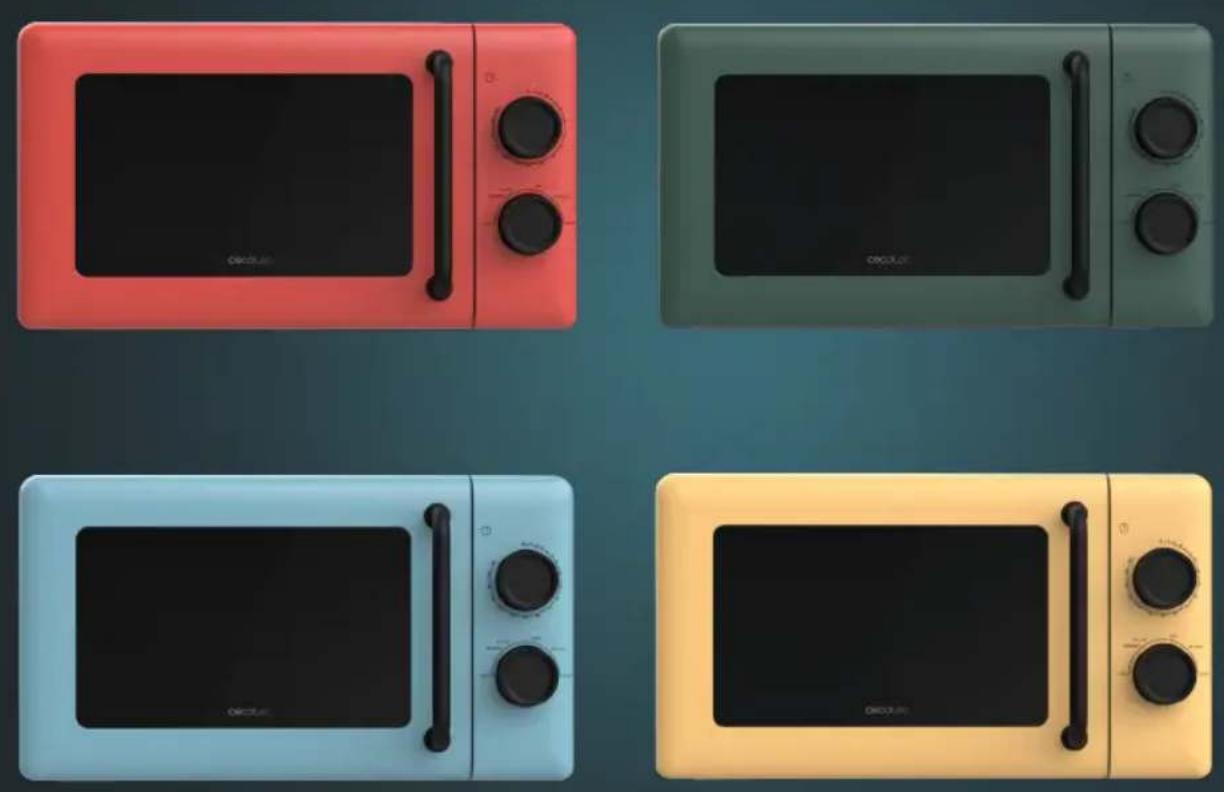

Proclean 3010 Red microwave

Proclean 3010 Blue microwave

Proclean 3010 Yellow microwave

Proclean 3010 Green microwave

Rated input power: 1150 W

Rated output power: 700 W

Microwave frequency: 2450 MHz

Voltage: 230 V

Frequency: 50 Hz

Capacity: 20 l

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

ENGLISH

11. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested to meet the required safety and quality standards.

The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity
