USER MANUAL Bolero DressCode 9410 Inverter A CECOTEC

Front view of a modern washing machine with digital display and control panel (no visible text or symbols on the device itself)

bolero

Safety instructions 8

1. Parts and components

2. Before use 62

3. Installation 63

4. Operation 64

5. Cleaning and maintenance 75

6. Troubleshooting 77

7. Error codes 78

8. Technical specifications 79

9. Disposal of old electrical

and electronic appliances 82

1. Technical support and warranty 82

2. Copyright 82

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

- The air openings must not be obstructed by a carpet.

• Children under 3 years old must stay away from the washing machine, unless they are constantly supervised.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Do not allow children to play with the device. The cleaning and maintenance of the appliance should not be carried out by children without supervision.
• Children should be supervised to make sure that they do not play with the device.
• Use the hose set supplied with the appliance. Do not reuse old hoses.
• The washing machine must be installed so that there is a distance of at least 200 mm between the outer casing of the appliance and external heat sources, such as appliances with heating elements.
• Ensure that the mains voltage matches the voltage specified on the device rating label and that the plug is earthed.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service or by a similarly qualified person to prevent hazards.
• This appliance is for indoor use only.
• Make sure the device is installed in places where the temperature is above 0 °C.

Bolero Dresscode 7410 Inverter A / Bolero DressCode 7410 Inverter Steel A Bolero Dresscode 8410 Inverter A/ Bolero DressCode 8410 Inverter Steel A Bolero Dresscode 9410 Inverter A/ Bolero DressCode 9410 Inverter Steel A Bolero Dresscode 10410 Inverter A/ Bolero DressCode 10410 Inverter Steel A

• The device is not designed for built-in installation.
• Before carrying out any maintenance in the device, unplug the appliance from the mains.
• As a safety measure, we advise you to unplug the appliance and cut the water supply after every use.
• Never unplug the appliance with wet hands.
• Unplug the power cord before cleaning or repairing the product.
• For safety reasons, the appliance must be properly earthed.
• Water channelling and electrical devices must be connected by a qualified technician in accordance with the local and national safety regulations specified by the manufacturer.
• The glass door may reach high temperatures during operation. Keep children and pets away from the glass door.
• Do not use the device in rooms where moisture, explosives, or caustic gases are present.
• If the room where the washing machine is located has any type of device that generates fumes from the burning of fuels, make sure that there is proper ventilation, as the accumulation of these fumes may cause a fire hazard.
• Do not wash items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes, and wax removers.
• We do not recommend washing foam rubber products, shower caps, waterproof garments, items, or garments lined with rubber, or pillows with foam rubber padding.
• Detergents, fabric softeners, and other additives should be used as specified by the product manufacturer.
• Do not wash articles that have been cleaned in, washed in, soaked in, or stained with flammable or explosive substances, like wax, oil, paint, petrol, degreasers, dry-cleaning solvents, kerosene, etc., which may result in fire or explosion.

Bolero Dresscode 7410 Inverter A/ Bolero DressCode 7410 Inverter Steel A Bolero Dresscode 8410 Inverter A/ Bolero DressCode 8410 Inverter Steel A Bolero Dresscode 9410 Inverter A/ Bolero DressCode 9410 Inverter Steel A Bolero Dresscode 10410 Inverter A/ Bolero DressCode 10410 Inverter Steel A

• When washing fabrics that contain vegetable or cooking oil or have been contaminated by haircare products, they should first be washed in hot water with extra detergent.
  This will reduce, but not eliminate, the hazard.
• The plug must be accessible after installation.
• The appliance must not be installed behind a lockable door, a sliding door, or a door with a hinge on the opposite side to that of the device.
• The appliance shall not be installed in a humid place.
• The product is designed for machine-washable laundry only.
• Do not stand or sit on the appliance.
• Do not lean against appliance door.
• Flammable and explosive or toxic solvents are forbidden. Do not use detergents containing petrol, alcohol, etc. Use only detergents suitable for machine washing, especially those which are dosed directly in the drum.
• Do not stop the device before ending the washing cycle. In any case, if this should happen, remove the garments with caution, as they may reach high temperatures.
• Once the washing cycle has finished, we recommend removing the laundry as soon as possible to prevent creases.

Cautions during the handling of the machine

• If you wish to change the location of the washing machine, make sure you re-install the transport bolts, as they will prevent damage to the appliance during transport.
• Water accumulated inside the appliance must be drained out.
• Handle the machine carefully. Do not lift the appliance by its protruding parts. Do not use the door of the device as a handle during transport.

• The device is heavy. Transport it with care.

• Secure the drain and water-supply hose correctly.

• Do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are put in or distributed well.
• Do not use to wash carpets.
• Never pour water manually during washing.

INSTRUCTIONS DE SÉCURITÉ

1. Detergent drawer
2. Door
3. Levelling feet
4. Control panel
5. Drain-outlet cover
6. Drain hose clamps
7. Water inlet valve (cold)
8. Power cable
9. Drain hose
10. Transport bolt (x4)
11. Rear cover
12. Plug

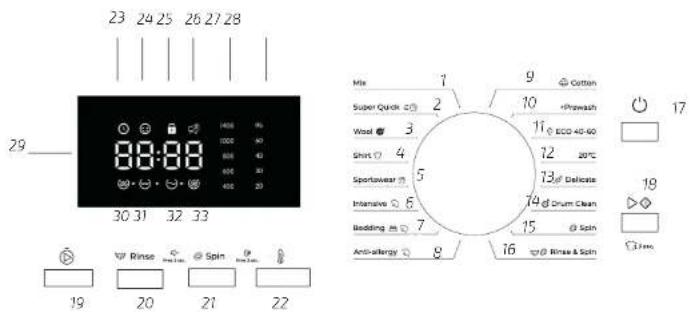

Control panel. Fig. 2

1. Mix
2. Super Quick
3. Wool
   4.Shirt
4. Sportswear
5. Intensive
6. Bedding
7. Allergy Care
8. Cotton
9. +Prewash
10. ECO 40-60
11. 20°C
12. Delicate
13. Drum Clean
14. Spin
15. Rinse & Spin
16. Power button
17. Start/Pause - Reload button
18. Delay button
19. Rinse button
20. Spin button
21. Temp. button (temperature)

Bolero Dresscode 7410 Inverter A/ Bolero DressCode 7410 Inverter Steel A Bolero Dresscode 8410 Inverter A/ Bolero DressCode 8410 Inverter Steel A Bolero Dresscode 9410 Inverter A/ Bolero DressCode 9410 Inverter Steel A Bolero Dresscode 10410 Inverter A/ Bolero DressCode 10410 Inverter Steel A

ENGLISHENGLISH

1. Delay Indicator Light
2. Child Lock indicator Light
3. Door lock indicator light
4. Mute indicator light
5. Spin speed (rpm) indicator lights
6. Temperature (°C) indicator light
7. Display
8. Soaking cycle indicator light
9. Washing cycle indicator light
10. Rinse cycle indicator light
11. Spin cycle indicator light

Detergent drawer. Fig. 3

1. Detergent compartment (II)

2. Softener compartment

Note:

The graphics in this manual are schematic representations and may not exactly match the appliance.

2. BEFORE USE

This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the device when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
- Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the Official Cecotec Technical Support Service immediately.
Box content. Fig. 4
1. Washing machine
2. Inlet hose
3. Drain hose
4. Cover for transport bolt holes (x4)
5. Drain hose bracket (NOT included with some models)
6. Spanner (NOT included with some models)
7. Instruction manual

62

Bolero Dresscode 7410 Inverter A/ Bolero DressCode 7410 Inverter Steel A Bolero Dresscode 8410 Inverter A/ Bolero DressCode 8410 Inverter Steel A Bolero Dresscode 9410 Inverter A/ Bolero DressCode 9410 Inverter Steel A Bolero Dresscode 10410 Inverter A/ Bolero DressCode 10410 Inverter Steel A

3. INSTALLATION

Please note

It is recommended that your new washing machine is installed by a qualified technician. If you think you're able to install the washing machine, please read the installation instructions carefully before proceeding with installation.

Needed tools

It is recommended that you have the following tools to facilitate the installation of the washing machine: scissors, pliers, standard screwdriver, gloves, and spanner.

Unpacking the washing machine

Unpack the washing machine and check if it has suffered any damage during transport. Should the machine be damaged or any items missing, please contact your local retailer immediately.

Choosing the location for installation

- Choose an installation location that complies with the following characteristics:

• Rigid, dry. and level surface (if not level, please read the "Leveling the washing machine" section).
  No direct sunlight.
• Properly ventilated.
• Ambient temperature between 0 and 40 °C.
• Ambient humidity below 95% (when the temperature is 25 °C).
• Keep the washing machine away from heat sources such as coal or gas. Make sure the washing machine is not crushing the power cord. Do not install the washing machine on carpeted floors.

Removing the transport bolts. Fig. 5

Before using the washing machine, remove the transport bolts from the back of the appliance. To do so, follow the below steps:

1. Loosen the four transport bolts
2. Grab the bolts by the head and pull them out.
3. Fit the plastic caps into the holes of the transport bolts.
4. Store the transport bolts in a suitable place for future use.

Levelling the washing machine

Fig. 6 key:

A. Structure of the levelling feet:

1. Lock nut
2. Rubber base

Bolero Dresscode 7410 Inverter A/ Bolero DressCode 7410 Inverter Steel A Bolero Dresscode 8410 Inverter A/ Bolero DressCode 8410 Inverter Steel A Bolero Dresscode 9410 Inverter A/ Bolero DressCode 9410 Inverter Steel A Bolero Dresscode 10410 Inverter A/ Bolero DressCode 10410 Inverter Steel A

ENGLISHENGLISH

B. Factory state

Lock nuts on the bottom of the washing machine Levelling feet fitted to the lock nuts

Note:

The levelling feet do not come fully fixed for easier installation, so be sure to fix all four before levelling the washing machine.

1. When positioning the washing machine, you should check if the levelling feet are fully fixed; if not, fix them. The lock nuts must be firmly locked to the bottom of the appliance and the levelling feet securely locked into the lock nuts. Fig. 7
2. Once the washing machine is installed, press on the opposite corners of the top with both hands in succession and shake the washing machine vertically downwards to check if the levelling feet are firmly fixed and that the washing machine does not wobble. Fig. 8
3. If the washing machine wobbles, loosen the lock nut in the direction shown in Figure 9 with the spanner provided until the machine is level and no longer wobbles. Fig. 9
4. Finally, use the spanner to fix the lock nut to the bottom of the washing machine (you can also fix the levelling feet lightly by hand to prevent them from moving). Make sure the levelling feet do not move. Fig. 10

WARNING

1. The washing machine must be perfectly level and stabilised when all four feet are firmly on the floor.
2. Incorrect levelling adjustment may cause loud noises, vibrations of the washing machine, shifting of the washing machine, and other abnormal occurrences.
3. The air vent is located at the bottom of the washing machine (to avoid obstructions). Install the washing machine on a solid, smooth, non-slip floor. Do not place the washing machine on a soft carpet or wooden floor or on top of furniture, as this may cause unnecessary injury.

4. OPERATION

Installing the washing machine

Connecting the water inlet hose to a threaded tap. Fig. 11

1. Connect the inlet hose to the tap and fix it by turning it counterclockwise
2. Connect the other end of the inlet hose to the inlet valve on the back of the washing machine and secure it firmly clockwise.
3. Open the tap and check for water leaks. If they occur, repeat the process again.

64

Bolero Dresscode 7410 Inverter A / Bolero DressCode 7410 Inverter Steel A Bolero Dresscode 8410 Inverter A / Bolero DressCode 8410 Inverter Steel A Bolero Dresscode 9410 Inverter A / Bolero DressCode 9410 Inverter Steel A Bolero Dresscode 10410 Inverter A / Bolero DressCode 10410 Inverter Steel A

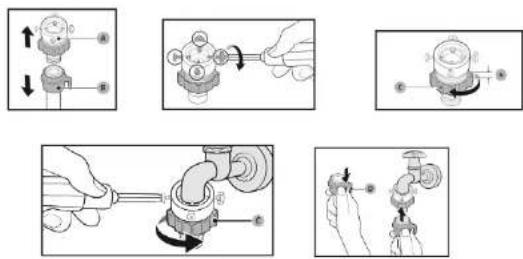

Connecting the water inlet hose to a non-threaded tap (only for certain models) Fig. 12

1. Remove adapter (A) from hose.
2. Use a Phillips screwdriver (not included) to remove the 4 screws from the adapter.
3. Hold the adapter and turn the part (C) clockwise to loosen it by approx. 5 mm (*).
4. Insert the adapter into the tap and tighten the screws until they are secure.
5. Turn the part (C) counterclockwise to fix it.
6. While pulling down part (D) of the hose, connect it to the adapter. Then, release part (D) The hose should snap into the adapter with a 'click' sound.
7. To complete the hose connection, see points 2 and 3 of the previous section (Connecting the water inlet hose to a threaded tap).
8. Open the tap and check for water leaks. If they occur, repeat the process again.

Note:

Do not bend the hose.

- Check the inlet hose connection before every use.

Connecting the drain hose

• The drain hose should be placed at a height of 65-100 cm above the ground, otherwise it may cause poor drainage. Fig. 13
• You can use the supplied drain-hose bracket (depending on the model) to connect the drain hose to the wall, drain pipe, or sink. Fig. 14
• Make sure that all hose connections are tight.

Note:

Do not immerse the end of the drain hose in water for the washing machine to work properly.

Electric connection

• Since the maximum current flow is 10 A when the interior temperature of the washing machine increases, make sure that the power supply system (current: supply voltage, and cord) in your home can meet the normal load requirements of electrical appliances.
• Connect the appliance to a properly installed and earthed outlet.
• Make sure that the household supply voltage matches the rated voltage of the washing machine.
  Make sure the power plug matches the socket.
• Do not use multipurpose plugs, sockets, or extension cords.
• Do not connect or disconnect the plug with wet hands.
• When disconnecting the plug, hold it firmly and pull it out. Do not pull the power cord out abruptly.

Warning:

1. The washing machine must be properly earthed. If a short circuit occurs, earthing can reduce the risk of electric shock.

Bolero Dresscode 7410 Inverter A/ Bolero DressCode 7410 Inverter Steel A Bolero Dresscode 8410 Inverter A/ Bolero DressCode 8410 Inverter Steel A Bolero Dresscode 9410 Inverter A/ Bolero DressCode 9410 Inverter Steel A Bolero Dresscode 10410 Inverter A/ Bolero DressCode 10410 Inverter Steel A

ENGLISHENGLISH

1. The washing machine must be operated on a circuit separate from other electrical appliances. Otherwise, the surge protector may trip, or the fuse may blow.

Washing machine operation

Please note

Make sure that the washing machine is properly installed before use.

Before first use, you should perform a complete washing cycle without laundry.

First use

1. Connect the power cord and inlet hose as described in the previous section.

2. Add some detergent (about 10 g) to the detergent drawer and close it.

3. Press the power button.

4. Turn the selection knob to the Cotton position.

5. Press the Start/Pause button.

This will remove any water left in the washing machine from the manufacturer's test.

Sorting the laundry

Read these recommendations carefully to avoid problems with the washing machine and damage to your clothes.

1. Do not exceed the maximum rated capacity.
2. Sort clothes by colour and care label. Most garments have a textile care label on the collar or on a side seam.
3. Make sure that all pockets are empty, as foreign objects (coins, paper clips, etc.) can damage the laundry and the washing machine components.
4. Close zips, fasten hooks, etc. before washing.
5. When washing clothes, it is advisable to sort them by colour. Under no circumstances should dark clothes be washed with light clothes.
6. Heavily soiled areas, stains, etc. should be pre-treated with liquid detergent, stain remover, etc.
7. Turn woollen garments that are easily balled up inside out before putting them in the washing machine.

Note:

Make sure that no clothes are jammed between the door and the seal.

Using the detergent drawer. Fig. 15

• Open the detergent drawer.
• Add main-wash detergent to the main-wash drawer compartment (compartment II). You can use either powder detergent or liquid detergent.
• Add softener to the softener drawer compartment (compartment)

66

Bolero Dresscode 7410 Inverter A / Bolero DressCode 7410 Inverter Steel A

Bolero Dresscode 841D Inverter A/ Bolero DressCode 841D Inverter Steel A

Bolero Dresscode 9410 Inverter A/ Bolero Dresscode 9410 Inverter Steel A

Bolero Dresscode 10410 Inverter A/ Bolero DressCode 10410 Inverter Steel A

Caution:

• Do not open the detergent drawer while the washing machine is in operation.
• Use a detergent suitable for machine washing at different temperatures for best results and minimum water and energy consumption.
• The needed detergent/softener amount should be added only once. Please refer to the detergent/softener manufacturer's instructions.
• Too much detergent will produce a lot of foam, which can easily overflow, affecting the dissolution of detergent and making rinsing harder.
• To avoid clogging of the compartment, concentrated or highly enriched agents (softener or detergent) can be diluted with water before application.
• Do not add detergent powder in the softener compartment.
• A detergent overload may produce too much foam, this way affecting washing efficiency.

Please note

1. It is normal for some liquid detergent to fall into the drum when opening the detergent drawer. Avoid frequent opening of the detergent drawer to reduce liquid-detergent waste.
2. The level must not exceed the MAX mark.
3. Refer to the manufacturer's instructions for the amount to be dosed. An overload of softener can negatively affect the artificial fibres of the laundry.
4. Dilute the concentrated softener or detergent first and then pour it into the detergent drawer.

Steps to follow to carry out a wash

1. Press the Power button to switch on the washing machine.
2. Turn the selection knob to select a washing programme.
3. Adjust the washing programme settings (temperature, speed, etc.) to your needs.
4. Use the Delayed Start feature if you want to finish the wash cycle at a specific time.
5. Press the Start/Pause button.

Steps to change washing programmes during operation

1. Press the Start/Pause button to stop the washing process.
2. Choose another washing programme with the selection knob.
3. Press the Start/Pause button again to start the new washing programme.

Bolero Dresscode 7410 Inverter A / Bolero DressCode 7410 Inverter Steel A

Balero Dresscode 8410 Inverter A/ Balero DressCode 8410 Inverter Steel A

Bolero Dresscode 9410 Inverter A/ Bolero DressCode 9410 Inverter Steel A Bolero Dresscode 10410 Inverter A/ Bolero DressCode 10410 Inverter Steel A

ENGLISHENGLISH

Washing programmes

Mix	For mixed loads with cotton and synthetic clothes.
Super Quick	For lightly soiled laundry and loads under 2.0 kg to be washed quickly.
Wool	The Wool washing programme is characterised by gentle swaying and soaking to protect the wool fibres from shrinkage/distortion.It is recommended to use a neutral detergent.
Shirt	You can select this programme to wash shirts made of cotton, linen, synthetic fibres, or blended fabrics.
Sportswear	This programme is designed for washing sportswear.
Intensive	For heavily soiled garments. Washing time is longer than in other cycles.
Bedding	This programme is suitable for washing heavier garments: jeans, bed linen, etc.
Allergy Care	High temperature wash with additional rinses to effectively remove detergent residues.
Cotton	For cotton, sheets, table linen, underwear, towels, or shirts. Washing time and number of rinses adjust automatically to the load.
Prewash	Add a preliminary wash process before starting the Cotton washing programme.
ECO 40-60	For cleaning medium soiled cotton garments suitable for washing at 40 °C or 60 °C, together in the same washing cycle. This programme is used to assess compliance with EU eco-design legislation. This cycle is set as default.
20 °C	For washing some delicate items, which can only be washed at 20°C (new EU standard special procedure).
Delicate	For transparent fabrics, bras. lingerie (silk), and other fabrics that can only be washed by hand. For best results, use liquid detergent.
AutoClean	Cleans the drum by removing dirt and preventing bacteria build-up. Make sure the drum is empty.Do not use cleaning products to clean the drum.
Spin	An additional spin programme to effectively remove moisture from laundry.
Rinse&Spin	It includes an additional rinsing process and a subsequent spin cycle.Example: If you manually add detergent on a particular stain and rub to remove it, you can choose this programme to rinse the detergent and spin the laundry.

Bolero Dresscode 7410 Inverter A / Bolero DressCode 7410 Inverter Steel A

Bolero Dresscode 8410 Inverter A/ Bolero DressCode 8410 Inverter Steel A

Bolero Dresscode 9410 Inverter A/ Bolero DressCode 9410 Inverter Steel A

Bolero Dresscode 10410 Inverter A/ Bolero DressCode 10410 Inverter Steel A

Table of washing programmes

• Washing efficiency and results are determined by the quality of the detergent used. Use only washing machine detergent.
• If necessary, use a specific detergent, e.g., for synthetic and woollen fabrics. Always follow the detergent manufacturer's recommendations.
• Do not use dry-cleaning products such as trichloroethylene and similar. Choose best-quality detergents.

PROGRAMME MAXIMUM LOAD (kg) TYPE OF WASHING MACHINEDETERCENT
MIX 3.5		4 4.5 5			L/P - 0
Super Quick	2	2 2	2		L/P - 0
Wool	2	2 2	2		- L/P	-
Shirt	2.5	3	3 5 4		L/P L	0
Sportswear	2.5	3	3 5 4		L/P - 0
Intensive	7	8 9 10			L/P - 0
Bedding	5	6	7	8	L/P	L/P	0
Allergy Care	3.5	4 4.5 5			L/P	L/P	0
Cotton	7	8 9 10			L/P - 0
-Prewash	5	6	7	8	L/P - 0
ECO 40-60	7	8 9 10			L/P - 0
20 °C	3.5	4 4.5 5			L/P - 0
Delicate	3.5	4 4.5 5			L/P	L/P	-
Drum Clean	0	0 0	0		-	-	-
Spin 7		8 9 10			-	-	-
Rinse&Spin	7	8 9 10			-	-	-

L: liquid detergent (if you use liquid detergent, it is not recommended to enable Delay Start). P: powder detergent.

Bolero Dresscode 7410 Inverter A / Bolero DressCode 7410 Inverter Steel A

Balero Dresscode 8410 Inverter A/ Balero DressCode 8410 Inverter Steel A

Bolero Dresscode 9410 Inverter A/ Bolero DressCode 9410 Inverter Steel A

Bolero Dresscode 10410 Inverter A/ Bolero DressCode 10410 Inverter Steel A

ENGLISHENGLISH

O: optional

-: no detergent or softener.

If you use liquid detergent, it is not recommended to activate the "Delay" function (delayed start).

Use recommendations:

Use powder detergent from 20 °C to 95 °C.

Use wool detergent from 20 °C to 40 °C.

Choose 95 °C only for specific hygienic products.

Washing programme	Weight (kg)	Programme duration (h/min)	Energy consumption (kWh/cycle)	Water consumption (l/cycle)	Temp. (°C)	Residual moisture content (%)	Spin speed (RPM)
Mix	4	0:45	0.490	50	40	75	800
Express 15'	2.0	0:18	0.040	35	17	90	800
Wool	2.0	0:44	0.110	58	20	78	400
Shirt	3.0	0:45	0.480	46	40	76	800
Sportswear	3.0	0:35	0.460	46	40	76	800
Intensive	8.0	2:08	0.840	49	50	73	800
Bedding	6.0	1:05	0.800	48	60	72	800
Cotton	8.0	2:19	1.610	69	80	72	800
Prewash	6.0	2:44	1.800	80	80	72	800

ECO 40 60 8	0.3:38 0.8	02 60 34 53.9	400
	4.0 2:48	0.386 44 28 5	3.9 1400
	2.0 2:20	0.185 38 23 53	9.1400
20 °C 4.0 0:50	0.190	42 20	62 600
Delicate	4.0	0:43	0.490	58	40	79	600
AutoClean	0	1:23	1.500	60	80	/	800
Spin Only	8.0	0:11	0.050	0	/	73	800
Rinse&Spin	8.0	0:17	0.060	18	/	73	800
AllergyCare	4.0	1:32	0.620	69	60	74	800

Warnings:

• Check whether the water inside the drum has been drained before opening its door. Do not open the door if there is still water inside the machine.
• Do not wash one garment only, as this could destabilise the washing machine. Always introduce at least 3 or 4 clothes so that draining can be done smoothly. For a better efficiency and water and energy save, we recommend filling two thirds of the drum with laundry.
  The information given for programmes other than the ECO 40-60 programme are indicative only.
• The eco 40-50 programme can clean normally soiled cotton clothes declared as washable at 40 °C or 60 °C, together in the same cycle. This programme is used to assess compliance with EU eco-design legislation.
• The times indicated for each programme match the length with standard loads and temperatures. Other loads and temperatures will need different programme length.
• The most efficient programmes in terms of energy consumption are generally those that are carried out at lower temperatures and longer length.
• Load the washing machine to the quantity estimated for each programme, this will help you save energy and water.

ENGLISHENGLISH

The length, and energy and water consumption of each programme may vary according to the weight and type of laundry, the additional functions active, water, and ambient temperature.
It is recommended the use of liquid detergent for washing programmes at low temperature. You can vary the quantity of detergent according to the quantity of laundry and its soiling level. Follow the detergent manufacturer recommendations for the quantity of detergent you must use.
Noise and remaining moisture level depend on the spin speed. The higher the spin speed, the higher the noise and the lower the residual moisture content.
- You can find more information on this model by scanning the following QR code and accessing the database with all information (also found on the energy label):

Model Bolero	DressCode9410 InverterSteel A	BoleroDressCode10410 InverterA	BoleroDressCode10410 InverterSteel A
Reference 02177		02178 02179
QR code

Model Bolero	DressCode7410 InverterA	BoleroDressCode7410 InverterSteel A	BoleroDressCode8410 InverterA	BoleroDressCode8410 InverterSteel A	BoleroDressCode9410 InverterA
Reference 02172		02173 02174 02175 02176
QR code

Control panel

Selection knob	Turn the knob to select a washing programme.
Display	The display shows the current programme information and estimated time remaining, or an information code when a fault occurs.
Temp	Press this button to change the washing-programme water temperature. The available temperature range varies from programme to programme.The selected temperature will be shown on the display.
Spin speed	Press this button to change the spin speed of the programme. The available spin-speed options depend on the programme.The selected spin speed will be shown on the display.Ref. 02172 / 02173 > 400 - 600 - 800 - 1000 - 1200 rpmRef. 02174 / 02175 / 02176 / 02177 / 02178 / 02179 > 400 - 600 - 800 - 1000 - 1400 rpm
Delay start	Press this button repeatedly to cycle through the available options (from 3 to 24 hours in one-hour increments).
Start/pause	Press this button to start or stop the washing process:Press the button once to start the washing programme.To stop the programme, press the button again.To resume the programme, press the button again.
Power	Press this button to switch the washing machine on or off.If you switch on the machine and do not press any button within 10 minutes, the machine will switch off automatically.

Delay Start

You can set the washing machine to automatically end washing at a specific time by choosing a delay between 3 and 24 hours (in 1-hour increments).

1. Choose the desired programme and change the cycle settings if necessary.
2. Press the Delay Start button repeatedly until the desired end time is set.
3. Press the Start/Pause button.
4. To disable the Delay Start feature, restart the washing machine by pressing the Power button.

Example:

Current time: 2:00 p.m.

Desired starting time: 5:00 p.m.

ENGLISHENGLISH

1. Select the washing programme.
2. Select the "Delay Start" function and set 3 hours by pressing the Delay Start button.
3. Press the Start/Pause button.
   The washing machine will start operating at 5:00 p.m.

SteamMax

This function is automatically activated together with the "Intensive", "Bedding" and "Allergy Care" programmes.
- The function performs extra steam-sterilisation cleaning together with the selected washing programme.
- This function cannot be disabled.

Child Lock

• To prevent accidents, the Child Lock locks all buttons except the Power button.
• To enable or disable Child Lock, press, and hold the temperature and speed buttons for 3 seconds.
• When the Child Lock is enabled, the Child Lock icon lights up.

Mute

• You can enable or disable the sound of the selection knob and all buttons.
• To enable or disable the sound, press, and hold the Spin and Rinse buttons simultaneously for 3 seconds.
• When the sound is disabled, the Mute icon lights up.

Door Lock

• When washing starts, the door is locked, and the Door Lock Icon lights up for safety reasons.
• At the end of a washing programme and after a few seconds, the door unlocks for you to remove the laundry.

Reload

• Hold down the Start/Pause button for 3 seconds. Once the door is unlocked, you can add more laundry in the washing machine.
• For safety reasons, the Extra Load function cannot be used if there is excess water in the drum or if water temperature is high.

Other functions

Resume function

This device has a Resume function in case of switch-off. If there is a loose plug or a power

74

Bolero Dresscode 7410 Inverter A/ Bolero DressCode 7410 Inverter Steel A Bolero Dresscode 8410 Inverter A/ Bolero DressCode 8410 Inverter Steel A Bolero Dresscode 9410 Inverter A/ Bolero DressCode 9410 Inverter Steel A Bolero Dresscode 10410 Inverter A/ Bolero DressCode 10410 Inverter Steel A

failure occurs during the washing process, the appliance is able to remember the previously selected settings and resume operation once power is restored (it must be switched on again by pressing the power button).

Memory function

The appliance can automatically remember the last programme used when the washing machine is switched on again.

NOTE: settings such as temperature are not remembered by this function.

Laundry weight detection

At the beginning of the wash, the washing machine will estimate the laundry weight and automatically dispense detergent (provided there is enough in the drawer) and adjust the water amount accordingly to save as much as possible.

Unbalance control system

• It may take some time for the washing machine to balance the weight distribution of laundry in case of unbalance.
• If the laundry is still unevenly distributed in the drum, spin speed can be decreased to avoid strong vibrations.
• If there isn't enough laundry in the drum, the washing machine may not spin due to the unbalance control system. Add more laundry for the machine to start spinning.

5. CLEANING AND MAINTENANCE

Proper maintenance on the washing machine can extend its working life.

Warning

Unplug the appliance and close the tap before maintenance.

Cleaning the drum

Clean the drum if you see rust on the inside. Never use steel wool pads for this purpose.

Cleaning the surface

1. Use a dry cloth or a cloth lightly dampened with a neutral, non-abrasive detergent to remove dirt from the surface. Make sure that the surface of the washing machine remains dry at all times. Do not scratch the washing machine with sharp objects.
2. The surface can be cleaned with diluted non-abrasive, neutral detergents if necessary.

Cleaning the drain outlet

1. Open the drain-outlet cover as shown in Figure 16. You can open it with the help of a non-sharp, non-cutting object.

Bolero Dresscode 7410 Inverter A/ Bolero DressCode 7410 Inverter Steel A Bolero Dresscode 8410 Inverter A/ Bolero DressCode 8410 Inverter Steel A Bolero Dresscode 9410 Inverter A/ Bolero DressCode 9410 Inverter Steel A Bolero Dresscode 10410 Inverter A/ Bolero DressCode 10410 Inverter Steel A

ENGLISHENGLISH

1. Unscrew the plug and remove any foreign material or objects from the drain outlet. Be careful with possible water that may come out during the process. Fig. 17
2. Refit the plug and close the cover. Fig. 18

Cleaning the water inlet valve filter

The inlet filter must be cleaned if no or insufficient water enters when the tap is opened.
1. Lower the water pressure:
a. Close the tap.
b. Select any programme except Spin.
c. Press the Start/Pause button and keep the programme running for about 40 seconds.
d. Disconnect the plug.
2. Disconnect the inlet hose from the tap. Fig. 19
3. Gently pull out the filter using a pair of needle-nosed pliers. Use extreme caution not to force the filter to avoid damaging it. Fig. 20
4. Wash the filter with water and remove any accumulated dirt.
5. Place the filter back in its original position.
6. Reconnect the inlet hose. Fig. 21

Cleaning the detergent drawer

1. Open the detergent drawer (lift it up slowly) and remove the cover 1 (siphon plate) by lifting it up as shown in figure 22.
2. Wash the detergent drawer and the siphon with tap water or clean them with a brush.
3. Refit the detergent drawer and the siphon.
4. It's possible for some detergent to get into the drum when removing the detergent drawer. This is normal.
5. To avoid spillage, make sure that no water, detergent, or softener is left in the detergent drawer before removing it.

Defrost

Do not expose the washing machine to temperatures below 0 °C, as this may affect its operation and the lifespan of its parts. Should you notice frozen parts, follow the below procedure:

1. Turn off the washing machine and unplug the power cord.
2. Pour hot water over the tap to loosen the water inlet hose.
3. Disconnect the water inlet hose and immerse it in hot water.
4. Pour hot water into the drum and leave it for about 10 minutes.
5. Reconnect the water inlet hose to the tap.

Please note

1. When resuming use of the washing machine, make sure that the ambient temperature is above 0 °C.
2. If the washing machine is located in a room where it can easily freeze, thoroughly drain

the remaining water inside the drain hose and water inlet hose.

1. Refer to a technician if the washing machine freezes. If the washing machine still does not work after the above procedure, please contact the official Cecotec Technical Support Service.

2. TROUBLESHOOTING

PROBLEMS POSSIBLE SOLUTIONS
There's water in the drum before first use.	This is normal. It's the result of factory water tests.
The washing machine does not turn on.	Check that the plug is properly connected to the socket.Check if the tap is open.Check if the Power button was pressed.Check if the Start/Pause button was pressed.Check if the Delay Start function is enabled.
The washing machine leaks. Check and tighten the water inlet hose.Clean the drain hose and contact the official Cecotec Technical Support Service.
Strange noise and strong vibrations.	Check whether the transport bolts have been removed.Check if the levelling feet are properly adjusted. Check if the washing machine is installed on a level and solid surface.Check for metal items inside.
Washing results are not satisfactory.	Select a suitable washing programme.Add the appropriate amount of detergent according to the instructions on the detergent package.
The buttons do not work. Check whether the "Child Lock" function is enabled.
The actual running time of the programmes does not correspond to the time indicated on the display.	Check if the laundry in the drum is evenly spread out.Check if the water flows in and out properly.
The washing machine fills up during draining.	Check if the height of the drain hose is less than 65 cm.Check if the drain hose is submerged.

ENGLISHENGLISH

1. ERROR CODES

CODE PROBLEM POSSIBLE SOLUTIONS
E1 The washing machine takes a long time to fill up.		Check if the water inlet tap is open.Check that the water pressure is not too low.Check that the water inlet hose is not dirty or blocked.
E2 The washing machine takes a long time to drain the water.		Check that the drain pump is not blocked.
E3 The door is not closed properly.		Check that there are no items such as clothes or dirt between the door and the seal.
E4 The water overflows.		Check that the water outlet hose is not dirty or blocked.
E5 Electric motor failure.		Contact the official Cecotec Technical Support Service.
E6 Heating element failure.		Contact the official Cecotec Technical Support Service.
E7 Temperature sensor failure.		Contact the official Cecotec Technical Support Service.
E8 PCB or frequency inverter board failure.		Contact the official Cecotec Technical Support Service.
E9 Communication failure (software).		Contact the official Cecotec Technical Support Service.
E10	"Inverter" failure.	Contact the official Cecotec Technical Support Service.
EP The running washing programme does not correspond to the programme indicated on the selection knob.		Turn the selection knob until the current washing programme is selected.

Bolero Dresscode 7410 Inverter A / Bolero Dresscode 7410 Inverter Steel A

Bolero Dresscode 8410 Inverter A/ Bolero Dresscode 8410 Inverter Steel A

Bolero Dresscode 9410 Inverter A/ Bolero DressCode 9410 Inverter Steel A Bolero Dresscode 10410 Inverter A/ Bolero DressCode 10410 Inverter Steel A

Note:

If none of these situations match your problem, do not attempt to disassemble, or repair the washing machine yourself. Repairs carried out by unqualified persons may result in injury or serious malfunctions. Please contact the place where you bought the appliance or the official Cecotec Technical Support Service. The repair must be carried out by an authorised technician, and you must use only original spare parts.

1. TECHNICAL SPECIFICATIONS

Model Bolero	DressCode 7410 Inverter A	Bolera DressCode 7410 Inverter Steel A	Bolera DressCode 8410 Inverter A	Bolera DressCode 8410 Inverter Steel A	Bolera DressCode 9410 Inverter A
Reference 02172		02173 02174 02175 02176
QR code
Model Bolero	DressCode 9410 Inverter Steel A	Bolera DressCode 10410 Inverter A	Bolera DressCode 10410 Inverter Steel A
Reference 02177		02178 02179
QR code

Bolero Dresscode 7410 Inverter A / Bolero DressCode 7410 Inverter Steel A

Bolero Dresscode 8410 Inverter A/ Bolero DressCode 8410 Inverter Steel A

Bolero Dresscode 9410 Inverter A/ Bolero DressCode 9410 Inverter Steel A Bolero Dresscode 10410 Inverter A/ Bolero DressCode 10410 Inverter Steel A

ENGLISHENGLISH

02172_Bolero DressCode 7410 Inverter A02173_Bolero DressCode 7410 Steel Inverter A
Maximum load (dry clothes) 7 kg
Rated power 1850 W
Water pressure	0.05 MPa - 0.8 MPa
Power supply 220-240 V~, 50 Hz
IPX	IP X4
02174_Bolero DressCode 8410 Inverter A02175_Bolero DressCode 8410 Steel Inverter A
Maximum load (dry clothes)	8 kg
Rated power	1900 W
Water pressure	0.05 MPa - 0.8 MPa
Power supply 220-240 V~, 50 Hz
IPX	IP X4

02176_Bolero DressCode 9410 Inverter A02177_Bolero DressCode 9410 Steel Inverter A
Maximum load (dry clothes) 9 kg
Rated power 1900 W
Water pressure 0.05 MPa - 0.8 MPa
Power supply 220-240 V~, 50 Hz
IPX IP X4
02178_Bolero DressCode 10410 Inverter A02179_Bolero DressCode 10410 Steel Inverter A
Maximum load (dry clothes) 10 kg
Rated power 1950 W
Water pressure 0.05 MPa - 0.8 MPa
Power supply 220-240 V~, 50 Hz
IPX IP X4

Technical specifications may change without prior notice to improve product quality. Made in China | Designed in Spain

ENGLISH

FRANÇAIS

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries. Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations. It is recommended that repairs be carried out by qualified personnel. If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

B2

Bolero Dresscode 7410 Inverter A / Bolero DressCode 7410 Inverter Steel A Bolero Dresscode 8410 Inverter A / Bolero DressCode 8410 Inverter Steel A Bolero Dresscode 9410 Inverter A / Bolero DressCode 9410 Inverter Steel A Bolero Dresscode 10410 Inverter A / Bolero DressCode 10410 Inverter Steel A

1. PIÈCES ET COMPOSANTS

Img.1

Technical diagram of a washing machine with numbered components and labeled parts

Fig./Img./Abb./Afb./Rys.1

23 24 25 26 27 28 29 88:88 30 31 32 33 19 Rinse Spin Spin 10 Super Quick 11 Eco 40-60 12 20°C 13 of Delicate 14 Drum Clean 15 Spin 16 Rinse & Spin Mix 1 9 Cotton Super Quick 2 10 Prewash Wool 3 11 Short 4 12 Sportwear 5 13 Intensive 6 14 Bedding 7 15 Anti-allergy 8

Fig./Img./Abb./Afb./Rys.2

1 2

Fig./Img./Abb./Afo./Rys.3

5
6
Fig./Img./Abb./Afb./Rys.4

4

Fig./Img./Abb./Afb./Rys. 5

A 1 2 B

Fig./img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys.7 Fig./Img./Abb./Afb./Rys.8

Fig./img./Abb./Afb./Rys.9

Fig./Img./Abb./Afb./Rys.10

Fig./Img./Abb./Afb./Rys.11

Fig./Img./Abb./Afb./Rys.12

65cm 100cm

Diagram showing a mechanical component before and after transformation, with no visible text or symbols.

Fig./Img./Abb./Afb./Rys. 13 Fig./Img./Abb./Afb./Rys. 14

Fig./Img./Abb./Afb./Rys. 15 Fig./Img./Abb./Afb./Rys. 16

Hand inserting a cable into a device (no text or symbols visible)

Line drawing of a hand inserting a button into a wall-mounted device (no text or symbols)

Fig./Img./Abb./Afb./Rys. 17 Fig./Img./Abb./Afb./Rys. 18

Illustration of a hand holding a faucet with a valve, showing a downward arrow indicating force or movement (no text or symbols)

Hand connecting a cable to an electrical outlet with multiple connectors (no text or symbols visible)

Fig./Img./Abb./Afb./Rys. 19 Fig./Img./Abb./Afb./Rys. 20

Line drawing of two utility poles connected by a pipe (no text or symbols)

Fig./Img./Abb./Afb./Rys. 21 Fig./Img./Abb./Afb./Rys. 22

www.cecotec.es
