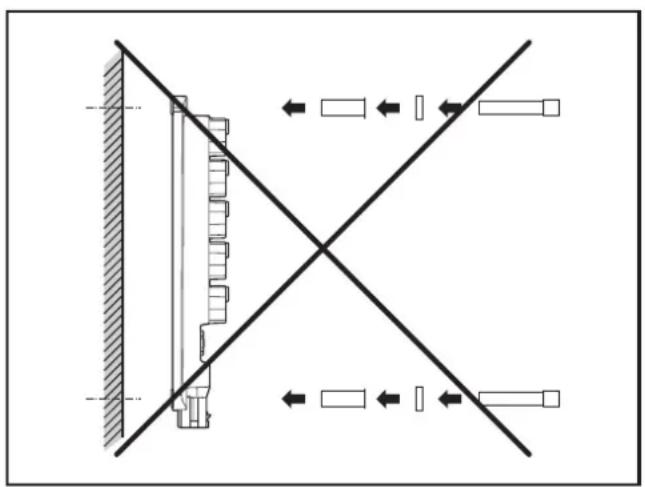

Surface de montage

Technical diagram showing mechanical assembly with directional arrows and component layout (no text or labels)

Pure mechanical diagram showing a vertical component with diagonal lines and directional arrows, no text or symbols present.

Technical diagram of a device rear panel with numbered components for identification

Zone de raccordement

Technical diagram of a device rear panel with numbered ports and an exploded view showing internal components and labeled parts.

Technical diagram of a device component with numbered parts labeled 1, 2, and 3

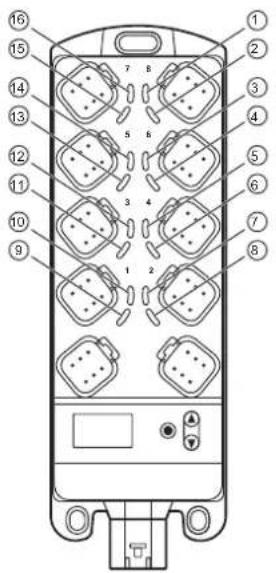

1:LED IN15
2:LED IN07
3:LED IN13
4:LED IN05
5:LED IN11
6:LED IN03
7: LED IN09
8: LED IN01
9: LED IN08
10:LED IN00
11: LED IN10
12: LED IN02
13:LED IN12
14:LED IN04
15: LED IN14
16:LED IN06

Diagram of a device rear panel with numbered labels pointing to various electronic components and connectors.

Dimensions (H x L x P) 234 x 76 x 40,5 m

Profi I de communication

LED E/S 16 x LED orange

LED power (PWR) LED verte

LED Mode (M) LED verte

LED d'application (A...D)

LED Lock (symbole de cadenas)

LED de diagnostic (DIA)

Affi chage

Diagram of a device rear panel with numbered labels pointing to various electronic components and switches.

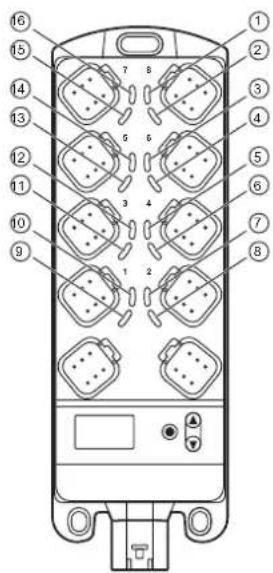

1:LED OUT07
2:LED OUT03
3: LED OUT06
4:LED OUT02
5:LED OUT05
6:LED OUT01
7:LED OUT04
8:LED OUT00
9:LED IN04
10:LED IN00
11:LED IN05
12: LED IN01
13:LED IN06
14:LED IN02
15:LED IN07
16:LED IN03

Diagram of a device rear panel with numbered labels pointing to various electronic components and connectors.

The following error codes according to DSP-401 or DSP-301 are supported:

EMCY code Error reg Additional code Description
0x6100 0x11 0x00 "Internal Software			Overflow of an Rx queue e.g. frequency of the RxP-DOs is too high.Reset only externally via entry in the index 0x1003 Subldx 00."
0x6101 0x11 0x00 "Internal Software			Overflow of an Tx queue e.g. device does not communicate with the bus.Reset only externally via entry in the index 0x1003 Subldx 00."
0x8000 0x11 0x00 "Monitoring Sync Error			For communication cycle no sync object is received.Only in Operational. Reset with the next sync OBJ or PREOP"
0x8100 0x11 0x00 Communication Err
0x8131 0x11 0x00 "Monitoring Heart Beat Error			No guard object is received.Reset with the next Heart beat or PREOP"
0x63xx 0x01 0x00 "Invalid parameter of an input or output.""xx"" means number of the IO-channel (00 ... 15)"
0x5000 0x01 0x00 Memory Error
0x3308 0x05 0x00 VBB2 error (only CR2051, CR2052)
0x90xx 0x01 0x00 "Frequency input, Frequency too low""xx"" means number of the IO-channel (00 ... 15)"
0x21xx 0x03 0x00 "Inputs, Openline""xx"" means number of the IO-channel (00 ... 15)"
0x21xx 0x03 0x00 "Inputs, Short circuit""xx"" means number of the IO-channelCR2050 (00 ... 15) + 16; CR2052 (00 ... 07) + 8"
0x21xx 0x03 0x00 "Inputs, Overcurrent""xx"" means number of the IO-channelCR2050 (00 ... 15) + 32; CR2052 (00 ... 07) + 16"
0x23xx 0x03 0x00 "outputs, Openline""xx"" means number of the IO-channelCR2051 (00 ... 15); CR2052 (00 ... 07)"
0x23xx 0x03 0x00 "outputs, Short circuit""xx"" means number of the IO-channelCR2051 (00 ... 15) + 16; CR2052 (00 ... 07) + 8"
0x23xx 0x03 0x00 "outputs, Overload""xx"" means number of the IO-channelCR2051 (00 ... 15) + 32; CR2052 (00 ... 07) + 16"

CANopen does not provide for two identical EMCY objects to be sent consecutively.

12.2 Object directory CR205x

Obligatory objects (index 0x1000...0x1FFF):

Index S-idx Designation Data type Default Details (CR205x)
0x1000 Device type ro UDINT 0x000F0191 Device type
0x1001 Error register ro USINT 0 Error register bitcoded to profile						301Permissible values:0b0000 0000 = no error0b0000 0001 = generic error0b0001 0000 = communication error0b1000 0000 = manufacturer specific
0x1018 0x00 Device identification Number of entries			ro USINT 0x04		Device identification
0x1003 0x00 Predefined error field Number of entries			rw	UDINT 0 An error list with 4 entries is supported
0x1005	COB-ID	synchmessage	rw U	DINT 0x000	0 0080 Identifier of	the synch messageBit 30 = 0 device generates nosynch messageBit 30 = 1 device generates asynch messageBit 29 = 0 11 bit IDBit 29 = 1 ID = 0x80 + node ID
0x1006	Communi-cation cycleperiod	rw U	DINT 0 Max.	time between 2 s	synch objectsin [μs]Control resolution = 1 ms
0x1008	Manufacturerdevice name	ro STRING CR205x Device designation (CR2050 orCR2051 or CR2052)
0x1009	Manufacturerhardwareversion	ro STRING V00.00.00 Hardware version
0x100A	Manufacturersoftwareversion	ro STRING V00.00.00 Software version
0x1010	0x00	Store para-metersLargestsub-indexsupported	ro USINT 0x01	Number of “save options”
	0x01	Save allparameters	rw U	DINT 2 Automatic saving of all parameterschanged0 = AutoSave OFF2 = AutoSave ON
0x1011	0x00	RestoredefaultparametersLargestsub-indexsupported	ro USINT 0x01	Number of "restore options"
	0x01	Restoreall defaultparameters	rw U	DINT 0x01	If the String "load" is entered here,the default parameters set at thefactory are restored and becomevalid after the next reset.
0x1014	COBldEmergency	rw	UDINT	0x80 + node ID	Bit 31 = 0 EMCY is validBit 31 = 1 EMCY is not validBit 29 = 0 11 -bit IDBit 29 = 1 ID = 0x80 + node IDCAN identifier can be changed bythe user.
0x1016 0x00 Con	sumer heartbeat times Nums consumer heartbeat time	ro USINT 0x01 Heartbeat monitoring time for the node Number of devices monitored = 1
	0x01 Consumer heartbeat time	rw U DINT 0 Heartbeat monitoring time for the node Format: 0x0nntttt tttt = monitoring time [ms] nn = node number if nn=0 or tttt=0 → no monitoring
0x1017 Producer	heartbeat time	rw UI NT 0 Time interval [ms] during which the device generates a producer heartbeat
