IMPORTANT! READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE Important safety Information.

General:

• This vehicle is intended for children from birth up to a maximum of 22kg or 4 years whichever comes first.
  • WARNING: Never leave your child unattended.
  • WARNING: Ensure that all the locking devices are engaged before use.
• WARNING: To avoid injury ensure that your child is kept away when unfolding and folding this product.
• WARNING: Do not let your child play with this product.
• WARNING: This product is not suitable for running or skating.
  • WARNING: Always use the restraint system.
• WARNING: Always use the crotch strap in combination with the waist belt.
• WARNING: Always use the bumper bar with the fabric cover fitted
• Do not use replacement parts or accessories other than those approved by Cosatto.
• Use the seat in the most reclined position for new born babies until they can sit up unaided.
• A basket is provided for the carriage of goods, evenly distributed, up to a maximum weight of 5kg.
• Rear pocket on hoods - maximum weight 200g each.
• Any additional load attached to the handle or on the back of the backrest or on the sides of the vehicle will affect the stability and safety of the vehicle.
• Do not use a platform with this product as it may render the product unsafe.
  • Always apply the brake when placing or removing a child from vehicle.
• Never carry a third child on the product.
  • This product complies with BS EN 1888-2:2018 + A1:2022.
• Ensure your child wears a correctly fitted and adjusted harness at all times. D-rings are provided for the attachment of a separate safety harness approved to BS EN 13210 should this be required.
• Remove all packaging & protective materials on the product before using.

Cosatto changing bag (sold separately):

- A coordinating changing bag can be purchased separately, suitable for the carriage of 2 kg of goods.

- Do not attach the changing bag to the vehicle as it will affect the stability of the vehicle.

Care & maintenance:

• Your pushchair has been designed to meet comprehensive safety standards, and with correct use and maintenance will give many years of trouble free performance.
• Storage - Always store your pushchair dry. Storing a damp pushchair will encourage mildew to form, so after exposure to damp conditions, dry off with a soft cloth and allow to dry thoroughly before storing. Never leave in sunlight for prolonged periods - some fabrics may fade.
• Cleaning - Refer to the wash care label on soft goods for cleaning instructions. Plastic and metal parts may be sponged clean with warm water and a mild detergent. Never clean with abrasive, ammonia based, bleach based or spirit type cleaners.
• Wear & Tear - Continual impact will cause damage. The chassis is strong but will weaken should the back wheel be bumped down stairs or kerbs. Tyres will wear with use and wheel units should be replaced if necessary. If your child wears hard shoes these might damage the soft fabric.

- Maintenance - Regularly inspect the locking devices, brakes, wheels, harness assembly, catches, seat adjusters, joints and fixtures to ensure they are secure and in full working order. They should move freely at all times and minimum maintenance should be required. However a regular light application of a spray lubricant e.g. silicone (do not use oil or grease) will extend the life of your pushchair and make opening and folding easier. Your pushchair should be serviced and reconditioned before using it for a second baby, or after 18 months, whichever is the sooner.

Visual language key:

XX	Refer to warning XX
	Correct action
	Incorrect action
	Audible sound

	Repeat action x times
	General action arrow
	Lock
	Unlock

	Press and hold
	Check
	Continue to step XX
	Repeat on other side

Part list:

Please refer to diagrams:

P1: Pushchair P4: Raincover
P2: Rear wheel (x2) P5: Bumper bar with cover (x2)
P3: Front wheel (x3) P6*: Cosatto footmuff (sold separately)

Replacement parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website:

http://www.cosatto.com/service-centre/spares

For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists

If you require any further assistance, please contact us at [e-mail]

S1: Hood S10: Front wheel
S2: Hood insert S11: Raincover
S3: Seat cover (RH) S12: Bell
S4: Seat cover (LH) S13: Autolock
S5: Harness S14: Bumper bar
S6: Chest pad (set) S15: Bumper bar cover
S7: Basket S16: Bumper bar cap (x2)
S8: Rear wheel
S9: Rear wheel cap S18: Seat board

S17: Backrest board

Fitting & Operation information:

E Z

Please refer to the instruction diagrams (P. 35 - 42):

Pushchair 1- Opening:

Release both autolocks (a) and lift the handle upwards (b) until the chassis locks into position (c).

Check the chassis has locked in place (d).

Rear wheel 2- Fitting:

3- Removing:

Front wheel 4- Fitting:

5- Removing:

Front wheel swivel 6- Applying: lock 7- Releasing

7- Releasing:

Brake 8- Applying:

9- Releasing:

Harness 10- Opening:

11- Closing:

12- Adjusting the strap length:

Slide the strap adjustor to suitable length (a, b & c).

13- Adjusting the shoulder strap position:

14- Satisfactory shoulder strap position:

15- Harness tension:

Always make sure that the harness is correctly tensioned to ensure maximum protection for your child.

You should only be able to insert 2 fingers between the shoulder strap and waist strap.

NOTE: Winter/ Summer clothing can make a difference to the size of your child.

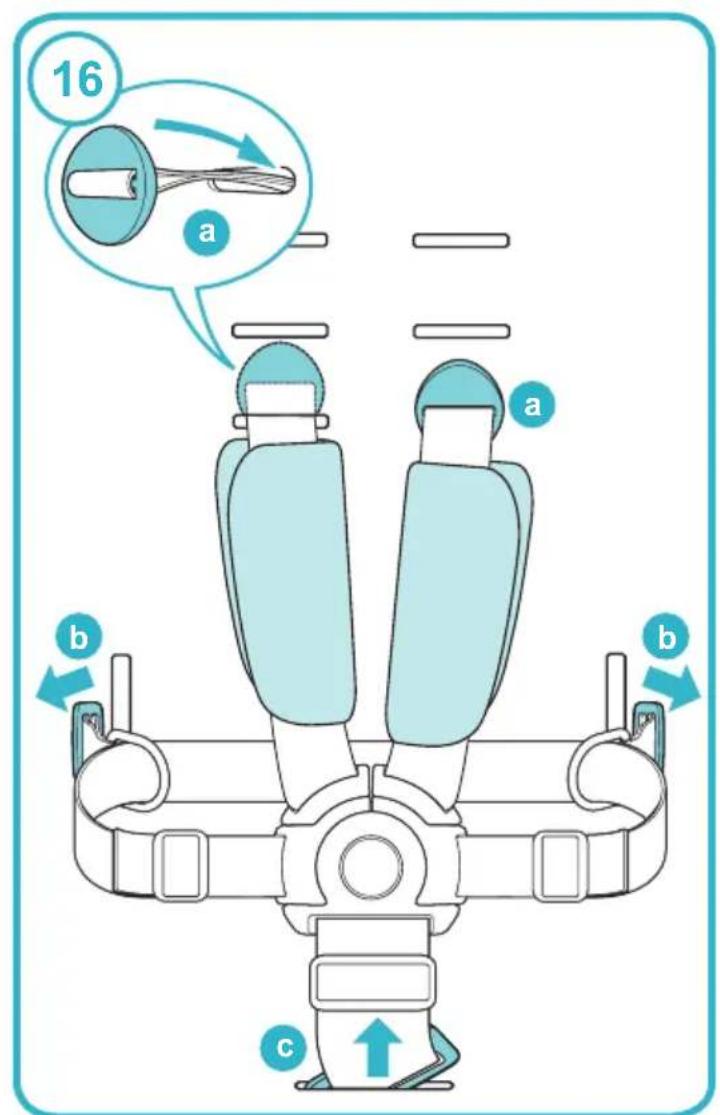

16- Removing:

Push the shoulder strap retainers through the backrest (a).

Push the waist strap retainers through the backrest (b).

Push the crotch strap retainer through the seat (c).

Refitting is a reversal of this procedure.

Cosatto footmuff (sold separately)

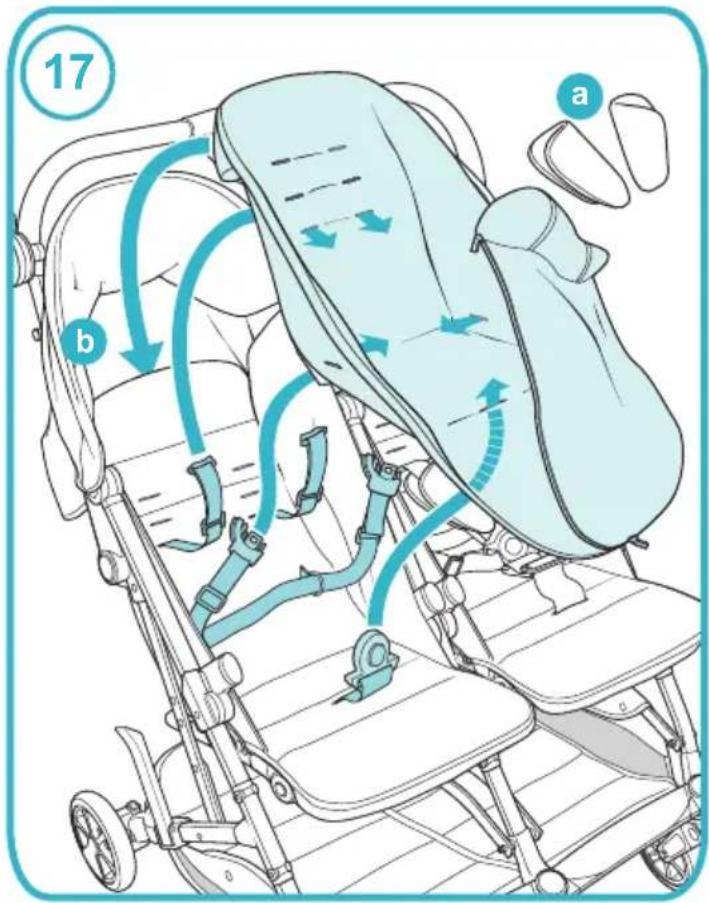

17- Fitting:

Open the harness (refer to step 10) and remove the chest pads (a).

Fit the footmuff liner to the rear of the backrest (b).

Refit chest pads then close the harness (See step 11).

Removing is a reversal of this procedure.

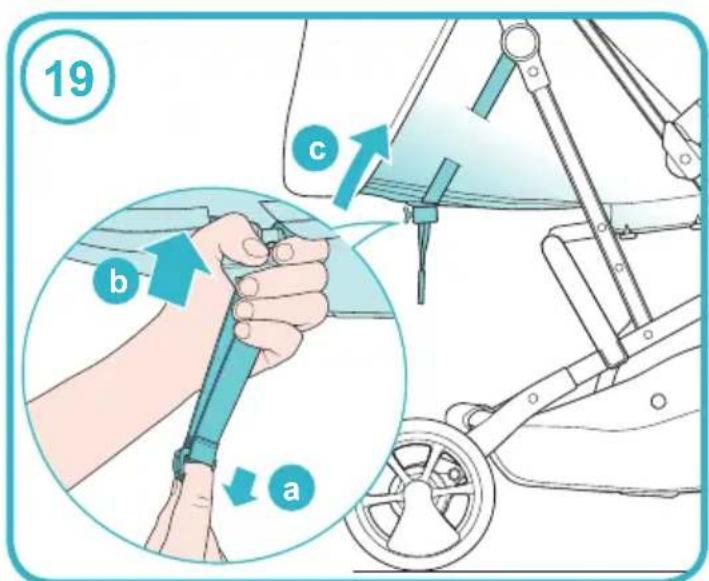

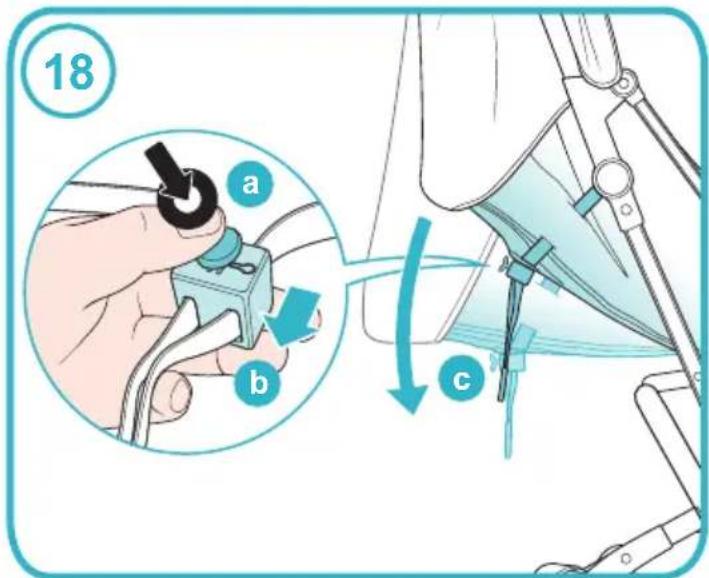

Backrest 18- Lowering:

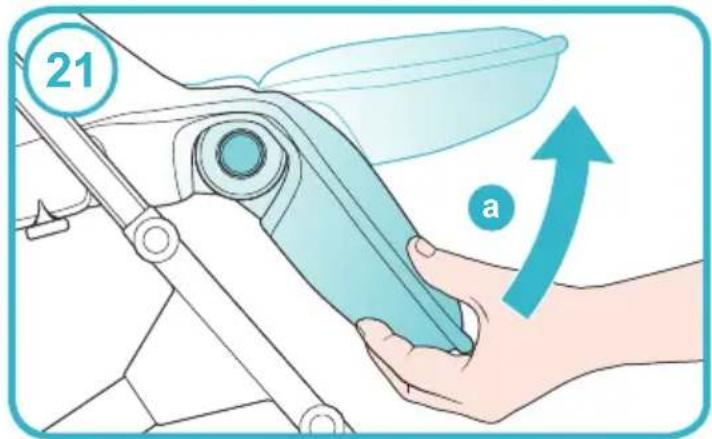

19- Raising:

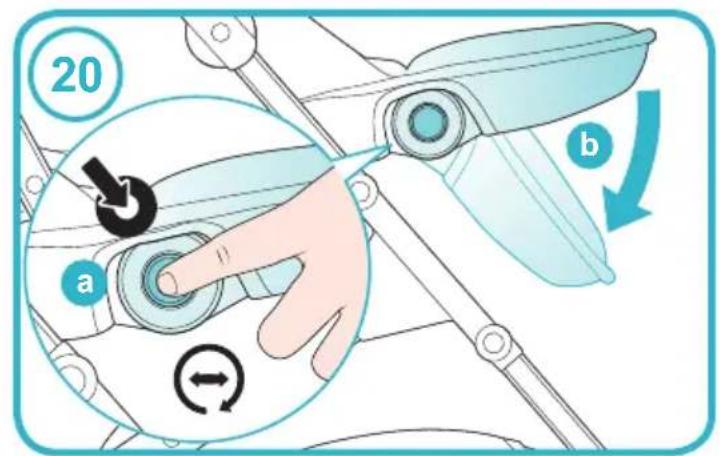

Calf support 20- Lowering:

21- Raising:

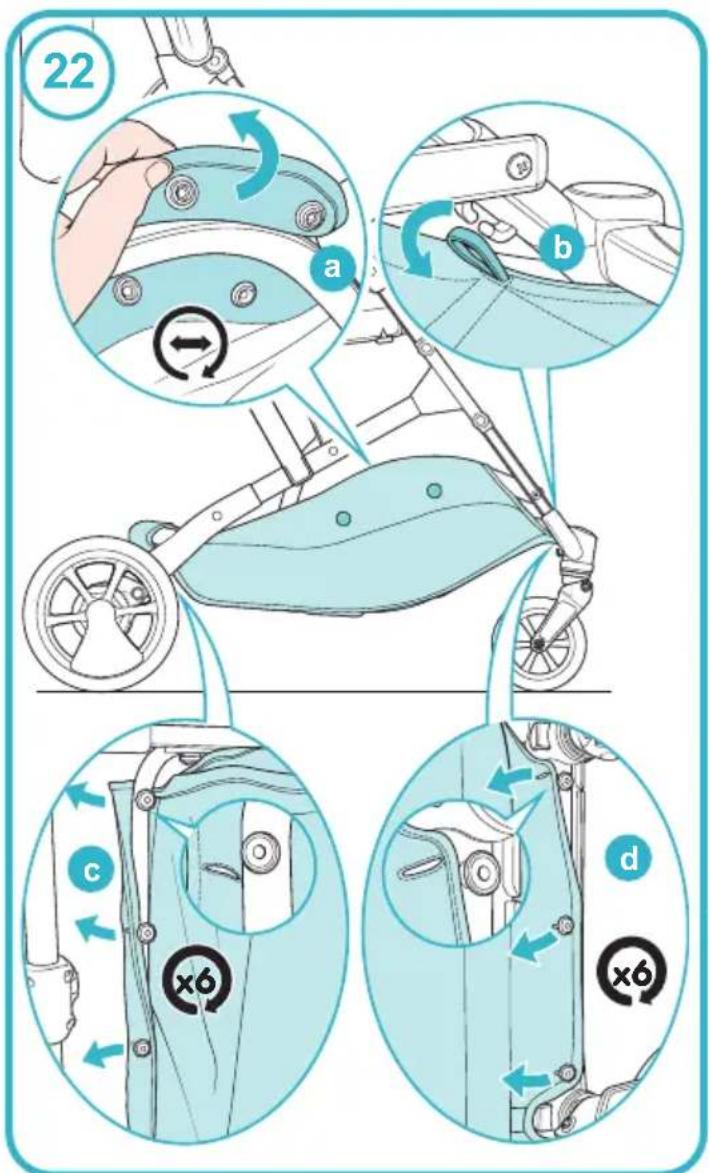

Basket 22- Removing:

Refitting is a reversal of this procedure.

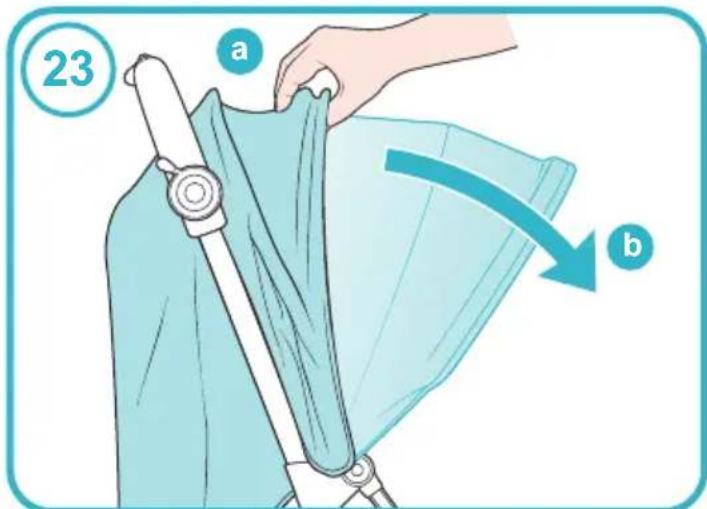

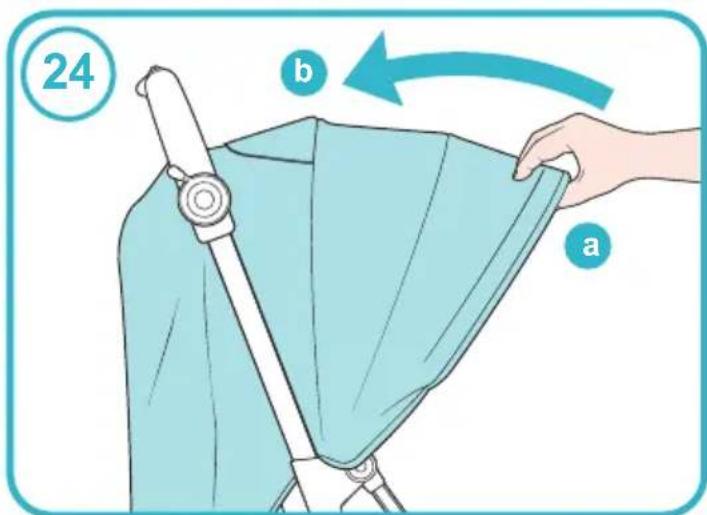

Hood 23- Opening:

24- Closing:

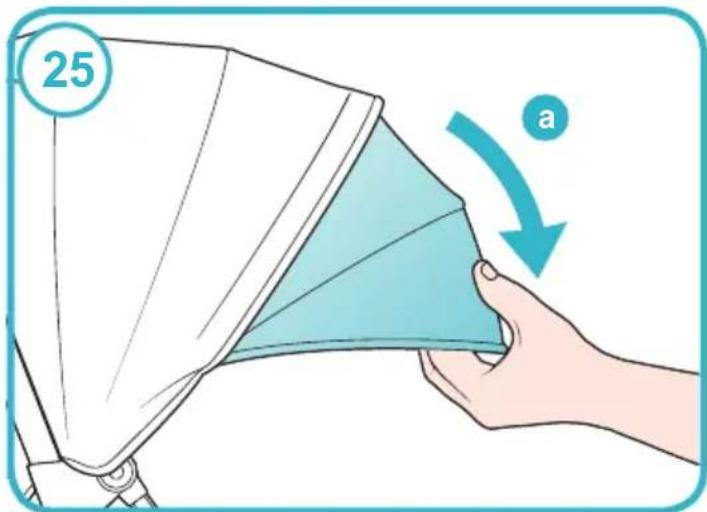

Sun visor 25- Opening:

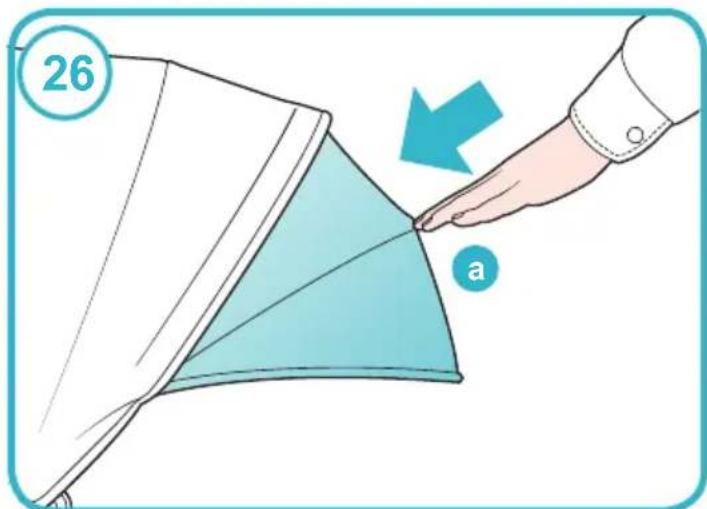

26- Closing:

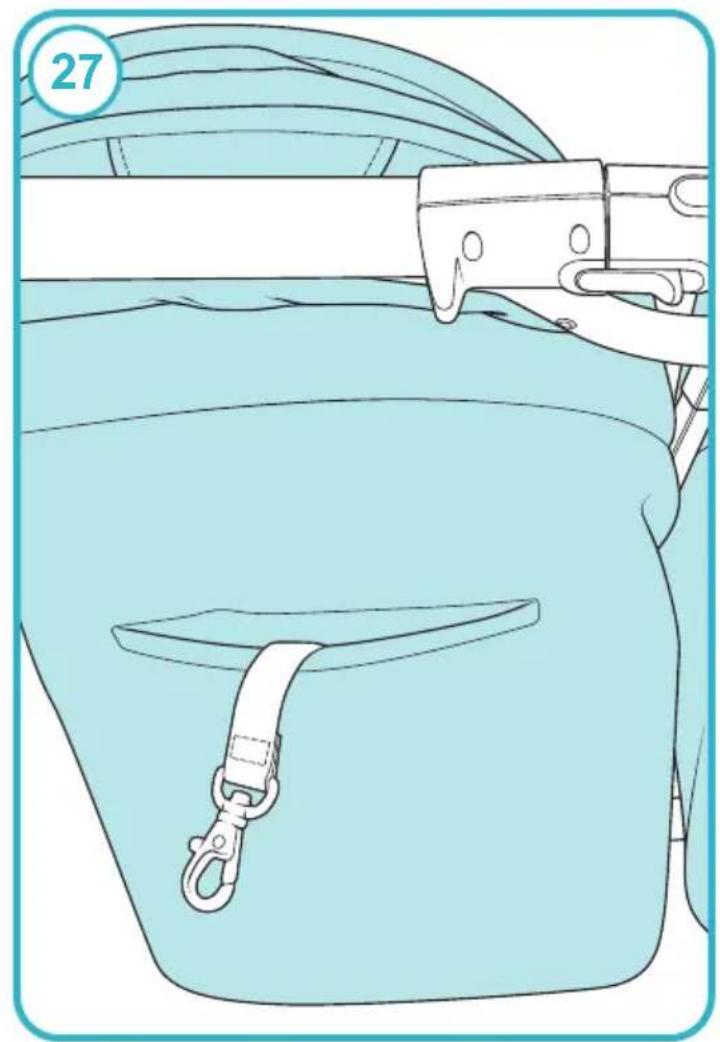

Hood 27- Using the hood pocket:

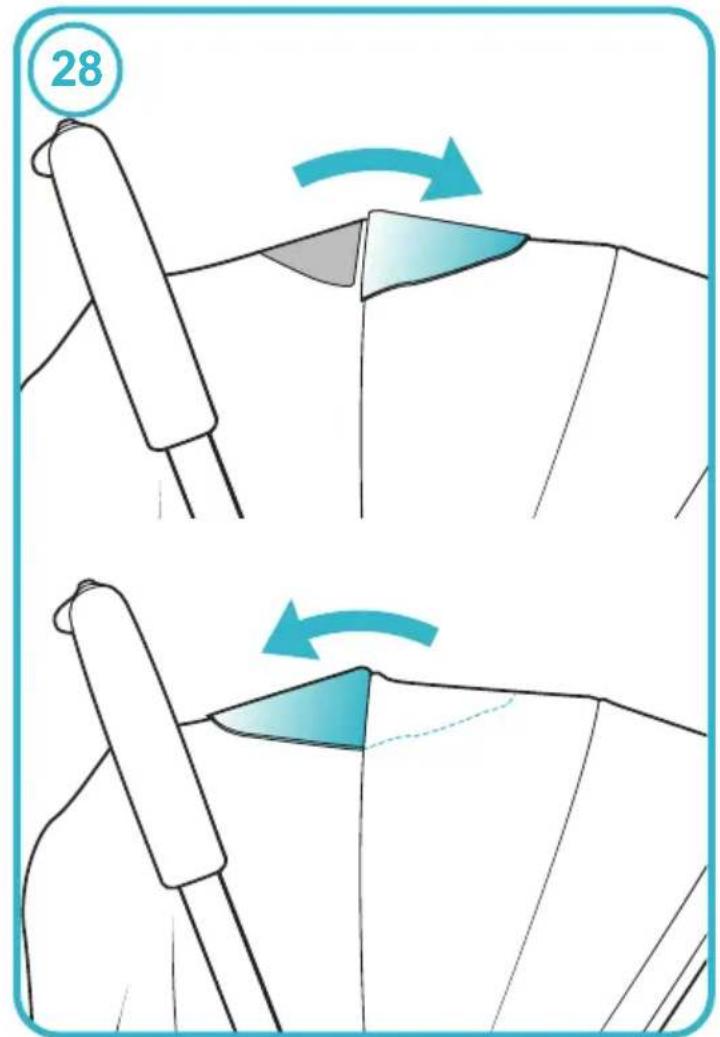

28- Using the viewing window flap:

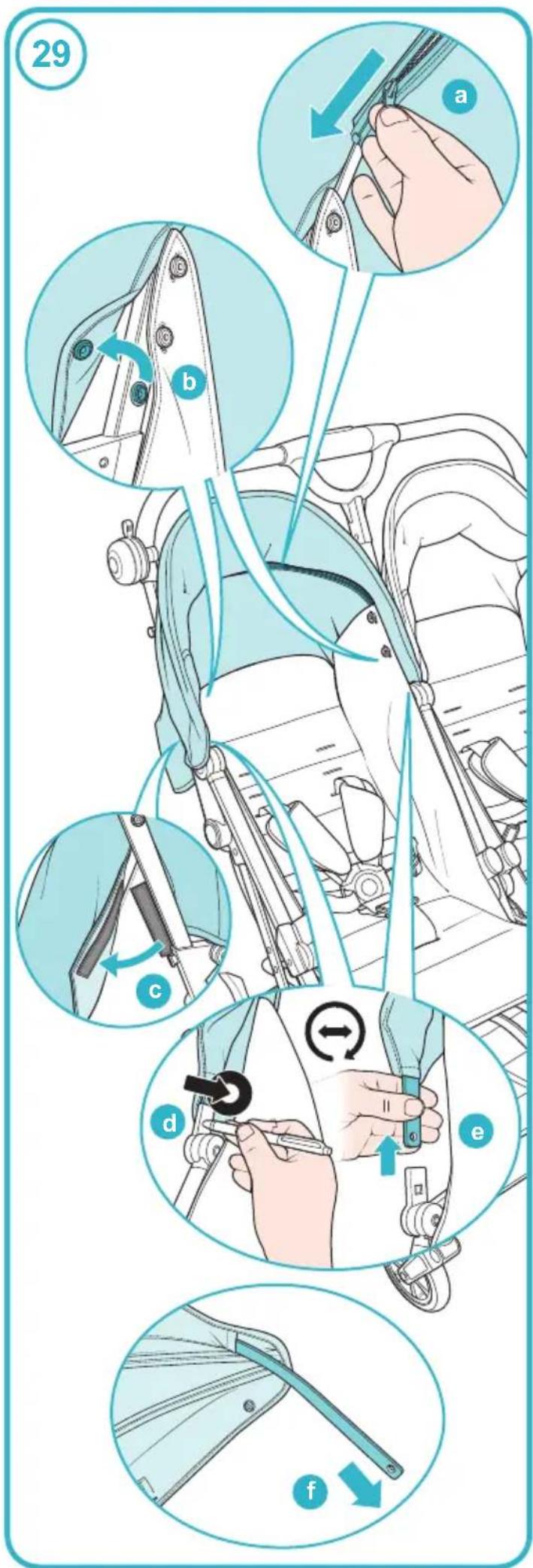

29- Removing:

Refitting is a reversal of this procedure.

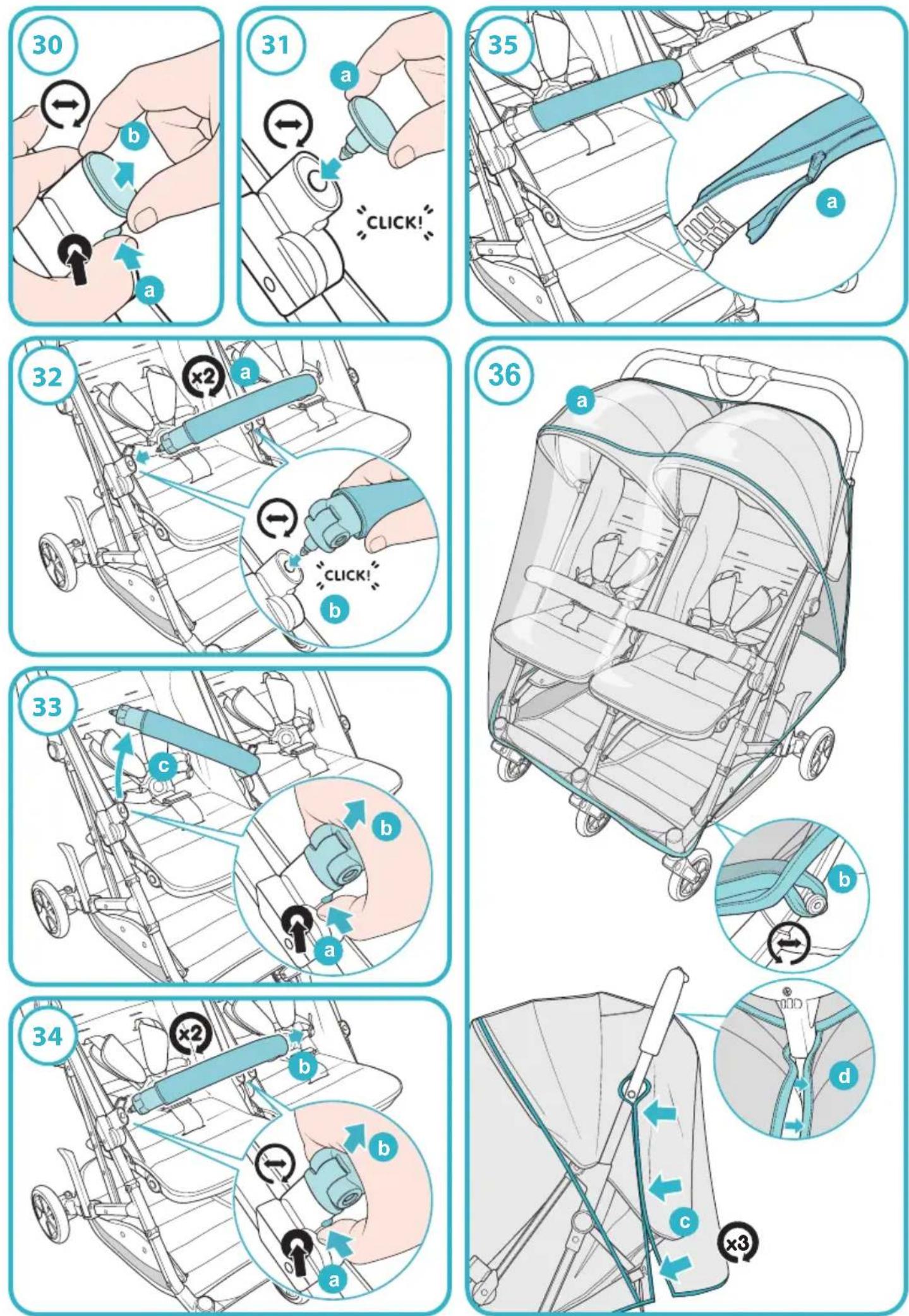

Bumper bar caps 30- Removing:

31- Fitting:

Bumper bar 32- Fitting:

33- Opening:

34- Removing:

Bumper bar cover 35- Removing:

Refitting is a reversal of this procedure.

Raincover 36- Fitting:

Removing is a reversal of this procedure.

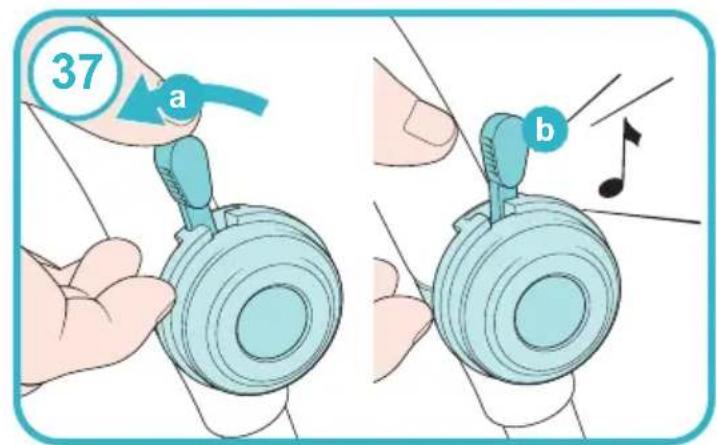

Bell 37- Operating:

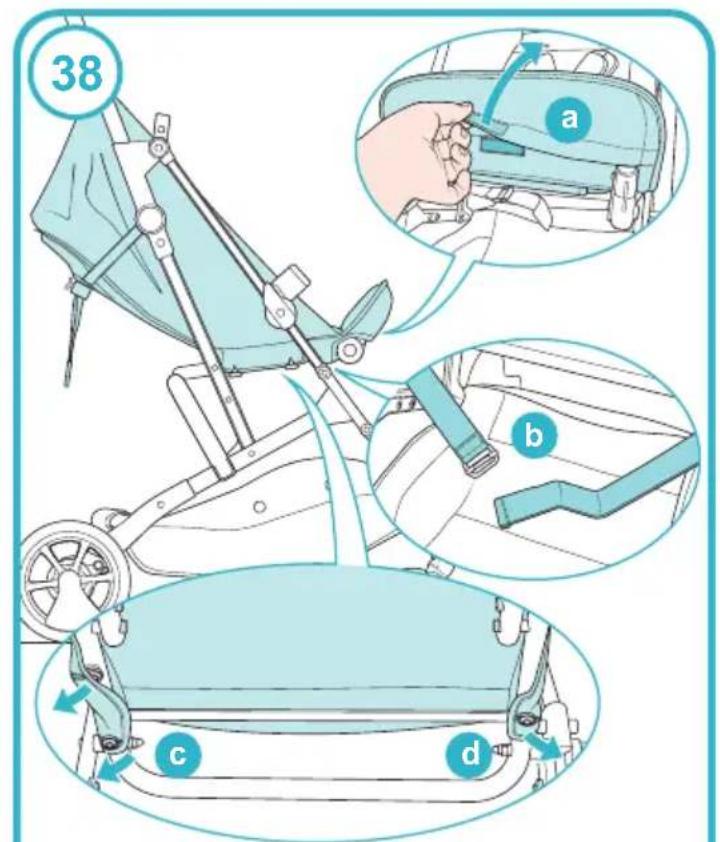

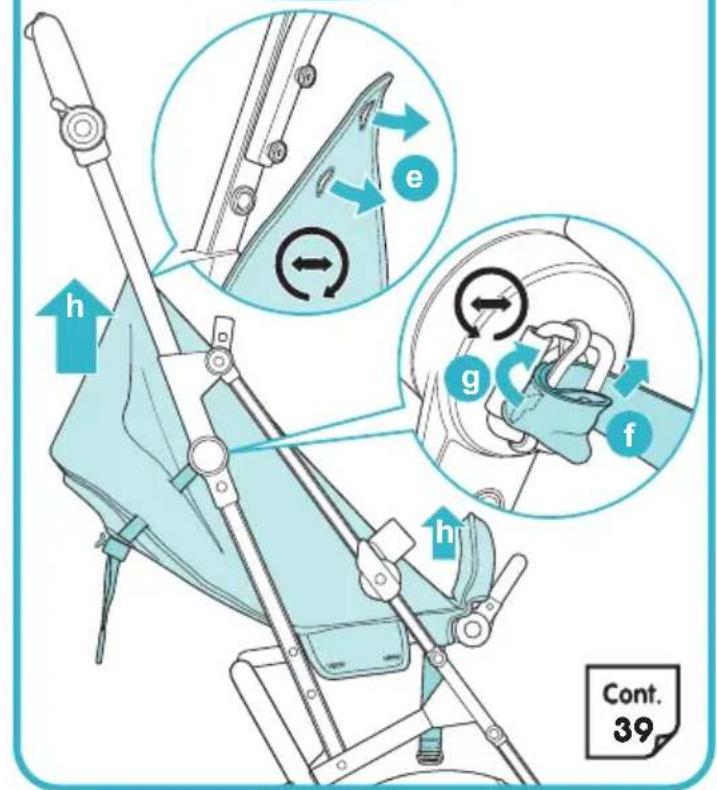

Seat cover 38- Removing:

Remove the bumper (refer to step 34) & hood (refer to step 29) respectively.

Release the fabric fastener on the underside of the calf support (a).

Release the strap under the seat (b).

Release the tabs on both side of the seat section: Two on the outward side (c) & one on the inward side (d).

Release tabs on both side of the backrest section (e).

Push down the backrest strap end to expose the opening of the «C» ring (f) and slide the strap out of the ring (g).

Remove the seat cover off the seat (h).

Seat boards

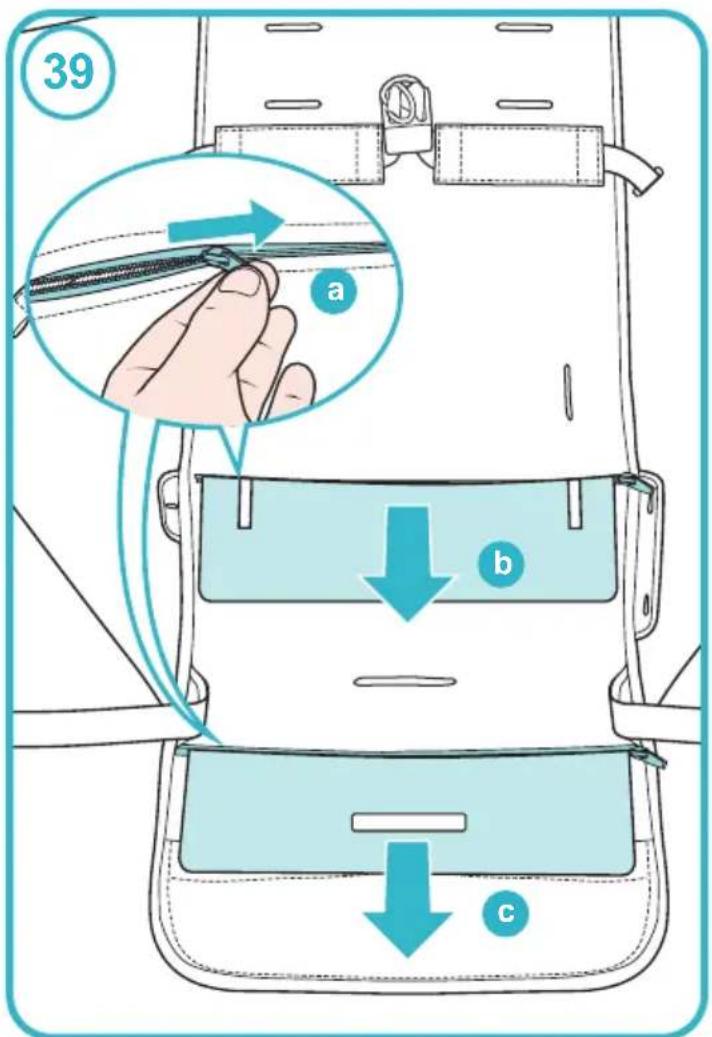

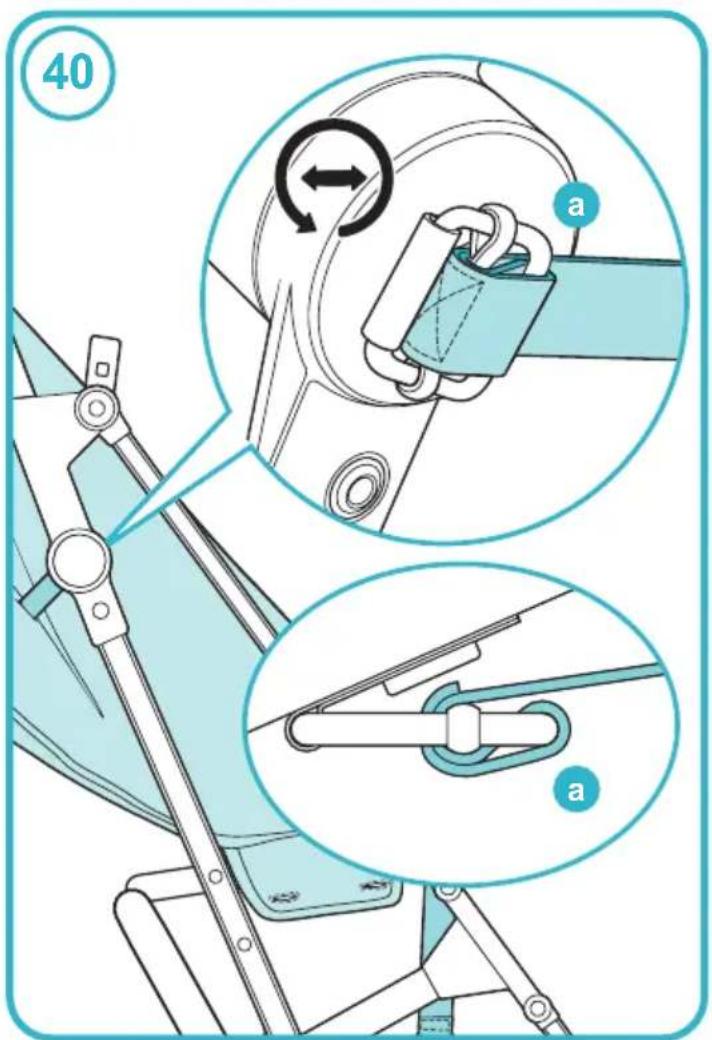

39- Prior to cleaning the seat cover, remove the harness (refer to step 16), seat board (a) & backrest board (b).

40- Refitting is a reversal of this procedure.

Important: The backrest strap must be fitted correctly as illustrated.

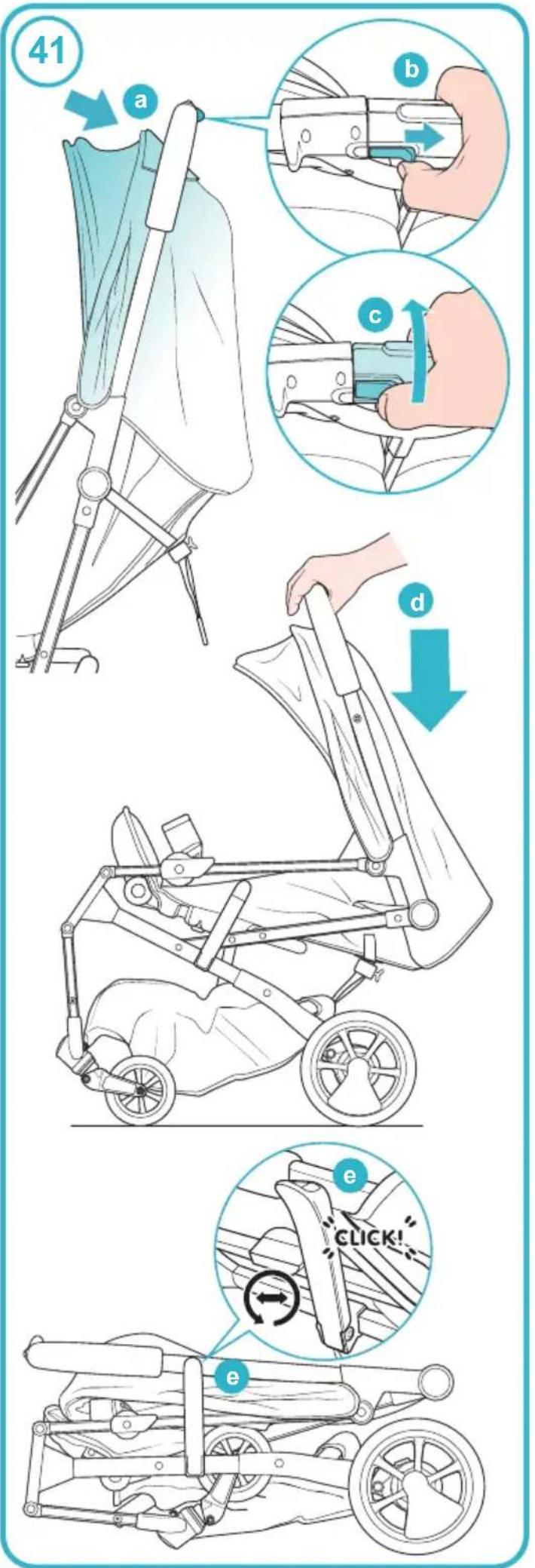

Pushchair 41- Closing:

Close the hood fully (refer to step 24) (a).

Slide the primary lock lever (b) and rotate the secondary lock handle forward

FULLY (c) to unlock the chassis.

Push the handle downwards (d) until the chassis is locked in place (e).
