USER MANUAL All in All 360 Rotate COSATTO

We recommend customer to check compatibility of the child restraint with the intended vehicle prior to fitting.

Please refer to the fit checker app (http://cosat.to/fitchecker) or the compatibility list on the website (http://cosat.to/allinallrotatevl).

In rearward facing mode, never use this Child Restraint System in seating positions where an active frontal airbag is installed. If in doubt, consult either the child restraint manufacturer or retailer.

ISOFIX mode (Group 0/1):

This is an ISOFIX CHILD RESTRAINT SYSTEM. It is approved to Regulation No. 44, 04 series of amendments for general use in vehicles fitted with ISOFIX anchorages systems.

This Child Restraint system is classified for "Semi-universal" use. It will fit vehicles with positions approved as ISOFIX positions (as detailed in the vehicle handbook), depending on the category of the child restraint system and of the fixture.

The mass group and the ISOFIX size class for which this device is intended is:

Forward facing: Group 1 (9 - 18kg), ISOFIX size class: B1

Rearward facing: Group 0/1 (0 – 18 kg), ISOFIX size class: E, D

Belted only modes (Group 2/3):

This is a "Universal" child restraint. It is approved to Regulation No.44, 04 series of amendments, for general use in vehicles and it will fit most, but not all, car seats. A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the vehicle is capable of accepting a "Universal" child restraint for this age group.

This child restraint has been classified as "Universal" under more stringent conditions than those which applied to earlier designs which do not carry this notice.

Only suitable for use in the listed vehicles fitted with lap/3 point/static/with retractor safety-belts, approved to ECE Regulation No.16 or other equivalent standards.

Belted with support leg (Group 0+/1) ISOFIT mode (Group 2/3):

This Child Restraint system is classified for "Semi-universal" use.

Right by your Side

Landline: Go freephone fabulous on 0800 014 9252*

Mobile: Ring 0333 323 1729

International: [phone]

Email: [e-mail]

Letter: Cosatto Limited, Bentinck Mill, Bentinck Street, Farnworth, Bolton, Lancs, BL4 7EP, England.

* calls from BT landlines are free but calls from mobiles and other networks may vary.

All the design and trademarks contained herein are the property of Cosatto Limited. No part of this document may be reproduced without the permission of Cosatto Limited.

www.cosatto.com

R44/04 Group 0/0+/1/2/3 0 - 36 kg

COSATTO®

baby stuff with personality®

the ABCs

all in all Rotate

Group 0/0+ /1 /2 /3 Car Seat

(EN) Instruction 1 - 37

(FR) Instruction,
(DE) Gebrauchsanleitung,
(IT) Istruzioni

(EN) Part list diagram

(FR) Schéma de nomenclature,
(DE) Teilelisteabbildung,
(IT) Diagramma della lista delle parti

38

(EN) Spare part list diagram 39

Important: Keep these instructions for future reference. Important safety Information.

User Guide:

The instruction manual should be kept safely with child car seat for its life period:

There is a compartment located at the back of the child car seat for storage of the instruction manual.

It is recommended to check that the child restraint is compatible with the intended vehicle at the time of purchase.

Please refer to the vehicle list at the back of the instruction manual, Cosatto fit checker app (http://cosat.to/fitchecker) or the vehicle fitting list section on the website (http://cosat.to/allinallrotatevl).

General:

• This child car seat has been approved for mass group 0, 0+, 1, 2 & 3 which is suitable for transportation in cars of children from birth up to 36 kg (approximately 12 years old).
• When use as a rearward facing child car seat, it is suitable for transportation in cars of children from birth up to maximum weight of 18kg (approximately 4 years old).
• When use as a forward facing child car seat, it is suitable for transportation in cars of children from 9 kg (approximately 9 months old) up to maximum weight of 36 kg (approximately 12 years old).
• IMPORTANT: Do not use forward facing before the child's weight exceeds 9 kg.
• WARNING: Never use this child car seat with its side facing the vehicle seat.
• WARNING: Never use this child car seat on passenger seat fitted with active airbag.
• WARNING: Any rigid items and plastic parts of the child car seat must be so located and installed that they are not liable, during everyday use of the vehicle, to become trapped by a movable seat or in a door of vehicle.
• WARNING: If any load bearing points other than those described in the instructions are used, this can significantly reduce the protection factor of the child car seat.
• WARNING: Always secure your child with the safety harness when using this child car seat.
• WARNING: Never leave your child unattended.
• Do not place anything such as a towel or cushion under the child car seat. This could affect the performance of the child car seat in an accident.
• If the vehicle seat backrest has a recline function, place the vehicle seat in the most upright position when using the child car seat.
• Any vehicle seat belt holding the child car seat to the vehicle should be tight, and that

belt should not be twisted.

• Always make sure that the child car seat harness and vehicle seat belt are correctly tensioned to ensure maximum protection for your child.
• Prevent harness/ vehicle seat belt from getting trapped between car doors or rubbing against sharp parts of the seat or body.
• If the harness/vehicle seat belts becomes cut or frayed, replace it before travelling.
• Never use any replacement parts other than those approved by Cosatto.
• In group 2 & 3 modes, the lap vehicle seat belt must be worn in such a way as to properly secure the pelvis of the child.

- WARNING: Do not attempt to dismantle, modify or add to any part of the child car seat or change the way your vehicle seat belts are made or used.

- WARNING: After an accident the child car seat should be replaced and the vehicle seat belts. Although they may look undamaged, they may not protect your child as well as they should.

- WARNING: Do not use the child car seat in the home. It has not been designed for home use and should only be used in your car.

- Cosatto advise that child car seat should not be bought or sold second-hand. Many child car seats acquired this way have been found to be dangerous.

- NOTE: The child car seat can mark vehicle seat upholstery. Cosatto cannot be held responsible for damage or marking to vehicle seat upholstery.

- Security is only guaranteed if the child car seat is fitted in accordance with these instructions.

- Safely secure any luggage or other objects that might cause injuries to the occupant of the child car seat in the event of a collision.

- Failure to comply with the instructions would be dangerous, and will automatically void the warranty and exempt Cosatto from any liability.

- The harness buckle has been designed to be released quickly in an emergency. IT IS NOT CHILD PROOF. More inquisitive children may learn to undo the buckle. Children should be told never to play with the harness buckle or any other part of the child car seat.

- It is important that the lap harness is worn low down, so that the pelvis of the child is firmly engaged.

- Never use the child car seat without its fabric cover because the fabric cover constitutes as an integral part of the child car seat performance. The fabric cover should not be replaced with any other than the ones recommended by Cosatto.

Notice:

In rearward facing mode, never use this Child Restraint System in seating positions where an active frontal airbag is installed. If in doubt, consult either the child restraint manufacturer or retailer.

ISOFIX mode (Group 0/1):

This is an ISOFIX CHILD RESTRAINT SYSTEM. It is approved to Regulation No. 44, 04 series of amendments for general use in vehicles fitted with ISOFIX anchorages systems.

This Child Restraint system is classified for “Semi-universal” use. It will fit vehicles with positions approved as ISOFIX positions (as detailed in the vehicle handbook), depending on the category of the child restraint system and of the fixture.

The mass group and the ISOFIX size class for which this device is intended is:

Forward facing (semi-universal): Group 1 (9 - 18kg), ISOFIX size class: B1

Rearward facing (semi-universal): Group 0/1 (0 – 18 kg), ISOFIX size class: E, D

Belted only modes (Group 2/3):

This is a “Universal” child restraint. It is approved to Regulation No.44, 04 series of amendments, for general use in vehicles and it will fit most, but not all, car seats. A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the vehicle is capable of accepting a “Universal” child restraint for this age group.

This child restraint has been classified as "Universal" under more stringent conditions than those which applied to earlier designs which do not carry this notice.

Only suitable for use in the listed vehicles fitted with lap/3 point/static/with retractor safety-belts, approved to ECE Regulation No.16 or other equivalent standards.

Belted with support leg (Group 0+/1) ISOFIT mode (Group 2/3):

This Child Restraint system is classified for "Semi-universal" use.

Care & Maintenance:

Store your child car seat in a dry, safe place.

Storing a damp child car seat will encourage mildew to form, so after exposure to damp conditions, dry off with a soft cloth and allow to dry thoroughly before storing.

Avoid leaving the child car seat in sunlight for prolonged periods as this may cause fabrics to fade.

Inspect the child car seat regularly for signs of damage - stop using the product if damage is found.

DO NOT take apart, or attempt to take apart the child car seat when cleaning. It is unnecessary and dangerous to do so.

Plastic and metal parts may be sponged clean with warm water and a mild detergent. Refer to the wash care on soft goods for cleaning instruction.

Remove insert from seat cover/seat liner prior to cleaning.

Never clean with abrasive, ammonia based, bleach based or spirit type cleaners.

Visual Key:

!XX	Refer to warning XX
	Correct action
	Incorrect action
CLICK!	Audible sound

	Repeat action x times
	General action arrow
	Lock
	Unlock

	Press and hold
	Check
	Continue to step XX
	Repeat on other side

Part List:

Please refer to diagrams:

P1: Headrest P7: Wedge

P2: Upper seat liner P8: Lower seat liner

P3: Chest pads (pair) P9: Side impact protection block

P4: Harness P10: Storage compartment

P5: Crotch pad P11: Support-leg

P6: ISOFIX arm P12: ISOFIX guide (x2)

Replacement Parts:

The replacement parts shown below are available for your product. For UK & Ireland customers, order through our website: http://www.cosatto.com/service-centre/spares For customer outside UK & Ireland, contact information for your local distributor can be found on http://www.cosatto.com/stockists If you require any further assistance, please contact us at [e-mail]

S1: Lower seat liner S6: Seat cover

S2: Crotch pad S7: Wedge

S3: Chest pads (pair) S8: ISOFIX guide (set)

S4: Upper seat liner

S5: Headrest cover

Fitting & Operation Information:

Please refer to the following diagrams:

Location 1- IMPORTANT: ____ Never use the child car seat on a seat where an airbag is fitted and active. Refer to your vehicle user manual for information on de-activating the airbag.

Backrest 2-Adjusting: recline

Important: Only use the specified recline position(s) for each mode:

Rearward facing modes (Group 0/0+/1): R Forward facing modes (Group 1): 1, 2, 3, 4 Forward facing modes (Group 2/3): 1

Headrest 3-Adjusting:

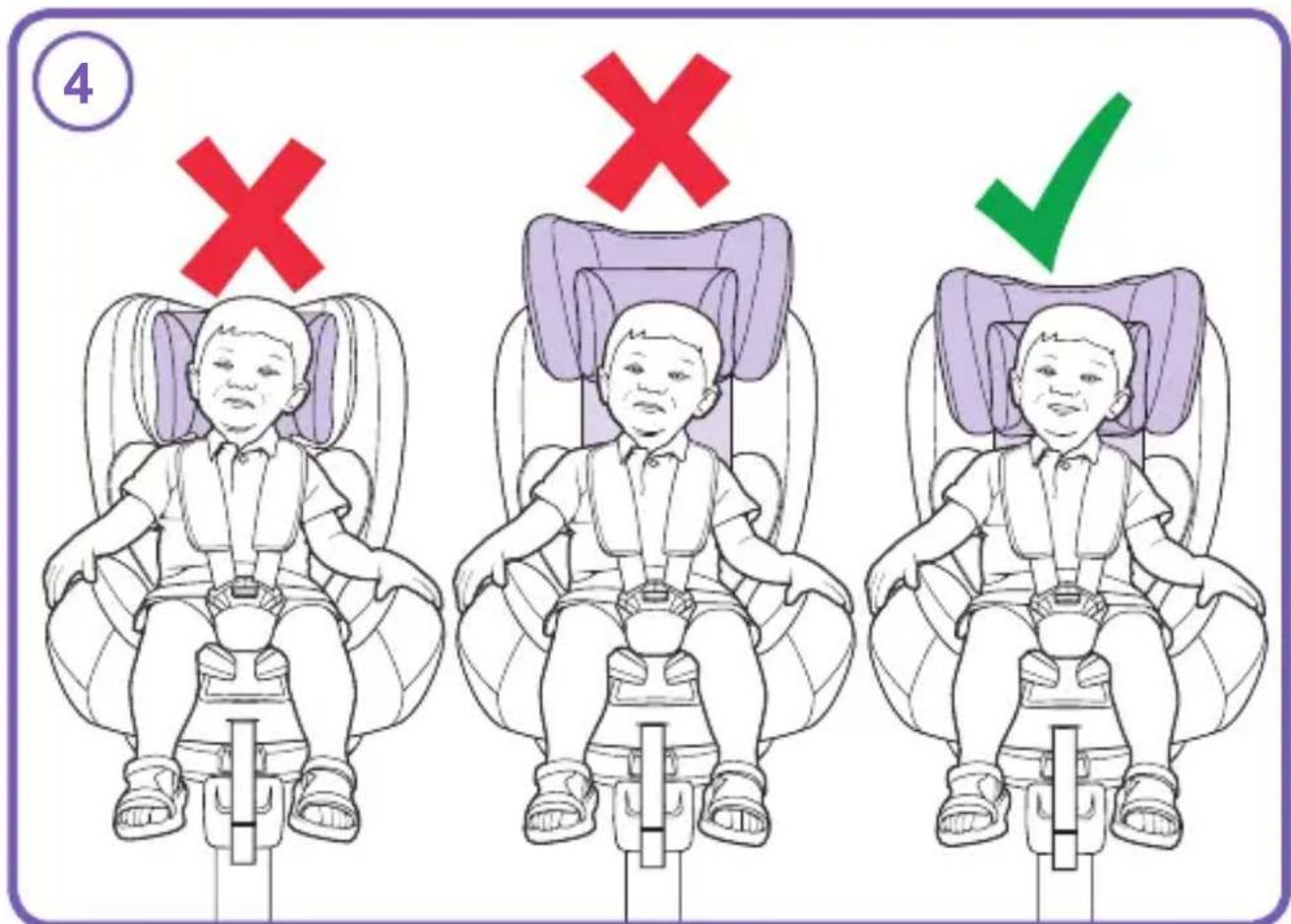

4- Satisfactory headrest position:

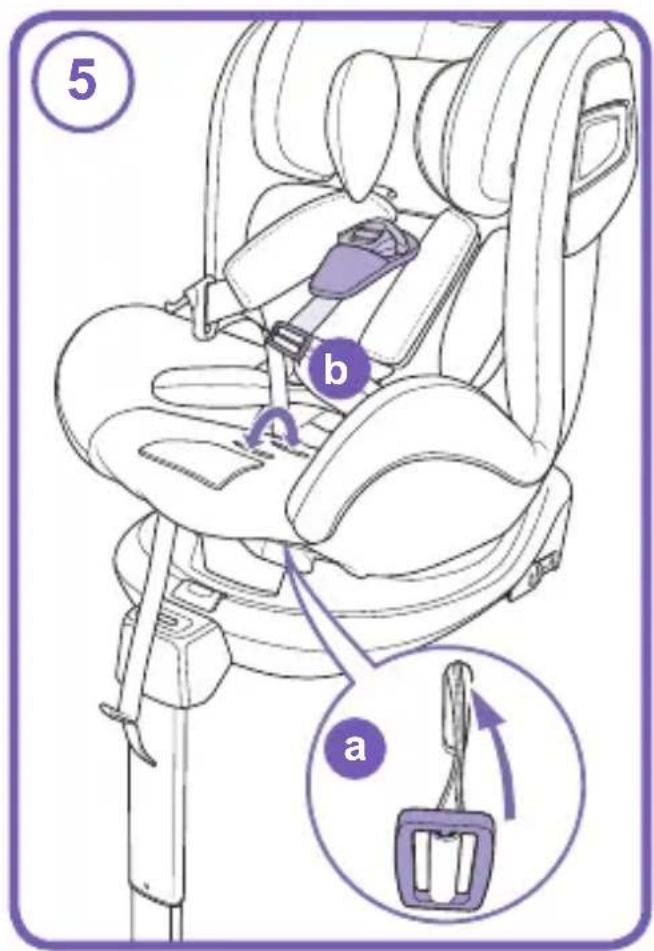

Harness 5- Crotch strap adjustment:

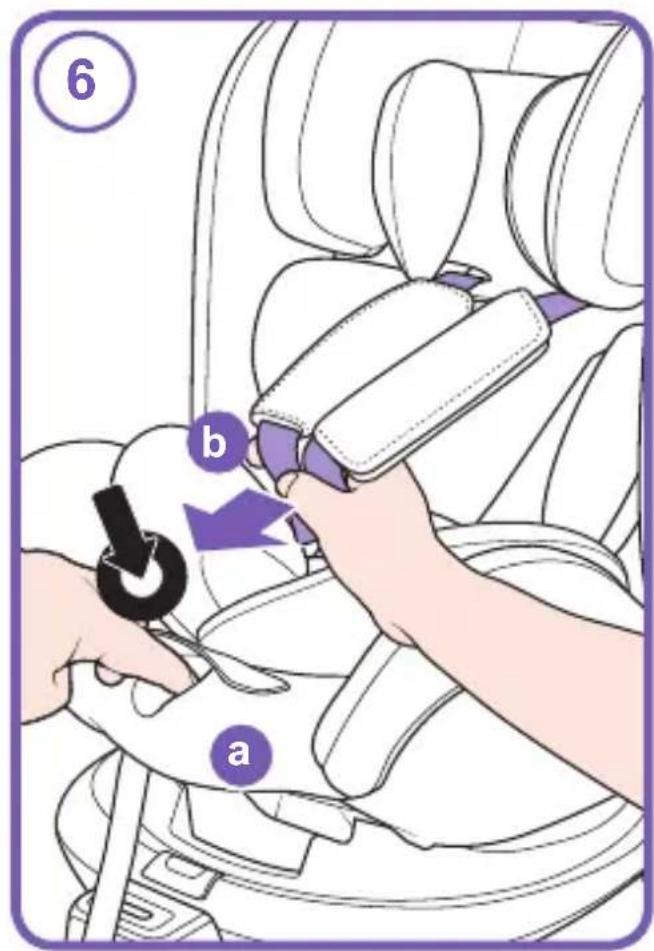

6- Loosening:

NOTE: Pull only the harness straps.

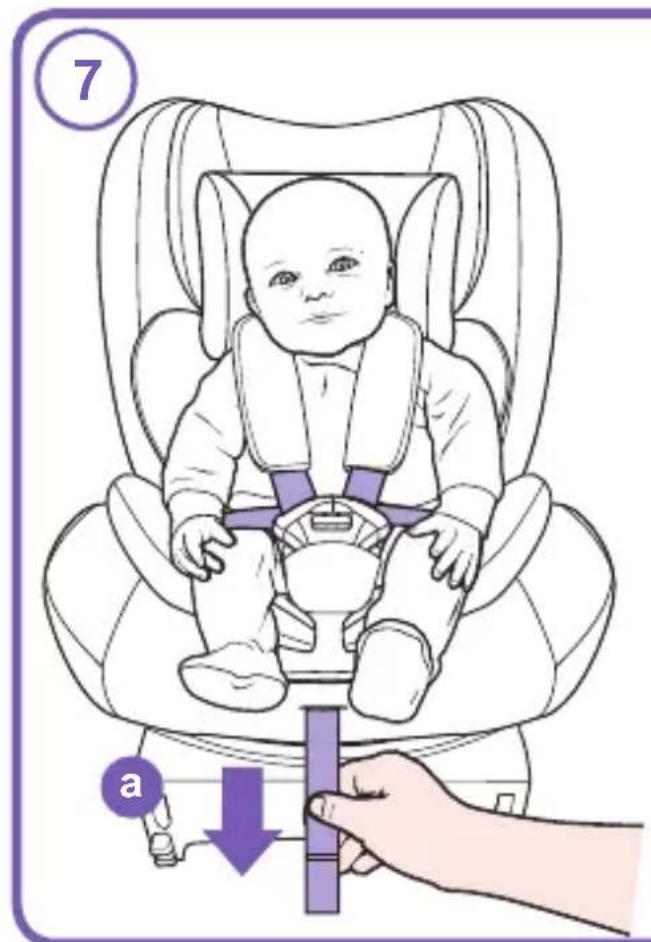

7- Tightening:

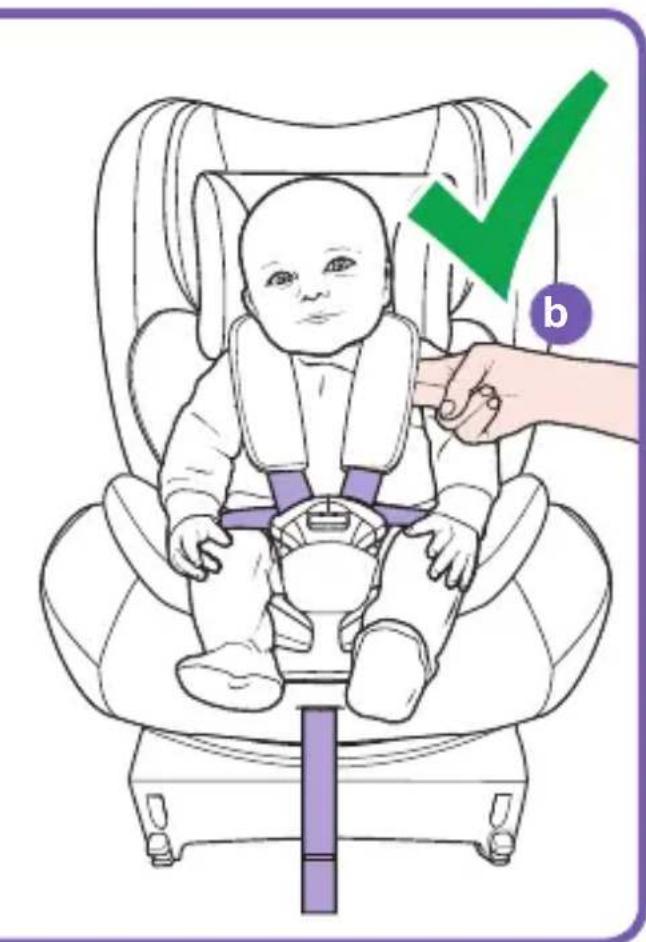

NOTE: The harness must be reasonably tight. It should restrain but not make the child uncomfortable. Check that the straps are not twisted while the child is seated.

8- Opening:

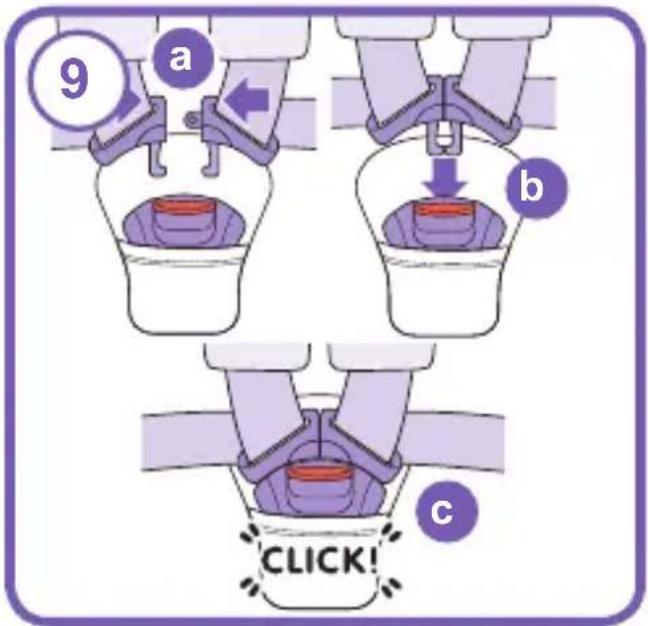

9- Closing:

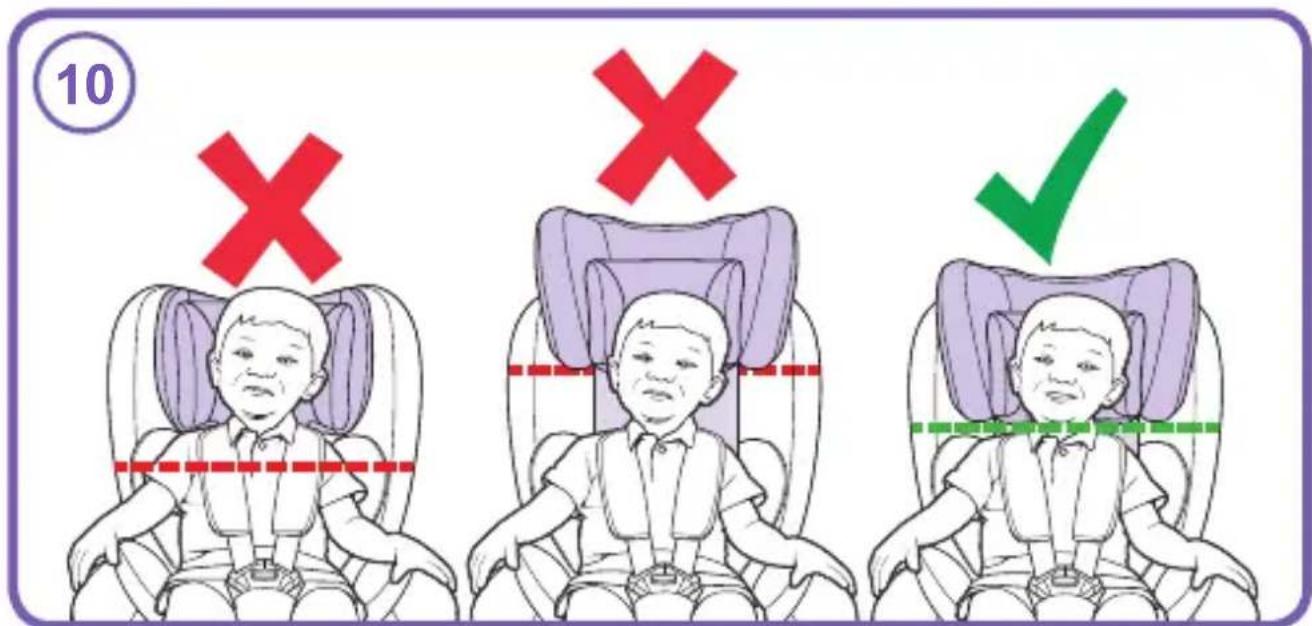

10- Satisfactory shoulder strap position:

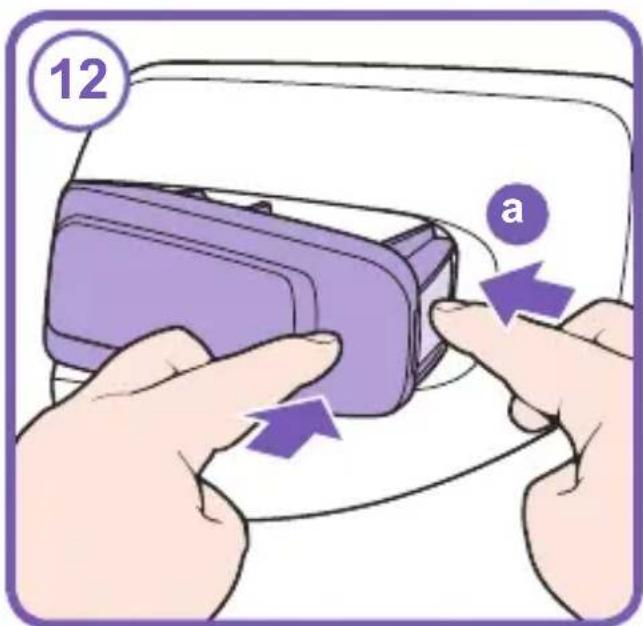

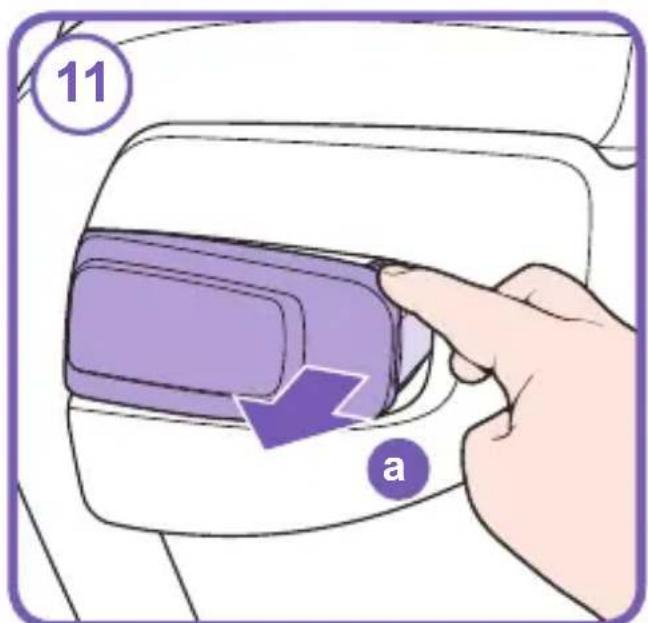

Side impact protection block 11- Opening: 12- Closing:

Child car seat

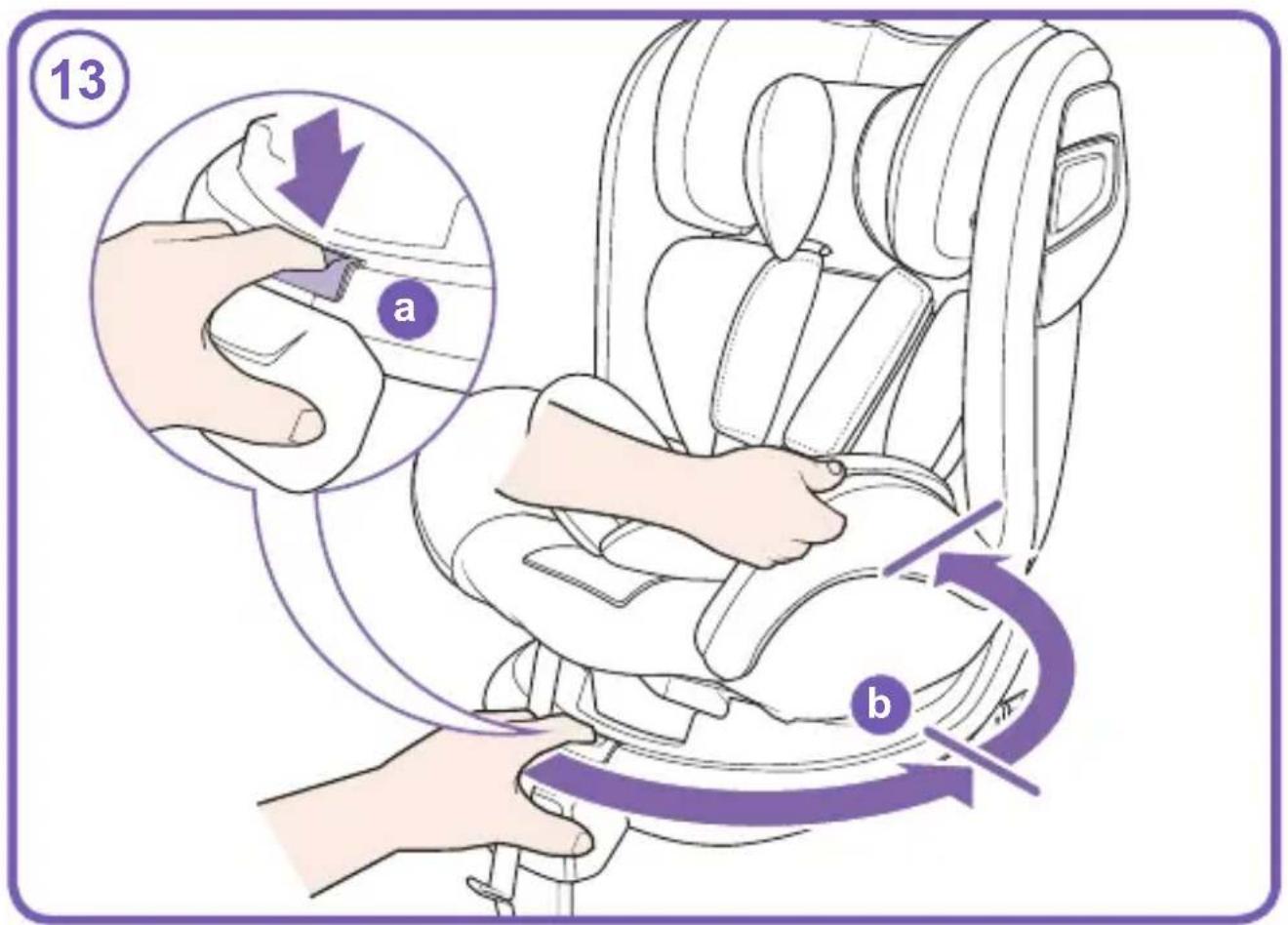

13- Adjusting the seat unit's orientation:

Pull and hold the seat rotate adjustment lever (a) then rotate the seat (b).

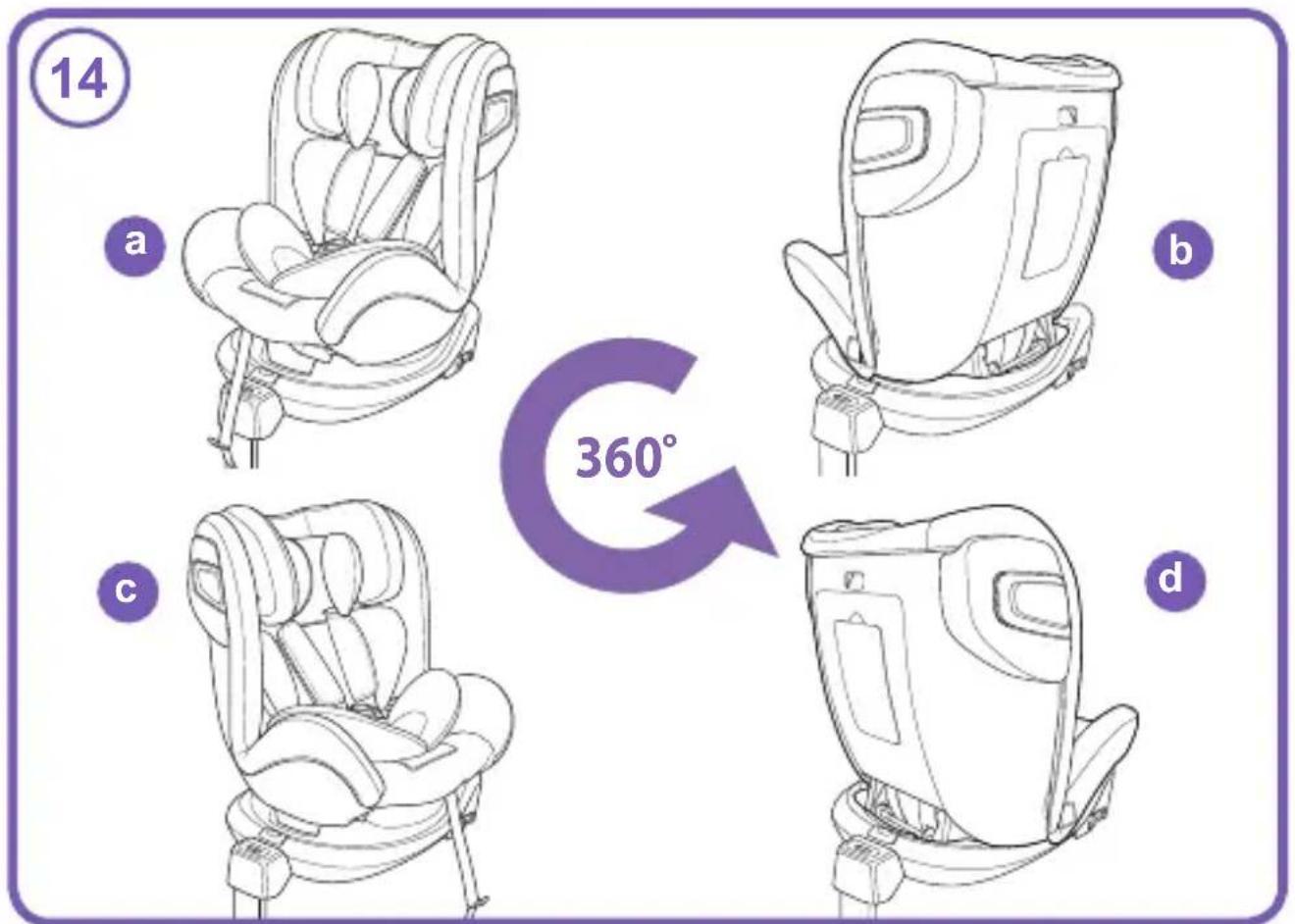

14- Seat positions:

B, C: Sideward facing position:

The sideward facing position allow access for placing or removing a child from the seat unit after the car seat is fitted.

WARNING: Do Not travel with the seat unit in this position.

D: Rearward facing position:

IMPORTANT: DO NOT USE FORWARD FACING BEFORE THE CHILD'S WEIGHT EXCEEDS 9 KG.

When use as a rearward facing child car seat, it is suitable for transportation in cars of children from birth up to maximum weight of 18 kg.

A: Forward facing position:

When use as a forward facing child car seat, it is suitable for transportation in cars of children from 9 kg up to maximum weight of 36 kg.

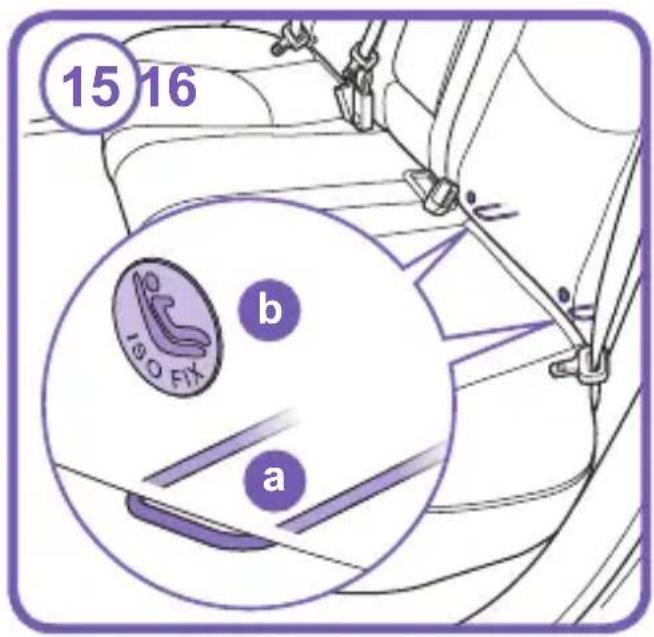

ISOFIX arm 15- Location:

The two ISOFIX low anchorage anchor points are usually located between the vehicle seat base and back (a).

Some vehicles have ISOFIX indicator near the ISOFIX low anchorage anchor points (b).

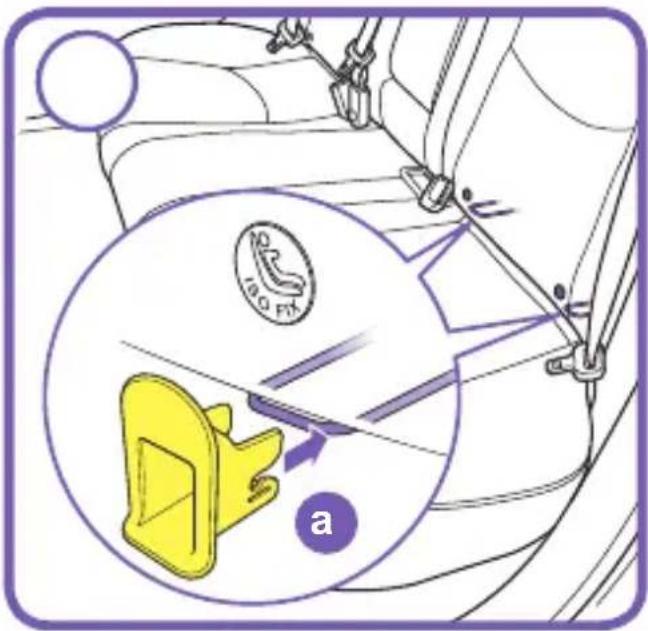

16- Fitting the ISOFIX guides (Optional):

The ISOFIX guides can help identify the vehicle ISOFIX anchor points and make installation easier. They can also help with the protection of your vehicle seat.

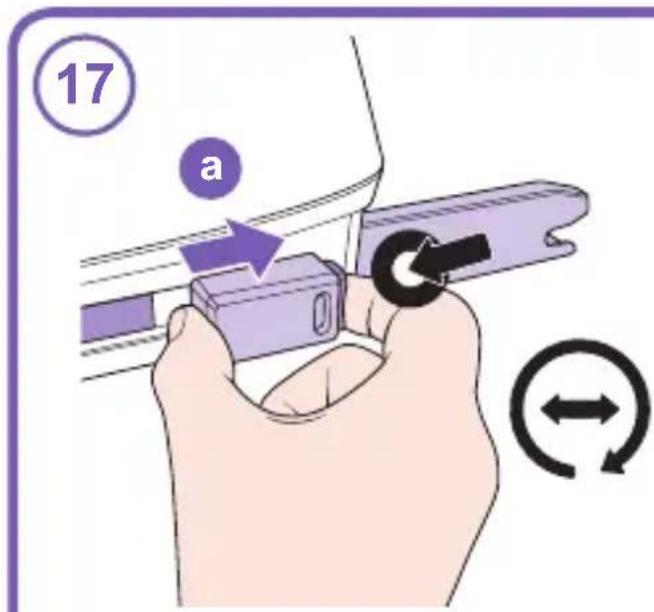

17- Fitting:

Press and hold ISOFIX arm adjustment buttons and extended the arms fully (a).

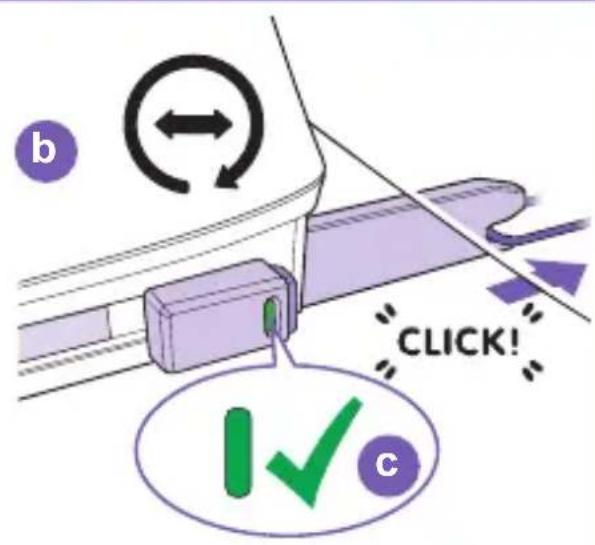

Engage the ISOFIX arms (b) and ensure that the ISOFIX arm security indicators are green (c).

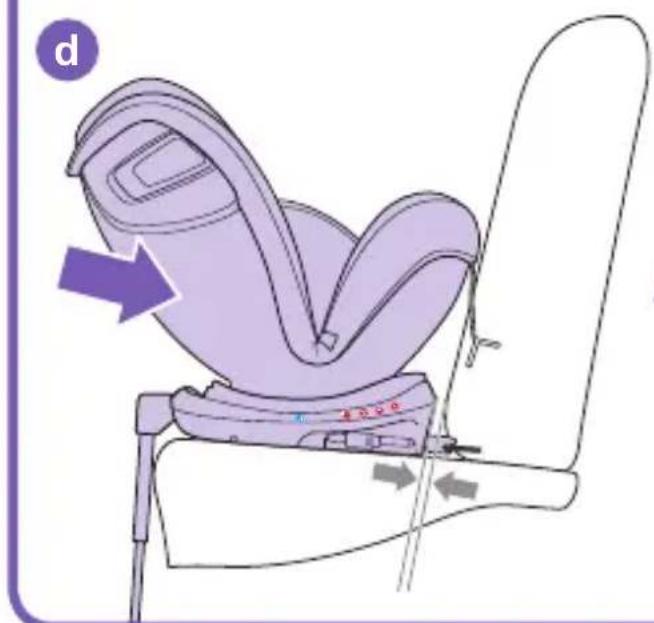

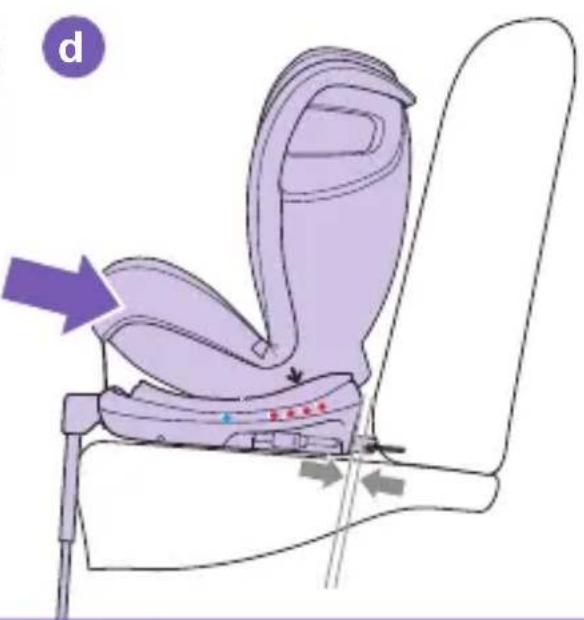

Push the base back until it rests firmly against the vehicle seat backrest (d).

Removal is a reversal of this procedure.

Support-leg

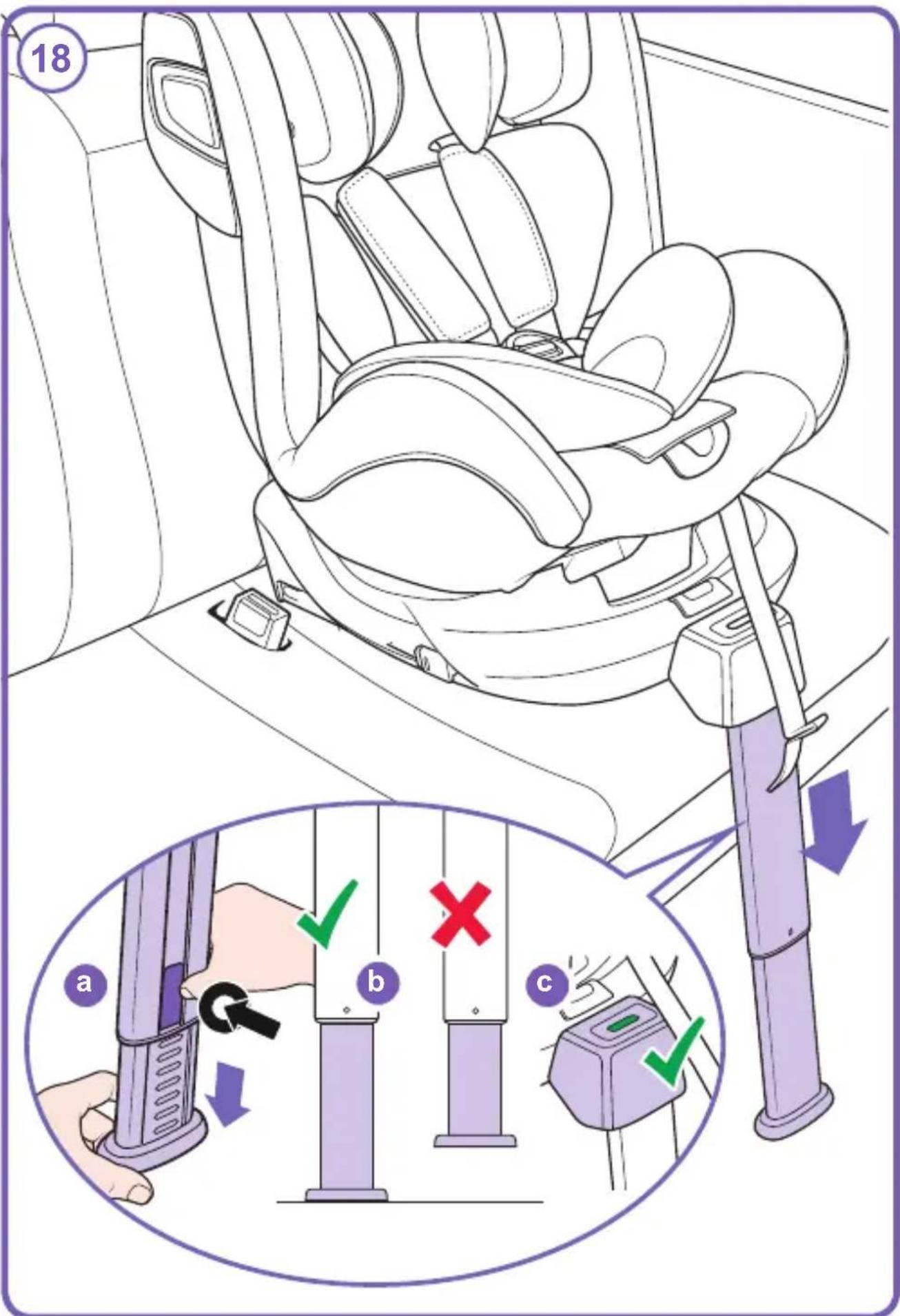

18- Fitting:

Open the support-leg fully (a).

Adjust the support-leg (b) until it makes firm contact with vehicle floor (c) and the support-leg contact indicator is green (d).

Rearward facing modes (Group 0/0+/1) (up to 18kg, approx. 4 years old)

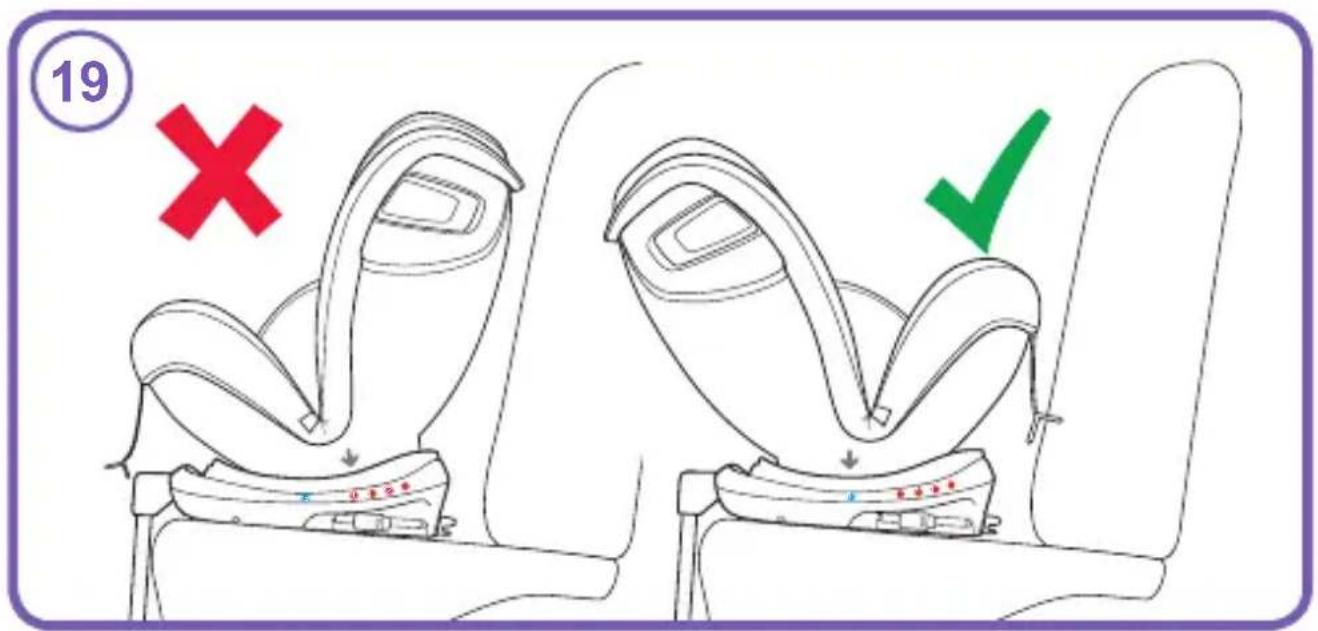

19- Location:

Cosatto recommend to use the car seat in rearward facing mode for as long as possible.

IMPORTANT: Never use the child car seat on a seat where an airbag is fitted and active. Refer to your vehicle user manual for information on de-activating the airbag.

ISOFIX option (fitted with ISOFIX low anchorage points and support-leg) (Group 0/1, 0-18kg):

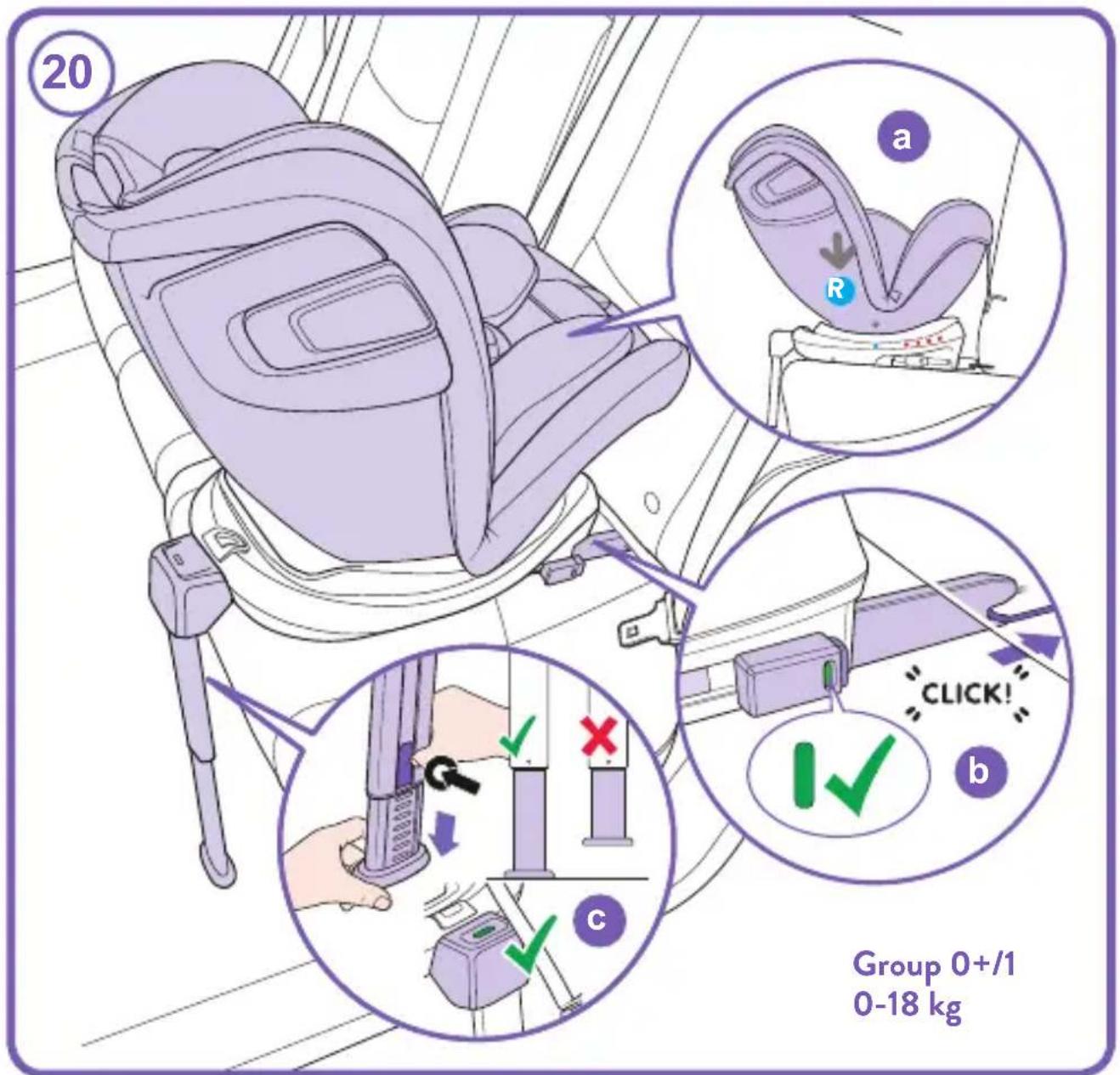

20- Fitting:

Convert the seat unit to rearward facing orientation (refer to step 13).

Recline the backrest to position R (refer to step 1) (a).

Position the child car seat on the vehicle seat, rearward facing.

Attach the ISOFIX arms to the anchor points (refer to step 14 - 16) (b).

Engage the support-leg (Refer to step 18).

Removal is a reversal of this procedure.

Belted with support-leg (Group 0+, 0-13kg):

Fitting:

21- Convert the seat unit to rearward facing orientation (refer to step 13). Recline the backrest to position R (refer to step 1).

Position the child car seat on the vehicle seat, rearward facing.

Open the harness (refer to step 8) and lift up the lower seat liner (a).

Pull the vehicle belt over the child car seat (b) and fasten the vehicle belt buckle (c).

The lap vehicle belt should position below the waist harness (d).

Tension the lap vehicle belt (e).

Pull the diagonal vehicle belt over the child car seat backrest (f,g).

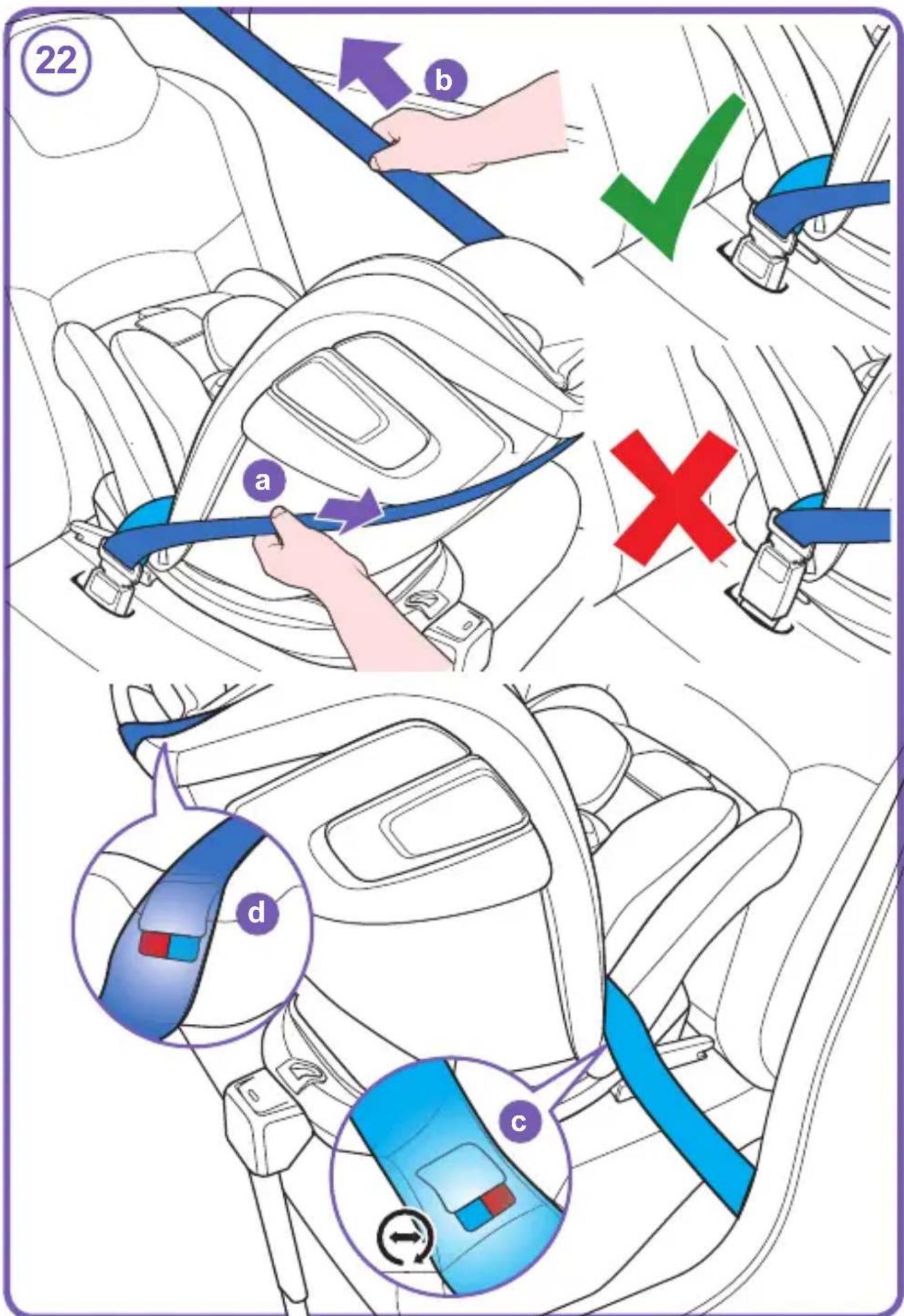

22- Tension the diagonal vehicle belt (a & b).

If fitted correctly the vehicle belt should cover the belt guide markings on the child seat cover (c & d).

IMPORTANT: The position of the vehicle belt buckle can affect the stability of the child restraint system. In an accident this could stop the child restraint system from protecting your child as well as it should. After tightening the vehicle belt, if the buckle lies in the position marked (X) then try fitting the child restraint system in another seating position in your vehicle.

Engage the support-leg (Refer to step 18).

Removal is a reversal of this procedure.

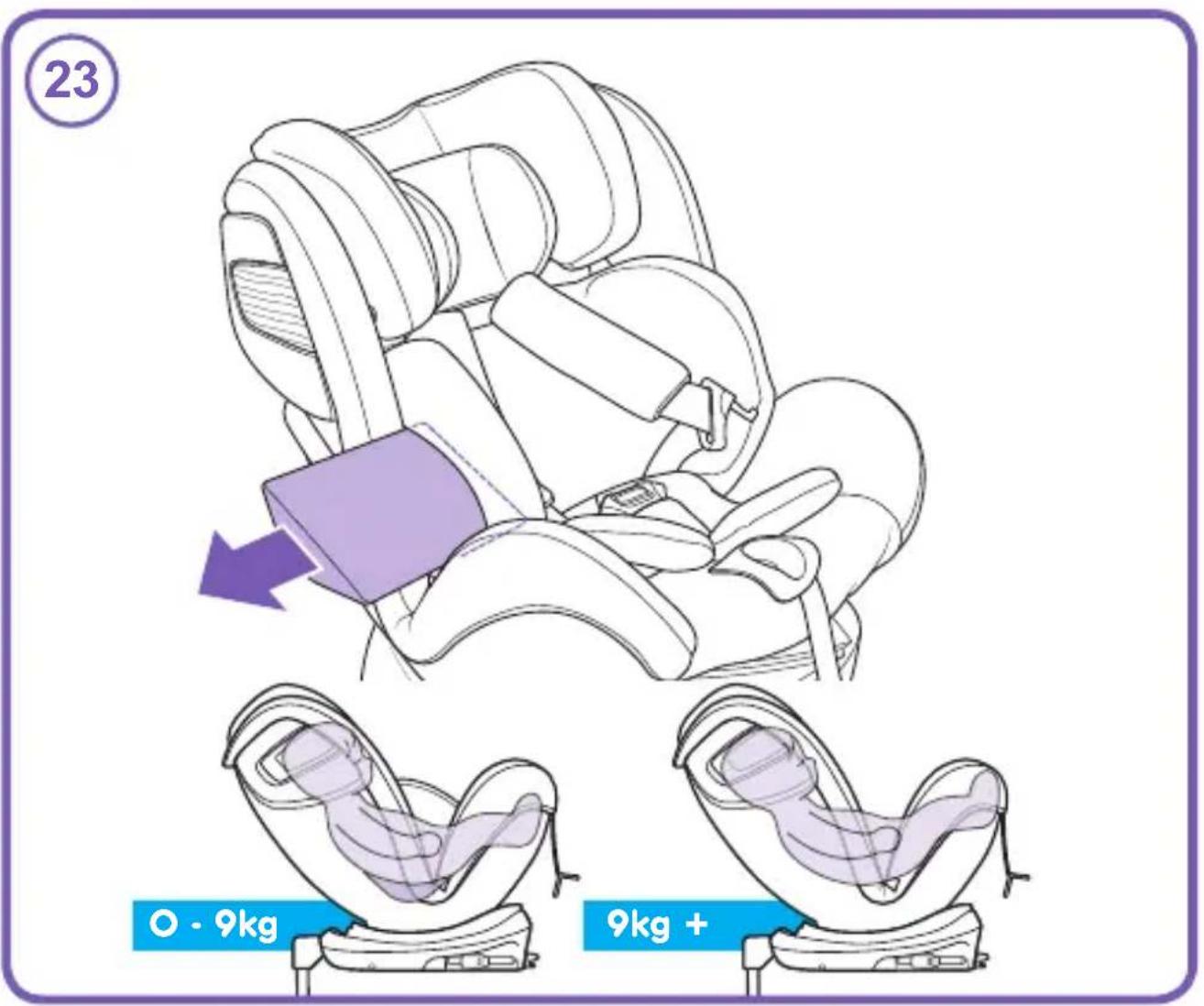

When your child weighs under 9 kg, the child car seat must be used WITH the seat liners and wedge.

Forward facing modes (Group 1) (9 to 18kg, approx. 9 months to 4 years old)

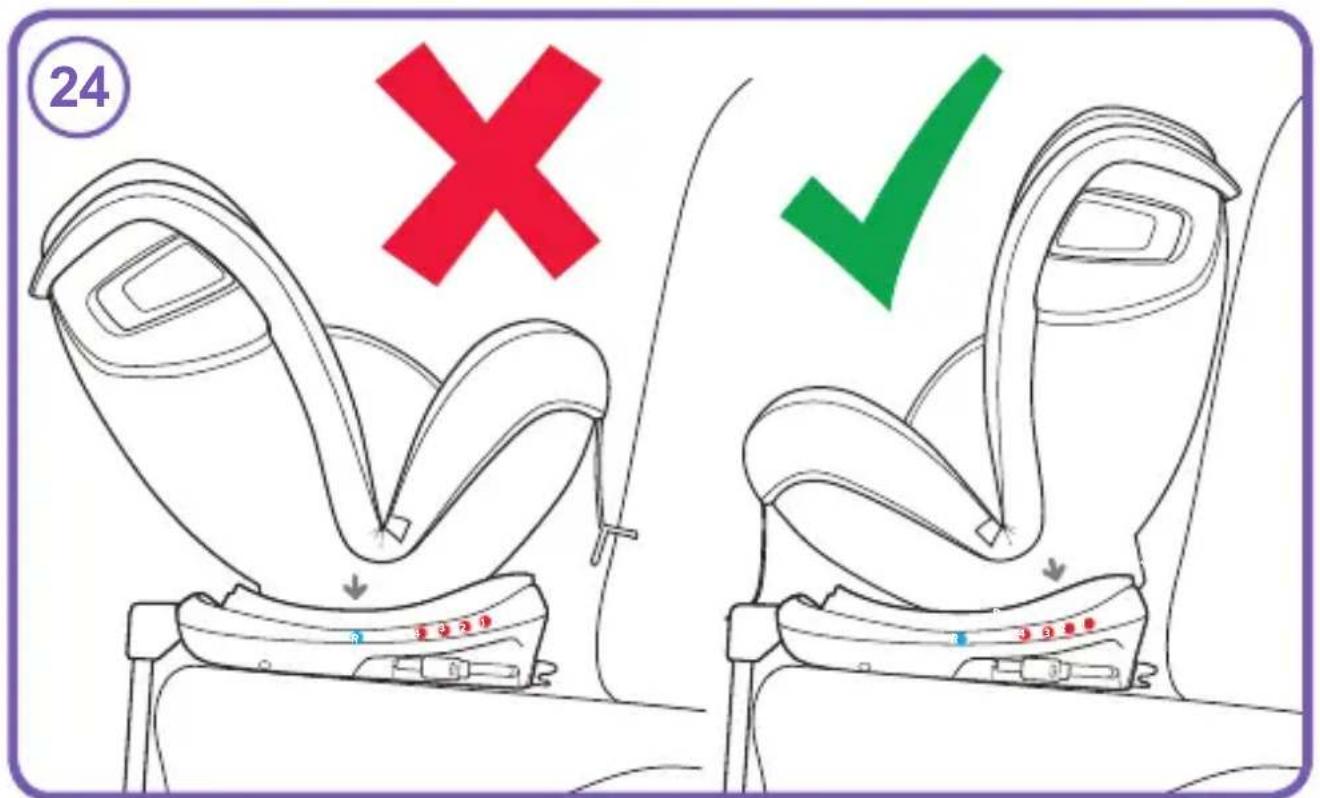

24- Location:

IMPORTANT: DO NOT USE FORWARD FACING BEFORE THE CHILD'S WEIGHT EXCEEDS 9 KG.

ISOFIX option (fitted with ISOFIX low anchorage points and support-leg):

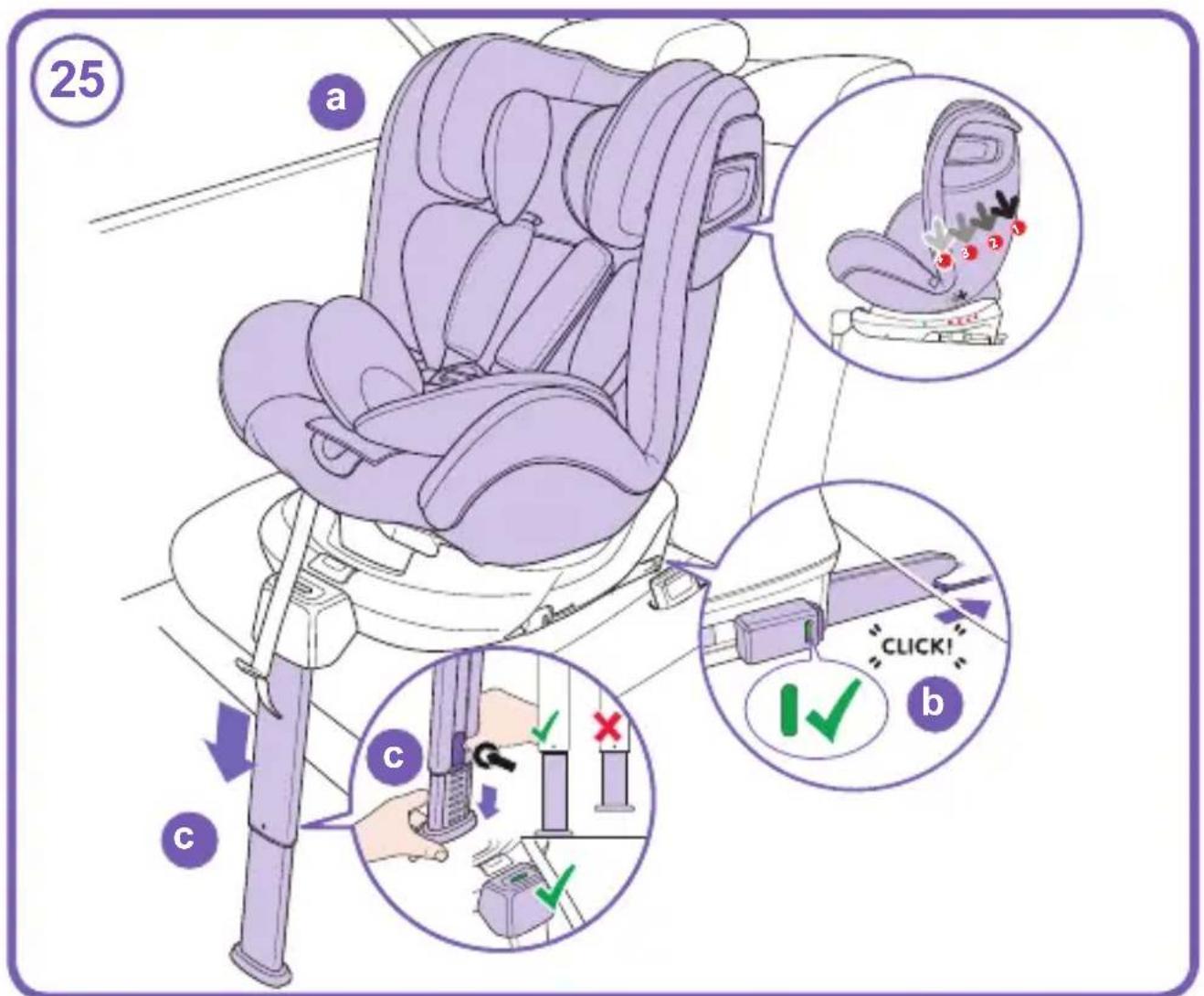

25- Fitting:

Convert the seat unit to forward facing orientation (refer to step 13). Recline the backrest to position 1,2,3 or 4 (refer to step 1).

Position the child car seat on the vehicle seat, forward facing (a).

Attach the ISOFIX arms to the anchor points (refer to step 14 - 16) (b). Attach the ISOFIX top-tether strap clip to the anchor point (refer to step 17 - 20) (c).

Engage the support-leg (Refer to step 18).

Removal is a reversal of this procedure.

Belted with support-leg:

Fitting:

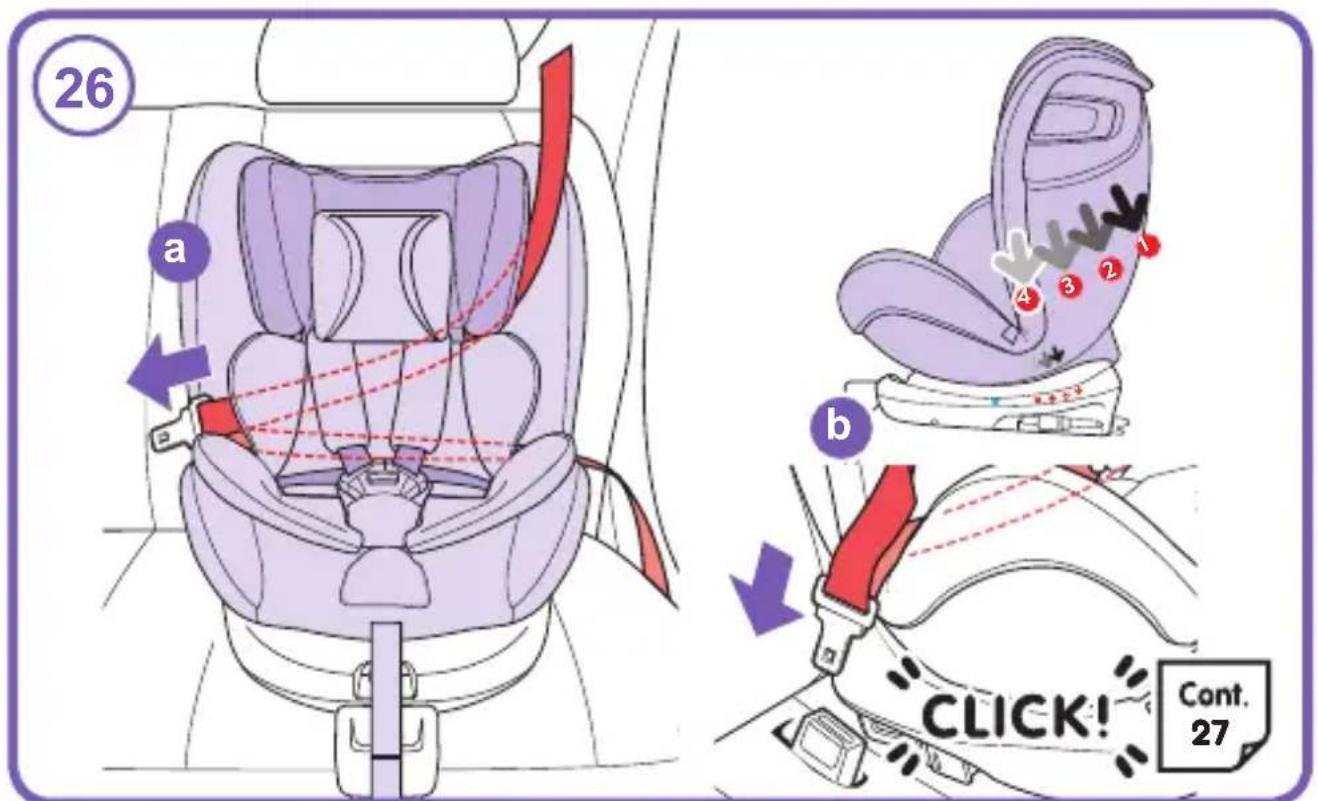

26- Convert the seat unit to forward facing orientation (refer to step 13). Recline the backrest to position 1,2,3 or 4 (refer to step 1).

Position the child car seat on the vehicle seat, forward facing.

Feed the vehicle belt between the harness and backrest (a), behind the seat liners. Engage the buckle (b).

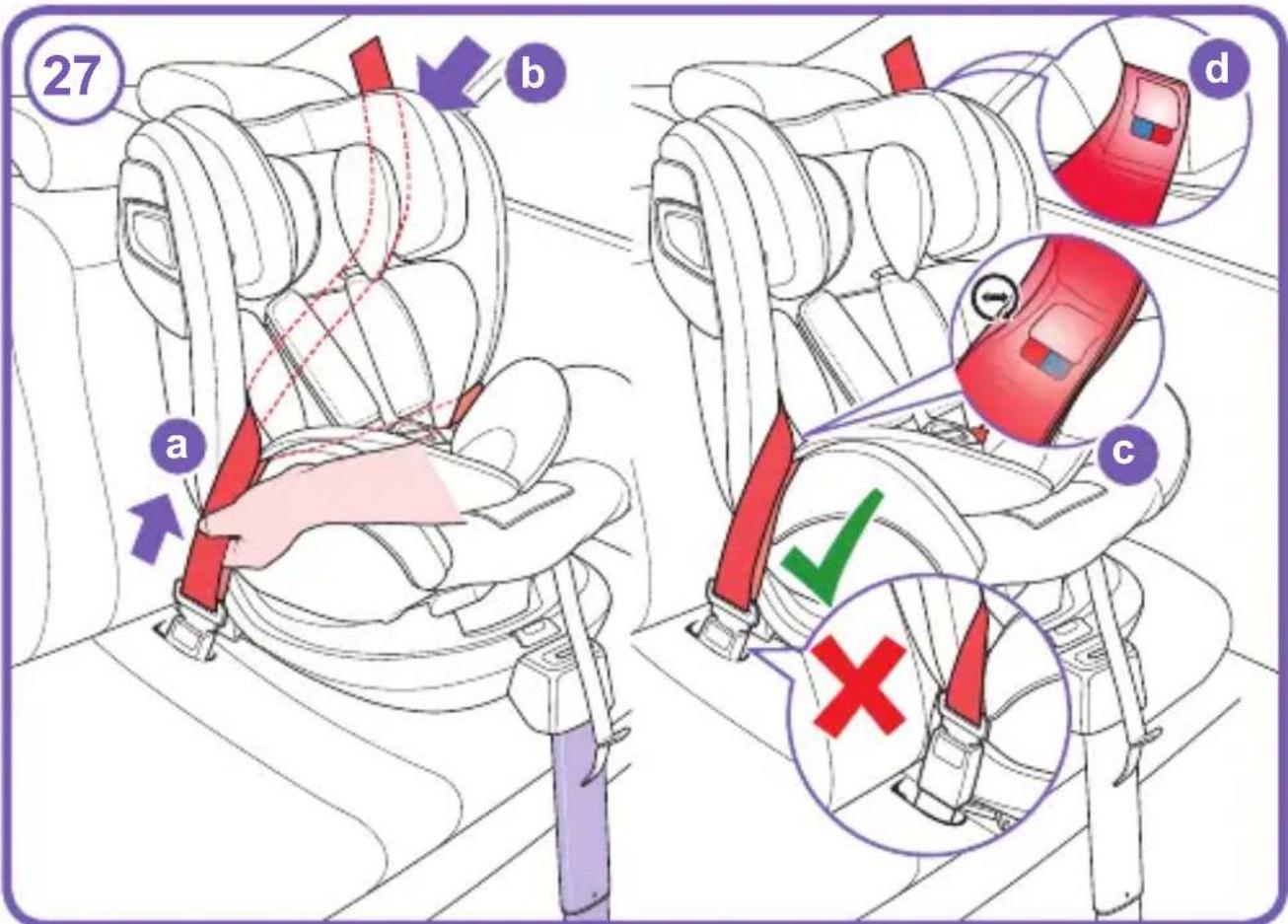

27- Tension the lap vehicle belt (a).

Fit the diagonal vehicle belt between the headrest and backrest (b). If fitted correctly the vehicle belt should cover the belt guide markings on the child seat cover (c & d).

IMPORTANT: The position of the vehicle belt buckle can affect the stability of the child restraint system. In an accident this could stop the child restraint system from protecting your child as well as it should. After tightening the vehicle belt, if the buckle lies in the position marked (X) then try fitting the child restraint system in another seating position in your vehicle.

Engage the support-leg (Refer to step 18).

Removal is a reversal of this procedure.

Forward facing modes (Group 2/3) (15 to 36kg, approx. 4 to 12 years old):

Preparation:

28- Open the rear compartment door (a).

Disconnect the chest pad and shoulder strap connectors (b, c) then pull them away from the front of the seat (d).

Remove the chest pad connector (e).

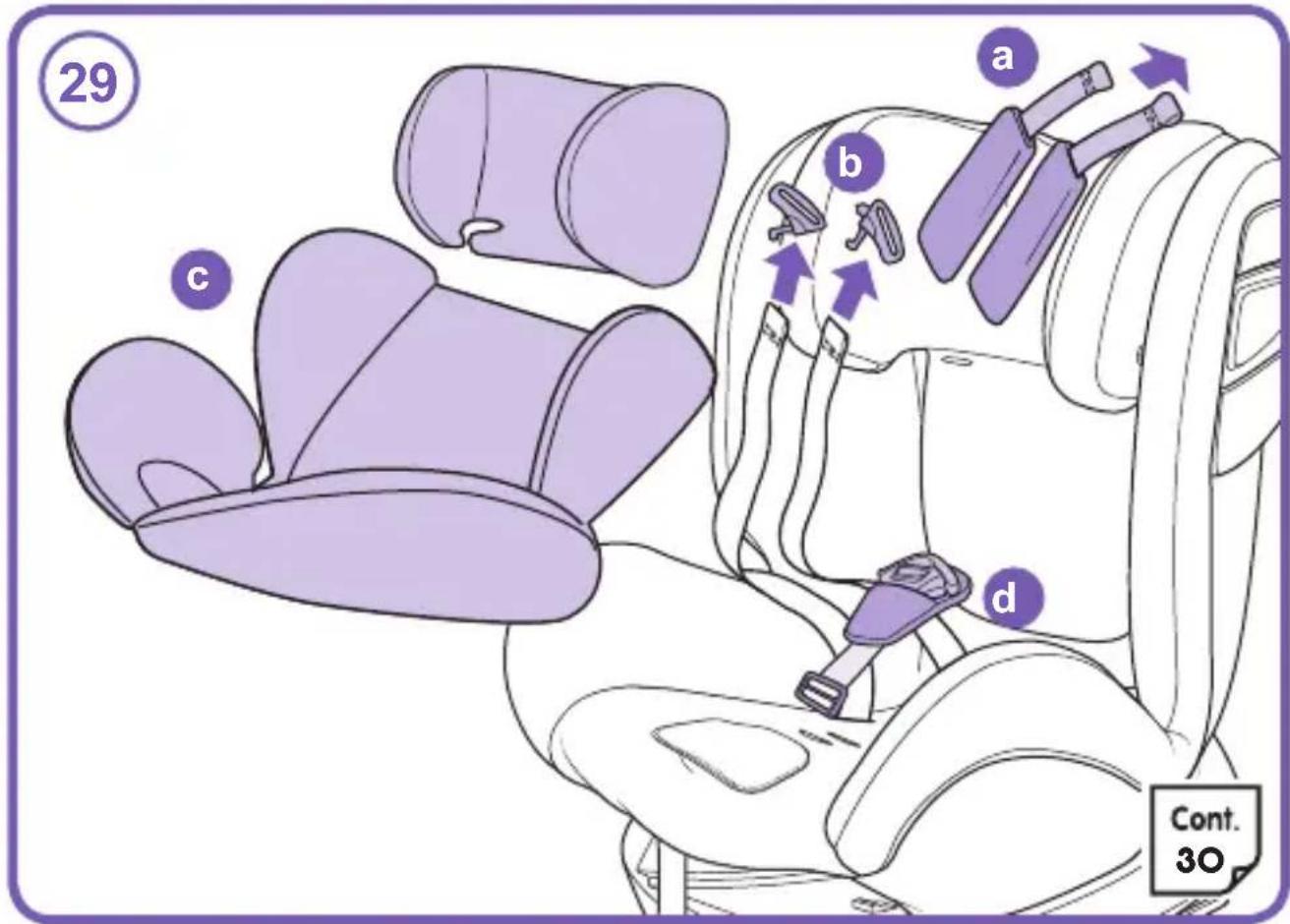

29- Open the harness (Refer to step 8).

Remove the chest pads(a), buckle clips(b), liners (if applicable, c) & buckle (d).

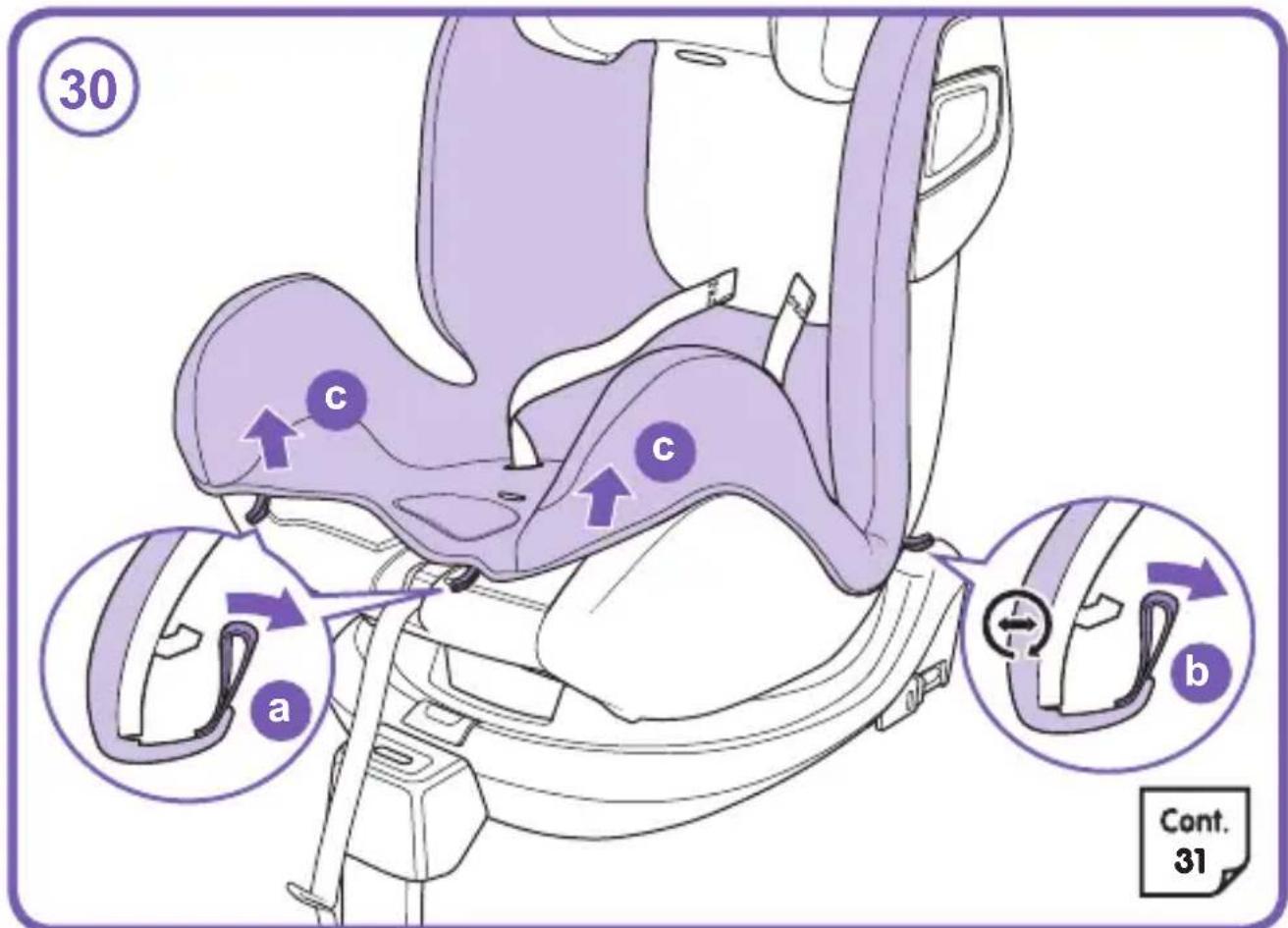

30- Release the fabric from hooks (a) and sides (b) of the seat unit.

Lift up the front of seat cover (c).

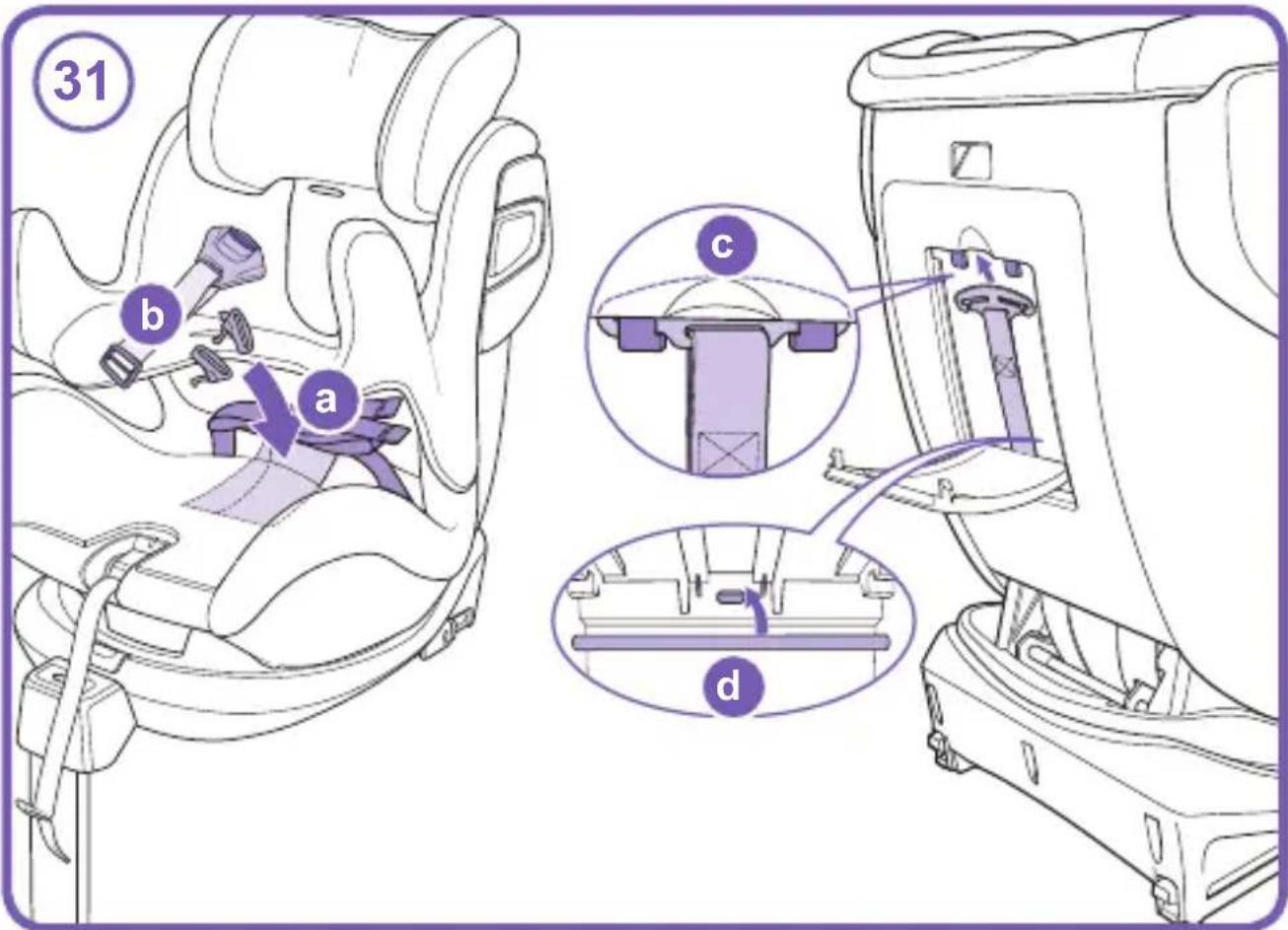

31- Store the buckle clips (a), buckle (b), chest pad connector (c) & harness connector (b) within the seat shell as shown.

Retain the chest pads, crotch pad & liners for future use.

Close the rear compartment door and refit the seat cover.

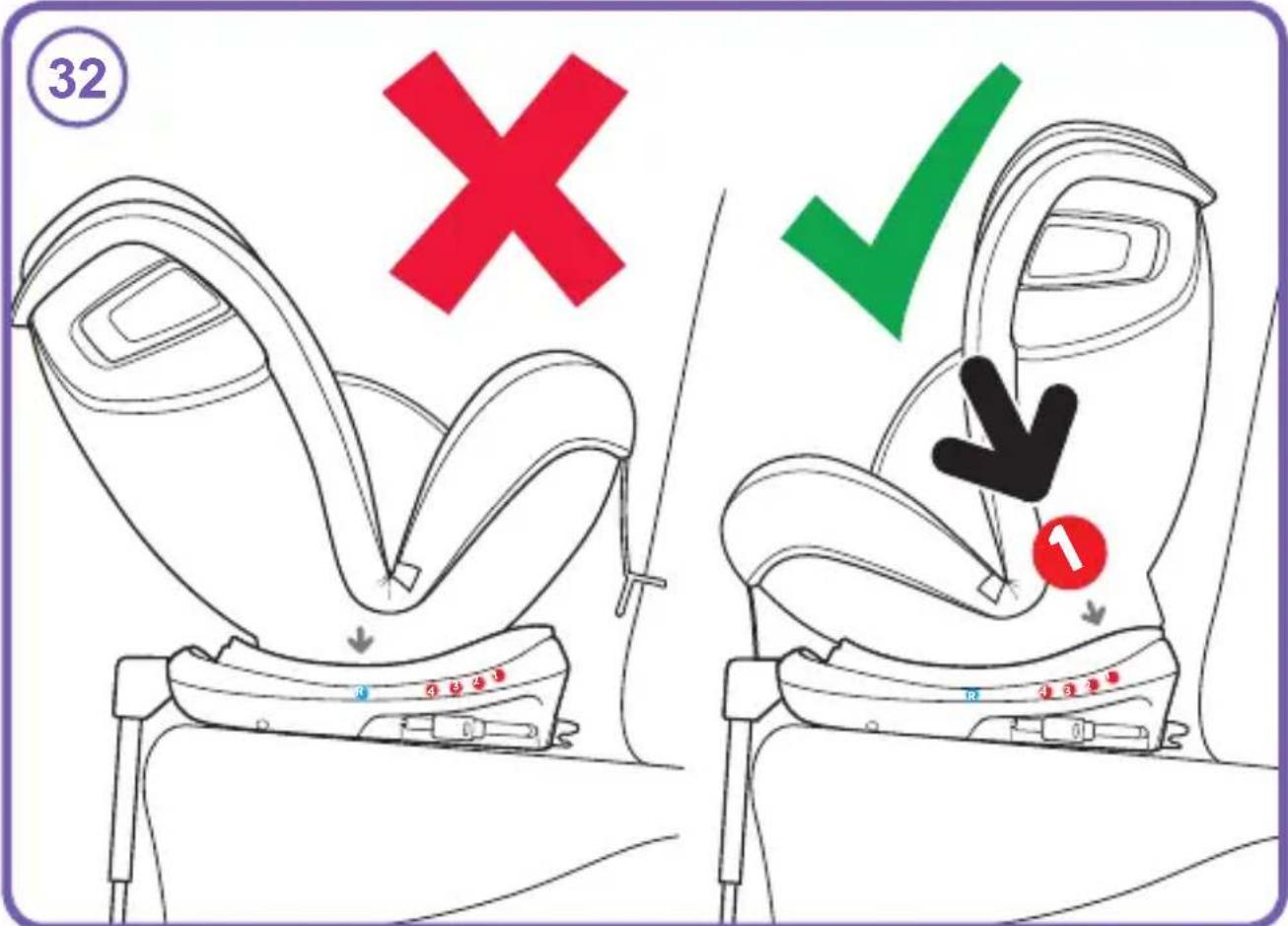

32- Location:

IMPORTANT: DO NOT USE FORWARD FACING BEFORE THE CHILD'S WEIGHT EXCEEDS 9 KG.

Belted only:

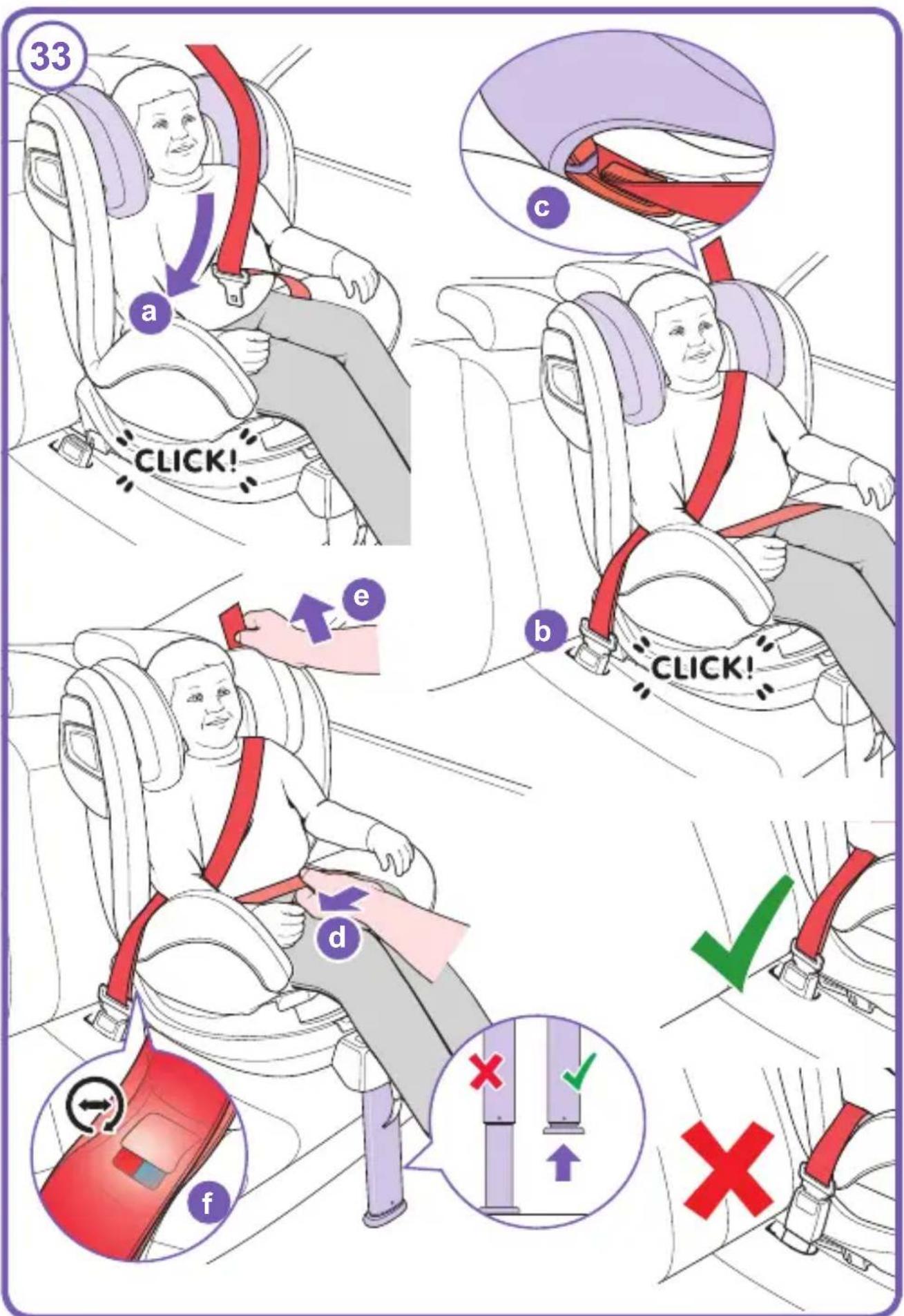

33- Fitting:

Convert the seat unit to forward facing orientation (refer to step 13). Recline the backrest to position 1 (Refer to step 1).

Position the child car seat on the vehicle seat, forward facing.

Place your child into the child car seat.

Pull the vehicle belt out and around the child (a) and fasten the buckle (b).

Fit the diagonal vehicle belt through the headrest diagonal vehicle belt guide (c).

Tension the vehicle belt (d & e).

If fitted correctly the vehicle belt should cover the belt guide markings on the child seat cover (f).

IMPORTANT: The position of the vehicle belt buckle can affect the stability of the child restraint system. In an accident this could stop the child restraint system from protecting your child as well as it should. After tightening the vehicle belt, if the buckle lies in the position marked (X) then try fitting the child restraint system in another seating position in your vehicle.

Removal is a reversal of this procedure.

Belted with ISOFIX arms only:

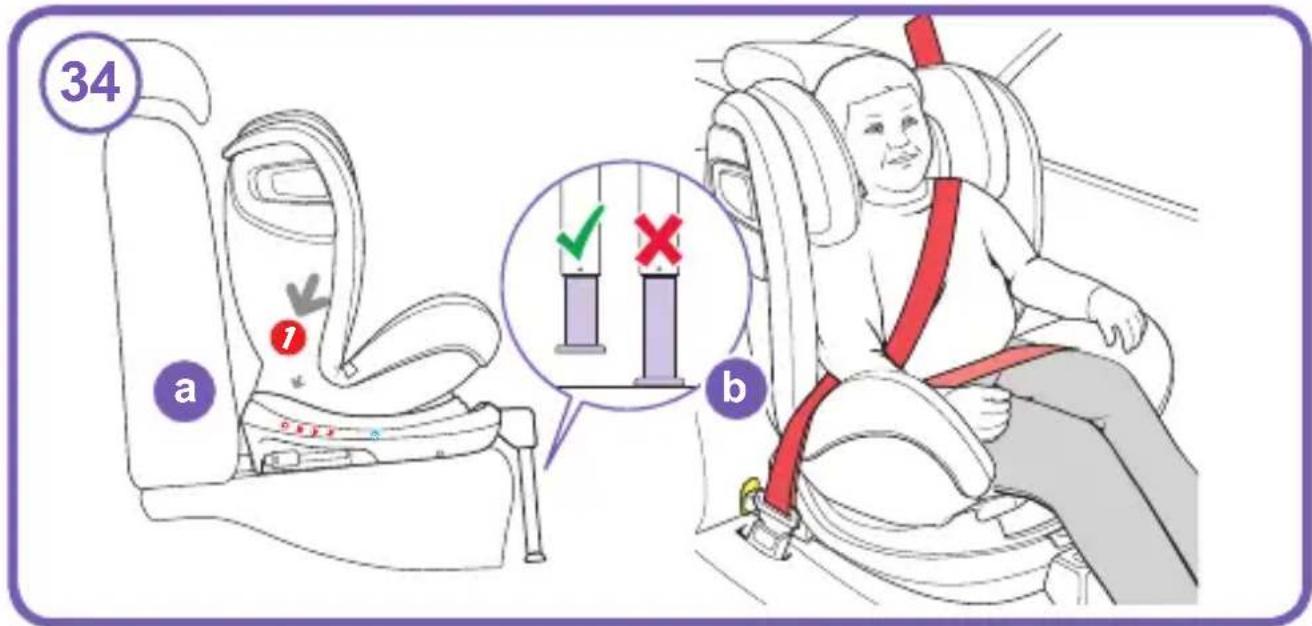

34- Fitting:

Convert the seat unit to forward facing orientation (refer to step 13). Attach the ISOFIX arms to the anchor points (refer to step 14 - 16) (a). Secure your child with vehicle belt (refer to step 33) (b).

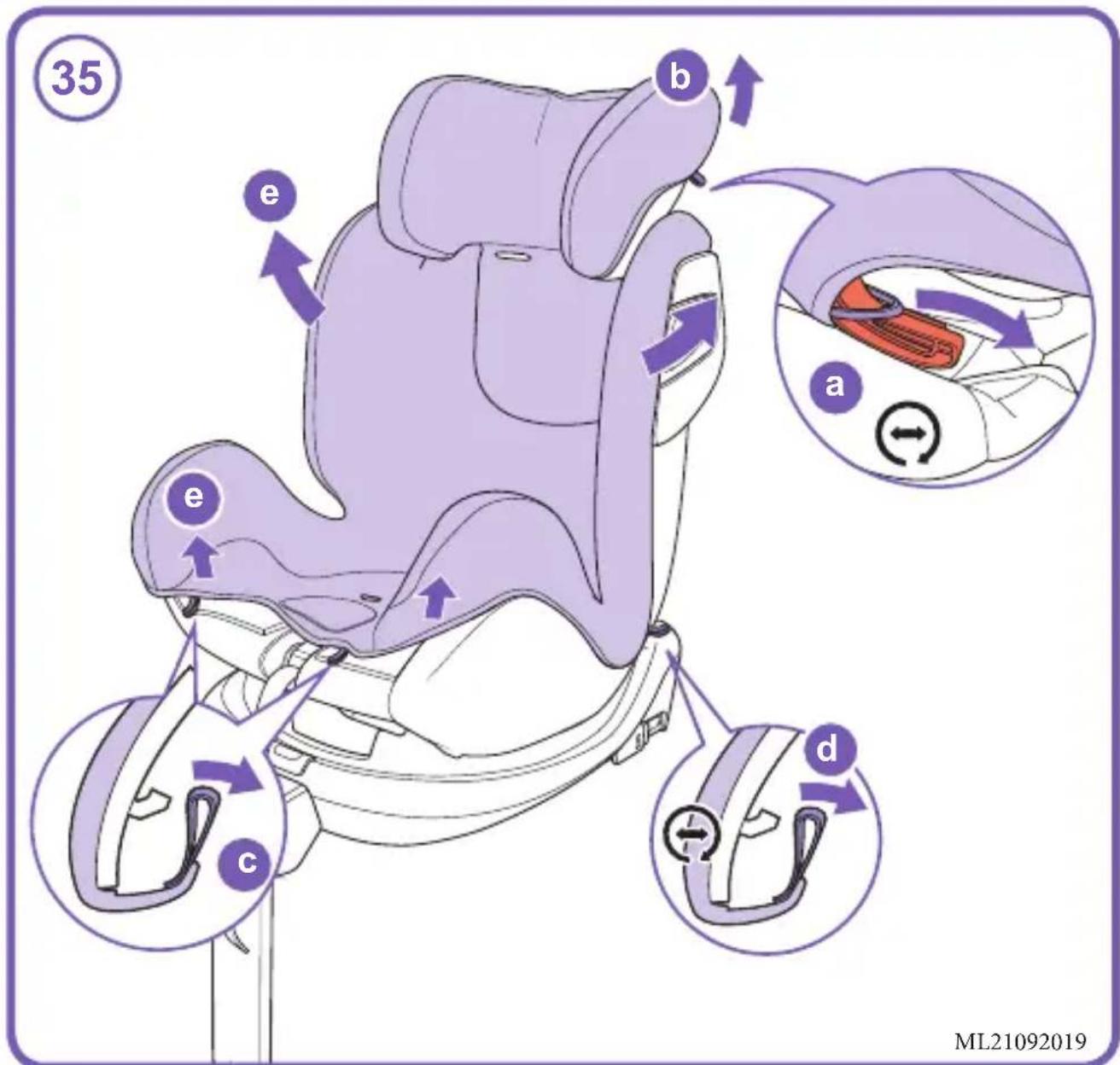

Softgoods 35-

Removing:

If fitted, remove the chest pads, seat liners, buckle and crotch pad (refer to step 28 - 30). Release the elastic loops on either side of the headrest (a). Remove the headrest cover (b). Release the fabric from hooks (c) and sides (d) of the seat unit. Remove the seat cover (e). Reverse the procedures above to refit the softgoods.

http://www.cosatto.com/service-centre/spares

http://www.cosatto.com/service-centre/spares

Diagram illustrating car seatbelt usage, showing hand placement and directional arrows for lifting or adjusting seatbelt.

④ × × ✓

5 b a

6 b a

7 a

Illustration of a baby in a car seat with a green checkmark and purple belt, labeled 'b' in the corner.

8 a b c

9 a b c CLICK!

10 × × ✓

11 a

12 a

13 a b

14 a b 360° c d

15 16 b a

NO R FLY a

17 a

b CLICK! ✓ c

d

d

18 a b c

19 ×

20 a R CLICK! b Group 0+/1 0-18 kg

22 a b ✓ X d c

23 O - 9kg 9kg +

24 X ✓ 3 3 2 1 3 3 2 1

25 a c c b CLICK!

26 a b CLICK! Cont. 27

27 a b c d ✓ ×

28 a b c d Cont. 29

29 a b c d Cont. 30

30 a b Cont. 31

31 b a c d

32 ✓ 1

33 a CLICK! c e b CLICK! d f ✓ ✓ ✓

34 a 7 b

35 b e a e c d ML21092019
