RP112L - Turntable Audizio - Free user manual and instructions

USER MANUAL RP112L Audizio

Ref. nr.: 102.158_102.160

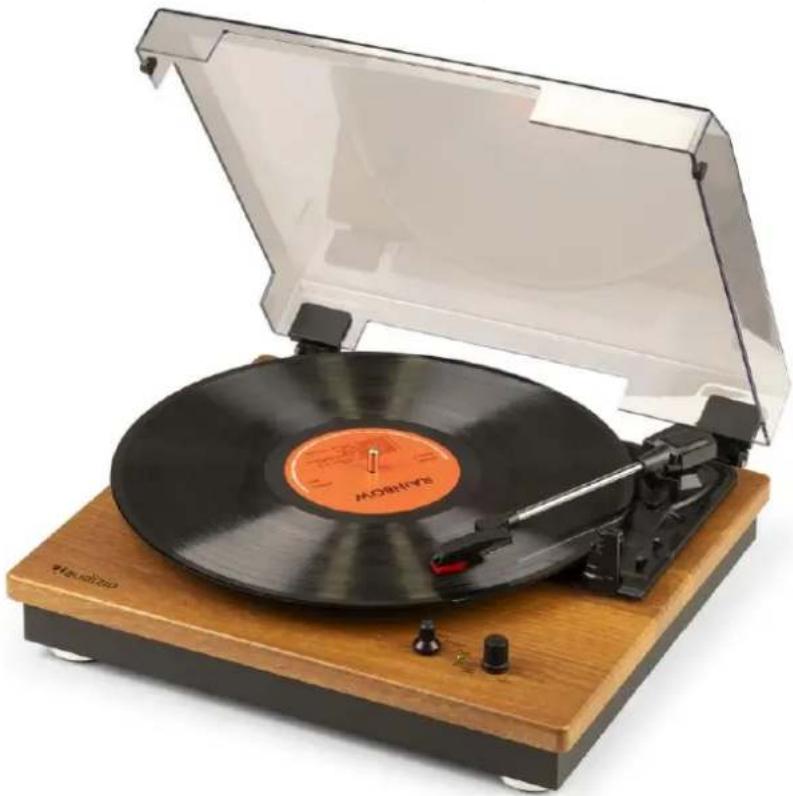

Vintage portable radio with black and orange CD, open lid, and wooden base (no visible text or symbols)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI NÁVOD K POUŽITÍ

V1.0

INDEX

ENGLISH....3

UNPACKING INSTRUCTION....4

POWERSUPPLY 4

CONTROLS AND CONNECTIONS 4

GETTING STARTED 4

RECORD PLAYER....4

BT STREAMING 5

AUX IN....5

NEDERLANDS 6

UITPAKKEN 7

AANSLUITSPANNING 7

BEDIENING 7

AAN DE SLAG....7

PLATENSPELER....7

BT STREAMING 8

AUX IN....8

DEUTSCH 9

AUSPACKEN 10

NETZANSCHLUSS....10

BEDIENUNG 10

ERSTE SCHRITTE 10

PLATTENSPIELER 10

BT STREAMING....11

AUX-EINGANG 11

ESPAÑOL 12

INSTRUCCIONES DE DESEMBALAJE 13

Congratulations to the purchase of this Audizio product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise, the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Audizio cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

CONTROLS AND CONNECTIONS

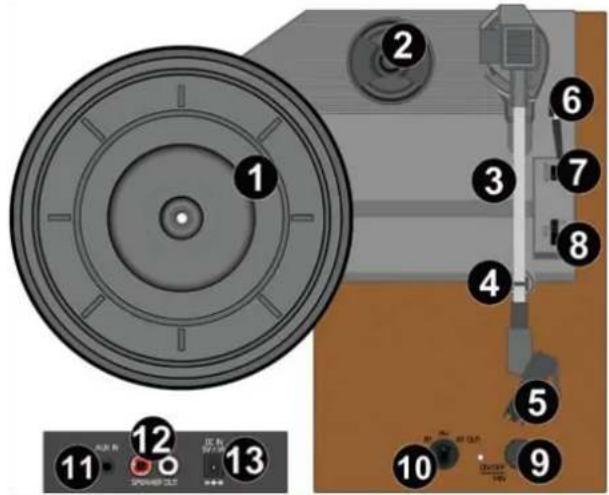

1. Platter

Place your record here.

1. 45rpm adapter

This adapter allows you to play 45RPM records.

1. Tone arm

The fixed tonearm can be raised and lowered by hand, or by pressing the raise /lower lever.

1. Arm clip

This arm clip secures the tonearm while at rest or when not in use. The arm clip has been designed to remain in the up position whilst unlocked.

1. Stylus cartridge

Cartridge containing the stylus/needle.

1. Tone arm lever

Use to raise/lower the tone arm.

1. Autostop ON/OFF

This switch turns the auto stop-function on/off. When the automatic stop is enabled, the platform will start rotating as soon as the tone arm is placed over the record and will stop

Diagram of a mechanical device with numbered components and control buttons, likely for assembly or inspection.

rotating when it has reached the end of the record. Some vinyl records stop before the end or do not stop when the end is reached. In this case set Auto-stop to OFF.

1. 33/45/78 RPM

Use to adjust the RPM of the turntable platter.

1. Power & Volume control

To power on the record player, rotate clockwise until it clicks. When powered on, use this knob to adjust the volume for the internal speakers and headphones. To turn off the record player, rotate this knop counter clockwise until it clicks.

1. BT/phono/BT out

Rotate to choose between phono-, bt- or bt out modes.

BT enables playing music from a streaming device.

BT out enables directing the sound from phono record playback to wireless BT headphones- or speakers.

1. AUX input

3.5 mm auxiliary input jack. The aux in connection will automatically override the turntable and BT functions. To resume using the turntable or BT functions, unplug the auxiliary cable from the aux in jack.

1. Speaker out

RCA connector line output to connect external speakers (not included).

1. DC 5V IN

5V power socket for connecting the supplied power adapter.

GETTING STARTED

• Remove the record player from the package box.
• Plug in the power adapter and turn on the device.

Caution: Use only the adapter supplied with the unit. Connecting a power supply with a different rating can cause permanent damage to the unit and may be hazardous.

RECORD PLAYER

• Rotate the mode button to select Phono mode.
• Place the record on the turntable. If required, place the 45rpm adapter on the record spindle.
• Choose the desired playing speed using the speed selection switch (33-, 45- or 78rpm).
• Rotate the on/off and volume control clockwise to turn on the unit.
• Make sure that any protective cover is removed from the stylus.

• Unlock the tone arm by releasing the tone arm clip.

• Raise the arm by using the tone arm lever.

• Place the stylus vertically over the first track of the record, the turntable will start turning automatically.
• Lower the stylus slowly onto the record by using the tone arm lever.
• When a record comes to the end, the turntable will stop automatically if the auto-stop switch is in the ON position. If the switch is in the off position then it will keep turning until the switch is set in the ON position.
  * Some vinyl records stop before the end or do not stop when the end is reached. In this case set Auto-stop to OFF.
• Lift up the tone arm and put it on the rest when finished, always using the tone arm lever.
• Lock the tone arm by closing the tone arm clip.
  • Re-attach the stylus cover.
• Turn off the power.

BT STREAMING

Before transmission between your BT device and the record player is possible, both devices must be coupled. This process is called "pairing". The record player is served as a receiver, to receive the music stream to be played on the record player. If you have already coupled to a BT device before, this connection will be restored automatically when both devices are in range and BT operation has been selected on the record player. "Pairing" does not have to be repeated. This function may need to be activated in your BT device, however.

• Set the mode knob to BT mode.
• Turn on the BT streaming function on your device. The device will scan for pairable BT devices in the reception range.
• Select "Audizio RP112" from the list with found devices.
• You can now play your music from your device, using the turntable player as speaker.

This device also features a BT transmitter, meaning that it is possible to play sound from the turntable player via BT to, for example, a BT speaker or wireless headphones. Rotate the mode knob to BT OUT mode to enable the BT transmitting function.

Note: When the turntable is being used as a BT speaker, all other playback functions cannot be used at the same time.

AUX IN

You can listen to the music stored in other audio device or smart phone via the record player, through the connection to the 3.5 mm aux-in jack. Use a cable with 3.5 mm pins at both ends, one end connected to the aux-in jack, the other end connected to the earphone jack on the audio device (or line out socket if available). Play music on the connected device, the sound will be emitted from the record player.

This adapter allows you to play 45RPM records.

1. Toonarm

Diagram of a mechanical device with numbered components and control panel labels in Chinese

Diagram of a mechanical device with numbered components and control buttons, likely for assembly or inspection.

CONTROLS AND CONNECTIONS

Diagram of a mechanical device with numbered components and control buttons, likely for assembly or inspection.

Technical diagram of a mechanical device with numbered components and control buttons

Diagram of a mechanical device with numbered components and control panel labels in Chinese

Technical diagram of a mechanical device with numbered components and control buttons

Input connections : 3.5mm Jack

Output connections : RCA

Speed settings (RPM) : 33, 45, 78

Power supply : 100-240VAC 50/60Hz (5V Adapter)

Dimensions (L x W x H) : 320 x 340 x 105mm

Weight : 2,30kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

2014/53/EU

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

S.I. 2017:1206

Specifications and design are subject to change without prior notice.

www.audizio.com

Copyright © 2024 by Tronios The Netherlands
