ENGLISH

Congratulations to the purchase of this Audizio product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Audizio cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be returned, it is important that the product is returned in the original factory box and packaging.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

PRODUCT OVERVIEW

1. Platter

2. Transit screw

System to protect the mechanical parts of the turntable during transport. Rotate the screw clockwise completely to unlock the turntable. Rotate counterclockwise completely to lock.

3. Tone arm lever

Use to raise/lower the tone arm.

4. Tone-arm clip

This arm clip secures the tone-arm while at rest or when not in use.

5. RPM switch

Controls the RPM (33/45/78rpm) of the record player platter.

6. Cartridge with needle

When the turntable is not in use, it is recommendable to place the removable protection cover over the stylus.

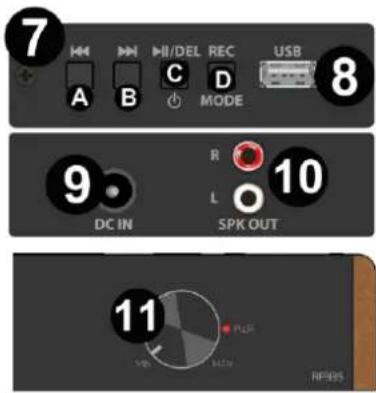

7. Media player

A. Previous

Press to go to previous track (USB/BT).

B. Next

Press to skip to next track (USB/BT).

C. Play/pause / delete / on/off

Press to (re)start or pause play (USB/BT).

Double press to disconnect BT streaming.

Double press when playing a recorded file to erase/delete.

A beep will indicate a successful erasing.

Press and hold to put the device in standby mode.

Press to wake up the device.

D. Rec / mode

Press to switch modes (Phono/USB/BT).

Press and hold for about 2 seconds to enter record mode (when in BT- or Phono mode and USB storage is inserted).

8. USB

USB slot for inserting USB storage devices up to 32GB (FTA32 version 2.0).

9. DC input

Connector for inserting the supplied 12V power adapter.

10. Speaker output

RCA speaker output connectors for connecting the supplied speakers.

11. Volume

Rotate to adjust the volume output level.

12. 45RPM adapter

This adapter allows you to play 45RPM records.

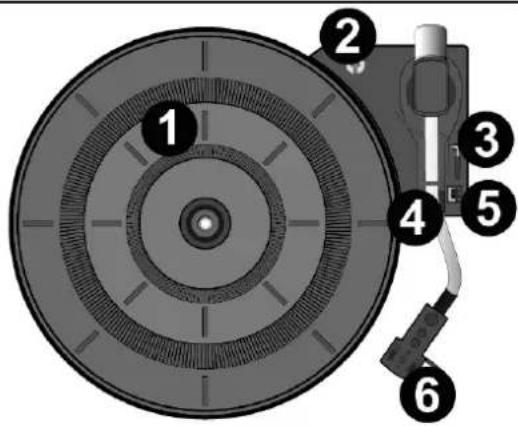

Diagram of a circular mechanical component with numbered parts labeled 1 through 6

7 A B C D MODE USB 8

PHONO OPERATION

1. Connect the record player with the power adapter and plug the other end into a wall power outlet.

2. Gently remove the protective needle cover.

3. Rotate the volume control knob to just above the minimum level and turn on the power.

4. Select phono mode by pressing the mode button.

5. Place a vinyl record on the turntable platter and select the desired speed (33/45/78RPM) according to the record. Use the 45rpm adapter if necessary.

6. Open the tone arm clip to release the tone arm. Push the lift lever backwards to raise the tone arm and gently move the tone arm to the desired position over the record. The turntable will begin to spin when the tonearm is moved towards the record. Push the lift lever forwards to lower the tone arm slowly onto the desired position on the record to start playback.

7. Rotate the volume control knob to adjust the volume.

BT CONNECTION

1. Press the mode button to select BT mode.
2. Turn on the BT-function on your mobile phone or tablet, search for "Audizio RP335" and initiate pairing. When pairing is successful, the record player will emit a sound. You can now play your music from your mobile phone or tablet.
3. Rotate the volume control to adjust the volume (the volume control of the mobile phone or tablet can also affect the total volume).
4. Press previous or next to change tracks.
5. Press play/pause to (re)start or pause playback.
6. Double press play/pause to disconnect. Again, a sound will be emitted to confirm the disconnecting has been successful.

Note: This device does not have a BT transmitter, this means that it is not possible to send sound via BT to, for example, a BT speaker.

USB

1. Connect the record player with the power adapter and plug the other end into a wall power outlet.
2. Rotate the volume knob to just above the minimum level and turn on the power.
3. Insert a USB storage device to start playback. It's also possible to manually start USB mode by pressing the mode button.
4. Press previous or next to change tracks. Double press to select the previous or next folder (on USB storage device).
5. Press play/pause to (re)start or pause playback.
   Press and hold to put the device in standby mode.

RECORDING FROM PHONO/BT

1. Insert a USB storage device in the USB port.
2. Place a record on the platter or connect a BT device.
3. Switch to Phono- or BT mode respectively, by pressing the mode button.
4. Press and hold the mode/rec button for about 2 seconds to start recording. A beep sound will be emitted.
5. To finish recording, again press and hold the mode/rec button for about 2 seconds. Two beep sounds will be emitted. The recorded songs will be stored within the "RECORD" folder on your USB storage device.
6. To erase/delete tracks from the USB storage device, press and hold mode/rec for about 2 seconds. The first recorded file will play. Double press play/pause to erase/delete the file. A beep will be emitted.

SPEAKERS

Connect the supplied speaker system to the RCA port of the record player.

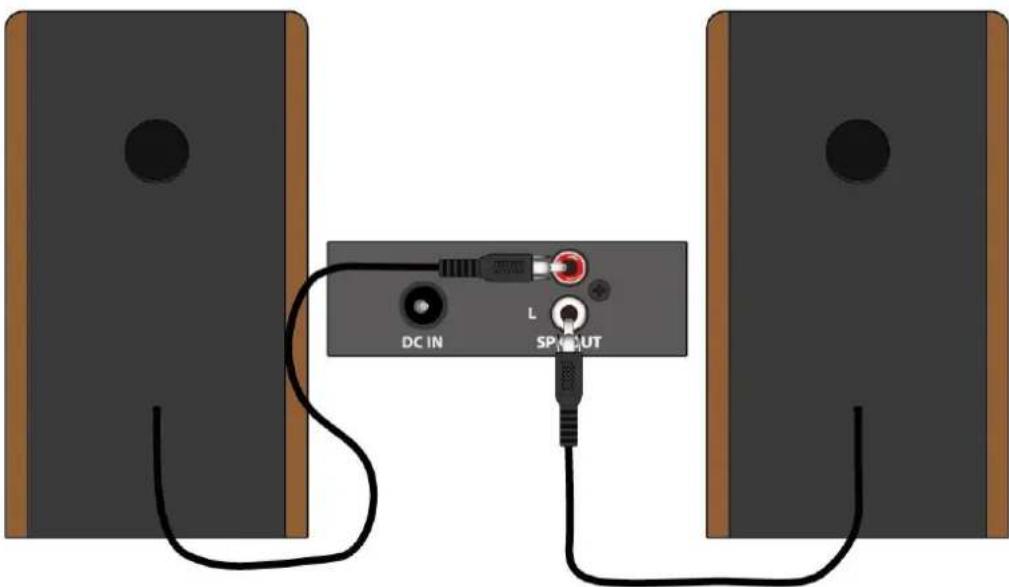

Diagram of a audio recording device connected to two speakers, showing connections via cables (no text or symbols present)

Diagram of a mechanical component with numbered parts labeled 1 through 6, likely illustrating a gear or cam mechanism.

7 A B C D USB 8 9 DC IN R 10 L SPK OUT 11 USB MAX RFABS

PHONO-FUNCTIE

Diagram of a audio recording setup showing two speakers connected to an audio output device with labeled ports (DC IN, L, S/P) and cable routing (no text beyond labels)

DEUTSCH

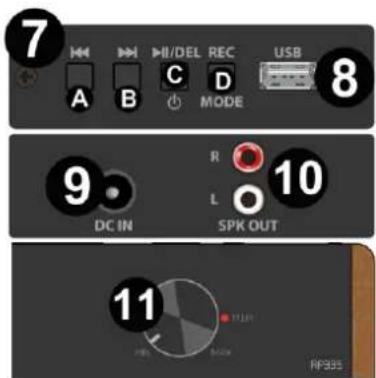

Diagram of a mechanical component with numbered parts labeled 1 through 6, likely illustrating a gear or bearing assembly.

7 A B C D USB 8 9 R 10 DC IN SPK OUT 11 RF935

PHONO-FUNKTION

Diagram of a audio recording setup showing two speakers connected to an audio output port with labeled ports (DC IN, L, S/P) and cable routing (no text beyond labels)

Diagram of a mechanical component with numbered parts labeled 1 through 6, likely illustrating a gear or sensor assembly.

7 A B C D MODE 8 9 DC IN R SPK OUT 10 11 RPM RF535

Diagram of a audio recording setup showing two speakers connected to an audio output port with labeled ports (DC IN, L, S/P) and cable routing (no text beyond labels)

FRANÇAIS

Diagram of a mechanical component with numbered parts labeled 1 through 6, likely illustrating a gear or cam mechanism.

7 A B C D USB 8 MODE 9 R 10 DC IN SPK OUT 11 RF555

CONNEXION BT

Diagram of a audio recording device connected to two speakers, showing connections via cables (no text or symbols present)

POLSKI

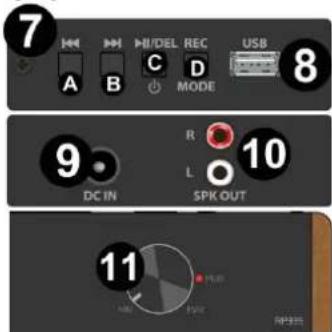

Diagram of a mechanical component with numbered parts labeled 1 through 6, likely illustrating a gear or cam mechanism.

7 A B C D USB 8 9 R 10 DC IN SPK OUT 11 USB 5V2 RP333

DZIAŁANIE GRAMOFONU

NAGRYWANIE Z PHONO/BT

Diagram of a audio recording setup showing two speakers connected to a device labeled 'DC IN' and 'SPINUT', with no visible text or symbols beyond labels.

Diagram of a mechanical component with numbered parts labeled 1 through 6

7 A B C D MODE USB 8

PROVOZ GRAMOFONU

Diagram of a audio recording device connected to two speakers, showing connections via cable (no text or symbols present)

TECHNICAL SPECIFICATION / TECHNISCHE SPECIFICATIE / TECHNISCHE DATEN / ESPECIFICACIONES TÉCNICAS / SPÉCIFICATIONS TECHNIQUES / SPECYFIRACJA TECHNICZNA / TECHNICKÁ SPECIFIRACE

Playback options : BT 5.0 streaming, Vinyl, USB

Input connections : USB

Output connections : RCA, USB

Speed settings (RPM) : 33 1/3, 45, 78

Output power : 80W

Power supply : 100-240VAC 50/60Hz (12V Adapter)

Dimensions (L x W x H) : 433 x 340 x 106mm

Weight : 9,00kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2024 by Tronios The Netherlands
