USER MANUAL RVI 460 TEKA

Thanks for buying our wine cooler, Hope our advanced product will give your wine a different joyful taste. Before use, please read and follow all safety rules and operating instructions.

WARNING!

• To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out of the rail compartment.
• The appliance must be positioned so that the plug is accessible. Release the electric cord. Move your cabinet to its final location. Do not move your Cabinet while loaded with wine. You might distort the body. The wine cellar should be installed in a suitable place in order to avoid touching the compressor with the hand. Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by manufacturer of its Service agent or a similarly qualified person in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

To avoid contamination of wine, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with bottles and accessible drainage systems.

• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mold developing within the appliance.

• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• WARNING: Do not damage the refrigerant circuit.

• WARNING: Do not use electrical appliances inside the wine storages compartments of the appliance, unless they are of the type recommended by the manufacturer.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

This appliance is intended to be used in household and similar applications such as
- staff kitchen areas in shops, offices and other working environments.
- farmhouses and by clients in hotels, motels and other residential type environments.
- bed and breakfast type environments.
- catering and similar non-retail applications.
-WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

PLEASE DON'T TRY TO PLUG INTO OR EXTENSION THE CABLE IN ANY CASE.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:

·Read all instructions before using the Wine cooler. ·DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous . . . even if they will “just sit in the garage a few days”. ·Before you throw away your old Wine cooler: Take off the door. Leave the shelves in place so that children may not easily climb inside. ·Never allow children to operate, play with, or crawl inside the appliance. ·Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion. ·Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion. ·If the refrigerant of these appliances are R600a , Flammable and explosive articles should not be put in or near the cabinet, to avoid the fire or explode caused. -Save these instructions-

INSTALLATION INSTRUCTIONS

> Before Using Your Wine cooler

• Remove the exterior and interior packing.
• Before connecting the Wine cooler to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.

• This appliance is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments.

• farmhouses and by clients in hotels, motels and other residential type environments.

• bed and breakfast type environments.

• catering and similar non-retail applications.

• When disposing your appliance, please choose an authorized disposal site.

> Installation of Your Wine cooler

• This appliance is designed to be for in column (fully recessed) (Refer to sticker location the back of this appliance).
  This appliance is intended to be used exclusively for the storage of wine.
• Place your Wine cooler on a floor that is strong enough to support it when it is fully loaded.
• This appliance is using flammability refrigerant. So never damage the cooling pipe work during the transportation. Locate the Wine cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.
• Avoid locating the unit in moist areas.
• Plug the Wine cooler into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an Authorized Products Service Center.

Attention

• Store wine in sealed bottles.
• Do not overload the wine cooler.
• Do not open the door unless necessary.
• Do not cover shelves with aluminum foil or any other shelf material which may prevent air circulation.
• Should the Wine cooler be stored without use for long periods it is suggested, after a careful cleaning, to leave the door ajar to allow air to circulate inside the wine cooler in order to avoid possible formations of condensation, mold or odors.

> Ambient Room Temperature Limits

This appliance is designed to operate in ambient temperatures specified by its temperature class marked on the rating plate.

Class	Symbol	Ambient Temperatures range (°C)
Extended Temperate	SN	+ 10 to + 32
Temperate	N	+ 16 to + 32
Subtropical	ST	+ 16 to + 38
Tropical	T	+ 16 to + 43

OPERATING YOUR WINE COOLER AND SETTING THE TEMPERATURE CONTROL

> Control System Instruction

DISPLAY

To show the set temperature.

• “”Button

Used to rise the temperature 1^

• “”按钮

Used to down the temperature 1^

“”Button

To control the inner light, turn on/off.

(Press this button, the light is on, and the light is not controlled by door. Press this button again, the light is off, and the light is controlled by door.)

NOTE: It will take 3 seconds for LED light completely went out after turning off the light.

1 3s

To control this appliance, turn on/off.

(Press this button, the power is on. Press this button with 3 seconds again, the power is off.)

Setting The Temperature Controls

The temperature range 5^ 18^
The acquiescence temperature setting is 12^

• When the system enters the set-up temperature. Each press once or button, the temperature setting will increase or lower 1^ , When the temperature setting reaches the upper limit 18^ and lower limit 5^ , the temperature setting will not increase or lower.
• If you want to know the actual temperature, please press or for 3 seconds, display panel will show actual temperature. After 5 seconds, it will show the setting temperature.

  Internal light

• In order to reduce energy consumption, the LED light within this wine cooler will automatically switch off when closed the door. If you would prefer the LED light to remain on continuously, this is possible. Please press and hold the “ ” button for 5 seconds, the display will show “LP”. After 4 seconds the display will revert to normal and the light will remain on until manually switched off.

If you would like to revert back and conserve energy (recommended), press and hold the “ ” button for 5 seconds, the display will show “LF”. After 4 seconds the display will revert back to normal, and the light will automatically switch off after 10 minutes (the light will turn on when door open and will turn off when door closed).

Note

• If the unit is unplugged, power lost, or turned off, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the Wine cooler will not start.
• When you use the Wine cooler for the first time or restart the Wine cooler after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the Wine cooler is running for a few hours everything will be back to normal.

> Function Instruction

- Temperature Recollection Function

In the event of a power interruption, wine cooler can remember the previous temperature settings, and when the power is recovery, the cooler temperature will go back the same setting. temperature as power off.

Overtime Open Door Alarm

When you forget close the door or the door is not closed completely, the buzzer alarm after 1 minutes. Please close the door completely and avoid the cold energy was lost.

Temperature Alarm

If inner temperature is higher than 23^ , the "HI" is shown in display panel, and the buzzer alarm after one hour continuously. It informs that the inner temperature is too high, please check the reason.

If inner temperature is lower than 0^ , the "LO" is shown in display panel, and the buzzer alarm and the malfunction indicator light at the same time.

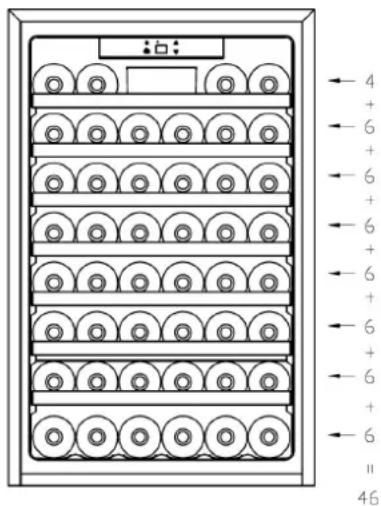

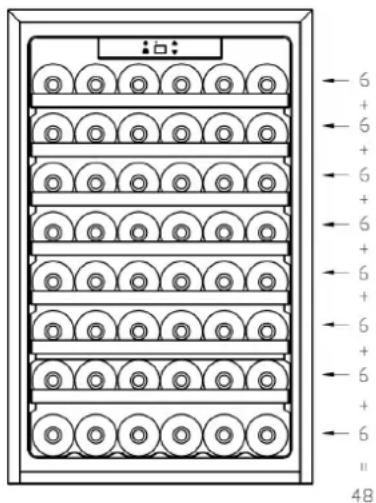

Storage diagram

According to the actual configuration of your product, please check the relative Storage diagram.

Total: 46 bottles (Max)
Bordeaux bottles

Total: 48 bottles (Max)
Bordeaux bottles

The most energy-saving configuration requires shelves to be positioned in the product, please refer to the above pictures.

> Shelves

• To prevent damaging the door gasket, make sure to have the door all the way opened when pulling shelves out of the rail compartment.

• For easy access to the storage content, you must pull the shelves approximately 1/3 out of the rail compartment, however this unit was designed with a notch on each sides of the shelf tracks to prevent bottles from falling.

Please refer to the following direction for replace shelf with different method.

When removing any of these shelves out of the rail compartment, to fit or remove the shelf, tilt the shelf as per the diagram and simply pull out, or push in the shelf until it sits on the support brackets securely.

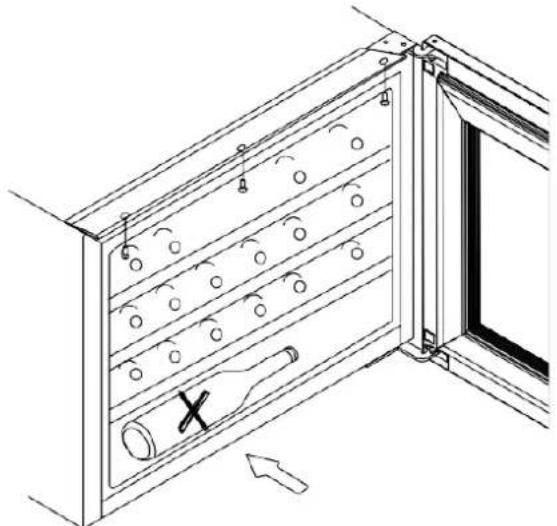

Attention of put wine bottle

These shelves were designed with concave grooves, tall wine bottles can also be stored cross way on the wooden shelves.

> How to change the door opening

This appliance has reversible doors but is delivered with left opening door, please follow below instruction to change the door to the right opening.

(1) Top hinge (2) Door light switch (3) Location-plate (4) Supporter
(5) Bottom hinge

Move the appliance and placed it to a mat height around 200mm to support the cabinet, this is used for leaving the space for the door, because the door is bigger than the cabinet.

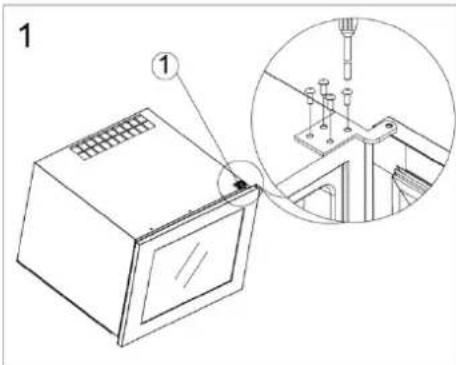

1. Open the door to 90-degree angle. Remove 4 screws and top hinge (1) at the left top of the cabinet, and then remove the door from the cabinet and put the door in safe place (Fig.1).
2. Remove the door light switch (2) with 2 screws from the bottom central of the door, and then reinstall the door light switch (2) with 2 screws to the opposite direction, top central of the door (Fig.2).

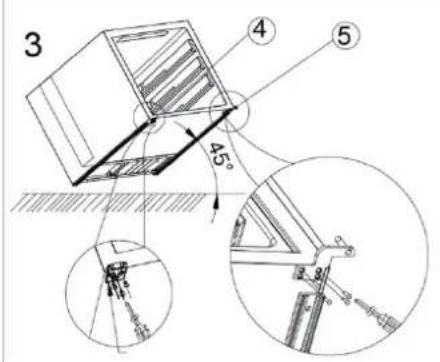

3. Remove the location-plate (3) with screws from the right bottom of the door, and then install the location-plate with screw to the diagonal direction (right top of the door) (Fig.2).

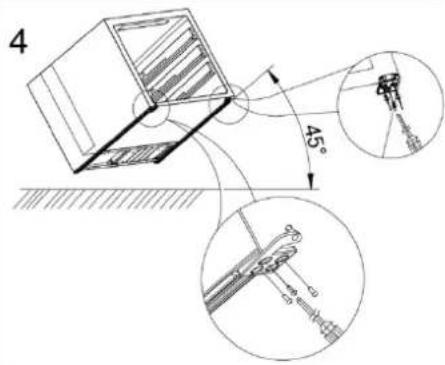

4. Incline the wine cooler with 45 degrees, remove the screws and the bottom hinge (5) at of the right bottom of the cabinet. Remove the screws and supporter (4) at the left bottom of the cabinet, and then install the supporter (4) to the right bottom of the cabinet. (Fig.3/4).
5. Install top hinge (1) to the bottom left of the door. (Fig.4).

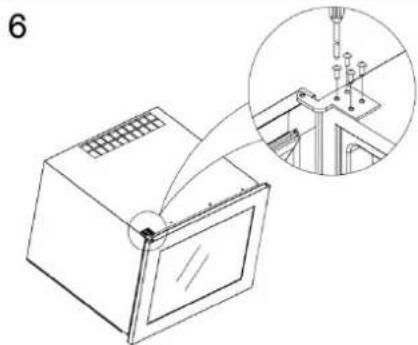

6. Rotate the door at 180 degree (Fig.5).
7. Install the bottom hinge (5) with screws to the left top of cabinet, align the door with cabinet (Fig.6).

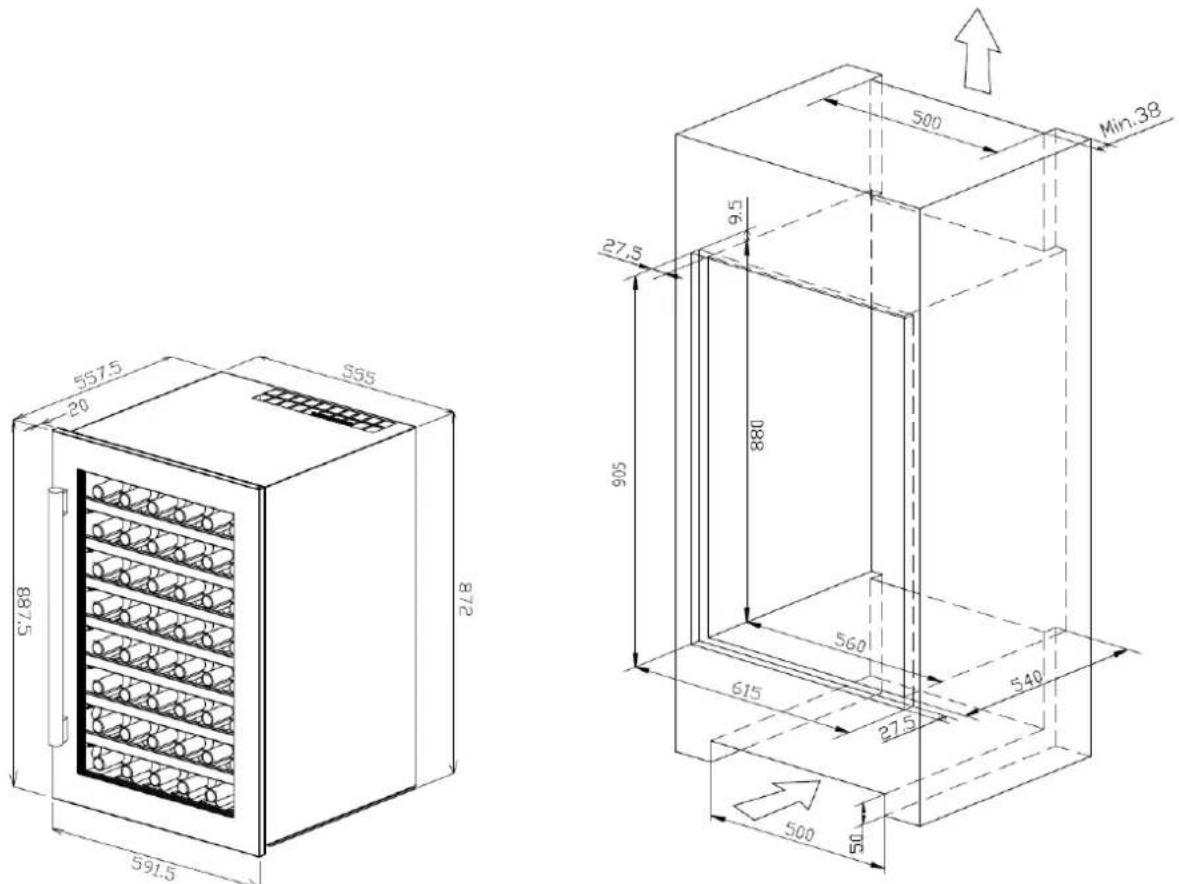

Installation specifications for built-in purposes

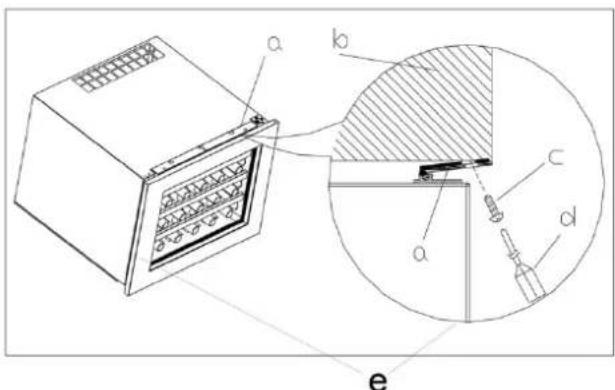

1. After installed wine cooler into kitchen wine cooler, please adjust limited block (a) close to kitchen wine cooler (b)
2. Please fix the 3 pcs screws through the limited block (a) screw hold into kitchen wine cooler (b), please find below picture for reference.

a Limited block

b Kitchen wine cooler

c Screw

d Screwdriver

e Wine cooler

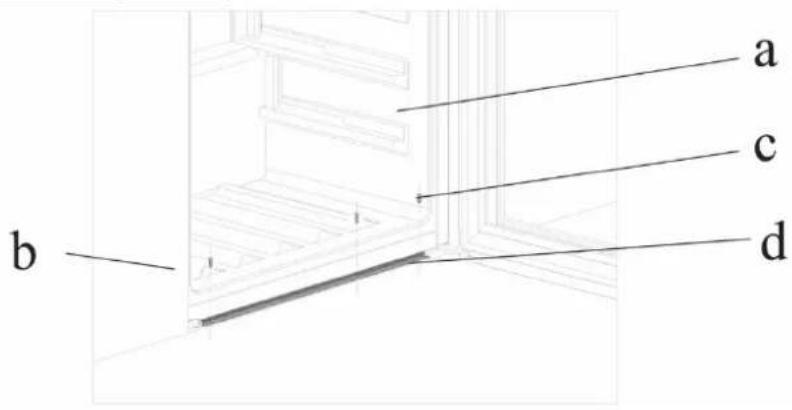

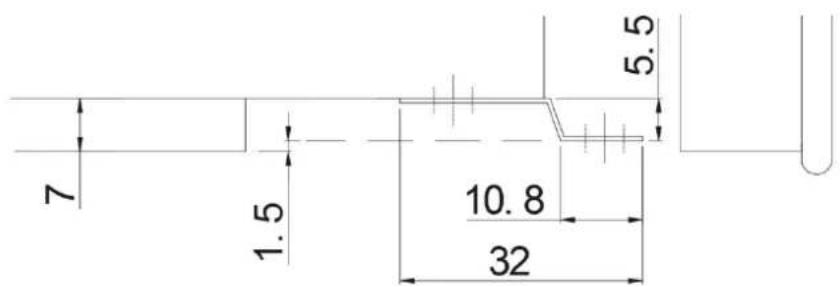

How to fix the lower fixing bracket

1. Install the wine cooler (a) into cabinet (b) in correct position.

1. Fix the screws (c) through lower fixing bracket with screwdriver.
2. Please refer instruction manual Page 10 for how to fix the top fixing bracket.

Recommended DRINKING temperature

The following (approximate) temperatures are recommended for wine drinking:

For storing ALL TYPES OF WINES 12-14°C
Champagne NV, Sparkling 6^
Champagne Vintage 10°C
o Dry White Semillon, Sauvignon Blanc 8^
O Dry White Gewürztraminer, Riesling 10^
O Dry White Chardonnay 10^
O Vintage Chardonnay 14°C
Sweet White Sauternes Monbazillac, Late Harvest ice wine 10^
Sweet whites vintage Sauternes 14°C
O Beaujolais 13^
Red Pinot Noir 16°C
O Vintage Pinot Noir red 18^
Red Grenache, Syrah 16°C
Red Cabernet, Merlot, French, Australian, New Zealand, Chilean, 18 °C Argentinean, Italian, Spanish, Californian

CARE AND MAINTENANCE

Cleaning Your Wine cooler

• Turn off the power, unplug the appliance, and remove all items including shelves and rack.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves with a mild detergent solution.
• Wring excess water out of the sponge or cloth when cleaning area of the controls, or any electrical parts.
• Wash the outside cooler with warm water and mild liquid detergent. Rinse well and wipe dry with a clean, soft cloth.

Power Failure

• Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period, you need to take the proper steps to protect your contents.

> Vacation Time

• Short vacations: Leave the Wine cooler operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

> Moving Your Wine cooler

• Remove all items.
• Securely tape down all loose items (shelves) inside your appliance.
• Turn the adjustable leg up to the base to avoid damage.
• Tape the door shut.
• Be sure the appliance stays secure in the upright position during transportation. Also protect outside of appliance with a blanket, or similar item.

Energy Saving Tips

• The Wine cooler should be in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.

> Availability Of Spare Parts

• Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market.

PROBLEMS WITH YOUR WINE COOLER?

You can solve many common Wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE
Wine cooler does not operate.	Not plugged in.The appliance is turned off.The circuit breaker tripped or a blown fuse.
Wine cooler is not cold enough.	Check the temperature control setting.External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.
Turns on and off frequently.	The room temperature is hotter than normal.A large number of contents has been added to the Wine cooler.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.
The light does not work.	Not plugged in.The circuit breaker tripped or a blown fuse.The bulb has burned out.The light button is “OFF”.
Vibrations.	Check to assure that the Wine cooler is level.
The Wine cooler seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal.As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine cooler.Contraction and expansion of the inside walls may cause popping and crackling noises.The Wine cooler is not level.
The door will not close properly.	The Wine cooler is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves are out of position.

Before disposal of the appliance.

1. Disconnect the main plug from the main socket.
2. Cut off the main cable and discard it.

Correct disposal of this product

This symbol on the product, or in its packaging, indicates that this product may not be treated as household waste. Instead, ii should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the in appropriate waste handling of this product. For more detailed information about the recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased the product.
