USER MANUAL MVH-S610BT PIONEER

Using Pioneer ARC APP 18

Using the Karaoke Function 20

Audio Adjustments 21

Settings 23

FUNCTION settings 23

AUDIO settings 25

SYSTEM settings 27

ILLUMINATION settings 30

MIXTRAX settings 31

MICROPHONE settings. 32

Additional Information 33

About this manual:

• In the following instructions, a USB memory or USB audio player are referred to as "USB device".
• When an iPhone is connected to the unit, the source name on the unit appears as [iPod]. Please note that this unit supports only iPhones (iPhone 5 or later) regardless of the source name (for details, refer to page 37).

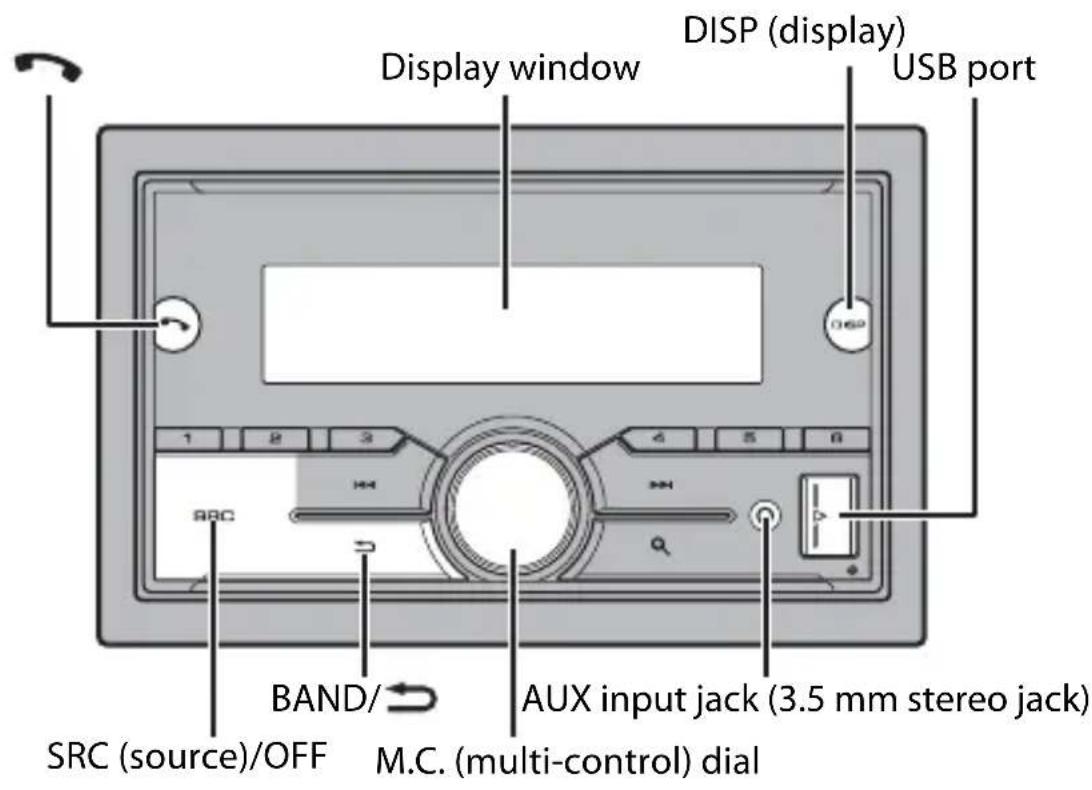

Basic operation

MVH-S610BT

Frequently used operations

Purpose Operation
Turn on the power* Press SRC/OFF to turn on	on the power. Press and hold SRC/OFF to turn off the power.
Adjust the volume Turn the M.C. dial.
Select a source Press SRC/OFF repeatedly.
Change the display information Press DISP repeatedly.
Return to the previous display/list Press BAND/ . ➔
Return to the normal display from the menu	Press and hold BAND/ ➔.
Change the display brightness Press and hold	BAND/ ➔
Answering/ending a call Press .

• When this unit's blue/white lead is connected to the vehicle's auto-antenna relay control terminal, the vehicle's antenna extends when this unit's source is turned on. To retract the antenna, turn the source off.

Display indication

Indication Description
» Appears when a lower tier of the menu or folder exists.
♀	Appears when the ♀ button is pressed.
TP Appears when a traffic program is received.
TA Appears when the TA (traffic announcements) function is set (page 23).
BASS	Appears when [HI]/[LOW] is selected in [D.BASS] (page 26).
××	Appears when random/shuffle play is set (except when BT AUDIO is selected as the source).
⇔	Appears when repeat play is set (except when BT AUDIO is selected as the source).
◎	Appears when a Bluetooth connection is made (page 10).

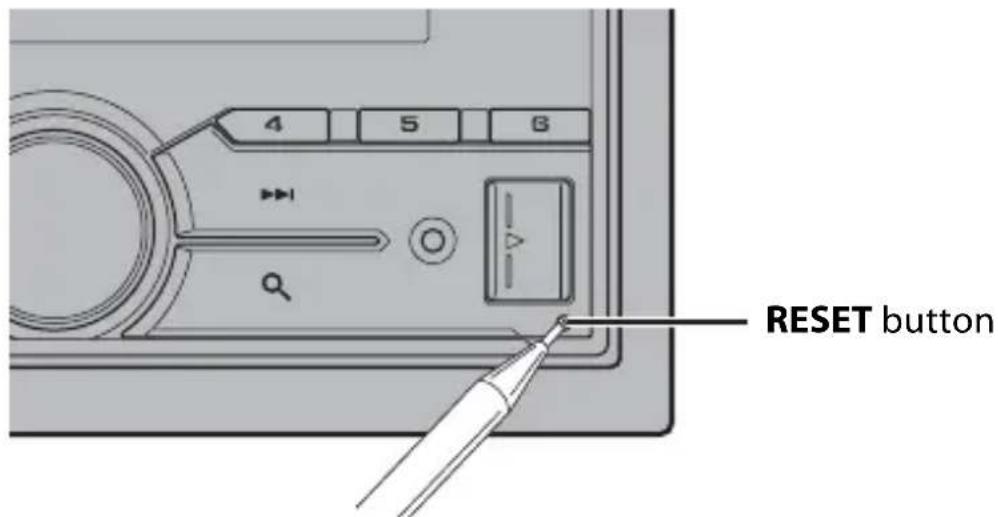

Resetting the microprocessor

The microprocessor must be reset in the following situations:

• Before using this unit for the first time after installation
• If the unit fails to operate properly
• When strange or incorrect messages appear on the display

1 Press the RESET button with a pen tip or other pointed instrument.

Setup menu

When you turn the ignition switch to ON after installation, the setup menu appears in the display.

WARNING

Do not use the unit in standard mode when a speaker system for network mode is connected to the unit. Do not use the unit in network mode when a speaker system for standard mode is connected to the unit. This may cause damage to the speakers.

1 Turn the M.C. dial to select the options, then press to confirm.

To proceed to the next menu option, you need to confirm your selection.

Menu Item Description
LANGUAGE Select the language to display the text information from a compressed audio file.
[ENG](English), [PVC](Russian), [TUR](Turkish), [FRA](French)
CLOCK SET Set the clock.	1 Turn the M.C. dial to adjust the hour, then press to confirm. The indicator moves to the minute setting automatically. 2 Turn the M.C. dial to adjust the minute, then press to confirm.
FM STEP Select the FM tuning step from 100 kHz or 50 kHz.
[100], [50]
SPEAKER MODE Switch [STANDARD], [NETWORK]	between two operation modes: the 2-way network mode (NETWORK) and the standard mode (STANDARD) according to the connections you have established. For details on operation modes, see page 21. After selecting the appropriate mode, turn the M.C. dial to select [YES], then press to confirm. • You cannot complete the setup menu without setting the [SPEAKER MODE]. • Once the speaker mode is set, this setting cannot be changed unless the default settings of this product are restored. Restore the default settings to change the speaker mode setting (refer to SYSTEM RESET on page 6). • When [NETWORK] is selected, the beep tone function is not available.

2[QUIT:YES] appears when all the settings have been made.

To return to the first item of the setup menu, turn the M.C. dial to select [QUIT:NO], then press to confirm.

3 Press the M.C. dial to confirm the settings.

NOTE

These settings other than [SPEAKER MODE] can be made at any time from the SYSTEM settings (page 27) and INITIAL settings (page 6).

Canceling the demonstration display (DEMO OFF)

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [SYSTEM], then press to confirm.
3 Turn the M.C. dial to select [DEMO OFF], then press to confirm.
4 Turn the M.C. dial to select [YES], then press to confirm.

INITIAL settings

1 Press and hold SRC/OFF until the unit turns off.
2 Press and hold SRC/OFF to display the main menu.
3 Turn the M.C. dial to select [INITIAL], then press to confirm.
4 Turn the M.C. dial to select an option, then press to confirm.

Menu Item Description
FM STEP Select the FM tuning step from 100 kHz or 50 kHz. [100], [50]
REAR-SP Select when the [FUL] there is a full-range speaker connected to the rear speaker output leads.
[SW] Select when the [S/ W UPDATE] there is a subwoofer connected directly to the rear speaker output leads without any auxiliary amplifier.
SYSTEM UPDATE Select [SYSTEM INFO], [S/ W UPDATE]	[SYSTEM INFO] to confirm the latest system information on the unit. Select [S/W UPDATE] to update the unit to the latest software and initialize the unit settings. For details on the latest software and updating, visit our website.
SYSTEM RESET Select [YES], [NO]	YES] to initialize the unit settings. The unit will be restarted automatically.

Radio

The tuner frequencies on this unit are allocated for use in Western Europe, Asia, the Middle East, Africa and Oceania. Use in other areas may result in poor reception. The RDS (radio data system) function only works in areas that broadcast RDS signals for FM stations.

Receiving preset stations

1 Press SRC/OFF to select [RADIO].
2 Press BAND/ to select the band from [FM1], [FM2], [FM3], [MW] or [LW].
3 Press a number button (1/ to 6/).

NOTE

You can select a preset channel by pressing and turning the M.C. dial.

TIP

The buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings (page 24).

Best stations memory (BSM)

The six strongest stations are stored on the number buttons (1/ ∧ to 6/).

1 After selecting the band, press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [FUNCTION], then press to confirm.
3 Turn the M.C. dial to select [BSM], then press to confirm.

To seek a station manually

1 After selecting the band, press to select a station.

Press and hold V then release to seek an available station. Scanning stops when the unit receives a station. To cancel seek tuning, press

NOTE

[SEEK] needs to be set to [MAN] in the FUNCTION settings (page 24).

To store stations manually

1 While receiving the station you want to store, press and hold one of the number buttons (1 / to 6 / ÷) until it stops flashing.

NOTE

You can select a preset channel by pressing and turning the M.C. dial. After selecting a channel, press and hold the M.C. dial to store a station.

Using PTY functions

The unit searches for a station by PTY (program type) information.

1 Press and hold during FM reception.
2 Turn the M.C. dial to select a program type from [NEWS/INFO], [POPULAR], [CLASSICS] or [OTHERS].
3 Press the M.C. dial.

The unit begins to search for a station. When it is found, its program service name is displayed.

NOTES

• To cancel the search, press the M.C. dial.
• The program of some stations may differ from that indicated by the transmitted PTY.
• If no station is broadcasting the type of program you searched for, [NOT FOUND] is displayed for about two seconds and then the tuner returns to the original station.

USB/iPhone®/AUX

Playing back

Disconnect headphones from the device before connecting it to the unit.

USB devices (including Android™)/iPhone

1 Open the USB port cover.
2 Plug in the USB device/iPhone using an appropriate cable.

NOTE

To automatically switch to [USB] source when a USB device/iPhone is connected to the unit, set [USB AUTO] to [ON] in the SYSTEM settings (page 28).

CAUTION

Use a USB cable (sold separately) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous.

Before removing the device, stop playback.

AOA connections

For details on AOA connection, see page 19.

MTP connection

A device installed with Android OS 4.0 or most of later versions can be connected to the unit via MTP, using the cable supplied with the device. However, depending on the connected device, OS version or the numbers of the files in the device, audio files/songs may not be able to be played back via MTP.

Note that MTP connection is not compatible with WAV file formats and FLAC file formats, and cannot be used with the MIXTRAX function.

NOTE

If you use an MTP connection, [PHONE CONNECT] needs to be set to [USB MTP] in the SYSTEM settings (page 28).

AUX

1 Insert the stereo mini plug into the AUX input jack.
2 Press SRC/OFF to select [AUX] as the source.

NOTE

If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source (page 27).

Operations

You can make various adjustments in the FUNCTION settings (page 23).

Note that the following operations do not work for an AUX device. To operate an AUX device, use the device itself.

Purpose Operation
Select a folder*1	Press 1/▲ or 2/√.
Select a track/song (chapter) Press or .	↓← →
Fast forward or reverse*2 Press and hold or .	↓← →
Search for a file from a list (USB only)	1 Press to display the list. 2 Turn the M.C. dial to select the desired file (folder) name or category, then press to confirm. 3 Turn the M.C. dial to select the desired file, then press to confirm. Playback starts.
View a list of the files in the selected folder/ category*1	Press the M.C. dial when a folder/category is selected.
Play a song in the selected folder/ category*1	Press and hold the M.C. dial when a folder/ category is selected.
Repeat play Press 6/ .	→
Random/shuffle play Press 5/ .	XXX
Pause/resume playback	Press 4/PAUSE.
Return to root folder (USB only)*1 Press and hold 1/ . ^

1 Compressed audio files only
2 When you use the fast forward or reverse function while playing a VBR file, the playback time may be not correct.

About MIXTRAX (USB/iPhone only)

The MIXTRAX function creates a non-stop mix of your music library, accompanied by illumination effects. For details on MIXTRAX settings, see page 31.

NOTES

• iPhone needs to be connected with Pioneer ARC APP via USB for using this function (page 18).
• Depending on the file/song, sound effects may not be available.
• Turn the MIXTRAX function off if the illumination effects it produces interfere with driving.

1 Press 3/MIX to turn MIXTRAX on/off.

Bluetooth

Bluetooth connection

Important

If ten or more Bluetooth devices (e.g. a phone and separate audio player) are connected, they may not work properly.

1Turn on the Bluetooth function of the device.

If you make a Bluetooth connection from the device, proceed to step 6.

2Press to display the phone menu.

3 Turn the M.C. dial to select [BT SETTING], then press to confirm.
4 Turn the M.C. dial to select [ADD DEVICE], then press to confirm.

The unit starts to search for available devices, then displays them in the device list.

• To cancel searching, press the M.C. dial.
• If the desired device is not in the list, select [RE-SEARCH].
• If there is no device available, [NOT FOUND] appears in the display.

5 Turn the M.C. dial to select a device from the device list, then press to confirm.

Press and hold the M.C. dial to switch the displayed device information between the Bluetooth device address and device name.

If you make a Bluetooth connection from the unit, proceed to step 7.

6Select [Pioneer BT Unit] shown in the device display.
7Make sure the same 6-digit number appears on this unit and the device, then select "Yes" on the device.

NOTES

• [DEVICE FULL] appears if the unit has already been paired with ten other devices. In this case, delete one of the paired devices. See [DEL DEVICE] in the Bluetooth settings (page 11).
• Depending on the device, the PIN code is required in step 7. In this case, input [0000].

TIP

The Bluetooth connection can be also made by detecting the unit from the Bluetooth device. To do so, [VISIBLE] in the Bluetooth settings needs to be set to [ON]. For details on Bluetooth device operations, refer to the operating instructions supplied with the Bluetooth device.

Bluetooth settings

Menu Item Description
DEVICELIST Display the	list of paired Bluetooth devices. “*” appears on the device name when the Bluetooth connection is established. When no device is selected in the device list, this function is not available.
DEL DEVICE Delete the [DELETE YES], [DELETE NO]	device information.
ADD DEVICE Register a	new device. If ten devices are already paired, this function is not available. You can check the number of paired devices on the [DEVICELIST] setting.
A.CONN Select [ON] to [ON], [OFF]	connect to a Bluetooth device automatically.
VISIBLE Select [ON] so that [ON], [OFF]	that a Bluetooth device can detect the unit when the unit is connected via Bluetooth to another device.
PIN CODE Change the PIN code.	1 Press the M.C. dial to display the setting mode. 2 Turn the M.C. dial to select a number. 3 Press the M.C. dial to move the cursor to the next position. 4 After inputting the PIN code, press and hold the M.C. dial. After inputting the PIN code, pressing the M.C. dial returns you to the PIN code input display, and you can change the PIN code.
DEV. INFO Switch the device information on the display between the device name and Bluetooth device address.
A.PAIRING Select [ON] to [ON], [OFF]	pair the unit and iPhone or Android device automatically when an iPhone or Android device is connected to the unit via USB. (This function may not be available depending on the version of iOS you are using.) • When you are using an Android device, this function is available in the following situations: - Your device has Android OS 4.4 or later installed. - Be sure to turn on the Bluetooth function of the device and confirm that the device is not connected to the unit via Bluetooth. - [P.APP AUTO ON] needs to be set to [ON] (page 28). - Pioneer ARC APP needs to be installed on your Android device and [PHONE CONNECT] needs to be set to [APP CONTROL] (page 18). - A confirmation button should be pressed on the caution window displayed on Pioneer ARC APP after a connection with the Pioneer ARC APP is made.

Bluetooth telephone

First, make a Bluetooth connection with the Bluetooth telephone (page 10). Up to two Bluetooth telephones can be connected simultaneously.

Important

• Leaving the unit on standby to connect to your phone via Bluetooth while the engine is not running can drain the vehicle's battery.
• Be sure to park your vehicle in a safe place and apply the parking brake before operation.

To make a phone call

1 Press to display the phone menu.

When two phones are connected, a phone name appears first then a phone menu will display. To switch to another phone, press again.

2 Turn the M.C. dial to select [RECENTS] or [PHONE BOOK], then press to confirm. If you select [PHONE BOOK], proceed to step 4.
3 Turn the M.C. dial to select [MISSED], [DIALLED] or [RECEIVED], then press to confirm.
4 Turn the M.C. dial to select a name or phone number, then press to confirm. The phone call starts.

To answer an incoming call

1 Press when a call is received.

TIP

When two phones are connected to the unit via Bluetooth and there is an incoming call while one phone is being used for a call, a message will appear in the display. To answer that incoming call, you need to end the existing call.

Basic operations

Purpose Operation
End a call Press .
Reject an incoming call Press and hold when a call is received.
Switch between the current caller and a caller on hold	Press the M.C. dial.
Cancel a caller on hold Press and hold	.
Adjust the volume of the caller's voice (When private mode is on, this function is not available.)	Turn the M.C. dial during the call.
Turn the private mode on or off	Press BAND/during the call.

To preset phone numbers

1 Select a phone number from a phone book or call history.
2 Press and hold one of the number buttons (1/ to 6/).

The contact is stored in the selected preset number.

To make a call using a preset number, press one of the number buttons (1/ to 6/ ), then press the M.C. dial.

Voice recognition (Only for iPhone)

This function is only available when an iPhone equipped with voice recognition is connected to the unit via Bluetooth.

1 Press and hold to activate the voice recognition mode.
2 Press the M.C. dial and then talk into the microphone to input voice commands.

To exit the voice recognition mode, press BAND/

NOTE

For details on the voice recognition features, refer to the manual supplied with your iPhone.

Phone menu

Menu Item Description
RECENTS Display the missed call history. [MISSED]
[DIALLED] Display the dialed call history.
[RECEIVED] Display the received call history.
PHONE BOOK Display the contacts in your phone. Set [VISIBLE] in the Bluetooth settings to [ON] to browse the contacts via this unit.
PRESET 1-6 Recall the preset phone numbers. You can also recall the preset phone numbers by pressing one of the number buttons (1/^ to 6/^) .
A.ANSR* Select [ON] to answer an incoming call automatically. [ON], [OFF]
R.TONE Select [ON] if the ring tone does not come out from the car speakers. Depending on the connected phone, this function may not work.
PB INVVT	Invert the order of names in the phone book (name view).
BT SETTING	You can adjust various settings for Bluetooth connections. For details on Bluetooth settings, see page 11.

• If two phones are connected, this function does not work on incoming calls that are received while one of the phones is being used for a call.

Bluetooth audio

Important

• Depending on the Bluetooth audio player connected to this unit, the available operations will be limited to the following two levels:

• A2DP (Advanced Audio Distribution Profile) can only play back songs on your audio player.

AVRCP (Audio/Video Remote Control Profile) can perform functions such as playback, pause, select song, etc.

• The sound of the Bluetooth audio player will be muted when the phone is in use.
• When the Bluetooth audio player is in use, you cannot connect to a Bluetooth telephone automatically.
• Depending on the type of Bluetooth audio player you have connected to this unit, operation and information displayed may vary based on availability and functionality.

1Make a Bluetooth connection with the Bluetooth audio player.
2 Press SRC/OFF to select [BT AUDIO] as the source.
3 Press BAND/ to start playback.

Basic operations

You can make various adjustments in the FUNCTION settings (page 23).

Purpose Operation
Fast forward or reverse Press and hold or .	↔ ▷
Select a track Press or .	↔ ▷
Repeat play* Press 6/ .	✕
Random play* Press 5/ .	✕✕
Pause/resume playback	Press 4/PAUSE.
Search for a file from a list	1 Press to display a list. 2 Turn the M.C. dial to select the desired folder name, then press to confirm. 3 Turn the M.C. dial to select the desired file, then press to confirm. Playback starts.
Switch the Bluetooth device name in the device list according to the connection order	Press 1/∧ or 2/∨.

• Depending on the connected device, these operations may not be available.

App Mode

You can enjoy listening to an application on an iPhone/Android device via the unit. In some cases, you can control an application by using the unit.

For details on compatible devices, visit our website.

Important

Use of third party apps may involve or require the provision of personally identifiable information, whether through the creation of a user account or otherwise, and for certain applications, the provision of geolocation data.

ALL THIRD PARTY APPS ARE THE SOLE RESPONSIBILITY OF THE PROVIDERS, INCLUDING WITHOUT LIMITATION COLLECTION AND SECURITY OF USER DATA AND PRIVACY PRACTICES. BY ACCESSING THIRD PARTY APPS, YOU AGREE TO REVIEW THE TERMS OF SERVICE AND PRIVACY POLICIES OF THE PROVIDERS. IF YOU DO NOT AGREE WITH THE TERMS OR POLICIES OF ANY PROVIDER OR DO NOT CONSENT TO THE USE OF GEOLOCATION DATA WHERE APPLICABLE, DO NOT USE THAT THIRD PARTY APP.

For iPhone users

This function is compatible with iPhones installed with iOS 6.0 or later.

For Android device users

This function is compatible with devices that have Android OS 2.3 or later installed.

NOTE

PIONEER IS NOT LIABLE FOR ANY THIRD PARTY APPS OR CONTENT, INCLUDING WITHOUT LIMITATION THEIR ACCURACY OR COMPLETENESS. THE CONTENT AND FUNCTIONALITY OF SUCH APPS ARE THE SOLE RESPONSIBILITY OF THE APP PROVIDER.

Playback of an application via the unit

1 Connect this unit with the mobile device.

• iPhone via USB (page 8)
• iPhone/Android device via Bluetooth (page 10)

2 Press the M.C. dial to display the main menu.
3 Turn the M.C. dial to select [SYSTEM], then press to confirm.
4 Turn the M.C. dial to select [PHONE CONNECT], then press to confirm.
5 Turn the M.C. dial to select one of the below, then press to confirm.

• Select [IPHONE] for iPhone.
• Select [ANDROID] for Android device.

6 Turn the M.C. dial to select one of the below.

• Select [Wired] for the USB connection.
• Select [BLUETOOTH] for the Bluetooth connection.

NOTE

When the connection setting is changed, a message that lets you know that the connection setting had been changed will appear in the display. Press the M.C. dial and turn the M.C. dial to select [SRC OFF :YES], then press to confirm. The unit turns off automatically and the setting is executed.

7 Press SRC/OFF to select [APP].
8Operate the mobile device to start up the application.

NOTE

When you connect a mobile device other than iPhone/Android device, select [OTHERS] in the [PHONE CONNECT] menu and select [Wired] (for the USB connection) or [BLUETOOTH] (for the Bluetooth connection). Depending on your mobile device, it may not operate correctly.

Basic operations

You can make various adjustments in the FUNCTION settings (page 23).

Purpose Operation
Select a track Press or .	←→
Fast forward or reverse Press and hold or .	←→
Pause/resume playback Press BAND/ .	→

Spotify is a music streaming distribution service not affiliated with Pioneer. More information is available at http://www.spotify.com.

The Spotify application is available for compatible smartphones, please visit https:// support.spotify.com/ for the latest compatibility information.

To enjoy Spotify as you drive, first download the Spotify app to your iPhone or Android device. You can download it on the iTunes® App Store® or Google Play™. Choose a free account or a paid Premium account, either in the app or at Spotify.com. A Premium account gives you more features, like offline listening.

Important

• This product incorporates Spotify software which is subject to 3rd party licenses found here: www.spotify.com/connect/third-party-licenses.
• For information on the countries and regions where Spotify can be used, take a look at https:// www.spotify.com/us/select-your-country/.

Listening to Spotify

Update the firmware of the Spotify application to the latest version before use.

1 Connect this unit with the mobile device.

iPhone via USB (page 8)
- iPhone/Android device via Bluetooth (page 10)

If you choose a USB connection, proceed to step 6.

2 Press SRC/OFF to select [SPOTIFY].
3 Press and hold 1 / to display [PHONE CONNECT].
4 Turn the M.C. dial to select one of the below, then press to confirm.

• Select [IPHONE] for iPhone.
• Select [ANDROID] for Android device.

5 Turn the M.C. dial to select [BLUETOOTH] for iPhone/Android device via Bluetooth.

NOTE

When the connection setting is changed, a message that lets you know that the connection setting had been changed will appear in the display. Press the M.C. dial and turn the M.C. dial to select [SRC OFF :YES], then press to confirm. The unit turns off automatically and the setting is executed.

6 Press SRC/OFF to select [SPOTIFY].
7 Launch the Spotify application on the mobile device and start playback.

NOTE

When you connect a mobile device other than iPhone/Android device, select [OTHERS] in the [PHONE CONNECT] menu and select [Wired] (for the USB connection) or [BLUETOOTH] (for the Bluetooth connection). Depending on your mobile device, it may not operate correctly.

Basic operations

You can make various adjustments in the FUNCTION settings (page 23).

NOTE

The available operations may vary according to the type of contents (track/album/artist/playlist/radio) you want to play.

Purpose Operation
Skip a track Press or .	↓→→
Search for a track from a list	1 Press (list) to display the list. 2 Turn the M.C. dial to select the desired category, then press to confirm. 3 Turn the M.C. dial to select the desired file, then press to confirm. Playback starts.
Pause/resume playback Press 4/PAUSE.
Thumbs Up (Only for radio) Press 1/ .	^
Thumbs Down (Only for radio) Press 2/ .	√
Random play (Only for track/album/artist/ playlist)	Press 5/××.
Repeat play (Only for track/album/artist/ playlist)	Press 6/÷.
Start a radio channel based on the song currently being played.	1 Press and hold 5/×× to start a radio. 2 Press the M.C. dial. This function may not be available depending on the selected song.

NOTE

Some functions of Spotify may not be operated from the unit.

Using Pioneer ARC APP

You can operate the unit from Pioneer ARC APP installed on an iPhone/Android device. In some cases, you can control aspects of the application, such as source selection, pause, etc., by using the unit.

For details on what operations are available on the application, see the application's help section.

WARNING

Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application.

For iPhone users

This function is compatible with iPhones (iPhone 5 or later) installed with iOS 8.0 or later. You can download Pioneer ARC APP on iTunes App Store.

For Android device users

This function is compatible with devices that have Android OS 4.1 or later installed and also support AOA (Android Open Accessory) 2.0.

You can download Pioneer ARC APP on Google Play.

NOTE

Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own software design, regardless of the OS version.

Making a connection with Pioneer ARC APP

1 Connect this unit with the mobile device.

• iPhone/Android device via USB (page 8)
• iPhone/Android device via Bluetooth (page 10)

2 Press the M.C. dial to display the main menu.
3 Turn the M.C. dial to select [SYSTEM], then press to confirm.
4 Turn the M.C. dial to select [PHONE CONNECT], then press to confirm.
5 Turn the M.C. dial to select one of the below, then press to confirm.

• Select [IPHONE] for iPhone.
• Select [ANDROID] for Android device.

NOTE

When the connection setting is changed, a message that lets you know that the connection setting had been changed will appear in the display. Press the M.C. dial and turn the M.C. dial to select [SRC OFF :YES], then press to confirm. The unit turns off automatically and the setting is executed.

6 Turn the M.C. dial to select one of the below.

When [IPHONE] is selected in step 5

• Select [WIRED] for the USB connection.
• Select [BLUETOOTH] for the Bluetooth connection.

When [ANDROID] is selected in step 5

• Select [APP CONTROL] for the USB connection.
• Select [BLUETOOTH] for the Bluetooth connection.

When you select the USB connection, Pioneer ARC APP on the Android device starts automatically if [ON] is selected in [P.APP AUTO ON] (page 28).

NOTE

If Pioneer ARC APP has not been installed on your Android device yet, a message that prompts you to install the application will appear on your Android device. Select [OFF] in [P.APP AUTO ON] to clear the message (page 28).

7 Press SRC/OFF to select any source.

8Launch Pioneer ARC APP on the mobile device via USB connection. Press and hold M.C. dial via Bluetooth connection.

NOTE

When you connect a mobile device other than iPhone/Android device, select [OTHERS] in the [PHONE CONNECT] menu and select [Wired] (for the USB connection) or [BLUETOOTH] (for the Bluetooth connection). Depending on your mobile device, it may not operate correctly.

Listening to music on Android

1 Press SRC/OFF to select [ANDROID].

Basic operations

Purpose Operation
Select a track Press or .	←→
Fast forward or reverse Press and hold or .	←→
Pause/resume playback	Press 4/PAUSE.

Using the Karaoke Function

WARNING

• A driver should never sing with a microphone while driving. Doing so may result in an accident.
• Do not carelessly leave a microphone for preventing an accident.

CAUTION

It is extremely dangerous to allow the microphone lead to become wound around the steering column, brake pedal or shift lever, which may cause an accident. Be sure to install the microphone in such a way that it will not obstruct driving.

NOTES

• Use a commercially available dynamic mic and not the supplied microphone.
• This function is not available when the selected source is the following.

-RADIO

-AUX

Insert the stereo mini plug of your microphone into the AUX input jack.
2Press and hold to activate the karaoke mode.

When the karaoke mode is activated, the volume on the unit is muted. Adjust the microphone volume on the [MIC VOL] setting.

NOTE

You can also activate the karaoke mode in the MICROPHONE settings (page 23).

To adjust the microphone volume

1 Press and hold to display [MIC VOL].
2 Turn the M.C. dial to adjust the volume level.

NOTES

• You can also adjust the microphone volume in the MICROPHONE settings (page 23).
• If howling occurs when using the microphone, keep the microphone away from the speaker or lower the microphone volume.

Audio Adjustments

You can also make various adjustments in the AUDIO settings (page 25).

Operation modes

This unit features two operation modes: network mode and standard mode. You can switch between modes as desired (page 5).

Network mode

You can create a 2-way + SW multi-amp and multi-speaker system with high range speaker, middle range speaker and subwoofer for reproduction of high, middle and low frequencies (bands).

Standard mode

You can create a 4-speaker system with front and rear speakers or front speakers and subwoofoers, or a 6-speaker system with front and rear speakers and subwoofoers.

Adjusting the cut-off frequency value and the slope value

You can adjust the cut-off frequency value and the slope value of each speaker. The following speakers can be adjusted.

Network mode:

[HIGH] (high-range speaker HPF), [MID HPF] (middle-range speaker HPF), [MID LPF] (middle-range speaker LPF), [SUBWOOFER]

Standard mode:

[FRONT], [REAR], [SUBWOOFER]

NOTE

[SUBWOOFER] can only be selected when [ON] is selected in [SUBWOOFER] (page 25).

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [AUDIO], then press to confirm.
3 Turn the M.C. dial to select [CROSSOVER], then press to confirm.
4 Turn the M.C. dial to select the speaker unit (filter) to be adjusted, then press to confirm.
5 Turn the M.C. dial to select [HPF] or [LPF] according to the speaker unit (filter), then press to confirm.
6 Turn the M.C. dial to select an appropriate cut-off frequency for the speaker unit (filter) selected in step 4, then press to confirm.

Network mode:

[1.25K] to [12.5K] (if you choose [HIGH] or [MID LPF])
[25] to [250] (if you choose [MID HPF] or [SUBWOOFER])

Standard mode:

[25HZ] to [250HZ]

7 Turn the M.C. dial to select an appropriate slope for the speaker unit (filter) selected in step 4.

Network mode:

[-6] to [-24] (if you choose [HIGH], [MID HPF] or [MID LPF])
[-12] to [-36] (if you choose [SUBWOOFER])

Standard mode:

[-6] to [-24] (if you choose [FRONT] or [REAR])
[-6] to [-36] (if you choose [SUBWOOFER])

Settings

You can adjust various settings in the main menu.

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select one of the categories below, then press to confirm.

FUNCTION settings (page 23)
- AUDIO settings (page 25)
SYSTEM settings (page 27)
ILLUMINATION settings (page 30)
- MIXTRAX settings (page 31)
- MICROPHONE settings (page 32)

3 Turn the M.C. dial to select the options, then press to confirm.

FUNCTION settings

The menu items vary according to the source.

Menu Item Description

FM SETTING RADIO [TALK], [STANDARD], [MUSIC] Match the sound quality level with the broadcast signal conditions of the FM band signal. (Available only when FM band is selected.)

BSM RADIO Store the six strongest stations on the number buttons (1/▲ to 6/▲) automatically.

REGIONAL RADIO [ON], [OFF] Limit the reception to the specific regional programs when AF (alternative frequencies search) is selected. (Available only when FM band is selected.)

LOCAL RADIO FM: [OFF], [LV1], [LV2], [LV3], [LV4] Restrict the tuning station according to the signal strength.

TA RADIO [ON], [OFF] Receive current traffic information if available. (Available only when FM band is selected.)

AF RADIO [ON], [OFF] Allow the unit to retune to a different frequency providing the same station. (Available only when FM band is selected.)

NEWS RADIO [ON], [OFF] Interrupt the currently selected source with news programs. (Available only when FM band is selected.)

SEEK RADIO [MAN], [PCH] Assign or buttons to seek the station one by one (manual tuning) or select a station from the preset channels.

SAVE SPOTIFY Store the information about the song currently being played to your music list on Spotify.

UNSAVE SPOTIFY Remove the song information stored in [SAVE].

SEL DEVICE iPod APP BT AUDIO SPOTIFY Connect a Bluetooth device in the list.

S.RTRV USB iPod APP BT AUDIO ANDROID SPOTIFY AUX [1] (effective for low compression rates), [2] (effective for high compression rates), [OFF]Enhance compressed audio and restore rich sound.

PAUSE APP Pause or resume playback.

PLAY BT AUDIO Start playback.

STOP BT AUDIO Stop playback.

AUDIO settings

Menu Item Description
EQ SETTING
[SUPER BASS], [POWERFUL], [NATURAL], [VOCAL], [CUSTOM1], [CUSTOM2], [FLAT]	Select or customise the equalizer curve. ·When you select a setting other than [CUSTOM1] and [CUSTOM2], you can also customise the equalizer curve by pressing and holding the M.C. dial, then store the customised equalizer curve in [CUSTOM1].
Select an equalizer band and level for further customising. Equalizer band: [50HZ] to [12.5kHz] Equalizer level: [-6] to [+6]
FADER*1 (Only for standard mode)
	Adjust the front and rear speaker balance.
BALANCE
	Adjust the left and right speaker balance.
SUBWOOFER
[ON], [OFF] Set to [ON] when using a subwoofer speaker.
SUBWOOFER*2
[NOR], [REV] Select the subwoofer phase.
SPEAKER LEVEL
Network mode: [HIGH L], [HIGH R], [MID L], [MID R], [SUBWOOFER]	Select a speaker unit (filter) and adjust the output level.
Standard mode: [FRONT L], [FRONT R], [REAR L], [REAR R], [SUBWOOFER]	Each value you have adjusted changes when you change the [POSITION] setting (page 25).
Output level: [-24] to [10]
CROSSOVER
	Select a speaker unit (filter) to adjust the HPF or LPF cut-off frequency and the slope for each speaker unit. For details on the [CROSSOVER] setting, see page 22.
POSITION
[OFF], [FRONT LEFT] (front seat left), [FRONT RIGHT] (front seat right), [FRONT] (front seats), [ALL]* * Only for standard mode	Select a listening position to adjust the speakers' output levels automatically and add a delay time that corresponds to the number and locations of occupied seats.
TIME ALGNMNT
[INITIAL], [OFF], [CUSTOM]	Select or customise the time alignment settings to reflect the distance between the listener's position and each speaker.
Select a type of speaker and adjust the speaker distance for further customising in [CUSTOM].	• Select [INITIAL] to initialize the setting value.
Network mode: [HIGH L], [HIGH R], [MID L], [MID R], [SUBWOOFER]	• Select [OFF] to reset all setting values to 0.
Standard mode: [FRONT L], [FRONT R], [REAR L], [REAR R], [SUBWOOFER]	• The [CUSTOM] setting is available when [FRONT LEFT] or [FRONT RIGHT] is selected in [POSITION] (page 25).
Speaker distance (cm): [350] to [0.0]	• The [CUSTOM] setting is not available when [OFF] is selected in [SUBWOOFER] (page 25).
SAVE SETTINGS
[YES], [NO] Save to later recall the following sound settings at their current values: [CROSSOVER], [SPEAKER LEVEL], [EQ SETTING], [POSITION], [TIME ALGNMNT], [D.BASS], [SUBWOOFER].
LOAD SETTINGS
Load the sound settings, when you have already performed [SAVE SETTINGS].
D.BASS
[OFF], [LOW], [HI] Boost the bass level dynamically to offer an effect as if a subwoofer was added to the system.
LOUDNESS
[OFF], [LOW], [MID], [HI] Compensate for clear sound at low volume.
SLA
[+4] to [-4] Adjust the volume level for each source except FM. Each of the below combinations are set to the same setting automatically. • When making a USB connection, set USB, iPod, ANDROID, SPOTIFY, and APP. • When making a Bluetooth connection, set BT AUDIO, iPod, ANDROID, SPOTIFY, and APP.

1 Not available when [SW] is selected in [REAR-SP] in the INITIAL settings (page 6).
2 Not available when [FUL] is selected in [REAR-SP] in the INITIAL settings (page 6).

SYSTEM settings

You can also access to these menus when the unit is turned off.

Menu Item Description
LANGUAGE [ENG](English), [PYC](Russian), [TUR](Turkish), [FRA](French)	Select the language to display the text information from a compressed audio file.
CLOCK SET Set the clock (page 5).
12H/24H [12H], [24H] Select the time notation.
BEEP TONE (Only for standard mode) [ON], [OFF] A beep can be heard when any button is pushed. Select [OFF] to disable this function.
INFO DISPLAY [SOURCE/SPEANA], [CLOCK/SPEANA], [SRC/LIVE FX], [CLOCK/LIVE FX], [SOURCE], [SPEANA], [OFF]	Display the item on the sub information display. • When [SOURCE/SPEANA] or [CLOCK/SPEANA] is selected, display the antenna instead of the speana on the radio source.
AUTO PI [ON], [OFF] Search for a different station with the same programming, even if using a preset station.
AUX [ON], [OFF] Set to [ON] when using an auxiliary device connected to the unit.
BT AUDIO [ON], [OFF] Set the Bluetooth signal on/off.
SPOTIFY [ON], [OFF] Set to [ON] when using the Spotify function.
PW SAVE* [ON], [OFF] Reduce the battery power consumption. Turning on the source is the only operation allowed when this function is on.
BT MEM CLEAR [YES], [NO] Clear the Bluetooth device data (device list, PIN code, call history, phone book, preset phone numbers) stored in the unit. [CLEARED] appears when data is successfully deleted.
PHONE CONNECT [IPHONE], [ANDROID], [OTHERS] Select the type of device and the appropriate connection method according to your device. See page 28 for details on the connections for each device. • Select [OTHERS] when you connect a mobile device other than iPhone/Android.
P.APP AUTO ON [ON], [OFF]	Select [ON] to automatically launch Pioneer ARC APP when an Android device is connected to the unit via AOA. (Only available when [APP CONTROL] is selected in [PHONE CONNECT].)
USB AUTO [ON], [OFF] Select [ON] to automatically switch to [USB] source when a USB device/iPhone is connected to the unit. Select [OFF] when a USB device/iPhone is being connected to the unit just for charging.

• [PW SAVE] is canceled if the vehicle battery is disconnected and will need to be turned back on once the battery is reconnected. When [PW SAVE] is off, depending on connection methods, the unit may continue to draw power from the battery if your vehicle's ignition does not have an ACC (accessory) position.

Information on the connections for each device

The available sources differ depending on the setting value.

Please set [PHONE CONNECT] according to the table for the source you want to use.

For details on Pioneer ARC APP connection, see page 18.

When Pioneer ARC APP connection is NOT performed

Setting Value	Device	Connection method	Available source(s)
[Wired] (When [IPHONE] or [OTHERS] is selected)	iOS USB iPod	APP, SPOTIFY
		Bluetooth -
	Android USB	ANDROID (AOA)
		Bluetooth -
[USB MTP](MTP) (When [ANDROID] is selected)	iOS USB iPod	APP, SPOTIFY
		Bluetooth -
	Android USB	USB MTP
		Bluetooth -
[APP CONTROL](AOA) (When [ANDROID] is selected)	iOS USB iPod	APP, SPOTIFY
		Bluetooth -
	Android USB	ANDROID (AOA)
		Bluetooth -
[BLUETOOTH] iOS USB -
		Bluetooth iPod, APP, SPOTIFY
	Android USB	USB MTP
		Bluetooth APP, SPOTIFY

When Pioneer ARC APP connection is performed

Setting Value	Device	Connection method	Available source(s)
[Wired] (When [IPHONE] or [OTHERS] is selected)	iOS USB iPod	SPOTIFY
		Bluetooth -
	Android USB	ANDROID (Android	Music)
		Bluetooth -
[USB MTP](MTP) (When [ANDROID] is selected)	iOS USB iPod	SPOTIFY
		Bluetooth -
	Android USB	USB MTP
		Bluetooth -
[APP CONTROL](AOA) (When [ANDROID] is selected)	iOS USB iPod	SPOTIFY
		Bluetooth -
	Android USB	ANDROID (Android	Music)
		Bluetooth -
[BLUETOOTH] iOS USB -
		Bluetooth iPod, SPOTIFY
	Android USB	USB MTP
		Bluetooth ANDROID (Android Music), SPOTIFY

ILLUMINATION settings

Menu Item Description

COLOUR

[KEY COLOUR], [DISP COLOUR], [BOTH COLOUR]

Select colour for the keys/display of the unit from 12 preset colours, [SCAN] or [CUSTOM]*.

• [SCAN]: Cycle through a variety of colours automatically.
  [CUSTOM]*:

1 Press and hold the M.C. dial until the colour setting display appears.

2Set the primary colour (R (red)/G (green)/ (blue)) and brightness level ([0] to [60]).

You cannot select a level below 10 for all three of R (red), G (green), B (blue) at the same time.

You can also customise the preset colours. Select one of the preset colours, then press and hold the M.C. dial until the colour setting display appears.

• The CUSTOM setting is only available for [KEY COLOUR] and [DISP COLOUR].

DIM SETTING

[SYNC ILLUMI], [SYNC CLOCK], [MANUAL]

Select the way to change the display brightness.

BRIGHTNESS

[KEY], [DISP] Select the brightness for the keys/display of the

unit from [1] to [10].

The available setting ranges differ depending on [DIM SETTING].

Menu Item Description

PHONE COLOUR [FLASHING] Select the key colour when a call is received. Applies the colour set by [KEY COLOUR].

[FLASH FX1] to [FLASH FX6] Cycle through a variety of colours automatically.

[OFF] No change in key colour made.

ILLUMI FX [ON], [OFF] The illumination effect can be seen when: - there is an incoming call -you are on a phone call -a CD is inserted/ejected The illumination effect will activate when the ACC power is turned on/off regardless of this setting.

MIXTRAX settings
Menu Item Description
SHORT PLAYBCK
[1.0 MIN], [1.5 MIN], [2.0 MIN], [2.5 MIN], [3.0 MIN], [OFF]	Select the length of the playback time.
FLASH AREA
[KEY/DISPLAY], [KEY], [OFF] Select the area for the illumination effect. When [OFF] is selected, the colour set under the ILLUMINATION settings (page 30) is used as the display colour.
FLASH PATTERN
[SOUND LEVEL 1] to [SOUND LEVEL 6]	Change the illumination effect according to the sound and bass level. The flash pattern changes according to the sound level.
[LOW PASS 1] to [LOW PASS 6] The flash pattern changes according to the bass level.
[RANDOM1] The flash pattern changes randomly according to the sound level mode and low pass mode.
[RANDOM2] The flash pattern changes randomly according to the sound level mode.
[RANDOM3] The flash pattern changes randomly according to the low pass mode.
Menu Item Description
DISPLAY FX [ON], [OFF] Set the MIXTRAX special effects on/off.
CUT IN FX [ON], [OFF] Turn the MIXTRAX sound effects on/off while manually changing the tracks.
MICROPHONE settings
Menu Item Description
MICROPHONE [ON], [OFF] Set to [ON] when using the karaoke function.
MIC VOL Adjust the microphone volume.

Additional Information

Troubleshooting

The display automatically returns to the normal display.

No operations have been made for about 30 seconds. Perform an operation.

The repeat play range changes unexpectedly.

Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing. -Select the repeat play range again.

A subfolder is not played back.

Sub folders cannot be played when [FLD] (folder repeat) is selected. -Select another repeat play range.

The sound is intermittent.

You are using a device, such as a cellular phone, that may cause audible interference.
- Move electrical devices that may be causing the interference away from the unit.

The sound from the Bluetooth audio source is not played back.

There is a call in progress on a Bluetooth-connected cellular phone. -The sound will be played back when the call is terminated.

A Bluetooth-connected cellular phone is currently being operated. Stop using the cellular phone.

The connection between the unit and the cellular phone is not established correctly after a call made by a Bluetooth-connected cellular phone.

-Make a Bluetooth connection between the unit and the cellular phone again.

Error messages

Common

AMP ERROR

This unit fails to operate or the speaker connection is incorrect.
→The protective circuit is activated.
-Check the speaker connection.
-Turn the ignition switch OFF and back to ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance.

NO XXXX (NO TITLE, for example)
→There is no embedded text information.
- Switch the display or play another track/file.

USB device/iPhone

FORMATREAD

→Sometimes there is a delay between the start of playback and when you start to hear any sound.
- Wait until the message disappears and you hear sound.

NO AUDIO

→There are no songs.
- Transfer the audio files to the USB device and connect.
→The connected USB device has security enabled.
- Follow the USB device instructions to disable the security.

SKIPPED

→The connected USB device contains DRM protected files.

• The protected files are skipped.

PROTECT

All the files on the connected USB device are embedded with DRM.

-Replace the USB device.

N/A USB

→The connected USB device is not supported by this unit.

-Disconnect your device and replace it with a compatible USB device.

HUB ERROR

→The USB device connected via a USB hub is not supported by this unit.

• Connect the USB device directly to this unit using a USB cable.

CHECK USB

→The USB connector or USB cable has short-circuited.

-Check that the USB connector or USB cable is not caught in something or damaged.

The connected USB device consumes more than maximum allowable current.

• Disconnect the USB device and do not use it. Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices.

→The iPhone operates correctly but does not charge.

-Make sure the connection cable for the iPhone has not shorted out (e.g., not caught in metal objects). After checking, turn the ignition switch OFF and back to ON, or disconnect the iPhone and reconnect.

ERROR-19

Communication failed.

• Perform one of the following operations, then return to the USB source.

• Turn the ignition switch OFF and back to ON.

• Disconnect the USB device.
• Change to a different source.

iPhone failure.

-Disconnect the cable from the iPhone. Once the iPhone's main menu is displayed, reconnect the iPhone and reset it.

ERROR-23

USB device was not formatted properly.

-Format the USB device with FAT12, FAT16 or FAT32.

ERROR-16

→The iPhone firmware version is old.

-Update the iPhone version.

iPhone failure.

-Disconnect the cable from the iPhone. Once the iPhone's main menu is displayed, reconnect the iPhone and reset it.

STOP

There are no songs in the current list.
-Select a list that contains songs.

NO BT DEVICE GO TO BT MENU TO REGISTER

→No Bluetooth device found.

-Connect the unit and iPhone via Bluetooth (page 10).

CONN. Failed PRESS BAND KEY TO RETRY

→Bluetooth connection with iPhone failed.

-Press BAND to m a k connection again.

DISCONNECTED PRESS BAND KEY TO RETRY

→Bluetooth connection with iPhone failed.

-Press BAND? t o m a connection again.

Bluetooth device

ERROR-10

→The power failed for the Bluetooth module of the unit.

• Turn the ignition switch OFF and back to ACC or ON.

APP

NO BT DEVICE GO TO BT MENU TO REGISTER

→No Bluetooth device found.

-Connect the unit and the device via Bluetooth (page 10).

CONN. Failed PRESS BAND KEY TO RETRY

→Bluetooth connection failed.

-Press BAND/ t o m a connection again.

DISCONNECTED PRESS BAND KEY TO RETRY

→Bluetooth connection failed.

-Press BANDt o m a connection again.

CHECK APP

Connection to the application failed.

-Follow the instructions that appear on the screen.

NOT FOUND

→The application has not started running yet.

-Operate the mobile device to start up the application.

Spotify

NO BT DEVICE GO TO BT MENU TO REGISTER

→No Bluetooth device found.

k -connegt the unit and the device via Bluetooth (page 10).

CONN. Failed PRESS BAND KEY TO RETRY

→Bluetooth connection failed.

-Press BANDt o m a k connection again.

CHECK APP PRESS BAND KEY TO RETRY

Connection to the Spotify application failed.

-Press BANDo o m a k connection again.

DISCONNECTED PRESS BAND KEY TO RETRY

→Bluetooth connection lost.

-Press BANDt o m a k connection again.

CHECK APP

Connection to the Spotify application k faed. a

• Follow the instructions that appear on the screen.

Handling guidelines

k e a

USB storage device

• Connections via USB hubs are not supported.
• Firmly secure the USB storage device before driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.
  Depending on the USB storage device, the following problems may occur.
• Operations may vary.
• The storage device may not be recognized.
• Files may not be played back properly.
• The device may cause audible interference when you are listening to the radio.

iPhone

• Do not leave the iPhone in places with high temperatures.
• Firmly secure the iPhone when driving. Do not let the iPhone fall onto the floor, where it may become jammed under the brake or accelerator pedal.
• Incompatible text saved on the iPhone will not be displayed by the unit.

Compressed audio compatibility

• Only the first 32 characters can be displayed as a file name (including the file extension) or a folder name.
• The unit may not work properly depending on the application used to encode WMA files.
• There may be a slight delay at the start of the playback of audio files embedded with image data, or audio files stored on a USB device with numerous folder hierarchies.

• Russian text to be displayed on this unit should be encoded in one of the following character sets: - Unicode (UTF-8, UTF-16)

• A character set other than Unicode that is used in a Windows environment and is set to Russian in the multi-language setting

CAUTION

• Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.
• Do not leave a USB device in any place that is subject to high temperatures.

WMA files

File extension .wma

Bit rate 48 kbps to 320	kbps (CBR), 48 kbps to 384 kbps (VBR)
Sampling frequency 32	kHz, 44.1 kHz, 48 kHz
Windows Media™ Audio Professional, Lossless, Voice/DRM Stream/Stream with video	Not compatible

MP3 files

File extension.mp3
Bit rate 8 kbps to 320 kbps (CBR), VBR
Sampling frequency 8 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)
Compatible ID3 tag version	1.0, 1.1, 2.2, 2.3, 2.4 (ID3 tag Version 2.x is given priority over Version 1.x.)
M3u playlist Not compatible
MP3i (MP3 interactive), mp3 PRO	Not compatible

WAV files

WAV file formats cannot be connected via MTP.

File extension .wav
Quantization bits 8 and	16 (LPCM), 4 (MSADPCM)
Sampling frequency 16	kHz to 48 kHz (LPCM), 22.05 kHz and 44.1 kHz (MS ADPCM)

AAC files

Compatible format AAC	coded by iTunes
File extension .m4a
Sampling frequency 11.025 kHz to 48 kHz
Transmission rate 16 kbps to 320 kbps, VBR
Apple Lossless Not compatible
AAC file bought from the iTunes Store (.m4p file extension)	Not compatible

FLAC files

• FLAC file formats cannot be connected via MTP.
• FLAC files may not be playable, depending on the encoder.

File extension .flac
Sampling frequency 8/1	1.025/12/16/22.05/ 24/32/44.1/48/96 kHz
Quantization bit rate 16	24 bit
Channel mode 1/2 ch

USB device

• There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies.

Playable folder hierarchy	Up to eight tiers (A practical hierarchy is less than two tiers.)
Playable folders Up to 1	500
Playable files Up to 15	00
Playback of copyright-protected files	Not compatible
Partitioned USB device	Only the first partition can be played.

iPhone compatibility

This unit supports only the following iPhone models. Supported iPhone software versions are shown below. Older versions may not be supported.

Made for

-iPhone7
iPhone7Plus
-iPhone SE
iPhone 6s
iPhone 6s Plus
iPhone 6

-iPhone 6 Plus
iPhone 5s
-iPhone5c
iPhone5

• Operations may vary depending on the generation and/or software version of the iPhone.
• Users of iPhone with the Lightning Connector should use the Lightning to USB Cable (supplied with iPhone).
  Refer to the iPhone manuals for information about the file/format compatibility.
• Audiobook, Podcast: Compatible

CAUTION

Pioneer accepts no responsibility for data lost on the iPhone, even if that data is lost while this unit is used.

Sequence of audio files

The user cannot assign folder numbers and specify playback sequences with this unit. Sequence of audio file depends on the connected device.

Note that the hidden files in a USB device cannot be played back.

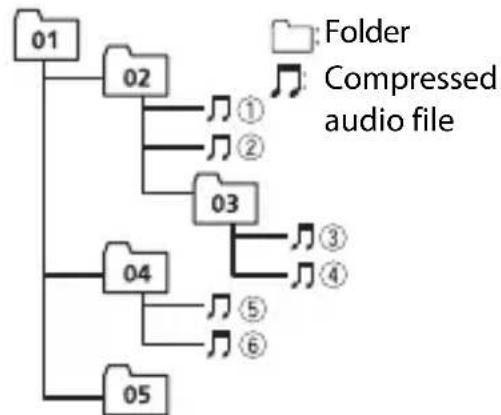

Example of a hierarchy

Level 1 Level 2 Level 3 Level 4

01 to 05: Folder number

① to:Playback sequence

Russian character chart

D: Display C: Character

D: C	D: C	D: C
A: A	B: B	B: B
F: F	A: D	E: E, E
J: J	J: 3	H: H, J
K: K	A: J	M: M
H: H	O: O	N: N
P: P	C: C	T: T
Y: Y	Φ: Φ	X: X
U: U	Y: Y	W: W, U
Z: b	H: bI	b: b
J: Θ	H: I0	η: J

Copyright and trademark

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.

iTunes

Apple and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

WMA

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

FLAC

Copyright © 2000-2009 Josh Coalson
Copyright © 2011-2014 Xiph.Org
Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

-Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

-Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

-Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS" AND ANY EXPRESS
OR IMPLIED WARRANTY, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCEDURE OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

iPhone and Lightning

Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with an Apple product may affect wireless performance.

iPhone and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.

Siri®

Works with Siri through the microphone.

Google™, Google Play, Android

Google, Google Play and Android are trademarks of Google LLC.

MIXTRAX

MIXTRAX is a trademark of the PIONEER CORPORATION.

Spotify®

SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB. Compatible mobile digital devices and premium subscription required, where available, see https://www.spotify.com.

T-Kernel 2.0

This product uses the source code of T-Kernel 2.0 under T-License 2.0 granted by T-Engine Forum (www.tron.org).

MP3

Copyright (C) 1998-2009 PacketVideo

Licensed under the Apache License, Version 2.0 (the "License"); you may not use

this file except in compliance with the License.

You may obtain a copy of the License at

http://www.apache.org/licenses/License-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTY OR CONDITIONS OF ANY KIND, either express or implied.

See the License for the specific language governing permissions and limitations under the License.

Specifications

General

Power source: 14.4 V DC (10.8 V to 15.1 V allowable)

Grounding system: Negative type

Maximum current consumption: 10.0 A

Dimensions (W× H× D)

DIN

Chassis: 178mm× 100mm× 97mm

Nose: 188mm× 118mm× 15mm D

Chassis: 178mm× 100mm× 97mm

Nose: 170mm× 96mm× 16mm

Weight: 0.7kg

Audio

Maximum power output:

• 50W× 4ch / 4 (for no subwoofer)
• 50W× 2ch / 4 +70W× 1ch / 2 (for subwoofer)

Continuous power output:

22W× 4 (50 Hz to 15 000 Hz, 5 %

THD, 4 Ω load, both channels driven)

Load impedance: 4 (4 to 8 (2 for 1 ch) allowable)

Preout maximum output level: 2.0V

Equalizer (13-Band Graphic Equalizer):

Frequency: 50 Hz/80 Hz/125 Hz/200

Hz/315 Hz/500 Hz/800 Hz/1.25 kHz/2

kHz/3.15 kHz/5 kHz/8 kHz/12.5 kHz

Gain: ± 12 dB (2 dB step)

High pass filter (Standard mode):

Frequency: 25 Hz/31.5 Hz/40 Hz/50

Hz/63 Hz/80 Hz/100 Hz/125 Hz/160

Hz/200 Hz/250 Hz

Slope: -6 dB/oct, -12 dB/oct, -18 dB/

oct, -24 dB/oct, OFF

Subwoofer/Low pass filter (Standard mode):

Frequency: 25 Hz/31.5 Hz/40 Hz/50

Hz/63 Hz/80 Hz/100 Hz/125 Hz/160

Hz/200 Hz/250 Hz

Slope: -6 dB/oct, -12 dB/oct, -18 dB/

oct, -24 dB/oct, -30 dB/oct, -36 dB/

oct, OFF

Gain: +10 dB to -24 dB (1 dB step)

Phase: Normal/Reverse

Speaker level (Standard mode):

+10 dB to -24 dB (1 dB step)

Time alignment (Standard mode):

0 cm to 350 cm (2.5 cm/Step)

High pass filter (HIGH) (Network mode):

Frequency: 1.25kHz / 1.6kHz / 2kHz

2.5 kHz/3.15 kHz/4 kHz/5 kHz/6.3 kHz/

8 kHz/10 kHz/12.5 kHz

Slope: -6 dB/oct, -12 dB/oct, -18 dB/

oct, -24 dB/oct

High pass filter (MID) (Network mode):

Frequency: 25 Hz/31.5 Hz/40 Hz/50

Hz/63 Hz/80 Hz/100 Hz/125 Hz/160

Hz/200 Hz/250 Hz

Slope: -6 dB/oct, -12 dB/oct, -18 dB/

oct, -24 dB/oct, OFF

Low pass filter (MID) (Network mode):

Frequency: 1.25kHz / 1.6kHz / 2kHz/

2.5 kHz/3.15 kHz/4 kHz/5 kHz/6.3 kHz/

8 kHz/10 kHz/12.5 kHz

Slope: -6 dB/oct, -12 dB/oct, -18 dB/

oct, -24 dB/oct, OFF

Subwoofer (Network mode):

Frequency: 25 Hz/31.5 Hz/40 Hz/50

Hz/63 Hz/80 Hz/100 Hz/125 Hz/160

Hz/200 Hz/250 Hz

Slope: -12 dB/oct, -18 dB/oct, -24 dB/

oct, -30 dB/oct, -36 dB/oct, OFF

Gain: +10 dB to -24 dB (1 dB step)

Phase: Normal/Reverse

Speaker level (Network mode):

+10 dB to -24 dB (1 dB step)

Time alignment (Network mode):

0 cm to 350 cm (2.5 cm/Step)

USB

USB standard specification: USB 2.0 full speed

Maximum current supply: 1.5 A

USB Protocol:

MSC (Mass Storage Class)

MTP (Media Transfer Protocol)

AOA (Android Open Accessory) 2.0

AAC decoding format: MPEG-4 AAC (iTunes encoded only) (Ver. 10.6 and earlier)

FLAC decoding format: v1.2.1 (Free Lossless Audio Codec)

WAV signal format: Linear PCM (Non-compressed)

FMtuner

Frequency range: 87.5 MHz to 108.0 MHz

Usable sensitivity: 11 dBf (1.0 V/75 Ω, mono, S/N: 30 dB)

Signal-to-noise ratio: 65 dB (IEC-A network)

MWtuner

Frequency range: 531 kHz to 1602 kHz

Usable sensitivity: 25 V (S/N: 20 dB)

Signal-to-noise ratio: 60 dB (IEC-A network)

LWTuner

Frequency range: 153 kHz to 281 kHz

Usable sensitivity: 28 V (S/N: 20 dB)

Signal-to-noise ratio: 60 dB (IEC-A network)

Bluetooth

Version: Bluetooth 4.0 certified

Output power: +4 dBm Maximum (Power class 2)

Frequency band(s): 2400 MHz to 2483.5 MHz

Bluetooth profiles:

GAP (Generic Access Profile)

SDAP (Service Discovery Application Profile)

HFP (Hands Free Profile) 1.6

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio Distribution Profile)

AVRCP (Audio/Video Remote Control Profile) 1.5

SPP (Serial Port Profile) 1.1

NOTE

Specifications and the design are subject to modifications without notice.

Table des matieres

Mise en route. 3

Radio. 7

USB/iPhone®/AUX 9

Bluetooth 11

Copyright © 2000-2009 Josh Coalson
Copyright © 2011-2014 Xiph.Org
Foundation

Copyright (C) 1998-2009 PacketVideo

1,25kHz/2kHz/3,15kHz/5kHz/8k

12,5 kHz

Pente: -6 dB/oct, -12 dB/oct, -18 dB/

oct, -24 dB/oct, DÉSACTIVÉE

Caisson de graves/filtre passer-bas (mode standard):

Pente: -6 dB/oct, -12 dB/oct, -18 dB/

oct, -24 dB/oct, -30 dB/oct, -36 dB/oct,

DÉSACTIVÉE

Phase :normale/inverse

Pente: -6 dB/oct, -12 dB/oct, -18 dB/ oct, -24 dB/oct

Filtre salle-haut (MOYEN) (mode reseau):

Pente: -6 dB/oct, -12 dB/oct, -18 dB/

oct, -24 dB/oct, DÉSACTIVÉE

Filtre passer-bas (MOYEN) (mode reseau):

Fréquence: 1,25 kHz/1,6 kHz/2 kHz/

2,5 kHz/3,15 kHz/4 kHz/5 kHz/

6,3 kHz/8 kHz/10 kHz/12,5 kHz

Pente: -6 dB/oct, -12 dB/oct, -18 dB/

oct, -24 dB/oct, DÉSACTIVÉE

Pente: -12 dB/oct, -18 dB/oct, -24 dB/ oct, -30 dB/oct, -36 dB/oct,

DÉSACTIVÉE

Gain:+10dBà-24dB（parpasde 1dB)

Phase:normale/inverse

MSC (Mass Storage Class)

MTP (Media Transfer Protocol)

AOA (Android Open Accessory) 2.0

GAP (Generic Access Profile)

SDAP (Service Discovery Application

Profile)

HFP (Hands Free Profile) 1.6

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio Distribution

Profile)

AVRCP (Audio/Video Remote Control

Profile) 1.5

SPP (Serial Port Profile) 1.1

REMARQUE

Best stations memory (BSM)

Copyright © 2000-2009 Josh Coalson

Copyright © 2011-2014 Xiph.Org

Foundation

Copyright (C) 1998-2009 PacketVideo

Pendenza: -6 dB/oct, -12 dB/oct, -18

dB/oct, -24 dB/oct, OFF

Pendenza: -6 dB/oct, -12 dB/oct, -18

dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/ oct, OFF

Pendenza: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct

Filtro passo alto (MID) (modalità di rete): Frequenza: 25 Hz/31,5 Hz/40 Hz/50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz/250 Hz Pendenza: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF

Filtro passo basso (MID) (modalità di rete): Frequenza: 1,25 kHz/1,6 kHz/2 kHz/ 2,5 kHz/3,15 kHz/4 kHz/5 kHz/6,3 kHz/ 8 kHz/10 kHz/12,5 kHz Pendenza: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF

Subwoofer (modalità di rete):
Frequenza: 25 Hz/31,5 Hz/40 Hz/50
Hz/63 Hz/80 Hz/100 Hz/125 Hz/160
Hz/200 Hz/250 Hz
Pendenza: -12 dB/oct, -18 dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/oct, OFF
Guadagno: da +10 dB a -24 dB (passo 1 dB)
Fase: normale/inversa

USB Protocollo:
MSC (Mass Storage Class)
MTP (Media Transfer Protocol)
AOA (Android Open Accessory) 2.0

Profili Bluetooth:
GAP (Generic Access Profile)
SDAP (Service Discovery Application Profile)
HFP (Hands Free Profile) 1.6
PBAP (Phone Book Access Profile)
A2DP (Advanced Audio Distribution Profile)

AVRCP (Audio/Video Remote Control Profile) 1.5

SPP (Serial Port Profile) 1.1

NOTA

Alternatively, you can use the code from the codebase for the code of the codebase.

Alternatively, you can use the following two methods to realize the same task.

Modos de funciona

D: C	D: C	D: C
A: A	B: B	B: B
F: F	A: D	E: E, E
J: J	J: 3	H: H, J
K: K	A: J	M: M
H: H	O: O	N: N
P: P	C: C	T: T
Y: Y	Φ: Φ	X: X
U: U	Y: Y	W: W, U
J: b	H: bI	b: b
J: Θ	H: Θ	η: η

D: visor C: caracté

Copyright y marcas registradas

Bluetooth

Copyright (C) 1998-2009 PacketVideo

Pendiente: -6 dB/oct, -12 dB/oct, -18

dB/oct, -24 dB/oct, OFF

dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/oct, OFF

Pendiente: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF

Pendiente: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF

Subwoofer (Modo de red):

Frecuencia: 25 Hz/31,5 Hz/40 Hz/50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz/250 Hz

Pendiente: -12 dB/oct, -18 dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/oct, OFF

D: C	D: C	D: C
A: A	B: B	B: B
F: F	A: D	E: E, E
J: J	J: 3	H: H, J
K: K	A: J	M: M
H: H	O: O	N: N
P: P	C: C	T: T
Y: Y	Φ: Φ	X: X
U: U	Y: Y	W: W, U
Z: b	H: bI	b: b
J: Θ	H: I0	η: J

GAP (Generic Access Profile)

SDAP (Service Discovery Application Profile)

HFP (Hands Free Profile) 1.6

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio Distribution Profile)

AVRCP (Audio/Video Remote Control Profile) 1.5

SPP (Serial Port Profile) 1.1

HINWEIS

Best stations memory (BSM)

[1.25K] tot [12.5K] (als u [HIGH] of [MID LPF] kiest)

[25] tot [250] (als u [MID HPF] of [SUBWOOFER] kiest)

Standaardmodus:

[25HZ] tot [250HZ]

Copyright (C) 1998-2009 PacketVideo

Helling: -6 dB/oct, -12 dB/oct, -18 dB/

oct, -24 dB/oct, UIT

Helling: -6 dB/0ct, -12 dB/0ct, -18

dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/oct, UIT

kHz/8kHz/10kHz/12,5kHz

Helling: -6 dB/oct, -12 dB/oct, -18 dB/ oct, -24 dB/oct

Hoogdoorlaatfilter (MID) (networkmodus):

Frequentie: 25Hz / 31,5Hz / 40Hz / 50

Hz/63 Hz/80 Hz/100 Hz/125 Hz/

160 Hz / 200 Hz / 250 Hz

Helling: -6 dB/oct, -12 dB/oct, -18 dB/ oct, -24 dB/oct, UIT

kHz/8kHz/10kHz/12,5kHz

Helling: -6 dB/oct, -12 dB/oct, -18 dB/

oct, -24 dB/oct, UIT

Subwoofer (netwerkmodus):

Frequentie: 25Hz / 31,5Hz / 40Hz / 50

Hz/63 Hz/80 Hz/100 Hz/125 Hz/

160 Hz / 200 Hz / 250 Hz

Helling: -12 dB/oct, -18 dB/oct, -24 dB/

oct, -30 dB/oct, -36 dB/oct, UIT

MSC (Mass Storage Class)

MTP (Media Transfer Protocol)

AOA (Android Open Accessory) 2.0

Bestandsystem: FAT12, FAT16, FAT32

MP3-decoderingsformaat: MPEG-1 & 2 Audio Layer 3

WMA decodeerformulaat: Ver. 7, 8, 9, 9.1, 9.2 (2 kanaals geluid)

GAP (Generic Access Profile)

SDAP (Service Discovery Application Profile)

HFP (Hands Free Profile) 1.6

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio Distribution Profile)

AVRCP (Audio/Video Remote Control

Profile) 1.5

SPP (Serial Port Profile) 1.1

OPMERKING

Visit www.pioneer-car.co.uk (or www.pioneer-car.eu) to register your product.

Pioneer CarStereo-Pass

Please fill out immediately after purchase.

Mmnprep OOO "TMOHEP PYC"

105064, Pocca, r. MockBa, Hnckn CycAaBbH nepeynok

dom 5. cTpoeHne 19

Ten: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium/Belgique
TEL: [phone]

PIONEER ELECTRONICS (USA) INC.

P.O.Box 1540, Long Beach, California 90801-1540, U.S.A.

TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

2 Jalan Kilang Barat, #07-01, Singapore 159346

TEL:[phone]

PIONEER ELECTRONICS AUSTRALIA PTY, LTD.

5 Arco Lane, Heatherton, Victoria, 3202 Australia

TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Brd. Manuel Avila Camacho 138, 10 piso

Col.Lomas de Chapultepec, Mexico. D.F. 11000

Tel: [phone]. Fax: [phone]

先鋒股份有限公司

台北市内湖區瑞光路407號8樓
