WE WOULD LIKE TO THANK YOU FOR CHOOSING UFESA. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1. Floor brush
2. Extension tube
3. Dust container release button
4. ON/OFF button
5. Power cord
6. Dust release button
7. Dusting nozzle
8. Crevice nozzle
9. wall bracket
10. Fixed screw

SAFETY INSTRUCTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

Plug must be removed from socket-outlet before cleaning or maintaining the appliance.

This device is designed for use at a maximum altitude up to 2000m above sea level.

IMPORTANT WARNINGS

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not pull on the connection cord in order to unplug it.

Do not use, connect or disconnect the device to the mains with your hands or feet wet.

Proceed according to the conservation and cleaning section of this manual for cleaning.

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an authorised Technical support service.

In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official Technical support service may carry out repairs or procedures on the device. Any incorrect use or improper handling of the product shall render the warranty null and void. Only an authorised technical support service centre may carry out repairs on this product.

This appliance is designed exclusively for domestic use, in no case should be a commercial or industrial use. In case of misuse or tampering with the product, it will be out of warranty.

Do not use the appliance to vacuum liquids (water, etc), sharp objects (pins, pins, nails, glass, etc), incandescent objects (matches, cigarettes)

Never use the turbo brush to: Polish floors, suck (Liquids, wet or damp dust, hot ash, burning objects, such as cigarettes, matches, sharp and hard items, such us: razors, pins, thumbtacks, pieces of glass, etc), flour, cement, plaster, printer or photocopier toner, etc.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

PRECAUTIONARY MEASURES

Important: If the suction opening in the unit or the hose is blocked, switch off the vacuum cleaner and remove the blocking substance before you start the unit again.

1. Do not operate the vacuum cleaner too close to heaters, radiators or cigarette butts.

Illustration of three different types of household appliances: a no-smoking symbol, a portable device with exhaust pipes, and a trash bin (no text or labels present)

1. Before inserting the power plug into the wall outlet, make sure that your hands are dry.

Safety warning symbol and hand-drawn illustration showing no hand holding a switch over a wall with Chinese text labels.

1. Before you start vacuuming, make sure to remove large or sharp objects that might damage the dust cup filter.

2. When pulling out the power plug from the wall outlet, pull the plug not the power cord.

3. Do not pick up anything that is burning or smoking such as cigarettes, matches or hot ashes.

4. Do not use without dust cup filter in place

OPERATING INSTRUCTIONS

Note: Always remove the power plug from the wall outlet before assembling or removing accessories.

Assembling the main body

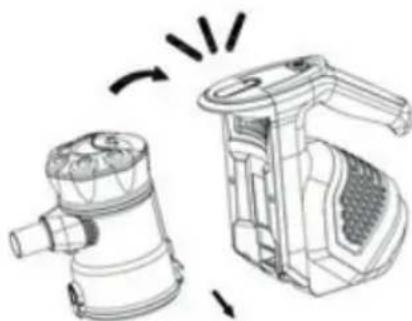

- Install the dust container by inserting the clip into the main body, then twisting into place. It will "click" to secure. (Fig.1)

Fig. 1

Technical line drawing of two mechanical devices with arrows indicating rotation or assembly (no text or symbols)

Fig. 1

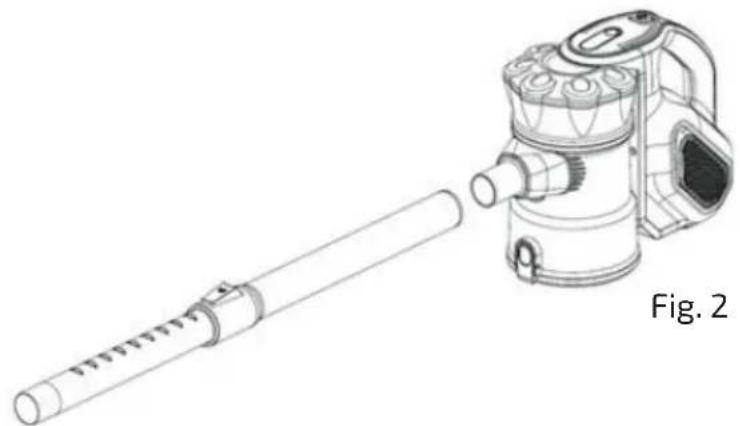

- Push the telescopic extension tube into the suction hole opening (Fig.2)

Technical line drawing of a mechanical device with a cylindrical shaft and a multi-port housing (no text or symbols)

- Adjust the length of the telescopic tube by pushing the locking mechanism down and pulling out the bottom section of the tube to a suitable length. (Fig. 3)

Illustration of a rope being twisted with a ruler, showing rope movement and a downward arrow (no text or symbols)

Use the accessories

Floor nozzle

- Fit the floor nozzle into the telescopic tube. (Fig. 4)

Diagram of a mechanical device with an arrow indicating motion, labeled 'Fig. 4' (no text or symbols on the diagram itself)

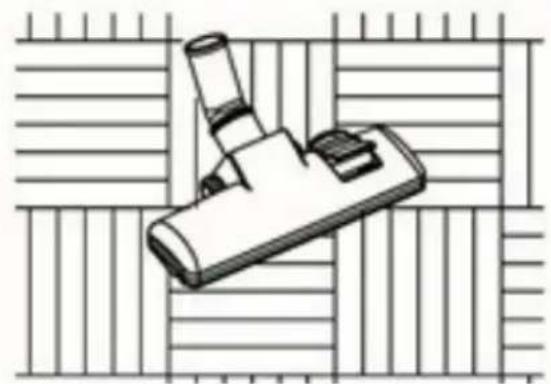

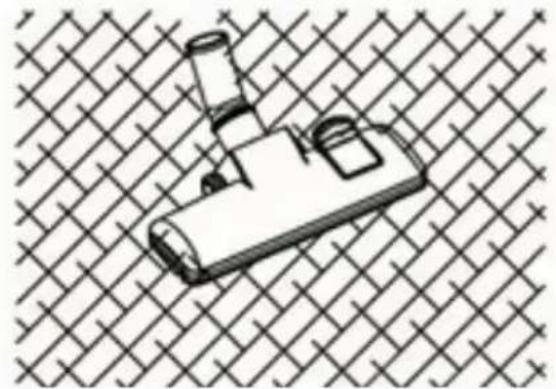

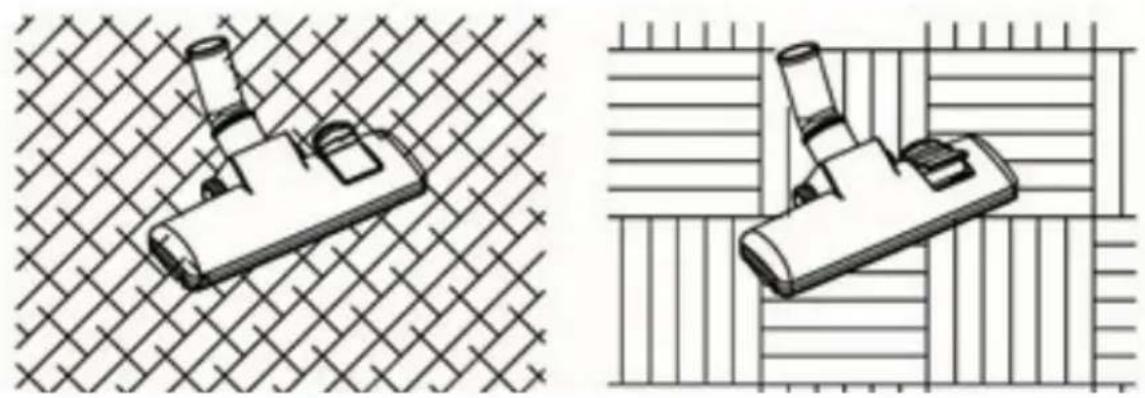

- The floor nozzle has two settings. When cleaning hard surfaces(parquet flooring, flooring tiles, etc.), the nozzle brushes should be extended. When cleaning carpets and mats, the brushes should be retracted into the nozzle. Press the brush change button to switch between the two settings. (Fig. 5)

Technical line drawing of a mechanical component labeled A and B, with no visible text or symbols beyond labels

Isometric line drawing of a mechanical component with no text or symbols

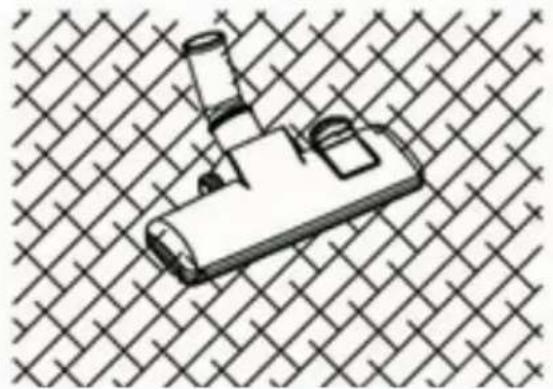

Cleaning carpet

Illustration of a microscope on a screen with grid background (no text or symbols)

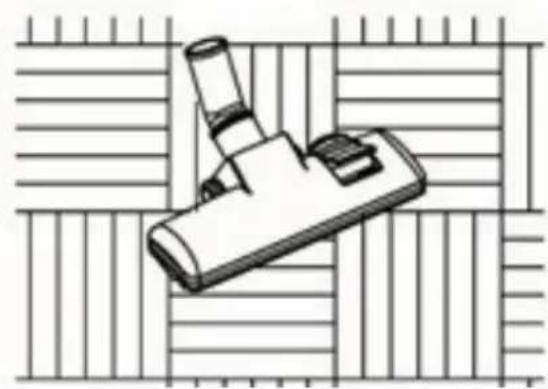

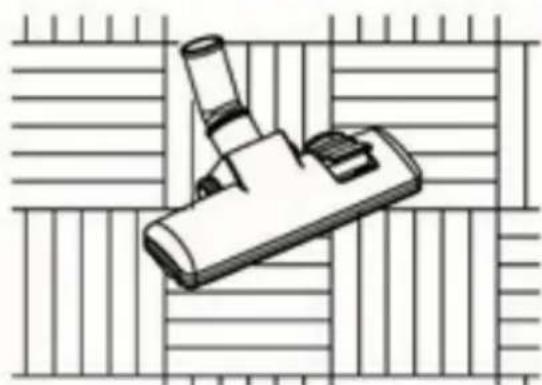

Cleaning wooden floor

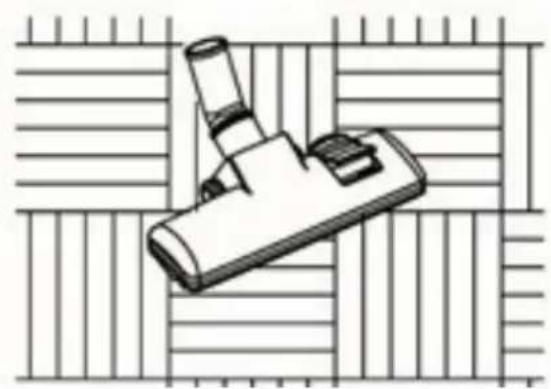

Crevice nozzle

For radiators, corners, skirtings, etc.

Dusting nozzle

For furniture, curtains, drapes, etc.

1. Push the power plug into the socket.
2. Use the Power ON/OFF button to turn on the appliance.
3. To turn off the vacuum, press the Power ON/OFF button again.

MAINTAINING THE VACUUM

Cleaning the dust container:

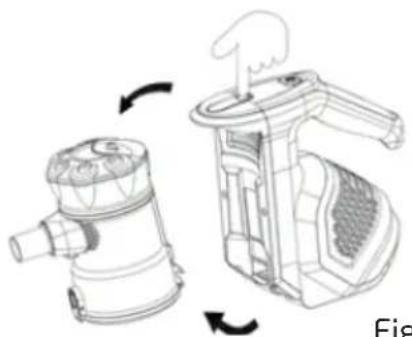

1. Press the dust container release button and disassemble the unit so only the main body remains.
2. Unclip the dust container from the main body. (Fig. 6)

Diagram of a hand operating a device with a handle, showing two states of operation (no text or symbols present)

Fig. 6

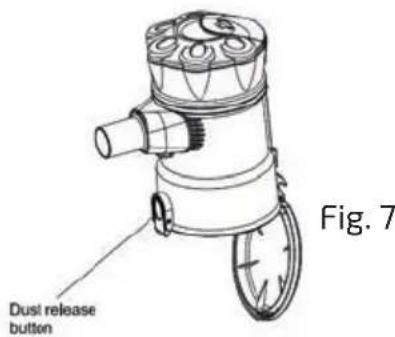

1. Over a waste bin, press the dust release button to open the bottom cover and expel any dust, dirt and debris. Wipe clean only, do not submerge in water. (Fig.7)

Dust release button Fig. 7

Cleaning the filter:

1. Remove the dust container from the main body.
2. Twist the lid of the dust container anit-clockwise to open (Fig.8)

Technical illustration of a mechanical device with internal components and directional arrows (no text or symbols)

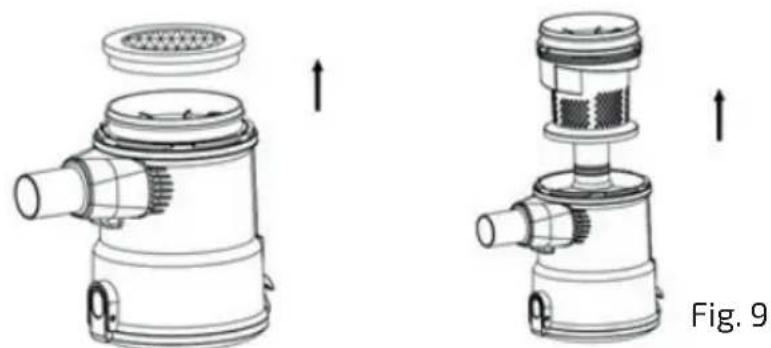

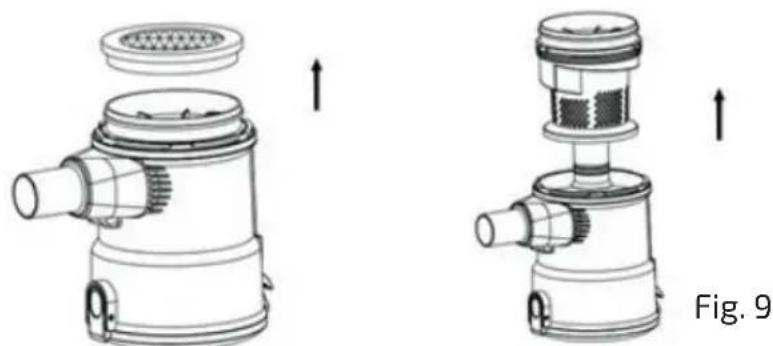

1. Remove the sponge inlet filter from the top of the dust container. (Fig. 9)

Technical illustration of a mechanical device showing two views: top view with internal components and side view with internal structure, labeled Fig. 9 (no text or symbols on the diagram itself)

1. Rinse thoroughly under clean fresh water. Do not use soap or other cleaning agents.
2. Allow filter to dry naturally before placing back into the vacuum. Do not place on radiators or use additional appliances, such as a hair dryer, to dry the filter. Doing so may cause the filter to warp or for other irreparable damage to occur.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.
