USER MANUAL L-PAD 8CX RCF

1. Read all precautions, in particular those related to safety, very carefully as they provide important information.

WARNING: to prevent the risk of fire or electric shock, never expose this product to rain or humidity.

2. POWER SUPPLY FROM MAINS

a. The mains voltage is sufficiently high to cause electrocution; install and connect the device before plugging it in.
b. Before powering up, make sure that all the connections have been made correctly and the voltage of your mains corresponds to the voltage shown on the rating plate on the unit. Contact your RCF dealer if it does not.
c. The metallic parts of the unit are earthed through the power cable. The device is a CLASS I apparatus and must be plugged into an earthed socket.
d. Protect the power cable from damage; make sure it is positioned in a way that it cannot be stepped on or crushed by objects.
e. To prevent the risk of electric shock, never open this product: there are no parts inside that the user needs to access.

1. Make sure that no objects or liquids get into the device, as this may cause a short circuit.

The device must not be exposed to drips or splashes. Do not place objects filled with liquid, such as vases, on the device. Do not place naked flames (such as lighted candles) on the device.

1. Never attempt to carry out any operations, modifications or repairs that are not expressly described in this manual.

Contact your authorized service centre or qualified personnel should any of the following occur:

• The device does not work (or works anomalously).
• The power cable has been damaged.
• Objects or liquids have got into the device.

• The device has been subject to a heavy shock.

• Unplug the device if it will not be used for a long time.

• Switch the device off immediately and unplug it if emission of strange odours or smoke is noticed.

• Do not connect the device to any equipment or accessories other than those provided for the purpose.

For suspended installation, only use the dedicated anchoring points. Do not try to hang the device using unsuitable elements or elements which are not specific for this purpose. Also check the suitability of the support surface to which the product is anchored (wall, ceiling, structure, etc.), and the components used for attachment (screw anchors, screws, brackets not supplied by RCF etc.), which must guarantee the security of the system / installation over time, also considering, for example, the mechanical vibrations normally generated by transducers.

To prevent the risk of falling, do not stack multiple units of the device unless this possibility is specified in the user manual.

1. RCF S.p.A. strongly recommends this product is only installed by professional qualified installers (or specialised firms) who can ensure correct installation and certify it according to the regulations in force.

The entire audio system must comply with the current standards and regulations regarding electrical systems.

1. Supports and trolleys

The equipment should be only used on trolleys or supports of the type recommended by the manufacturer, where necessary. The equipment / support / trolley assembly must be moved with extreme caution. Sudden stops, excessive pushing force and uneven floors may cause the assembly to overturn.

1. Numerous mechanical and electrical factors must be considered when installing a professional audio system (in addition to strictly acoustic factors, such as sound pressure, coverage angles, frequency response etc.).

2. Hearing loss

Exposure to high sound levels can cause permanent hearing loss. The sound pressure level which causes hearing loss is different from person to person and depends on the exposure time. Adequate protection devices must be used to prevent potentially dangerous exposure to high sound pressure levels. Ear plugs or protective ear muffs must be worn when a transducer capable of producing high sound levels is used. See the technical specifications in the manual for the maximum sound pressure level.

IMPORTANT NOTES

• To prevent the occurrence of noise on line signal cables, use screened cables only and avoid putting them close to:
• Equipment generating high-intensity electromagnetic fields
• Power cables
• Speaker lines

OPERATING PRECAUTIONS

• Place the device away from sources of heat and always ensure an adequate air circulation around it.
• Do not overload this product for a long time.
• Never force the controls (buttons, knobs etc.).
• Do not use solvents, alcohol, benzene or other volatile substances for cleaning the external parts of the device.

IMPORTANT NOTES

Please read this instruction manual carefully and keep it on hand for future reference before connecting and using the device. The manual is an integral part of the device and must accompany it when it changes ownership as a reference for correct installation and use as well as for the safety precautions. RCF S.p.A. will not assume any responsibility for the incorrect installation and/or use of the device.

IMPORTANT NOTES

INFORMATION ON THE DEVICE

Thank you for purchasing an RCF mixing consoles mixer.

L-PAD 8CX is a versatile audio mixer equipped with all the tools needed for appropriately processing multiple audio signals from a variety of sources. The features can be expanded by adding optional cards to implement MP3 audio player/recorder or Bluetooth functions.

CLEAR SOUND

RCF mixing consoles devices combine RCF's professional "sound culture" heritage with innovative design and dedicated manufacturing. RCF mixing consoles mixing consoles secure clear sound, accurate sound dynamics and extreme versatility of use by passionate professional users. RCF mixing consoles mixers are designed to combine perfectly with RCF active speakers.

RELIABILITY

All RCF mixing consoles undergo four extensive instrumental quality tests during construction. A listening test is carried out at the end of production followed by a final quality control inspection to locate any appearance defects, such as scratches or dents. The process guarantees outstanding reliability and makes sure that the device you have purchased is of the highest quality.

DESIGN

The unique design of RCF mixing consoles is an expression of typically Italian RCF creativity. RCF mixing consoles combine modern, excellent ergonomic design. In addition to their striking appearance, the original side profile of the mixers makes them easy to grasp securely.

FEATURES

Inputs 4 MIC Input XLR / line with 14 inch jack (1, 2 mono line and insert - 3, 4 stereo line)

2 compressors (Ch. 1 & 2)
2 stereo line inputs with 14 inch jack
1 stereo input with 14 inch jack or RCA
1 2TK input with RCA
1 stereo return with 14 inch jack

Outputs

1 2TK output with RCA

1 MAIN MIX output with 14 inch jack
1 CONTROL ROOM stereo output with 14 inch jack
1 PHONES stereo output with 14 inch jack
1 FX SEND output with 14 inch jack

Other features 1 footswitch connector with 14 inch jack for FX MUTE

Three-band EQ on mono channels

Dual-band EQ on stereo channel 7-8

1 FX SEND

Internal digital effects: 99 preset effects, including Echo, Echo+Verb, Tremolo, Plate, Chorus, Vocal, Rotary, Small Room,

Flange+Verb, Large Hall.

Optional card slot: MP3 player card, MP3 player/recorder card (with USB 1.1 port for USB flash drive up to 32 GB),

Bluetooth connection card

External PSU 220 V-230 V / 18 V\~ 1000 mA

Physical specifications Dimensions: L = 384 mm, W = 250 mm, H = 80 mm

Weight: 2.325 kg Weight: 3.850 kg

FunCTIONS

1 MIC 2 MIC LINE LINE INSERT INSERT 1 MIC/LINE 2 MIC/LINE GAIN dB 0 MIC LINE +15 -35 +15 GAIN dB 0 MIC LINE +15 -35 +15 LOW CUT LOW CUT

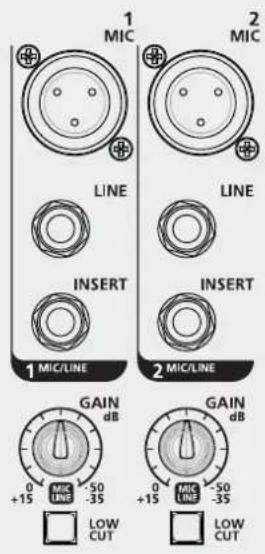

MIC input (Ch. 1 - Ch. 5/6) Connect your microphones to these balanced XLR connectors: pin1=Earth, pin2=Hot, pin3=Cold. These inputs are provided with +48 V phantom power for condenser or electret microphones. Gain scale 0 dB/-50 dB.

LINE input (Ch. 1 - Ch. 2) Connect your line level devices to these TRS jack connectors: tip=Hot, ring=Cold, sleeve=Earth. These inputs are suitable for external pre-amplifier and DI-boxes. Gain scale +15 dB/-35 dB.

INSERT (Ch. 1 - Ch. 2) These TRS connectors: tip=send, ring=Return, sleeve=common earth allow to send the signal, thru an unbalanced line, to external devices (i.e. compressor) and return the processed signal back into the channel.

GAIN (Ch. 1 - Ch. 5/6) This controls the level gain (0 dB/-50 dB for microphone input and +15 dB/-35 dB for line input when in use).

LOW CUT switch: Press this button to cut off frequency below 75 Hz with a slope of 12 dB/oct. This is useful to prevent rumbling when using microphones.

COMP COMP

COMP (Ch. 1 - Ch. 2) A single potentiometer controls both compressor threshold and ratio.

3-4 MIC/LINE L (MONO) R 3-4 MIC/LINE GAIN dB 0 +15 MIC LINE -50 -35 5-6 MIC/LINE L (MONO) R 5-6 MIC/LINE GAIN dB 0 +15 MIC LINE -50 -35 GAIN dB 0 +15 MIC LINE -50 -35 LOW CUT LOW CUT

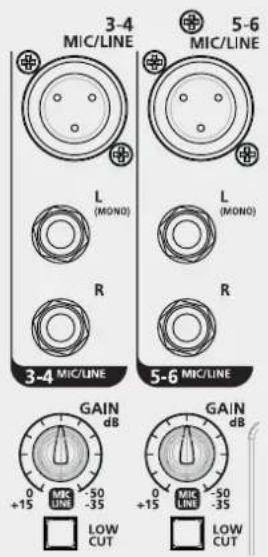

STEREO LINE INPUT (Ch. 3/4 - Ch. 5/6) Plug in your keyboard, line level or stereo devices here. Gain scale +15 dB/-35 dB (Ch. 3/4 - Ch. 5/6). The corresponding channel works as a mono channel when MIC input 3/4 or 5/6 is used.

7-8 LINE L R L R L R 7-8 LINE STEREO RETURN

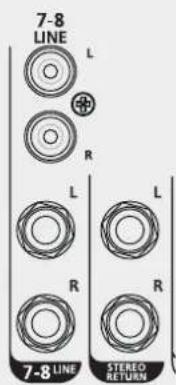

RCA LINE INPUT (Ch. 7/8) Plug in your low-level or consumer devices, like CD players, computers or mobile phones here (adapter needed). LINE INPUT Ch. 7/8 is replicated also with 14 inch. Jack.

STEREO RETURN Connect signals from external devices, such as FX modules, to these unbalanced TRS jacks.

2TK IN – 2TK OUT These unbalanced RCA connectors are suitable for connecting audio player and recorder devices.

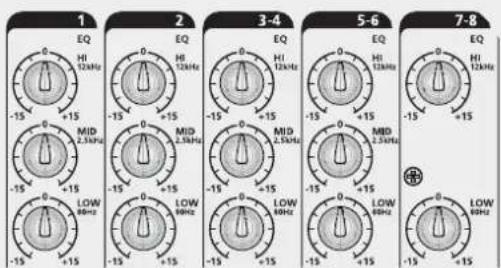

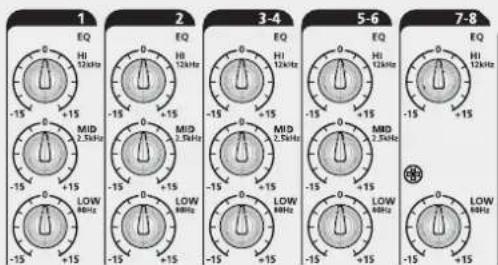

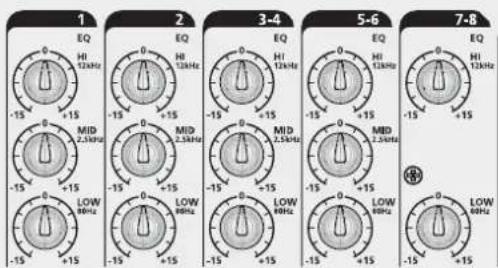

EQ: a three-band EQ is available for mono channels:

HI = ±15 dB@12 kHz

MID = ±15 dB@2.5 kHz

LOW = ±15 dB@80 Hz

Dual-band EQ for stereo channels:

HI = ±15 dB@12 kHz

LOW = ±15 dB@80 Hz

1 EQ HI 12kHz -15 +15 MID 2.5kHz 2 EQ HI 12kHz -15 +15 MID 2.5kHz 3-4 EQ HI 12kHz -15 +15 MID 2.5kHz 5-6 EQ HI 12kHz -15 +15 MID 2.5kHz 7-8 EQ HI 12kHz -15 +15 LOW 8kHz LOW 9kHz LOW 9kHz LOW 9kHz

FX post: This potentiometer sends the signal to the INTERNAL FX, level -∞ to +10 dB. The signal is also routed to the FX output jack. The signal is extracted in post-fader position.

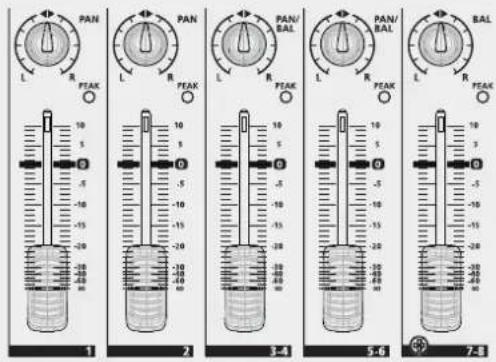

PAN or PAN/BAL: This control define the position of the signal into the stereo image in case of a MONO channel, the balance between left and right in case of a STEREO channel.

FADERS Ch. 1 - Ch. 2: MONO Channels level control

FADERS Ch. 3/4 - Ch. 5/6: MONO/STEREO channels level control

FADERS Ch. 7/8: STEREO channels level control

PAN L R PEAK 10 5 -5 -10 -15 -20 10 5 -5 -10 -15 -20 10 5 -5 -10 -15 -20 10 5 -5 -10 -15 -20 10 5 -5 -10 -15 -20 10 5 -5 -10 -15 -2 10 5 -5 -10 -15 -20 10 5 -5 -10 -15 -20 10 5 -5 -10 -15 -20 10 5 -5 -10 -15 -20 10 5 -5 -10 -15 -2 PAN/BAL L R PEAK 10 5 -5 -10 -15 -20 10 5 -5 -10 -15 -20 10 5 -5 -10 -15 -20 10 5 -5 -10 -15 -20

MAIN MIX output: Unbalanced TRS jacks. Plug in your active speakers or main sound reinforcement system amplifier (for passive speakers) of here.

CONTROL ROOM output: Connect to these TRS Jack your Studio Monitor or local speakers.

FX SEND output: The signal going to the Internal FX is replicated in this TRS Jack for different application. If the internal FX is not used, plug a wedge monitor into this jack for the stage or an external FX device. The processed signal from the FX device is returned to the RCF mixing consoles mixer via the Stereo Return jacks.

PHONES: TRS stereo jack, Tip = Left, Ring = Right, Sleeve = Common Earth. Plug your headphone in here to listen to MAIN MIX.

FOOTSWITCH: TS connector, Tip = FX, Sleeve = EARTH. Connect a footswitch here. Press once to bypass the FX, press again to resume the FX. The same function is available for the FX MUTE button.

FOOT SW L R FIX SEND L CONTROL ROOM PHONES R MAIN MIX OUT

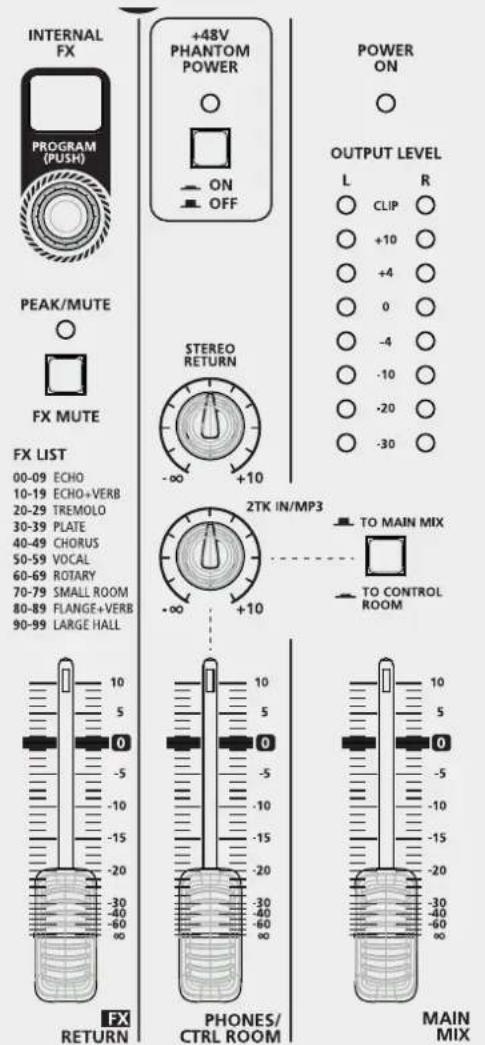

INTERNAL FX PROGRAM selector: This encoder select one of the 100 effect preset from the internal DSP. Press the encoder to confirm the selection. See the FX LIST below to select the required effect.

FX MUTE button: Switch alternatively ON and OFF the FX return signal (see the red led PEAK/MUTE) Same function as the FOOTSWITCH input jack.

+48 V PHANTOM POWER ON-OFF switch: Switch on and off the phantom power on the microphone input. It must be employed when condenser or electret microphones are used.

OUTPUT LEVEL: These LEDs show the MAIN MIX OUTPUT level. Keep under CLIP level to prevent generating distorted sounds or dangerous sound levels.

STEREO RETURN control: This defines the STEREO RETURN input signal level routed to MAIN MIX output.

2TK IN/MP3 control: Defines the level of the signal coming from the 2TK IN input or coming from optional cards such as RCF mixing consoles PLAYER, RECORDER or BLUETOOTH optional cards, routed to MAIN MIX output.

TO MAIN MIX/TO CONTROL ROOM switch: Defines where to route the signal coming from 2TK IN or optional cards: to MAIN MIX when in upper position, to CONTROL ROOM when pressed (lower position).

PHONES/CONTROL ROOM fader: Defines the level of the signal routed to CONTROL ROOM output and PHONES output.

MAIN MIX fader: MAIN MIX output level control.

INTERNAL FX PROGRAM (PUSH) +48V PHANTOM POWER ON POWER ON OUTPUT LEVEL L R CLIP +10 [phone] STEREO RETURN -∞ +10 2TK IN/MP3 TO MAIN MIX TO CONTROL ROOM FX LIST 00-09 ECHO 10-19 ECHO+VERB 20-29 TREMOLO 30-39 PLATE 40-49 CHORUS 50-59 VOCAL 60-69 ROTARY 70-79 SMALL ROOM 80-89 FLANGE+VERB 90-99 LARGE HALL FX RETURN PHONES/ CTRL ROOM MAIN MIX

FUNCTIONS

HOW TO GET SOUND FROM A RCF mixing consoles MIXER

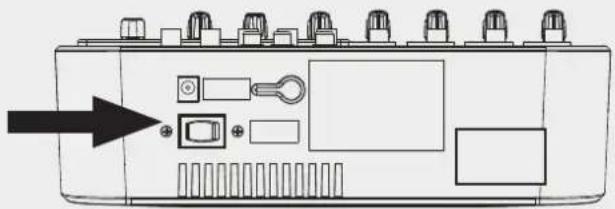

1. Turn your RCF mixing consoles mixer on.
2. Set all the faders and controls to minimum position (0 or -∞)
3. Plug a microphone into the XLR connector - MIC input of channel 1.
4. This sets GAIN according to the microphone sensitivity.

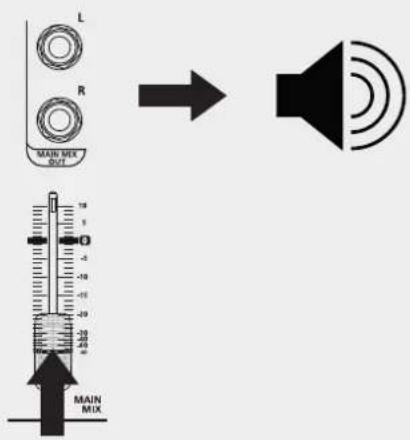

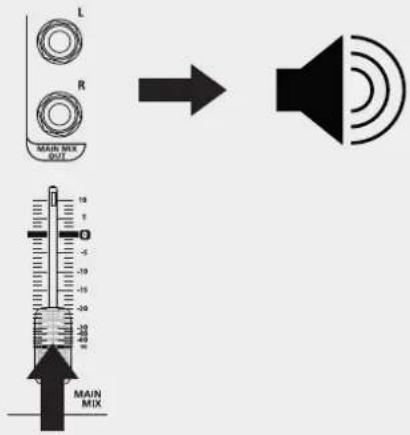

5. Connect your speaker system to the MAIN MIX output and turn it on.
6. Adjust the FADER up to "0" position.
7. Carefully turn up the MAIN MIX fader to reach a reasonable sound level.
8. Enjoy the quality of your RCF mixing consoles mixer.

1 MIC LINE INSERT MICLINE +15 50 -35 LOW CUT

Diagram of an electronic device rear panel with ports, buttons, and a directional arrow pointing to one (no text or symbols present)

L R MAIN MIX OUT → MAIN MIX

HOW TO IMPROVE THE SOUND

The RCF mixing consoles mixer implements several powerful tools to improve the sound quality of your music even more.

COMP COMP

cOMp: Turn the COMP control clockwise to add a compression effect to the signal. This allows to control the dynamic of the signal, limiting peaks and gaining level in case of low signals.

EQ: A three-band EQ is available on each mono channel, while a dual-band EQ is available on stereo channels 9-10 and 11-12. Adjust these parameters to subtract noise frequencies or magnify desired sounds.

INTERNAL FX: Keep singing in the microphone, turn clockwise the yellow FX send until the red led PEAK/MUTE lights occasionally. Turn the INTERNAL FX PROGRAM select encoder and press it to confirm the selection of the required FX (see the FX LIST below). Now, turn the FX RETURN fader up carefully. Stop at the required level.

Ten effect algorithms are available with ten variations each:

FX LIST

00-09 ECHO
10-19 ECHO+VERB
20-29 TREMOLO
30-39 PLATE
40-49 CHORUS
50-59 VOCAL
60-69 ROTARY
70-79 SMALL ROOM
80-89 FLANGE+VERB
90-99 LARGE HALL

EcHO: Ideal for delay effects. Use for vocals and brass.

ECHO+VERB: A deeper, more sophisticated effect than ECHO. It adds a reverb effect to delay rebounds.

TREMOLO: Ideal guitar effect.

pLATE: Recommended for snare drums or percussions, like congas or timbales.

cHORUS: Try this effect on an acoustic guitar or to create a deeper stereo effect for background vocals.

VOcAL: Ideal for adding depth and intensity to leading vocals or solo instruments.

ROTARY: Great for Hammond organs or Rhodes Pianos.

SMALL ROOM: Try this effect with small percussions, like castanet or claves.

FLANGE+VERB: Great for electric guitar to obtain particular effects.

LARGE HALL: good for voices, power electric guitar and main instruments, especially on ballad songs.

AVAILABLE ACCESSORIES

• RCF mixing consoles PLAYER Card: USB stick based MP3 Player Card – Up to 32 GB capacity (p.n. 133 60 287)
• RCF mixing consoles recorder card: USB flash drive based MP3 player/recorder card - Max. capacity: 32 GB (p.n. 133 60 288)
• RCF mixing consoles Bluetooth card: Bluetooth connection card. This card allows to play your music playlist from Smartphone, Tablet or any Bluetooth device. (p.n. 133 60 289)

MOUNT ACCESSORIES

• MIC stand mount accessory (RCF Part Number: 133 60 290)
• Rack ears (RCF Part Number: 133 60 291)

OPTIONAL CARDS

RCF mixing consoles OPTIONAL CARDS Installation and use

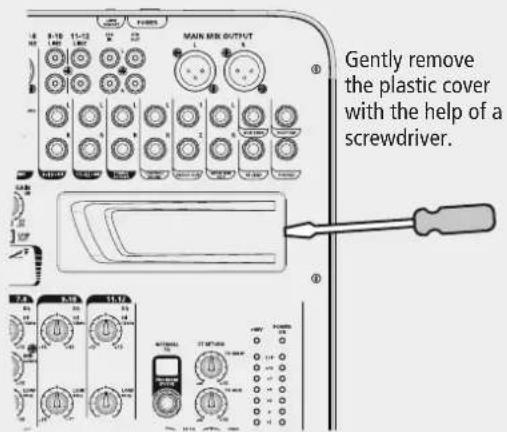

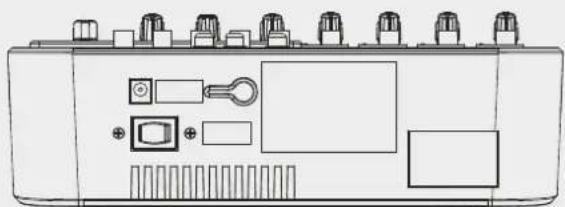

With the help of a small flat screwdriver press horizontally the plastic cover on its right side and remove it carefully.

To install a RCF mixing consoles Bluetooth card or a RCF mixing consoles player card, plug the 5 pin cable into the 5 pin connector on the PCB board as shown.

To install a RCF mixing consoles player/recorder card, plug the 5 pin cable into the 5 pin connector and the 3 pin cable into the 3 pin connector on the PCB board as shown.

Now place the optional card in its site and enjoy the new functions.

RCF mixing consoles BLUETOOTH CARD: Turn the Bluetooth interface on your mobile device on and press the PAIR button on the card. Your mobile device will recognize the "BT2.1" Bluetooth device. Pair your device with the BT2.1 device. You can now play your favourite music.

Turn clockwise the knob named 2TK/MP3 up to 12 o'clock position and check if the TO MAIN MIX/TO CTRL ROOM switch is in upper position; now raise carefully the MAIN MIX fader up to the desired listening level. You can adjust the volume on the card panel also pressing the buttons VOL+ and VOL-.

RCF mixing consoles PLAYER CARD: from your computer, copy in a USB drive as many mp3 files as you want, even contained in folders (max 32 GB total), insert the USB pen in the USB dedicated connector on the card, press and hold the PUSH&HOLD button for two seconds, the card will start to play the first file of the first folder, the display will show alternatively the number of the file and the number of the folder which is playing. Press the "◀" or "▶" button to skip to the previous or to the following track. Hold the same buttons pressed to change the selected folder. Use the PLAY/PAUSE button to pause or restart playback. Press STOP to stop playback. Press the loop button (⇨) repeatedly to select random play, loop the current track or loop the entire programme, respectively.

Turn clockwise the knob named 2TK/MP3 up to 12 o'clock position and check if the TO MAIN MIX/TO CTRL ROOM switch is in upper position; now raise carefully the MAIN MIX fader up to the desired listening level.

RCF mixing consoles PLAYER/RECORDER CARD: from your computer, copy in a USB drive as many mp3 files as you want, even contained in folders (max 32 GB total). Insert the USB flash drive in the dedicated USB port on the card, press and hold the PUSH & HOLD button pressed for two seconds. The card will start playing the first file in the first folder. The file number and folder number which is playing will be shown on the display. Press the "◀◀" or "◀◀" buttons to skip to the previous or to the following music file. Hold the same buttons pressed to change the selected folder. The card allows you to record the program present on MAIN MIX: press the REC button once, now the board is in "rec ready status" and the display shows a flashing REC advise; press REC again to start recording; press PUSH&HOLD button once for stop recording; the card will create a new folder on the USB pen called FrE01 where the created files will find place. Use the PLAY/PAUSE button to pause or restart playback. Press the loop button (⇨) repeatedly to select random play, loop the current track or loop the entire programme, respectively.

Turn clockwise the knob named 2TK/MP3 up to 12 o'clock position and check if the TO MAIN MIX/TO CTRL ROOM switch is in upper position; now raise carefully the MAIN MIX fader up to the desired listening level.

MAIN MEX OUTPUT Gently remove the plastic cover with the help of a screwdriver. ① ②

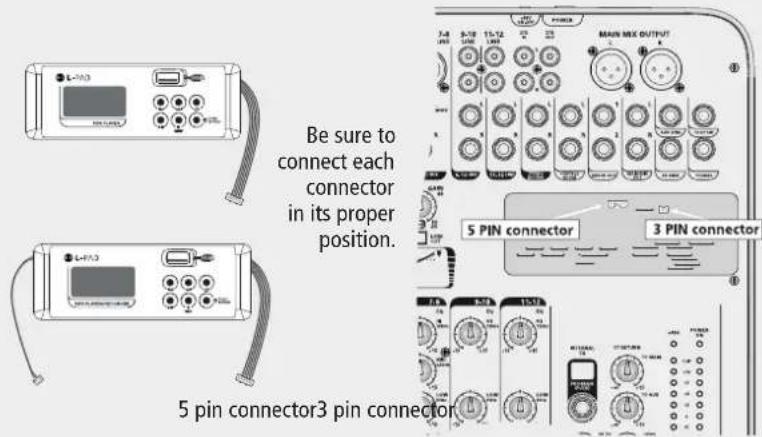

Be sure to connect each connector in its proper position. 5 PIN connector 3 PIN connector 5 pin connector3 pin connector

AVVERTENZE PER LA SICUREZZA

Flange+Verb, Large Hall.

INGRESSO STEREO LINE (c. 3/4)

7-8 LINE L R L R L R 7-8 LINE STEREO RETURN

Ingresso RcA LINE (c. 7/8)

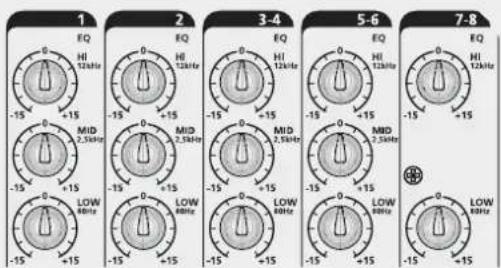

HI = ±15 dB a 12 kHz

MID = ±15 dB a 2,5 kHz

LOW = ±15 dB a 80 Hz

HI = ±15 dB a 12 kHz

LOW = ±15 dB a 80 Hz

1 EQ HI 12kHz -15 +15 2 EQ HI 12kHz -15 +15 3-4 EQ HI 12kHz -15 +15 5-6 EQ HI 12kHz -15 +15 7-8 EQ HI 12kHz -15 +15 MID 2.5kHz -15 +15 LOW 8kHz -15 +15 MID 2.5kHz -15 +15 MID 2.5kHz -15 +15 LOW 8kHz -15 +15

FOOT SW L R EX SEND L CONTROL ROOM PHONES MAIN MIX OUT

Diagram of an electronic device rear panel with labeled ports and buttons, showing a black arrow pointing to one port.

L R MAIN MIX OUT → MAIN MIX

9. Supports et chariots

(bride+réverbération), Large Hall (grand hall), etc.

7-8 LINE L R L R L R 7-8 LINE STEREO RETURN

LOW (graves) = ±15 dB à 80 Hz

LOW (graves) = ±15 dB à 80 Hz

1 EQ HI 12kHz -15 +15 2 EQ HI 12kHz -15 +15 3-4 EQ HI 12kHz -15 +15 5-6 EQ HI 12kHz -15 +15 7-8 EQ HI 12kHz -15 +15 LOW MHz -15 +15 LOW MHz -15 +15 LOW MHz -15 +15 LOW MHz

FOOT SW L FIX SEND R CONTROL ROOM PHONES MAIN MIX OUT L

Diagram of an electronic device rear panel with labeled ports and buttons, including a black arrow pointing to one port.

L R MAIN MIX OUT → MAIN MIX

COMMENT AMÉLIORER LE SON

ACCESSOIRES DISPONIBLES

Vocal, Rotary, Small Room, Flange+Verb y Large Hall

7-8 LINE L R L L R R 7-8 LINE STEREO RETURN

Entrada RCA LINE (canal 7/8)

HI = ±15 dB a 12 kHz

MID = ±15 dB a 2,5 kHz

LOW = ±15 dB a 80 Hz

HI = ±15 dB a 12 kHz

LOW = ±15 dB a 80 Hz

1 EQ HI 12kHz -15 +15 -15 +15 2 EQ HI 12kHz -15 +15 -15 +15 3-4 EQ HI 12kHz -15 +15 -15 +15 5-6 EQ HI 12kHz -15 +15 -15 +15 7-8 EQ HI 12kHz -15 +15 -15 +15 LOW 8kHz LOW 8kHz LOW 8kHz LOW 8kHz LOW 8kHz

FOOT SW L FIX SEND R CONTROL ROOM PHONES MAIN MIX OUT L

CÓMO HACER QUE LA MESA DE MEZCLAS RCF mixing consoles FUNCIONE

Diagram of an electronic device rear panel with ports, buttons, and a directional arrow pointing to one component (no text or labels)

1 MIC LINE INSERT 1 MIC/LINE -15 50 -35 LOW CUT

L R MAIN MIX → MAIN MIX

Flange+Verb, Large Hall.

Bluetooth Connection Card.

7-8 LINE L R L R L R 7-8 LINE STEREO RETURN

RCA LINE EINGANG (K. 7/8)

L FOOT SW R FX SEND CONTROL ROOM PHONES MAIN MIX OUT L R R

Diagram of an electronic device rear panel with ports, buttons, and a directional arrow pointing to one (no text or symbols present)

1 MIC LINE INSERT 3 MIC/LINE -15 -10 -15 LOW CUT

L R MAIN MIX OUT → MAIN MIX

SO KÖNNEN SIE DEN SOUND VERBESSERN

30-39 FLATE 40-42 CHOPUS

40-45 CHOKO

50-59 VOCAL

60-69 KOTAHY

70-79 SMALL ROOM

80-89 FLANGE+VERB

90-99 LARGE HALL

ERHÄLTLICHES ZUBEHÖR

Line drawing of an electronic device rear panel with ports and connectors (no text or symbols)

Ac IN SOcKET for External Power Supply 18 V AC - 1000 mA.

ON-OFF SWITcHSwitches the mixer on and off

Line drawing of a device rear panel with ports and buttons (no text or symbols)

Line drawing of an electronic device rear panel with ports, buttons, and connectors (no text or symbols)

Line drawing of a device rear panel with ports and buttons (no text or symbols)

Line drawing of a device rear panel with ports, buttons, and connectors (no text or symbols)

Technical line drawing of a mechanical component with 80 mm dimension label (no text or symbols on the diagram itself)

SPECIFICATIONS / SPECIFICHE / SPÉCIFICATIONS / ESPECIFICACIONES / TECHNISCHE DATEN

SPECIFICATIONS L-PAD 8CX

Mono channels

Microphone input XLR balanced

Frequency response 10 Hz to 55 kHz,+/-3 dB

Distortion (THD+N) <0.03% @ +0 dB, 22 Hz\~22 kHz A-weighted

Gain range 0 dB to -50 dB

Max. input +15 dB

LOW CUT 75 Hz

SNR <-100 dB A-weighted

Phantom power +48 V with switch control

Line input 1/4' TRS balanced

Frequency response 10 Hz to 55 kHz,+/-3 dB

Distortion (THD+N) <0.03% @ +0 dB, 22 Hz\~22 kHz A-weighted

Sensitivity range +15 dB\~ -35 dB

Compressor GAIN:0\~9 dB | THRESHOLD:20 dB-->5 dB

Stereo input channels

Mic input XLR balanced

LOW CUT 75 Hz

Line input 1/4' TRS or TRS/RCA unbalanced

Frequency response 10 Hz to 55 kHz,+/-3 dB

Distortion (THD+N) <0.03% @ +0 dB, 22 Hz\~22 kHz A-weighted

Sensitivity range +15 dBu\~ -35 dBu

SNR <-100 dBr A-weighted

Channel EQ Mono channel Stereo channel

High +/-15 dB @12 kHz +/-15 dB @12 kHz

Mid +/-15 dB @2.5 kHz

Low +/-15 dB @80 Hz +/-15 dB @80 Hz

2-TRACK IN

TAPE IN RCA jack

Frequency response 10 Hz to 55 kHz,+/-3 dB

Distortion (THD+N) <0.03% @ +0 dB, 22 Hz\~22 kHz A-weighted

Gain range OFF to 0 dB

STEREO RETURNS

Input 1/4' TRS unbalanced

Frequency response 10 Hz to 55 kHz,+/-3 dB

Distortion (THD+N) <0.03% @ +0 dB, 22 Hz\~22 kHz A-weighted

GAIN range OFF TO +10 dB

SNR <-100 dBr A-weighted

Impedances

Microphone input 1.8 kΩ

All other inputs 10 kΩ or higher

Tape out 1 kΩ

All other outputs 120 Ω

DSP section

A/D and D/A converters 24bit

Type of effects Echo, B

Controls 100 p

FOOT-SW TIP: FX SLEEVE: EARTH

Main mix section

Max. MAIN MIX output +22 dBu unbalanced

AUX range OFF to +10 dB

Fader range OFF to +10 dB

PHONES/CONTROL ROOM range OFF to +10 dB

Hum & noise < -80 dB @ 20

Crosstalk <-80 dB @0 dB 20 Hz\~22 kHz A-weighted, MAIN level:0 dB, other channels: minimum,

Power supply

AC adaptor

Power consumption

18 V AC / 1000 mA

24 W (all loaded)

SuggeSTeD COnFlguRaTlOnS / COnFlguRaZlOnl SuggeRlTe / SuggeSTlOnS De COnFlguRaTlOnS / COnFlguRaClón ReCOMenDaDa / eMPFOHlene KOnFlguRaTlOnen

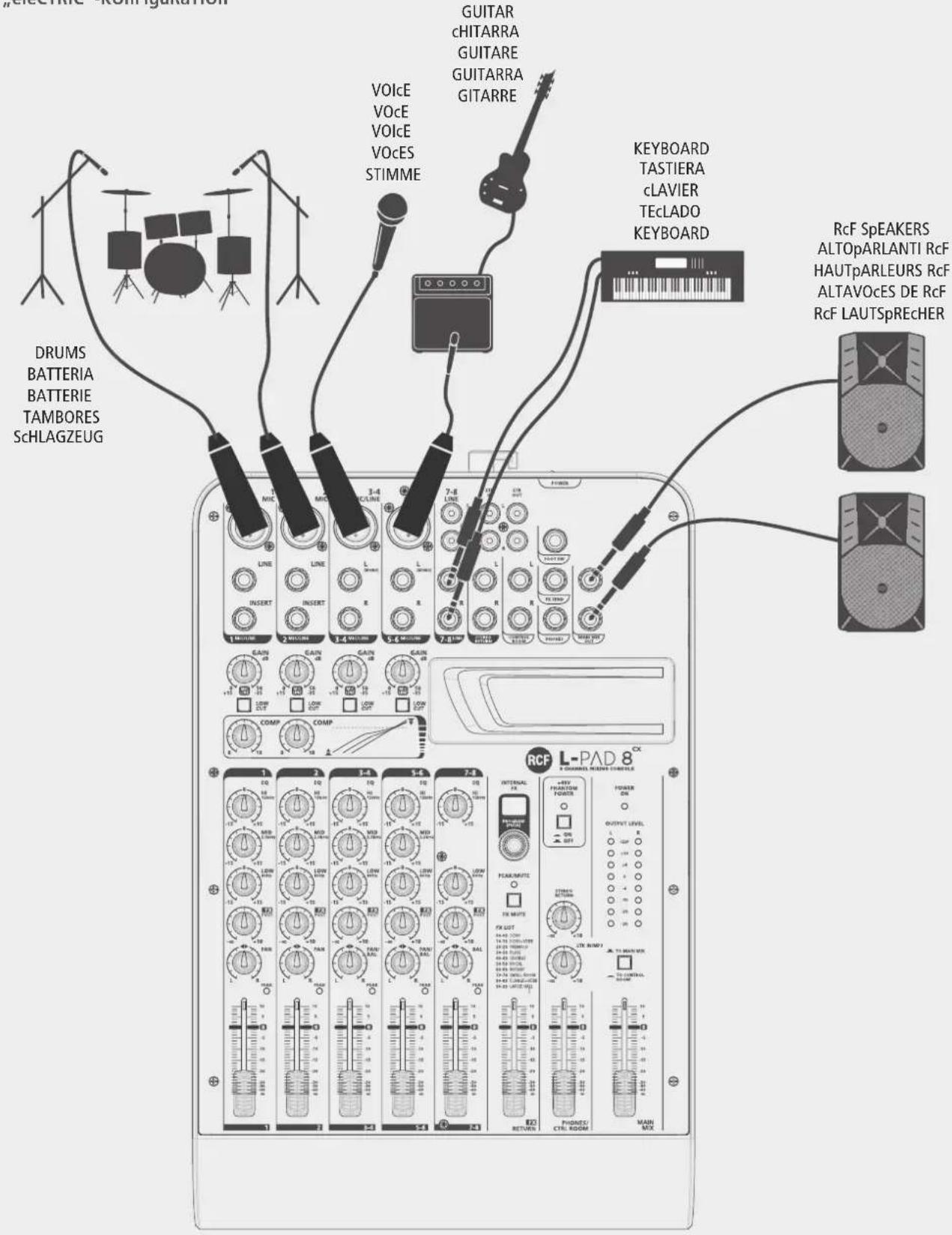

"eleCTRIC" COnFlguRaTlOn COnFlguRaZlOne "eleTTRICa" COnFlguRaTlOn « ÉleCTRIQue » COnFlguRaClón "elÉCTRICa" "eleCTRIC"-KOnFlguRaTlOn

#electric reconfiguration DRUMS BATTERIA BATTERIE TAMBORES SchLAGZEUG VOIcE VOcE VOIcE VOcES STIMME GUITAR cHITARRA GUITARE GUITARRA GITARRE KEYBOARD TASTIERA cLAVIER TEcLADO KEYBOARD RcF SpEAKERS ALTOpARLANTI RcF HAUTpARLEURS RcF ALTAVOcES DE RcF RcF LAUTSpRECHER RCF L-PAD 8 CX CHANNEL RECENT RANKS TABLE

SuggeSTeD COnFlguRaTlOnS / COnFlguRaZlOnl SuggeRlTe / SuggeSTlOnS De COnFlguRaTlOnS / COnFlguRaClón ReCOMenDaDa / eMPFOHlene KOnFlguRaTlOnen

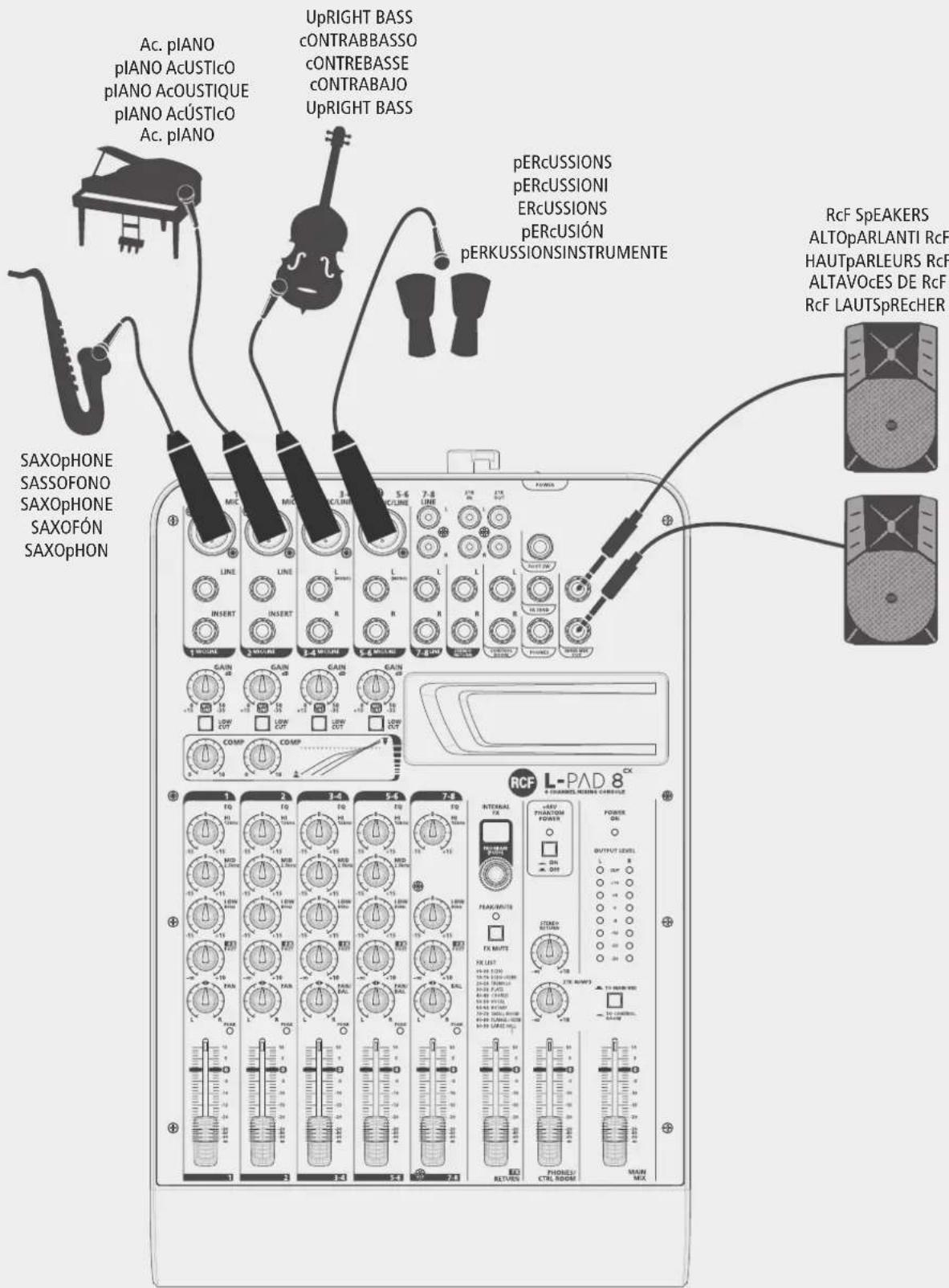

"ClaSSICal" COnFlguRaTlOn COnFlguRaZlOne "ClaSSICa" COnFlguRaTlOn « ClaSSIQue » COnFlguRaClón "ClÁSICa" "ClaSSICal"-KOnFlguRaTlOn

Ac. pIANO pIANO AcUSTIcO pIANO AcOUSTIQUE pIANO AcUSTIcO Ac. pIANO UpRIGHT BASS CONTRABBASSO CONTRABASSE CONTRABAJO UpRIGHT BASS pERcUSSIONS pERcUSSIONI ERCUSSIONS pERCUSIÓN pERKUSSIONSINSTRUMENTE RcF SpEAKERS ALTOpARLANTI RcF HAUTpARLEURS RcF ALTAVOCES DE RcF RcF LAUTSpRECHER SAXOPHONE SASSOFONO SAXOPHONE SAXOFÓN SAXOPHON LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE LINE Line 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

nOTeS

n0TeS

www.rcf.it

HEADQUARTERS:

RCF S.p.A. Italy

tel. [phone]

e-mail: [e-mail]

RCF UK

tel. [phone]

Int. [phone]

e-mail: [e-mail]

RCF France

tel. [phone]

e-mail: [e-mail]

RCF Germany

tel. [phone]

e-mail: [e-mail]

RCF Benelux

tel. [phone]

e-mail: [e-mail]

RCF USA Inc.

tel. [phone]

e-mail: [e-mail]

RCF Spain

tel. [phone]

e-mail: [e-mail]
