USER MANUAL SnackTastic ST 4303 FRITEL

Fritel STARTER

MY SNACKTASTIC®

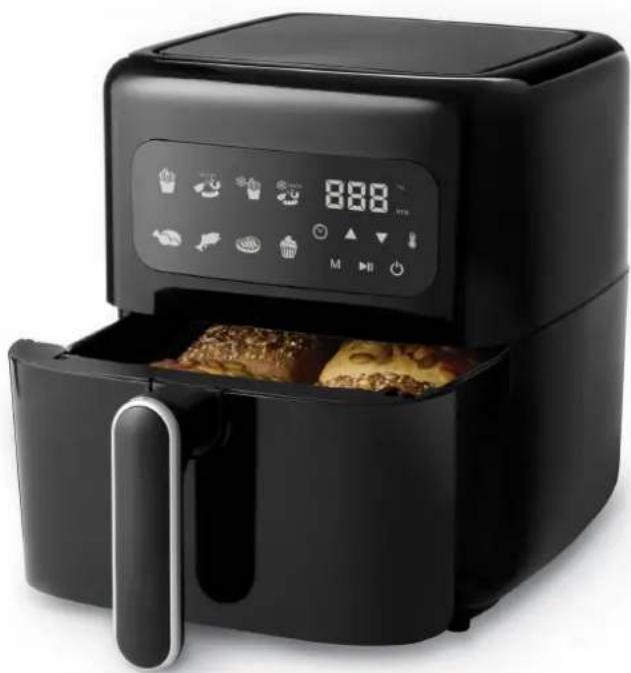

Black air fryer with digital display and two baked bread rolls inside (no visible text or symbols)

GEBRUIKSAANWIJZING

Read the user manual attentively before using this appliance. Keep the user manual carefully.

GEBRAUCHSANLEITUNG

DESCRIPTION OF THE APPLIANCE

1. Control panel display
2. Basket handle
3. Pan + Basket
4. Grill grid
5. Silicone sleeve grid
6. Air inlet
7. Air outlet

We reserve the right to execute technical modifications.

Congratulations! You just bought a quality appliance that will guarantee you a lot of snack pleasure for many years. For further information and useful tips, we advice you to have a look at our website www.fritel.com. All persons who have NOT read this user manual are NOT allowed to use this appliance. Violations of the rules and regulations stated in these instructions automatically invalidate the warranty.

1. SAFETY PRESCRIPTIONS

This appliance was built in accordance with the European CE-safety standards. As for all electrical household appliances, all safety measures have to be taken, in order to prevent and/or avoid damages.

• ATTENTION! Burning danger! Due to the use of the appliance the surface becomes hot. Only touch the handle or the control buttons when the appliance is operating.
• ATTENTION! After switching off the appliance surfaces stay hot which causes burning danger. Let the appliance cool down completely before replacing it, cleaning it or putting it away
• This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge provided they are supervised or instructed to use the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall

not be made by children.

- Cooking appliances should be positioned in a stable situation with the handles (if any) positioned to avoid spillage of liquids.

- This appliance is only intended domestic use at room temperature and similar applications, excluding staff kitchens shops, offices, and other working environments; farms; clients in hotels, motels, and other residential environments; bed and breakfast environments.

- Only operate the appliance with 230 V AC current.

- In accordance with the legal safety standards, the appliance must always be connected to a socket with earthing.

- NEVER touch the buttons, the electrical cord, or the plug with wet hands. NEVER immerse the appliance and cord in water or (any other liquid). Only clean with a damp cloth. If the appliance does get wet or damp, unplug it immediately.

- A damaged power cord can cause electrical shocks. NEVER use the appliance if it is damaged, fallen or shows a malfunction, or if the power cord or plug are damaged. In all these cases return the appliance to your sales point or recognized after sales service.

- Always unplug the appliance immediately after use. Do this even when the appliance is not in use, before cleaning it and before moving it. When doing so, NEVER pull on the cord itself, but only on the plug head.

- NEVER use separate timers or remote controls.

- NEVER put oil directly in the basket. This may cause fire.

- NEVER touch the inside or the appliance while it is operating.

- While baking, hot steam might come out of the openings of the appliance. ALWAYS keep hands and face at a safe distance from the steam. Also, ALWAYS be careful when you remove the baskets when the appliance is operating, steam might come out.

- IMMEDIATELY unplug the appliance if dark smoke comes out of it. Only remove the baskets when no more smoke is coming out.

- NEVER place the appliance near curtains, wall decoration, clothing, towels or other inflammable objects. Always make sure to have 15 cm on all sides of the appliance.

- Only use the appliance at the mains voltage indicated on the rating plate.

- This appliance is for oilfree frying/grilling/baking only. The appliance must not be used for any other purposes or combined with other appliances!

- NEVER leave the appliance unsupervised when in operation and never move it when in operation.

• Always place the appliance on a solid and flat surface, such as a kitchen table so that the appliance cannot tilt or slide.
• NEVER handle or move the appliance by the electrical cord. Never fold, clamp, twist or pull the electric cord around the appliance or over a sharp edge.
• NEVER use extension cords or extension sockets. Place the appliance close to a socket and always connect it directly. Always unwind the entire cord when in use.
• NEVER leave the electrical cord hanging over the edge of the table or countertop.
• NEVER use the electrical cord and appliance near heat sources such as cookers, ovens, or heaters.
• NEVER cover the appliance and air inlet/outlet when in operation.
• Only use original the accessories.
  • Repairs can only be carried out by an authorised professional or by an authorised repair service.
• This appliance is for domestic use only, not for professional use.

2. BEFORE FIRST USE

• Remove all packagings and stickers.
• Keep all packing material out of reach of children.
• Check the appliance and the electrical cord for any damages. If damaged, do not use the appliance and return it immediately to your sales point or contact your vendor.
• Before using the appliance for the first time, it is recommended to clean the basket (see maintenance).
• Check that the mains voltage of your appliance (230 volts) matches the mains voltage in your home.

3. SETTINGS

The chart below indicates which settings should be used for which ingredients.

ATTENTION: these settings are merely indicative. Since each ingredient may differ from brand to brand, but also from size, shape, content... it is possible that the indicated settings don't always entirely correspond.

TIPS:

• Smaller ingredients often require a shorter baking time than larger ingredients.
• Shaking small ingredients during the baking process might improve the final result. (See USE).
• Add a little bit of oil on fresh potatoes for a crispier result. Add the oil on the ingredients before putting them in the basket. Bake the ingredients within a few minutes after adding the oil.
• Snacks that can be prepared in a traditional oven can be prepared in the SnackTastic®. Snacks or fries only meant to be prepared in a deep fryer will not provide the desired result.
• You can use the SnackTastic® to heat up ingredients. To do so, set the temperature on 150°C for a maximum of 10 minutes.

	Min-Max capacity (gram)	Time (minutes)	Temperature (°C)	Shake
Potatoes and fries
Fries	200-400	15-20	100^	Shake*
Meat and poultry
Steak	100-300	10-15	180^
Pork chops	100-300	10-15	180^
Fisch	200-400	8-12	200^
Chicken wings	100-400	20-30	180^
Snacks
Chicken Nuggets	100-300	6-10	200^	Shake*
Fish Sticks	100-300	8-12	200^
Muffins	250	15-20	160^
Cake	300 (dough weight)	20-25	160^

NOTE: add 3 minutes to the baking time if the appliance is cold when first baking.

NOTE: check if the ingredients are suited for preparation in the oven.

*see use

Homemade fries

For the best result we advise to use prebaked fries (e.g., frozen fries). If you want to make homemade fries, we advise you following the steps below.

1. Peel the potatoes and cut them into fries.
2. Soak the fries in a bowl of water for at least 30 minutes, take them out and dry them with some paper towel.
3. Pour 12 spoon of oil in a bowl, add the fries and mix properly until all fries are covered with oil.
4. Don't pour the fries from the bowl into the basket to avoid abundant oil from ending up in the pan. Take out the fries from the bowl with your hands or tongs so that abundant oil remains in the bowl. Put the fries in the basket.
5. Bake the fries as mentioned earlier.

4. USE

a) On/Off

e) Temperature

b) Start/Pause

f) Settings

c) Menu (see below)

g) Time and temperature display

d) Time

Preprogrammed settings (Menu):

aa: Fresh fries

200^ - 20 Min

bb: Snacks

200^ - 7 Min

cc: Frozen fries

190^ - 15 Min

dd: Deepfrozen snacks

200^ C-7 Min

ee: Chicken

180^ - 20 Min

ff: Fish

200^ - 11 Min

gg: Steak

180^ - 10 Min

hh: Cake

160^ - 20 Min

default setting Manual: 200° C – 18 Min

1. Place the appliance on a stable, flat and heat resistant surface.
   CAUTION: Do not put oil or any other liquid directly in the basket.
   CAUTION: Don't put anything on top of the appliance.
2. Carefully pull the pan out of the appliance.
   NOTE: always pull out the pan completely from the appliance before adding ingredients to the basket.
   NOTE: make sure that the grill grid is properly placed on the bottom of the pan.
3. Put the ingredients into the basket.
   NOTE: Do not fill the basket more than 4/5, or the mentioned amount indicated in the above grid. Larger quantities will give a lesser result. NEVER use without the grill grid.
   CAKE FUNCTION: put the cake dough into the baking tin, put the baking tin into the basket and place the basket in the appliance.
4. Put the pan back in the appliance.
   CAUTION: Don't touch the pan during or after use. It gets very hot. Only hold the pan by the handle.
5. Put the cord into the socket. The On/off display now flashes.
6. Press On/Off (a) to start the appliance and to adjust the desired time- and temperaturesettings.
7. First, press on Time (d). You can then press Setting (f) "▲" "▼" to set the desired time (1 to 60 minutes). Each press increases or decreases the time by 1 minute. You can also long press the adjust button for quick adjustment.
8. Then, press Temperature (e), you can press the Setting (f) "▲" "▼" to set the desired temperature (80°C to

200°C). Each press increases or decreases the temperature by 5°C. You can also long press the adjust button for quick adjustment.

1. To use a preset fonction, press Menu (c) until the desired setting ("aa" to "hh") is selected.
2. Press Start/Pause (b) to start. The Start/Pause display will flash during the process and alternately display temperature and remaining time.
3. Some ingredients lying on top of each other require shaking halfway through the baking process to obtain an even baking result. To shake the food, take the handle, pull the pan out of the appliance and shake. Then place the pan back into the appliance, it will restart automatically.
4. When the set time is finished, you will hear a short sound signal and the appliance will shut off automatically. Remove the pan from the appliance and put it on a heat resistant surface.

TIP: To switch off the appliance manually, press On/Off (a).

1. Check if the ingredients are ready. If not, place the pan back in the appliance and set the timer a few more minutes.
2. To remove small ingredients out of the basket (e.g., fries), remove the basket from the appliance. Do not turn the basket upside down. Abundant oil or residues that have fallen in the pan could then fall/drip onto your ingredients.

NOTE: After use, the pan and the ingredients are still very hot. Depending on the type of ingredients steam may escape from the pan.

TIP: to remove large or fragile food, it is best to use kitchen tongs.

1. When a first bake is finished, the appliance is instantly ready for preparing another serving.

2. You can also switch off the appliance at any time. To do this, press the On/Off button for three seconds. The appliance beeps three times and the display shows "OFF". The appliance cools down for 15 seconds while "OFF" is shown on the display.

5. MAINTENANCE

1. Clean the appliance after each use.
2. First remove the plug from the socket and let the appliance cool down completely before cleaning.

TIP: in order to make the appliance cool down more quickly you can remove the basket out of the appliance

1. The basket and grill grid have a non-stick coating. Do not use metal kitchen ware or abrasive cleaning materials to clean them. This may damage the non-stick coating.
2. Only clean the housing with a moist cloth.
3. The basket and grill grid can be cleaned in warm soapy water and a soft cleaning brush.

TIP: The basket and grill grid are dishwasher proof.

TIP: Use the FRITEL airfryer cleaner to remove remains.

TIP: If the foodremains stick to the basket: let it soak for about 20 minutes in warm water.

1. The inside of the appliance can be cleaned with warm water and a soft sponge.
2. Clean the heating elements with a cleaning brush to remove sticking residues.
3. Dry the appliance thoroughly before using or storing it again.

6. STORAGE

1. Pull the plug out from the socket and let the appliance cool down completely.
2. Make sure all parts are clean and dry.

7. TROUBLE SHOOTING

Problem	Possible cause	Solution
The SnackTastic® does not work.	The cord is not plugged in the socket.	Insert the cord into the socket.
	There is no pan in the appliance.	Put the pan correctly in the appliance.
	There are too many ingredients in the	Put smaller amounts at once in the
The ingredients are not done enough.	basket.	basket.
	The set temperature is too low.	Increase the temperature.
	The baking time is too short.	Increase baking time.
The ingredients are not equally baked.	Some ingredients need to be shaken halfway through the baking process.	Shake ingredients which are piled up (f. ex. fries) halfway through the baking process.
The fried ingredients are not crispy.	You used snacks only suited for a traditional or a “Cold Zone” fryer.	Use oven snacks or slightly grease the ingredients with oil for a crispier result.
I cannot slide the pan into the appliance properly.	There are too many ingredients in the basket.	Fill maximum 4/5 of the basket.
	The basket is not correctly placed in the appliance.	Place the basket correctly in the appliance.
There’s white smoke coming out of the appliance.	You’re using greasy ingredients.	When baking greasy ingredients, the oil drips on and causes smoke. This will not affect the final cooking result.
	There are some residues from prior bakings in the basket.	The smoke is caused by greasy residues heating up. Clean the pan properly after each use.
Fries are fried unequally.	You used the wrong kind of potato.	Use another kind of potato.
	Crispiness depends on the amount of water and oil in the fries.	Dry the fries properly before you grease them with oil.
The fries are not crispy.	The crispiness depends on the amount of water and oil in the fries.	Cut smaller fries.
		Grease with a little bit more oil.

If the malfunction HAS NOT been solved, do NOT use the appliance. Contact your point of sale immediately.

THE APPLIANCE HAS BEEN DESIGNED FOR DOMESTIC USE. THE WARRANTY CONDITIONS EXPIRE UPON PROFESSIONAL USE. DEFECTS AND/OR DAMAGES FOLLOWING TO THE NON OBSERVANCE OF THE USER MANUAL ARE NOT COVERED BY THE WARRANTY.

8. WARRANTY CONDITIONS

The legal warranty is valid from the date of purchase. The proof of purchase determines the date of purchase. The duration and conditions of the warranty depend on the national legislation of the country of purchase. If you have a defective appliance, contact your seller with your proof of purchase.

The user is responsible for cleaning and proper packaging of the defective appliance before presenting it for repair. It is insufficient to wrap the device in cardboard packaging with paper. Fritel is not liable for damage resulting from insufficient packaging, which also irrevocably invalidates the warranty.

Determination of the warranty:

• The warranty covers every repair and / or replacement free of charge of the parts recognized defective by our technical department and for which the defects are caused by material-, construction- or production defects.
  ■ The warranty is only valid for the original user.
  The transport costs, in case of reparation, are at the expenses of the purchaser.
• The warranty is only granted after presentation of your purchase invoice.
  ■ The warranty cannot be invoked for normal wear and tear.

The warranty does not apply in the following cases:

■ Incorrect connection, e.g. electric voltages.
■ Abnormal or professional use or misuse handling.
In case of insufficient packaging and bad transport in case of return shipping.
- Lack of care and cleaning.
■ Modifications or repairs made to the appliance by persons not authorized by us as a manufacturer.
- When reference numbers have been altered or been removed.
- For faults not due to the appliance itself, but to an external cause, collision, damage, fire, earthquake, flood, lightning, etc.
- When not respecting the instructions in the user instructions.

For appliances that are not under warranty for any of the above reasons, all costs (transport, administration, research, handling) will be charged.

The most recent version of the detailed legal warranty conditions, as well as the detailed commercial warranty conditions can always be consulted on www.fritel.com.

9. ENVIRONNEMENT

Do not throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing so, you will help to preserve the environment.

10. LIABILITIES

All liabilities, towards both consumer(s) and third parties, which could result from not observing all the safety regulations prescribed in this user manual, shall under no circumstances be charged to the manufacturer. In case of non-observance of these safety regulations, the user of the appliance, or any other person not having observed these safety regulations, protects the manufacturer from all responsibilities that he could be charged with.

11. ACCESSORIES, COMPONENTS AND OTHER FRITEL PRODUCTS

Visit our webshop www.fritel.com and discover frequently asked questions, available components, and accessories, as well as all our other products from our Fritel range for even more FRITEL fun!
