USER MANUAL A106 FRITEL

Fritel POP UP

A-series

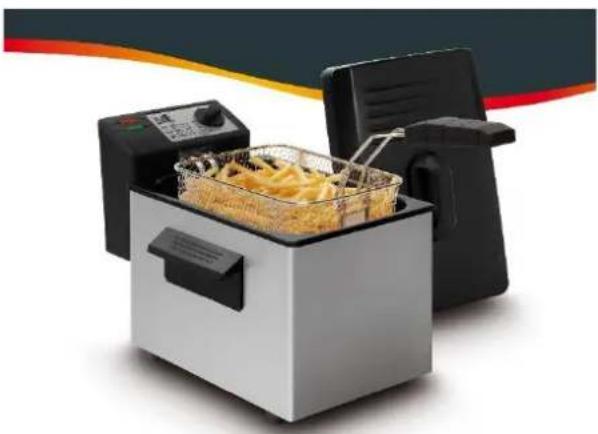

Electric kitchen feedstock with a bowl of fried food being placed in a white dish, accompanied by a black stand mixer (no visible text or symbols)

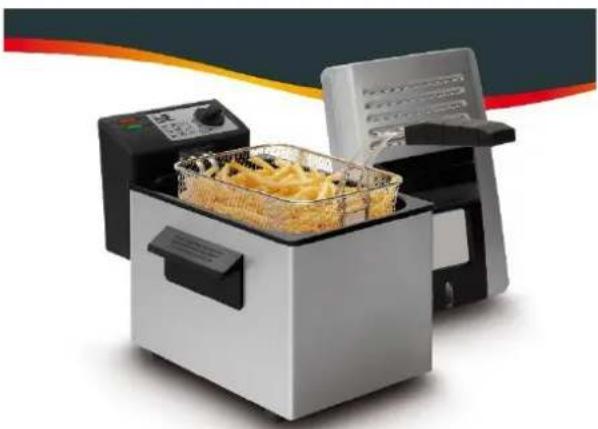

Modern kitchen electric oven with a glass bowl filled with food, placed on top of a gray stand (no visible text or symbols)

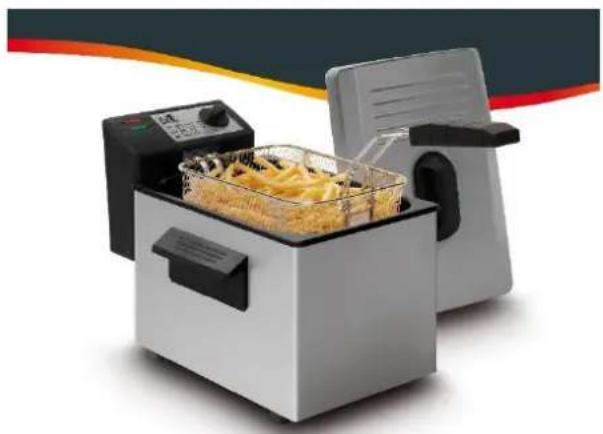

Modern kitchen electrician with a glass bowl containing fried food, placed on a white stand (no visible text or symbols)

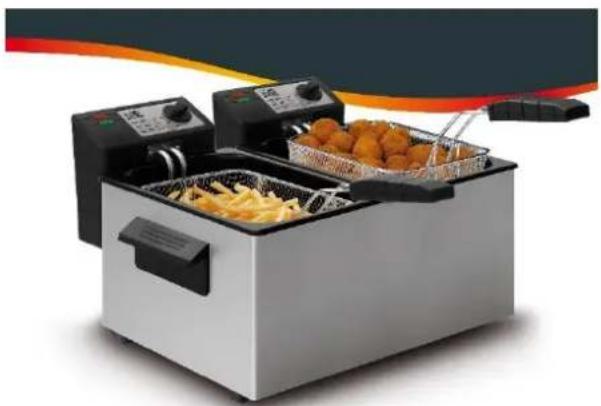

Electric dual-fried kitchen feeders with fried food and a basket of fried food (no visible text or labels)

GEBRUIKSAANWIJZING

Attentively read the user manual before using your deep fryer.

Keep the manual carefully!

GEBRAUCHSANWEISUNG

Technical diagram of a kitchen electric oven with numbered components and labeled parts

Het typenummer, wattage en inhoud (L) van uw friteuse staat vermeld op het typeplaatje. Le n° de type, le wattage et litrage (L) de votre friteuse sont mentionnés sur la plaque signalétique. The type nr., watt power and content (L) of the fryer are mentioned on the rating label. Die Typennr., Leistung und Inhalt der Fritteuse sind auf den Typenschild erwähnt.

BESCHRIJVING VAN HET TOESTEL1. Deksel2. Zeer grote korf met inklapbaar handvat3. Bedieningspaneel4. Kuip5. Inox mantel6. Rood controlelampje7. Groen controlelampje8. Thermostaatknop9. Kabelvak en Reset knop10. Handvaten11.Haak voor de frituurkorf12.Olie niveau indicator (min-max)13. VerwarmingselementDe fabrikant behoudt zich het recht voor om te allen tijde technische en andere wijzigingen aan te brengen.

DESCRIPTION DE L’APPAREIL1. Couvercle2. Très grand panier avec poignée escamotable3. Boîtier de commande4. Cuve5. Manteau en inox6. Lampe témoin rouge7. Lampe témoin verte8. Bouton de thermostat9. Compartiment de câble et bouton Reset10. Poignées11. Crochet pour le panier à frire12. Indicateur niveau d’huile (min-max)13. Elément chauffantLe fabricant se réserve à tout temps le droit d’apporter des modifications de type technique ou autre.

DESCRIPTION OF THE APPLIANCE1. Lid2. Very large basket with folding handle3. Control panel4. Bowl5. Stainless steel housing6. Red control lamp7. Green control lamp8. Thermostat button9. Cord storage and Reset button10. Handles11.Suspension hook for the frying basket12.Indicator for the oil level (min-max)13.Heating elementThe manufacturer maintains the right to introduce technical and or other changes at any time.

BESCHREIBUNG DES GERÄTES1. Deckel2. Sehr großer Korb mit einklappendem Griff3. Bedienungsteil4. Topf5. Mantel aus Edelstahl6. Rote Kontrolllampe7. Grüne Kontrolllampe8. Thermostatknopf9. Kabelfach und Reset Knopf10. Handgriffe11. Haken für den Frittierkorb12. Indikator für Öl Niveau (min-max)13. HeizelementDer Hersteller behält sich das Recht vor, am gerät technische oder andere Änderungen vorzunehmen.

6. CONDITIONS DE GARANTIE

Congratulations! You just bought a high quality deep fryer that will warranty you a lot of frying-fun. For further information and useful tips, we advise you to have a look at our website www.fritel.com. All persons who have not read this user manual are not allowed to use this deep fryer. Violation of the prescriptions and instructions mentioned in this user manual makes the warranty expire automatically!

1. SAFETY PRESCRIPTIONS

This deep fryer was built in accordance with the European CE-safety standards. As for all electrical household appliances all safety measures have to be taken, in order to prevent accidents and/or to avoid damages to your deep fryer.

• ATTENTION please! Burning danger! Due to the use of the appliance the surface becomes hot. Only touch the handles or the control buttons when the appliance is in action.
• ATTENTION please! After switching off the appliance surfaces stay hot which causes burning danger. Let the appliance cool down completely before replacing it, cleaning it or putting it away.
  This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and maintenance shall not be made by children.
• Cooking appliances should be positioned in a stable situation with the handles (if any) positioned to avoid spillage of the hot liquids.
  ■ This appliance is intended to be used in household and similar applications excluding: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
  ■ This appliance is intended to be used at room temperature. NEVER use the appliance outdoor.
  ■ NEVER touch the hot parts of the deep fryer. Only touch the handles and thermostat knob.
• A damaged power cord can cause electric shocks. NEVER use the appliance

if it is damaged, fallen or shows a malfunction, or if the power cord or plug are damaged. In all these cases return the appliance to your sales point or recognized after sales service.

• NEVER touch the heating element, the electrical cord or the plug with wet hands, and NEVER immerse them in water or any other liquid. They are only to be cleaned with a damp cloth. Should they get wet anyway, immediately pull out the plug from the socket.
  ■ NEVER use separate timers or remote-control systems.
• Immediately switch off the appliance and pull out the plug: after use or when the appliance is NOT in use, if the appliance does not function properly and when cleaning the appliance.
  ■ Only use the deep fryer for frying food.
• NEVER move the fryer as long as the oil is hot. The oil must be completely cooled off before folding in the handle or disassembling the deep fryer.
• ALWAYS place the appliance on a solid and flat base, such as a kitchen counter or table, so that the appliance will not move or turn over.
  ■ NEVER place the appliance near curtains, wall decoration, clothing, towels or other inflammable objects.
  ■ NEVER pull the power cord, but only the plug.
• NEVER use extension cords or sockets. Place the appliance near a power point and connect it directly. ALWAYS complete unroll the power cord.
  ■ NEVER let the cord hang over the edge of the table or the counter.
• NEVER place the power supply cord near heat sources such as cookers, heatings or ovens.
  ■ NEVER turn the power cord around the deep fryer, NEVER bend it or squeeze it.
• NEVER leave the appliance unattended and NEVER move it when it is plugged in.
  In accordance with the legal safety standards, the deep fryer must always be plugged into an earthed socket.
• For your own safety, the deep fryer will only work if it has been assembled correctly. Check that all parts were correctly assembled.
  ■ NEVER use accessories or spare parts from other appliances or brands.
• ALWAYS switch off the appliance and pull out the plug:

○ after use

- when the appliance is not in use

- if the appliance doesn't work properly

- when cleaning the appliance

• ALWAYS store the appliance indoors in a dry place.
  ■ Repairs may only be done by a recognized repairer or service center.

2. BEFORE THE FIRST USE

■ Remove all packagings and stickers.
- Keep all packing material out of reach of children.
- Check that there is no damage to the deep fryer or the power cord. If there is any damage, do not use the deep fryer and return it to the sales point.
- Disassemble the deep fryer in this order: basket – control panel – bowl.
■ Before using the deep fryer for the first time, clean the bowl and the basket (see point 5)
- Assemble the deep fryer in this order: bowl – control panel with heating element – basket
- ! When placing the bowl back into the housing, the basket hook (inside bowl) must be positioned opposite to the sliders (backside of the deep fryer).

• ! Then check if your fryer has been correctly mounted, namely if the sliders fit precisely in the openings made for that purpose (backside control panel)
• Ensure that the voltage marked on the rating-plate is the same as your main voltage.

3. USE

• Fill the bowl with oil between the min MIN and MAX level.
• ! NEVER heat up the deep fryer without oil or with insufficient oil. If you do so, the deep fryer may get damaged permanently.
• NEVER switch the deep fryer on before it is filled with enough oil. NEVER leave water in the stainless steel bowl when filling it with oil. The oil must always be between MIN and MAX, otherwise the safety thermostat switches off.
  ■ Before inserting the plug into the socket, fold out the basket handle and suspend the basket on the hook.
• Now turn the thermostat knob clockwise to the desired temperature. The heating control lamp lights up. As soon as the selected temperature is reached, the heating control lamp goes out and the fryer is ready for frying.
• When the oil temperature drops, the heater and the control lamp will switch back on and will go out as soon as the selected temperature has been reached again.

• Put the previously dried food in the basket (max. two third full). For an optimal frying result, we advise the following quantities:

• Frozen French fries: Fill the basket max. 2/3

• Fresh French fries: max. 150 gr./liter oil
  ○ Delicate dishes like croquettes, fish, ...: only cover the bottom of the basket.

• ! Always remove all redundant icing-up in advance, again to avoid oil splashes.

• ! NEVER hang the basket, filled with frozen products above the oil as long as 130°C is not reached. This causes dangerous splashes of the oil.
• Immerse the basket gently in the oil to allow the water contained in the food to evaporate.
• IMPORTANT: To avoid damage to the oil, NEVER add salt or spices during the frying. It's better not to thaw out frozen portions, this way the quality will be much better.
• Deep fryer with antidust lid: NEVER heat up the deep fryer with the lid on and NEVER fry with the lid on
• Deep fryer with filter lid: frying with the lid on the fryer is allowed
  ■ After frying pull the basket up and suspend it on the hook.
• Bring the thermostat knob back to the position of the lowest temperature and disconnect the plug. Allow complete cooling before emptying and cleaning the deep fryer. Only fold in the basket handle when the oil has completely cooled off. Put the cord into the cord case.

4. MAINTENANCE

• Remove the plug and let the deep fryer completely cool off before disassembling it. First remove the basket, then the control panel with heating element and the bowl.
  ■ NEVER immerse the control panel in water or any other liquid. Only clean it with a damp cloth.
• Stainless steel housing, lid and enamel bowl can be cleaned in the dishwasher or in hot water with detergent. Nevertheless, we recommend to clean the stainless steel parts in hot water with detergent, considering the aggressive detergents used in the dishwasher may affect the shine of the stainless steel.
• We advise to clean the basket in hot water with detergent and a washing-up brush. NEVER let the basket soak in the water, as it could rust because of the aggressive detergents.
• If you want to clean your deep fryer quickly, easily and safely, we advise you to use the FRITEL cleaner for fryers. Thanks to the FRITEL cleaner for fryers, this will all be done in no time. Fill the bowl of the deep fryer with warm water at +40°C and add about 10 caps of FRITEL cleaner for fryers. The product must soak in for +/- 20 minutes, then empty the bowl. Rinse thoroughly and wipe with a soft towel. The FRITEL cleaner for fryers contains natural enzymes. So, it's environment-friendly, biodegradable and non-toxic. The FRITEL cleaner for fryers can be applied to all materials like stainless steel, synthetic, enamel, etc.

5. TROUBLE SHOOTING

Do not use the appliance, when damaged. First go through the following checklist:

The fryer doesn't work	The bowl is placed backwards in the housing so that the control panel cannot be placed correctly on the sliders => Solution: The basket hook in the bowl must be at the front of the fryer (opposite to control panel)
	The control panel is not correctly placed on the sliders => solution: after cleaning, place the control panel correctly on the sliders. You will hear a clic when it has been cone correctly.
	The fryer is stored in a cold place. If you do so, it can be switched off by the safety thermostat => solution: before using the fryer, place it at room temperature for about an hour, so that the fryer can get at room temperature.
	Verify if the reset button has come out. In that case you will see a red button at the backside of the control panel => Press the reset button back inside (after the fryer has cooled off) and in most cases the fryer will work again.
	The resistance has a blue-grey color => the fryer has probably been heated without oil, or with too little oil. In some cases this problem can be solved by pressing the reset button. If the fryer still doesn't work, the only solution is to replace the complete control panel.
The fryer is overheating	If this happens, the fryer will be shut off by the safety switch. To use the fryer again let it cool off entirety first, and then press the red reset button at the backside of the control panel.
The fryer boils over / the oil starts to smoke	Do not let the oil get too old or too dirty. Replace the oil after approx. 10 times, depending on the ingredients used.
	Avoid water accumulation on the bottom of the bowl:Remove as many as possible ice from frozen productsDry off well fresh riesChoose the appropriate potato kind, that doesn't contain too much water (i.e. Bintjes).
	Prebake at 170° min. Bake at 190°C.
	Fill the basket with no more than 2/3.
	Use the appropriate oil.
	The oil needs to be replaced.
The baking result is not crispy	Only use potatoes that release enough starch to form a crispy crust, like i.e. Bintjes.
	Wash and dry off the fresh fries
	Choose the right baking temperature. For fresh fries, we advise: prebake at 150-170°C and bake at 180-190°C.
The oil splashes too much	To avoid dangerous splashes, remove the ice from frozen products. Avoid water accumulation on the bottom of the bowl (see: the fryer boils over)
	NEVER hang the basket, filled with frozen products above the oil as long as 130°C is not reached.
The control light doesn’t work anymore	Return the fryer to your sales point.
After pressing the reset button, the fryer still doesn’t work	Return the fryer to your sales point.
	Check if the mains voltage matches the mains voltage indicated on the appliance. Only use the fryer with 230 Volt alternating current
The power cord is damaged	Return the fryer to your sales point.
The safety thermostat is switched off	Let the fryer cool off entirely and then press the reset button.

If you still haven't repaired the defect, please call your sales point.

The appliance has been developed for household use. For professional purposes, the conditions of warranty change. Any damage caused due to incorrect use (non-observance of this user manual) will cancel the warranty.

6. WARRANTY CONDITIONS

The legal warranty is valid from the date of purchase. The proof of purchase determines the date of purchase. The duration and conditions of the warranty depend on the national legislation of the country of purchase. If you have a defective appliance, contact your seller with your proof of purchase.

The user is responsible for cleaning and proper packaging of the defective appliance before presenting it for repair. It is insufficient to wrap the device in cardboard packaging with paper. Fritel is not liable for damage resulting from insufficient packaging, which also irrevocably invalidates the warranty.

Determination of warranty:

• The warranty covers every repair and/or replacement free of charge of the parts recognized defective by our Department of Service after Sale if the damage is due to faulty design, material or construction. The warranty does not cover damage or normal wear of the baking plates.
• The warranty is only valid for the first/original user.
• The transport costs, in case of reparation, are at the expenses of the purchaser.
• The warranty is only granted after presentation of your purchase invoice.
• The warranty cannot be invoked for normal wear and tear.

The warranty expires automatically in the following cases:

• Incorrect connection, e.g. electric voltages.
• Abnormal or professional use or misuse handling.
• In case of insufficient packaging and bad transport in case of return shipping.
• Lack of care and cleaning.
• Modifications or repairs made to the appliance by persons not authorized by us as a manufacturer.

• When reference numbers have been altered or been removed.

• For faults not due to the appliance itself, but to an external cause, collision, damage, fire, earthquake, flood, lightning, etc.

• When not respecting the instructions in the user instructions.

For appliances that are not under warranty for any of the above reasons, all costs (transport, administration, research, handling) will be charged.

The most recent version of the detailed legal warranty conditions, as well as the detailed commercial warranty conditions can always be consulted on www.fritel.com.

7. ENVIRONNEMENT

Do not throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you will help to preserve the environment.

8. LIABILITIES

All liabilities, towards both consumer(s) and third parties, which could result from not observing all the safety regulations prescribed in this user manual, can under no circumstances be charged to the manufacturer. In case of non-observation of these safety regulations, the user of the appliance, or any other person not having observed these safety regulations, protects the manufacturer from all responsibilities that he could be charged with.

9. ACCESSORIES, SPARE PARTS AND OTHER FRITEL PRODUCTS

Visit our webshop on www.fritel.com and discover our FAQ's, available spare parts and accessories, as well as all other products in the FRITEL range for even more FRITEL fun!

10. FRYING TIME AND TEMPERATURES

Cooking temperatures and times in the table are approximate, and will vary according to the quantity of food being fried and to your individual tastes.

Potato dishes	Time	Temp.
French fries, pre fry	3 - 5 min.	150 - 170°C*
French fries, second fry	2 - 3 min.	190°C
Deep frozen French fries	2 - 4 min.	190°C
Potato chips/crisps	3 - 4 min.	190°C
Sweet dishes	Time	Temp.
Custard doughnuts, apple fritters	3 - 5 min.	190°C
Doughnuts	5 - 6 min.	190°C
*Frying temperature depends on the season and type of potatoes

Fish dishes	Time	Temp.
Filets of fish coated w. bread crumbs	3 - 4 min.	170°C
Sole	3 - 5 min.	180°C
Trout, cod	3 - 5 min.	180°C
Dishes coated w. bread crumbs	Time	Temp.
Potato croquettes	3 - 4 min.	190°C
Cheese croquettes	2 - 4 min.	190°C
Shrimp croquettes, Fish croquettes	3 - 4 min.	190°C
Meat balls	3 - 4 min.	190°C
