Safety Notes

1. Please read this instruction manual carefully before use and keep it properly for future use.
2. The product design and spec in the manual may slightly vary from the actual product. Please take physical product shall prevail.
3. Never leave the machine working without supervision.
4. Please turn off the power switch and unplug the power cord if the machine is to be idled. Do Not unplug the power cord with humid hand in case of electric shock.
5. Cut off power when machine is under cleaning, repairing or is not used.
6. Keep the power cord away from sharp objects and do not drag the cord to move the machine in case of cord damage.
7. For safety reasons, please do not use the product to clean hot objects such as carbon, cigarette butts, sharp objects such as broken glass, corrosive liquids, flammable and explosive materials such as gasoline and alcohol. Otherwise it may cause product damage or fire.
8. Do not use this machine to pick up water or wet dust, and avoid the machine from being exposed to rain, water or being used in wet places (such as bathrooms, washrooms, laundry rooms, etc.) to avoid failure.
9. Avoid the product approaching heating appliances or being exposed to the sun to avoid fire.
10. Do not let children play with or operate the product to avoid accidents.
11. Avoid product running for a long time when the suction port is blocked to avoid damage.
12. The product is equipped with UV light. Do not view the bottom of the machine when the power is turned on to prevent UV rays from causing harm to human body.
13. Please do not let UV light shine on plants to avoid damaging them. Do not concentrate UV light in one place for continuous use, which may cause damage to the cleaned objects.
14. Do not sit on the product to avoid damage.
15. Do not remove brushroll when machine is powered on or running to avoid damage.
16. This product can only use for cleaning of textiles such as mattresses, blankets, pillows, sofas, etc.
17. Do not use this product on silk products.
18. If there is damage on power cord, to avoid danger, it should be replaced or repaired by manufacturer, repairing agency or professional person.

Product Assembly

Parts Name

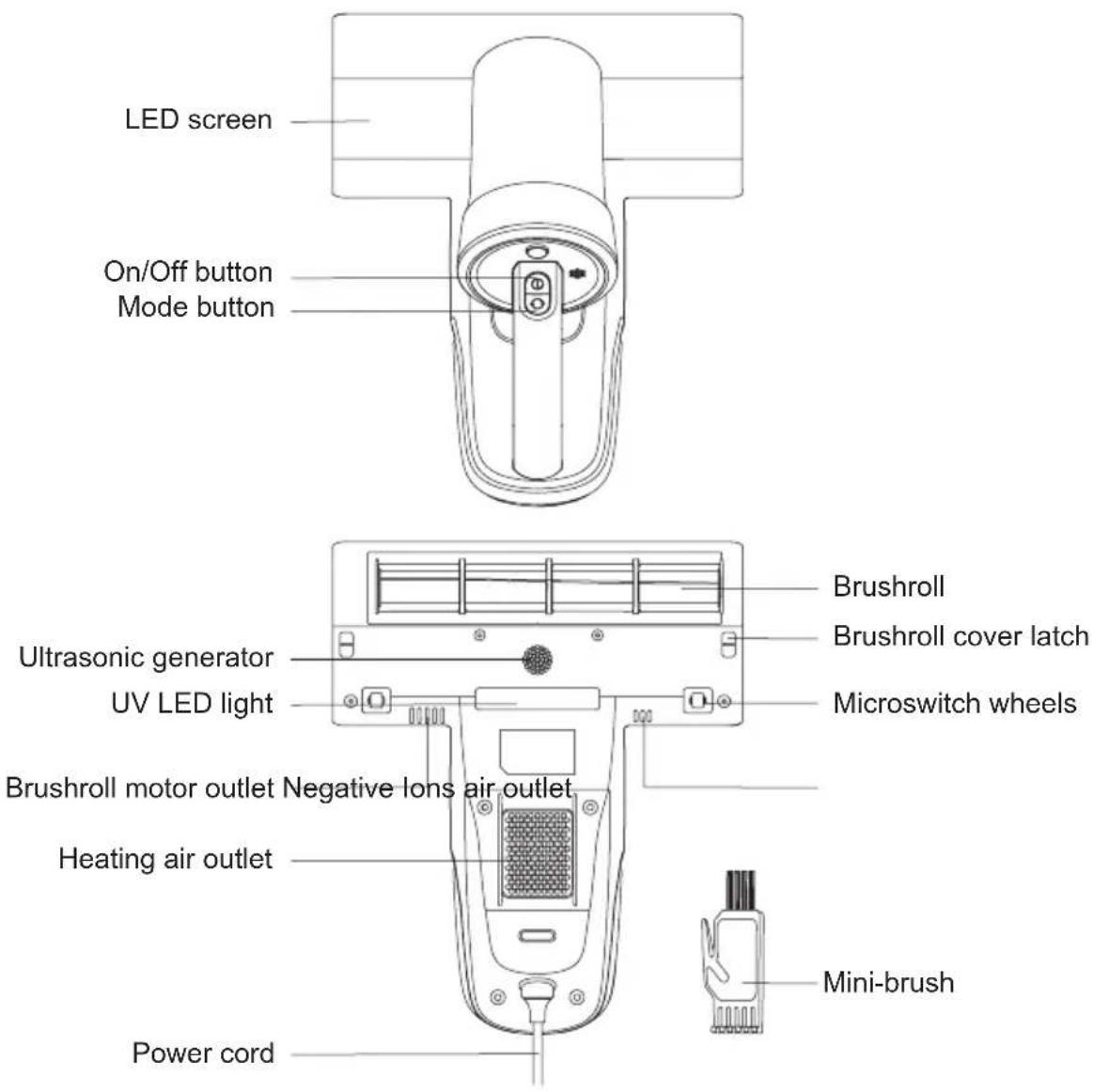

LED screen On/Off button Mode button Ultrasonic generator UV LED light Brushroll motor outlet Negative ions air outlet Heating air outlet Power cord Brushroll Brushroll cover latch Microswitch wheels Mini-brush

Packing List

Part name	Anti-miteVacuum Cleaner	MIF filter Mini-brush User manual
Quantity 1 1	1 1

Use of the Product

Function description

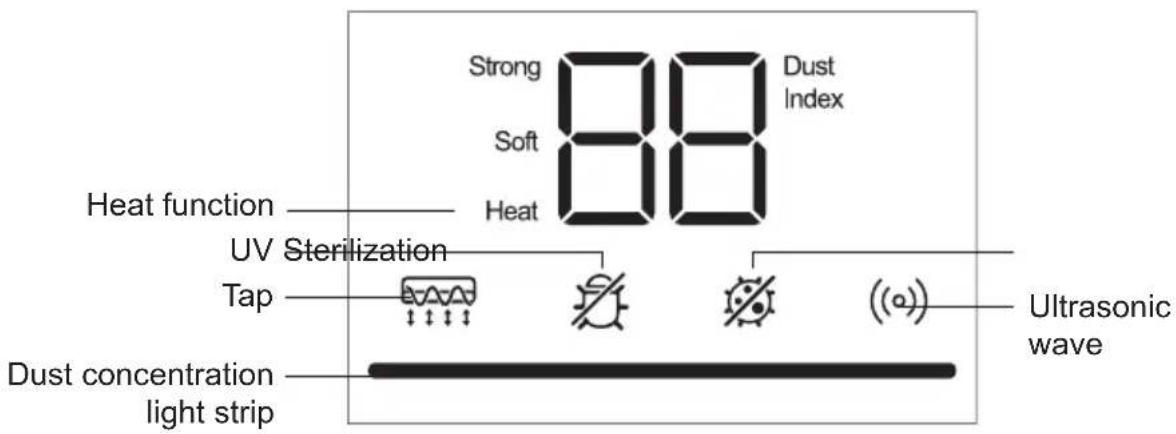

Strong Soft Heat Dust Index Heat function UV Sterilization Tap Dust concentration light strip Ultrasonic wave

1. The indicator of Tap, UV, Sterilization, Ultrasonic wave indicator will be stay light on after turning on the machine. Dust concentration index display (display range 0-99): When the cleaning surface has less dust, the dust index shows from 0 to 30. When the cleaning surface has medium dust, the dust index shows from 31 to 60. When the cleaning surface has much dust, the dust index shows from 61 to 99. The dust index value and the dust concentration light strip change according to dust concentration. When dust concentration increases, the dust index value increase and the light strip fades from white to red. When dust concentration decreases, the dust index value decrease and the light strip fades from red to white.
2. Insert the plug into the socket, press on/off button, the machine is in strong mode by default and strong indicator lights up. Press the mode button to switch the soft mode and soft indicator lights up, strong indicator lights off. Press the mode button again to switch back to strong mode.
3. The heating function is switched on by default when turn on the machine and the heating indicator lights up. Long press the mode button for 3 seconds to switch off the heating function and the heating indicator lights off. Long press the mode button for 3 seconds again to switch on the heating function.
4. Press the on/off button again when turned on, the machine stops working and all the indicators light off.

Note:

1. When the dust over the Max line, please clean the dust cup and MIF filter in time.
2. For safety reasons, the UV light only works when two micro switches are pressed simultaneously. Otherwise, the UV light will automatically turn off.

3. The product is equipped with UV light. Do not view the bottom of the machine, shine on plants when the power is turned on to prevent UV rays from causing harm to human body or other objects.

4. Do not touch the hot air outlet on the bottom of the machine in case of hand scald after the heating function turned on. After machine turns off, there is still remain high temperature on the hot air outlet, also please do not touch it with your hands.

Cleaning and Maintenance

Dust cup cleaning

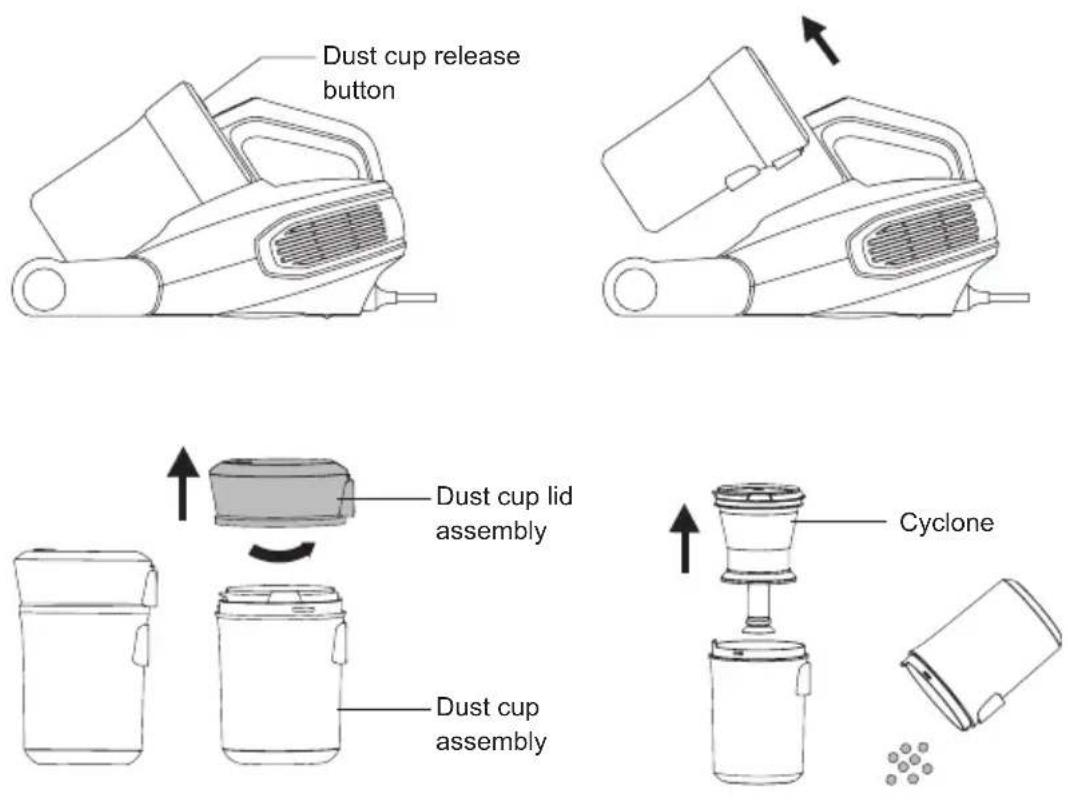

1. Turn off the machine and unplug the power cord. Then press the release button and lift upward.
2. Hold the dust cup and dust cup lid separately, twist dust cup lid according to the arrows instruction on dust cup, lift up and remove it from dust cup to clean.

Note:

1. MIF filter is available for sale at JIMMY distributor.
2. It is recommended to clean the dust cup in time after each use. When there is too much dust to cause MIF blockage, it needs to be cleaned in time or replaced if necessary.

MIF filter and Cyclone Cleaning

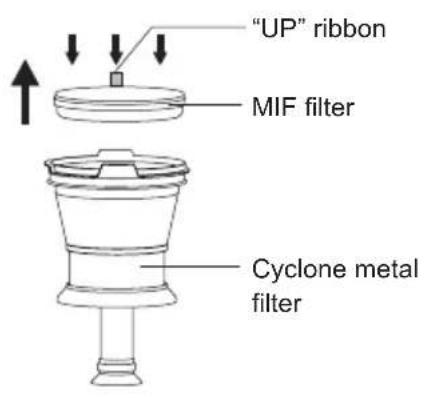

"UP" ribbon MIF filter Cyclone metal filter

Mini-brush

Cyclone metal filter

1. Hold the cyclone in one hand, pinch the "UP" logo with the other hand, and take out filter .Do Not tap the filter in reverse side in case of filter clog.Clean the cyclone metal filter and plastic parts with the attached mini brush.
2. After cleaning dust cup, MIF filter and cyclone, assemble in reverse order. Rotate the dust cup cover assembly into the dust cup. After hearing a "click" and the mark is aligned with the lock position that is assembled in place.
   1.Do Not miss the MIF filter!
3. If too much dust is accumulated in the dust cup, clean the dust cup and filter assembly with water, and wipe them with dry cloth. Pay attention that MIF filter need to be washed as less as possible. Clean the dust and foreign matters on MIF filter by tapping, and ensure that the dust cup and filter assembly are completely dry before installation.

Note:

Brushroll Cleaning and Installation

Brushroll cover release button Brushroll Brushroll cover

1. Turn off the machine, unplug the power supply, push the brushroll cover latch. Turn it from the closed state to the open state, and then remove brushroll cover and take out brushroll. Clean brushroll with cleaning brush.
2. After cleaning the brushroll, install the brushroll and brushroll cover back to mainbody in turn, and lock the brushroll latch.

Note:

For safety reasons, please turn off the machine and unplug power cord before cleaning brushroll.

Maintenance and Storage

1. Please clean dust cup and filter after each use for further use. It is recommended to clean immediately when there is too much dust in dust cup.
2. It is recommended to replace a filter after 30-50 hours of working time (depending on specific situation) for better use.
3. Any paper, lead glass, plastic will greatly affect the effect of UV light. Dust or stain on UV light cover will affect the effect of UV light. Please wipe and clean the UV light cover regularly for better use.
   4.Do not touch the UV light cover as dirt will affect UV light effect.
4. Put the machine in cool and dry place if the machine is to be idled. Do Not leave it in direct sunlight or humid environment.

Trouble Shooting

Please check the following trouble points before contacting after service.

Problems	Possible Reasons	Solutions
Product does not turn on	Power cord is not firmly inserted	Insert the power cord firmly
	No power on socket	Check the socket
	On/off button is not pressed down	Press the On/Off button
Weak suction	Air inlet blocked Clean up suction port
	MIF filter blocked Clean up the dust cup and filter
	Cyclone blocked Clean cyclone
UV light does not work	Micros witch damaged	Contact after-sale service to replace micro switch
	Machine tilt and micro switch left cleaning surface or micro switch wheels stuck prevent UV lamps from triggering	Contact after-sale service to replace micro switch wheels
	UV light damage	Contact after-sale service to replace UV light
Machine stop working suddenly	Dust cup full	Stop using the product and clean blockage and use the machine after 2 hours
	Suction port clogged
	Filter blocked
Brushroll stop working suddenly	Brushroll entangled	Take out brushroll, clean it and reassemblereassemble
	Belt loose or broken	Contact after service to replace belt

If fault remains after adopting the following solutions, contact after sale service or local distributor immediately.

Product Specification

Technical parameter

Model No BX8
Rated Voltage 220-240V~
Rated Frequency 50-60Hz
Rated Power 600W

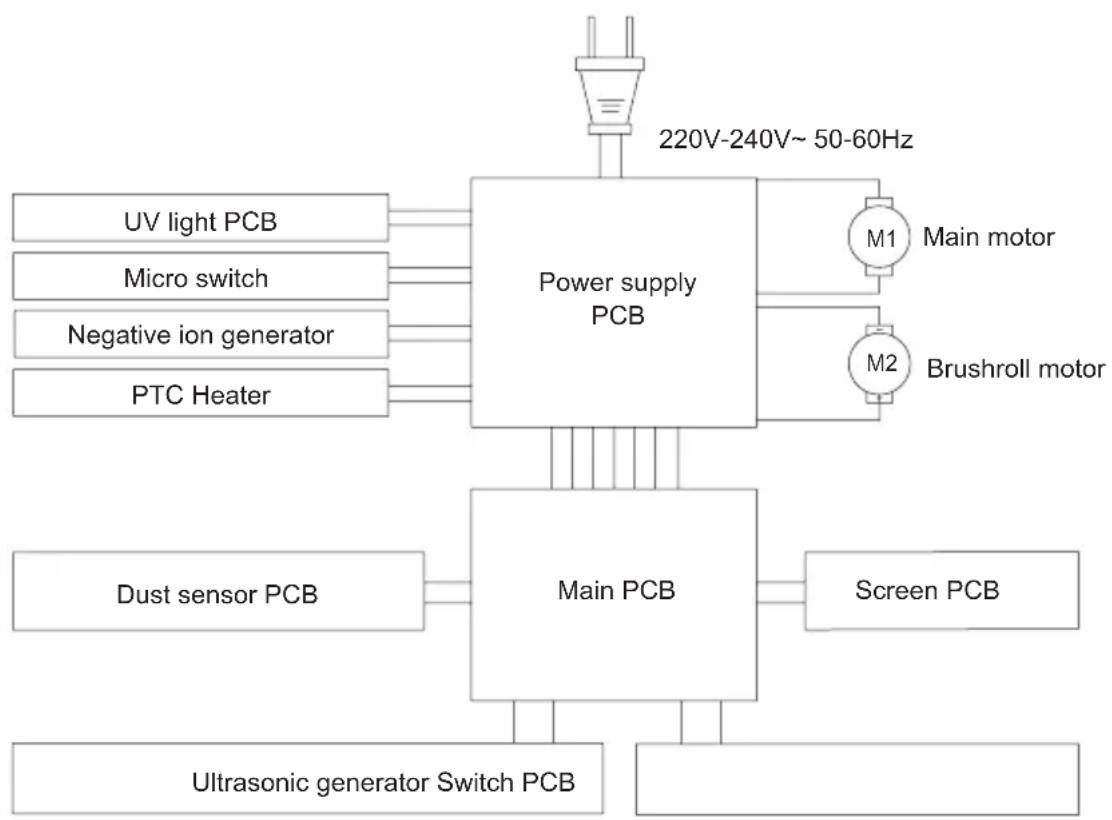

Circuit Diagram

Manufacturer Information

Manufacturer Kingclean Electric Co., Ltd
Address	No.1 Xiangyang road, Suzhou New District,Jiangsu province, 215009, China

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of the machine into household waste!

Only for EC countries: According to the European Guideline 2012/19/EU, machine that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.
