Instructions and user manual

P10B

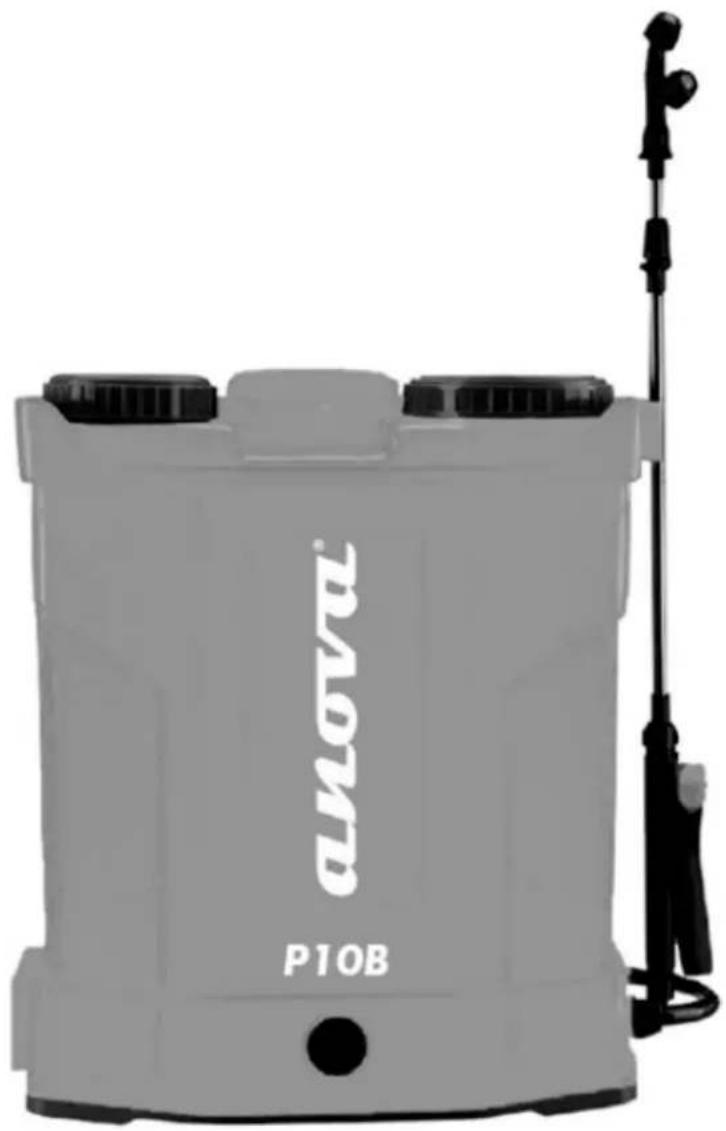

Exterior view of a modern spray sprayer with 'P10B' branding and black handle (no additional text or symbols)

ANOVA®

ANOVA would like to congratulate you for having chosen one of our products and guarantees the assistance and cooperation that has always distinguished our brand over time.

This machine is designed to last many years and to be of great use if used in accordance with the instructions contained in the user manual. We therefore recommend that you read this instruction manual carefully and follow all our recommendations.

For more information or questions you can contact us through our web supports such as www.anovamaquinaria.com.

INFORMATION ABOUT THIS MANUAL

Please pay attention to the information provided in this manual and on the machine for your safety and the safety of others.

• This manual contains instructions for use and maintenance.
  • Take this manual with you when you go to work on the machine.
• The contents are correct at the time of printing.
• They reserve the rights to make alterations at any time without affecting our legal responsibilities.
• This manual is considered an integral part of the product and must remain with it in case of loan or resale.
• Ask your dealer for a new manual in case of loss or damage.

READ THIS MANUAL CAREFULLY BEFORE USING THE MACHINE

To ensure that your machine provides the best results, please read the usage and safety regulations carefully before using it.

OTHER WARNINGS:

Incorrect use could cause damage to the machine or other objects. Adaptation of the machine to new technical requirements could cause differences between the content of this manual and the product purchased.

Read and follow all instructions in this manual. Failure to follow these instructions could result in serious personal injury.

CONTENT

1. Intended use
2. Structure and characteristics
3. Technical data
4. Operating instructions
5. Important notes
6. Safety instructions
7. Troubleshooting
8. Maintenance and storage
9. Guarantee
10. Environment

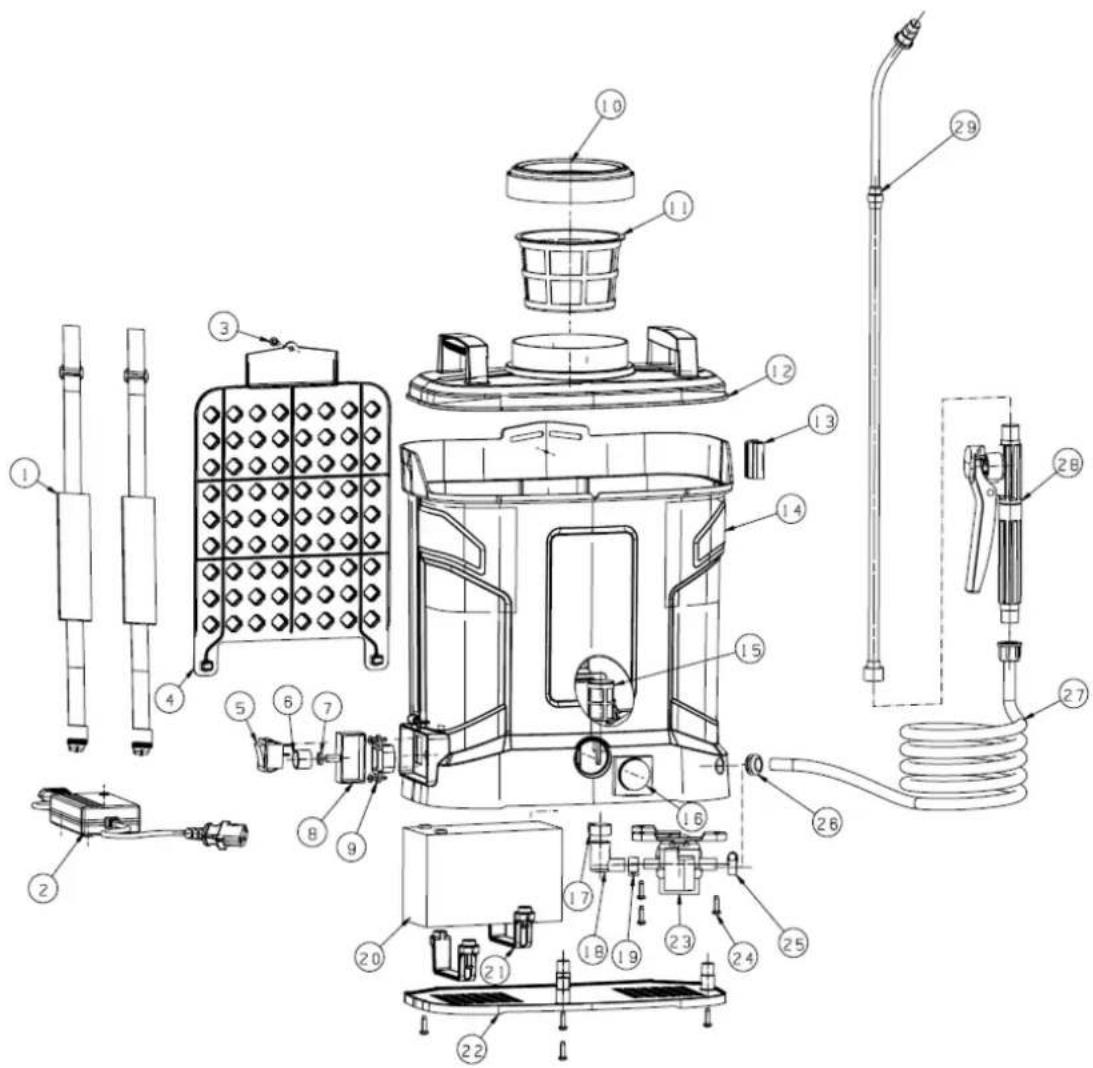

11. Exploded view
12. EC Declaration

1 Intended use

The P10B backpack mounted sprayer is designed to meet market demands for a high-efficiency sprayer that saves work for the user. This sprayer is characterized by safety, efficiency, novel, ergonomic design and convenience of rear assembly, it is protected by several state patents, especially suitable for pest control of crops, flowers, gardens, cleaning public places and sanitation and control of livestock epidemics. Powered by 12V/10Ah battery, this sprayer is very labor-saving and achieves 3 to 4 times efficiency than manual. It can be operated continuously for up to 9 hours and spray 400-480kg of liquid after a full charge consuming only 0.3kwh of electricity. It can achieve excellent atomization result.

√ A new machine must have its battery charged before using it for the first time. It is normal for new machines or those that have been stored for a long period of time to be incompletely charged. The battery must be fully charged before first use.
√ Do not charge the battery in a humid room or with wet hands, you may receive an electric shock.
√ Be sure to charge the battery after use. Please charge it fully before storing the machine.
√ If the operator suffers from any type of illness or is unwell/unable to perform work with the machine, stop working immediately and see a doctor immediately.
√ Do not use the machine to spray corrosive liquids, burning oil and other volatile liquids to avoid risk of fire or damage to the machine itself.
√ If the liquid to be applied is mixed incorrectly, the risk of harming people and the crop on which you apply the product will increase. Please read the introduction and directions for each pesticide before application.
√ It is prohibited to place the pesticide in containers other than the one indicated to avoid risks of accidental ingestion.
√ To avoid incidents due to contact with the pesticide, the operator must wear protective clothing appropriate to the product used, especially gloves, mask and eye protection.
√ The machine cannot be used by intoxicated people, patients with disabling ailments, people with excessive levels of fatigue, allergic people, pregnant women, children or any other person not authorized or with sufficient training to understand the operation of the machine and its risks.
√ After each use, the operator must wash the entire tank with soap and water. Meanwhile, the operator must clean his eyes with clean water and change clothing appropriately to avoid contamination.
√ Do not let the tank or cleaning water flow from the machine into natural or untreated flows to avoid any type of contamination. Pay attention to the relative specifications on the product applied with the machine to see what type of removal must be carried out.
√ The machine should be completely cleaned, dried and its battery fully charged after use, then placed in a cool, dry place.

2 Structure and characteristics

Structure: The sprayer consists of tank, base, battery, pump, charger, spray system (rubber tubes, switch, spray wand, nozzle), strip, wheels, etc.

Characteristics:

(1) Smooth and ergonomic appearance. The sprayer is ergonomically designed to mimic the human back and allow for more comfortable mounting.

(2) It comes with a mini diaphragm pump which is compact in size, light in weight, high pressure and long service life and features a pressure protection switch to enable automatic pressure limit protection.

(3) With triple filter protection to prevent foreign matter or particles from clogging the nozzle. The screen is uniquely structured to allow easy disassembly for cleaning.

(4) With low voltage alert circuit. In case of long-term operation, the alarm will be heard when the ground voltage drops to 10.5V, to protect the battery. The supplied charging socket can be used as a 12V power source in addition to a charging unit.

(5) With a special charger: Features three-section intelligent charging (constant current/constant voltage/maintenance) and short circuit/overcurrent/reverse connection protection, the charger indicator lights: red charging, green charging/Standing.

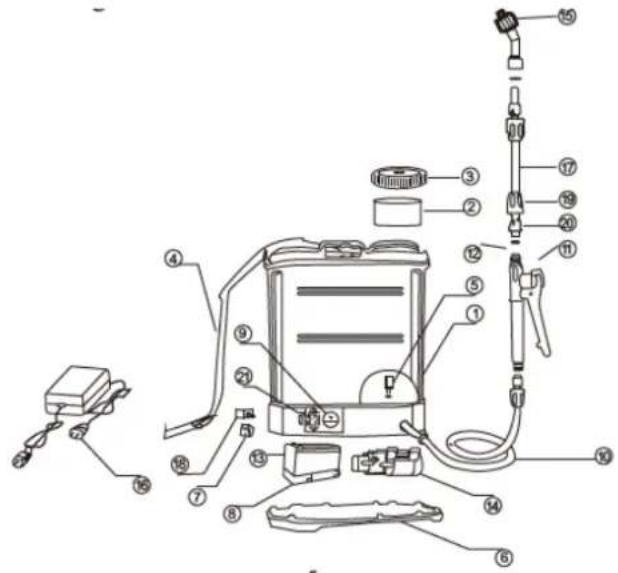

Labeled diagram of a portable water heater system with numbered components for identification

Description S/N

1. Tank

2. large filter

3. tank cap

4. Belt

5. Small filter

6. tank bottom

7. On/off switch

8. Battery cover

9. Voltmeter

10. hos

11. Handle switch

12. cock pin

13. Battery

14. Bomb

15. Bozzel

16. Charger

17. lance

18. Speed control/governor

19. Spear thread

20. Plug

3 Technical data

1. Type: back mounted, backpack type
2. Size: 40 x 190 x 555mm
3. Net weight: 5 Kg
4. Barrel capacity: 10L
5. Pump: mini diaphragm pump
6. Battery: 12V 10Ah (fully enclosed, maintenance-free) Maximum pressure: 0.15-0.4 Mpa
7. Charger: AC220V input, 50Hz, DC12V 2A output
8. Flow: (double nozzle): 1.2L/min - 2.2L/min

toe type	Pressure Mpa	Flow rate L/min
Conical	0.29 – 0.32	0.7 – 0.8
Sectorial	0.16 – 0.17	1.2 – 1.3
4 outputs	0.27 – 0.28	0.8 – 0.85
Double conical	0.17 – 0.18	1.6 – 1.7

4 Operating instructions

Be sure to charge the battery sufficiently before operation. Fill the barrel with prepared liquid through the filter and close the barrel lid.

Observe to check whether leaks occur at the bottom of the barrel or not. Turn on the power switch and squeeze the switch handle to start spraying. Instant or continuous spraying is allowed.

Three types of nozzles are supplied to meet your demands.

(1) Sectoral misting nozzle: uniform misting. Suitable for short crops and herbicide spraying. Follow the wind and move parallel to one side while spraying.
(2) Conical mist nozzle: suitable for pest control. Follow the wind and move crosswise to one side while spraying.
(3) Adjustable four-outlet nozzle: suitable for spraying tall crops and fruit trees. However, it can result in significant loss of pesticide.

5 important notes

1. The battery has been charged before being delivered. However, it will be automatically discharged during transportation and storage. Therefore, additional charging is required before initial use.

2. Make every effort to avoid operating the sprayer without water, as this may damage the diaphragm. Never place the sprayer upside down. Otherwise, the battery may be damaged.

3. In case a burst is heard from inside the sprayer or poor atomization after long-term use, it shows low current voltage and requires timely charging. Connect the charging plug to the "charging" socket without removing the battery from the sprayer. For each charge, a duration of at least 8 hours is required. The charger should be placed in a dry, well-ventilated and safe place more than 50 cm above the ground.

4. Test spraying with clean water is necessary for initial use to ensure no leaks or poor atomization.

5. There are some points that the operator should remember when spraying:

- The use of a mask and gloves is required. Never operate with a naked body. Never let pesticides come into contact with your body. Never spray pesticide upwind. Never spray humans, animals or food. Never operate for a long time at high temperature. Never drink alcohol immediately after spraying. Strict compliance with the pesticide manufacturer's safety instructions is required when dispensing the pesticide.

- Never operate with special liquids such as strong acids, strong bases and flammable products. Never use highly persistent and highly toxic pesticides to control pests on vegetables, fruit trees, tea and medicinal plants.

- The unit should be thoroughly cleaned after each use to avoid corrosion, clogging and mixing of residual lucidum with the liquid from the next spray, which can damage crops or reduce effects. Cleaning method: for outdoors, rub with a damp cloth. For interior. Fill with a small amount of water and shake before turning on the power to discharge.

1. In the case of short-term operations, recharging is not required for each use. In case of long-term storage, regular discharge and recharging of liquid with an interval of half a month, one month or two months is necessary to ensure the life of the battery.

2. Do not operate this sprayer in a place with a temperature above 45 or below 10.

3. After using for half a year. You need to disassemble the base and check whether the screws are loose or not. If they are loose, tighten them.

Be sure to turn off the power before storing it.

It is strictly prohibited to keep this sprayer near fire or expose the base to water or immerse the machine in water for cleaning or filling.

Never spray powders or particles with this sprayer.

Unauthorized removal of the charger housing is prohibited.

As a general rule:

- Do not use pesticides/products that are banned by authorities.

- Do not use the machine to damage the environment and public property.

• Use the machine with caution where the ecological balance may be affected.
• Do not allow the pesticide tank to flow freely without being properly treated to avoid environmental contamination.

6 Safety instructions

• Read this manual carefully. Make sure you understand how to operate this machine correctly before using it.
• Always use appropriate protective clothing and protective elements to avoid any type of contamination.

Wear a protective hat or helmet.

Wear dirt-proof/anti-fog glasses.

Wear respiratory mask.

Use gloves.

Wear protective uniform against poisons and chemical contamination.

Wear boots.

- The following personnel will not be able to use the machine:

Mental patients or patients influenced by medications.

People intoxicated or influenced by drugs.

Minors.

People without knowledge of the machine.

People who are exhausted or have not gotten enough sleep. Women who are breastfeeding or pregnant.

- Battery recharge

If the cord or plug is damaged or the plug is loose, do not use it, or you may receive an electric shock, fire or other electrical damage.

Do not pull the plug with wet hands to avoid electric shock.

If the plug is not inserted fully, there is also a risk of electric shock or fire.

Please remove dust or other dirt from the plug. Dust can also cause fires when in contact with electrical surfaces.

Do not place this machine in a humid or dusty place to avoid electric shock, heat, combustion, etc.

Do not charge more than the set charging time, or it will cause the battery to leak, heat break, etc; and thus reduce its useful life.

When storing the machine, avoid direct sunlight on the equipment. Also avoid hot environments and areas/objects that emit heat on their own. Otherwise, the wear of the battery will accelerate, and may render it invalid and unusable for further work.

Do not charge the battery when the battery temperature is low or it is extremely cold outside.

NEVER throw the battery into fire or heat it, as this will corrupt it and render it unusable.

If you find battery leakage, color change or deformation, please do not use it anymore and replace it with a new one.

- Spraying

Carry out the operation on preferably cold days with little wind. This can reduce the evaporation and drift of chemicals and improve the effect of the product.

The operator must move with the wind in favor to avoid being impregnated with product by the effect of the air.

If your mouth or eyes are splashed with a chemical product, wash them immediately with clean water and then go to the doctor accompanied by the container of the product and the safety instructions that must be on it in case of poisoning.

If the operator has a headache or dizziness, stop working immediately and go to see a doctor in time with the reference and indications of the applied product.

For operator safety, spraying must be carried out strictly in accordance with chemical instructions and agricultural requirements.

Spray as directed in the pesticide manual and follow instructions on how to remove and clean any residual product mixture in the equipment tank.

After spraying, always wash your hands and face carefully. Also eliminate remains on clothing and other materials susceptible to contamination.

7 Troubleshooting

If the spray is abnormal, the charging is incorrect or there are leaks, refer to the table below. Please contact your authorized dealer to remedy any other issues not covered here.

Abnormal spray
Problem		Cause	Solution
The motor docs not start		The switch is in position “0”	Place it in “—” position
		The plug is loose	Reconnect
		The switch is damaged	Replace it
		The connection cable is cut	Replace it
		Blown fuse	Replace it
		The engine is broken	Replace it ※
		The engine has burned out	Replace it ※
		Battery charge is low	Replace or recharge
		Too much pressure in the circuit	Open the pressure handle
		Lance switch not working	Replace it ※
The engine starts	There is no pressure	Clogged nozzle	Clean it
		There is no liquid in the tank	Fill the tank
		The breather valve on the tank is dirty and stuck	Clean it
		Stuck pump valve	Clean it
		Clogged suction filter	Clean it
		Loose pressure handle nut	Tighten the nut
		Handle spring without effect	Replace it ※
		Unusable diaphragm	Replace it ※
	There is pressure, but it is very low	Stuck pump valve	Clean it ※
		Pressure adjustment valve is stuck	Clean it
		Clogged pressure tank nozzle	Clean it
		Engine not working properly	Replace it ※
		Damage to tubes	Replace it ※
		Damaged pressure switch	Replace it ※
		Clogged tubes	Unclog
		Loose pressure handle nut	Tighten the nut
		Handle spring without effect	Replace it ※
		Low battery charge	Replace or recharge
Abnormal battery charging
Does not load		Battery defect	Replace it
		Charger defect	Replace it
		Charger cable in bad condition	Reconnect
		Damaged cables	Replace or repair
Load capacity is not recovered		Charging time is not enough	Allow more charging time
		Battery defect	Replace it
		Charger defect	Replace it
Blown fuse
Engine does not start		Pressure switch without effect	Replace it ※
		Badly connected switch	Replace it
		Switch in position "0"	Place the switch in position “-”
		The engine starts with difficulty	Replace engine※

8 Maintenance and storage

- Daily maintenance

The following maintenance should be done after daily work.

1) Cleaning the oil and dust on the surface of the machine.
2) Clean the chemical tank with clean water and dry it.
3) Check all connections and whether there are water or fuel leaks. If there are leaks, repair is necessary before starting new work.
4) Check all screws to see if they are loose or missing. Screw tightly or replace those that are loose or damaged.
5) The battery must be charged before each storage.
6) The machine after each maintenance must be put in a dry and ventilated place. It should be away from fire sources and avoid direct sunlight.

9.2. Deposit for a long time

Depositing the machine for a long time involves maintenance as follows:

1) Clean the surface of the machine carefully
2) Discharge the chemical from the tank and pump, clean them with clean water.
3) The battery must be charged before storing. If deposited for a long time, it must be loaded every

two months.

4) All plastic parts should not be exposed to sunlight or under pressure from other materials.

5) Cover the machine with a plastic dust cover and store it in a dry and clean place.

a) Cleaning

1) Clean the chemical container. Recover the remaining chemical liquid and wash it. Fill one liter of

water into the chemical tank and then rotate it slightly.

2) Clean the internal fluid pump. After cleaning the chemical tank, refill the clean water and start the liquid pump to spray and clean the entire pipe.

3) Clean the filter net:

(1). Clean the filter mesh at the mouth of the chemical tank.

(2). Clean the suction filter net inside the chemical tank.

There is a filter suction net at the bottom of the chemical tank to prevent the dust coming through the filter net at the mouth of the chemical tank from being sucked into the liquid pump. The suction filter is stuck to spray abnormally and infect the liquid pump greatly. Take out the suction filter to clean it carefully after each use.

The remaining chemical liquids and water washed from the machine should not flow into rivers, lakes, ponds or sewers to avoid contamination. Follow the handling instructions for the chemical.

b) Battery maintenance.

In the course of operation, you need to control the charging frequency and time and with reference to the usual spraying frequency and time. It is best to charge when the battery discharges to 60% to 70%, the average charging time is about 8 hours.

Long charging time may cause the battery to leak water, become hot, and reduce battery life. When we store the battery, it should not be without any charge. Without any charge at the time of storage, we would not be able to recharge it in time for a second use. If we store the battery without energy, vitriolization, the crystallization of lead sulfate, will easily occur, which obstructs the output of electrical ions, and will cause the energy to be insufficient and also the capacity of the battery will be lower. If the battery is left without power for a long time, the battery will be damaged more seriously. Therefore, if we don't use the battery for a while, we should charge it once every two months, so that we can keep the battery in a good condition.

It is normal for the charger to be a little hot during charging.

Overcharging will significantly reduce battery life.

Do not connect the battery directly to the charger while working.

Do not disassemble or assemble the battery. The battery has protective equipment, if you modify it,

it will cause the battery to heat up and lose its properties.

Do not connect the anode and cathode of the battery with metal material. Do not carry the battery with metal material, or it will cause the battery to leak, become hot and lose its properties.

Do not charge in a damp room or with wet hands, or you may receive an electric shock.

Use the special charger supplied with the machine. It is prohibited to charge other electric machines with the special charger of this machine or as a power source.

Do not leave this machine under the sun, in high temperature conditions or elements that radiate heat, or it will accelerate the deterioration of the battery, cause the battery to leak liquid, radiate heat, split and lose its properties.

The charger light will turn on if charging immediately after finishing charging. Do not leave the battery connected for too long as it will result in overcharging.

If you find that the charger is abnormal, please remove the plug immediately to avoid electric shock, fire or explosion.

Do not throw the battery into fire or heat it, as the battery will split and electrolyte will splash out.

c). Replacing the fuse

To protect the cable and the electric machine, this machine is equipped with a fuse. If it blows due to something, unplug the equipment from its right and left sides, take out the battery assembly, loosen the packing strap, remove the battery, and open the fuse cover to replace the damaged fuse with a new one. Find out the cause of the blown and remedy it before working again and having the same problem.

Some possible causes of fuse failure:

• The charger does not match the battery or has compatibility problems.
• The pesticide has adhered to the liquid pump.
• The cable is shorted due to damage.
• Incorrect connection.

9 Guarantee

If your product suffers from a manufacturing defect during the established warranty period, please contact or go to your point of sale directly with the necessary documentation.

Your purchase invoice should be kept as proof of the purchase date. Your tool must be returned to your dealer in acceptable, clean condition, in its original molded case, if applicable to the unit, accompanied by your applicable proof of purchase.

7.1. Warranty period

The legal warranty period of the product begins on the original date of purchase by the first initial buyer and its duration will be that established by the Royal Decree-Law on the protection of consumers and users against situations of social and economic vulnerability of the year. corresponding to the time of purchase of the product.

Some countries do not allow limitations on how long an implied warranty lasts or do not allow the

exclusion or limitation of consequential or incidental damages, in which case the above limitation and exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or country to country.

7.2. Exclusions

This warranty does not cover product damage or performance problems caused by:

- Natural wear and tear.

- Misuse, neglect, careless operation or lack of maintenance.

- Defects caused by incorrect use, damage caused due to manipulations carried out by personnel not authorized by Anova or use of non-original spare parts.

- Defects of normal wear parts, such as bearings, brushes, cables, plugs or accessories such as drills, bits, saw blades, etc.

- Damage or defects resulting from abuse, accidents or alterations.

- Improper use and storage (explicit reference to the fact that the rules described in the operating instructions have not been followed).

- Customer-caused wear (e.g. broken saw blades, worn carbon brushes, etc.).

- Secondary wear and damage due to lack of maintenance, repair, lubricants (e.g. overheating damage due to blocked cooling slots, bearing damage as a result of dirt, frost damage, etc.)

- Damage as an obvious result of excessive use/overload.

- Damage caused by improper supplies (e.g. incorrect fuel)

- Load-induced failure of casing components or accessories due to abnormal stress

- Load-induced deformation of casing components or accessories due to abnormal stress.

- Damage resulting from the operation of supplies that overfill or leak due to improper storage, inappropriate cleaning agents or other damaging chemical components.

- Damage due to improper exposure to extreme temperatures (e.g., freeze fractures, thermal deformation of components, etc.)

- Damage from permanent exposure to ultraviolet radiation.

- Damage caused by inadequate maintenance.

- Any damage caused by failure to follow the instruction manual

- Any product that has attempted to be repaired by an unqualified professional.

- Any product connected to an inadequate power source (amps, voltage, frequency).

- Any damage caused by external influences (water, chemicals, physical, shock) or foreign substances.

- Use of unsuitable accessories or parts.

- It does not include defects in normal wear parts, nor does it cover damage or defects resulting from abuse, accidents or alterations, nor transportation costs.

Additionally, the warranty is void if the product has been altered or modified, or if the

trademark/serial number on the machine has been defaced or removed.

Routine maintenance, tune-up, adjustments or normal wear and tear are not covered under this warranty.

This manual does not cover all possible situations regarding warranty exclusions, for more information contact your nearest Anova dealer.

7.3. In case of incident

The guarantee must be correctly completed with all the requested information, and accompanied by the purchase invoice.

Anova reserves the right to reject any claim where the purchase cannot be verified or where it is clear that the product was not maintained properly (maintenance, clean ventilation slots, lubrication, carbon brushes regularly maintained, cleaning, storage, etc.).

Private use means personal domestic use by an end consumer. Instead, commercial use means all other uses, including uses for commercial, income-generating or rental purposes. Once the product has been used for commercial use, it will be considered a commercial product for the purposes of this warranty.

These are our standard warranty terms, but occasionally there may be additional warranty coverage not determined at the time of publication. For more information, contact your nearest official Anova distributor or visit www.millasur.com.

Warranty service is only available through official Anova dealers. You can locate your nearest distributor on our distributor map at www.anova.es.

10 Environment

Protect the environment. Recycle the oil used by this machine by taking it to a recycling center. Do not pour used oil into drains, land, rivers, lakes or seas.

according to their nature and recycled.

Dispose of your machine in an environmentally friendly way. We should not dispose of machines with household waste. Its plastic and metal components can be classified

The materials used to package this machine are recyclable. Please do not throw the packaging into household waste. Dispose of these packaging at an official waste collection point.

11 Exploded view

Technical diagram of a mechanical device with numbered components for identification and assembly reference.

12 CE conformity declaration

DISTRIBUTION COMPANY

MILLASUR, SL

EC DECLARATION OF CONFORMITY

In compliance with the different CE directives, it is hereby confirmed that, due to its design and construction, and according to the CE mark printed by the manufacturer on it, the machine identified in this document complies with the relevant and fundamental health and safety requirements. of the aforementioned EC directives. This declaration validates the product to display the CE symbol.

In the event that the machine is modified and this modification is not approved by the manufacturer and communicated to the distributor, this declaration will lose its value and validity.

Machine name: BATTERY SPRAYER

Model:P10B

Recognized and approved standard to which it complies:

Directive 2006/42/EC / 2014/35/EU / 2014/30/EU

EN ISO 12100:2010

EN ISO 19932-1:2013 EN ISO 19932-2:2013

EN 60204-1:2006+A1:2009+AC:2010

EN 61000-6-1:2007

EN 61000-6-3:2007+A1:2011 +AC: 2012

EN 61000-3-2:2014 EN 61000-3-3:2013

Company seal

MILLASUR, S.L.U.

Rúa Eduardo Pondal,23 - Pol.Emp..Sigüeiro

15688-Oroso-A Coruña

Tel.[phone] - Fax [phone]

e-mail: [e-mail]

CIF: B-15 749 922

10/21/2023
