USER MANUAL F6RT36S2 Fulgor Milano

Safety Instructions .... 4

COOKTOP SAFETY 4

PERSONAL SAFETY 5

Models and Part Identification 6

Touch Control details (Full options) 7

Touch Control Characteristics for every model ..... 8

Element and Control Setting 9

Radiant Elements 9

Multiple Radiant Elements 9

Bridge Radiant Element 9

Setting Recommended Use 9

CONTROL INSTRUCTIONS FOR USE 10

Switching the control on 10

Elements setting 10

Using the Low Power Scale 10

Switching an element off 11

Dual element activation 11

Triple element activation 11

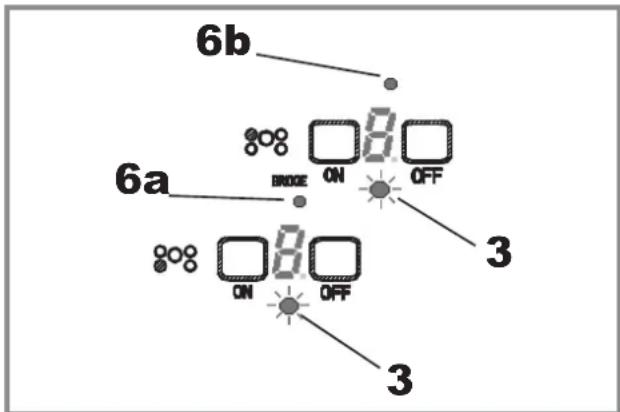

Bridge element activation 11

Hot surface indicator light 11

Fast Boil (Booster) function 11

Key Lock function 12

Setting the timer 12

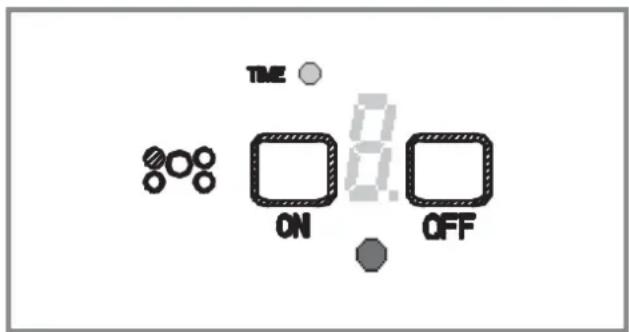

Rest Heat 13

Features 13

Electric Cooktop Operation 14

BEFORE USING THE COOKTOP FOR THE FIRST

TIME 14

Cookware 15

GENERAL 15

COOKWARE CHARACTERISTICS .... 15

OBSERVE THE FOLLOWING POINTS IN CANNING ..

15

Cleaning the Cooktop 17

Troubleshooting 18

Failures declarations 19

Assistance or Service 19

FULGOR WARRANTY for Home Appliances ..... 20

Pay attention to these symbols present in this manual:

WARNING

• This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.
• You can be killed or seriously injured if you don't follow these instructions.

READ AND SAVE THESE INSTRUCTIONS.

WARNINGS FOR ELECTRIC INSTALLATION

WARNING

• Installation and service must be performed by a qualified installer or service agency.
• The models may be powered at 240V or 208V.

CAUTION

• Always disconnect the electrical plug from the wall receptacle before servicing this unit.
• For personal safety, this appliance must be properly grounded.

Do not under any circumstances cut or remove the third (ground) prong from the power cord plug.

IMPORTANT

Safety Instructions

Please read all instructions before using this appliance.

COOKTOP SAFETY

WARNING

Proper Installation

- Be sure your appliance is properly installed and grounded by a qualified technician.

Never Use Your Appliance for Warming or Heating the Room

Do Not Leave Children Alone

- Children should not be left alone or unattended in area where appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

Wear Proper Apparel

- Loose-fitting or hanging garments should never be worn while using the appliance.

User Servicing

- Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be referred to a qualified technician.

Storage in or on Appliance

- Flammable materials should not be stored in an oven or near surface units.

Do Not Use Water on Grease Fires

- Smother fire or flame or use dry chemical or foam-type extinguisher.

Use Only Dry Potholders

- Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.

Use Proper Pan Size

- This appliance is equipped with one or more surface units of different size. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper relationship of utensil to burner will also improve efficiency.

Never Leave Surface Units Unattended at High Heat Settings

- Boil over causes smoking and greasy spillovers that may ignite.

Make Sure Reflector Pans or Drip Bowls Are in Place

- Absence of these pans or bowls during cooking may subject wiring or components underneath to damage.

Protective Liners

- Do not use aluminum foil to line surface unit drip bowls or oven bottoms, except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock, or fire.

Glazed Cooking Utensils

- Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for range-top service without breaking due to the sudden change in temperature.

Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units

- To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.

Do Not Soak Removable Heating Elements

- Heating elements should never be immersed in water.

Do Not Cook on Broken Cook-Top

- If cook-top should break, cleaning solutions and spillovers may penetrate the broken cook-top and create a risk of electric shock. Contact a qualified technician immediately.

Clean Cook-Top With Caution

- If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a hot surface.

PERSONAL SAFETY

WARNING

To reduce the risk of injury to persons, in the event of a grease fire, observe the following:

• Grease is flammable and should be handled carefully.
• Do not use water on grease fires.
• Never pick up a flaming pan. Smother sheet or flat tray.
• Flaming grease outside of utensil can be extinguished with baking soda or, if available, a multipurpose dry chemical or foam type extinguisher.
• Let fat cool before attempting to handle it.
• Wipe up spill over immediately.
• If you are "flaming" liquors or other spirits under an exhaust, turn the fan off. The draft could cause the flames to spread out of control.
• Never leave the surface area unattended at high heat setting. Boil over cause smoking and greasy spill over, which may ignite.

CAUTION

Do not allow aluminum foil, plastic, paper or cloth to come in contact with a hot Surface. Do not allow pans to boil dry.

• Be careful to prevent burns. If the flames do not go out immediately, evacuate and call the fire department.
• Always have a working smoke detector near the kitchen.
• Leave the hood ventilator on when flambéing food only if there is smoke without flames.

Use an extinguisher only if

• You know you have a Class ABC extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it started.
  • The fire department is being called.
• You can fight the fire with your back to an exit.
• Never use water on cooking fires.
• In the event that personal clothing catches fire, drop and roll immediately to extinguish flames.

WARNING

To reduce the risk of burn injuries during cooktop use, observe the following:

• Never use the cooktop to warm or heat a room.
• Children or pets should not be left alone or unattended in an area where appliances are in use. They should never be allowed to sit or stand on any part of the appliance.

CAUTION

Do not store items of interest to children in cabinets above a range or on the backguard of a range; children climbing on the range to reach items could be seriously injured.

When using the cooktop

• Do not touch surface units or areas near units. Surface areas may become hot enough to cause burns. Surface elements may be hot even though they are dark in color. During and after use, do not touch or let flammable materials contact heating elements until they have had time to cool.

When using the cooktop installed over oven

- Do not touch heating elements or interior surfaces of oven. Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool. Other surfaces of the appliance may become hot enough to cause burns – among these surfaces are (identification of surfaces – for example, oven vent openings and surfaces near these openings, oven doors, and windows of oven doors).

- To minimize the possibility of burns, ignition of flammable materials and spillage, the handle of a container should be turned toward the center of the cooktop without extending over any nearby surface units.

- Use only certain types of glass, heatproof glass ceramic, ceramic, earthenware, or other glazed utensils that are suitable for cooktop use

Models and Part Identification

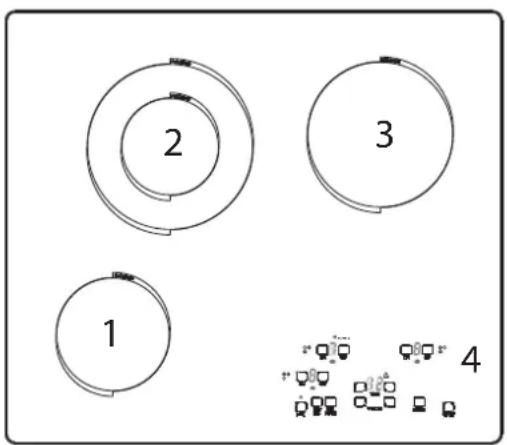

24" Models

1 2 3 4

F6RT24 (Approval code 512Y30IR or 512Y30NR)

Position 1 - 1200W 5,5" single circuit element

Position 2 - 2200W/800W 8"/5" double circuit element

Position 3 - 1800W 7" single circuit element

Position 4 - touch control

30" Models

F6RT30 (Approval code 512T40II or 512T40NI)
Position 1 - 1200W 6" single circuit element
Position 2 - 1200W 6" single circuit element
Position 3 - 2500W/1600W/800W 9"/7"/5" triple circuit element
Position 4 - 2200W/800W 8"/5" double circuit element
Position 5 - touch control

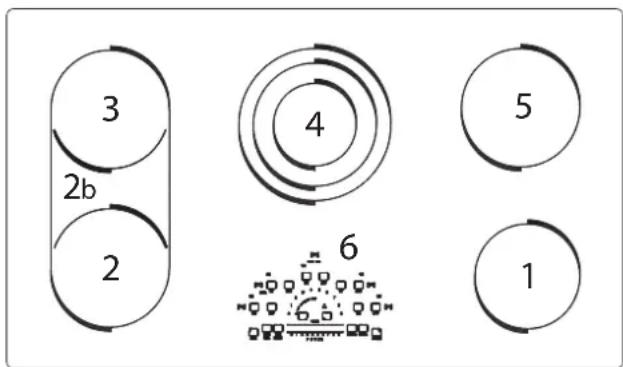

36" Models

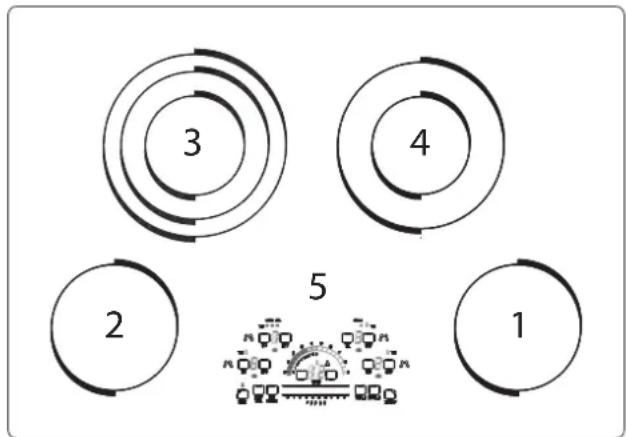

3 2b 2 4 5 6 1

F6RT36 (Approval code 512V50IID or 512V50ND)

Position 1 - 1200W 6" single circuit element

Position 2 - 1800W 7" single circuit element

Position 2b - 800W bridge element between 2 and 3

Position 3 - 1800W 7" single circuit element

Position 4 - 2500W/1600W/800W 9"/7"/5" triple circuit element

Position 5 - 1800W 7" single circuit element

Position 6 - touch control

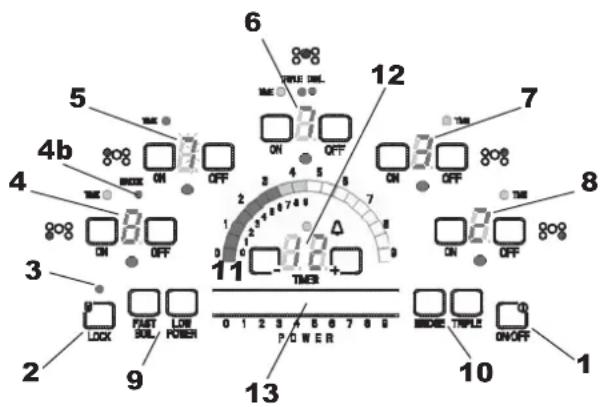

Touch Control details (Full options)

Position 1 - Main ON/OFF cooktop key.

Position 2 - Command lock key - child proof.

Position 3 - Commands lock indicator.

Position 4 - ON/OFF keys and power level display, for front left cooking zone.

Position 4b - Bridge element enabled indication.

Position 5 - ON/OFF keys and power level display, for rear left cooking zone.

Position 6 - ON/OFF keys and power level display, for central triple cooking zone.

Position 7 - ON/OFF keys and power level display, for rear right cooking zone.

Position 8 - ON/OFF keys and power level display, for front right cooking zone.

Position 9 - Special functions keys.

Position 10 - Extension keys to enable bridge or dual/triple zones.

Position 11 - "Peacock Tail" for dual range power level.

Position 12 - Timer.

Position 13 - Slide bar for power level setting.

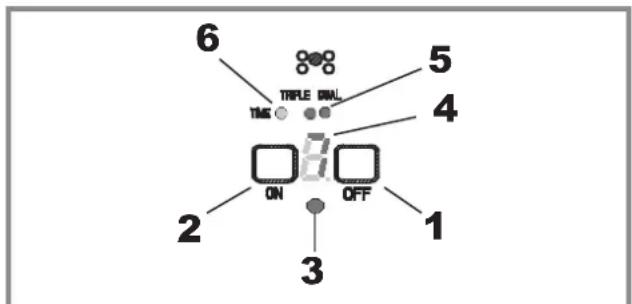

6 5 TRIPLE DIAL 4 2 ON OFF 1 3

Figure. 3

Position 1 - OFF key for the related zone.

Position 2 - ON/SELECTION key for the related zone.

Position 3 - HOT indication (zone active or residual heat).

Position 4 - Power level display.

Position 5 - Extension enabled (dual/triple circuit, bridge).

Position 6 - Active timer on the related.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Δ THER POWER

Figure. 4

Position 1 - Slide Bar to set the power level.

Position 2 - Low range power scale (0 to 15%), internal.

Position 3 - Full range power scale (0 to 100%), external.

Position 4 - Egg Timer (minute minder) active.

Position 5 - Timer display and keys.

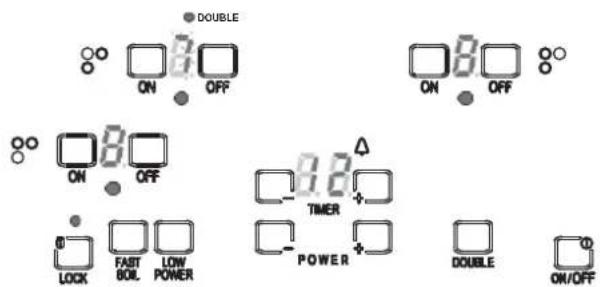

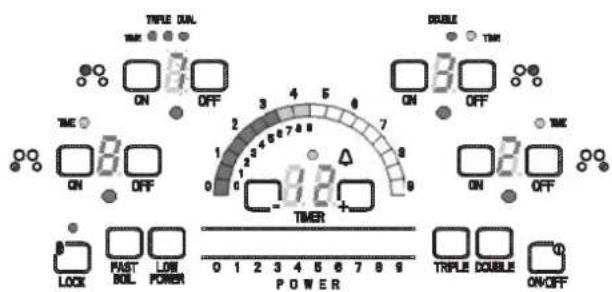

Touch Control Characteristics for every model

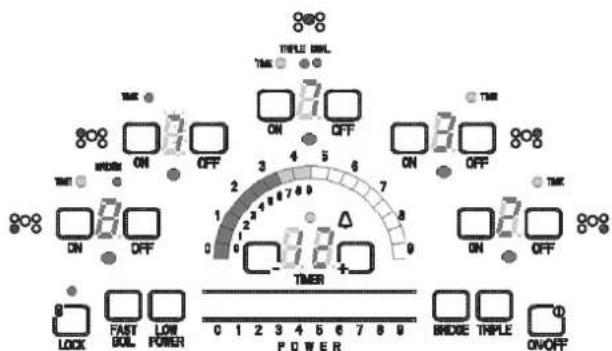

THIPLE BOWL TIME ON OFF ON OFF ON OFF ON OFF ON OFF TIMES 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 LOCK FAST GOL LOW POWER P O W E R BRIDGE THIPLE ON/OFF

F6RT36 (Approval code 512V50IID or 512V50ND)

TIPLE DUAL ON OFF ON ON ON OFF ON ON ON OFF ON ON ON OFF TIMER 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 10 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 8 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0.1.2.3.4.5.6.7.8.9 0.1.2.3.4.5.6.7.8.9 0.1.2.3.4.5.6.7.8.9 0.1.2.3.4.5.6.7.8.9 0.1.2.3.4.5.6.7.8.9 0.1.2.3.4.5.6.7.8. 0.1.2.3.4.5.6.7.8.9 0.1.2.3.4.5.6.7.8.9 0.1.2.3.4.5.6.7.8.9 0.1.2.3.4.5.6.7.8.9 0.1.2.3.4.5.6.7.8.9

F6RT30 (Approval code 512T40II or 512T40NI)

• Slide bar for power level setting.
• Dual range power scale (Full & Low Temperature).
• Egg timer (independent from any zone).
• 5 independent timers, one per cooking zone.
• Fast Boiling function.
• N°5 cooking zone.

• Main ON/OFF key and LOCK key.

• Slide bar for power level setting.

• Dual range power scale (Full & Low Temperature).
• Egg timer (independent from any zone).
• 4 independent timers, one per cooking zone.
• Fast Boiling function.
• N°4 cooking zone.

• Main ON/OFF key and LOCK key.

• Power level setting via [-] / [+] keys.

• Dual range power scale (Full & Low Temperature).
• Egg timer (independent from any zone).
• Fast Boiling function.
• N°3 cooking zone.
• Main ON/OFF key and LOCK key.

Element and Control Setting

Radiant Elements

This kind of electric heating elements use a ribbon wire located under the glass surface to provide the heat for cooking. The heating elements will cycle on and off, depending on the power level set and displayed by the control.

Temperature limiters

Each radiant heater has its own temperature limiter to protect the glass cooking surface from extremely high temperatures. The limiter will operate automatically by cycling the element.

Multiple Radiant Elements

Multiple heating elements (dual or triple) consist in two or three radiant ribbon elements within the same heating area. Either the small (main inner element) or the outer ones may be selected for use. The inner elements always work when an outer one is selected.

ridge Radiant Element

A special multiple heating element consist in two independent radiant ribbon elements which can be connected enabling a bridge element in order to have a large heating area.

When the bridge is enabled, the whole area work as a single unit, it's not possible anymore to set different power levels on the three elements connected.

Setting Recommended Use

All the settings described in the following table are recommended, provided that the element has not been preheated before. The values in the table represent indicative settings, given that the actual values may depend on:

• Type and quality of the pan.
• Type, quantity and temperature of the food.
• Element used and individual preferences.

TYPE OF FOOD	POWER LEVEL SETTING
	F6RT24	F6RT30	F6RT36
Melting butter, chocolate.	L.T. L.T.	L.T.
Delicate sauce, rice, simmering sauces with butter and egg yolk	L.T. L.T.	L.T.
Cooking vegetables, Fish broths, Fried or Scrambled eggs, Finishing cereals, pasta, milk, pancakes, pudding, Simmering meats, Steaming vegetables, Pop corn, Bacon, Stewing meet soup, Sautéed vegetables, Spaghetti sauces.	(5) (5) (5)
Braising meet, Pan frying meet, Fish, Eggs, Stir frying, Quickly brown or sear meats Hold rapid boil	(7) (7) (7)
Boiling water for vegetables, pasta	(9) (9) (9)

CONTROL INSTRUCTIONS FOR USE

WARNING

This touch control works using optical light sensing technology. When first connecting electrically or after a power failure, any direct strong light over the sensor area may affect the touch control functionality. When powering on the unit make sure that no strong light is shining direct over the touch control zone, it can compromise the start-up sensor calibration resulting in an unresponsive touch control.

When the cooktop is connected to the electrical voltage supply all lights and digits turn on to indicate a proper activation. This operation will be completed after few seconds, the control turns off automatically. Now the cooktop is ready for operations.

Switching the control on

Eventually hold the [LOCK] key in case the commands are locked (see that the lock led is on and turns off after a few seconds).

Touch the main [ON/OFF] key in order to make each single zone available for selection.

All the displays show power level "0", if no actions are performed the control shuts down again after about 10 seconds.

Elements setting

Touch the proper [ON] key (ref.2) in order to select the desired zone: the HOT SURFACE (ref.3) indication starts flashing, waiting for a user input.

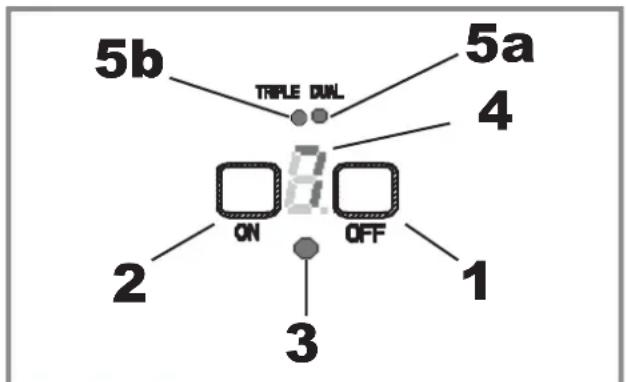

5b TRIPLE DUAL 5a 4 2 ON OFF 1 3

Figure. 6

Touch the slide bar to set the power level (levels 0 to 9 are available), moving the finger along it or directly touching the desired value. If your cooktop model has no slide bar.

The display (ref.4) and the "Peacock Tail" (ref.6) show the power level, updated in real time.

After a 5 seconds time-out the value is accepted, the HOT SURFACE led (ref.3) stops flashing and gets steady. The “Peacock Tail” disappears after some seconds more.

Touch [ON] key to confirm the value before the time-out expires.

The following picture represents the Full Power Scale whereas the control uses all the available power range, from 0% up to the 100% corresponding to level 9.

Level 4 corresponds to 15% of the available power.

Figure. 7

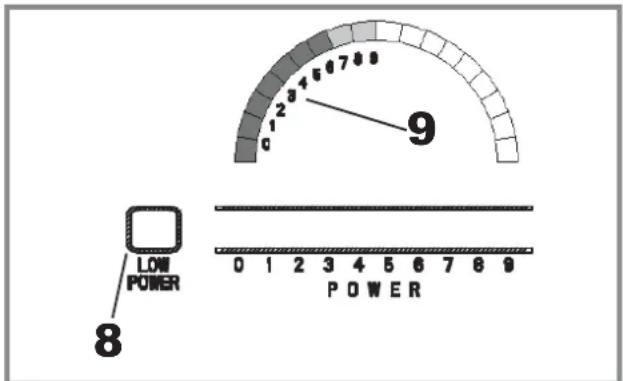

Using the Low Power Scale

Once a cooking zone has been selected, touch the [LOW TEMP] key (ref.8) in order to enable the Low Power Scale (ref.9) then set the power level in the usual way.

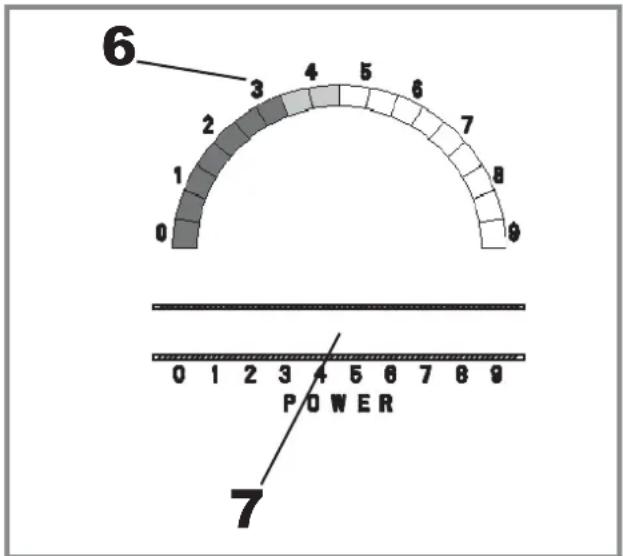

9 1 2 3 4 5 6 7 8 0 1 2 3 4 5 6 7 8 9 LOW POWER 8 POWER

Figure. 8

The control uses only the 15% of the available power, divided in 0 to 9 steps with a better accuracy.

Keep in mind that power level 9 in this special mode correspond exactly to level 4 in the standard range.

Select the zone and touch the [LOW TEMP] key again in order to disable the Low Power Scale and restore the standard one, without switching off the zone.

Pay attention: the level remains the same but the power increases.

Switching off a cooking zone as described below disables the Low Power mode. When the zone will be selected again it will start to work in the standard power mode.

Switching an element off

Touch the related [OFF] key (ref.1) in order to stop a heating element.

You may turn off all active elements at the same time by touching the main [ON/OFF] key.

Dual element activation

Select a double heating area touching the related [ON] key, the HOT SURFACE led (ref.3) begins to flash.

Touch the [DOUBLE] key in order to enable/disable the outer ring of a double zone. This operation is possible while the HOT SURFACE led (ref.3) is flashing.

The dual element enabling indication (ref.5a) is on when the element is enabled, is off when the element is disabled.

Triple element activation

Select a multiple heating area touching the related [ON] key, the HOT SURFACE led (ref.3) begins to flash.

Touch the [TRIPLE] key in order to enable/disable the outer rings of a triple zone:

• If only the inner element is enabled, the intermediate ring is enabled too.
• If the inner and the intermediate elements are enabled, the outer ring is enabled too.
• If all the elements are enabled, the outer and the intermediate rings are disabled.

These operations are possible until the HOT SURFACE led (ref.3) is still flashing.

The intermediate element enabling indication (ref.5a) is on when the double element is enabled, is off when the double element is disabled.

The outer element enabling indication (ref.5b) is on when the triple element is enabled, is off when the triple

element is disabled.

ridge element activation

Select one of the two single heating areas belonging to the bridge touching the related [ON] key, the HOT SURFACE led (ref.3) begins to flash.

Touch the [BRIDGE] key in order to enable the bridge element and set the whole cooking area as a single unit.

This operation is possible until the HOT SURFACE led (ref.3) is still flashing, before or after setting the power level:

• Set the power level on the selected zone then touch the [BRIDGE] key; both the displays will show the same power level and both extension lights (ref.1a, 1b) turns on.
• Touch the [BRIDGE] key, both HOT SURFACE led (ref.3) begin to flash and both extension lights (ref.6a, 6b) turns on. Set the power level that will be immediately and simultaneously displayed on both displays.

6b 6a BROSE ON OFF 3 ON OFF 3

Figure. 9

Once the bridge configuration is active, the [ON] and [OFF] keys of the two single zones involved can be used indifferently to control the bridge area. All actions will have the same effect on the whole cooking area.

The bridge configuration cannot be disabled while is active. It's always necessary to switch the area off: the bridge will be disabled automatically.

Hot surface indicator light

Each element has a HOT SURFACE indicator light (ref.3) to show when the cooking area is hot.

This indication turns on when the zone is activated and remains ON until the cooking area has cooled down to a "safe to touch" temperature (approximately 150^ F).

If a hot surface light is ON use caution when working around the cooktop as it is still hot.

Fast oil (ooster) function

Once a heating element has been selected, touch the [FAST BOIL] key to enable/disable this function, before or after setting the power level.

A beep sounds and the heater display shows the selected power level and a "P" alternatively. The "Peacock Tail" shows the selected power level.

The heater works at full power (level 9, always on) for 10 minutes. After these 10 minutes the heater returns to the selected power level.

This option is available for all the cooking zones, both standard, both special ones (multiple zones or bridge).

Key Lock function

The key lock function is activated or deactivated holding the [LOCK] key for 2 seconds. The lock indication turns on, the keyboard is locked. Of course, the [LOCK] key itself is always enabled.

The keys are automatically locked at start-up.

The locking function can be activated regardless of the heaters condition (working or not). The key lock function locks all the keys but the [OFF] ones. Also the general [ON/OFF] key remains active for the off function.

Setting the timer

It works as a minute minder and it doesn't stop any heating element.

The timer is available in some models only. It can be set independently from the heating element, even if there aren't any working zones. If the cooktop is not working, touch first the main [ON/OFF] key to enter stand-by mode, with all displays showing "0".

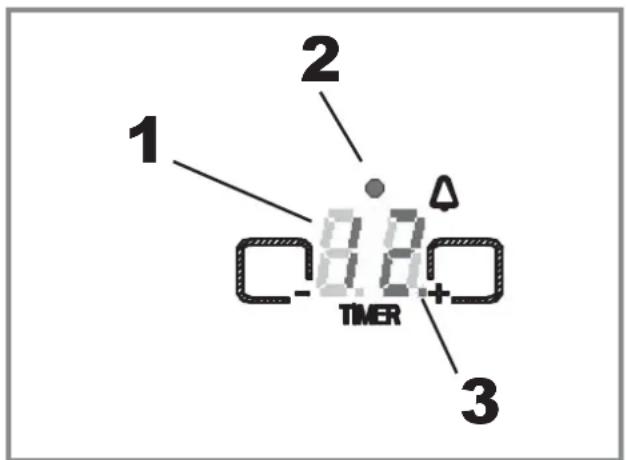

1 2 8.8 TIMER Δ 3

Figure. 10

Touch [T-] or [T+] keys to set the timer: the initial value starts from "00" or "45" respectively on the timer display (ref.1). Hold the key in order to fasten the increase/decrease speed. The maximum value is "99".

The timer led (ref.2) indicates whether the timer is running.

The dot in the lower right corner of the display (ref.3) is flashing when the timer has been selected in order to change its value. After 5 seconds since the last touch the new value is accepted and the dot disappears. A beep confirms that the new value was accepted correctly.

To cancel the timer, hold [T-] key until the value decrease to "00" or touch both [T-] and [T + ] simultaneously in order to reset the value to "00" rapidly.

In some models the timer can be set in relation with a cooking zone:

• Select the cooking zone you want to time.
• Touch [T-] or [T+], the timer led related to the zone starts flashing.
• Set the timer value.
• The timer led gets steady, the value is accepted and the countdown begins.

If more than one timer is set, the display shows the lowest value, the one that will expire first. The timer led (ref.4) related to the zone which the displayed value is referring to, is flashing. If the displayed value refers to the independent timer, the timer led (ref.2) flashes.

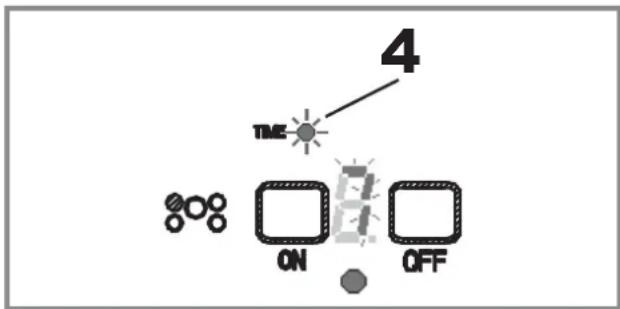

4 TIME ON OFF

Figure. 11

To check the remaining time for any one of the timed zone, touch the [ON] key related to the zone: the corresponding timer led will begin to flash and the value on the timer display will switch for some seconds to the new value. After a time-out, it will switch back to the shortest one.

To check the independent timer value when it's not displayed with the highest priority, touch [T-] or [T+] when no zones are selected. The timer led (ref.4) flashes and the displayed value switches to the independent timer.

When the timer value elapses:

• An end of activity beep sequence sounds: three short beeps followed by a long interval are repeated for 1 minute.
• The led indicator related to the elapsed timer flashes.
• The timer value "00" flashes too and will continue to flash waiting for a user confirmation.
• Touch [T-] or [T+] to cancel the expired timer, the display switches to the next shortest timer or gets blank if there aren't any other timer set.

WARNING: the timer is only intended as an acoustic advisor that recalls the attention of the user.

Timers have no effect on the heating elements. The cooking zone must always be stopped manually by touching the related [OFF] key.

Rest Heat

The HOT SURFACE indicators remain on even after the end of the cooking activity, just the necessary time to let the surface cool down below a safety value.

TIME ON OFF

Figure. 12

The residual heat time depends on the power level that was set on the cooking zone and the time the heating element has been working for.

For example, a cooking zone that has been working for more than 5 minutes at full power will take half an hour to cool down before the Residual Heat indication fades away. At level 1 it will take about 10 minutes.

Features

The control is checking its own ambient temperature and stops any activity in case of overheating of inner parts. Let the appliance cool down.

Electric Cooktop Operation

BEFORE USING THE COOKTOP FOR THE FIRST TIME

• All products are wiped clean with solvents at the factory to remove any visible signs of dirt, oil, and grease which may have remained from the manufacturing process.
• If present, remove all packing and literature from the cooktop surface.
• Clean your glass top before the first time you use it. A thorough cleaning with a glass top cleaner is recommended. It only takes a minute and puts a clean, shiny coating on the glass top before its initial use.
• There may be a slight odour during the first several uses: this is normal and will disappear.

• Optimum cooking result depends on the proper cookware being selected and used.

• The cooking surface will hold the heat and remain hot over 20 minutes after the elements have been turned off.

• The glass ceramic cooking surface is a durable material resistant to impact but not unbreakable if a pan or other object is dropped on it.
• Do not use aluminum foil directly on the glass; it will melt and damage the glass surface.
• Do nor allow pans to boil dry. This can damage the pan, element and /or cooktop.
• Never cook food directly on the glass.
• Do not slide cookware across cooking surface it may scratch the glass
• Using cast iron cookware on the glass cooktop is not recommended. Cast iron retains heat and may result in cooktop damage.

Cookware

GENERAL

The choice of pan directly affects the cooking performance (speed and uniformity) for best result select pans with the following features.

Flat base

When a pan is hot, the base (pan bottom) should rest evenly on the surface without wobbling (rocking). Ideal cookware should have a flat bottom, straight side, a well fitting lid and the material should be of medium to heavy thickness.

Rough finishes may scratch the cooktop.

Match Pan Diameter to radiant element

The base of the pan should cover or match the diameter of the element being used.

! WARNING

Simple line drawing of a container with liquid and upward arrows indicating flow or movement (no text or symbols)

BALANCED PAN

Diagram showing crossed-out symbols over a cooking pot with upward arrows indicating direction or pressure

UNBALANCED PAN
U&C014-2

Diagram of a cooking pot with steam rising and crossed out by a horizontal line (no text or symbols)

COOKWARE CHARACTERISTICS

Cooking Utensil Guidelines

• Aluminium: heats and cools quickly frying, braising, roasting. May leave metal markings on glass.
• Cast Iron: heats and cools quickly Not recommended. Retains excessive heat and may damage cooktop.
  • Copper: tin heats and cools quickly gourmet. cooking, lined wine sauces, egg dishes.
• Enamel ware: response depends on base Not recommended, metal Imperfections in enamel may scratch cooktop.
• Glass Ceramic: heats and cools slowly not recommended. Heats too slowly. Imperfections in enamel may scratch cooktop.
• Stainless Steel: heats and cools at moderate soups, sauces, rate vegetables, general cooking.

OBSERVE THE FOLLOWING POINTS IN CANNING

Pots that extend beyond 1 of the surface unit's circle are not recommended for most surface cooking. However, when canning with water-bath or pressure canner, larger-diameter pots may be used.

This is because boiling water temperatures (even under pressure) are not harmful to the cooktop surfaces surrounding the surface units.

However, do not use large diameter canners or other large-diameter pots for frying or boiling foods other than water.

Most syrup or sauce mixtures, and all types of frying, cook at temperatures much higher than boiling water. Such temperatures could eventually harm the glass cooktop surfaces.

Be sure the canner fits over:

• the center of the surface unit. If your cooktop or its location does not allow the canner to be centered on the surface unit, use smaller diameter pots for good canning results.

• Flat-bottomed canners must be used. Do not use canners with flanged or rippled bottoms (often found in enamelware) because they don't make enough contact with the surface units and take a long time to boil water.

• When canning, use recipes and procedures from reputable sources. Reliable recipes and procedures are available from the manufacturer of your canner; manufacturers of glass jars for canning, such as Ball and Kerr brand; and the United States Department of Agriculture Extension Service.

• Remember that canning is a process that generates large amounts of steam. To avoid burns from steam or heat, be careful when canning.

CAUTION

Safe canning requires that harmful micro organisms are destroyed and that the jars are sealed completely. When canning foods in a water-bath canner, a gentle but steady boil must be maintained for the required time. When canning foods in a pressure canner, the pressure must be maintained for the required time.

After you have adjusted the controls, it is very important to make sure the prescribed boil or pressure levels are maintained for the required time.

Since you must make sure to process the canning jars for the prescribed time, with no interruption in processing time, do not can on any cooktop surface unit if your canner is not flat.

Special pans

Special pans, such as griddles, roasters, pressure cookers, woks, water (Use only a flat-bottom wok).

CAUTION

Food packaged in aluminum foil should not be placed directly on the glass ceramic surface for cooking; aluminum foil can melt and cause permanent damage.

CAUTION

Plastic, paper, and cloth can melt or burn when in contact with a hot surface. Do not let these items come in contact with the hot glass.

Cleaning the Cooktop

CAUTION

Be sure electrical power is off and all surfaces are cool before cleaning any part of the cooktop.

Apply a small amount of cooktop cleaning specific ceramic crème on a daily basis. This provides a protective film that makes it easy to remove water spots or food spatters. The temperature of the cooking surface reduces the protective qualities of this cleaner.

It must be reapplied before each use. Use a clean cloth and apply cooktop cleaning crème before each use to remove dust or metal marks that can occur on the counter level surface between uses.

FRAME

(Stainless steel models)

Always wipe with the grain when cleaning. For moderate/ heavy soil, use BonAmi ^® or Soft Scrub ^® (no bleach).

Wipe using a damp sponge or cloth, rinse and dry.

DAILY CLEANING TECHNIQUES

Clean the surface when it is completely cool with the following exception.

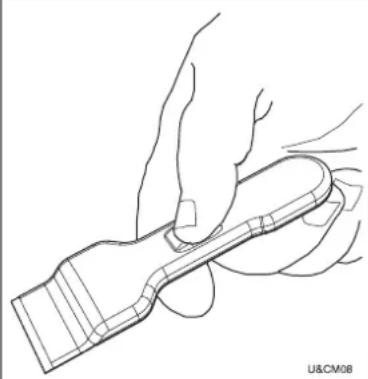

Remove these soils immediately with the razor blade scraper:

• Dry Sugar
• Sugar Syrup
• Tomato Products
• Milk

Line drawing of a hand holding a tool or device with a circular button, no text or symbols present

USE DAILY

Wipe off spatters with a clean, damp cloth; use white vinegar if smudge remains; rinse.

Apply a small amount of the Cooktop Cleaning Crème.

When dry, buff surface with a clean paper towel or cloth.

CAUTION

Do not use any kind of cleaner on the glass while the surface is hot; use only the razor blade scraper. The resulting fumes can be hazardous to your health.

Heating the cleaner can chemically attack and damage the surface.

RECOMMENDED CLEANERS

• Cooktop Cleaning Crème:

Use only a small amount; apply to a clean paper towel or cloth. Wipe on the surface and buff with a clean dry towel.

- BonAmi ^® :

Rinse and dry.

- Soft Scrub ^ (without bleach):

Rinse and dry.

- White Vinegar:

Rinse and dry.

- Razor blade scraper

Packaged with cooktop.

Note: The recommended cleaners indicate a type of cleaner and do not constitute an endorsement.

AVOID THESE CLEANERS

• Glass cleaners which contain ammoniac or chlorine bleach

These ingredients may permanently etch or stain the cooktop.

- Caustic Cleaners

Oven cleaners such as Easy Off ^® may etch the cooktop surface.

- Abrasive Cleaners

Metal scouring pads and scrub sponges such as Scotch Brite® can scratch and / or leave metal marks. Soap-filled scouring pads such as SOS® can scratch the surface.

- Powdery cleaners

Containing chlorine bleach can permanently stain the cooktop.

- Flammable cleaners

Such as lighter fluid or WD-40.

Troubleshooting

Problem	Cause	Possible Remedy
Nothing works	Cooktop not connected to proper electrical circuit.Fuse is blown or circuit breaker is tripped.No electricity to the cooktop.Cooktop is in lockout mode.	Have electrician verify that the proper rated cooktop voltage is being supplied to the cooktop. Have electrician replace fuse or reset circuit breaker.Have electrician check your power supply.Unlock cooktop.
Heating elements do not heat properly	Cooktop is connected to 120 volt power supply.Power supply connection is loose.Improper cookware is being used.	Have electrician connect cooktop to the proper rate cooktop voltage.Have electrician tighten the connections at the junction box.Select proper cookware as outlined in the Cooktop Operation section of this manual.
Heating elements cycle off even when elements are turned to their highest settings	Heating element temperature limiters are temporarily shutting off the elements due to exceeding the maximum allowable temperature.	This is a normal operating condition, especially during rapid heat-up operations. The element will cycle back on automatically after it has cooled sufficiently.
Glass ceramic surface is see-through or appears to be red in color.	Under direct or bright lighting, you will sometimes be able to see through the glass and into the chassis due to its transparent quality. You may also notice a red tint under these conditions	These are normal properties of black ceramic glass panels.
Lock Key blocked after first connecting or unresponsive touch control.	When first connecting electrically or after a power failure, any direct strong light over the sensor area may affect the touch control functionality.	When powering on the unit make sure that no strong light is shining direct over the touch control zone, it can compromise the start-up sensor calibration resulting in an unresponsive touch control.

Failures declarations

The control is managing an error detection system, mainly the checking the functionality of the electronics itself (keyboard functionality, ambient light conditions, communication between the two boards and the working temperature of the control).

As soon as a failure is detected, the control stops all the heating elements and declares the error code, showing on the proper display "F" and a second letter alternatively in order to identify the fault cause (see the table below).

FA, FC	Key Error
FE, Ft	Temperature sensor failure
Fc	Over temperature
Fr	Relay Error
FH	Control error (EEPROM)
FJ	Key Error
F0	Software Error
FL	Keyboard Error (Ambient Light)
FU	Key Error
Fd	Led On/Off Test Error
Fb	Keyboard Error
F5	Communication Error

"Fc" Allow the cooktop cool down.

"FA,FC,FJ,FL,FU,Fb" In case of keyboard or key errors, be sure that no objects, dirt or fluids are overlapping the commands. Try to remove the power and the restore it. If the problem persist call service.

In case of other control errors, remove and the restore the mains power. If the problem persist call service.

Assistance or Service

Before calling for assistance or service, please check "Troubleshooting." It may save you the cost of a service call.

If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

Service Data Record

For authorized service or parts information see paragraph "FULGOR WARRANTY for Home Appliances".

The location of the serial tag is below the cooktop box. Now is a good time to write this information in the space provided below. Keep your invoice for warranty validation.

Model Number ____

Serial Number ____

Date of Installation or Occupancy ____

Fulgor Milano WARRANTY for Home Appliances

Duration of warranty:

For twenty-four (24) months from the original date of purchase, the Fulgor Milano warranty covers all parts and labor to repair or replace, under normal residential use, any part of the product proving to be defective in material or workmanship as a result of the original manufacturing process.

For proof of warranty, please retain the original purchase invoice and the delivery slip.

To obtain service under this warranty you must:

1. Contact Fulgor-Milano Authorized Service

a. For all of North America: online at http://www.thevettagroup.com/servicerequest.a5w by email at [e-mail] or by toll free number at 1-855-4-fulgor (1-855-438-5467)
2. Provide a copy of your original sales receipt along with model number and serial number information for the product.
3. Provide Fulgor Milano reasonable opportunity to investigate the claim before the Product or any component of the Product has been modified or removed.

TERMS APPLICA LE TO THIS WARRANTY

This warranty is valid in only the 50 continental states of the U.S.A. and the country of Canada. This warranty applies to the original purchaser only and is non-transferable. All service provided by Fulgor Milano on the stated warranty must be performed by a Fulgor Milano authorized servicer, unless otherwise specified by Fulgor Milano. This service will be provided during the regular business hours of each specific region.

This warranty applies only to products purchased from an authorized dealer through an approved distribution chain and is installed for normal residential use and does not apply to commercial use or use on yachts. This warranty only covers service performed at the location of product installation and will not cover costs associated with repairing off-site unless expressly authorized by Fulgor Milano nor does it cover the travel costs associated with providing service to remote locations. Remote locations are defined as being outside of a 50 mile (80 kilometre) radius from any authorized dealer. This warranty does not cover any parts or labor to correct any defect caused by negligence, transport, delivery, improper voltage, accident or improper use, maintenance, installation, service or repair, including but not limited to improper removal and reinstallation of any component of the product (ie. removing handles to fit through doors) prior to or during product delivery / installation. The remedies described herein are the only ones which Fulgor Milano will provide, either under this warranty or under any warranty arising by operation of law. Fulgor Milano will not be responsible for product loss due to spoilage or burning nor for consequential damages to surrounding cabinetry, construction materials or finishing materials such as but not limited to flooring. Fulgor Milano will not be responsible for any consequential or incidental damages arising from the breach of these warranties or any other warranties, whether express, implied or statutory.

The warranty will be valid and effective only upon presentation of the document stating the purchase date of the appliance, and more specifically of the relevant invoice, proof of purchase, or equivalent document showing the name of the seller, the delivery date and the identification data of the appliance. (Such as; Model number, Serial Number). In the case of new product being included in the purchase of new residential construction; this warranty applies to the original resident of the location containing the Fulgor Milano product and warranty coverage will begin on the date of occupancy of the residence (proof of occupancy required) to a maximum additional six months from the date of purchase of the product by the development company from the distributor or dealer. This extension does not apply to footnote 1 below.

This warranty is only valid where the difference between the purchase date and the production date of the product is less than one year. Any product which has been warehoused for more than this one year period will only be covered under the terms of Fulgor Milano's B-Stock / Display Model warranty.

During the warranty period Fulgor Milano reserves the right to evaluate the opportunity to repair the appliance or, at their discretion, offer to replace it with a Fulgor Milano product of equivalent features and functionality. Fulgor Milano reserves the right to revise this warranty at any time.

Some states do not allow the exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

^1 Doors, handles, glass, product frames, racking, interior and exterior surfaces are covered by a limited 30-day parts only warranty for cosmetic defects originating from the factory.

*Replacement light bulbs are not covered by the product warranty.

Fulgor Milano

After Sales Service Support & Warranty Information:

1-855-4-fulgor (855-438-5467)

[e-mail]

Table des matieres

Page

AVERTISSEMENTS POUR L'INSTALLATION

ELECTRIQUE 21

6b 6a BRIDGE ON OFF ON OFF 3 3

Figure. 9

Simple line drawing of a container with granular liquid and a side arm, placed on a heating element (no text or symbols)

CASSEROLE ÉQUILIBRÉE

Two diagrams showing a container with liquid and a lid, crossed out by arrows indicating pressure or discharge (no text or symbols)

CASSEROLE DÉSÉQUILIBRÉE

U&C014-3

CARACTÉRITIQUES DES ACCESSOIRES

Line drawing of a hand holding a tool or device (no text or symbols visible)

After Sales Service Support & Warranty Information:

1-855-4-fulgor (855-438-5467)

[e-mail]

Table of Contents

Page

6b 6a BRIDGE ON OFF ON OFF 3 3

Figura. 9

Simple line drawing of a container with granular material and a side arm, placed on a heating element (no text or symbols)

Two identical diagrams showing a cooking pot with crossed-out panes, one above and one below, both without any text or symbols.

Line drawing of a hand holding a tool or device with a circular button, no text or symbols present

Limpieza diaria

After Sales Service Support & Warranty Information:

1-855-4-fulgor (855-438-5467)

[e-mail]

Notas

Notas

Notas

FULGOR

MILANO
