EN INSTALLATION - USE - MAINTENANCE

FR INSTALLATION - EMPLOI - ENTRETIEN

Dear Customer,

we would like to thank you and congratulate you on your choice.

This new product has been carefully designed and built using top quality materials, and meticulously tested to ensure that it meets all your culinary requirements.

Please read and observe these simple instructions, which will enable you to achieve excellent results from the very first time you use it. This state-of-the-art appliance comes to you with our very best wishes.

THE MANUFACTURER

English

Français

THIS PRODUCT IS DESIGNED FOR DOMESTIC USE.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGES TO THINGS OR PEOPLE DERIVING FROM INCORRECT INSTALLATION OR IMPROPER, ERRONEOUS OR UNSUITABLE USE.

THE APPLIANCE MUST NOT BE USED BY PEOPLE (INCLUDING CHILDREN) WITH PHYSICAL,

SENSORIAL OR MENTAL IMPAIRMENTS, OR BY PEOPLE WITHOUT THE NECESSARY EXPERIENCE OR KNOWLEDGE, UNLESS THEY ARE SUPERVISED OR INSTRUCTED IN THE USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY. CHILDREN MUST BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.

Safety Instructions

Please read all instructions before using this appliance.

Cooktop safety

WARNING

Proper Installation

- Be sure your appliance is properly installed and grounded by a qualified technician.

Never Use Your Appliance for Warming or Heating the Room Do Not Leave Children Alone

- Children should not be left alone or unattended in area where appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

Wear Proper Apparel

- Loose-fitting or hanging garments should never be worn while using the appliance.

User Servicing

- Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be referred to a qualified technician.

Storage in or on Appliance

- Flammable materials should not be stored in an oven or near surface units.

Do Not Use Water on Grease Fires

- Smother fire or flame or use dry chemical or foam-type extinguisher.

Use Only Dry Potholders

- Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.

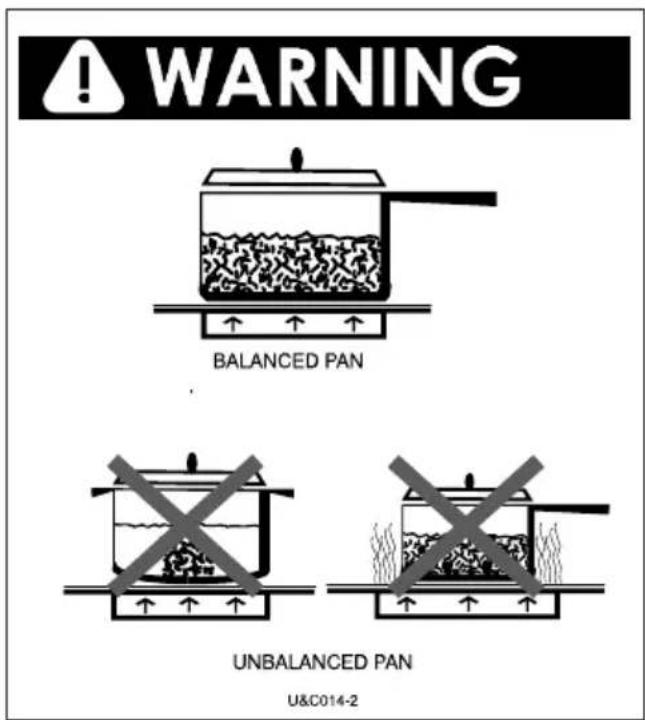

Use Proper Pan Size

- This appliance is equipped with one or more surface units of different size. Select utensils having flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper relationship of utensil to burner will also improve efficiency.

Never Leave Surface Units Unattended at High Heat Settings

- Boil over causes smoking and greasy spillovers that may ignite.

Make Sure Reflector Pans or Drip Bowls Are in Place

- Absence of these pans or bowls during cooking may subject wiring or components underneath to damage.

Protective Liners

- Do not use aluminum foil to line surface unit drip bowls or oven bottoms, except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock, or fire.

Glazed Cooking Utensils

- Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils are suitable for range-top service without breaking due to the sudden change in temperature.

Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units

- To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.

Do Not Soak Removable Heating Elements

- Heating elements should never be immersed in water.

Do Not Cook on Broken Cook-Top

- If cook-top should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualified technician immediately.

Clean Cook-Top With Caution

- If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a hot surface.

Personal safety

WARNING

To reduce the risk of injury to persons, in the event of a grease fire, observe the following:

• Grease is flammable and should be handled carefully.
• Do not use water on grease fires.
• Never pick up a flaming pan. Smother sheet or flat tray.
• Flaming grease outside of utensil can be extinguished with baking soda or, if available, a multipurpose dry chemical or foam type extinguisher.
• Let fat cool before attempting to handle it.
• Wipe up spill over immediately.
• If you are “flaming” liquors or other spirits under an exhaust, turn the fan off. The draft could cause the flames to spread out of control.
• Never leave the surface area unattended at high heat setting. Boil over cause smoking and greasy spill over, which may ignite.

CAUTION

• Do not allow aluminum foil, plastic, paper or cloth to come in contact with a hot Surface. Do not allow pans to boil dry.
• Be careful to prevent burns. If the flames do not go out immediately, evacuate and call the fire department.
  • Always have a working smoke detector near the kitchen.
• Leave the hood ventilator on when

flambéing food only if there is smoke without flames.

Use an extinguisher only if

• You know you have a Class ABC extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it started.
• The fire department is being called.
• You can fight the fire with your back to an exit.
• Never use water on cooking fires.
• In the event that personal clothing catches fire, drop and roll immediately to extinguish flames.

WARNING

To reduce the risk of burn injuries during cooktop use, observe the following:

• Never use the cooktop to warm or heat a room.
• Children or pets should not be left alone or unattended in an area where appliances are in use. They should never be allowed to sit or stand on any part of the appliance.

CAUTION

• Do not store items of interest to children in cabinets above a range or on the backguard of a range;
• children climbing on the range to reach items could be seriously injured.

When using the cooktop

- Do not touch surface units or areas near units. Surface areas may become hot enough to cause burns. Surface elements may be

hot even though they are dark in color. During and after use, do not touch or let flammable materials contact heating elements until they have had time to cool.

When using the cooktop installed over oven

• Do not touch heating elements or interior surfaces of oven. Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact heating elements or interior surfaces of oven until they have had sufficient time to cool. Other surfaces of the appliance may become hot enough to cause burns – among these surfaces are (identification of surfaces – for example, oven vent openings and surfaces near these openings, oven doors, and windows of oven doors).

- To minimize the possibility of burns, ignition of flammable materials and spillage, the handle of a container should be turned toward the center of the cooktop without extending over any nearby surface units.

- Use only certain types of glass, heatproof glass ceramic, ceramic, earthenware, or other glazed utensils that are suitable for cooktop use

This will avoid permanent damage to the surface.

Use of the heating areas

Use proper pan size. This appliance is equipped with four surface units of different size. Select utensils having sturdy flat bottoms large enough to cover the surface unit heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper relationship of utensil to burner will also improve efficiency. Never leave surface units unattended at high setting. Boilover causes smoke and greasy spillovers that may ignite.

Caution should be taken not to forget the heaters connected if a pot is not placed on them.

Care should be taken not to place big pots too close to any heat sensitive elements of the surface where the hob is built in.

Do not cook food directly on the surface of the hob. Your glass-ceramic hob is not a griddle and should not be used for this purpose. However attractive the idea may seem, it will only create problems that are better avoided, as the food is bound to stick to the surface.

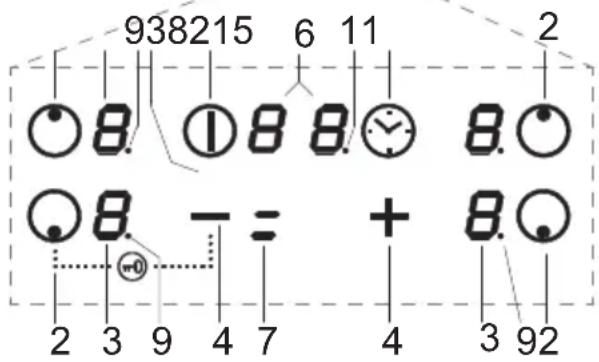

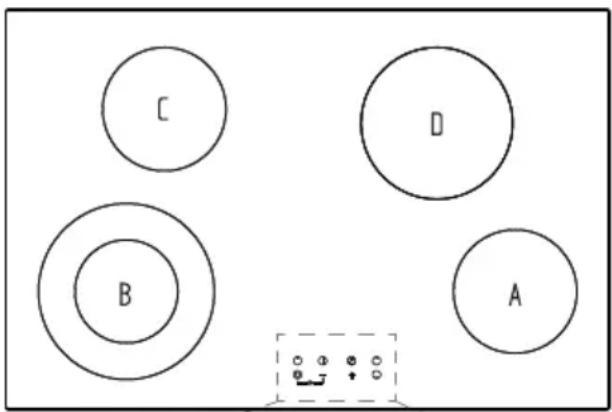

Control panel

Use proper pan size. This appliance is equipped with four surface units of different size. Select utensils having sturdy flat bottoms large enough to cover the surface unit heating element.

C D B A

938215 6 11 2 8 18 8 8 8 8 - = + 8 2 3 9 4 7 4 3 92

1 - Power-on
2 - Cooking area
3 - Power display
4 - Less/more
5 - Timer
6 - Display timer
7 - Double-circuit led
8 - Power-on led
9 - Decimal point
10 - Triple-circuit led
11 - Timer decimal point

Single-circuit radiant / Mixed-circuit halogen: ∅ 145 - 1200 W / 1200 W

Single-circuit radiant / Mixed-circuit halogen: ∅ 180 - 1700 W / 1800 W

Double circuit radiant: ∅ 210/120 - 2100 W (700 / 1400)

Switching on the device

1 - Press the key (1) to activate the control: the adjustment-level indicators (3) show "0" and a power-on LED appears under the 1 key.
2 - Perform the next operation within 10 seconds, otherwise the device will switch off automatically.

Adjusting power and the timer by means of the “+” and “-” keys

Use the “+” and “-” keys (4) to adjust the setting of the plates and the required time on timer/minute counter (6). The “+” and “-” controls (4) are common to both functions. Accordingly, to regulate the power of the hob, first select the zone with key (2), then adjust the relative power level using the “+” and “-” keys (4); this done, select the timer function with key (5) and proceed to set the duration, likewise using the “+” or “-” key (4).

Switching on the cooking area

Once the device has been activated, switch on the cooking area (within 10 seconds) as follows:

1 - Press one of the keys to select the cooking area required.
The related display is brighter.
2 - Use the “+” and “-” keys (4) to adjust the heat level (from 1 to 1). Press and hold down these keys to increase or decrease the setting.

Touch control Heat intensity
1 weak
2-3 gentle
4 slow
5-6 medium
7-8 strong
9 very strong
P bright

Switching off the cooking area

1 - The requested cooking zone must be activated and will, therefore, be brighter
2 - Return the setting to "0" by means of the key "-" (4).

Rapid shutdown of the cooking area

1 - Select the cooking zone to turn off
2 - Press and hold “-” and “+” (4).

Residual heat indicator ("H")

If the temperature of the cooking area is still high (and a burn risk still present) after it has been switched off, the display (3) for the area will indicate the letter "H" (residual heat).

The letter will only switch off when the burn risk is no longer present (approximately 60^ C).

Switching off the hob

The hob can be switched off at any time by means of the ON / OFF switch (1).

Double-circuit cooking zones:

Depending on the model, one or two zones can have a second circuit.

Consisting of a central disc and an external crown gear on the same central axis or on an external axis.

Turning on a double-circuit zone:

After entering a value that is greater or equal to 1, the double circuit area is enabled by pressing the cooking zone key (2) again.

Only for this type of heating plate with double, horizontal dashes light up to indicate how many circuits are turned on for that plate.

Two horizontal dashes indicate that all 2 resistors are turned on in that heating element.

Turning off the double-circuit cooking zone:

EN

1 - The zone must be activated and, therefore, brighter.
2 - When you touch the selection key of the zone involved again, one circuit at a time is turned off. When you continue to press the selection key intermittently, they are turned on and off at will (only for double plates);

Locking the cooking surface (key)

The entire hob can be locked with a combination of keys.

Turn on the cooking surface and then press - key (4) and, holding it down, press the select key on the left (2). L's appear.

The purpose of this lock is to prevent unintended operations.

While the lock is engaged, all operation of the keys is disabled, with the exception of the OFF key (1).

To unlock the hob, perform the same operation: turn on the surface, press the minus key (4) and press the selection key to the left (2). The L's disappear.

Safety shutdown

In the event that one or more cooking areas is inadvertently left on, the safety system will shut the zones down automatically after a certain time has elapsed, after which the letter “H” or “h” will be displayed.

(Tab.1)

Timer function

This function too simplifies operation by not requiring human supervision during the cooking cycle.

Once the set time on the timer has elapsed, the cooking area is automatically switched off.

Using the timer function

1 - The cooking zone must be activated, therefore, brighter.
2 - Select a power level between 1 and P.
3 - Touch the timer key (5): the timer display shows "00" and the cooking zone decimal point is highlighted (9).
4 - Select the cooking time (between 0 to 99 minutes) by means of the “+” and “-” keys (4).
The timer function will automatically start within a few seconds and a flashing “t” will appear on the zone with the shortest timer setting.
The decimal point (9) of the cooking

zone with timer setting remains highlighted on the zone with the shortest timer setting.

The timer will start up automatically in a few seconds. Press and hold down the “+” or “-” key (4) to scroll the time setting.

The timer function can apply to all the cooking zones by selecting them.

Rapid shutdown of the cooking area and relative timer

Select the cooking zone and then, press the key “+” and “-” (4). Note that the timer function will also be deactivated.

Turning the timer off

When the set time has elapsed, an acoustic signal is emitted for two minutes.

To silence the signal, press any key.

To interrupt the timer, proceed as follows:

1 - Press the timer key (5).

2 - Press the “-” key to reset the time (4).

N.B.:

• When one makes use of heating elements, we advise receptacles with flat bottom (Fig. 3) having same diameter or lightly higher than that of the hot area.
• Avoid overflows of liquid, therefore when boiling has happened, or in any case when liquid is heated, reduce the heat supply.
• Don't leave the heating elements on without receptacles on the top or with void pots and pans.

If there is even a slight crack in the cooking surface, immediately disconnect the power supply to avoid the possibility of electric shock.

Maintenance

First of all remove stray food bits and grease drops from the cooking surface with the special scraper (fig. 4).

Then clean with specific products for vitroceramic cooking surfaces with a paper towel, then rinse with water and dry with a clean cloth.

Pieces of aluminum foil and plastic material which have inadvertently melted or sugar remains or highly sacchariferous food have to be removed immediately from the hot cooking area with the special scraper (fig. 4).-This is to avoid any possible damage to the surface of the top.

Under no circumstances should abrasive sponges or irritating chemical detergents be used such as oven sprays or spot removers.

DO NOT USE STEAM CLEANERS

Operating time limitation

The touch control, if no commands are received, stops after a few hours depending on the level set.

Cooking level	Operating time [h]
0	0
1	10
2	5
3	5
4	4
5	3
6	2
7	2
8	2
9	1
P	1

Safety

WARNING

- If the surface is cracked, promptly switch off the appliance to avoid the possibility of electric shock. Call the Technical Service Assistance.

- Proper installation. Be sure your appliance is properly installed and grounded by a qualified technician.

- If the mains cable is damaged, it must be changed by the authorized technical sevice or in any case by a similar competent person, to avoid any risk.

- Never use your appliance for warming or heating the room.

- Do not leave children alone. Children should not be left alone or unattended in the area where the appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

- Parents and adults should pay particular attention when using the product in presence of children.

- Children should be overseen so as to ensure that they don't play with the equipment.

- This appliance is not intended for use by persons (included children) with reduced phisical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Wear proper apparel. Loose-fitting or hanging garments should never be worn while using the appliance.

- User servicing. Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be referred to a qualified technician.

- Storage in or on appliance. Flammable materials should not be stored near surface units. Aluminium foils and plastic utensils should not stay on hot surfaces. These surfaces cannot be used to put anything over. - Do not look intensely the halogen lamps.

- Do not use water on grease fires. Smother fire or flame or use dry chemical or foam-type extinguisher.

- Use only dry potholders. Moist or damp potholders on hot surfaces may result in burns from steam. Do not let potholders touch hot heating elements. Do not use a towel or other bulky cloth.

- Utensil handles should be turned inward and not extended over adjacent surface units. To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend over adjacent surface units.

- It is advisable to avoid impact of the hob surface from solid objects with sharp corners such as salt cellars, sauce bottles and so on, as these could cause damage.

It is recommended that no steam cleaning equipment are used.

Electric Cooktop Operation

Before using the cooktop for the first time

• All products are wiped clean with solvents at the factory to remove any visible signs of dirt, oil, and grease which may have remained from the manufacturing process.
• If present, remove all packing and literature from the cooktop surface.
• Clean your glass top before the first time you use it. A thorough cleaning with a glass top cleaner is recommended. It only takes a minute and puts a clean, shiny coating on the glass top before its initial use.
• There may be a slight odour during the first several uses: this is normal and will disappear.
• Optimum cooking result depends on the proper cookware being selected and used.
• The cooking surface will hold the heat and remain hot over 20 minutes after the elements have been turned off.
• The glass ceramic cooking surface is a durable material resistant to impact but not unbreakable if a pan or other object is dropped on it.
• Do not use aluminum foil directly on the glass; it will melt and damage the glass surface.
• Do nor allow pans to boil dry. This can damage the pan, element and /or cooktop.

• Never cook food directly on the glass.

• Do not slide cookware across cooking surface it may scratch the glass.

• Using cast iron cookware on the glass cooktop is not recommended. Cast iron retains heat and may result in cooktop damage.

Cookware

General

The choice of pan directly affects the cooking performance (speed and uniformity) for best result select pans with the following features.

Flat base

When a pan is hot, the base (pan bottom) should rest evenly on the surface without wobbling (rocking).

Ideal cookware should have a flat bottom, straight side, a well fitting lid and the material should be of medium to heavy thickness.

Rough finishes may scratch the cooktop.

Match Pan Diameter to radiant element

The base of the pan should cover or match the diameter of the element being used.

WARNING BALANCED PAN UNBALANCED PAN U&C014-2

Cookware characteristics Cooking Utensil Guidelines

- Aluminium: heats and cools quickly frying, braising, roasting. May leave metal markings on glass.

- Cast Iron: heats and cools quickly Not recommended. Retains excessive heat and may damage cooktop.

• Copper: tin heats and cools quickly gourmet, cooking, lined wine sauces, egg dishes.

- Enamel ware: response depends on base Not recommended, metal Imperfections in enamel may scratch cooktop.

• Glass Ceramic: heats and cools slowly not recommended. Heats too slowly. Imperfections in enamel may scratch cooktop.

- Stainless Steel: heats and cools at moderate soups, sauces, rate vegetables, general cooking.

Observe the following points in canning

Pots that extend beyond 1 of the surface unit's circle are not recommended for most surface cooking.

However, when canning with water-bath or pressure canner, larger-diameter pots may be used.

This is because boiling water temperatures (even under pressure) are not harmful to the cooktop surfaces surrounding the surface units.

However, do not use large diameter canners or other large-diameter pots for frying or boiling foods other than water.

Most syrup or sauce mixtures, and all types of frying, cook at temperatures much higher than boiling water.

Such temperatures could eventually harm the glass cooktop surfaces.

Be sure the canner fits over:

- the center of the surface unit. If your cooktop or its location does not allow the canner to be centered on the surface unit, use smaller diameter pots for good canning results.

- Flat-bottomed canners must be used. Do not use canners with flanged or rippled bottoms (often found in enamelware) because they don't make enough contact with the surface units and take a long time to boil water.

• When canning, use recipes and procedures from reputable sources. Reliable recipes and procedures are available from the manufacturer of your canner; manufacturers of glass jars for canning, such as Ball and Kerr brand; and the United States Department of Agriculture Extension Service.
• Remember that canning is a process that generates large amounts of steam. To avoid burns from steam or heat, be careful when canning.

CAUTION

Safe canning requires that harmful micro organisms are destroyed and that the jars are sealed completely. When canning foods in a water-bath canner, a gentle but steady boil must be maintained for the required time. When canning foods in a pressure canner, the pressure must be maintained for the required time.

After you have adjusted the controls, it is very important to make sure the prescribed boil or pressure levels are maintained for the required time.

Since you must make sure to process the canning jars for the prescribed time, with no interruption in processing time, do not can on any cooktop surface unit if your canner is not flat.

Special pans

Special pans, such as griddles, roasters, pressure cookers, woks, water (Use only a flat-bottom wok).

CAUTION

Food packaged in aluminum foil should not be placed directly on the glass ceramic surface for cooking; aluminum foil can melt and cause permanent damage.

CAUTION

Plastic, paper, and cloth can melt or burn when in contact with a hot surface. Do not let these items come in contact with the hot glass.

Fulgor Milano WARRANTY for Home Appliances

Duration of warranty:

Fulgor Milano grants for the Continental U.S and Canada a 24 month full warranty from the date of purchase indicated on the invoice. During this period Fulgor Milano will pay the cost for replaced parts and labor needed to repair the appliance.

For proof of warranty, please retain the original purchase invoice and the delivery slip.

To obtain service under this warranty, you must:

1. Contact Fulgor-Milano North America Service by email at [e-mail] or by toll free number at 1-855-4-fulgor (855-438-5467) for guidance in receiving service for your appliance.
2. Provide a copy of your original sales receipt.
3. Provide Fulgor Milano reasonable opportunity to investigate the claim before the Product or any component of the Product has been removed.

Coverage:

Read the Use and Care Manual before using the appliance for the first time! This warranty applies to Fulgor Milano appliances utilized only for residential use. Our appliances are not intended for commercial use. This warranty is only valid for the original owner and is not transferable.

During the warranty period Fulgor Milano will, at its discretion, repair or exchange the product without charge for parts and labor.

EN

The warranty does not cover :

1. Damage to the appliance caused intentionally or by accident.
2. Improper installation or incorrect connection to the power supply.
3. Damage due to the excessive heat generated by exterior sources, water damage.
4. Transport damage.
5. Modifications to the appliance.
6. Malfunctions due to improper usage
7. Breakage or normal usage scratches of the ceramic glass surface.
8. Light bulbs damage or exterior fuses.
9. Operation under professional or commercial conditions.
10. Lightning, fire, flood damages or other Acts of God.
11. Replacement or attachment of parts other than original, provided by Fulgor Milano
12. Cosmetic claims such as scratches on stainless steel, handle damage, etc. are under a limited warranty only, and must be claimed within 2 weeks after the date of purchase.
    This warranty covers only the appliance and its components. Damage of any items in direct contact or placed near to the appliance are excluded from

the warranty. Charges from any third parties other than Fulgor Milano authorized service agencies will not be accepted.

Should the appliance prove defective in workmanship or material, the end user shall be granted repair or replacement only. Under no circumstances shall Fulgor be liable for any loss or damage, whether it be direct, consequential, or incidental, arising out of the use or incorrect use of the appliance.

In order to obtain warranty rights, the original invoice must be provided to the Technical Services Department, Fulgor Milano to verify the date of purchase. Some states do not allow limitations of incidental or consequential damages, therefore the above named limitations or exclusions may not apply.

In case of technical claims or for service, first contact the dealer where the Fulgor Milano appliance was purchased!

Fulgor Milano

After Sales Service Support & Warranty Information:

1-855-4-fulgor (855-438-5467)

[e-mail]

Cleaning and care

HOW TO CLEAN YOUR GLASS- CERAMIC HOB AND KEEP IT CLEAN

Your glass-ceramic hob is probably the easiest type of cooktop to clean. However, because it looks so good, you will expect more of it than any other type. The following comments are intended to help you to ensure that it does not fall below your expectations. Clean the hob top regularly either while it is still warm – but not hot - or as soon as it has cooled down. If any food or liquid, has spilled onto the surface, remove it before using the hob again. Do not let it get burnt on the hob. The longer it is left, the harder it will be to remove later. Generally the glass-ceramic surface of the hob can be cleaned with paper kitchen towels of any good quality, non-scratch kitchen cleaner. If food has boiled over or spilled on the surface and then burnt, it is best to remove it first with a razor blade scraper of the type used for removing paint from a window panel. If the handle or blade holder is plastic, make sure that only the blade comes into contact with the hot surface. The plastic could melt and even stick to it. For the best results the hob should be cleaned regularly with a special hob cleaner-conditioner containing silicone. This provides extra protection against soiling and makes it easier to clean next time. In the event of persistent stains caused by hard water, grease or marks with a metallic sheen, which cannot be removed by any of the methods suggested above, we recommend the use of Solvol. Autosol,

which can be obtained from motoring accessory shops or the motoring section of supermarkets and do-it-yourself centres. Whatever method you choose to clean your glass-ceramic hob, always wipe it over thoroughly afterwards with a wet cloth to remove all traces of food or cleaner and then wipe it dry. The instruction with the cleaner may suggest that this is not necessary, but with some types residue left on the surface, it is better not to run the risk of this happening.

A Few Suggestions To Help You Keep Your Hob Looking Like New

1. Do not clean your hob with abrasive or corrosive cleaners such as scouring powder, wire wool, oven cleaner or rust remover.
2. Do not leave small particles of grit on the surface, for example sand or soil left on vegetables. If grit gets trapped under the bottom of a pan, it will scratch the surface.
3. Pans or dishes may have rough edges or pitted bottoms which can cause scratching if they are slid across the surface, so it is best to avoid doing so. This is particularly true of cast-iron utensils.
4. Do not let anything that may melt (plastic, kitchen foil, sugar or food with a high sugar content) come into contact with the surface of the hob while it is hot. Should anything accidentally melt on the top, remove it immediately (while still hot) with a razor blade scraper.

Electrical connection

These appliances must be installed by a competent electrician, with all electrical and installation requirements made in accordance with the regulations of the Electrical Equipment of Buildings, published by the Institution of Electrical Engineers. It must be connected to the electrical supply by a multipole switch with minimum 3 mm contact to contact gap. All current and earth conductors must be of an appropriate size.

This product must be earthed and fused in accordance with current rating of appliance (compulsory provision according to law).

Before fitting please ensure that voltage indicated on the rating plate corresponds to the mains voltage of your home.

The rating plate provides information on Model Number, Serial Number, voltage rating, power and frequency of this appliance.

No liability for damage or injury to persons or property will be accepted arising from non-observance of these requirements. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified per-sons in order to avoid a hazard.

The main cable must be of the right size, in compliance with the power of the hob (see plate and the following table), elastic with insulation in rubber of HO5RR-F or HO5RN-F type and of a length allowing the extraction of the appliance from the worktop.

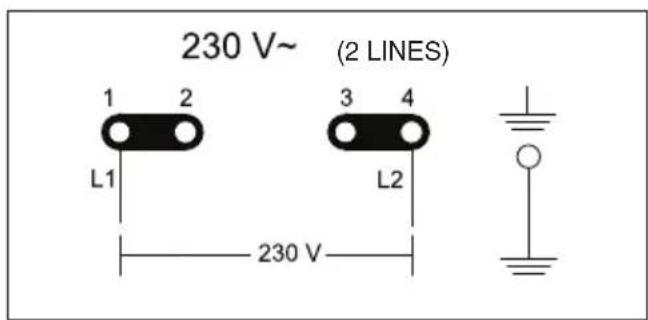

230 V~ (2 LINES) 1 2 L1 3 4 L2 230 V

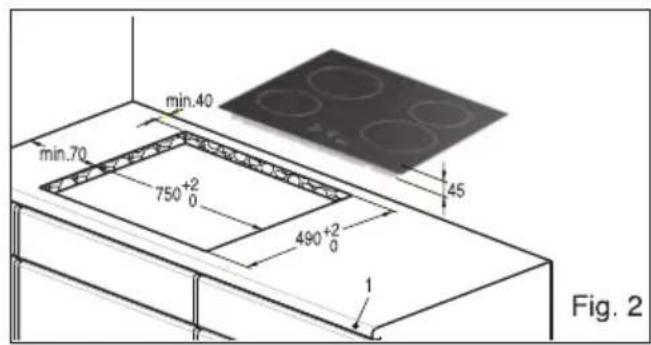

min.70 750⁺²₀ 490⁺²₀ min.40 45 Fig. 2

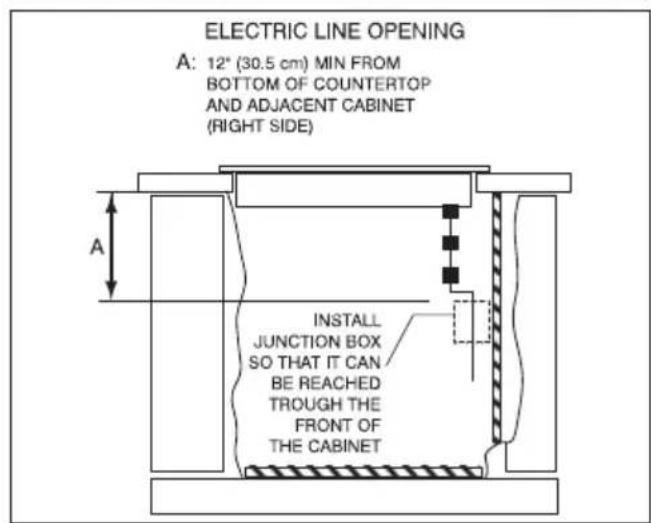

ELECTRIC LINE OPENING A: 12" (30.5 cm) MIN FROM BOTTOM OF COUNTERTOP AND ADJACENT CABINET (RIGHT SIDE) INSTALL JUNCTION BOX SO THAT IT CAN BE REACHED TROUGH THE FRONT OF THE CABINET

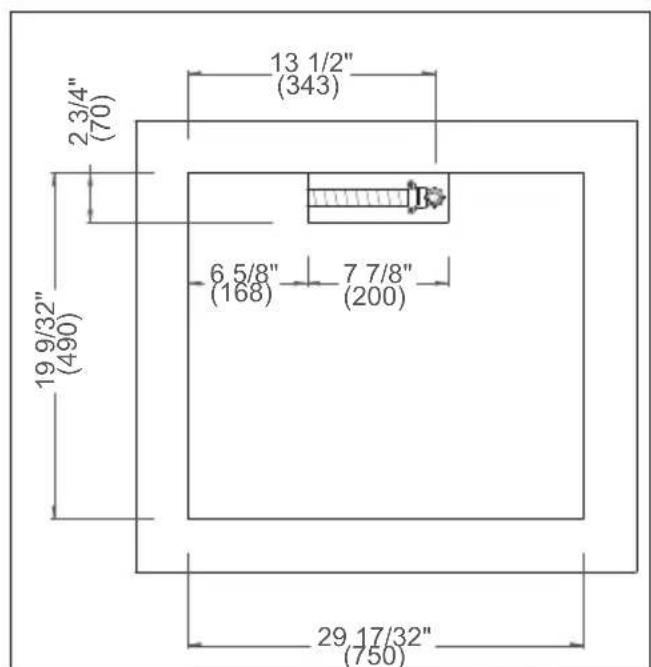

2 3/4" (70) 13 1/2" (343) 19 9/32" (490) 6 5/8" (168) 7 7/8" (200) 29 17/32" (750)

Installation in the kitchen worktop

As far as fire hazard protection is concerned, this apparatus can be fitted also close to wooden walls that are higher than the surface on which it is installed, provided a minimum clearance of 70 mm is maintained between the apparatus and the side walls, and a clearance of 40 mm is maintained between it and the rear wall.

To install it in the cut-out follow these instructions:

• Make a cut-out having a size shown in fig. 2 in the kitchen worktop (fig. 2 part. 1).
- Insert the hob in the cut-out and secure it by means of the four clamps (fig. 3 part. 1) tightening the four screw (fig. 3 part. 2).
- Make sure that the rubber seals (fig. 3 part. 3) are properly in place and that the mains cable is not squeezed and has no narrow bends.

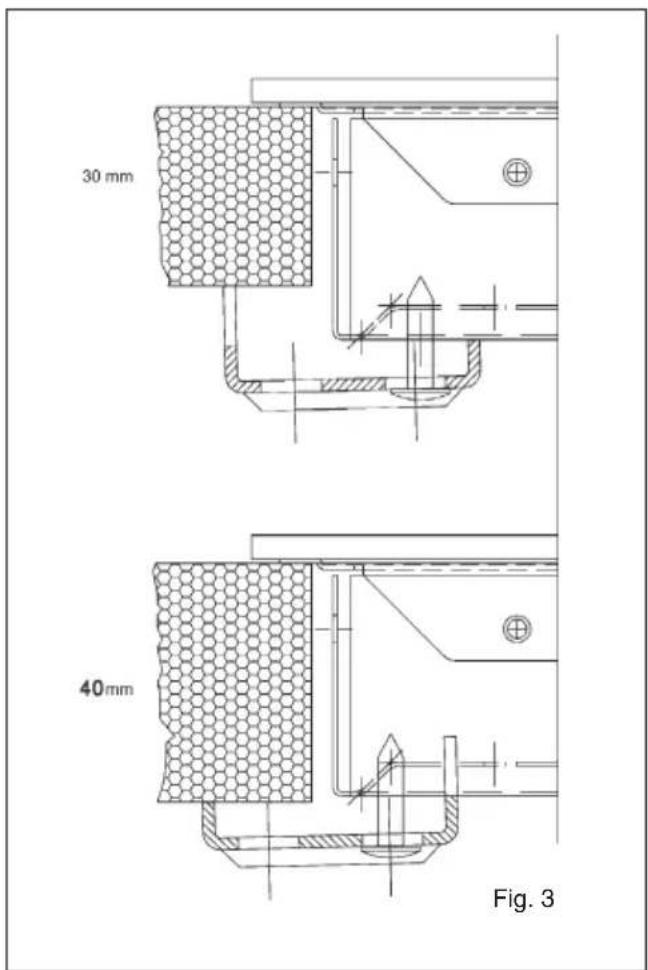

30 mm 40mm Fig. 3

IMPORTANT: Save these instructions for the local electrical inspector use.

INSTALLER: Please leave this manual with owner for future reference.

OWNER: Please keep this manual for future reference.

Pay attention to these symbols present in this manual

DANGER

You can be killed or seriously injured if you don't IMMEDIATELY follow instructions.

WARNING

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.

You can be killed or seriously injured if you don't follow these instructions.

Read and save these instructions To installer:

Leave these instructions with the appliance.

To customer:

Retain these instructions for future reference.

WARNING

- If the information in this manual is not followed exactly, a fire or explosion may result in personal injury or death.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Special Warnings

Please read all instructions before using this appliance

Proper installation is your responsibility. Have a

qualified technician install this cooktop.

Important:

• Observe all governing codes and ordinances.
• Write down the model and serial numbers before installing the cook top. Both numbers are on the serial rating plate located on bottom of cooktop box.

Before Starting Installation

WARNING

It is the customer's responsibility to contact a qualified electrical installer. To assure that the electrical installation is Adequate and in conformity with national electrical code:

ANSI/NFPA 70-latest edition ** or CSA standards C22.1-94, Canadian Electrical Code, part No.0-M91 - latest edition*** and all local codes and ordinances.

Copies of the standards listed may be obtained from:

** National Fire Protection Association One Batterymarch Park Quincy, Massachusetts 02269

*** CSA International 8501 East Pleasant Valley Rd. Cleveland, OH 44131-5575

To eliminate the risk of burns by reaching over heated surface units, cabinet storage space located above the surface units should be avoided. If he cabinet storage is to be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of 5" (12,7 cm) beyond the bottom of cabinet.

Cher Client,

After Sales Service Support & Warranty Information: 1-855-4-fulgor (855-438-5467) [e-mail]

** National Fire Protection Association One Batterymarch Park Quincy, Massachusetts 02269

*** CSA International 8501 East Pleasant Valley Rd. Cleveland, OH 44131-5575
