USER MANUAL Quadriga Majority

Quadriga Internet Radio

User Manual

MAJORITY

What's In the Box? 3

Controls And Functions 4

Instructions Guide. 7

Internet Radio & Podcasts. 11

Spotify Connect. 11

USB Music Player. 12

DAB+ Radio. 13

FM Radio. 15

CD Player 16

Bluetooth 18

AUX In. 19

RCA In. 19

Optical In. 19

Sleep. 20

Alarm 20

Equaliser 21

Network 21

Time/Date 22

Language 22

Factory Reset 22

Software Update 22

Set Up. 22

Info 22

Privacy 23

Backlight 23

Troubleshooting 24

Specification 26

Warranty & Support. 28

Safety Information.

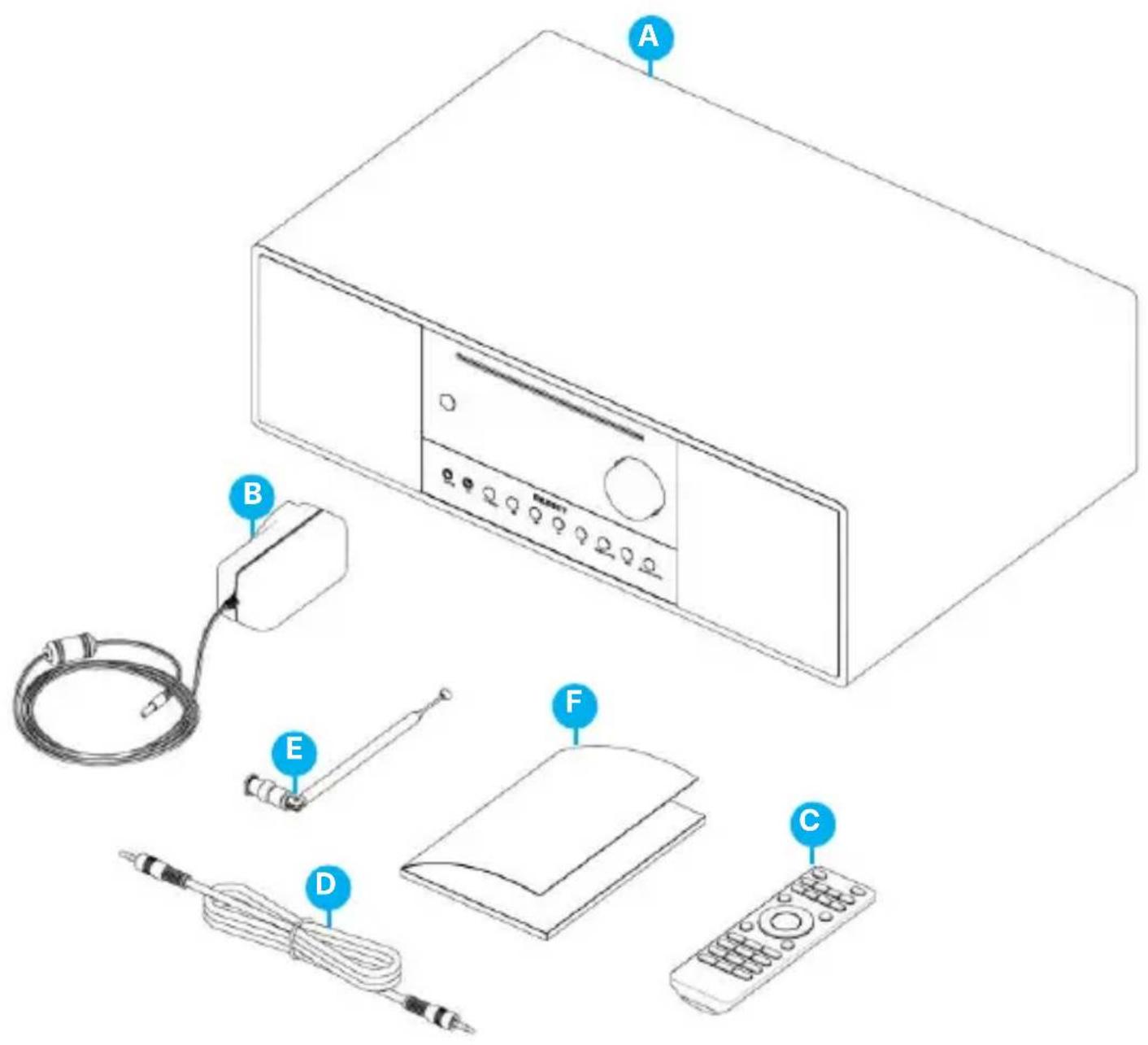

What's in the Box?

A. Quadriga Music System
B. Power adaptor
C. Remote control

D. 3.5 ~mm audio cable
E. Telescope Antenna
F. User manual

Front View

1.2.8" screen - Colour TFT display
2. CD slot - CD playback
3. Remote control sensor - Receive remote control signal
4. EJECT button - Eject CD in CD mode
5. AUX jack - 3.5mm audio input
6. Headphone jack - 3.5mm headphone output
7. ON/Standby / MODE button

1. REWIND / PREVIOUS button
2. NEXT / FAST FORWARD button
3. PLAY / PAUSE button
4. Volume knob / OK / SCAN button
5. STOP button
6. ALARM / BACK button
7. FAV button
8. MENU / INFO

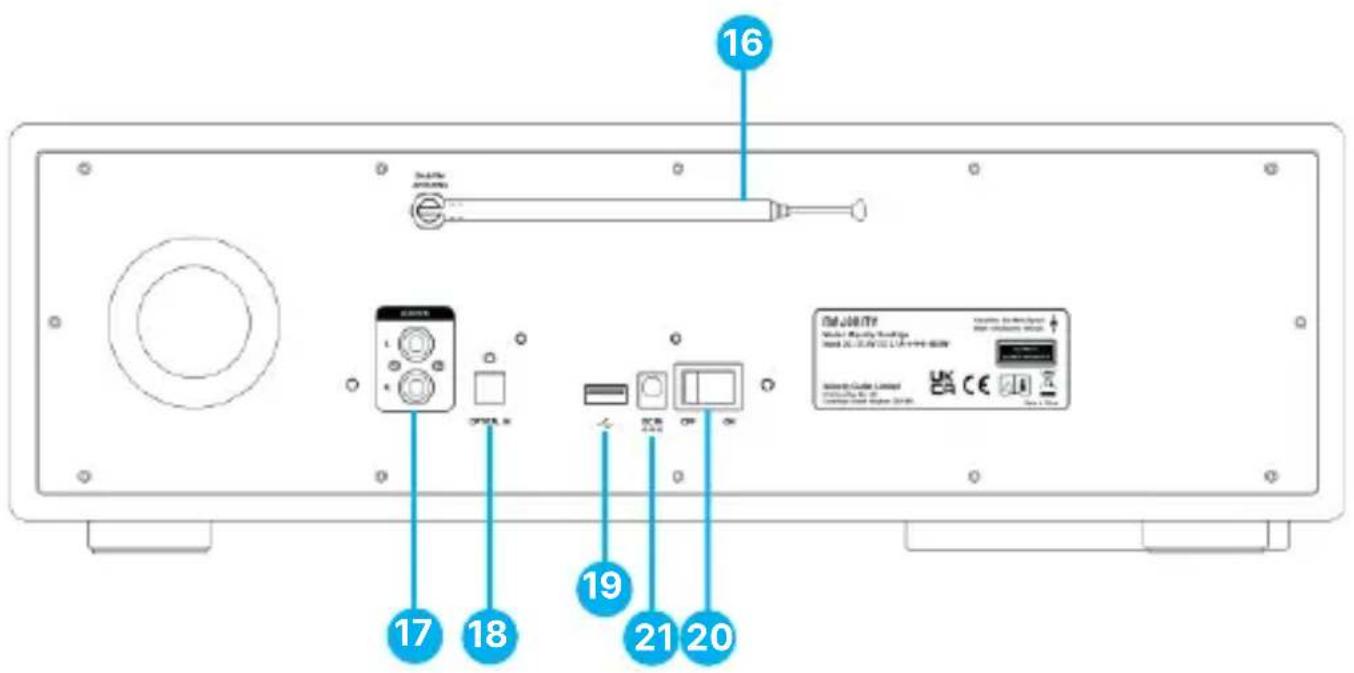

Back View

1. F- connector - Plug the antenna for enhancing DAB/FM reception
2. RCA jack - RCA audio input

3. OPTICAL IN jack - SPDIF optical audio input

4. USB port - USB drive music playback

5. ON/OFF switch - Switch on/off the device
6. DC IN - Plug for power support

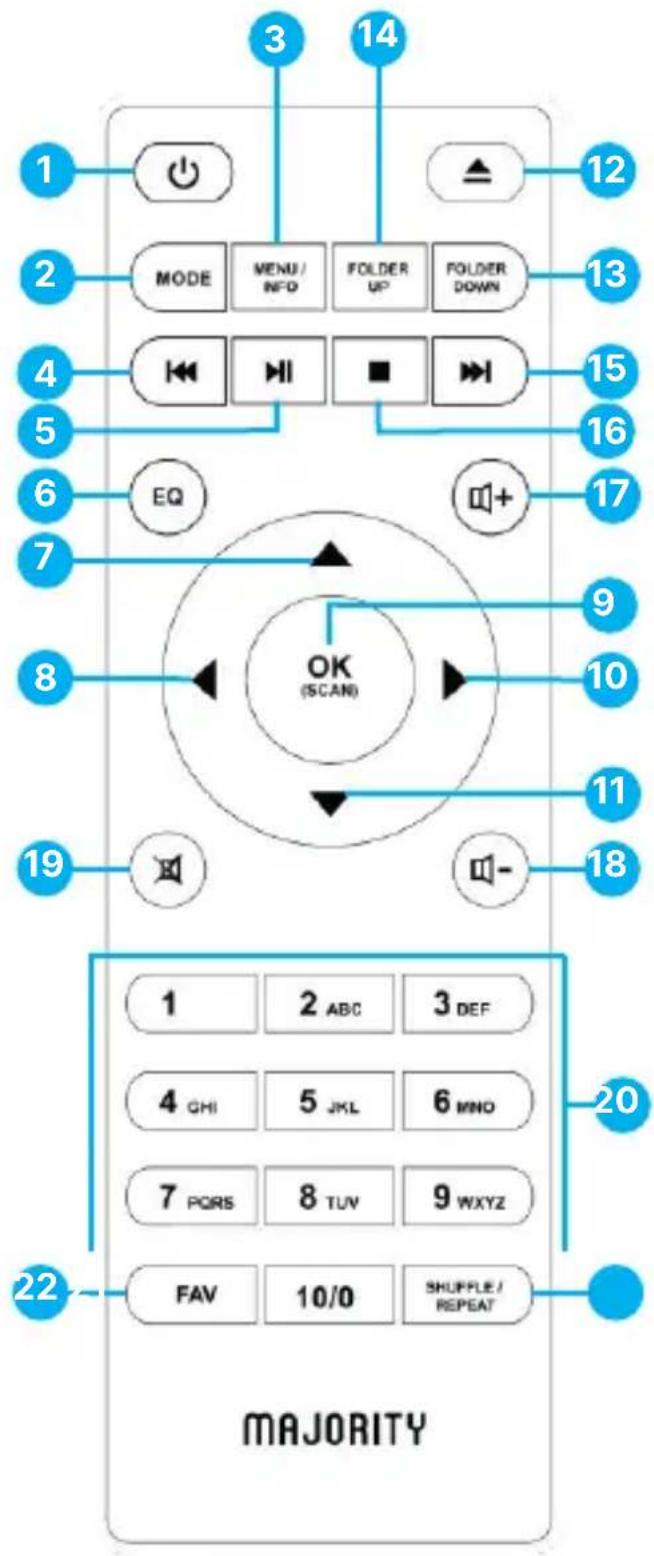

Remote Control

1. Device power on/off; alarm off
2. MODE - Open, close mode selection
3. MENU/INFO - Press and hold to open menu; close menu - Display FM mode info (Name, PTY, RT, Frequency) Display DAB mode info - (Station, track, artist etc.) - Display CD/USB mode info (Track, artist, etc.)
4. Select previous track, hold down to seek
5. Start playback, pause
6. EQ - Select equaliser preset
7. Move up; FM: Set frequency
8. Move left; step back
9. OK (SCAN) - Confirm entry; FM: Scan; Playing: album in full screen
10. Move right, step next
11. Move down; FM: Set frequency
12. Eject the CD
13. FOLDER DOWN - Move down the folder for CD
14. FOLDER UP - Move up the folder for CD
15. Select next track, hold down to seek
16. Stop music playback
17. Increase volume
18. Decrease volume
19. Mute, Unmute
20. Number buttons: retrieve saved favourite station, hold down to save station
21. Music: random and repeat selection
22. FAV - Select favourite stations, hold down to save favourite - Program the track of CD

Connection and Preparation

Connect the power adaptor to the back of device and plug it into power socket. It starts up after switching on the device.

Connecting the network

• A broadband connection in combination with a wireless access point, router or similar network device.
• The network device needs to support Wi-Fi (802.11 a/b/g/n) wireless connection.

Make sure you have set up the wireless network and you have the WEP, WPA or WPA2 security password to activate the connection. You may also use the WPS (Wi-Fi Protected Setup) function for easy pairing between the network device and the radio. Check if the light indicators on the network device are in appropriate status.

Antenna

Insert the radio antenna into the F-connector. To get good reception for DAB/FM broadcasting, always extend the antenna at its full length.

First Time Setup

When powering the device on for the first time, you need to set the language. Selecting the menu language

Rotate the knob to select the menu language you want from the list and press OK button to confirm your choice.

Once the language has been selected and confirmed the next screen displays the privacy policy. Press the OK button to agree and continue. A set-up wizard appears to help you. Select 'YES' and confirm to launch the setup wizard.

If you select 'NO', the next window will ask you to choose if you want to start the setup wizard again the next time you power the device on.

Note: The 'Setup wizard' helps you to set up your music system for use.

Setting date and time - Select '12' for 12-hour display format or '24' for 24-hour display format. If you select the 12-hour format, the display shows 'AM' in the morning and 'PM' in the afternoon.

Once selected the next screen you will be asked how you would like to have the time/date updated and gives you the following options to choose from: Update from DAB, Update from FM, Update from Network or No update

If you choose 'Update from Network' you must indicate your time zone in the next window.

Next choose daylight savings as 'ON' for summertime, otherwise select as 'OFF'.

If you choose 'No update', you will have to enter the date and time manually. 'AM'/PM' displays only if you have chosen the 12-hour time format. Select 'AM' for the morning hours or 'PM' for the afternoon hours.

Connecting to network - Firstly the device asks if keep network connected. If you want to control the device in all operating modes via the app, select 'YES'. If choosing 'NO', it is not possible to control the device from the app in the (Standby, AUX IN, FM, DAB) operating modes. Note that the power consumption in standby mode will be higher when the network connection is kept up.

Any Wi-Fi networks found are listed on the display, along with their names. After selecting the network, you will be asked to choose one of the following methods to connect Majority Quadriga to your internet network:

Using Push button: The device prompts you to press the connect button on the router. Right after the Quadriga will search for a ready 'Push Button Connect' network and connects.

Using a Pin: Majority Quadriga will generate an 8-digit pin code number which you enter into the wireless router, access point, or an external registrar to connect.

Skip WPS: Enter key as for a standard encrypted network. To enter the network key, use the dial knob or the direction buttons on the remote control to move the cursor through the characters and press OK to confirm. As each character is selected, the key is visible at the top of the screen.

There are three options accessible by rotating the navigation knob back before the first characters - Backspace, OK and Cancel.

For more information on setting up a WPS encrypted network, see your WPS router's instructions.

Device attempts to connect to the selected network.

It will show connected if the setup is successful. If the connection fails, it returns to the previous screen to try again. Once completed, press OK to quit the setup wizard.

Presets

Presets are stored on the radio and cannot be accessed from other devices. The number of presets for each mode are IR and Podcasts share the same list of 40; Spotify 10; DAB 40; FM 40.

To store a preset, press and hold for 2 seconds the FAV button on remote control. The display shows the 'Save preset screen'. Select a number to save the currently playing station.

To recall a preset, press FAV, then select one of the saved preset stations to play.

When a preset station is playing, it shows (1, 2 etc.) at the bottom of the screen.

For 1-9 preset stations, there are shortcut buttons 1-9 on the remote control. Press and hold for 2 seconds a number button on remote to store. Once stored to recall any of these presets, press the corresponding number between 0-9 on remote keypad. For a preset >9 , it can only be stored or recalled via preset list.

UNDOK

The device gives a feature of network remote which can be used via a smartphone or a tablet with iOS or Android operational system. By downloading the assigned app named UNDOK, you can view all the modes on the device.

Search UNDOK on Google Play or Apple Store and install it on your smartphone or tablet.

For Android system (Google Play)

For iOS system (Apple Store)

Before using the UNDOK app, make sure the Quadriga and the smartphone / tablet are connected to the same Wi-Fi network.

Launch the app. The app initializes and scans for Internet Radio in the network. Tap the device to make the connection.

When prompted, enter the current PIN code. The default PIN is '1234'. You can view and edit the current PIN on Quadriga via the radio menu. Select your desired mode on the main page. You may then control the selected mode on your smartphone / tablet and on the display of the device simultaneously.

Tap 'Standby' icon to go to standby mode. Tap 'Wake up' to go to operation mode.

Tap 'Browse' to view the details. Tap to view the saved preset stations, and tap "+" to add the playing station to the desired preset station number.

NOTE: Be aware that if another smartphone / tablet with the app in the same network has access to the device, the original connection will be cut off.

Internet Radio & Podcasts

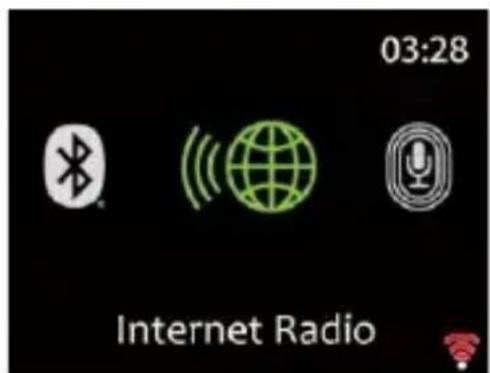

Majority Quadriga can play thousands of radio stations and podcasts from around the world though a broadband Internet connection. When you select Internet radio or Podcasts mode, the device directly contacts the Frontier Smart Technologies portal for internet radio stations or podcasts. The list menu is provided from the portal, so it is only accessible when the device is connected to the Internet. The contents and submenus may change from time to time.

Choose the required category and search the station or podcast to listen.

Now Playing Information

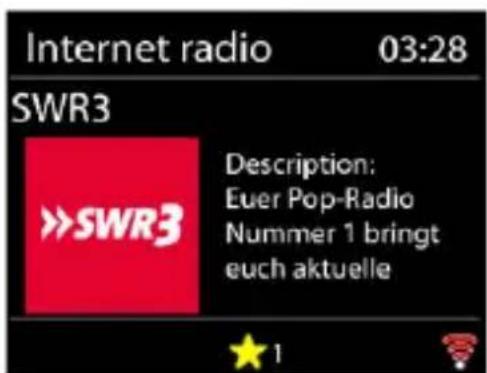

While the stream is playing, the screen shows its name and description. To view further information, press INFO.

Each time you press INFO, another set of information will display, cycle through name/description, genre/location, reliability, codec/sampling rate, playback buffer and today's date.

Press OK to view the station album in full screen.

Presets - 40 presets available, see section 3 (Presets).

Spotify Connect

Use your smartphone, tablet or computer as a remote control for Spotify. Go to Spotify.com/connect to learn how.

The Spotify Software is subject to third party licenses found here: https://www.spotify.com/connect/third-partylicenses

Start playing Spotify on your smartphone as usual. The 'devices icons' are displayed at the bottom of the phone screen. Press to display the list of the devices available on the network.

Now select 'Majority Quadriga' and the playback will take place on the radio.

A successful connection is indicated by displaying the device name in green text. You can use or to play the previous or next track. Press and hold for 2 seconds to rewind or fast forward. Press to play or pause.

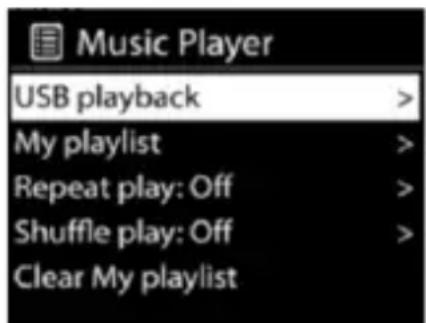

USB Music Player

When this mode is selected, the menus are generated by the folders uploaded on the USB device. Browse through the folders using the navigation knob and BACK button, or the direction buttons on the remote control. The display shows folders and file names (not necessarily track names).

Once you have found a track you want to play, press OK to play. A short press plays the track immediately.

Note: The USB port is only to be used for playback in MP3 format. The USB port does not have charging functionality.

The USB stick specifications that you can use with Majority Quadriga are:

Supported USB file systems: FAT16, FAT32 The maximum device capacity: 128 GBytes

Maximum number of items (files/sub directories) in any directory: 5000 Maximum depth of file system tree: 8 directory levels

You can use or to play the previous or next track, press and hold to rewind or fast forward. Press to play or pause.

My playlist - The files/ audio tracks can be added to My playlist by browsing your available tracks through the USB playback menu. Highlight the track you wish to add, then press, and hold for 2 seconds the OK button to save. The playlist is preserved during standby mode. The device holds a queue of up to 200 tracks in My playlist.

Clear My playlist - To clear the entire 'My playlist'.

Repeat/shuffle - You can set these options to repeat tracks or play them in random order. To activate Repeat or Shuffle press the corresponding button on the remote control.

Now playing information - While a track is playing, the screen shows its track and artist. There is also a progress bar with figures for elapsed and total track time. At the bottom of the screen, an icon indicates USB depending on the source. To view further information, press INFO. Each time you press INFO, another set of information will display, cycling through the information: artist, album, codec/sampling rate, playback buffer and today's date.

Note. In USB mode the Album cover is not supported.

DAB Radio

DAB mode receives DAB/DAB+ digital radio and displays information about the station, stream and track playing.

Scanning for stations

The first time you select DAB radio mode, or if the station list is empty, the radio automatically performs a full scan for the available radio stations.

To start a scan manually, choose 'Full scan.' To scan only stations with good signal strength, select 'Local' scan.

Once the scan is complete, the radio shows a list of available stations.

To remove stations that are listed but not available, choose Prune invalid. Rotate the navigation dial to scroll through the list of DAB radio stations found, highlight the one you would like to play then press OK to confirm. Once selected, the radio station starts to play. While playing on the radio screen will be displayed, information about the radio station, audio track or broadcast info.

Now playing information

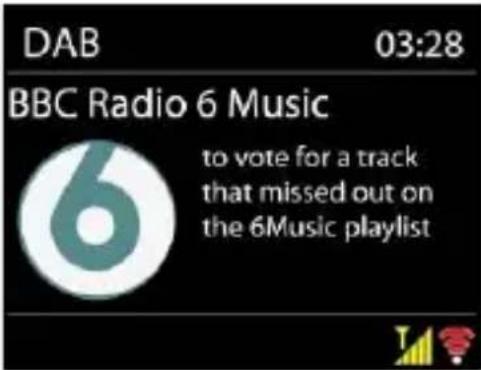

While the stream is playing, the screen shows its name and DLS (Dynamic Label Segment) information given in real-time by the broadcast station, such as: the programme name, the track title and contact details. Stereo broadcasts are indicated with an icon at the top of the screen. To view further information, press the INFO button.

Each time you press the INFO button, another set of information will display, cycling through DLS text, programme type, ensemble name/frequency, signal strength/errror rate, bite rate/codec/channels and today's date. Press OK to view the station album in full screen.

Presets - 40 presets available, see section 3 (Presets).

DAB mode Settings

Dynamic range compression (DRC)

If you are listening to music with a high dynamic range in a noisy environment, you may wish to compress the audio dynamic range. This makes quiet sounds louder, and loud sounds quieter. You can change DRC as Off, Low or High.

Station order

You can choose the order of the DAB station list to be either Alphanumeric, Ensemble or Valid.

Ensemble lists groups of stations that are broadcast together on the same ensemble. Valid lists valid stations first, alphabetically, then off-air stations.

FM radio mode receives analogue radio from the FM band and displays RDS (Radio Data System) information about the station and broadcast if available.

To find a station, press OK. The frequency display starts to run up as the device scans the FM band. Alternatively, you can tune manually by rotating the NAVIGATE knob.

Now playing information

While the stream is playing, the screen shows its frequency. If RDS information is available such as station name, programme name, track title and contact details these will also be displayed. If there is no information available, on the radio display you will only see the radio station frequency. Stereo broadcasts are indicated with an icon at the top of the screen. To view further information about the broadcast, press the INFO button.

Each time you press INFO, another set of information is displayed, cycling through

RDS text, further RDS text (station/programme type), frequency and today's date.

Presets - 40 presets available, see section 3 (Presets).

Settings Scan settings

By default, FM scans stop at any available station. This may result in a poor signal-to-noise ratio (hiss) from weak stations. To stop at radio stations with good signal strength only change the scan settings to 'Strong station only,' select 'Yes' to confirm.

Audio settings

All stereo stations are reproduced in stereo. For weak stations, this may result in a poor signal-to-noise ratio (hiss). To play weak stations in mono, select FM weak reception: Listen in mono only and then YES to confirm.

The smart radio can playback CD-DA (Compact Disc Digital Audio) format audio CD-R/CD-RW discs that have been finalised* upon completion of recording.

It may fail to play some CD-R/CD-RW discs due to poor recording and wide variation in quality of the CD-R/CD-RW disc.

*Finalising enables a CD-R/CD-RW disc to playback on audio players. A disc which has not been finalised may have information added to it using a computer but may not always be playable.

Insert a disc with printed side facing up into the CD slot. The disc will be automatically loaded. The unit will check the CD type and load its track list. The display will show 'Loading' and then 'Reading' as the information is read.

Playback

Rotate the NAVIGATE knob or / on the remote control to play the previous or next track, press and hold the button to rewind or fast forward.

Press NAVIGATE knob or on the remote control to pause the track. Press it again to resume.

Press to stop the track.

To remove the CD, press

Note: Majority Quadriga will not eject the CD if it is not in CD mode.

Repeat/Shuffle - Press REPEAT/SHUFFLE on the remote control to swap among normal playback, repeat one, repeat all and turn on/off the function of random.

CD track programming - Stop the playback first if any track is playing. Press FAV to program.

Set the first programming track, use / to search for the audio track. Press OK to confirm then set the next programming track. Repeat the steps. When programming is completed, press .

Press OK to start playing the programmed track(s).

MP3

Majority Quadriga is able to play CD-R and CD-RW discs containing MP3 files. It is assumed in this section that a file is equivalent to a CD track.

It allows skipping folder by pressing FOLDER UP or FOLDER DOWN on the remote control. The first file of the next or previous folder will be played.

An MP3 may not contain more than 512 files and not more than 99 folders. MP3 Files should be created with an audio sample rate of

44.1kHz (this is normal for files created from CD audio content).

MP3 data rates up to 320 kilobits per second are supported. The unit will not play files which include digital rights management (DRM) protection.

When burning CD-R and CD-RW discs with audio files, various problems may arise which could lead to problems with playback. Typically, such problems are caused by poor CD writing or audio encoding software, or by the hardware settings of the PC's CD writer, or by the CD being used. Should such problems arise, contact the customer services of your CD writer or software manufacturer or look in their product documentation for relevant information. When you are making audio CDs, take care to observe all legal guidelines and ensure that the copyright of third parties is not infringed.

The Majority Quadriga can be paired via Bluetooth with a phone, a tablet or similar device to play audio from, via the music system speaker. In Bluetooth mode, Quadriga enters the pairing mode automatically.

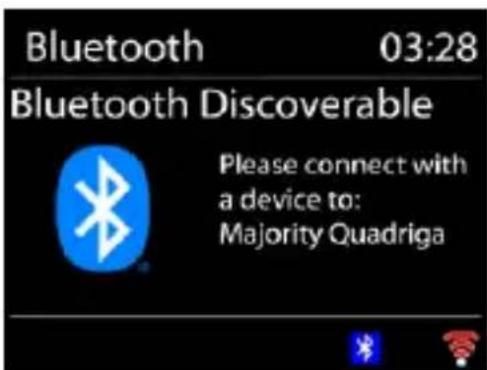

You can turn on the Bluetooth of your device and search for 'Majority Quadriga' to pair with. When Quadriga is waiting for pairing, there is a blinking Bluetooth icon at the bottom. If the pairing is successful, the Bluetooth icon becomes steady.

Control the music playback from your Bluetooth device.

To disconnect from the radio, press and hold PRESET/BT PAIR, or go to the menu and choose BT disconnect.

Please note: The Majority Quadriga is not compatible with Bluetooth earphones.

Aux In

The Aux in mode can be used to play audio from an external source such as an MP3 player, a phone, a tablet, or any other similar device via Quadriga speakers using the audio cable of 3.5mm .

Connect the external audio source to the Aux in 3.5mm stereo jack port on Quadriga. Adjust the volume level on the radio and on the audio source device that you are connecting with, if necessary.

RCA In

RCA In mode plays audio from an external source via Majority Quadriga speaker.

Before connecting, turn the volume low on both the radio and, if adjustable, the audio source device.

Connect the external audio source to the RCA L-R audio port on Majority Quadriga.

Adjust the volume level on the radio and on the audio source device that you are connecting with, if necessary.

Optical in

Optical in mode plays audio from an external source via Majority Quadriga speaker.

Before connecting, turn the volume low on both the radio and, if adjustable, the audio source device.

Connect the external audio source to the Optical In jack port. (Ref.18)

Adjust the volume level on the radio and on the audio source device that you are connecting with, if necessary.

Sleep

To set the sleep timer, select Sleep under Main menu or press SLEEP button on the remote control. Choose from Sleep OFF, 15 30,45,60, 90 or 120 minutes. The radio will count and turn off after you select a sleep time.

Alarm

There are two versatile wake-up alarms with snooze facility, and a sleep function to turn the system off after a set period. Each alarm can be set to start in a particular mode.

Select Alarms under the Main menu to set or change an alarm.

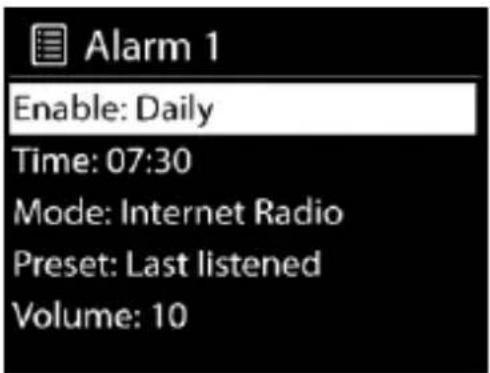

Select the alarm number (1 or 2) then configure the following parameters:

• Enable: on/off,
  Frequency: Daily, Once, Weekends or Weekdays
• Time: set as per your choice
  Mode: Buzzer tone, Internet Radio, DAB or FM
• Preset: Last listened or Preset 1-40
  Volume: set the volume level.

To activate the new settings, scroll down and select Save.

The screen shows active alarms with an icon at the bottom left.

At the set time, the alarm will sound. To temporarily silence, press any buttons except STANDBY. You can change the snooze period. The radio returns to standby for the set period, with the silenced alarm icon flashing.

Press STANDBY to turn off the alarm.

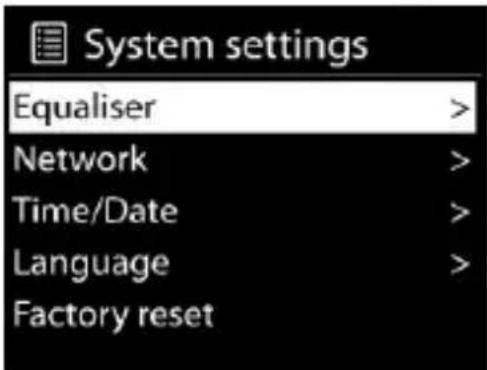

On the playing screen of any modes, press and hold MENU / INFO on the unit or press MENU on the remote control, choose System settings to continue.

Equaliser

Several preset EQ modes are available: Normal, Flat, Jazz, Rock, Movie, Classic, Pop and News.

Also, a user-defined setting is available; create your own EQ with custom bass, treble settings.

Network

Network wizard - Enter to search AP SSID, then input the WEP / WPA key or choose Push Button/Pin/Skip WPS to connect to the wireless network.

PBC WLAN setup - Push Button Configuration, it is to connect the AP that supports WPS (Wi-Fi Protected Setup).

View settings - View the information of current connected network: Active connection, MAC address, WLAN region, DHCP, SSID, IP address, Subnet mask, Gateway address, Primary DNS and Secondary DNS.

Manual settings - Choose wireless network connection and enable or disable DHCP (Dynamic Host Configuration Protocol).

NetRemote PIN Setup - Here you can view and edit the NetRemote PIN. The default NetRemote PIN is: 1234. The NetRemote PIN is required when you want to connect a smartphone or Tablet PC to your radio.

Network profile - The smart radio remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find.

From here you can see the list of registered networks. You can delete unwanted networks by pressing the OK button and then choosing 'YES' to confirm delete.

Clear network settings - Select 'YES' to clear all the current network settings. Select 'NO' to cancel.

Keep network connected - If you choose to keep network connected the Wi-Fi will not disconnect even in standby mode. This option allows the device to be ready for UNDOK (Details can be found on Section 3) connection in any operating modes.

Time/Date

Set the time manually or auto update, time format, time zone and daylight. Details can be referred to Setting date and time under Section 3 (First time Setup).

Language

The default language is English. If you would like to change the language there are 13 languages available from which you can choose from such as- English, Dansk, Deutsch, Espanol, Français, Italiano, Nederlands, Norsk, Polski, Português, Suomi, Svenska, Türke

Factory Reset

A factory reset will set all user settings to default values, therefore the existing presets, time and date, network configuration will be lost.

Software Update

Auto-check setting - This option automatically checks for new updates from time to time. Automatic updating is enabled by default. To disable it, select 'NO'. To enable it again, select 'YES'.

Check now - Search for available updates immediately.

If newer available software is detected, you will be asked if you want to go ahead with an update. If you agree, the new software is then downloaded and installed. After a software upgrade, all user settings are maintained.

NOTE: Before starting a software upgrade, ensure that the radio is plugged into a stable main power connection. Disconnecting power during an upgrade may permanently damage the unit.

Setup Wizard

With this function, you can start the setup wizard at any time. Any parameters or stations entered already are not deleted. For more information, please read Section 3 (First time setup).

Info

Enter Info to view the firmware version and the radio ID.

Privacy Policy

View the information of Privacy Policy. Please read the data protection regulations listed there or go to this website: www.frontiersmart.com/privacy

Backlight

You may change the backlight of each environment (power on or standby) to High, Medium or Low. And adjust the timeout duration which the radio turns to standby backlight level when it has not been controlled.

Observation Potential Cause/Solution
The device does not switch on or turn off suddenly.	Check if the power adaptor is connected properly. The device may malfunction when used in areas with strong radio interference. The device will work properly again once there is no more interference.
No Power	Ensure that the power adaptor plug of the unit is connected properly.
No Sound or lower sound	Tune on the sound as it may be muted. Increase the volume.
No network connection can be established.	Check the WLAN function. Try to set an IP address on the device. Activate the DHCP function on the router and make the connection again at the device. A firewall is activated on the network – set the respective program in such a way that access is possible. Reboot the router.
Wi-Fi connection cannot be established.	Check the availability of WLAN network on the router. Place the device closer to the router. Make sure the password is correct.
No station is found.	Check the network as well as the access point and firewall. The station may not be available currently, try again later. The link of the station is changed, or the station no longer transmits – ask the provider for information. The link of manual added station may not be correct, check and change it.
No signal or hiss in DAB/FM mode.	Check the antenna installation properly/move the antenna. Also try to adjust the length of antenna. Move the radio to another location.
USB driver or MP3 player is not detected.	Check if the USB driver or MP3 player is plugged in properly. Some USB hard disks need external power supply, make sure it is connected to the power. Not all MP3 players can be read directly on the device – use a USB drive instead.
The CD is not playing or skips during playback.	The device is not in CD mode. Faulty CD inserted. The CD was incorrectly inserted. Insert the CD with the labelled side facing upwards. The CD is dirty or faulty. Clean the CD, use another CD.
Alarm does not work.	Switch on the alarm. Due to the volume setting, refer to the solutions of 'No sound'. The source of alarm was set to be station but there is no network connection. Change the source of alarm or reconfigure the connection.
All other undetermined cases. / Electro-Magnetic Interference.	The smart radio may process large amounts of data after a period of operation, no matter in which mode, it will cause the system to freeze or malfunction. Reboot the device if necessary. The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location. The device may malfunction when used in areas.

Specification

Model number Majority Quadriga
Description	Internet Radio & CD Player Music System
Speaker output power 120W
Display 2.8", 320 x 240, colour TFT display
FM 87.5 - 108.0 MHz, RDS supported
DAB/DAB+ 174 - 240 MHz (Band III)
Power adaptor 21.0V 2.1A 44.1W
Connections	AUX in (3.5mm socket) Headphone (3.5mm socket) USB (type A) - for playback only, no charging function RCA in L-R socket SPDIF in (optical socket) DC IN power supply (5.5mm socket)
Network standby power <2.0W
Max. power consumption 45.0W
Operating temperature 0	°C - 35 °C
Dimensions 430mm(L) x 128mm(H) x 280mm(D)
Weight 5.3 kg

Product Specification

Power Adaptor
Manufacturer's name	Dongguan Guanjin Electronics Technology Co., Ltd.
Address	Block 16 Qiantou New Industrial Park, Niushan, Dongcheng District, Guangdong Province, Chin
Model no. K48V210210G, K48V210210B
Input voltage	100 – 240V ~ AC, 50/60Hz, 1.2A
Output voltage DC 21.0V
Output current 2.1 A
Output power 44.1 W
Average active efficiency 88.33%
Efficiency at low load (10%)	86.56%
No-load power consumption	0.08W

This device has been approved for compliance with the basic and other relevant requirements of the RE Directive 2014/53/EU, the ErP Directive 2009/125/EC

Warranty

Register your product within 30 days of purchase at www.majority.co.uk to activate your extended warranty. Terms and conditions apply.

Support

If you require further assistance with your Majority product, please contact our support team on the Majority website: www.majority.co.uk/support

Quadriga Internet Radio

Benutzerhandbuch

MAJORITY

WasistinderBox? 3

Radio Internet e Podcast. 11

Spotify Connect. 11

Model number Majority Quadriga
Description	Internet Radio & CD Player Music System
Speaker output power 120W
Display 2.8", 320 × 240, colour TFT display
FM 87.5 - 108.0 MHz, RDS supported
DAB/DAB+ 174 - 240 MHz (Band III)
Power adaptor 21.0V 2.1A 44.1W
Connections	AUX in (3.5mm socket) Headphone (3.5mm socket) USB (type A) - for playback only, no charging function RCA in L-R socket SPDIF in (optical socket) DC IN power supply (5.5mm socket)
Network standby power <2.0W
Max. power consumption 45.0W
Operating temperature 0	°C - 35 °C
Dimensions 430mm(L) x 128mm(H) x 280mm(D)
Weight 5.3 kg

EN Safety and Usage Guidelines (All where applicable)

General Safety Information - Read and Retain: Review all safety and operating instructions before use; keep them for future reference. Follow Instructions: Adhere strictly to all safety and operational guidelines. Water Exposure: Keep the device away from water; avoid placing liquids near it. Ventilation: Ensure ventilation openings are unobstructed to prevent overheating. Heat Sources: Keep the device away from heat-emitting appliances. Wall Mounting - Installation Safety: Follow the manufacturer's instructions and use approved mounting kits only. Avoid drilling into areas with cables, gas, or water lines. Use proper tools and safety apparatus. Regular Maintenance: Inspect regularly for wear or damage, especially if wall-mounted. Relocation: Detach from the wall mount before moving. Child Safety: Keep out of children's reach and ensure heavy items are securely mounted. Seismic Precautions: Use specialized mounts in earthquake-prone areas. Electrical Safety - Power Source: Use the specified power source; consult an electrician if unsure. Cable Management: Protect the power cord from damage. Power Disconnection: Keep the main plug accessible; unplug during storms or long periods of non-use. Battery Safety - Charging: Use the manufacturer's charger; avoid extreme conditions. Heat Exposure: Keep batteries away from heat to prevent explosion or leakage. Battery Condition: Discontinue use if the battery is damaged; dispose of it properly. Replacement: Only use recommended batteries; incorrect types can cause hazards. External Batteries: Use only specified types, observing correct polarity. Battery Removal: Remove batteries if not used for an extended period. Disposal: Follow local regulations for battery disposal; do not incinerate. Connectivity Safety - Cable Connections: Power off devices before connecting or disconnecting cables. Bluetooth Pairing: Ensure a secure connection; avoid interference from other devices. Volume Control: Keep volume moderate to prevent hearing damage. Connectivity and Data Security - Wireless Security: Review privacy policies and secure your network. Software Updates: Keep software updated for security and performance. Children's SafetyWarnings - Product Use: Intended for adults; keep away from children. Battery Warning: Keep batteries and items containing batteries out of children's reach. Volume Control: Maintain a safe volume level to protect children's hearing. Fire Hazard - Flammable Materials: Do not place open flames near the product. Overheating: Avoid covering the product to prevent overheating and fire risks. Disposal and Recycling - Product Disposal: Dispose of at a recycling centre according to local laws. Environmental Compliance: Follow regulations for battery and electronic waste disposal. User Maintenance - Cleaning: Unplug before cleaning; use a dry cloth only. Servicing: Only qualified personnel should perform repairs. Data Protection: Reset to factory settings before returning or disposing of the product. Disclaimer: Failure to follow these instructions may result in injury, death, or property damage. The manufacturer is not liable for damage caused by improper use.

Declaration of Conformity:

We, Izilla Ltd, Newton House, 2 Pioneer Court, Histon, Cambridge, CB24 9PT declare under our sole responsibility that the product:

Product Name:Quadriga Internet Radio Model:Black-1000002837/1000002838

White - 1000002902/1000002903 Brand Name: Majority

To which this declaration referred is in conformity to the following harmonized standards or normative documents (CE & Rohs 2.0);

EN 55035:2017, EN 55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EEN62368-1:2004+A11:2017, ETSI EN 301 489-1 V2.2.3(2019-11), ETSI EN 301 489-17, V3.2.2(2019-12), ETSI EN 300 328 V2.2.2 (2019-07), EN 62479: 2010, IEC 62321-3-1:2013, IEC 62321-4:2013, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC 62321-7-2:2017, IEC 62321-8:2017, (EC)NO 1275/2008,EN50564:2011, (EC)NO 801/2013.

Complying with the requirements or provisions of Council Directives which relate to:

EMC Directive 2014/30/EU, RED Directive 2014/53/EU, LVD Directive 2014/35/EU, Directive (2011/65/EU) and its amendment directives 2015/863/EU (RoHS 2.0) of the, European parliament, ERP Directive 2009/125/EC.

All essential test suites have been carried out.

Point of Contact: Eddie Latham Founder

Signed: E. Lathan

Date of Issue: January 2024

Place of Issue: Cambridge, UK

Importer's Addresses:

UK: iZilla Ltd, Newton House, 2 Pioneer Court, Histon, Cambridge, CB24 9PT

Email: [e-mail]

EU RP: AR Experts, Po Box 5047, 3620 AA Breukelen, The Netherlands

Email: [e-mail]

US: iZilla Ltd C/O A.N.Deringer Inc, 19520 Wilmington Ave, Rancho Dominguez, CA, 90220

Email: [e-mail]

ATTENTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION

RISQUE D' ELECTROCUTION NE PAS OUVRII

IMPORTANT: Please read all instructions carefully before use and keep for future reference

MAJORITY

www.majority.co.uk
