Rapid G51U - Shaver Eldom - Free user manual and instructions

USER MANUAL Rapid G51U Eldom

Black electric shaver with three rotary dials and 'HIGH MID LOW' label, no visible text or symbols beyond branding

Eldom Sp. z o.o. • ul. Pawła Chromika 5a • 40-238 Katowice, POLAND tel: [phone] • fax: [phone] • www.eldom.eu

_

| _

一

1

/EN/ The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems).

This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batte ries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

Read thoroughly this manual before the first use of the unit. Failure to comply with the following safety and safety instructions may result in electric shock, fire and/or serious injury.

Keep all warnings and security notices so you can use them in the future.

1. Before using the appliance for the first time, please read carefully these Instructions for Use.
2. The appliance should be connected to sockets compliant with current parameters given on the casing.
3. The appliance should always be disconnected by pulling the plug, not the power cord.
4. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
5. Do not place the appliance in the vicinity of heat sources.
6. The appliance is intended for domestic use only.
7. Do not immerse the cord or the appliance in water.
8. The appliance must always be cleaned after use. The appliance must always be turned off before cleaning and maintenance as well as in case of malfunction and after operation.
9. Do not use with a broken or otherwise damaged hairdressing head as it may lead to injury.
10. Do not use the appliance for clipping animal and artificial hair.
11. Do not use the appliance for clipping wet hair. It is designed for clipping dry hair only.
12. Do not use in the open air.

13. Use only with the originally included accessories and feeder.

14. Never use the appliance when it is wet, with wet hands or in the vicinity of showers, water in a bath, washbasin and other containers.

15. When used in the bathroom, the appliance must be disconnected after use because proximity of water is dangerous even if the appliance is turned off.
16. The appliance must not be immersed in or sprinkled with water.
17. When in operation, do not leave the appliance unattended. The power cord and the whole appliance should be regularly checked for damage. Do not turn the appliance on, if any damage has been found.
18. In the event the power cord is damaged, it must be replaced in the Manufacturer's Service Centre to prevent danger. A list of Service Centres can be found in the attachment and on the website www.eldom.eu.
19. The appliance can be repaired only in an authorised Service Centre. Any modernization or application of spare parts or elements other than the original ones is forbidden and dangerous for the user.
20. The company Eldom Sp. z o.o. shall not be liable for any damage caused by inappropriate use of the appliance.

CAUTION:

Do not use the appliance near bathtubs, showers, swimming pools and similar water reservoirs.

WARNING: Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

This appliance contains rechargeable batteries that cannot be replaced by the user himself.

The knives and strainers are working components and should be replaced systematically. They are not covered by warranty.

EN

INSTRUCTION MANUAL

ELECTRIC SHAVER G51U

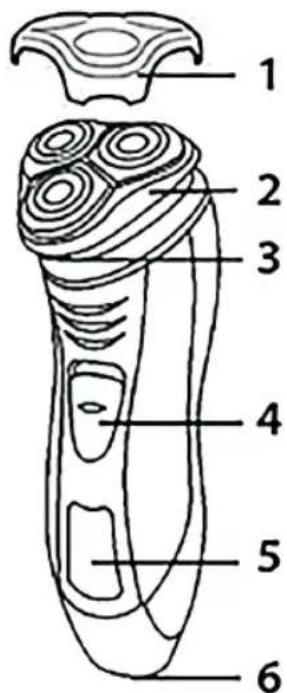

GENERAL DESCRIPTION

1. Protective cap
2. Shaving head with three blades
3. Opening button for the shaving head housing
4. On/off switch
5. Control lamp
6. Socket for the power cable

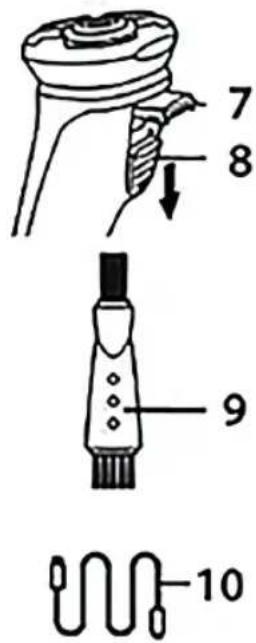

7. Trimmer
8. Trimmer opening button
9. Brush
10. USB power cable

TECHNICAL DATA

• power: 3 W
• supply voltage: DC 5V, 1A
• battery: 2x600mAh, Li-ion
• charging time: 2 hours
• charging method: wired – cable (10) connect to power supply with parameters: DC 5V, 1A (not included)

1 2 3 4 5 6

7 8 9 10

INTENDED USE

The G51U razor features a three-blade shaver head for a perfect fit to the shape of your face and precision performance. The built-in trimmer helps to take care of beard styling. The ergonomic shape and comfortable handle guarantee comfortable handling.

SERVICE

• Before use, check the appliance is complete and undamaged.
• Remove all transport protection.
• The shaver can be used as a mains or battery powered device.
• If mains-powered, the unit is ready to use immediately.

Electric power supply

• Turn off the device by moving the switch (4) to the „OFF" position.
• Connect one end of the cable (10) to the clipper, and the other to the power supply
• (not included), with the parameters specified above, and then to the mains.
• Connection to the mains is indicated by the indicator light (5).
• To start work, set the switch (4) to the „ON" position.
• When finished working, turn off the device by sliding the switch (4) down and disconnect
• the cable (10) from the mains and from the device socket (6).

Charging and operation with the batt

• The charging time of the battery is about 2 hours.
• Turn off the device - the switch (4) in the „OFF" position.
• Connect one end of the cable (10) to the clippers, and the other to the power supply

• (not included), with the parameters specified above, and then to the mains.
  -Charging is indicated by the indicator light (5).

• After the battery has been charged, disconnect the feeder, the appliance is ready for operation with the battery. To start operation, turn the switch-key (4) to position „ON”.

• If the appliance is not used for a longer period of time, it is recommended to charge the battery at least once every half a year.

USE

• Ensure the razor is clean, properly assembled.
• Check the state of charge of the battery - plug in the machine if necessary.

CAUTION.

The appliance is not suitable for wet shaving and with shaving gel and foam.

• To start operation, turn the switch-key (4) to position „ON“.
• Place the head (2) on the skin and move it by pressing lightly.
• When finished working, switch off the appliance by pressing the switch (4) and clean it.

CLEANING AND MAINTENANCE

• Before cleaning, switch the appliance off and disconnect from the mains.
• Do not immerse the appliance or any of its components in water.
• Clean the cutting unit after each use.
• Clean the blades with the brush (9) provided.

Diagram illustrating a multi-step biological or chemical process with labeled stages and directional arrows indicating movement.

WARRANTY

• This appliance is designed for domestic use only.
• It cannot be used for professional purposes or for other than the intended use.
• Improper use will nullify the guarantee.
