OVERSTEELTable of Contents
Introduction....02
What's in the box.... 02
Safety and Protection....03
Quantum 650/750/850 Specifications....04
Installation.... 07
Important user information....09
Introduction What's in the box
We have dedicated our efforts to design Quantum, a modular 80+ bronze certified power supply suitable for those seeking efficiency without compromising on quality. High quality capacitors (Teapo), a 140mm fan with silent PWM capability to keep all components well cooled and a unique design.
Quantum comes with a full suite of standard protections (OVP, OPP, UVP, SCP) for safety and protection of components and is covered by our 2 year Oversteel warranty and first class customer service.
Included with your Oversteel Quantum 650/750/850 power supply are the following items:
• Quantum Power Supply (1)
• Quantum QR Manual (1)
• Power Cord Cable (1)
• Installation Screws (4)
Safety and Protection
WARNING: This unit unit has no user-serviceable parts inside. Opening the casing presents a risk of electrocution and will void the product's warranty. OVERSTEEL will not be responsible for any result of improper use, including but not limited to, any use of the product outside of its intended purpose or use inconsistent with the warranty terms available online.
Over-voltage protection for the 12V, 5V and 3.3V DC outputs is required to comply with the ATX specification. OVP shuts down the PSU in the event that the DC outputs exceed a set level, determined by the PSU manufacturer. The minimum voltage levels required for compliance are 13.4V for the +12V rail(s), 5.74V for the +5V rail and 3.76V for the 3.3V rail.
Under-voltage protection for the 12V, 5V and 3.3V DC outputs. UVP shuts down the PSU in the event that the DC outputs exceed a set level, determined by the PSU manufacturer.
Short-circuit protection (SCP) Over-voltage protection (OVP)
A short-circuit is defined as any output impedance of less than 0.1 ohms. Amongst other things, SCP ensures that the PSU shuts down should the 3.3V, 5V and 12V rails short to any other rail, or to ground. It also ensures that no damage should occur to the unit, or your PC's components in the event of a short.
Over Power Protection (OPP) Under Voltage Protection (UVP)
The over-power protection (OPP) kicks in when the power we pull from a PSU exceeds its maximum rated capacity. Usually, the manufacturers give a little room for overpowering the PSU, so the OPP threshold is set to 50 to 100W (in some cases even more) above the maximum rated wattage of the PSU. In single +12V rail PSUs, where OCP is meaningless in most cases, OPP takes over its role and shuts down the PSU in case the +12V rail is overloaded.
OVERSTEEL
QUANTUM
ARGO FULL VOCULAR POWER SUPPLY
EN
QUANTUM 650W
Dimensions: 153mm (W) x 81mm (H) x 160mm (L)
Power table
| AC INPUT AC230V 50HZ | |||||
| DC OUTPUT | +V5 | +3.3V | +12V | -12V | +5VSB |
| MAX OUTPUT 15A 15A 49A 0.5A 2.5A | |||||
| MAXCOMBINEDPOWER | 100W | 588W | 16.5W | ||
| MAX POWER | 650W | ||||

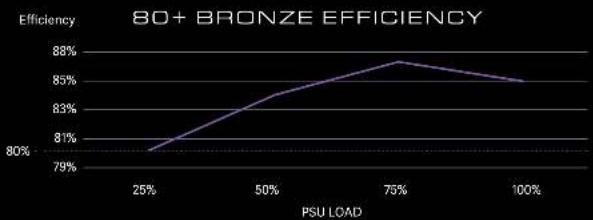

Power efficiency
line
| PSU LOAD | Efficiency | | -------- | ---------- | | 25% | 80% | | 50% | 83% | | 75% | 87% | | 100% | 85% |Cable Listing

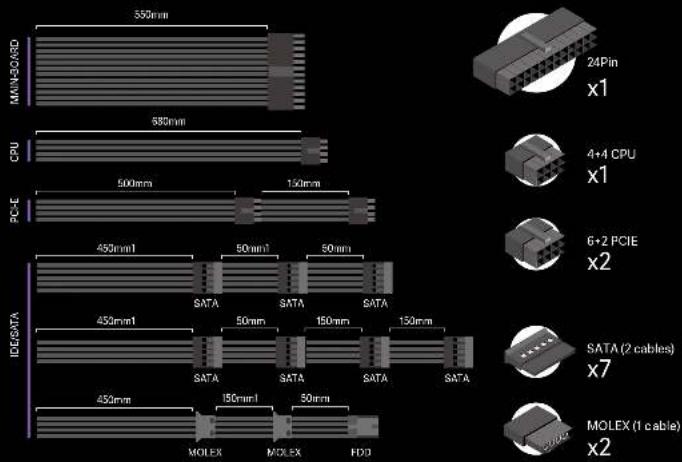

other
| Component | Width (mm) | | ----------------- | ---------- | | CPU | 680 | | PC-E | 500 | | IDC/SATA | 450 | | MOLEX | 450 | | MOLEX | 180 | | MOLEX | 50 | | MOLEX (1 cable) | 50 | | MOLEX (2 cables) | 150 | | SATA (2 cables) | 150 | | SATA (2 cables) | 150 | | SATA (2 cables) | 150 | | SATA (2 cables) | 150 | | SATA (2 cables) | 150 | | SATA (2 cables) | 150 | | SATA (2 cables) | 150 | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - |
OVERSTEEL
QUANTUM
ARGO FULL VOCULAR POWER SUPPLY
EN
QUANTUM 750W
Dimensions: 153mm (W) x 81mm (H) x 160mm (L)
| AC INPUT AC230V 50HZ | |||||
| DC OUTPUT | +VS | +3.3V | +12V | -12V | +5VSB |
| MAX OUTPUT | 15A | 15A | 57A | 0.5A | 2.5A |
| MAX COMBINED POWER | 90W | 684W | 18.5W | ||
| MAX POWER | 750W | ||||

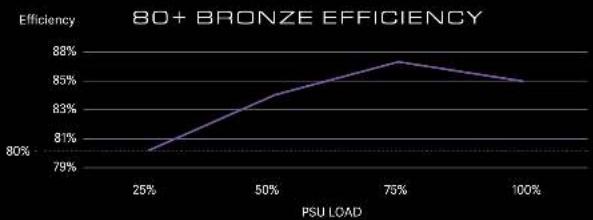

Power efficiency
line
| PSU LOAD | Efficiency | | -------- | ---------- | | 25% | 80% | | 50% | 83% | | 75% | 87% | | 100% | 85% |Cable ListingPower table


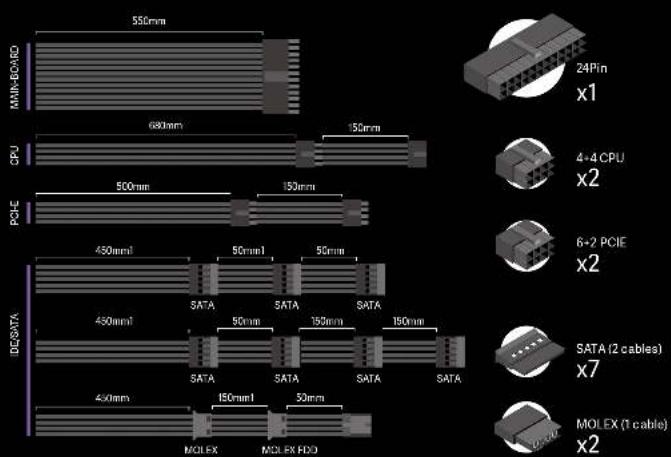

MM-BOX/DO 550mm 680mm 150mm CPU 500mm 150mm PCE 490mm 50mm 50mm DC/SATA 490mm 50mm 50mm SATA (2 cables) SATA (1 cable) MOLEX FDD MOLEX 24Pin x1 4+4 CPU x2 6+2 PCIE x2 SATA (2 cables) x7 MOLEX (1 cable) x2
OVERSTEEL
QUANTUM
ARGO FULL VOCULAR POWER SUPPLY
EN
QUANTUM 850W
Dimensions: 153mm (W) x 81mm (H) x 160mm (L)
| AC INPUT AC230V 50HZ | |||||
| DC OUTPUT | +VS | +3.3V | +12V | -12V | +5VSB |
| MAX OUTPUT | 15A | 15A | 64A | 0.5A | 2.5A |
| MAX COMBINED POWER | 90W | 768W | 18.5W | ||
| MAX POWER | 850W | ||||
Power efficiency
line
| PSU LOAD | Efficiency | | -------- | ---------- | | 25% | 79% | | 50% | 83% | | 75% | 88% | | 100% | 85% |Cable ListingPower table

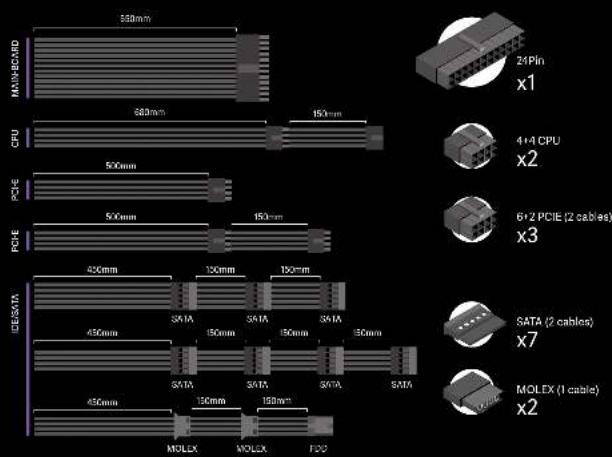

Disconnect the AC power before installation

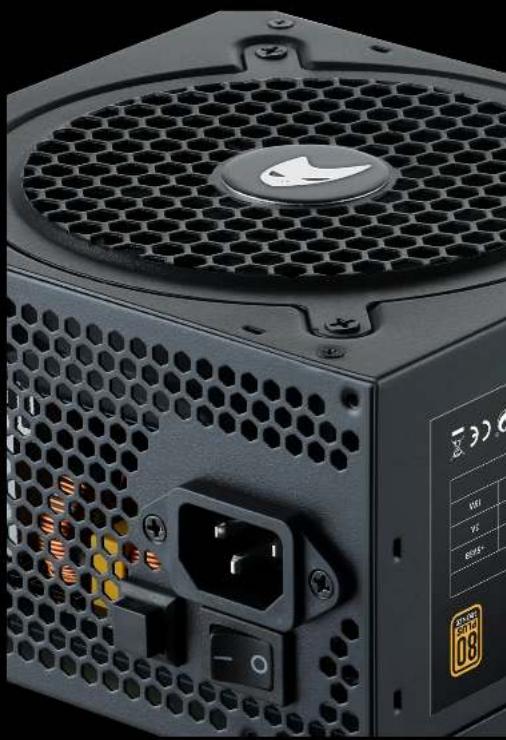

Installation
Removing your existing power supply If you are building a new system, skip to Step B.
- Disconnect the AC power cord from your wall outlet or UPS and from the existing power supply.

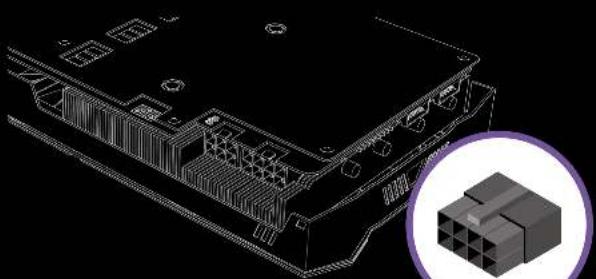

- Disconnect all the power cables from your video card, motherboard and all other peripherals (SATA & MOLEX)
- Follow the directions in your chassis manual and uninstall your existing power supply.
- Proceed to Step B.


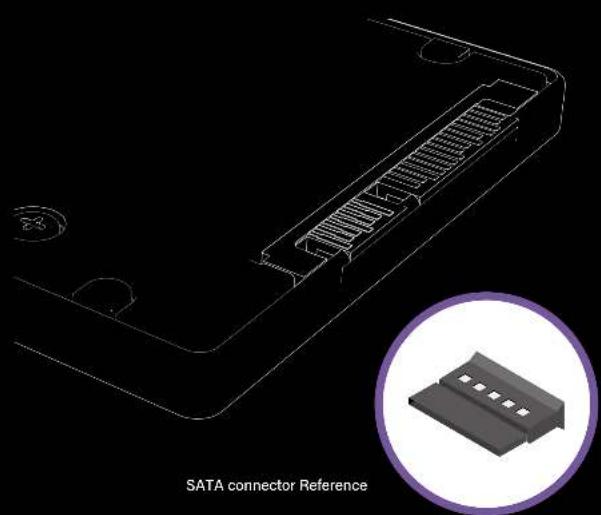

SATA connector ReferenceEN
OVERSTEEL
QUANTUM
ARGO FULL VOCULAR POWER SUPPLY
Disconnect the AC power before installation
Installing power supply
- Make sure the power supply's AC power cable is not connected.
- Follow the directions in your chassis manual and install the power supply with the screws provided.

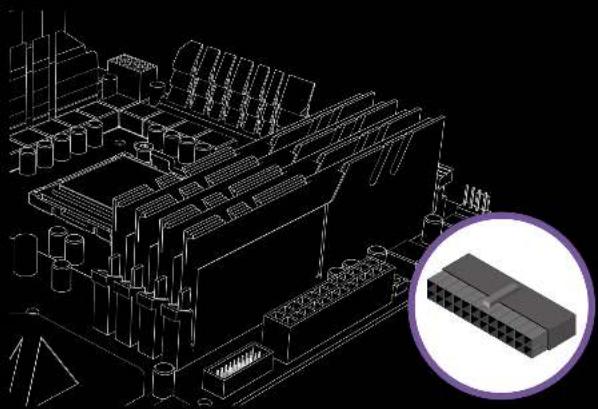

- The main 24-pin power cable has a detachable 4-pin mechanism in order to support either a 24-pin or a 20-pin socket on the motherboard.
A. If your motherboard has a 24-pin socket, you may connect the 24-pin main power cable from the power supply directly to your motherboard.
B. If your motherboard has a 20-pin socket, you must detach the four-pin cable from the 24-pin connector, and then plug the 20-pin cable onto your motherboard without connecting the four-pin connector.
4. Connect the eight-pin +12V (EPS12V) cable to the motherboard.
A. If your motherboard has an eight-pin +12V socket, connect the eight-pin cable directly to your motherboard.
B. If your motherboard has a four-pin socket, detach the four-pin from the eight-pin cable, and then plug this four-pin cable directly to your motherboard.
Important user information
- Install in accordance with all manufacturer instructions and safety warnings. Failure to do so may result in damage to your power supply or system, and may cause serious injury or death.
- High voltages are present in the power supply. Do not open the power supply case or attempt to repair the power supply; there are no user-serviceable components.
- This product is designed for indoor use only.
- Do not use the power supply near water, or in high temperature or high humidity environments.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
- Do not insert any objects into the open ventilation or fan grill area of the power supply.
- Do not modify the cables and/or connectors included with this power supply.
- The 24-pin main power connector has a detachable 4-pin connector. This 4-pin connector is not a P4 or ATX 12V connector. Do not force this cable in the P4 or ATX +12V socket on the motherboard.
- Failure to comply with any manufacturer instructions and/or any of these safety instructions will immediately void all warranties and guarantees.
Tabla de contenidos
Introducción.... 10
Over-voltage protection for the 12V, 5V and 3.3V DC outputs is required to comply with the ATX specification. OVP shuts down the PSU in the event that the DC outputs exceed a set level, determined by the PSU manufacturer. The minimum voltage levels required for compliance are 13.4V for the +12V rail(s), 5.74V for the +5V rail and 3.76V for the 3.3V rail.
Under-voltage protection for the 12V, 5V and 3.3V DC outputs. UVP shuts down the PSU in the event that the DC outputs exceed a set level, determined by the PSU manufacturer.
Short-circuit protection (SCP) Over-voltage protection (OVP)
A short-circuit is defined as any output impedance of less than 0.1 ohms. Amongst other things, SCP ensures that the PSU shuts down should the 3.3V, 5V and 12V rails short to any other rail, or to ground. It also ensures that no damage should occur to the unit, or your PC's components in the event of a short.
Over Power Protection (OPP) Under Voltage Protection (UVP)
The over-power protection (OPP) kicks in when the power we pull from a PSU exceeds its maximum rated capacity. Usually, the manufacturers give a little room for overpowering the PSU, so the OPP threshold is set to 50 to 100W (in some cases even more) above the maximum rated wattage of the PSU. In single +12V rail PSUs, where OCP is meaningless in most cases, OPP takes over its role and shuts down the PSU in case the +12V rail is overloaded.
OVERSTEEL
QUANTUM
ARGO FULL VOCULAR POWER SUPPLY
ES
QUANTUM 650W
Dimensiones: 153mm (An) × 81mm (Al) × 160mm (La)
line
| PSU LOAD | Efficiency | | -------- | ---------- | | 25% | 80% | | 50% | 83% | | 75% | 87% | | 100% | 85% |line
| PSU LOAD | Efficiency | | -------- | ---------- | | 25% | 80% | | 50% | 83% | | 75% | 87% | | 100% | 85% |line
| PSU LOAD | Efficiency | | -------- | ---------- | | 25% | 79% | | 50% | 83% | | 75% | 88% | | 100% | 85% |Disconnect the AC power before installation
Instalación
OVERSTEEL
QUANTUM
ARGO FULL VOCULAR POWER SUPPLY
Disconnect the AC power before installation
Included with your Oversteel Quantum 650/750/850 power supply are the following items:
• Quantum Power Supply (1)
• Quantum QR Manual (1)
• Power Cord Cable (1)
• Installation Screws (4)
Dimensions: 153mm (W) x 81mm (H) x 160mm (L)
line
| PSU LOAD | Efficiency | | -------- | ---------- | | 25% | 80% | | 50% | 83% | | 75% | 87% | | 100% | 85% |Liste des câbles
other
| Component | Dimension (mm) | | ------------- | -------------- | | MAIN-BOARD | 550 | | CPU | 580 | | PC-E | 500 | | IDE/SATA | 450 | | IDE/SATA | 450 | | IDE/SATA | 450 | | IDE/SATA | 450 | | IDE/SATA | 450 | | IDE/SATA | 450 | | IDE/SATA | 450 | | IDE/SATA | 450 | | IDE/SATA | 450 | | | IDE/SATA | 450 | | IDE/SATA | 450 | | IDE/SATA | 450 | | IDE/SATA | 450 | | IDE/SATA | 450 | | IDE/SATA | 450 | | IDE/SATA | 450 | | IDE/SATA | 450 | | IDE/SATRA | 50 | | IDE/SATRA | 50 | | IDE/SATRA | 50 | | IDE/SATRA | 50 | | IDE/SATRA | 50 | | IDE/SATRA | 50 | | IDE/SATRA | 50 | | IDE/SATRA | 50 | | IDE/SATRA | 50 | | IDE/MOLEX | 150 | | IDE/MOLEX | 150 | | IDE/MOLEX | 150 | | IDE/MOLEX | 150 | | IDE/MOLEX | 150 | | IDE/MOLEX | 150 | | IDE/MOLEX | 150 | | IDE/MOLEX | 150 | | IDE/MOLEX | - | | MODEX | - | | MOLEX | - | | MOLEX | - | | FDD | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - | | SATA (2 cables) | - 1.5m | | SASA | 50 | | SASA | 50 | | SASA | 50 | | SASA | 50 | | SASA | 50 | | SASA | 50 | | SASA | 50 | | SASA | 50 | | SASA | 50 | | SASA | 50 | | SASA | 50 | The chart displays the dimensions and positions of different electronic components in the device layout.
OVERSTEEL
QUANTUM
ARGO FULL VOCULAR POWER SUPPLY
FR
QUANTUM 750W
Dimensions: 153mm (W) x 81mm (H) x 160mm (L)
| AC INPUT AC230V 50HZ | |||||
| DC OUTPUT | +VS | +3.3V | +12V | -12V | +5VSB |
| MAX OUTPUT | 15A | 15A | 57A | 0.5A | 2.5A |
| MAX COMBINED POWER | 90W | 684W | 18.5W | ||
| MAX POWER | 750W | ||||
line
| PSU LOAD | Efficiency | | -------- | ---------- | | 25% | 80% | | 50% | 83% | | 75% | 87% | | 100% | 85% |text_image

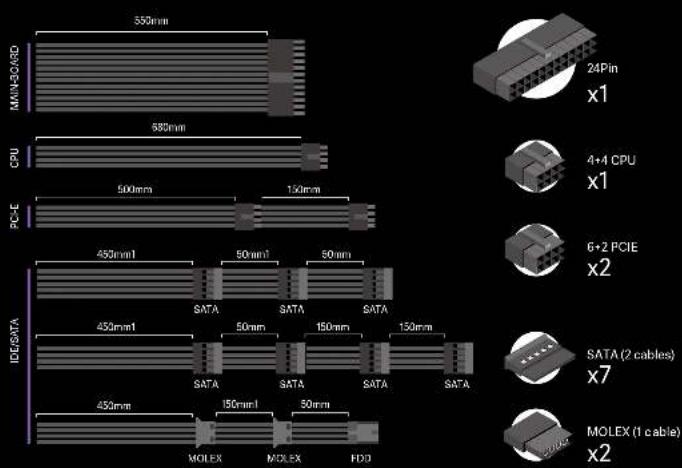

MM-DC/RD 550mm 680mm CPU 500mm PC-E 490mm IOC/SATA 490mm SATA 50mm SATA 50mm SATA 50mm SATA 50mm SATA 50mm SATA 50mm SATA 50mm SATA 50mm SATA 50mm SATA 50mm SATA 50mm SATA 50mm SATA 50mm SATA 50mm SATA 500mm MOLEX MOLEX FDD 24Pin x1 4+4 CPU x2 6+2 PCIE x2 SATA (2 cables) x7 MOLEX (1 cable) x2
