Product Type	Electric Meat Slicer
Brand	Weston
Model	MS06
Power	120 V ~ 60 Hz
Cutting Thickness	Adjustable from 0 (thin) to 15 (thick)
Blade Type	Stainless steel, very sharp
Food Pusher	Removable, must be used
Food Carriage	Sliding, included
Calibration Plate	Integrated, thickness adjustment
Blade Locking Screw	Tighten before use (counterclockwise)
Maximum Continuous Use	10 minutes, then cool for 30 to 60 minutes
Cleaning the Blade and Pusher	Hand wash in warm soapy water, air dry
Cleaning the Base	Soft damp cloth with mild detergent
Recommended Lubrication	NSF food-grade silicone lubricant
Materials	Stainless steel blade, ABS plastic body
Warranty	1 year against defects in material and workmanship
Included Accessories	Pusher, carriage, locking screw
Safety	Automatic shutoff, blade locking screw, guards
Replacement Parts Available	Yes, contact WestonBrands.com or customer service
Usage Tip	Very cold or semi-frozen foods for best results

Frequently Asked Questions - MS06 Weston

How to adjust cutting thickness?

Turn the thickness adjustment knob: toward 0 for thin slices, toward 15 for thicker slices.

What to do if the blade does not turn?

Check that the device is plugged in, the switch is in the ON position (I/on), and the blade locking screw is tight (turn it counterclockwise with a screwdriver).

How to safely clean the blade?

Wear cut-resistant gloves. Turn the thickness knob to '-', remove the pusher, then loosen the locking screw (clockwise) to remove the blade. Hand wash in warm soapy water without soaking. Always wipe away from the blade edge.

Can I slice foods with bones?

No, never slice bones. This could damage the blade and appliance. Use only boneless foods.

What is the maximum continuous use time?

Do not operate the appliance for more than 10 minutes continuously. Let it cool for 30 to 60 minutes before using again to avoid damaging the motor.

How to assemble the appliance before first use?

Make sure the switch is in the OFF position. Insert the blade onto the shaft, tighten the locking screw counterclockwise with a screwdriver or coin. Place the sliding carriage and pusher. Plug into a suitable outlet.

What to do if the slicer struggles with food?

Do not force! The blade should glide easily. If it struggles, the food may be too soft or the blade dull. Use very cold or semi-frozen foods, and create a flat surface against the blade.

How to lubricate moving parts?

After cleaning, apply an NSF-approved food-grade silicone lubricant (part number 03-0101-W) to moving parts to protect and ease movement.

Can I slice soft cheese?

Yes, but for best results, place soft cheese in the freezer for 30 minutes before slicing. Very cold foods yield clean slices.

Where to find replacement parts?

Visit WestonBrands.com or contact customer service at 1.800.814.4895 (US) or 001.216.901.6801 (outside US) Monday to Friday, 8 AM to 5 PM EST.

USER MANUAL MS06 Weston

Exterior view of a stainless steel bar on a flat-screen plate (no text or symbols visible)

MS06

WESTON MEAT SLICER

TRANCHEUSE À VIANDE WESTON

REBANADOR DE CARNE WESTON

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put the meat slicer assembly, cord or plug in water or other liquid.
6. Turn the appliance OFF (●) then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contacting moving parts. Personal injury may occur. The blade continues to spin after the meat slicer has been turned off. Never try to stop the blade in any way whatsoever.
8. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Customer Service for information on examination, repair,

or adjustment as set forth in the Limited Warranty.

1. The use of attachments not recommended by the manufacturer may cause fire, electrical shock, or injury.
2. Blade is sharp. Handle carefully, especially when assembling, disassembling, or cleaning. It is recommended that cut-proof gloves be worn when handling the blade.
3. Never feed food by hand. Always use completely assembled slicer with the food carriage and food pusher.
4. Do not use outdoors.
5. Do not let cord hang over edge of table or counter, or touch hot surfaces, including the stove.
6. Do not place on or near a hot gas or electric burner or in a heated oven.
7. Check that the appliance is OFF (before plugging cord into wall outlet. To disconnect, turn the control to OFF (then remove plug from wall outlet. Never pull from the power cord.
8. Do not use appliance for other than intended purpose.
9. Do not leave meat slicer unattended while it is operating.
10. Keep hands, hair, clothing, and any loose items away from the moving blade.
11. Operate the meat slicer only when the blade-locking screw is properly engaged and tightened.
12. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS

OTHER CONSUMER SAFETY INFORMATION

This appliance is intended for household use only.

WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

⚠️ CAUTION Sharp Blade. Handle carefully. Keep fingers away from the blade. Never feed food by hand. Always use the food pusher. Always use completely assembled meat slicer with food carriage and food pusher. Protective, cut-resistant gloves are recommended whenever handling the blade.

PARTS AND FEATURES

Before first use:

Ensure all packaging materials have been removed. Wash all parts thoroughly, taking particular care to remove all grease and oil from surfaces. Dry before reassembling. See "Care and Cleaning" section of this booklet.

Technical diagram of an industrial machine with numbered components and labeled parts

Technical diagram of a solar heating device with labeled parts 9 and 10, showing internal components and wiring.

PARTS AND FEATURES (cont.)

DIAGRAM NUMBER PART DESCRIPTION

1 7 12 " (19 CM) SERRATED STAINLESS STEEL BLADE

2 BLADE LOCKING SCREW

3 GAUGE PLATE

4 REMOVABLE FOOD PUSHER

5 FOOD CARRIAGE SUPPORT

6 SLIDING FOOD CARRIAGE

7 SUCTION CUP FOOT (4)

8 BASE

9 THICKNESS ADJUSTMENT KNOB

10 ON/OFF (1/ ) POWER SWITCH

If any components of this unit are broken, the unit does not operate properly or you need a replacement instruction manual, visit us on the web at WestonBrands.com.

DIRECTIONS FOR USE

WARNING Electrical Shock Hazard. Before cleaning, assembling, or disassembling the appliance, make sure the appliance is OFF (○ and the plug is removed from the outlet/power source.

⚠️ CAUTION Sharp Blade. Handle carefully. Keep fingers away from the blade. Never feed food by hand. Always use the food pusher. Always use completely assembled meat slicer with food carriage and food pusher. Protective, cut-resistant gloves are recommended whenever handling the blade.

⚠️ CAUTION It is important to follow the food safety guidelines outlined in this manual. For the most up-to-date instruction, visit the USDA website at http://www.usda.gov/.

1. Place Meat Slicer on a flat stable surface. Be sure Power Switch is in OFF (Φ position.

2. Before plugging into outlet, make sure Blade Locking Screw is properly tightened. Using a flat head screwdriver or coin, turn Blade Locking Screw counterclockwise to tighten.

3. Plug into electrical outlet.

4. Place a tray or plate behind Meat Slicer and below Blade to collect sliced food as it exits Blade area.

5. Place food on to Sliding Food Carriage between Gauge Plate and Food Pusher. To avoid danger of injury, always use Food Carriage and Food Pusher while slicing (Figure 1).

6. Rotate Thickness Adjustment Knob to set Gauge Plate to desired cutting thickness (Figure 2). Rotate towards "0" for thinnest slice, and rotate towards "15" for thickest slice.

7. Turn on Meat Slicer by switching Power Switch to ON (I) on position.

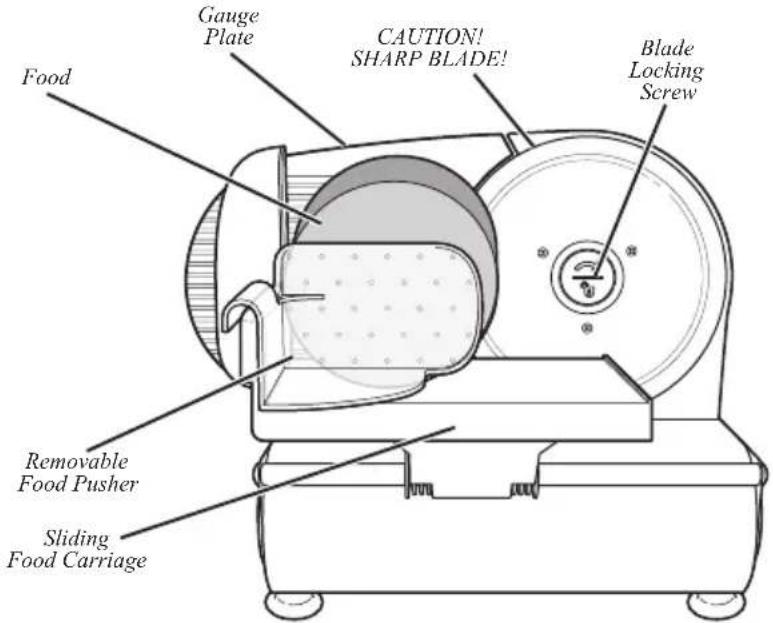

FIGURE 1

Gauge Plate CAUTION! SHARP BLADE! Blade Locking Screw Food Removable Food Pusher Sliding Food Carriage

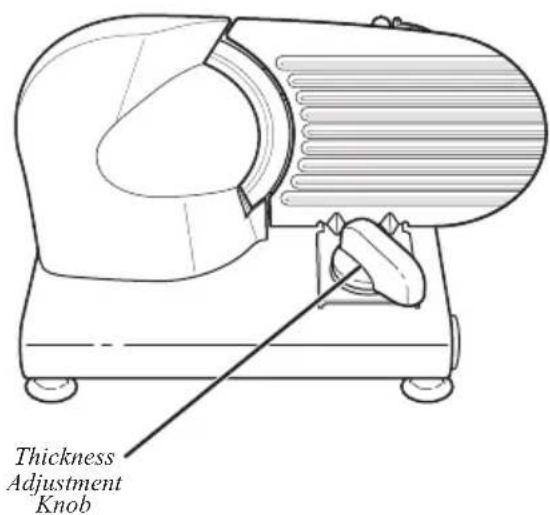

FIGURE 2

Thickness Adjustment Knob

1. Hold Food Pusher/Sliding Food Carriage Handle; keep your hands protected behind Food Pusher (Figure 3).
2. To begin slicing, push food in toward Gauge Plate with Food Pusher. Slide food over with Sliding Food Carriage until it reaches end of Food Carriage Support. Slide Sliding Food Carriage back and repeat until you have sliced desired amount of food.
3. When finished, turn off Meat Slicer by switching Power Switch to OFF (● position.
4. For safety, always rotate Thickness Adjustment Knob all the way to “-” position after use to properly shield sharp edge of Blade.
5. Always unplug when not in use.

NOTE: Do not operate the appliance continuously for more than 10 minutes. Be sure to allow the appliance to cool down for 30-60 minutes before operating again. Failure to allow the slicer motor to cool down may result in damage to the motor.

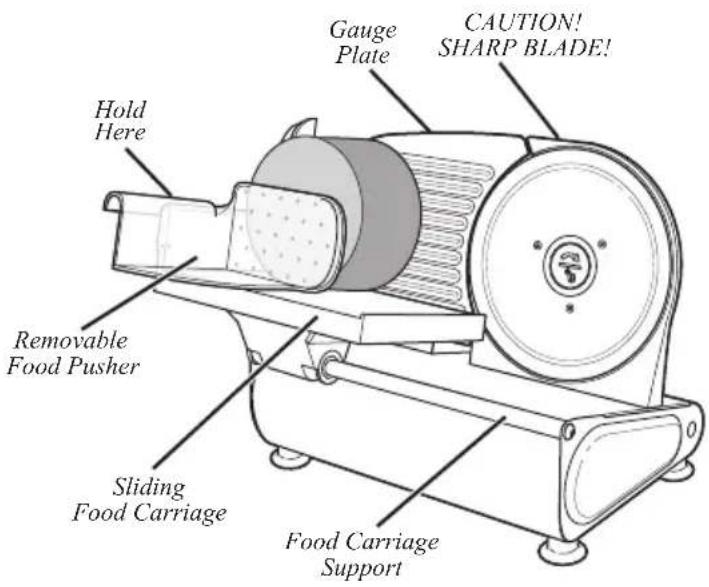

FIGURE 3

Gauge Plate CAUTION! SHARP BLADE! Hold Here Removable Food Pusher Sliding Food Carriage Food Carriage Support

CARE AND CLEANING

WARNING Electrical Shock Hazard. Before cleaning, assembling, or disassembling the appliance, make sure the appliance is OFF (●) and the plug is removed from the outlet/power source.

⚠️ CAUTION Sharp Blade. Handle carefully. Keep fingers away from the blade. Never feed food by hand. Always use the food pusher. Always use completely assembled meat slicer with food carriage and food pusher. Protective, cut-resistant gloves are recommended whenever handling the blade.

1. Before cleaning, always turn Power Switch to OFF (⊕ and unplug.

2. Never immerse Meat Slicer in water or other liquid.

3. The Blade and Removable Food Pusher can all be hand washed in hot, soapy water. Because these parts come in contact with food, they should be sanitized properly. Allow sanitized parts to air dry. Do not use harsh abrasives to clean any part of the Meat Slicer. Use extreme caution when handling or cleaning the Blade, as it is extremely sharp! Do not leave Blade in water; trying to handle sharp objects in water can be hazardous. It is highly recommended to wear cut-resistant gloves when removing, cleaning and reinstalling the Blade.

NOTE: When cleaning the Blade, always wipe away from the Blade.

1. Rotate Thickness Adjustment Knob all the way to the “-” position.

2. Remove Food Pusher and rotate the Sliding Food Carriage out of the way in order to allow for easy access to the Blade.

3. To remove Blade, using gloves, squeeze Blade against Motor Housing. Using a flat head screwdriver or coin, turn Blade Locking Screw clockwise to loosen and remove Screw. Set Screw aside (Figure 4).

4. Sliding Food Carriage should be cleaned with hot, soapy water. Rinse and dry thoroughly before next use.

5. Clean the outer surface of the Meat Slicer Base with a soft cloth dampened with a mild detergent. Never immerse Base in water or any other liquid. Do not use steel wool, abrasive cleaners, or sharp utensils to clean.

6. After cleaning and drying, reinstall the Blade and Blade Locking Screw to the Base. Make sure the Blade Locking Screw is properly tightened. Using a flat head screwdriver or coin, turn the Blade Locking Screw counterclockwise to tighten. Rotate the Sliding Food Carriage back to its proper position and reinstall the Food Pusher (Figure 5).

NOTE: After cleaning is complete, use National Sanitation Foundation (NSF) approved food grade silicone lubricant (SKU 03-0101-W) to help lubricate and protect moving parts.

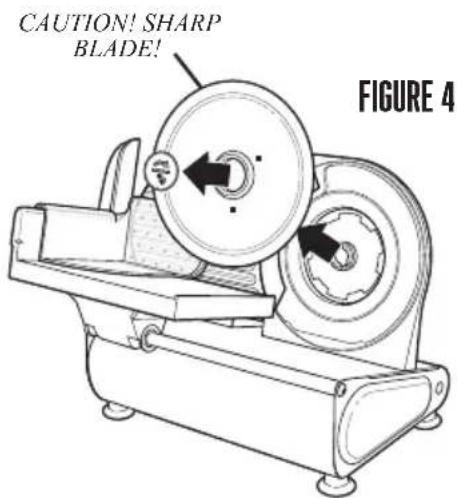

CAUTION! SHARP BLADE! FIGURE 4

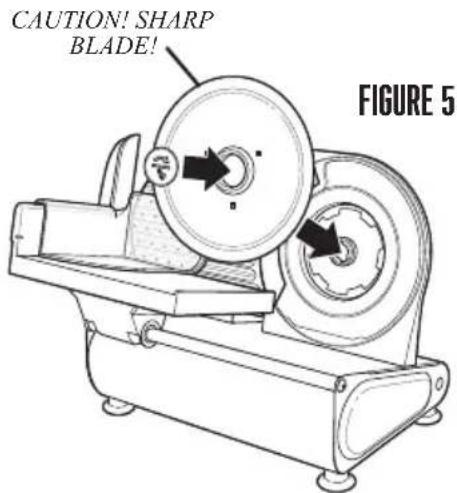

CAUTION! SHARP BLADE! FIGURE 5

MEAT SLICING TIPS

- Slice more than just meat

Whatever you can slice with a mandolin, you can slice on the Meat Slicer. Cut perfectly uniform cored apples, pepper rings, onion or tomato slices, shred lettuce and cabbage or slice bread and cheese.

- Don't force slicer

People often make the mistake of pushing the food across the Blade too forcefully. Blade should glide easily through food. When you force the slicer, you wear down the motor and slow the Blade. If you go with the flow, the Slicer will last longer and you'll have more uniform slices.

- Keep food as cold as possible

The colder, the better. Really cold and/or somewhat frozen food is best for slicing. Place meats and soft cheeses in the freezer for 30 minutes before slicing. Partially freezing fish helps when trying for paper-thin slices.

- Create a flat surface

Slice ham, roast, loaf of bread, cabbage or any food in half to create a flat surface to start. Face the surface against the blade. It will help keep the slices uniform.

- Do not use foods that have seeds

Tomatoes are the exception. The seeds and pits of other fruits such as peaches, avocados, etc. can cause damage to your appliance. It's best to avoid any foods with seeds.

- Do not cut meats with the bone

Never slice through bone. It is important to only slice foods which do not contain bone, since this can damage your Slicer.

ONE-YEAR LIMITED WARRANTY

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover unauthorized repairs or service to products, products sold “as-is” by retailers, glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient and is not transferable. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty.

This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.814.4895 (001.216.901.6801 outside the US) or visit WestonBrands.com. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

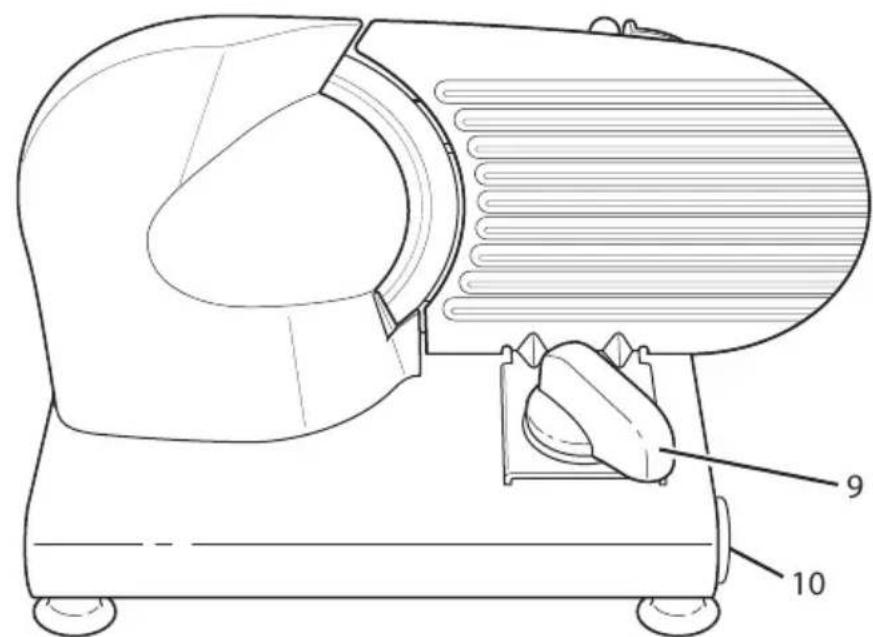

Technical diagram of an industrial machine with numbered components and labeled parts

Technical diagram of a cutting machine with labeled parts 9 and 10, showing internal components and blade structure.

PIÈCES ET CARACTÉRISTIQUES (suite)

NUMÉRO DESCHÉMA DESCRIPTION DE LA PIÉCE
1 LAME DENTÉE EN ACIER INOXYDABLE DE 19 CM (7,5 PO)
2 VIS DE VERROUILLAGE DE LA LAME
3 PLAQUE DE CALIBRAGE
4 POUSSOIR D'ALIMENTS AMOVIBLE
5 SUPPORT DU CHARIOT POUR ALIMENTS
6 CHARIOT POUR ALIMENTS COULISSANT
7 PIED À VENTOUSE (4)
8 BASE
9 BOUTON DE RÉGLAGE DE L'ÉPAISSEUR
10 INTERRUPTEUR D'ALIMENTATION ON/OFF (I/ [MARCHE/ARRÊT])

Technical line drawing of a mechanical device with two wheels and a central pulley (no text or symbols)

CONSEILS POUR TRANCHER LA VIANDE

GARANTIE LIMITÉE D'UN AN

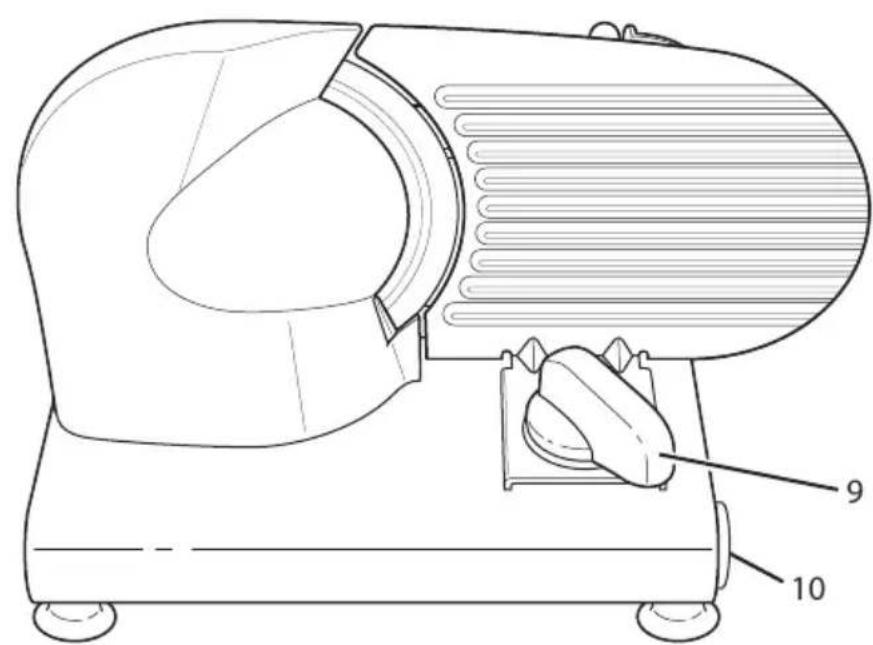

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a microwave oven with labeled parts 9 and 10, showing internal components and casing structure.

PIEZAS Y CARACTERÍSTICAS (cont.)

Technical line drawing of a mechanical device with pulley and rotating components (no text or symbols)

CONSEJOS PARA REBANAR CARNE

Mixcoac, Benito Juárez,

"Y" y/o "MX" y/o "MXY" y/o "Z".

ATTENTION!

PLEASE INSPECT THIS PACKAGE THOROUGHLY FOR MISSING PARTS OR ANY PRODUCT DAMAGE. IF YOUR PRODUCT CONTAINS SHIPPING DAMAGE, PLEASE CONTACT RETAILER FOR ASSISTANCE.

For all other questions regarding product usage, missing parts, product damage, difficulty or warranty activation, please contact the Weston Brands Customer Service Team: 8:00 am to 5:00 pm ET, Monday thru Friday

[e-mail]

U.S. Residents Customer Service Line: 1-800-814-4895 (Outside U.S. Call: 001-216-901-6801)

Weston Brands, LLC, Southern Pines, NC 28387

WestonBrands.com

Please DO NOT return this item to the retailer before contacting Weston Brands Customer Service.

SAVE THESE INSTRUCTIONS!

Refer to them often and use them to instruct others.
