Product Type	Manual Meat Grinder/Mixer
Brand	Weston
Model	36-1901-W
Power Source	Manual (rotating handle)
Bowl Capacity	Approximately 10 to 15 lb (estimated)
Main Material	Steel and plastic (metal bowl, transparent plastic lid)
Main Function	Mix ground meat with seasonings and binders
Recommended Use	Preparation of sausages, hamburgers, stuffings
Safety	Never put hands in the bowl while operating; use the transparent lid
Cleaning	Manual disassembly, wash with warm soapy water, dry thoroughly; not dishwasher safe
Maintenance	Spray metal parts with food-grade silicone after cleaning
Spare Parts	Shaft/blade, handle, pivot knob, transparent lid, handle pivot
Warranty	1 year limited (registration required within 30 days)
Customer Service	1-800-814-4895 (US) / 001-216-801-6801 (outside US)
Dimensions (approx.)	Not specified in manual
Weight (approx.)	Not specified

Frequently Asked Questions - 36-1901-W Weston

How to assemble the Weston 36-1901-W meat mixer?

Place the bowl on a flat surface, long pillar on the left and short on the right. Insert the spring pivot into the left hole, screw the pivot knob. Pull the knob to insert the mixing shaft, flat side to the left, notch to the right. Release the knob to secure the pivot. Insert the handle pivot into the right pillar, connect it to the shaft, then mount the handle and tighten the fixing knob. Finally, place the transparent lid.

How to clean the meat mixer?

Disassemble the unit completely. Wash all parts that have touched food with warm soapy water, rinse with clean water and dry thoroughly. Spray metal parts with food-grade silicone before reassembly. Never put parts in the dishwasher, as they are not compatible.

What safety precautions should be followed?

Always keep hands and fingers away from the moving shaft and blades. Never use the unit without the transparent lid. Tie back loose hair and clothing, remove jewelry. Do not leave the unit unattended and store it after use. Inspect the unit before each use.

How to use the meat mixer?

Place the unit on a stable surface. Add ground meat and seasonings to the bowl. Close the transparent lid. Turn the handle clockwise until the meat becomes sticky. Do not overmix. Remove the lid to check consistency, without touching the shaft. Once done, remove the handle, lid and shaft before taking out the meat.

What food safety rules should be followed?

Cook ground meat to an internal temperature of 71-74°C (160-165°F). Separate raw and cooked foods to avoid cross-contamination. Clean hands and surfaces frequently. Cool food quickly to below 4°C (40°F). Do not leave food at room temperature for more than 2 hours (1 hour above 32°C).

What to do if a part is missing or damaged?

Contact Weston customer service at 1-800-814-4895 (US) or 001-216-801-6801 (outside US), Monday through Friday 8am-5pm ET. You can also visit WestonProducts.com to order spare parts or a new manual.

How to register the warranty?

Fill out the online registration form at www.WestonProducts.com/Warranty within 30 days of purchase. Keep the original receipt as proof of purchase. The one-year warranty covers defects in materials and workmanship.

Can I put the parts in the dishwasher?

No, the meat mixer is not dishwasher safe. Cleaning must be done by hand with warm soapy water, followed by rinsing and thorough drying. Spray food-grade silicone on metal parts to protect them.

What to do if the handle is difficult to turn?

Make sure the mixing shaft is correctly installed and the handle pivot is properly aligned. Check that the fixing knob is not too tight. Clean and lubricate parts with food-grade silicone. If the problem persists, contact customer service.

Can I mix bones or hard objects?

No, never mix bones or other hard objects, as they can damage the mixing shaft. Use only ground meat and soft ingredients.

USER MANUAL 36-1901-W Weston

RECONNECT WITH REAL FOOD

WESTON RECONNECT WITH REAL FOOD WESTON

STAINLESS STEEL 20 LB CAPACITY MANUAL

MEAT MIXER

36-1901-W

DUE TO CONSTANT FACTORY IMPROVEMENTS, THE PRODUCT PICTURED MIGHT DIFFER

SLIGHTLY FROM THE PRODUCT IN THIS BOX. 012016

GENERAL SAFETY RULES 3

COMPONENT LIST 4

CLEANING INSTRUCTIONS 5

ASSEMBLY INSTRUCTIONS 5-6

WESTON WARRANTY INFORMATION 10

1. KEEP FINGERS AND HANDS AWAY from the Mixing Shaft and Paddles during use.
2. NEVER use the Meat Mixer without the Clear Lid in place.
3. The Meat Mixer is not a toy. KEEP CHILDREN AWAY. NEVER LEAVE THE MEAT MIXER UNATTENDED.
4. ALWAYS REMOVE THE HANDLE from the Meat Mixer when not in use.
5. Thoroughly inspect the Meat Mixer before each use. If any parts are missing, damaged or do not function properly, contact customer service at the number listed on the back of this manual.
6. DO NOT mix bones or other hard objects that could damage the Mixing Shaft.
7. The manufacturer declines responsibility for any improper use of the Meat Mixer.
8. Only use the Meat Mixer on a stable, level surface. The Meat Mixer should not move or shift during use.
9. TIE BACK loose hair and clothing, roll up long sleeves and remove ties and jewelry including watches, rings and bracelets before operating the Meat Mixer.
10. Thoroughly wash all Meat Mixer parts that contact food in warm, soapy water before and after each use. Rinse with clear water. Dry all parts before re-assembly and storage. The Meat Mixer is NOT DISHWASHER SAFE. It is best to use a food-grade silicone spray to coat all metal parts.
11. DO NOT USE the Meat Mixer while under the influence of drugs or alcohol.

SAVE THESE INSTRUCTIONS

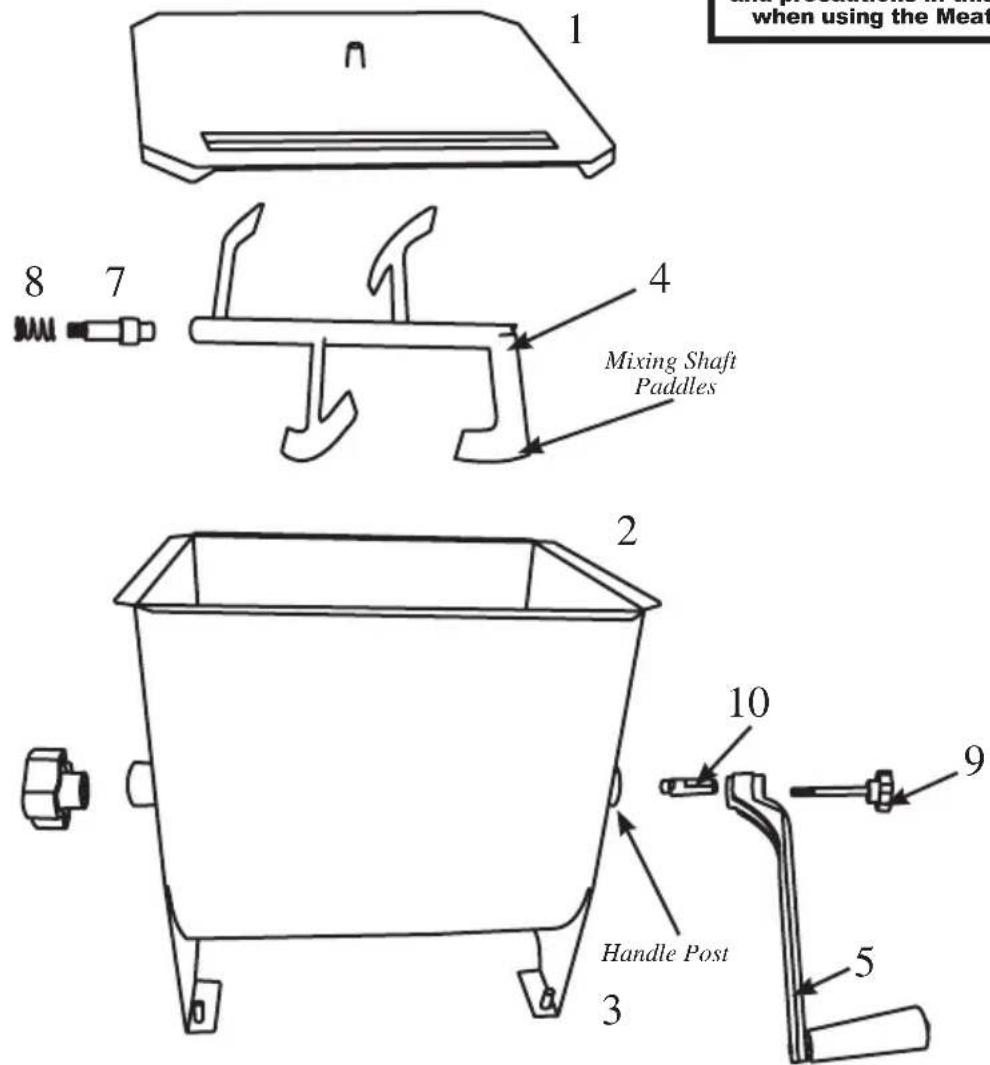

COMPONENT LIST

when using the Meat 1 2 3 4 5 6 7 8 Mixing Shaft Paddles 10 9 Handle Post

DIAGRAM NUMBER PART DESCRIPTION PART NUMBER
1 CLEAR LID 36-1902
2 MIXING TUB 36-1903
3 RUBBER FEET (4) 36-1904
4 MIXING SHAFT/PADDLES 36-1905
5 HANDLE 36-1906
6 PIVOT KNOB 36-1907
7 PIVOT PIN 36-1908
8 PIVOT SPRING	36-1909
9	HANDLE RETAINING KNOB	36-1910
10	HANDLE PIVOT PIN	36-1911

If any components of this unit are broken, the unit does not operate properly or you need a replacement instruction manual, visit us on the web at

WestonProducts.com

Or call Weston Brands LLC Toll Free at 1-800-814-4895

Monday thru Friday 8:00am-5:00pm ET. Outside the U.S. call 001-216-801-6801

CLEANING INSTRUCTIONS

1. Completely disassemble the Meat Mixer.
2. Before and after each use, thoroughly wash all Meat Mixer parts that contact food in warm, soapy water.
3. Rinse with clear water.
4. Thoroughly dry all parts. Coat all metal parts with a food-grade silicone spray before re-assembly and storage.

NOTE: The Meat Mixer is NOT dishwasher safe.

ASSEMBLY INSTRUCTIONS

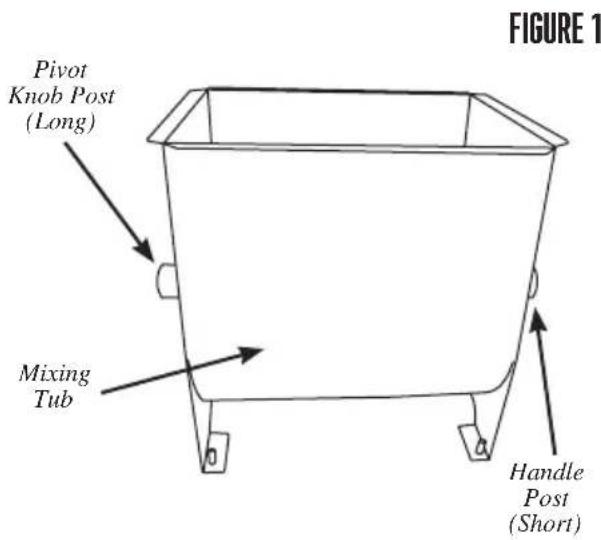

FIGURE 1

1. Place the Mixing Tub on a stable, level surface with the Pivot Knob Post (longer post) on your left and the Handle Post (shorter post) on your right.

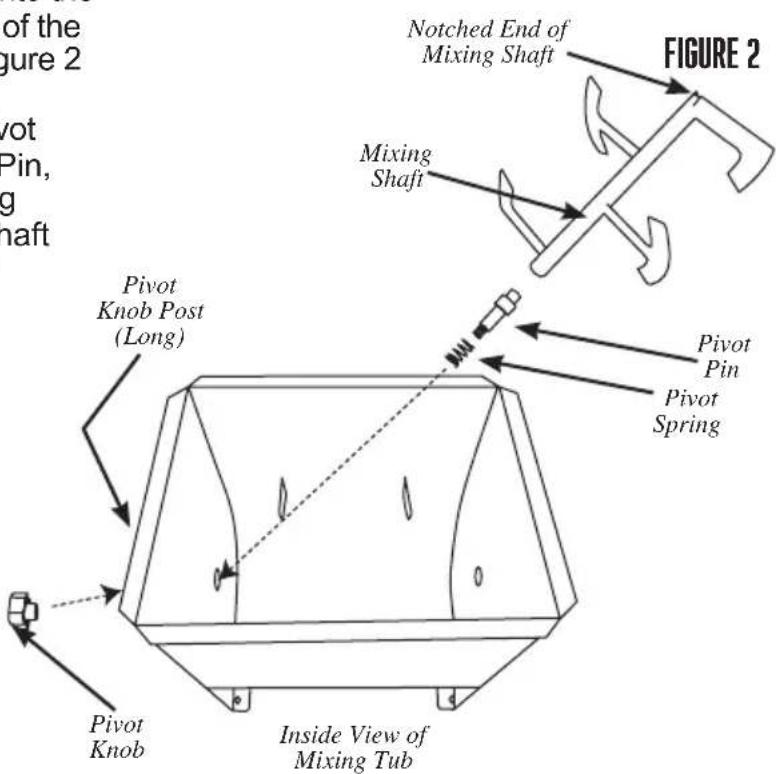

2. Place the Pivot Spring over the longer, threaded end of the Pivot Pin. FIGURE 2
3. From inside the Mixing Tub, insert the Pivot Pin & Spring through the hole in the left side of the Mixing Tub. FIGURE 2
4. Screw the Pivot Knob onto the Pivot Pin from the outside of the Mixing Tub until secure. figure 2
5. Pull out and hold the Pivot Knob to retract the Pivot Pin, making room for the Mixing Shaft. Hold the Mixing Shaft in the Mixing Tub with the flat end to the left and the notched end to the right. Align the Mixing Shaft with the retracted Pivot Pin. Slowly release the Pivot Knob to seat the Pivot Pin into the end of the Mixing Shaft.

FIGURE 1 Pivot Knob Post (Long) Mixing Tub Handle Post (Short)

of the figure 2 vot Pin, g shaft Notched End of Mixing Shaft Mixing Shaft FIGURE 2 Pivot Knob Post (Long) Pivot Pin Pivot Spring Pivot Knob Inside View of Mixing Tub

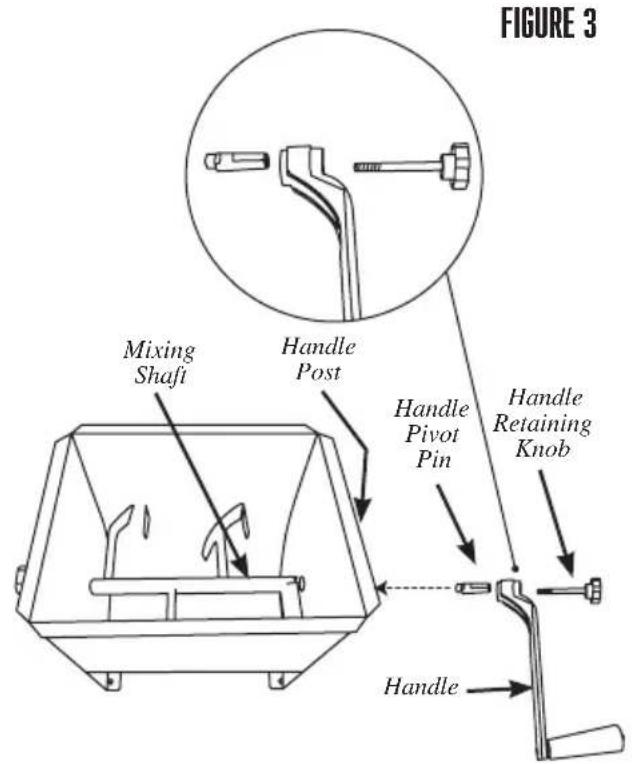

1. Insert the short, round end of the Handle Pivot Pin into the Handle Post on the right side of the Mixing Tub. Connect the Handle Pivot Pin to the notched end of the Mixing Shaft. Make sure the flats on the Handle Pivot Pin fully engage the notch. FIGURE 3

2. Place the Handle over the exposed, tapered end of the Handle Pivot Pin. Line up the flat on the outside of the Handle Pivot Pin with the flat on the inside of the Handle. FIGURE 3

3. Insert the Handle Retaining Knob through the Handle and Handle Pivot Pin. Tighten the Knob to secure the Handle.

DO NOT over-tighten the Handle Retaining Knob to avoid excessive wear on the Handle Pivot Pin.

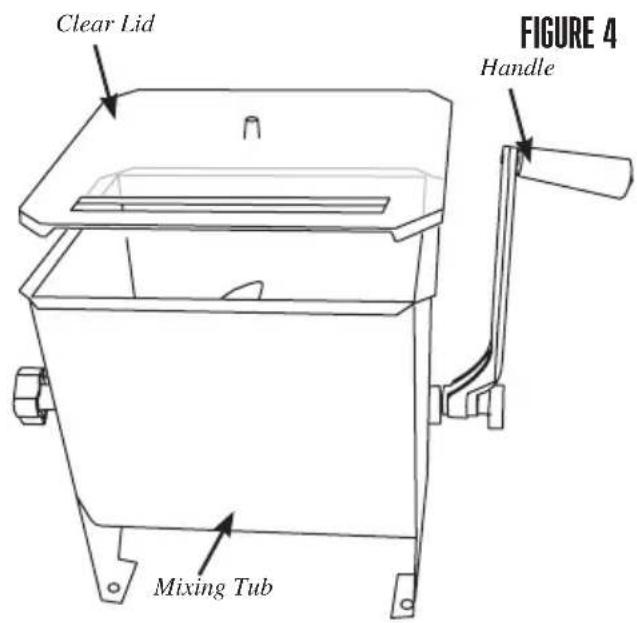

1. Install the Clear Lid (figure 4). DO NOT use the Meat Mixer without the Clear Lid in place. Severe injury could result!

FIGURE 3 Mixing Shaft Handle Post Handle Pivot Pin Handle Retaining Knob Handle

Clear Lid Handle FIGURE 4 Mixing Tub

1. Be sure to read and fully understand the General Safety Rules at the beginning of this manual before you start.
2. Place the Meat Mixer on a stable, level work surface. Allow ample room for the Handle to rotate.
3. Place ground meat into the Mixing Tub. Add seasonings, cure and water as necessary at this time.
4. Place the Clear Lid onto the Mixing Tub. DO NOT operate the Meat Mixer without the Clear Lid in place. Serious injury may result!
5. Turn the Handle clockwise to mix.
6. Mix until the meat feels sticky to the touch. Do not over-mix the meat. Remove the Clear Lid to test the consistency of the meat. DO NOT turn the Handle and KEEP CLEAR of the Mixing Shaft Paddles during this step. Replace the Clear Lid before you continue mixing.
7. When mixing is complete, remove the Handle, Clear Lid and Mixing Shaft before removing the meat.
8. Cook or refrigerate meat as soon as possible after mixing. DO NOT let meat sit out for an extended period of time. Follow the basic rules in the “Food Safety” section of this manual.

FOOD SAFETY

There are basic rules to follow when handling food. They are COOK, SEPARATE, CLEAN, and CHILL.

COOK

It's crucial to cook food to a safe internal temperature to destroy bacteria that is present. The safety of hamburgers and other foods made with ground meat has been receiving a lot of attention lately, and with good reason. When meat is ground, the bacteria present on the surface is mixed throughout the ground mixture. If this ground meat is not cooked to at least 160^ to 165^ (71°C to 74°C), bacteria will not be destroyed and there's a good chance you will get sick.

Solid pieces of meat like steaks and chops don't have dangerous bacteria like E. coli on the inside, so they can be served more rare. Still, any beef cut should be cooked to an internal temperature of at least 145^ (63°C) (medium rare). The safe temperature for poultry is 165^ (75°C) and solid cuts of pork should be cooked to 145^ (63°C).

SEPARATE

Foods that will be eaten uncooked and foods that will be cooked before eating MUST ALWAYS be separated. Cross-contamination occurs when raw meats or eggs come in contact with foods that will be eaten uncooked. This is a major source of food poisoning. Always double-wrap raw meats and place them on the lowest shelf in the refrigerator so there is no way juices can drip onto fresh produce. Then use the raw meats within 1-2 days of purchase, or freeze for longer storage. Defrost frozen meats in the refrigerator, not on the counter.

When grilling or cooking raw meats or fish, make sure to place the cooked meat on a clean platter. Don't use the same platter you used to carry the food out to the grill. Wash the utensils used in grilling after the food is turned for the last time on the grill, as well as spatulas and spoons used for stir-frying or turning meat as it cooks.

Make sure to wash your hands after handling raw meats or raw eggs. Washing hands with soap and water, or using a pre-moistened antibacterial towelette is absolutely necessary after you have touched raw meat or raw eggs. Not washing hands and surfaces while cooking is a major cause of cross-contamination.

CLEAN

Wash your hands and work surfaces frequently when you are cooking. Washing with soap and warm water for at least 15 seconds, then dry with a paper towel.

CHILL

Chilling food is very important. The danger zone where bacteria multiply is between 40^ F and 140^ F ( 4^ C and 6^ C). Your refrigerator should be set to 40^ F ( 4^ C) or below; your freezer should be 0^ F (-17°C) or below. Simple rule: serve hot foods hot, cold foods cold. Use chafing dishes or hot plates to keep food hot while serving. Use ice water baths to keep cold foods cold. Never let any food sit at room temperature for more than 2 hours - 1 hour if the ambient temperature is 90^ F ( 32^ C) or above. When packing for a picnic, make sure the foods are already chilled when they go into the insulated hamper. The hamper won't chill food - it just keeps food cold when properly packed with ice. Hot cooked foods should be placed in shallow containers and immediately refrigerated so they cool rapidly. Make sure to cover foods after they are cool.

NOTE: Special considerations must be made when using venison or other wild game, since it can become heavily contaminated during field dressing. Venison is often held at temperatures that could potentially allow bacteria to grow, such as when it is being transported. Refer to the USDA Meat and Poultry Department for further questions or information on meat and food safety.

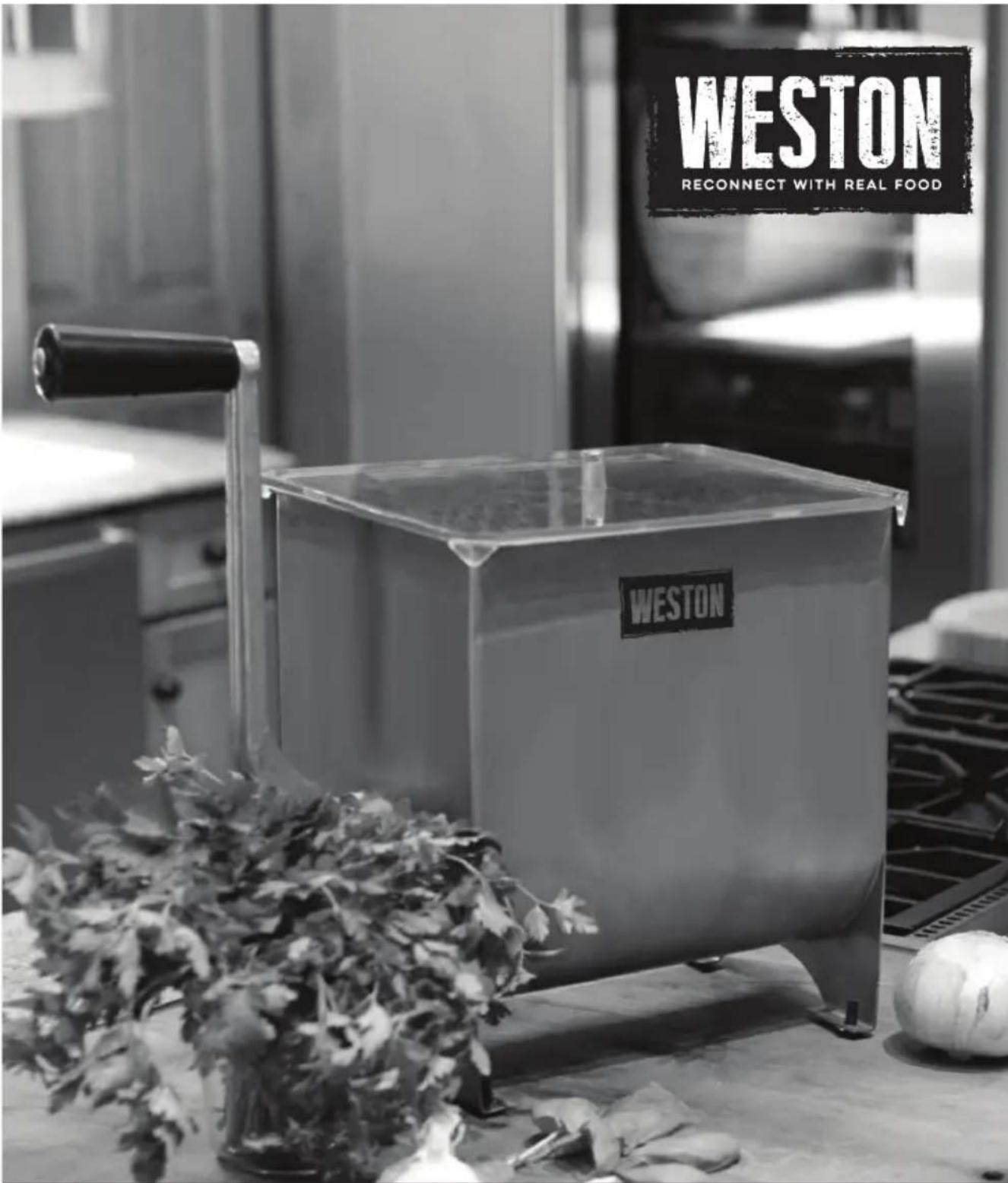

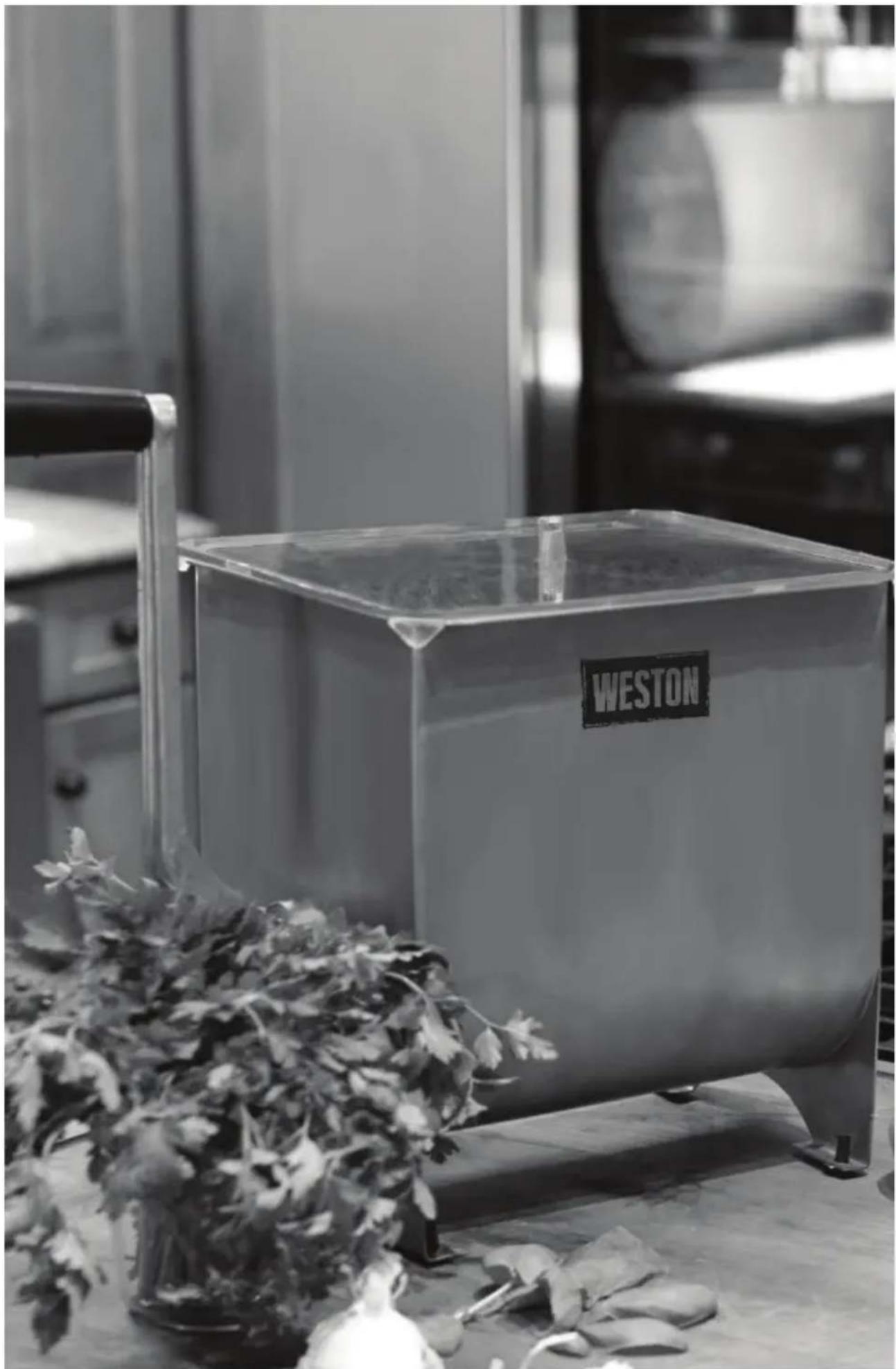

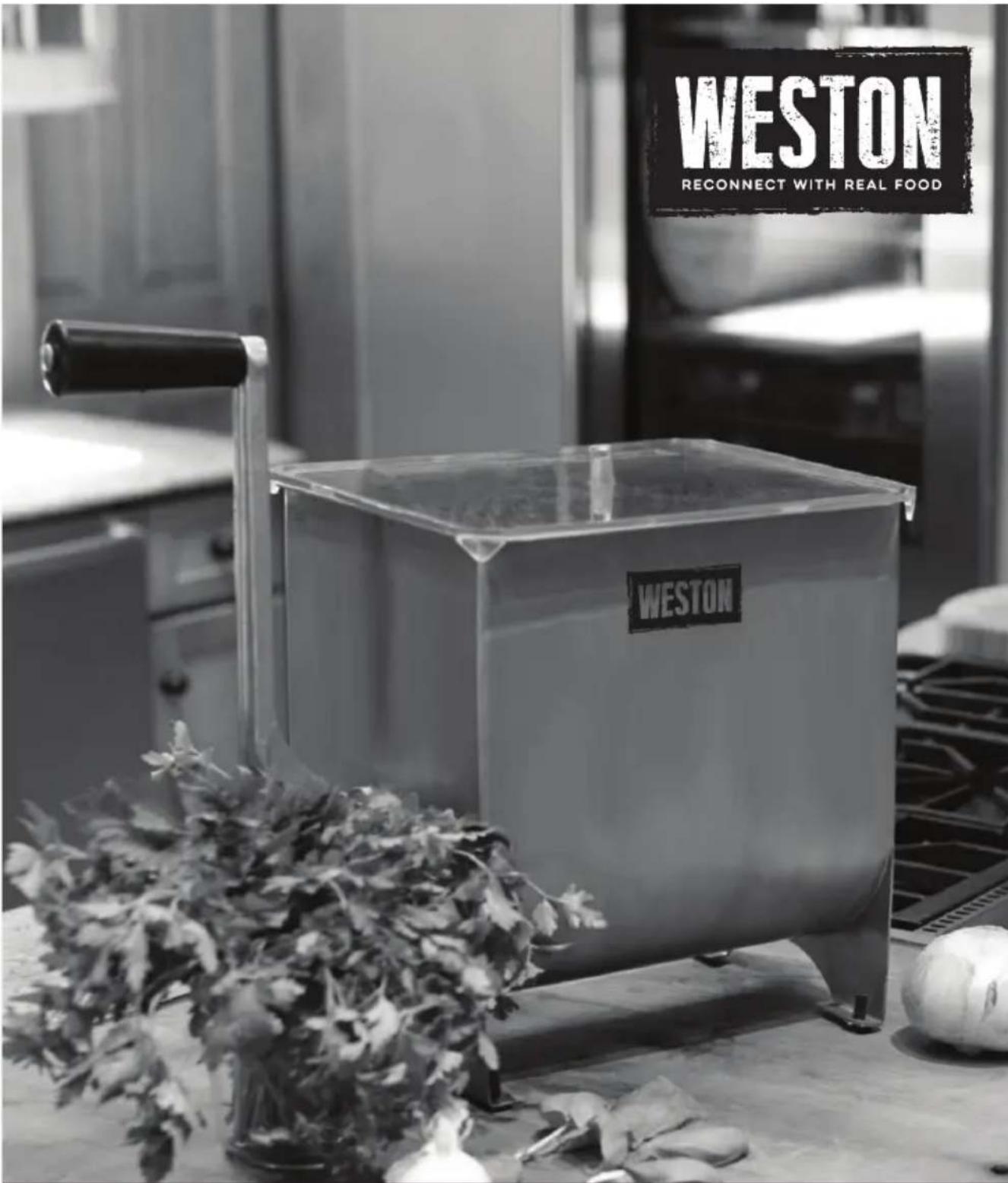

Black-and-white photo of a stainless steel mixing tank labeled 'WESTON' with a potted plant nearby (no other text or symbols visible)

ONE-YEAR LIMITED WESTON WARRANTY

This warranty applies to products purchased and used in the U.S. and Canada, which have been properly registered within 30 days of the date of original purchase. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option.

To register your product: complete the online form at www.WestonProducts.com/Warranty.

This warranty does not cover unregistered products, unauthorized repairs or service to products, products sold “as-is” by retailers, glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient and is not transferrable. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

Before returning the product for any repair or service: it must be clean and free from any food particles or other debris; otherwise, we will return it or impose a \$50 cleaning surcharge, at our option.

To make a warranty claim: go to www.WestonProducts.com/Contact; or call 1.800.814.4895 in the U.S. and 001.216.801.6801 outside the U.S., Monday – Friday, 8 am – 5 pm Eastern. You are responsible for all costs associated with shipping us the product freight prepaid. If the product qualifies for a warranty repair or replacement, we will bear the cost of returning it to you. We are not responsible for shipping damage.

For non-warranty work: call 1.800.814.4895 in the U.S. and 001.216.801.6801 outside the U.S., Monday – Friday, 8 am – 5 pm Eastern, to obtain a Return Merchandise Authorization Number (RMA Number). We will refuse all returns without an RMA Number. We charge US\$35/hour for all diagnostic, service, repair and processing work. We will not start any service or repair work without prior authorization. You are responsible for all costs associated with shipping us the product freight prepaid and our returning it to you.

WESTON

RECONNECT WITH REAL FOOD

WESTON RECONNECT WITH REAL FOOD WESTON

RECONNECT WITH REAL FOOD

WESTON RECONNECT WITH REAL FOOD WESTON

MANUEL EN ACIER INOXYDABLE CAPACITÉ DE 9 KG

MÉLANGEUR DE VIANDE

36-1901-W

PARCE QUE NOS PRODUITS BÉNÉFICIENT DE PERFECTIONNEMENTS CONSTANTS APPORTÉS EN USINE, LES ILLUSTRATIONS PRÉSENTES PEUVENT ÊTRE LÉGÈREMENT DIFFÉRENTES DU PRODUIT REÇU. 012016

IMPORTANTES RÈGLES DE SÉCURITÉ

LIRE ET COMPRENDRE COMPLÈTEMENT TOUTES LES DIRECTIVES ET AVERTISSEMENTS AVANT D'UTILISER CE PRODUIT. LE PLUS IMPORTANT EST VOTRE SÉCURITÉ! LE DÉFAUT D'OBSERVER LES PROCÉDURES ET MISES EN GARDE PEUT ENTRAINER DES BLESSURES GRAVES OU DES DOMMAGES MATÉRIELS. N'OUBLIEZ PAS : VOTRE SÉCURITÉ PERSONNELLE EST VOTRE RESPONSABILITE!

PLEASE INSPECT THIS PACKAGE THOROUGHLY FOR MISSING PARTS OR ANY PRODUCT DAMAGE. IF YOUR PRODUCT CONTAINS SHIPPING DAMAGE, PLEASE CONTACT RETAILER FOR ASSISTANCE.

For all other questions regarding product usage, missing parts, product damage, difficulty or warranty activation, please contact the Weston Brands Customer Service Team: 8:00 am to 5:00 pm ET, Monday thru Friday

[e-mail]

U.S. Residents Customer Service Line: 1-800-814-4895 (Outside U.S. Call: 001-216-801-6801)

Weston Brands LLC, Cleveland, Ohio 44131

WestonProducts.com

Please DO NOT return this item to the retailer before contacting Weston Brands Customer Service.

SAVE THESE INSTRUCTIONS!

Refer to them often and use them to instruct others.

ATTENTION!

VEUILLEZ INSPECTER CET EMBALLAGE AVEC SOIN POUR Y DÉTECTER TOUTE PIÈCE MANQUANTE OU ENDOMMAGÉE. SI DES PIÈCES ONT ÉTÉ ENDOMMAGÉES PENDANT LE TRANSPORT, VEUILLEZ COMMUNIQUER AVEC LE DÉTAILLANT POUR OBTENIR DE L'AIDE.

Weston Brands LLC, Cleveland, Ohio 44131

WestonProducts.com
