07-0701 - Mincer Weston - Free user manual and instructions

Product Type	Manual Hamburger Press
Brand	Weston
Model	07-0701
Primary Use	Forming ground meat patties
Thickness Adjustment	Yes, via threaded rod with weight markings
Compaction Mechanism	Compaction/ejection button
Main Materials	Stainless steel and plastic
Power	None (manual)
Care	Wash in hot soapy water before and after each use. Dry immediately.
Recommended Meat Temperature	Between 2 and 4 °C (36–40 °F)
Meat Shrinkage When Cooking	Allow 10 to 20%
Food Safety	Cook ground meat to 71–74 °C (160–165 °F). Follow rules: cook, separate, clean, chill quickly.
Warranty	1 year (subject to registration within 30 days)
Customer Service	Weston Products LLC: 1-800-814-4895 (US), 001-440-638-3131 (outside US), [e-mail]
Spare Parts	Available at WestonProduct.com/support
Repairability	Warranty or paid repairs. Contact to obtain RMA number before returning.

Frequently Asked Questions - 07-0701 Weston

How to adjust the patty thickness?

Turn the wing nut counterclockwise to the top of the threaded rod. Adjust the thickness adjustment knob to align the desired weight marking with the top edge of the hamburger press. Then tighten the wing nut without over-tightening.

How to use the hamburger press?

Place a 6.4 cm (2 ½ in) meatball on the base. Close the lid by pressing to form the patty. Use the compaction/ejection button to compact and facilitate removal. Remove excess meat around.

How to clean the device?

Thoroughly clean the hamburger press before and after each use with hot soapy water. Dry it immediately to prevent rust. Do not use abrasive cleaners.

What cooking temperature for ground meat?

Cook ground meat to an internal temperature of at least 71°C (160°F) to destroy bacteria. For whole steaks, a temperature of 63°C (145°F) is sufficient.

How to avoid cross-contamination?

Always separate raw foods from cooked foods. Use different cutting boards, wash your hands after handling raw meat, and do not reuse the same dish without washing it.

What to do if meat sticks to the hamburger press?

Place a sheet of wax paper on the base before placing the meatball. This will facilitate the removal of the patty. Make sure the meat is very cold (between 2 and 4°C).

What is the warranty for the Weston 07-0701?

Weston offers a one-year warranty against defects in materials and workmanship. To benefit from it, you must send the warranty card with a copy of the purchase receipt within 30 days.

How to contact customer service?

Call 1-800-814-4895 (United States) or 001-440-638-3131 (outside United States) Monday to Friday from 8:00 AM to 5:00 PM ET. You can also email [e-mail].

Can frozen meat be used?

It is recommended to use meat at a temperature between 2 and 4°C (36–40°F). Frozen meat will not allow proper forming and could damage the device. Thaw it in the refrigerator before use.

How to store the device after use?

Wash and dry the hamburger press thoroughly before storing. Keep it in a dry place, away from humidity, to prevent rust and deterioration.

USER MANUAL 07-0701 Weston

RECONNECT WITH REAL FOOD

BURGER EXPRESS

BURGER EXPRESS 07-0310-W

DOUBLE BURGER EXPRESS 07-0701

Illustration of a mounted test tube with a textured cover and a flat plate, labeled 'PATENTED' (no other text or symbols)

Due to constant factory improvements, the product pictured might differ slightly from the product in this box.

COMPONENTS 3

CLEANING & ASSEMBLY 4

MAKING PATTIES 4

FOOD SAFETY 5

WARRANTY INFORMATION 6

COMPONENTES 8

CLEANING & ASSEMBLY 9

MAKING PATTIES 9

Spring Adjustment Press Plate Compressing/ Ejector Button Thickness Adjustment Knob Push Rod Main Body Base Plate

If any components of this unit are broken, the unit does not operate properly or you need a replacement instruction manual, visit us on the web at WestonProducts.com
Or call Weston Products LLC Toll Free at 1-800-814-4895 Monday thru Friday 8:00am-5:00pm ET. Outside the U.S. call 001-440-638-3131

CLEANING & ASSEMBLY

Before and after each use, disassemble and wash all parts of this product that come in contact with food. Wash all parts in warm, soapy water. Rinse with clear water. Dry immediately. This product is NOT dishwasher safe.

DISASSEMBLY INSTRUCTIONS

1. Holding the top of the Burger Press, unscrew the Compacting/Ejector Button from the Push Rod. This will also free the Spring.
2. Remove the Adjustment Press Plate from the inside of the Main Body.
3. Unscrew the Adjustment Knob until it separates from the Main Body.
4. Clean all pieces in warm, soapy water. Rinse with clear water. Dry immediately.

NOTE: This product is NOT dishwasher safe.

ASSEMBLY INSTRUCTIONS

1. Screw the Adjustment Knob into the Main Body of the Burger Press until approximately 1" (2.5 cm) remains visible.
2. Place the Adjustment Press Plate inside of the Main Body chamber guiding the Push Rod into the Adjustment Knob.
3. Slide the Spring over the exposed portion of the Push Rod, and screw the Compressing/Ejector Button onto the Push Rod.

MAKING PATTIES

1. Mix meat with your favorite seasonings.
2. Form the meat into 2 12 " (6.4 cm) balls. Size of the patties will depend on the amount of meat used for each patty. NOTE: When adjusting your patty weight, allow for 10% to 20% shrinkage when fully cooked.
3. Adjust the Thickness Adjustment Knob to the desired patty thickness. FIGURE 1
4. Close the Main Body lid down and press to form the perfect patty. To compact the patty, press down the Compacting/Ejector Button.
5. Remove any excess meat from the outside of the Hamburger Press.
6. While opening up the Main Body, compress the Compacting/Ejector Button for easy patty removal from the Burger Press.
7. Open the Hamburger Press to reveal your perfectly made patty.

HELPFUL TIP: Place a piece of waxed patty paper under the meat and another on top of the meat before closing the Hamburger Press. This will make it easier to remove the patty. For best results, meat should be between 36^(2^) and 40^(4^) .

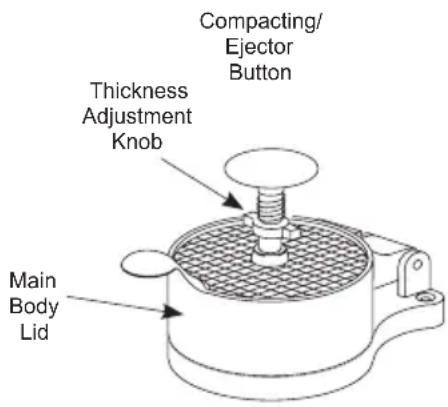

Compacting/ Ejector Button Thickness Adjustment Knob Main Body Lid

FOOD SAFETY

There are basic rules to follow when handling food.

They are COOK, SEPARATE, CLEAN, and CHILL.

COOK

It's crucial to cook food to a safe internal temperature to destroy bacteria that is present. The safety of hamburgers and other foods made with ground meat has been receiving a lot of attention lately, and with good reason. When meat is ground, the bacteria present on the surface is mixed throughout the ground mixture. If this ground meat is not cooked to at least 160^ to 165^ (71°C to 74°C), bacteria will not be destroyed and there's a good chance you will get sick.

Solid pieces of meat like steaks and chops don't have dangerous bacteria like E. coli on the inside, so they can be served more rare. Still, any beef cut should be cooked to an internal temperature of at least 145^ (63°C) (medium rare). The safe temperature for poultry is 180^ (82°C) and solid cuts of pork should be cooked to 145^ (63°C).

SEPARATE

Foods that will be eaten uncooked and foods that will be cooked before eating MUST ALWAYS be separated. Cross-contamination occurs when raw meats or eggs come in contact with foods that will be eaten uncooked. This is a major source of food poisoning. Always double-wrap raw meats and place them on the lowest shelf in the refrigerator so there is no way juices can drip onto fresh produce. Then use the raw meats within 1-2 days of purchase, or freeze for longer storage. Defrost frozen meats in the refrigerator, not on the counter.

When grilling or cooking raw meats or fish, make sure to place the cooked meat on a clean platter. Don't use the same platter you used to carry the food out to the grill. Wash the utensils used in grilling after the food is turned for the last time on the grill, as well as spatulas and spoons used for stir-frying or turning meat as it cooks.

Make sure to wash your hands after handling raw meats or raw eggs. Washing hands with soap and water, or using a pre-moistened antibacterial towelette is absolutely necessary after you have touched raw meat or raw eggs. Not washing hands and surfaces while cooking is a major cause of cross-contamination.

CLEAN

Wash your hands and work surfaces frequently when you are cooking. Washing with soap and warm water for at least 15 seconds, then dry with a paper towel.

CHILL

Chilling food is very important. The danger zone where bacteria multiply is between 40^ F and 140^ F ( 4^ C and 6^ C). Your refrigerator should be set to 40^ F ( 4^ C) or below; your freezer should be 0^ F (- 17^ C) or below. Simple rule: serve hot foods hot, cold foods cold. Use chafing dishes or hot plates to keep food hot while serving. Use ice water baths to keep cold foods cold. Never let any food sit at room temperature for more than 2 hours - 1 hour if the ambient temperature is 90^ F ( 32^ C) or above. When packing for a picnic, make sure the foods are already chilled when they go into the insulated hamper. The hamper won't chill food - it just keeps food cold when properly packed with ice. Hot cooked foods should be placed in shallow containers and immediately refrigerated so they cool rapidly. Make sure to cover foods after they are cool.

NOTE: Special considerations must be made when using venison or other wild game, since it can become heavily contaminated during field dressing. Venison is often held at temperatures that could potentially allow bacteria to grow, such as when it is being transported. Refer to the USDA Meat and Poultry Department for further questions or information on meat and food safety.

WESTON WARRANTY INFORMATION

SAVE THIS WARRANTY INFORMATION FOR YOUR RECORDS!

Weston Products LLC warrants to the ORIGINAL RETAIL PURCHASER of this product that if operated in accordance with the printed instruction accompanying it, then for a period of 1 year from the date of purchase, the product shall be free from defects in material and workmanship.

The Warranty Card, along with a copy of the original receipt, must be received by Weston Products LLC within 30 days from purchase date for the warranty to apply. Failure to send the completely filled out Warranty Card, along with a copy of the original receipt, will void the warranty.

The product must be delivered to or shipped freight prepaid to Weston Products LLC for warranty services, in either its original packaging or similar packaging affording an equal degree of protection. Damage due to shipping is not the responsibility of the company. Weston Products LLC charges a \$35.00 per hour bench charge. NOTE: No repairs will be started without the authorization of the customer. The return shipping cost to the customer will be added to the repair invoice.

Prior to returning the product for Warranty Repair, the product must be thoroughly cleaned and free from any food particles or other debris. Failure of the purchaser to comply with this standard will result in the unit being returned without repair. In some cases, a \$50 cleaning surcharge may apply.

Weston Products LLC will repair (or at its discretion, replace) the product free of charge, if in the judgment of the company, it has been proven to be defective as to seller's labor and material, within the warranty period.

New or rebuilt replacements for factory defective parts will be supplied for one (1) year from the date of purchase. Replacement parts are warranted for the remainder of the original warranty period.

For non-warranty repairs, contact Weston Products LLC's Customer Service at 1-800-814-4895 M-F 8am-5pm ET (outside of the United States 001-440-638-3131) to obtain a Return Merchandise Authorization Number (RMA Number).

Weston Products LLC will refuse all returns that do not contain this number. DO NOT RETURN THE UNIT WITHOUT PROPER AUTHORIZATION FROM WESTON PRODUCTS LLC.

LIMITATIONS: The warranty is void if the product is used for any purpose other than that for which it is designed. The product must not have been previously altered, repaired, or serviced by anyone else other than Weston Products LLC. If applicable, the serial number must not have been altered or removed. The product must not have been subjected to accident in transit or while in the customer's possession, misused, abused, or operated contrary to the instructions contained in the instruction manual. This includes failure caused by neglect of reasonable and necessary maintenance, improper line voltage and acts of nature. This warranty is not transferable and applies only to U.S. and Canadian sales. Except to the extent prohibited by applicable law, no other warranties whether expressed or implied, including warranty merchantability and fitness for a particular purpose, shall apply to this product. Under no circumstances shall Weston Products LLC be liable for consequential damages sustained in connection with said product and Weston Products LLC neither assumes nor authorizes any representative or other person to assume for it any obligation or liability other than such as is expressly set forth herein. Any applicable implied warranties are also limited to the one (1) year period of the limited warranty.

This warranty covers only the product and its specific parts, not the food or other products processed in it. Weston is not responsible for missing or damaged parts on discounted/clearance, resale or final sale items where the seller may not be able to guarantee full functionality or completeness of the unit.

CUT ALONG THE DOTTED LINE AND SEND THE WARRANTY CARD ALONG WITH A COPY OF YOUR ORIGINAL PURCHASE RECEIPT TO:

Weston Products LLC / WARRANTY

20365 Progress Drive, Strongsville, OH 44149 USA

WESTON WARRANTY CARD

SEND THIS CARD ALONG WITH A COPY OF YOUR ORIGINAL PURCHASE RECEIPT TO: WESTON PRODUCTS LLC / WARRANTY, 20365 PROGRESS DRIVE, STRONGSVILLE, OH 44149 USA

Customer Name: ____

Address:

City/State/Zip/Country: ____

Telephone Number: ____

E-Mail Address: ____

Original Date of Purchase: ____ Copy of Receipt Included

Product Model #: ____

Serial # (if applicable): ____

I have read the warranty information. Initial here: ____

WESTON

RECONNECT WITH REAL FOOD

BURGER EXPRESS

BURGER EXPRESS 07-0310-W DOBLE BURGER EXPRESS 07-0701

Exterior view of a mechanical testing device with a textured cover and a flat plate, labeled 'PATENTADO' (no other text or symbols)

Black-and-white photo of a hand using a tool to examine a dark object on a textured surface, with visible Chinese text on the background.

Weston Products LLC / WARRANTY

20365 Progress Drive, Strongsville, OH 44149 USA

TARJETA DE GARANTÍA WESTON

ENVÍE ESTA TARJETA JUNTO CON UNA COPIA DE SU RECIBO DE COMPRA ORIGINAL A: WESTON PRODUCTS LLC/WARRANTY, 20365 PROGRESS DRIVE. STRONGSVILLE, OH 44149 USA

RECONNECT WITH REAL FOOD

PRESSE- HAMBURGER

EXPRES

PRESS-HAMBURGER EXPRÉS 07-0310-W PRESS-HAMBURGER EXPRÉS DOUBLE 07-0701-W

Exterior view of a BREVET industrial machine with a textured cover and a flat plate, no visible text or symbols on the device itself.

Black-and-white photo of a hand using a tool to examine a dark object on a textured surface, with visible Chinese text on the background.

Black-and-white photo of a textured, round food item on parchment paper with a flat stand nearby (no visible text or symbols)

INFORMATION SUR LA GARANTIE

CONSERVEZ CETTE INFORMATION SUR LA GARANTIE POUR VOS DOSSIERS!

Weston Products LLC / WARRANTY

20365 Progress Drive, Strongsville, OH 44149 USA

CARTE DE GARANTIE

ENVOYEZ CETTE CARTE DE GARANTIE AVEC UNE COPIE DE VOTRE REÇU D'ACHAT ORIGINAL À: WESTON PRODUCTS LLC / WARRANTY, 20365 PROGRESS DRIVE, STRONGSVILLE, OH 44149 USA

Nom du Client:

Adresse:

Province/Code postal/Région:

PLEASE INSPECT THIS PACKAGE THOROUGHLY FOR MISSING PARTS OR ANY PRODUCT DAMAGE. IF YOUR PRODUCT CONTAINS SHIPPING DAMAGE, PLEASE CONTACT RETAILER FOR ASSISTANCE.

For all other questions regarding product usage, missing parts, product damage, difficulty or warranty activation, please contact the Weston Products Customer Service Team: 8:00 am to 5:00 pm ET, Monday thru Friday

[e-mail]

U.S. Residents Customer Service Line: 1-800-814-4895 (Outside U.S. Call: 001-440-638-3131)

Weston Products LLC, 20365 Progress Drive, Strongsville, Ohio 44149

WestonProducts.com

Please DO NOT return this item to the retailer before contacting Weston Products Customer Service.

SAVE THESE INSTRUCTIONS!

Refer to them often and use them to instruct others.

ATTENTION!

VEUILLEZ INSPECTER CET EMBALLAGE AVEC SOIN POUR Y DÉTECTER TOUTE PIÈCE MANQUANTE OU ENDOMMAGÉE. SI DES PIÈCES ONT ÉTÉ ENDOMMAGÉES PENDANT LE TRANSPORT, VEUILLEZ COMMUNIQUER AVEC LE DÉTAILLANT POUR OBTENIR DE L'AIDE.
