07-3103-W - Mincer Weston - Free user manual and instructions

Brand	Weston
Model	07-3103-W
Device Type	Meat tenderizer and jerky slicer
Intended Use	Tenderize and slice boneless meat
Power Source	Manual (crank)
Main Material	Stainless steel (blades), metal housing
Safety	Very sharp blades; use the provided tongs; Kevlar gloves recommended; never insert fingers
Cleaning	Wash all parts in soapy water, rinse and dry immediately; do not immerse rollers
Maintenance	Spray food-grade silicone on metal parts; periodically tighten blade wheels with a hex key
Warranty	1 year (parts and labor); return to Weston Products LLC with warranty card and receipt
Country of Use	United States and Canada (warranty)
Included Accessories	Crank, tongs, tightening screws, hex key
Approximate Dimensions	Height: 20 cm, Width: 15 cm, Depth: 30 cm (estimate)
Approximate Weight	2 kg (estimate)
Usage	Home use only
Spare Parts	Tenderizer and slicer blades sold separately
Assembly	Place blade assembly in bottom housing, insert crank, secure with screws
Repairability	Repairable by Weston Products LLC; requires an RMA number
Precautions	Do not force meat; do not use with bones; keep children away

Frequently Asked Questions - 07-3103-W Weston

Can I tenderize meat with bones?

No, this could damage the appliance and blades. Use only boneless meat.

How do I safely clean the blades?

Wear cut-resistant Kevlar gloves. Wash rollers in soapy water without fully immersing, rinse and dry immediately.

What if the blades don't cut properly?

Check that the blades are properly engaged and the wheels are tight. Use the hex key to tighten if necessary.

Can I use the tenderizer for other foods?

The appliance is designed only for meat. Do not use for other foods to avoid damage.

How do I assemble the appliance?

Place the blade assembly in the bottom housing, align the drive shaft with the trunnions, secure the top housing with screws, then attach the crank.

Is the warranty valid in Europe?

No, the standard Weston warranty applies only to US and Canadian sales.

How do I get spare parts?

Contact Weston customer service at 1-800-814-4895 (USA) or 1-440-638-3131 (outside USA). Blades are sold separately.

Can I use a different crank?

No, use only the provided crank. Use of non-approved accessories voids the warranty.

What if meat gets stuck?

Stop immediately. Never use your fingers to dislodge meat. Gently remove with the provided tongs.

How to protect metal parts from rust?

After cleaning and drying, spray food-grade silicone spray on metal parts to prevent corrosion.

USER MANUAL 07-3103-W Weston

Protective/cut-resistant Kevlar Gloves are recommended whenever handling the Blade assembly!

MODEL NO. 07-3302-W JERKY BLADES

Fits Weston® Models 07-3101-W-A, 07-4101-W-A,

07-3201-W-A, 07-3801-W-A

REV 121813

! NEVER REACH INTO the Tenderizer/Jerky Slicer. Doing so could cause serious injury. ALWAYS USE THE PROVIDED TONGS.
! KEEP FINGERS CLEAR OF THE BLADES AT ALL TIMES. Failure to do so may result in personal injury. The Tenderizer/Jerky Slicer is very sharp.
! DO NOT press or push meat into the Chute with your fingers or any other object. Doing so may cause personal injury and/or damage to the unit.
! NEVER use fingers to scrape food away from the Tenderizer/Jerky Slicer while in operation. SEVERE INJURY MAY RESULT.
! DO NOT push the Tongs or other utensils into the Blades.
! Remove all bones or hard items in the meat before tenderizing/cubing/slicing. Damage to the unit may occur if bones or hard objects are pushed through.

GENERAL SAFETY RULES

WARNING!

READ AND FULLY UNDERSTAND ALL INSTRUCTIONS AND WARNINGS PRIOR TO USING THIS PRODUCT. YOUR SAFETY IS MOST IMPORTANT! FAILURE TO COMPLY WITH PROCEDURES AND SAFEGUARDS MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE. REMEMBER: YOUR PERSONAL SAFETY IS YOUR RESPONSIBILITY!

1. CAUTION SHARP BLADES!
   Wear Kevlar, cut-resistant gloves (Sold Separately) when handling the Blades.
2. NEVER REACH INTO the Meat Tenderizer/Jerky Slicer. Doing so could cause serious injury. ALWAYS USE THE PROVIDED TONGS.
3. KEEP FINGERS CLEAR OF THE BLADES AT ALL TIMES. Failure to do so may result in personal injury. The Cutting Blades/Blade Assembly is very sharp. Wear Kevlar, cut-resistant gloves (Sold Separately) when handling the Blades.
4. DO NOT press or push meat into the Chute with your fingers or any other object. Doing so may cause personal injury and/or damage to the unit.
5. NEVER use fingers to scrape food away from the Meat Tenderizer/Jerky Slicer while in operation. SEVERE INJURY MAY RESULT.
6. DO NOT push the Tongs or other utensils into the Blades.
7. NEVER LEAVE THE Meat

Tenderizer / Jerky Slicer UNATTENDED. Close supervision is necessary when any appliance is used near children. This appliance is NOT to be used by children.

1. NEVER use any accessories or parts from other manufacturers. Doing so will VOID YOUR WARRANTY.
2. Thoroughly clean all parts that will come into contact with food before using the Meat Tenderizer/Jerky Slicer. Wash all parts by hand and dry thoroughly. Wear Kevlar, cut-resistant gloves (Sold Separately) when handling the Blades.
3. DO NOT attempt to tenderize or slice meat with bones or other hard items. Damage to the machine will occur.
4. TIE BACK loose hair and clothing, and roll up long sleeves before operating the Meat Tenderizer / Jerky Slicer. REMOVE ties, rings, watches, bracelets, or other jewelry before operating.
5. DO NOT use the Meat Tenderizer/Jerky Slicer while under the influence of drugs, medications or alcohol.

SAVE THESE INSTRUCTIONS!

Refer to them often and use them to instruct others.

CLEANING INSTRUCTIONS

1. Thoroughly wash all parts in soapy water. Rinse with clean water. Dry all parts immediately. NOTE: DO NOT immerse the Blade Assembly in sudsy water where they cannot be seen. To prevent injury, keep the Blade Assembly visible at all times. CAUTION: The Blades are very sharp!
2. Coat all metal parts with a food grade silicone spray.

HELPFUL HINT: A long, skinny brush is helpful when cleaning the Blade Racks.

WARNING!

Protective/cut-resistant Kevlar Gloves are recommended whenever handling the Blade assembly!

ASSEMBLY INSTRUCTIONS

1. Insert the Blade Assembly into the lower housing, guiding the drive shaft into the journals. Make sure the gears and the blades of the Blade Assembly are properly meshed together and resting in the journals (Figure A). NOTE: The Tenderizer Blade is a 2-piece set. The Jerky Slicer Blade is a single piece. Sold Separately
2. Position the top housing onto the lower housing and line up the screw holes.
3. Secure the top housing to the lower housing using the 2 housing thumbscrews. DO NOT OVERTIGHTEN! (Figure B).
4. Insert the left comb and right comb into the top housing (Figure B).
   NOTE: The left comb is marked with an "L" on the upper portion of the comb. The top housing is marked with an "L comb" and "R comb" to aid in comb installation.
5. Install handle onto the Blade Drive Shaft. Secure the Handle to Drive Shaft with the Handle Thumbscrew (Figure C).

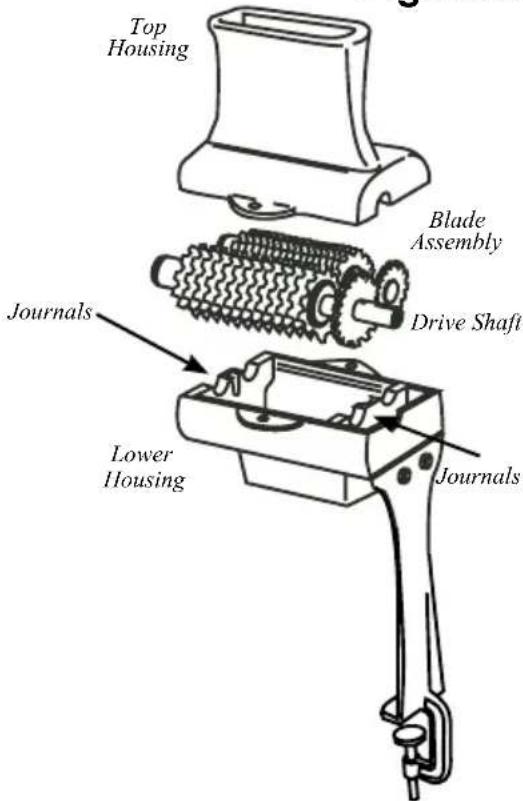

Figure A

Top Housing Blade Assembly Drive Shaft Journals Lower Housing Journals

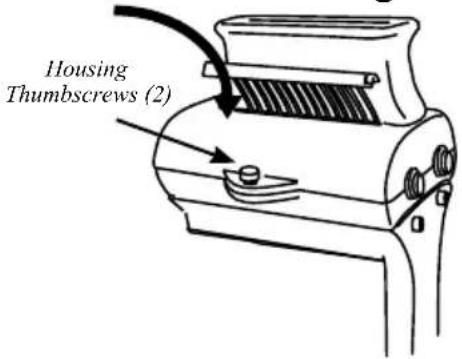

Figure B

Housing Thumbscrews (2)

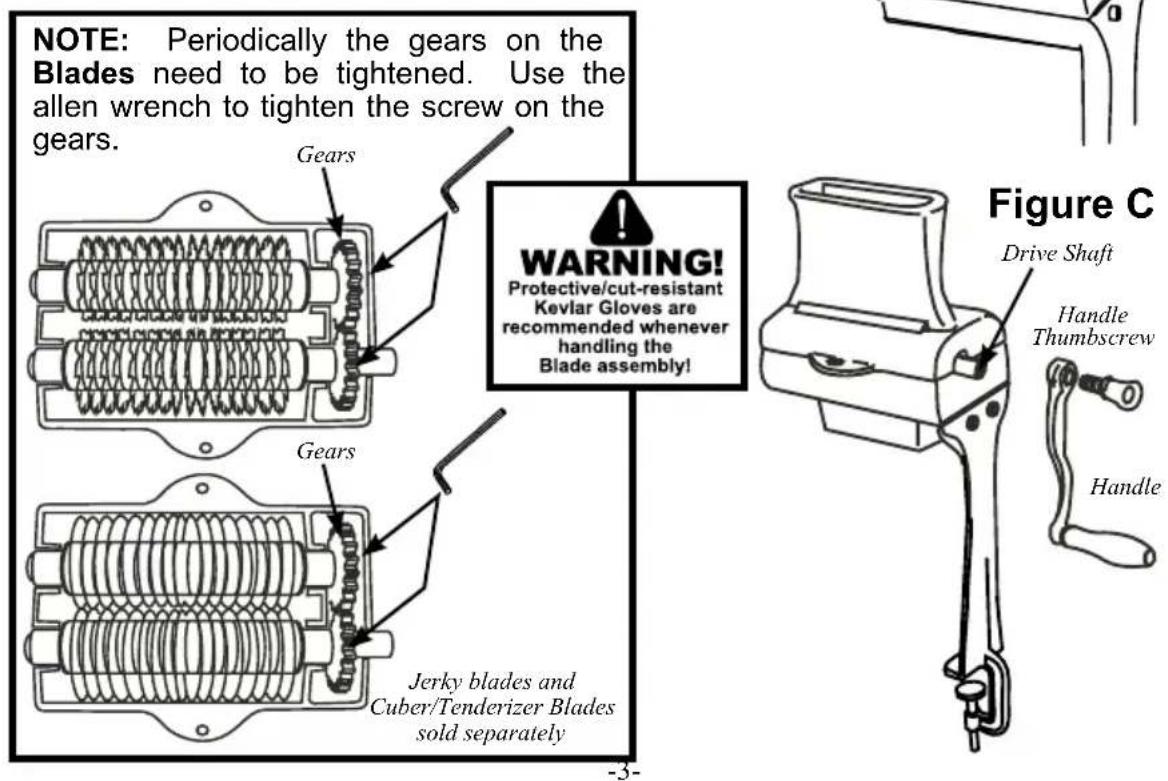

NOTE: Periodically the gears on the Blades need to be tightened. Use the allen wrench to tighten the screw on the gears. Gears Gears Jerky blades and Cuber/Tenderizer Blades sold separately WARNING! Protective/cut-resistant Kevlar Gloves are recommended whenever handling the Blade assembly! Figure C Drive Shaft Handle Thumbscrew Handle -3-

WESTON WARRANTY INFORMATION

SAVE THIS WARRANTY INFORMATION FOR YOUR RECORDS!

Weston Products LLC warrants to the ORIGINAL RETAIL PURCHASER of this product that if operated in accordance with the printed instruction accompanying it, then for a period of 1 year from the date of purchase the product shall be free from defects in material and workmanship.

The Warranty Card, along with a copy of the original receipt, must be received by Weston Products LLC within 30 days from purchase date for the warranty to apply. Failure to send the completely filled out Warranty Card, along with a copy of the original receipt, will void the warranty.

The product must be delivered to or shipped freight prepaid to Weston Products LLC for warranty services, in either its original packaging or similar packaging affording an equal degree of protection. Damage due to shipping is not the responsibility of the company. Weston Products LLC charges a \$35.00 per hour bench charge. NOTE: No repairs will be started without the authorization of the customer. The return shipping cost to the customer will be added to the repair invoice.

Weston Products LLC will repair (or at its discretion, replace) the product free of charge, if in the judgment of the company, it has been proven to be defective as to seller's labor and material, within the warranty period.

New or rebuilt replacements for factory defective parts will be supplied for one (1) year from the date of purchase. Replacement parts are warranted for the remainder of the original warranty period.

For non-warranty repairs, contact Weston Products LLC's Customer Service at 1-800-814-4895 M-F 8am-5pm EST (outside of the United States 440-638-3131) to obtain a Return Merchandise Authorization Number (RMA Number). Weston Products LLC will refuse all returns that do not contain this number. DO NOT RETURN THE UNIT WITHOUT PROPER AUTHORIZATION FROM WESTON PRODUCTS LLC.

LIMITATIONS: The warranty is void if the product is used for any purpose other than that for which it is designed. The product must not have been previously altered, repaired, or serviced by anyone else other than Weston Products LLC. If applicable, the serial number must not have been altered or removed. The product must not have been subjected to accident in transit or while in the customer's possession, misused, abused, or operated contrary to the instructions contained in the instruction manual. This includes failure caused by neglect of reasonable and necessary maintenance, improper line voltage and acts of nature. This warranty is not transferable and applies only to U.S. and Canadian sales.

Except to the extent prohibited by applicable law, no other warranties whether expressed or implied, including warranty merchantability and fitness for a particular purpose, shall apply to this product. Under no circumstances shall Weston Products LLC be liable for consequential damages sustained in connection with said product and Weston Products LLC neither assumes nor authorizes any representative or other person to assume for it any obligation or liability other than such as is expressly set forth herein. Any applicable implied warranties are also limited to the one (1) year period of the limited warranty.

This warranty covers only the product and its specific parts, not the food or other products processed in it.

CUT ALONG THE DOTTED LINE AND SEND THE WARRANTY CARD ALONG WITH A COPY OF YOUR ORIGINAL PURCHASE RECEIPT TO:

Weston Products LLC

20365 Progress Drive, Strongsville, OH 44149

WESTON WARRANTY CARD

SEND THIS CARD ALONG WITH A COPY OF YOUR ORIGINAL PURCHASE RECEIPT TO:

WESTON WARRANTY, WESTON PRODUCTS LLC, 20365 PROGRESS DRIVE, STRONGSVILLE, OH 44149

Customer Name:

Address:

City/State/Zip:

Telephone Number: (____)

E-Mail Address:

Original Date of Purchase: ____/____/

Product Model #:

Serial # (if applicable):

WESTON®

CORTADORA EN CUBOS/ABLANDADORA DE CARNE Y REBANADORA DE CECINA MANUAL

REEMPLAZO DE CONJUNTO

DE NAVAJAS

Weston Products LLC / WARRANTY 20365 Progress Drive, Strongsville, OH 44149 U.S.A.

TARJETA DE GARANTÍA WESTON

ENVÍE ESTA TARJETA JUNTO CON UNA COPIA DE SU RECIBO DE COMPRA ORIGINAL A: WESTON PRODUCTS LLC/WARRANTY, 20365 PROGRESSS DRIVE. STRONGSVILLE, OH 44149 U.S.A

Weston Products LLC / WARRANTY 20365 Progress Drive, Strongsville, OH 44149 U.S.A.

CARTE DE GARANTIE

ENVOYEZ CETTE CARTE DE GARANTIE AVEC UNE COPIE DE VOTRE REÇU D'ACHAT ORIGINAL À : WESTON PRODUCTS LLC / WARRANTY, 20365 PROGRESS DRIVE, STRONGSVILLE, OH 44149 U.S.A.

Nom du Client: ____

Adresse:

Province/Codepostal/Région: ____

If any components of this unit are broken, do not operate properly, or for product returns, please contact Weston Products LLC

Phone: [phone] (Outside the U.S. 440-638-3131)

Mail: 20365 Progress Drive, Strongsville, Ohio 44149

E-Mail: [e-mail]

Web Site: WestonProducts.com

All Trademarks and Registered Trademarks are property of the respective companies.

SAVE THESE INSTRUCTIONS!

Refer to them often and use them to instruct others.

¡ATENCIÓN!

Weston Products LLC, 20365 Progress Drive, Strongsville, Ohio 44149

WestonProducts.com
