USER MANUAL OMHDRTO8YW Kraft

oscar Mayer™

All products are trademarks of Nostalgia Products LLC.

Worldwide design & utility patented or patents pending.

© 2021 Nostalgia Products LLC.

www.nostalgiaproducts.com

(rev. 11/12/21 HQP)

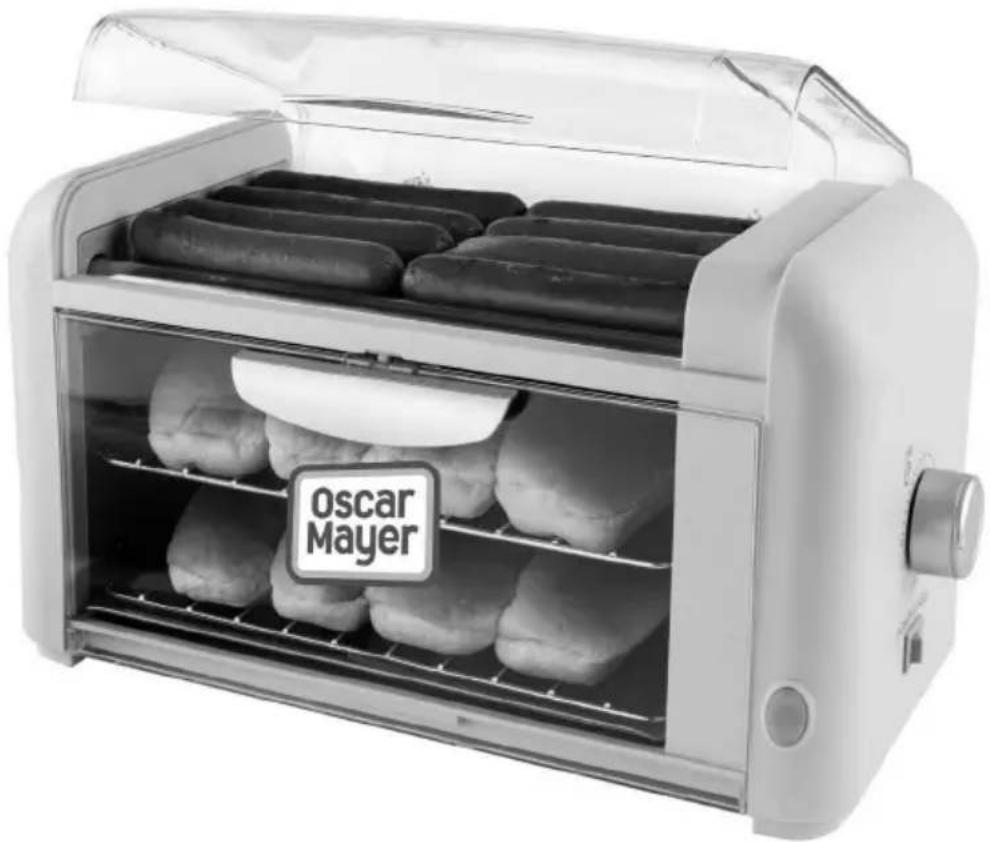

Black-and-white photo of a modern kitchen toaster with open grates and baked goods, labeled 'Oscar Mayer' (no other text or symbols visible)

Oscar Mayer™ Hot Dog Roller & Bun Warmer Rodillo para perros calientes Oscar Mayer™ y Calentador de panes Machine à hot dog et chauffe pain Oscar Mayer™

Instructions and Recipes Instructions et Recettes Instrucciones y Recetas

Make everyday a party!

Visit www.nostalgiaproducts.com for more fun products.

CONTENTS

SAFETY 2

IMPORTANT PRECAUTIONS 3

IMPORTANT SAFEGUARDS 3

INTRODUCTION 4

PARTS & ASSEMBLY 5

HOW TO OPERATE 6

HELPFUL TIPS 6

CLEANING & MAINTENANCE 7

RECIPES 7

RETURNS & WARRANTY 8

SAFETY

Appliance Specifications:

Your safety and the safety of others is very important.

260 Watts

We have provided many important safety messages in this manual and

THIS PRODUCTION FOR ALWAYS READ AND ABOUT ALL SAFETY messages.

This is the safety alert symbol. Refer to www.hostalgiaproducts.com/user-

manuals/ for the most updated manual.

This symbol alerts you to' potential hazards that can

cause serious injury to you and others.

All safety messages will follow the safety alert symbol.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT PRECAUTIONS

1. NEVER immerse base in water.
2. NEVER use near water.
3. NEVER use an abrasive sponge or cloth on the Canopy or Base.
4. NEVER use a scouring pad on the appliance.
5. NEVER leave appliance unattended while in use.
6. NEVER place anything other than what is being cooked on the appliance.
7. Unplug unit from outlet when not in use and during cleaning.
8. DO NOT operate this appliance with a damaged cord or plug, nor if the appliance ever malfunctions.
9. DO NOT place Base in a dishwasher.
10. Always keep Drip Tray in place while cooking hot dogs.
11. Keep out of reach of children.
12. This appliance is NOT A TOY.
13. Unsupervised young children and cognitively challenged individuals should never operate this appliance.
14. Young children should be supervised while in proximity of the appliance to ensure that they do not play with it.
15. Preheating of the appliance is not necessary.

IMPORTANT SAFEGUARDS

Basic safety precautions should always be followed when using electrical appliances, including the following:

1. Read all instructions before operating this appliance.
2. Avoid contact with moving parts.
3. To protect against electrical shock do not immerse cord, plug or any part of this appliance in water or other liquids.
4. Close supervision is necessary when any appliance is used near children.
5. Unplug from outlet when not in use, before removing parts and before cleaning.
6. DO NOT operate any appliance with a damaged cord or plug, nor if the appliance has been damaged in any manner. Return the appliance to the nearest repair shop for examination or repair.
7. The manufacturer does not recommend the use of accessory attachments. Use of accessory attachments may cause injuries.
8. DO NOT use outdoors.
9. Position the appliance as close to the outlet as possible to prevent injury due to tripping over cord.

10. DO NOT place on or near a hot gas or electric burner, nor in a heated oven.

11. Extreme caution must be used when moving this appliance.

12. DO NOT use the appliance for other than its intended use.
13. An appliance that is plugged into an outlet should not be left unattended while in operation.
14. Check Stainless Steel Rollers for presence of foreign objects prior to use.
15. Make sure the Stainless Steel Rollers are properly inserted into Base prior to using.
16. DO NOT attempt to place Stainless Steel Rollers on Base or remove from Base while motor is on.
17. A short power supply cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.
18. Longer detachable power supply cords can be used if care is exercised in their use.
19. The marked electrical rating of an extension cord should be at least as great as the electrical rating of the appliance.
20. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electrical shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
21. A short power-supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
22. Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
23. If a longer detachable power-supply cord or extension cord is used:
    • 1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
    • 2) The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally; and
24. 3) If the appliance is of the grounded type, the cord set or extension cord should be a grounding-type-3-wire cord.
25. Do not use metallic fasteners to hold the fabric in place. Sharp utensils should not be used.
26. Do not crush or hold the heater.
27. Household use only.
28. Do not immerse in water.

SAVE THESE INSTRUCTIONS!

INTRODUCTION

Make delicious hot dogs every time with this OSCAR MAYER™ HOT DOG ROLLER WITH BUN WARMER from NOSTALGIA™! Grill up to 8 hot dogs and warm 8 buns at once. This item features 5 rollers and 2 cooking racks for buns, toppings, and more! Cook to perfection using the timer and see-through doors for visible cooking progress. Its compact size is perfect for dorms, camping, picnics, and more!

• Included Drip Tray/ Crumb Tray for easy clean up
• 5 rollers and 2 cooking racks
• Timer dial allowing you to customized cooking levels
• Compact size and easy -to-use functions makes it perfect for family dinners, get togethers, tailgating and more!

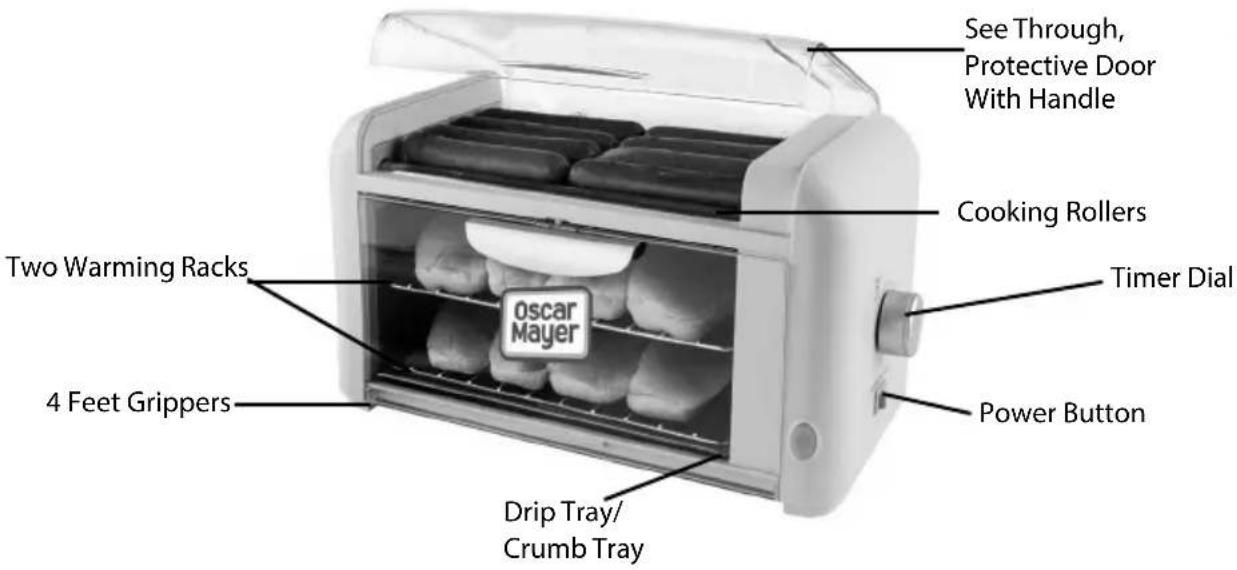

PARTS & ASSEMBLY

ASSEMBLY

Your HOT DOG ROLLER requires very little assembly. All you need to do is insert the Drip Tray into the slot on the unit.

See Through, Protective Door With Handle Cooking Rollers Timer Dial Power Button Drip Tray/ Crumb Tray 4 Feet Grippers Oscar Mayer Two Warming Racks

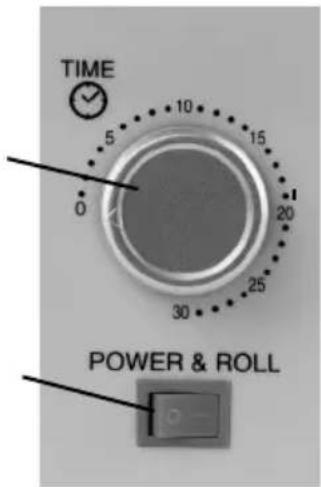

DIAL & POWER SETTINGS

Turn the TIME dial to begin heating rollers and warmer. Turn the dial to your desired amount of of cooking time.

Push the POWER & ROLL swutch to begin rotating hot dog rollers.

NOTE: Turning the POWER & ROLL switch to ON does not activate heating elements.

TIME 5 10 15 1 20 25 30 POWER & ROLL

NOTE: "I" means ON, "0" mean OFF.

HOW TO OPERATE

• Place the HOT DOG ROLLER & BUN WARMER on a stable surface near an electrical outlet before starting. Always make sure that the cord is away from any water source. It is acceptable to use an extension cord if necessary. Once confirmed plug in unit.
• Place the Drip Tray/Crumb Tray is in place. NOTE: The Drip Tray/Crumb Tray can be placed either under the bun warmer racks or right below the hot dog rollers.
• The POWER BUTTON switch on the right of the HOT DOG ROLLER turns on the power. Turn to the ON position. The indicator light will then turn red.
• Place the hot dogs on the Rollers (evenly spaced). Up to eight regular-sized hot dogs or 12 breakfast sausage links can be cooked at one time. Place buns and toppings inside BUN WARMER. NOTE: To prevent buns from drying out, wrap in foil or paper towel prior to placing in warmer.

CAUTION: Always keep the clear, top cover open while cooking.

- Turning the TIMER dial will activate the heating elements. Turn TIMER dial to desired amount of time to begin cooking process. NOTE: Turning the TIMER dial also activates heating elements inside the bun warmer as well.

• As the hot dogs cook, they will begin to darken in color. Depending on the type and size of hot dog cooking time will vary. The thicker the hot dog, the longer it will take to cook through. NOTE: Don't forget to keep an eye on the buns or toppings in the warmer as well!
• Once hot dogs are cooked thoroughly, using tongs (not included), remove a bun from the bun warmer and a hot dog from the hot roller. Repeat until all hot dogs and buns are gone. CAUTION: Use tongs (not included) as BUN WARMER & HOT DOG ROLLERS will be hot.
• After the cooked hot dogs are removed from the Rollers, they can be replaced with new hot dogs to cook if desired. CAUTION: Use tongs when adding more buns and hot dogs as unit may still be hot. NOTE: Remember to reset the timer to resume the heating process.
• By following these simple instructions, your HOT DOG ROLLER & BUN WARMER will be fun for friends, family, and kids of all ages!
• Any other servicing should be performed by an authorized service representative. When not in use, the machine should be unplugged, allowed to cool and stored in a safe and dry location.

HELPFUL TIPS

POWER LIGHT

- If the red power indicator light does not come on after turning the dial to the ON position, check the electrical plug to make sure it is fully plugged into outlet.

ROLLERS

• If the Rollers are not turning, make sure the power light is on and the unit is fully plugged into outlet. Turn unit off and on again. Make sure the end roller pin is correctly inserted into the Base.
• Sometimes hot dogs are square in shape which prevents them from rolling properly. Rotate the hot dogs, using tongs, on the Rollers until they begin to plump from cooking. They will eventually even out in shape and automatically move on the rollers.
• If hot dogs are cooking unevenly, move the hot dogs from one side of the Rollers to the other.

HEATING

• To prevent buns from drying out, wrap in foil or paper towel prior to placing in warmer.
• Use the BUN WARMER for more than buns! Heat nacho cheese, chili, saurfraout, grilled onions and more! NOTE: Grilled onions need to be grilled prior.

CLEANING & MAINTENANCE

Make sure the unit is unplugged before cleaning. Allow all parts to COOL to the touch, especially the Rollers, Cooking Racks, and Drip Tray.

Before first use and continuing after each use, be sure to wipe off the Hot Dog Rollers with a damp cloth and dry thoroughly. For more vigorous cleaning use a damp cloth with soap, then use a damp cloth with water to remove soap. Dry throughouty. CAUTION: Never place the Base in a dishwasher.

RECIPES

Use a variety food items with your HOT DOG ROLLER for a quick, easy-to-serve meal:

• A Variety of Regular-Sized Hot Dogs and Wieners (Beef, Turkey, Veggie, or Chicken)
• Sausage Links
  • Taquitos

Use the BUN WARMER for more than buns! Heat nacho cheese, chili, sauerkraut, grilled onions and more! NOTE: Grilled onions need to be grilled prior.

RETURNS & WARRANTY

SHOULD YOUR UNIT NOT WORK OR IF DAMAGED WHEN YOU FIRST TAKE IT OUT OF THE BOX, PLEASE RETURN IT TO THE PLACE OF PURCHASE IMMEDIATELY.

Should you have any questions, please contact us via email or at the customer service number listed below between the hours of 9:00 AM and 4:00 PM, Monday through Friday, Central Standard Time.

Distributed by:

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Customer Service

Phone: [phone]

Web: www.nostalgiaproducts.com

Customer Service Inquiry

To submit a Customer Service inquiry, go to www.nostalgiaproducts.com and fill out the Customer Service Inquiry form and click the Submit button.

A representative will contact you as soon as possible.

Product Warranty Terms

Nostalgia Products LLC (the "Company") hereby warrants that for a period of one (1) year from the date of original purchase, this product will be free of defects in material and workmanship under normal home use, provided that the product is operated and maintained in accordance with the operating instructions. As the sole and exclusive remedy under this warranty, the Company will at its discretion either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. This warranty is only available to the original retail purchaser of the product from the date of initial retail purchase, and is only valid with the original sales receipt, as proof of purchase date is required to obtain warranty benefits. All warranty claims must be brought to the attention of the Company within the warranty period and no later than 30 days of the failure to perform. This warranty does not cover normal wear or damage caused by shipping, mishandling, misuse, accident, alteration, improper replacement parts, or other than ordinary household use. You may be required to return the product (with shipping prepaid by you) for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns damaged or lost in transit. Unless otherwise specifically permitted by the operating instructions, this warranty applies to indoor household use only. In order to obtain service under this warranty, please contact the Company at the telephone number listed above or by filling out the Customer Service Inquiry Form located at www.nostalgiaproducts.com. Warranty valid only in USA and Canada.

This warranty is in lieu of all other warranties, expressed or implied, including warranties of merchantability and fitness for a particular purpose, which are hereby excluded to the extent permitted by law. In no event shall the Company be liable for any indirect, incidental, consequential, or special damages arising out of or in connection with this product or the use thereof. Some states, provinces or jurisdictions do not permit the exclusion or limitation of incidental or consequential damages, so the foregoing exclusion or limitation may not apply to you.

This warranty does not apply to re-manufactured merchandise.

Please read the operating instructions carefully. Failure to comply with the operating instructions will void this warranty.

For more information, visit us online at www.nostalgiaproducts.com.

Like us on Facebook at www.facebook.com/NostalgiaElectrics.

Follow our boards on Pinterest at www.pinterest.com/nostalgiaelctrx.

Tweet along with us on Twitter at www.twitter.com/NostalgiaElctrx.

PRODUCT REGISTRATION

WELCOME TO THE NOSTALGIA PARTY!

Do you love our product?

Give us your REVIEW, REGISTER your product and get entered to WIN PRIZES! You can also gain access to exclusive disscouts, fresh new recipes, monthly specials & more!

• Visit the site you purchased the product from
• Go to the product page
• Leave a 5-star review!

Five gray star icons in a horizontal row (no text or symbols)

If you aren't happy, please give us a chance to cure it!

Customer service:

[phone] or visit our online contact form: https://nostalgiaproducts.com/pages/support

QR code image containing encoded data, no visible human-readable text

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685
