OMHDS84YW - Hot dog maker Kraft - Free user manual and instructions

Product Type	Steam Hot Dog Cooker
Brand	Kraft
Model	OMHDS84YW
Power Supply	120 V, 60 Hz, 350 W
Sausage Capacity	Up to 8
Bun Capacity	Up to 4
Trays	Separate for sausages and buns
Water Level Indicator	Yes, with MIN/MAX marks
Control Dial	Off / High
Cord Storage	Yes, concealed
Main Material	Stainless steel and plastic
Cleaning	Hand wash; do not immerse the steam tray
Safety	Polarized plug, hot surfaces, scalding steam
Usage	Indoor, household use only
Warranty	1 year
Included Accessories	Steam tray, sausage tray, bun tray, lid
Removable Parts	Yes, for cleaning
Plug Type	Polarized (one blade wider)

Frequently Asked Questions - OMHDS84YW Kraft

How to use the appliance?

Fill the steam tray with water up to the MAX level, place sausages in the drawer and buns in the tray, then turn the dial to High. Let cook for 15 to 20 minutes. Use insulated gloves to remove food.

How many hot dogs can I cook at once?

The appliance can hold up to 8 sausages and 4 hot dog buns simultaneously.

How to clean the appliance?

Always unplug the appliance and let it cool. Wash the sausage drawer, bun tray, and lid by hand with warm soapy water. Never immerse the steam tray in water; wipe it with a damp cloth.

Can I use an extension cord?

Yes, with caution. The extension cord must have a power rating at least equal to that of the appliance (350 W) and should not hang from the counter to avoid tripping.

What to do if the red indicator does not light up?

Check that the plug is properly inserted into a 120 V outlet. If the indicator still does not light, contact customer service.

How to prevent the buns from becoming soggy?

Do not leave the buns in the hot tray for too long. Check cooking periodically: if the buns absorb too much moisture, they become soggy.

Can I cook other foods than hot dogs?

Yes, you can steam various sausages (beef, turkey, veggie), vegetables, fish, pastrami slices, etc.

Is the appliance safe for children?

No, this appliance is not a toy. Children should not use it without supervision. Scalding steam and hot surfaces pose burn risks.

What to do if the appliance stops heating?

First check the power supply. If the problem persists, refer to the warranty and contact customer service at [phone] or via www.nostalgiaproducts.com.

How to store the cord?

The appliance has a concealed cord storage under the base. Wind the cord and store it in the provided compartment.

USER MANUAL OMHDS84YW Kraft

All products are trademarks of Nostalgia Products LLC.

Worldwide design & utility patented or patents pending.

© 2021 Nostalgia Products LLC.

www.nostalgiaproducts.com

(rev. 08/26/21 NW)

OMHD584YW

Oscar Mayer ^TM Hot Dog Steamer Four à vapeur pour chiens-chauds Oscar Mayer ^TM Vaporera para Perros Calientes Oscar Mayer ^TM

Instructions and Recipes

Make everyday a party!

Visit www.nostalgiaproducts.com for more fun products.

CONTENTS

SAFETY 2

IMPORTANT SAFEGUARDS 3

ADDITIONAL IMPORTANT SAFEGUARDS. 3

INTRODUCTION 4

PARTS & ASSEMBLY 5

HOW TO OPERATE 6

HELPFUL TIPS 6

CLEANING & MAINTENANCE 7

RECIPES 7

RETURNS & WARRANTY 8

SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can cause serious injury to you and others.

All safety messages will follow the safety alert symbol.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Appliance Specifications:

120 Volts, 60 Hertz

350 Watts

THIS PRODUCT IS FOR USE IN 120V AC OUTLET ONLY.

Refer to www.nostalgiaproducts.com/user-manuals/ for the most updated manual.

IMPORTANT SAFEGUARDS

A person who has not read and understood all operating and safety instructions is not qualified to operate this appliance. All users of this appliance must read and understand this Instruction Manual before operating or cleaning this appliance.

When using electrical appliances, basic safety precautions should always be followed, including:

1. Read all instructions before operating this appliance.
2. DO NOT TOUCH the hot surfaces. Use handles or knobs.
3. This appliance is NOT A TOY.
4. Unsupervised young children and cognitively challenged individuals should never operate this appliance.
5. Close supervision is necessary when any appliance is used by or near children.
6. To protect against electrical shock do not immerse cord, plug or any part of this appliance in water or other liquids.
7. Unplug from outlet when not in use, before removing parts and before cleaning. Allow to cool before putting on or taking off any parts, and before cleaning.
8. DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or if the appliance has been damaged in any manner. Return the appliance to the nearest repair shop for examination, repair or adjustment.
9. The manufacturer does not recommend the use of accessory attachments other than what is provided by the manufacturer. Use of attachments may cause injuries.
10. DO NOT use the appliance for other than its intended use.
11. DO NOT use outdoors. FOR HOUSEHOLD USE ONLY.
12. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
13. DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
14. NEVER leave unit unattended while in use or when plugged into an outlet.
15. Extreme caution must be used when moving an appliance containing hot food.
16. Always attach plug to appliance first, then plug cord in the wall outlet. To disconnect, turn any control to "off," then remove plug from wall outlet.

ADDITIONAL IMPORTANT SAFEGUARDS

Operating Safety Precautions

1. This appliance generates steam that can cause burns, scalding and serious injuries. Use EXTREME CAUTION and always use oven mitts and cooking tongs to take food out from your hot dog steamer.
2. Use oven mitts when opening lid, hot dog steamer tray or when handling hot food or any hot parts of the appliance.
3. Check unit for presence of foreign objects prior to use.
4. DO NOT place appliance directly under kitchen cabinets as the unit generates steam that could damage the cabinets.

Instructions for the Electrical Cord and Plug

1. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electrical shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
2. A short power supply cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.

3. If a long detachable power-supply cord or extension cord is used:

4. Extension cords can be used if care is exercised in their use.

5. The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance.

6. When using a longer cord or extension cord, make sure that the cord does not drape over a countertop or tabletop where it can be pulled on or tripped over unintentionally.

7. The manufacturer does not recommend using this machine in countries that do not support 120V AC even if a voltage adapter, transformer, or converter is in use.

SAVE THESE INSTRUCTIONS!

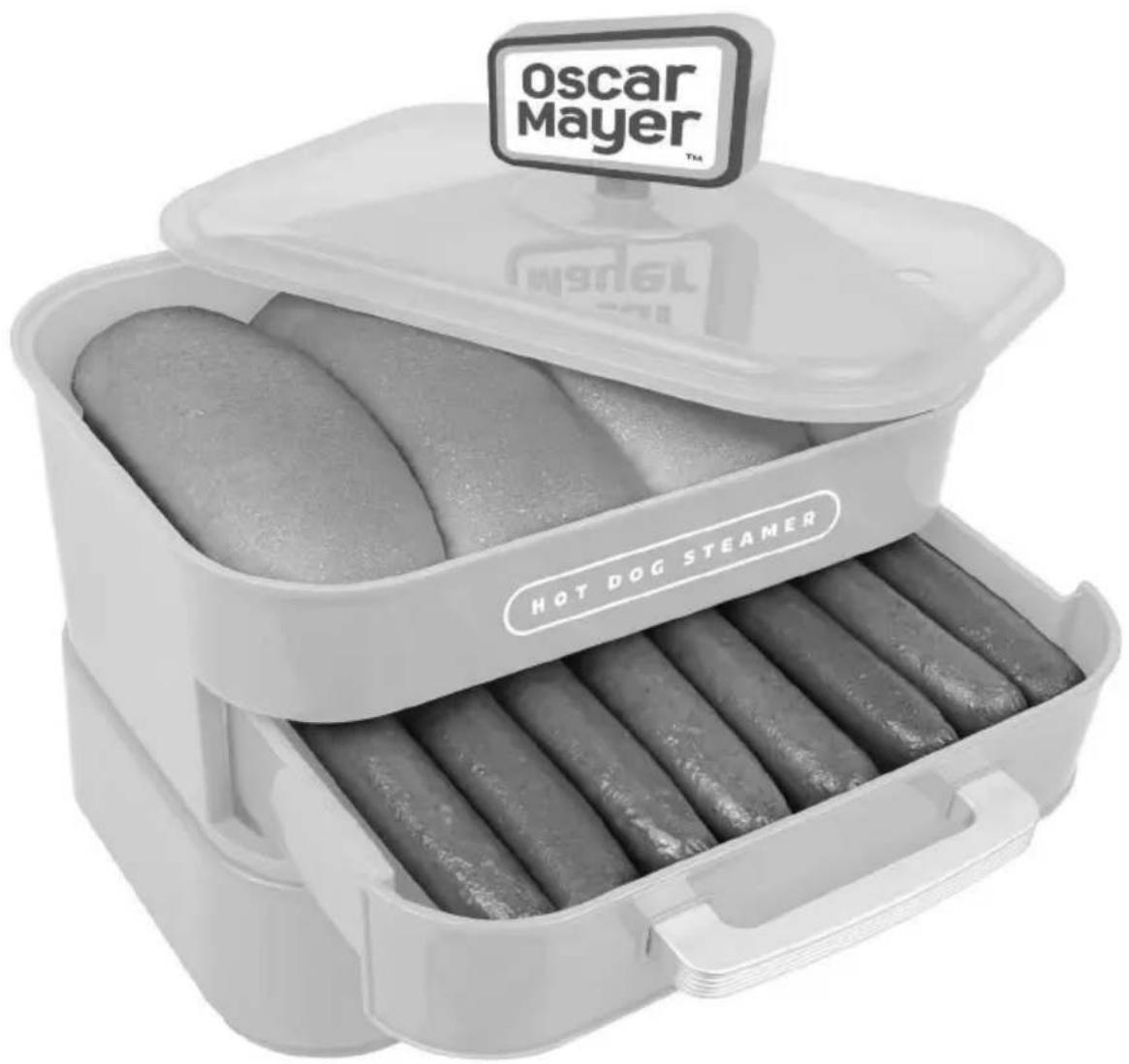

INTRODUCTION

Thank you for purchasing the OSCAR MAYER ^TM HOT DOG STEAMER from Nostalgia! Now you can steam hot dogs and buns to delicious perfection in minutes! Great for small parties and gatherings, this compact unit holds up to 8 hot dogs and 4 buns at a time. It's also great for steaming a variety of other foods!

Features include:

• Holds up to 8 hot dogs and 4 buns at a time
• Includes separate steaming trays for hot dogs and buns
• Two position cooking dial: OFF-ON
• Easy-view water level indicator
• Entire unit disassembles for easy cleaning
• Hidden cord wrap for tidy storage

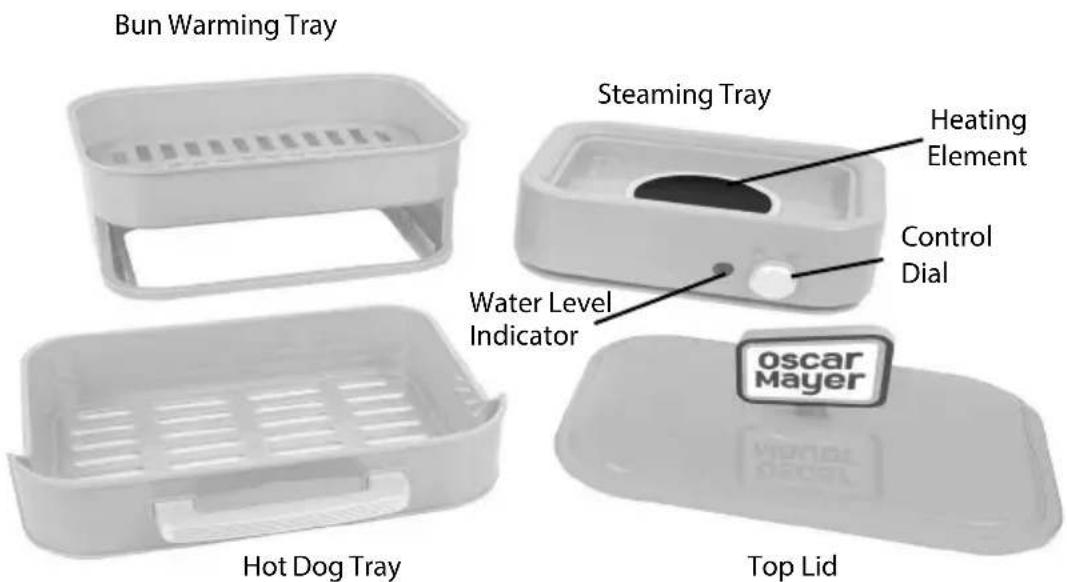

PARTS & ASSEMBLY

ASSEMBLY

To assemble your HOT DOG STEAMER, follow the simple steps below:

1. Place the Steaming Tray on a stable surface.
2. Stack the Bun Warming Tray on top of the Steaming Tray.
3. Place the Top Lid on to the top of the Bun Warming Tray.
4. Lastly, slide the Hot Dog Tray into the front opening of the Bun Warming Tray.

CORD STORAGE

Front view of a gray electronic device with black buttons and ventilation slots (no visible text or symbols)

HOW TO OPERATE

Before using your HOT DOG STEAMER, follow the cleaning directions found in the CLEANING & MAINTENANCE section.

1. Place the unit on a stable surface near an electrical outlet before starting.
2. Fill the Steaming Tray with cold water up to the desired level. Ensure that the water level does not exceed the interior ledge. NOTE: Depending on how long you use your unit, you may need to periodically refill the Steaming Tray with water.
3. Place up to 8 hot dogs in the Hot Dog Tray and close the tray. Place up to 4 hot dog buns in the Bun Warming Tray and cover with the Top Lid.
4. Turn the Control Dial to ON to begin steaming hot dogs. Depending on the number of hot dogs in the tray, hot dogs may take 15-20 minutes to fully steam.

NOTE: Periodically check hot dogs and hot dog buns to see if adequately cooked. If left in too long hot dog buns may absorb moisture and become soggy. If left in too long hot dogs may split.

1. When hot dogs and buns are ready, carefully remove the Top Lid and pull open the Hot Dog Tray using an oven mitt. Using cooking tongs (not included), take out a bun and fill with a hot dog.

CAUTION: Use EXTREME CAUTION when opening steamer and serving! Hot steam and hot water escaping from the unit may cause scalding.

1. Once hot dogs are fully steamed, keep warm by turning the Control Dial to OFF.

HELPFUL TIPS

• Make sure there is always a sufficient amount of water left in the Steamer Tray, especially when making numerous batches of hot dogs.
• For best results, do not overfill the Hot Dog Tray or the Bun Warming Tray.
• If the red power indicator light does not come on after turning the dial to the ON position, check the electrical plug to make sure it is fully plugged into outlet.
• Periodically check hot dogs and hot dog buns to see if adequately cooked. If left in too long hot dog buns may absorb moisture and become soggy. If left in too long hot dogs may split.
• Use Bun Warming Tray as another means to keep hot dog topping warm such as chili, cheese, or suaerkraut. Using a MICROWAVE SAFE BOWL place desired topping in bowl and set on top of bun warming tray. CAUTION: Do not use any bowls for toppings that could melt from the hot steam in the Bun Warming Tray.

CLEANING & MAINTENANCE

Make sure the unit is unplugged before cleaning. Allow all parts to COOL to the touch, especially the Heating Element.

Before first use and continuing after each use, be sure to wipe the Hot Dog Tray, Bun Warming Tray, Top Lid and Steaming Tray with a damp cloth and dry thoroughly. When more concentrated cleaning is necessary, wash the Hot Dog Tray, Bun Warming Tray and Top Lid in warm soapy water, rinse, and dry thoroughly.

CAUTION: Never immerse Steaming Tray in water or other liquid!

To prolong the life of your HOT DOG STEAMER, hand-washing parts is advised. Dishwasher use is not recommended.

RECIPES

Steam a variety food items with your HOT DOG STEAMER for a quick, easy-to-serve meal:

• Variety of hot dogs and wieners (beef, turkey, veggie, or chicken)
• Sausage Links
• Vegetables
• Fish
• Pastrami slices
• And more!

RETURNS & WARRANTY

SHOULD YOUR UNIT NOT WORK OR IF DAMAGED WHEN YOU FIRST TAKE IT OUT OF THE BOX, PLEASE RETURN IT TO THE PLACE OF PURCHASE IMMEDIATELY.

OSCAR MAYER HOT DOG STEAMER / OMHDS84YW

Should you have any questions, please contact us via email or at the customer service number listed below between the hours of 8:00 AM and 5:00 PM, Monday through Friday, Central Standard Time.

Distributed by:

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Customer Service

Phone: [phone]

Web: www.nostalgiaproducts.com

Customer Service Inquiry

To submit a Customer Service inquiry, go to www.nostalgiaproducts.com and fill out the Customer Service Inquiry form and click the Submit button.

A representative will contact you as soon as possible.

Product Warranty Terms

Nostalgia Products LLC (the "Company") hereby warrants that for a period of one (1) year from the date of original purchase, this product will be free of defects in material and workmanship under normal home use, provided that the product is operated and maintained in accordance with the operating instructions. As the sole and exclusive remedy under this warranty, the Company will at its discretion either repair or replace the product found to be defective, or issue a refund on the product during the warranty period. This warranty is only available to the original retail purchaser of the product from the date of initial retail purchase, and is only valid with the original sales receipt, as proof of purchase date is required to obtain warranty benefits. All warranty claims must be brought to the attention of the Company within the warranty period and no later than 30 days of the failure to perform. This warranty does not cover normal wear or damage caused by shipping, mishandling, misuse, accident, alteration, improper replacement parts, or other than ordinary household use. You may be required to return the product (with shipping prepaid by you) for inspection and evaluation. Return shipping costs are not refundable. The Company is not responsible for returns damaged or lost in transit. Unless otherwise specifically permitted by the operating instructions, this warranty applies to indoor household use only. In order to obtain service under this warranty, please contact the Company at the telephone number listed above or by filling out the Customer Service Inquiry Form located at www.nostalgiaproducts.com. Warranty valid only in USA and Canada.

This warranty is in lieu of all other warranties, expressed or implied, including warranties of merchantability and fitness for a particular purpose, which are hereby excluded to the extent permitted by law. In no event shall the Company be liable for any indirect, incidental, consequential, or special damages arising out of or in connection with this product or the use thereof. Some states, provinces or jurisdictions do not permit the exclusion or limitation of incidental or consequential damages, so the foregoing exclusion or limitation may not apply to you.

This warranty does not apply to re-manufactured merchandise.

Please read the operating instructions carefully. Failure to comply with the operating instructions will void this warranty.

For more information, visit us online at www.nostalgiaproducts.com.

Like us on Facebook at www.facebook.com/NostalgiaElectrics.

Follow our boards on Pinterest at www.pinterest.com/nostalgiaelctrx.

Tweet along with us on Twitter at www.twitter.com/NostalgiaElctrx.

CONSERVEZ CES INSTRUCTIONS!

INTRODUCTION

Front view of a gray electronic device with black connectors and ventilation slots (no text or symbols visible)

COMMENT FAIRE FONCTIONNER

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Front view of a white electronic device casing with ventilation slots and a black plug inserted (no text or symbols visible)

CÓMO UTILIZAR

Nostalgia Products LLC

1471 Partnership Dr.

Green Bay, WI 54304-5685

Servicio al cliente

Do you love our product?

Give us your REVIEW, REGISTER your product and get entered to WIN PRIZES! You can also gain access to exclusive disscouts, fresh new recipes, monthly specials & more!

• Visit the site you purchased the product from
• Go to the product page
• Leave a 5-star review!

Five gray star icons in a horizontal row (no text or symbols)

If you aren't happy, please give us a chance to cure it!

Customer service:

[phone] or visit our online contact form: https://nostalgiaproducts.com/pages/support
