USER MANUAL HAHG7WL5WS6X/1 HAIER

MATERIALS IN COMPLIANCE WITH REQUIREMENTS OF EU DIRECTIVE 2002/95/CE + AMENDMENTS
ALL RIGHTS RESERVED, THE REPRODUCTION OF ANY PART WITHOUT OUR WRITTEN CONSENT IS FORBIDDEN

E

D

G

B

A

CL N° REV. DATE

SPECIFICATION

GENERAL TOLERANCE ISO 2785-1 M

DATE SIGNATURE

PROPERTIES OF CANDY-HOVER GROUP

MODEL DESCRIPTION

MODIFIED BY

RELEASE LEVEL

PRODUCTION RELEASE

RELEASE DATE

HAHG7

CANDY HOOVER GROUP Via Comolli 16 Brugherio - Italy

Haier

UserInstructions EN 3 HOBS
Bedienungsanleitung DE 13 KOCHMULDEN
Istruzioneiperl'uso IT 23 PIANICOTTURA
Instruccionedesuso ES 33 PLACAS
Instrukcjeu ytkownikaż PL 43
PLYTYKUCHENNE
Pokyny pro uživatele CZ 53
VARNÉDESKY
Navodnaobsluhu SK 63
VARNADOSKA
Moded'emploi FR 73 PLAQUEDECUISSON
Handleiding NL 83 KOOKPLATEN

We recommend you keep the instructions for installation and use for later reference, and before installing the hob, note its serial number in caseyouneedtogethelpfromtheaftersaleservice.

• WARNING: the appliance and its accessible parts become hot during use. Careshouldbetakentoavoidtouchingheatingelements. Children under 8 years of age must be kept away from the appliance unless they are continuously supervised.
• Childrenshouldnotplaywiththeappliance.
• The appliance can be used by those aged 8 or over and by those with limited physical, sensorial or mental capacities, without experience or knowledge of the product, only if supervised or provided within instruction as to the operation of the appliance, in a safe way with awareness of the possibilerisks.
• Cleaning and maintenance should not be carried out by unsupervised children.
• WARNING: the appliance and accessible parts become hot during use. Becarefulnottotouchanyhotparts.
  WARNING: the accessible parts may become hot during use. Young children should be kept away.
• WARNING: in order to avoid any danger caused by the accidental resetting of the thermal interruption device, the appliances should not be powered by an external switching device, such as a timer, or be connected to acircuit that is regularly switched on and off.
• Children under 8 should be kept at a safe distance from the appliance if not continuously supervised.
• Donotuseasteamcleanerorhighpressuresprayforcleaningoperations.
• Disconnect the appliance from the mains electricity supply before carryingoutanyworkormaintenanceonit.
• Connect a plug to the supply cable that is able to bear the voltage, currentandloadindicatedonthetagandhavingtheearthcontact. The socket must be suitable for the load indicated on the tag and must have ground contact connected and in operation. The earth conductor isyellow-greenincolour.Thisoperationsshouldbecarriedoutbya

suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker, with contact separation compliant to the requirements for overvoltage category III, between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation. Theyellow-greenearthcable

should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the applianceisinstalled.

• The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.
• WARNING: use only hob guards designed by the Manufacturer of the cooking appliance or indicated by the Manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. Theuseofinapproprieguardscaunceacontents.
• WARNING:unattendedcookingonahobwithfator oilcan bedangerous andmayresult infire.NEVERtrytoextinguishafirewithwater,butswitch offtheapplianceandthencoverflamee.g.withalidorafireblanket.
  WARNING:dangeroffire:donotstoreitemsonthecookingsurfaces.
• CAUTION: the cooking process must be supervised. Ashort term cookingprocesshastobesupervisedcontinuously.
• Ifpresentdonottostareintohalogenlamphobelements.
• Do not put metallic objects such as knives, forks, spoons or lids on the hob. They could heat up.
• Aluminumfoilandplasticpansmustnotbeplacedonheatingzones.
• After every use, some cleaning of the hob is necessary to prevent the build-up of dirt and grease. If left, this is recooked when the hob is used and burns giving off smoke and unpleasant smells, not to mention the risksoffirepropagation.

• Donottouchtheheatzonesduringoperationorforawhileafteruse.

• Alwaysusetheappropriatecookware.

• Alwaysplacethepaninthecenteroftheunitthatyouarecookingon.
• Donotplaceanythingoncontrolpanel.
• Donotusethehobasaworkingsurface.
• Donotusethesurfaceasacuttingboard.
• Do not store heavy items above the hob. If they drop onto the hob, they maycauseddamage.
• Donotusethehobforstorageofanyitems.
• Donotslidecookwareacrosstehob.
• Do not use rough or abrasive materials or sharp metal scrapers to clean the glasses, as they can scratch the surface and cause the glass to shatter.
• If the supply cord is damaged, it must be replaced by Manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The earth conductor (yellow-green) must be longer than 10mm on the terminal block side. The internal conductors section should be appropriate to the power absorbed by the hob (indicated on the tag). The type of power cable must be H05V2V2-F.
• No additional operation/setting is required in order to operate the applianceattheratedfrequencies.
• This appliance is not intended to be operated by means of an external timerseparatelemotecontrolssystem.

3 Safety Instructions
7 Instructions for the installer
8 Connections
10 Use of hob - user instructions
11 Maintenance and cleaning
11 After care
12 Protection of the environment
93 Technical information

Thank you for purchasing the Haier gas hob. Please read this instruction manual carefully before using the hobandkeepitinsafeplaceforfuturereference.

Installing a domestic appliance can be a complicated operation which if not carried out correctly, can seriously affect consumer safety. It is for this reason that the task should be undertaken by a professionally qualified person who will carry it out in accordance with the technical regulations in force. In the event that this advice is ignored and the installation is carried out by an unqualified person, the manufacturer declines all responsibility for any technical failure of the product whether or not it results in damage to goods or injury to individuals.

BUILDINGIN

Thehobmaybeinstalledinanyworktopwhich is heat resistant to a temperature of 100^ and has a thickness of 25-45 mm. The dimensions of the insert to be cut out of the worktop are in showninFigure2*.

Whenthereis anaccessible spacebetweenthe built-in hob and the cavity below, a dividing wall made of insulating material should be inserted (woodorasimilararmaterial)(Figure3*).

If the Hob is fitted next to a cabinet on either side, the distance between the cut out and the cabinet must be at least 250mm for 75 cm hobs (see Figure 2^* ); while the distance between the hobandthe

rear wall must be at least 70~mm for frontal controlhobsand 50mmforlateralcontrolhobs.

The distance between the hob and any other unitor applianceaboveit(e.g.An extractorhood) must be noless than700mm(Figure4*).

Metal objects in the drawer may reach high temperatures due to air recirculation. It is therefore recommended to use an intermediate woodpanel.

Important-ThediagraminFigure1*shows howthesealantsshouldbeapplied.

The Hob unit is fitted by attaching the Fixing Clamps supplied, using the holes at the base of the unit.

When a 75 cm hob is fitted over a built in oven, the latter must befancooled.

SUITABLELOCATION

This appliance must be installed in accordance with the regulations in force and only used in a well ventilated space. Read the instructions beforeinstallingorusingthisappliance.

A gas-powered cooking appliance produces heat and humidity in the area in which it is installed. For this reason you should ensure good ventilation either by keeping all natural air passages open or by installing an extractor hood with an exhaust flue. Intensive and prolonged use of the appliance may require extra ventilation, such as the opening of a window or an increase in speed of the electric fan, if you have one.

If a hood can not be installed, an electric fan should be fitted to an outside wall or window to ensure that there is adequate ventilation.

The electric fan should be able to carry out a complete change of air in the kitchen 3-5 times every hour. The installer should follow the relevant national standards.

ELECTRICAL CONNECTION(FORU.K.ONLY) Warning-thisappliancemustbeearthed

This appliance is designed for domestic use only. Connection to the main supply must be made by a competent electrician,ensuring that all current regulations concerning such installations are observed. The appliance must onlybeconnectedto asuitablyratedspurpoint, a 3 pin 13 amp plug/socket is not suitable. A double pole switch must be provided and the circuitmusthaveappropriatefuseprotection. Further details of the power requirement of the individual product will be found in the users' instruction and on the appliance rating plate. In the case of built-in product you are advised, should you wish to use a longer cable than the one supplied, that a suitably rated heat resistanttypemustbeused.

The wiring must be connected to the mains supplyasfollows:

Connect	To spur terminal
Green & yellow wire	Earth connection
Blue Wire Neutral	Connection
Brown Wire	Live connection

Note: We do not advocate the use of earth leakage devices with electric cooking appliances installed to spur points because of the «nuisance tripping» which may occur. You are again reminded that the appliance must be correctly earthed, the manufacturer declines any responsibility for any event occurring as a resultof incorrectelectricalinstallation.

ELECTRICALCONNECTION

Check the data on the rating plate, located on theoutsideoftheunit,toensurethatthesupply andinputvoltagearesuitable.

Before connection, check the earthing system. By Law, this appliance must be earthed. If this regulation is not complied with, the manufacturer will not be responsible for any damage caused to persons or property. If a plug is not already attached, fit a plug appropriate to the load indicated on the rating plate. The earth wire is

coloured yellow/green. The plug should always be accessible. Where the Hob is connected direct to the electricity supply, a circuit breaker must be fitted. If the power supply cord is damaged this is to be replaced by a qualified engineer so as to prevent any potential risk. The earth wire (green and yellow coloured) must be at least 10mm longer than the live and neutral wires. The section of the cable used must be of the correct size in relation to the absorbed power of the hob. Please check rating plate for the power details and ensure that the power supply cord is of the type 3× 0.75mm^2 H05V2V2-F

Ifanappliance isnotfittedwith asupplycord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, the instructions shall state that means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

GASCONNECTION

These instructions are for qualified personnel, installation of equipment must be in line with the relevant national standard. (For U.K. only: by lawthegas installation\commissioningmust be carriedoutbya"GasSafe"installer).

All work must be carried out with the electricity supply disconnected. The rating plate on the hob shows the type of gas with which it is designed to be used. Connection to the mains gas supply or gas cylinder should be carried out after having checked that it is regulated for the type of gas with which it will be supplied. If it is not correctly regulated see the instructions in the following paragraphstochangegassetting. For liquid gas (cylinder gas) use pressure regulators which comply with the relevant national standards. Use only pipes, washers and sealing washers which comply with the relevant nationalstandards.

For some models a conic link is furnished to outfit for the installation in the countries where this type of link is obligatory; in picture 8 it is pointed out how to recognize the different types of links (CY = cylindrical, CO = conic). In every case the cylindrical part of the link has to be connected to the hob.

When connecting the hob to the gas supply via use offlexible hoses please ensure that the maximum distance covered by the hose does not exceed 2 metres.

Theflexibletubeshallbefitted in suchawaythat it cannot come into contact with a moveable part of the housing unit (e.g. a drawer) and does not pass through any space where it may become crushed/ kinked or damaged in any way.

To prevent any potential damage to the hob please carry out the installation following this sequence Figure6*:

1.Asillustrated,assemblepartsinsequence:

A:1/2MaleAdaptorCylindrical
B:1/2Seal
C:1/2FemaleGasAdaptorConical-Cylindrical orCylindrical-Cylindrical
2. Tighten the joints with the spanner, remembering to twist the pipes into position.
3. AttachfittingCtomainsgassupplyusingrigid copperpipeorflexiblesteelpipe.

IMPORTANT: carry outafinal checkforleaks on thepipeconnectionsusingasoapysolution. NEVER USE A FLAME. Also, make sure that the flexible pipe cannot come into contact with a movingpartof thecabinet(eg.adrawer)and that itisnotsituatedwhereit couldbedamaged.

Warning: If gas can besmelt in the vicinity of this appliance turn off the gas supply to the appliance and call the engineer directly. Do not search foraleakwithanakedflame.

ADAPTING THE HOB TO DIFFERENT TYPE OF OFGAS

To adapt the Hob for use with different types of gas, carryout the following instructions:

-Removethegridsandburners
- Insertonhexagonalspanner(7mm)intotheburnersupport(Figure7*)
- Unscrewtheinjectorandreplaceitwithonesuitableforthegastobeused(seegastype table)

*See "Technical information" section at the end of this manual.

REGULATINGTHEMINIMUMFLAME

After lighting the burners, turn the control knob to the minimum setting and then remove the knob (this can easily be removed by applying gentlepressure).

Using a small «Terminal» type screwdriver the regulatingscrewcanbeadjustedasinFigure9*.

Turning the screw clockwise reduces the gas flow, whilst turning it anticlockwise increases the flow -Use this adjustment to obtain aflame of approximately 3 to 4mm in length and then replace the control knob.

When the gas supply available is LPG - the screw to set the idle flame must be turned (clockwise)totheendstop.

When you have carried out the new gas regulation, replace the old gas rating plate on your appliance with one (supplied with hob) suitable for the type of gas for which it has been regulated.

This appliance must only be used for the purpose for which it is intended, domestic cooking, and any other use will be considered improper and could therefore be dangerous. The Manufacturer will not beresponsibleforany damage or loss resulting from improper use. Before using burner, be sure, grid perimeters center the burner as below figure. If you are using Cast Iron Grids; underneath the grid, position of it is stated. Be sure for the exact grid isusedincorrectposition.

• Toheatone pan, never use two different burners at the same time.

• NeveruseGriddle, Teppanyaki, FishKettle, and similarcookwareifthehobhasaglassssurface.

USINGTHEGASBURNER

Prior to switching on the gas hob ensure that theburner caps arecorrectlyplaced within their position. This hob is fitted with electronic ignitiontoignitetheburner.

Toignitetheburnerscarryoutthefollowing:

• Push in and turn anticlockwise to the larger flame symbol on position 9 and keep pushed 5 seconds after ignition. The ignition system will continue to generate sparks as long as the control knob is being pressed Warning: If there is no electricity on appliance to ignite the burner a match or a lighter should be used carryingouttheoutthefollowing:

• Place a lighted match or lighter close to the burner

• Push in and turn the knob anticlockwise to the larger flame symbol on position 9 and keeppushed 5 seconds after ignition Warning: In any case if after 5 seconds the burner has not lit, stop operating the device and wait at least 1 min before attempting a further ignition of the burner.

KNOBSCONTROL

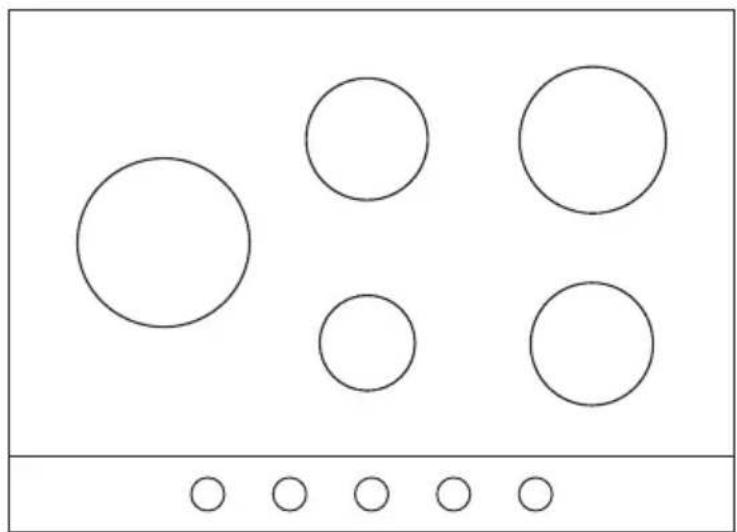

Each knob controls each burner as showed in the serigraphy. The knobs have 9 steps from highest flame to lowest flame. Never try to switchfrom to10

• Tobe suretheburneris switchedoffcorrectly, please check the knob position: the index mustbepositionedin correspondenceof the "0".
  While you are cooking please always check theflametobesurethatitisturnedon.
• Even if the display screen or knob light is turned off, the burner could be already turned on (E.g. electricity shutdown).
  While pressing the knob to switch on the burner, the light of the knob startssparkling.
• When the burner is switched on, the light of theknobisturnedon.
• If the burner doesn't switchon, the light of the knob turns off after 3 seconds.

Indicators
■—	Burner controlled by control knob
○	Switched-off burner
9·	Highest power setting and electric ignition
10·1	Lowest power setting
11·9	Heat settings
12	Switched-off burner

GENERALADVICE

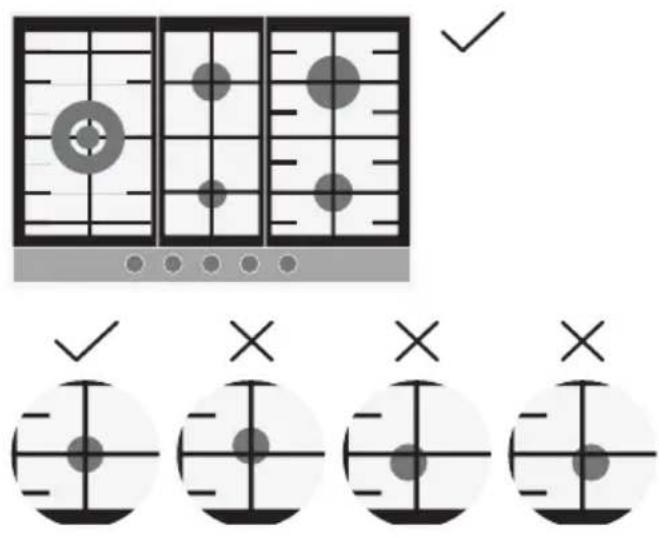

For best results, use cooking vessels with a flat surface. The size of the surface should match the gasburnersideasfollows.TableA:

Burner type	Ø pan/ pot (cm)	Power (kW)	G20/20 mbar (methane)	G 30/28-30 mbar (LPG)
AUX Auxiliary	10-18	1,00	95 l/h	73 g/h
SR Semi Rapid	12-22	1,75	167 l/h	127 g/h
R Rapid	16-26	2,70	257 l/h	196 g/h
DC MONO	16-26	5,00	476 l/h 33	4 g/h

Forsmallercontainersthegasburner should be regulated so that the flame does not over-lap the base of the pan. Vessels with a concave or convex basesshouldnotbeused.

WARNING: If a flame is accidentally extinguished, turn the knob to the off position and do not attempt to ignite. Ignitefforat least 1 minute. If over the years the gas taps become stiff to turn its necessary to lubricate them. Such operation must be carried out only by qualified Service Engineers.

Maintenance and cleaning

• Beforecleaningthehob,ensure the appliance hascooledown.
• Remove the plug from the socket or (if connected directly) switch off the electricity supply.
• Cleaning and user maintenance shall not be madebychildrenwithoutsupervision
• Never use abrasives, corrosive detergents, bleaching agents or acids. Avoid any acid or alkalinesubstances (lemon,juice,vinegar etc.) on the enamelled, varnished or stainless steel sections.
• When cleaning the enamelled, varnished or chrome sections, use warm soapy water or a non caustic detergent. For stainless steel use an appropriate cleaningsolution.
• The burners can be cleaned with soapy water. Torestoretheiroriginal shine,use ahousehold stainless steel cleaner. After cleaning, dry the burnersandreplace.
  It is important the Burners are replaced correctly.

Chromedgridsandburners

Chromed grids and burners have a tendency to discolour with use. Thisdoes not jeopardize the functionalityofthehob
OurAfter SalesService Centrecanprovide spare partsifrequired.

Before calling out a Service Engineer please check the following:

• Thattheplugiscorrectlyinsertedandfused
• Thatthegassupplyisnotfaulty Ifthefaultcannotbedetected:
• Switch off the appliance and call the After Service Centre. DONOT TAMPER WITH THE APPLIANCE.

The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as requires, including the interests of consumption without prejudice to characteristics relating to safety or function.

Protection of the environment

By placing the mark on the appliance, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation forthisproduct.

The appliance complies with European Directive 2009/142/EC (GAD) and starting from 21/04/2018 with Gas Appliances Regulation2016/426(GAR).

Waste management and environmental protection

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused).

It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring thattheWEEE donotbecome anenvironmental problem;it isessentialtofollowafewbasicrules:

• The WEEE should not be treated as domestic waste;
• The WEEE should be taken to dedicated collection areasmanaged bythetowncouncil oraregisteredcompany.

In many countries, domestic collections maybe available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

SAVING AND RESPECTING THE ENVIRONMENT

Where possible use lid to cover the pan. Regulate the flame to not overlap the diameter of the pan.

"ValidonlyforCyprus

The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. Wereservethe right to carry out modifications to products as requires, including the interests of consumption without prejudice to characteristics relating to safety or function.

This appliance has been designed for non-professional, i.e. domestic, use.

GAS TYPEHOBS

TABLE FRONTAL UH60MF / UH75MF

	Gas Type		G20 G20 G	25.1 G25.3 G30/G	31 G30/G31 G30	G31
	Gas Pressure		20 mbar	25 mbar	25 mbar	25 mbar	28-30 mbar	37 mbar	50 mbar
Burners	Max (kW)	Min (kW)	Injector NG	Injector NG	Injector NG	Injector NG	Injector LPG	Injector LPG	Injector LPG
			Max - Min	Max - Min	Max - Min	Max - Min	Max - Min	Max - Min	Max - Min
AUX	1	0,3	72X(1kW-0.3kW)	70X(1kW-0.3kW)	74F1(1kW-0.3kW)	72F1(1kW-0.3kW)	50(73g/h-22g/h)	46(73g/h-25g/h)	46H2(73g/h-29g/h)
SR	1,75 0,6		97Z(1.75kW-0.6kW)	91Z(1.75kW-0.6kW)	98Y(1.75kW-0.6kW)	102F3(1.75kW-0.6kW)	65(127g/h-36g/h)	61(127g/h-40g/h)	58M(127g/h-44g/h)
R	2,7	1	109Y(2.7kW-1kW)	110F3(2.7kW-1kW)	120F2(2.7kW-1kW)	115F2(2.7kW-1kW)	83(196g/h-58g/h)	78(196g/h-62g/h)	73S(196g/h-69g/h)
DC 5kWMONO	NG 5 - LPG 4.6	2,4	166S4(5kW-2.4kW)	160H3(5kW-2.4kW)	168F3(5kW-2.4kW)	162F3(5kW-2.4kW)	107(334g/h-160g/h)	100(334g/h-167g/h)	95 type 6(334g/h-175g/h)

Gas Categories	II2E+3+	II2H3+	II2H3B/P
	G20/G25 20/25mbar 2E+	G20 20mbar 2H	G20 20mbar 2H
	G30/G31 28-30/37mbar 3+	G30/G31 28-30/37mbar 3+	G30/G31 30/30mbar 3B/P
Countries	BE,FR	CY,CZ,GB,GR,IE,IT,PT,SI,ES,TR,CH	BG,HR,DK,EE,FILV,LT,NO,RO,SK,SE,CZ,SI,TR

Gas Categories	II2H3B/P	II2EK3B/P	II2HS3B/P	II2E3B/P	II2E3B/P
	G20 20mbar 2H	G20 20mbar 2E	G20 20mbar 2H	G20 20mbar 2E	G20 20mbar 2E
	G30/G31 50/50mbar 3B/P	G25.3 25mbar 2K	G25.1 25mbar 2S	G30/G31 37/37mbar 3B/P	G30/G31 50/50mbar 3B/P
		G30/G31 30/30mbar 3B/P	G30/G31 30/30mbar 3B/P
Countries	AT,CH	NL	HU	PL	DE

Efficiency Declaration (UE) N. 66/2014

UH75MF - 4+1 (L1)
SINGLE BURNEREFICIENCY
AUX	SR	SR	R	DC 5 kW Mono
-	56,0%	56,0%	54,00%	57,60%
MEDIUM 55.90%

GB-IE

The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. Wereservethe righttocarryout modificationstoproducts as required, including the interestsofconsumption,withoutprejudicetothecharacteristicsrelatingtosafetyorfunction.

DE
