USER MANUAL AR12CRHGAWK SAMSUNG

User manual/Installation manual

AR**C*HGAWK***

• Thank you for purchasing this Samsung air conditioner.
- Before operating this unit, please read this manual carefully and retain it for future reference.

SAMSUNG

Content

Operation Notices

Precautions....1

Parts Name....6

Screen Operation Guide

Buttons on remote controller 7

Introduction for icons on display screen 7

Introduction for buttons on remote controller....8

Function introduction for combination buttons....10

Maintenance

Cleaning and Maintenance....11

Check items before maintenance....12

Installation Notice

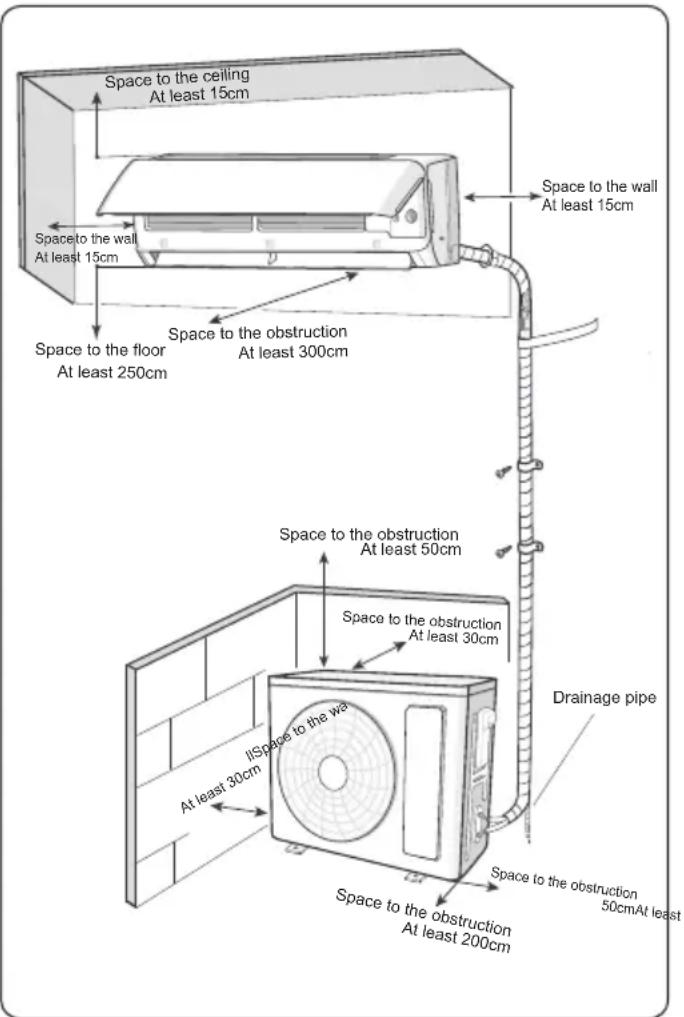

Installation dimension diagram....13

Safety precautions for installing and relocating the unit 13

Tools for installation 13

Selection of installation location ....14

Requirements for electrical connection 14

Air switch capacity 14

Accessories....15

Installation

Installation of indoor unit....16

Installation of outdoor unit 19

Test and operation

Test operation....21

Attachment

Configuration of connection pipe 22

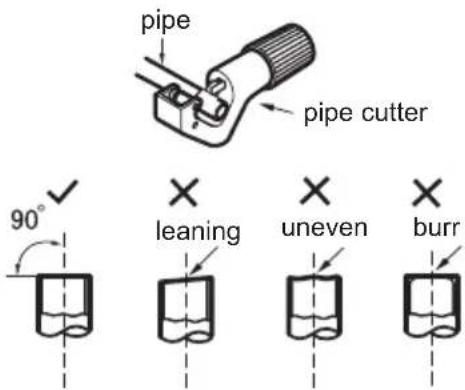

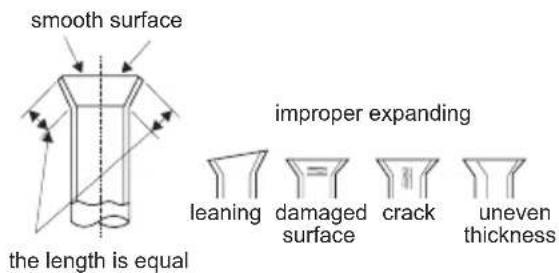

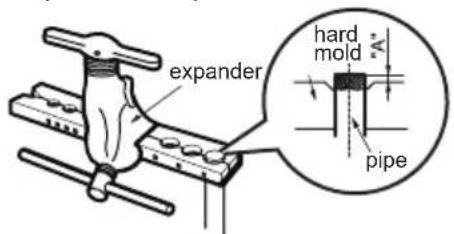

Pipe expanding method 22

Explanation of Symbols

This symbol indicates the possibility of death or serious injury.

This symbol indicates the possibility of injury or damage to property.

Indicates important but not hazard-related information, used to indicate risk of property damage.

Exception Clauses

Manufacturer will bear no responsibilities when personal injury or property loss is caused by the following reasons.

1. Damage the product due to improper use or misuse of the product;
2. Alter, change, maintain or use the product with other equipment without abiding by the instruction manual of manufacturer;
3. After verification, the defect of product is directly caused by corrosive gas;
4. After verification, the defects are due to improper handling during transportation of product;
5. Operate, repair, maintain the unit without abiding by instruction manual or related regulations;
6. After verification, the problem or dispute is caused by the quality specification or performance of parts and components that produced by other manufacturers;
7. The damage is caused by natural calamities, unsuitable installation environment or force majeure.

Installation of the air conditioner, move or maintain the air conditioner, please contact dealer or local service center to conduct an inspection first. Air conditioner must be installed, moved or maintained by appointed installer/contractor. Otherwise, it may cause serious damage or personal injury or death. When refrigerant leaks or requires discharge during installation, maintenance, or disassembly, it should be handled by certified professionals or otherwise in compliance with local laws and regulations.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

WARNING

Installation

• Installation or maintenance must be performed by qualified professionals.
- The appliance shall be installed in accordance with national wiring regulations.
- According to the local safety regulations, use qualified power supply circuit and circuit breaker.
- All wires of indoor unit and outdoor unit should be connected by a professional.
- Be sure to cut off the power supply before proceeding any work related to electricity and safety.
- Make sure the power supply matches with the requirement of air conditioner.
- Unstable power supply or incorrect wiring may result in electric shock, fire hazard or malfunction. Please install proper power supply cables before using the air conditioner.

• The grounding resistance should comply with national electric safety regulations.
  • Air Conditioner should be properly grounded. Incorrect grounding may cause electric shock.
• Do not put through the power before finishing installation.
• Do install the circuit breaker. If not, it may cause malfunction.
• An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring.
• Circuit breaker should be included magnet buckle and heating buckle function. It can protect the overload and circuit-short.

CAUTION

Installation

• Instructions for installation and use of this product are provided by the manufacturer.
• Select a location which is out of reach for children and far away from animals or plants. If it is unavoidable, please add the fence for safety purpose.
• The indoor unit should be installed close to the wall.
• Don't use unqualified power cord.
• If the length of power connection wire is insufficient, please contact the supplier for a new one.
• The appliance must be positioned so that the plug is accessible.

• For the air conditioner with plug, the plug should be reachable after finishing installation.

• For the air conditioner without plug, a circuit breaker must be installed in the line.

• The yellow-green wire in air conditioner is grounding wire, which can't be used for other purposes.
• The air conditioner is the first class electric appliance. It must be properly grounder with specialized grounding device by a professional. Please make sure it is always grounded effectively, otherwise it may cause electric shock.
• The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.

WARNING

Operation and Maintenance

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Do not connect air condi-

tioner to multi-purpose socket. Otherwise, it may cause fire hazard.

- Do disconnect power supply when cleaning air conditioner. Otherwise, it may cause electric shock.

- Do not wash the air conditioner with water to avoid electric shock.

- Do not spray water on indoor unit. It may cause electric shock or malfunction.

- Do not repair air conditioner by yourself. It may cause electric shock or damage. Please contact dealer when you need to repair air conditioner.

• After removing the filter, do not touch fins to avoid injury.

- Do not extend fingers or objects into air inlet or air outlet. It may cause personal injury or damage.

CAUTION

Operation and Maintenance

• Do not spill water on the remote controller, otherwise the remote controller may be broken.
• Do not use fire or hair dry-er to dry the filter to avoid deformation or fire hazard.
• Do not block air outlet or air inlet. It may cause malfunction.
• Do not step on top panel of outdoor unit, or put heavy objects. It may cause damage or personal injury.

• When below phenomenon occurs, please turn off air conditioner and disconnect power immediately, and then contact the dealer or qualified professionals for service.

• Power cord is overheating or damaged.

• There's abnormal sound during operation.
• Circuit breaker trips off

frequently.

• Air conditioner gives off burning smell.
- Indoor unit is leaking.

CAUTION

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

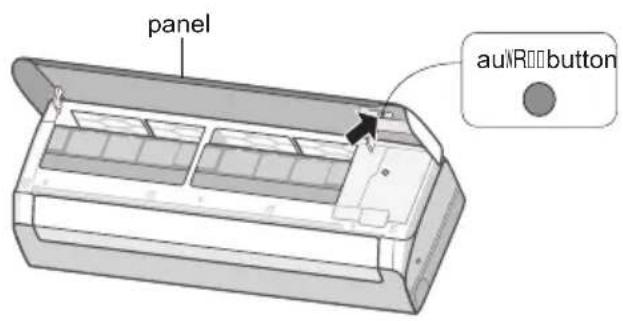

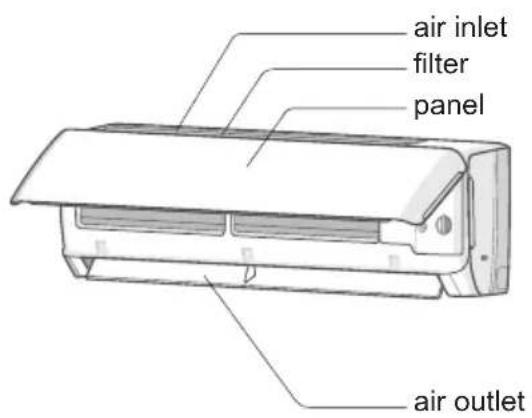

Indoor Unit

air inlet filter panel air outlet

panel au-R button

■ If remote controller is lost or damaged, please use auR. button to turn on or turn off the air conditioner. The operation in details is as below: As shown in the figure, open panel and press auR. button to turn off the air conditioner. When the air conditioner is turned on, it will operate under auto mode.

Display

Temp. indicator	26
Power indicator	(1)

NOTE

• This is the general introduction and the color of indicator is only for reference. Please refer to the actual display.
• Display content may be different from the actual. Please refer to the actual display.

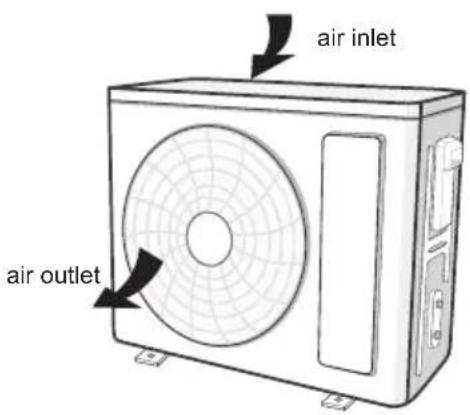

Outdoor Unit

air inlet air outlet

NOTE

• Actual product may be different from above graphics, please refer to actual product.

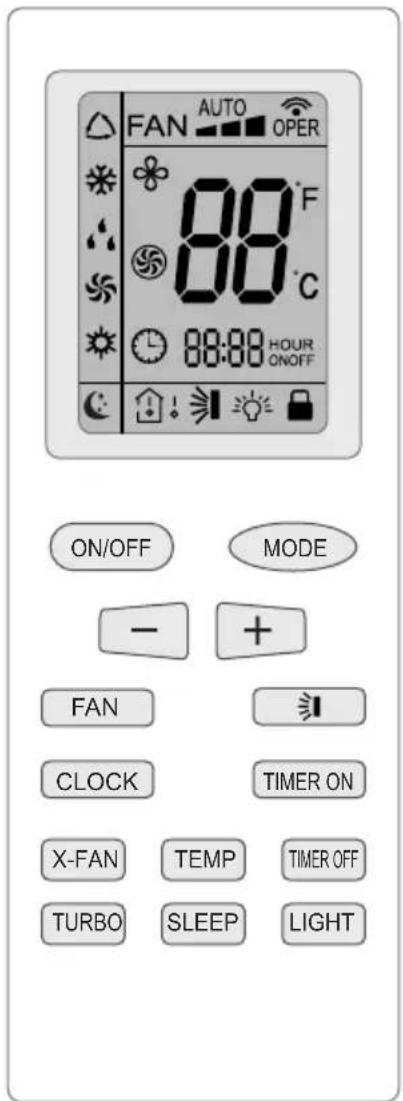

Buttons on remote controller

FAN AUTO OPER 88°F 88°C 88:88 HOUR ON/OFF ON/OFF MODE - + FAN CLOCK TIMER ON X-FAN TEMP TIMER OFF TURBO SLEEP LIGHT

Introduction for icons on display screen

FAN AUTO		Set fan speed
		Turbo mode
		Send signal
Operation mode		Auto mode
		Cool mode
		Dry mode
		Fan mode
		Heat mode
		Sleep mode
		X-FAN function
Temp. display type
		Indoor ambient temp.
		Outdoor ambient temp.
		Clock
88		Set temperature
88:88		Set time
ONOFF		TIMER ON / TIMER OFF
		Light
		Up & down swing
		Child lock

Introduction for buttons on remote controller

NOTE

• This is a general use remote controller. It could be used for the air conditioner with multifunction. For the functions which the model doesn't have, if the corresponding button is pressed on the remote controller, the unit will keep the original running status.
• After putting through the power, the air conditioner will give out a sound. Power indicator "⏻" is ON. After that, you can operate the air conditioner by using remote controller.
• Under on status, pressing the button on the remote controller, the signal icon " 🔺 " on the display of remote controller will blink once and the air conditioner will give out a sound, which means the signal has been sent to the air conditioner.

ON/OFF

button

Press this button to turn on the unit. Press this button again to turn off the unit.

MODE

button

Press this button to select your required operation mode.

• When selecting auto mode, air conditioner will operate automatically according to ambient temperature. Set temperature can't be adjusted and will not be displayed as well. Press "FAN" button can adjust fan speed. Press "→" button can adjust fan blowing angle.
• When selecting cool mode, air conditioner will operate under cool mode. Press "+" or "-" button to adjust set temperature. Press "FAN" button to adjust fan speed. Press "→" button to adjust fan blowing angle.
• When selecting dry mode, the air conditioner operates at low speed under dry mode. Under dry mode, fan speed can't be adjusted. Press " ➡" button to adjust fan blowing angle.
• When selecting fan mode, the air conditioner will only blow fan, no cooling and no heating. Press "FAN" button to adjust fan speed. Press " ➕" button to adjust fan blowing angle.

- When selecting heat mode, the air conditioner operates under heat mode. Press "+" or "-" button to adjust set temperature. Press "FAN" button to adjust fan speed. Press "→" button to adjust fan blowing angle.

NOTE

• For preventing cold air, after starting up heat mode, indoor unit will delay the fan operation for 1\~5 minutes (Actual delay time depends on indoor ambient temperature).
• Set temperature range from remote controller: 16\~30°C(61-86°F).
• This mode indicator is not available for some models.
• Cooling only unit won't receive heat mode signal. If setting heat mode with remote controller, press ON/OFF button can't start up the unit.

button

Press "+" or "-" button once increase or decrease set temperature 1°C(°F). Holding "+" or "-" button, 2s later, set temperature on remote controller will change quickly. On releasing button after setting is finished, temperature indicator on indoor unit will change accordingly. (Temperature can't be adjusted under auto mode)

When setting TIMER ON, TIMER OFF or CLOCK, press "+" or "-" button to adjust time. (Refer to CLOCK, TIMER ON, TIMER OFF buttons).

FAN

button

Press this button can set fan speed circularly as: auto (AUTO), low (▲), medium (▲), high(▲).

NOTE

• Under Auto speed, air conditioner will select proper fan speed automatically according to ambient temperature.
• Fan speed under dry mode is low speed.

I

button

Press this button can select up & down swing angle. Fan blow angle can be selected circularly as below:

(horizontal louvers stops at current position)

• When selecting " ➕", air conditioner is blowing air automatically. Horizontal louver will automatically swing up & down at maximum angle.
• When selecting I - I - I - I air conditioner is blowing air at fixed position. Horizontal louver will stop at the fixed position.
• When selecting " | |, | ", air conditioner is blowing air at fixed angle. Horizontal louver will send air at the fixed angle.
• Hold " &=" button above 2s to set your required swing angle. When reaching your required angle, release the button.

NOTE

- “≥1, ≥1, ≥1” may not be available. When air conditioner receives this signal, the air conditioner will blow fan automatically.

CLOCK

button

Press this button to set clock time. " 🔒 " icon on remote controller will blink. Press "+" or "-" button within 5s to set clock time. Each pressing of "+" or "-" button, clock time will increase or decrease 1 minute. If hold "+" or "-" button, 2s later, time will change quickly. Release this button when reaching your required time. Press "CLOCK" button to confirm the time. " 🔒 " icon stops blinking.

NOTE

• Clock time adopts 24-hour mode.
• The interval between two operations can 't exceed 5s. Otherwise, remote controller will quit setting status. Operation for TIMER ON/TIMER OFF is the same.

TIMER ON

TIMER OFF

button/

- TIMER ON button "TIMER ON" button can set the time for timer on. After pressing this button, "💡" icon disappears and the word "ON" on remote controller blinks. Press "+" or "-" button to adjust TIMER ON setting. After each pressing "+" or "-" button. TIMER ON setting will increase or decrease 1min. Holding "+" or "-" button, 2s later, the time will change quickly until reaching your required time.

Press "TIMER ON" to confirm it. The word "ON" will stop blinking. "💡" icon resumes displaying. Cancel TIMER ON: Under the condition that TIMER ON is started up, press "TIMER ON" button to cancel it.

- TIMER OFF button "TIMER OFF" button can set the time for timer off. After pressing this button, "icon disappears and the word "OFF" on remote controller blinks. Press Press "+" or "-" button to adjust TIMER OFF setting. After each pressing "+" or "-" button, TIMER OFF setting will increase or decrease 1min. Holding "+" or "-" button, 2s later, the time will change quickly until reaching your required time.

Press "TIMER OFF" and the word "OFF" will stop blinking. "icon resumes displaying. Under the condition that TIMER OFF is started up, press "TIMER OFF" button to cancel it.

NOTE

• Under on and off status, you can set TIMER OFF or TIMER ON simultaneously.
• Before setting TIMER ON or TIMER OFF, please adjust the clock time.
• After starting up TIMER ON or TIMER OFF, set the constant circulating valid. After that, air conditioner will be turned on or turned off according to setting time. ON/OFF button has no effect on setting. If you don't need this function, please use remote controller to cancel it.

X-FAN

button

Press this button under cool and dry mode to start up X-FAN function, and "♣" icon on remote controller will be displayed. Press this button again to cancel X-FAN function, and "♣" icon will disappear.

NOTE

• When X-FAN function is on, if the air conditioner is turned off, indoor fan will still operate at low speed for a while to blow the residual water inside the air duct.
• During X-FAN operation, press X-FAN button to turn off X-FAN function. Indoor fan will stop operation immediately.

TURBO

button

Under cool or heat mode, press this button to turn to quick cool or quick heat mode. " 🔒 " icon is displayed on remote controller. Press this button

again to exit turbo function and "💡" icon will disappear.

LIGHT

button

Press this button to turn off display light on indoor unit. "💡" icon on remote controller disappears. Press this button again to turn on display light. "💡" icon is displayed.

TEMP

button

By pressing this button, you can see indoor set temperature, indoor ambient temperature or outdoor

ambient temperature on indoor unit's display. The setting on remote controller is selected circularly as below:

• When selecting "☐" or no display with remote controller, temperature indicator on indoor unit displays set temperature.
• When selecting " 🔊" with remote controller, temperature indicator on indoor unit displays indoor ambient temperature.
• When selecting " 🔊!" with remote controller, temperature indicator on indoor unit displays outdoor ambient temperature.

NOTE

• Outdoor temperature display is not available for some models. At that time, indoor unit receives " 🔊!" signal, while it displays indoor set temperature.
• It's defaulted to display set temperature when turning on the unit. There is no display in the remote controller.
• Only for the models whose indoor unit has dual-8 display.
• When selecting displaying of indoor or outdoor ambient temperature, indoor temperature indicator displays corresponding temperature and automatically turn to display set temperature after three or five seconds.

SLEEP

button

Under COOL or HEAT mode, press this button to start up sleep function. " ℰ" icon is displayed on remote controller. Press this button again to cancel sleep function and " ℰ" icon will disappear.

Function introduction for combination buttons

Child lock function

Press "+" and "-" simultaneously to turn on or turn off child lock function. When child lock function is on, " 🔊" icon is displayed on remote controller. If you operate the remote controller, the " 🔊" icon will blink three times without sending signal to the unit.

Temperature display switchover function

Under OFF status, press "-" and "MODE" buttons simultaneously to switch temperature display between °C and °F.

Auto clean function

Under unit off status, hold "MODE" and "FAN" buttons simultaneously for 5s to turn on or turn off the auto clean function. When the auto clean function is turned on, indoor unit displays "CL". During the auto clean process of evaporator, the unit will perform fast cooling or fast heating. There may be some noise, which is the sound of flowing liquid or thermal expansion or cold shrinkage. The air conditioner may blow cool or warm air, which is a normal phenomenon. During cleaning process, please make sure the room is well ventilated to avoid affecting the comfort.

NOTE

• The auto clean function can only work under normal ambient temperature. If the room is dusty, clean air conditioner once a month; if not, clean air conditioner once every three months. After the auto clean function is turned on, you can leave the room. When auto clean is finished, the air conditioner will enter standby status.
  • This function is only available for some models.

Clean and maintenance

WARNING

■ Turn off the air conditioner and disconnect the power before cleaning the air conditioner to avoid electric shock.
■ Do not wash the air conditioner with water to avoid electric shock.
■ Do not use volatile liquid to clean the air conditioner.
■ Do not use liquid or corrosive detergent to clean the appliance and do not splash water or other liquid onto it, otherwise, it may damage the plastic components, even cause electric shock.

Clean surface of indoor unit

When the surface of indoor unit is dirty, it is recommended to use a soft dry cloth or wet cloth to wipe it.

NOTICE

- Do not remove the panel when cleaning it.

Clean filter

1. Remove filter

Press the spring fasteners at both sides in the direction indicated by the arrows.

Meanwhile, lift up the filter so that it is separated from the fasteners.

Pull the filter forward and remove it.

Spring fastener Spring fastener

2. Clean filter

Use clear water to wash it or dust catcher to clean it. If the filter is very dirty (such as grease), use warm water (45 C) dissolved with neutral detergent to clean it, and then put it at the shady place to dry it.

3. Install filter

After cleaning, reinstall the filter in reverse order. Push it along the guide rails at both sides and then press the left and right edges of the filter. Refit the filter in the direction indicated by the arrows.

Illustration of a rectangular air conditioner unit with ventilation grilles and three arrows indicating airflow direction (no text or symbols)

WARNING

■ The filter should be cleaned every three months. If there is much dust in the operation environment, clean frequency can be increased.
■ After removing the filter, do not touch fins to avoid injury.
■ Do not use fire or hair dryer to dry the filter to avoid deformation or fire hazard.

NOTICE: Checking before use-season

1. Check whether air inlets and air outlets are blocked.
2. Check whether air switch, plug and socket are in good condition.
3. Check whether filter is clean.
4. Check whether mounting bracket for outdoor unit is damaged or corroded. If yes, please contact dealer.
5. Check whether drainage pipe is damaged.

NOTICE: Checking after use-season

1. Disconnect power supply.
2. Clean filter and indoor unit's panel.
3. Check whether mounting bracket t for outdo or unit is damaged or corroded. If yes, please contact dealer.

Notice for recovery

1. Many packing materials are recyclable materials. Please dispose them in appropriate e recycling unit.
2. If you want to dispose the air conditioner, please contact local dealer or consultant service center for the correct disposal method.

Error Code

When air conditioner status is abnormal, temperature indicator on indoor unit will blink to display corresponding error code. Please refer to below list for identification of error code.

Error code	Troubleshooting
U8, H6, H3,E1, E5, E6,E8	It can be eliminated after restarting the unit.If not, please contact qualified professionals for service.
C5, F0, F1,F2	Please contact qualified professionals for service.

NOTE

- If there're other error codes, please contact qualified professionals for service.

Checked items before maintenance

General phenomenon analysis

Plea se check below it e ms before a skiing for maintenance. If the malfunction still can't be eliminated, please contact local dealer or qualified professionals.

Phenomenon	Check items	Solution
Indoor unit can't receive remote controller's signal or remote controller has no action.	Whether it's interfered severely (such as static electricity, stable voltage?)	Pull out the plug.Reinsert the plug after about 3min, and then turn on the unit again.
	Whether remote controller is within the signal receiving range?	Signal receiving range is 8m.
	Whether there are obstacles?	Remove obstacles.
	Whether remote controller is pointing at the receiving window?	Select proper angle and point the remote controller at the receiving window on indoor unit.
	Is sensitivity of remote controller low; fuzzy display or no display?	Check the batteries.Ifthe power r of batteries is too low, please replace them.
	No display when operating remote controller?	Check whether remote controller appears to be damaged. If yes, replace it.
	Fluorescent lamp in room?	Take the remote controller close to indoor unit. Turn off the fluorescent lamp and then try it again.
No air emitted from indoor unit	Air inlet or air outlet of indoor unit is blocked?	Eliminate obstacles.
	Under heating mode, indoor temperature is reached to set temperature?	After reaching to set temperature, indoor unit will stop blowing out air.
	Heating mode is turned on just now?	In order to prevent blowing out cold air, indoor unit will be started after delaying for several minutes, which is a normal phenomenon.
Air conditioner can't operate	Power failure?	Wait until power recovery.
	Is plug loose?	Reinsert the plug.
	Air switch trips off or fuse is burnt out?	Ask professional to replace air switch or fus
	Wiring has malfunction?	Ask professional to replace it.
	Unit has restarted immediately after stopping operation?	Wait for 3min, and then turn on the unit again.
	Whether the function setting for remote controller is correct?	Reset the function.
Mist is emitted from indoor unit's air outlet	Indoor temperature and humidity is high?	Because indoor air is cooled rapidly.After a while, indoor temperature and humidity will be decrease and mist will disappear.

Phenomenon	Check items	Solution
Odours are emitted	Whether there's od- our source, such as furniture and cigare- tte, etc.	Eliminate the odour source. Clean the filter.
Set tempe- rature can't be adjusted	Unit is operating un- der auto mode?	Temperature can't be adjusted under auto mode. Please switch the operation mode if you need to adjust temperature.
	Your required temp- erature exceeds the set temperature range?	Set temperature range: 16 C~30 C.
Cooling (heating) effect is not good.	Voltage is too low?	Wait until the voltage resumes normal.
	Filter is dirty? Clean the filter.
	Set temperature is in proper range?	Adjust temperature to proper range.
	Door and window are open?	Close door and window.
Air conditi- oner operates abnormally	Whether there's inter- rference, such as thunder, wireless devices, etc.	Disconnect power, put back power, and then turn on the unit again.
Outdoor unit has vapor	Heating mode is turned on?	During defrosting under heating mode, it may generate vapor, which is a normal phenomenon.
"Water flowing" noise	Air conditioner is turned on or turned off just now?	The noise is the sound of refrigerant flowing inside the unit, which is a normal phenomenon.
Cracking noise	Air conditioner is turned on or turned off just now?	This is the sound of friction caused by expansion and or contraction of panel or other parts due to the change of temp- erature.

WARNING

■ When below phenomenon occurs, please turn off air conditioner and disconnect power immediately, and then contact the dealer or qualified professionals for service.

- Power cord is overheating or damaged.

- There's abnormal sound during operation.

• Air switch trips off frequently.

● Air conditioner gives off burning smell.

- Indoor unit is leaking.

■ Do not repair or refit the air conditioner by yourself.

■ If the air conditioner operates under abnormal conditions, it may cause malfunction, electric shock or fire hazard.

Installation notice

Space to the ceiling At least 15cm Space to the wall At least 15cm Space to the floor At least 250cm Space to the obstruction At least 300cm Space to the obstruction At least 50cm Space to the obstruction At least 30cm Drainage pipe At least 30cm Space to the obstruction At least 200cm Space to the obstruction At least 50cm

Safety precautions for installing and relocating the unit

To ensure safety, please be mindful of the following precautions.

WARNING

- When installing or relocating the unit, be sure to keep the refrigerant circuit free from air or substances other than the specified refrigerant.

Any presence of air or other foreign substance in the refrigerant circuit will cause system pressure rise or compressor rupture, resulting in injury.

- When installing or moving this unit, do not charge the refrigerant which is not comply with that on the nameplate or unqualified refrigerant.

Otherwise, it may cause abnormal operation, wrong action, mechanical malfunction or even serious safety accident.

■ When refrigerant needs to be recovered during relocating or repairing the unit, be

WARNING

sure that the unit is running in cooling mode. Then, fully close the valve at high pressure side (liquid valve). About 30-40 seconds later, fully close the valve at low pressure side (gas valve), immediately stop the unit and disconnect power. Please note that the time for refrigerant recovery should not exceed 1 minute.

If refrigerant recovery takes too much time, air may be sucked in and cause pressure rise or compressor rupture, resulting in injury.

■ During refrigerant recovery, make sure that liquid valve and gas valve are fully closed and power is disconnected before detaching the connection pipe.

If compressor starts running when stop valve is open and connection pipe is not yet connected, air will be sucked in and cause pressure rise or compressor rupture, resulting in injury.

- When installing the unit, make sure that connection pipe is securely connected before the compressor starts running.

If compressor starts running when stop valve is open and connection pipe is not yet connected, air will be sucked in and cause pressure rise or compressor rupture, resulting in injury.

■ Prohibit installing the unit at the place where there may be leaked corrosive gas or flammable gas.

If there is leaked gas around the unit, it may cause explosion and other accidents.

- Do not use extension cords for electrical connections. If the electric wire is not long enough, please contact a local service center authorized and ask for a proper electric wire.

Poor connections may lead to electric shock or fire.

■ Use the specified types of wires for electrical connections between the indoor and outdoor units. Firmly clamp the wires so that their terminals receive no external stresses.

Electric wires with insufficient capacity, wrong wire connections and insecure wire terminals may cause electric shock or fire.

Tools for installation

1 Level meter

2 Screw driver

3 Impact drill

4 Drill head

5 Pipe expander

⑥ Torque wrench 11 Pressure meter

7 Open-end wrench

8 Pipe cutter

9 Leakage detector

10 Vacuum pump

11 Pressure meter

12 Universal meter

13 Inner hexagon spanner

14 Measuring tape

NOTICE

- Please contact the local agent for installation.

- Don't use unqualified power cold.

Basic requirement

Installing the unit in the following places may cause malfunction. If it is unavoidable, please consult the local dealer:

1. The place with strong heat sources, vapors, flammable or explosive gas, or volatile objects spread in the air.

2. The place with high-frequen cy devices (such as welding machine, medical equipment).

3. The place near coastal area.

4.The place with oil or fumes in the air.

5.The place with sulfureted gas.

1. Other places with special circumstances.

2. The appliance shall not be installed in the laundry.

8It's not allowed to be installed on the unstable or motive base structure (such as truck) or in the corrosive environment (such as chemical factory).

Indoor unit

1. There should be no obstruction near air inlet and air outlet.
2. Select a location where the condensation water can be dispersed easily and won't affect other people.
3. Select a location which is convenient to connect the outdoor unit and near the power socket.
4. Select a location which is out of reach for children.
5. The location should be able to withstand the weight of indoor unit and won't increase noise and vibration.
6. The appliance must be installed 2.5m above floor.
7. Don't install the indoor unit right above the electric appliance.
8. Please try your best to keep way from fluorescent lamp.

Outdoor unit

1. Select a location where the noise and outflow air emitted by the outdoor unit will not affect neighborhood.
2. The location should be well ventilated and dry, in which the outdoor unit won't be exposed directly to sunlight or strong wind.
3. The location should be able to withstand the weight of outdoor unit.
4. Make sure that the installation follows the requirement of installation dimension diagram.
5. Select a location which is out of reach for children and far away from animals or plants. If it is unavoidable, please add the fence for safety purpose.

Safety precaution

1. Must follow the electric safety regulations when installing the unit.

2. According to the local safety regulations, use qualified power supply circuit and air switch.

3. Make sure the power supply matches with the requirement of air conditioner. Unstable power
   supply or incorrect wiring
   ease install proper power supply cables before using the air conditioner.

4. Properly connect the live wire, neutral wire and grounding wire of power socket.
   5.Be sure to cut off the power supply before proceeding any work related to electricity and safety
5. Do not put through the power before finishing installation.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
7. The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
8. The appliance shall be installed in accordance with national wiring regulations.

Grounding requirement

1. The air conditioner is the first class electric appliance. It must be properly grounded with specialized grounding device by a professional. Please make sure it is always grounded effectively, otherwise it may cause electric shock.
2. The yellow-green wire in air conditioner is grounding wire, which can 't be used for other purposes.
3. The grounding resistance should comply with national electric safety regulations.
4. The appliance must be positioned so that the plug is accessible.
5. An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring.

Air switch capacity

Including an air switch with suitable capacity, please note the following table. Air switch should be included magne t buckle and heating buckle function, it can protect the circuit-short and overload. (Caution: please do no t use the fuse only for protecting the circuit)

Air-conditioner	Air switch capacity
09K、12K	10A
18K	20A
24K	25A

Accessories		Qty(pc)	Shape
Indoor	User Manual	1
	Mounting plate	1
	Anchor	5~8
	Mounting plate fixing screw	5~8
	Remote controller	1	tread—
	Remote controller holder	1	tread
	Battery	2
	Fixing screw for remote controller holder	2
	NUT	2	[44-45]
	Insulator	1	[46-47]
	Assembly Cable (optional)	1

Accessories		Qty(pc)	Shape

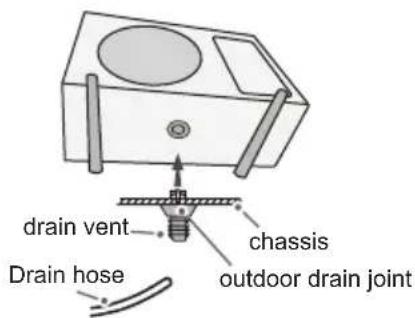

Outdoor	Drain joint(for cooling & heating models)	1
	Vinyl Tape (optional)	1
	Drain Hose (optional)	1
	Installation cover (optional)	1
	Pipe (optional)	2

Installation of indoor unit

Step 1:

Choose installation location

Recommend the installation location to the client and then confirm it with the client.

Step 2:

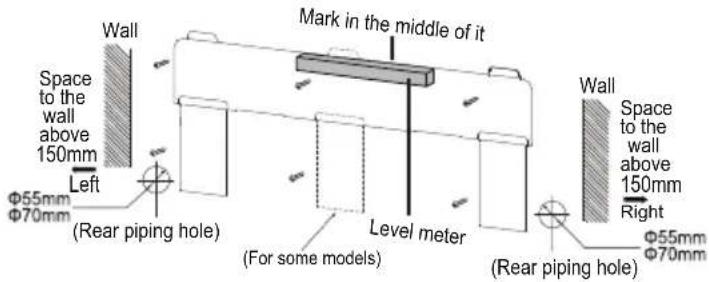

Install wall-mounting frame

1. Hang the wall-mounting frame on the wall; adjust it in horizontal position with the level meter and then point out the screw fixing holes on the wall.
2. Drill the screw fixing holes on the wall with impact drill (the specification of drill bit should be the same as the plastic expansion particle) and then fill the plastic expansion particles in the holes.
3. Fix the wall-mounting frame on the wall with tapping screws and then check if the frame is firmly installed by pulling the frame. If the plastic expansion particle is loose, please drill another fixing hole nearby.

Wall Space to the wall above 150mm Left (φ55mm φ70mm) (Rear piping hole) Mark in the middle of it Level meter (For some models) (Rear piping hole) Wall Space to the wall above 150mm Right (φ55mm φ70mm)

Step 3:

Open piping hole

1. Choose the position of piping hole according to the direction of outlet pipe. The position of piping hole should be a little lower than the wall-mounted frame, shown as below.

NOTE

• The wall panel is for illustrative purposes only, please refer to the actual installation.

• Please refer to the actual circumstances for the number of screws and the position of screws.

• When installation is finished, pull the mounting plate with hand to confirm whether it is fixed tightly. The force distribution for all screws should be uniform.

• Open a piping hole with the diameter of 55 or 70 on the selected outlet pipe position. In order to drain smoothly, slant the piping hole on the wall slightly downward to the outdoor side with the gradient of 5 - 10^ .

NOTE

- Pay attention to dust prevention -a sures when opening the hole.

Indoor- outdoor Φ55 Φ70 5-10°

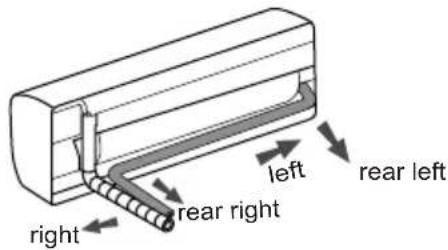

Step 4:

Outlet pipe

1. The pipe can be led out in the direction of right, rear right, left or rear left.

right rear right left rear left

1. When select leading out the pipe from left or right, please cut off the corresponding hole on the bottom case.

left right cut off the hole

Step 5:

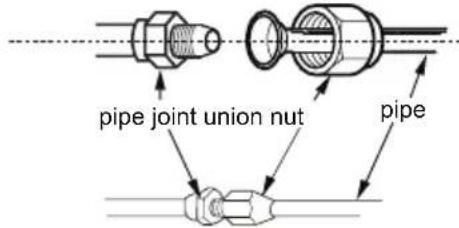

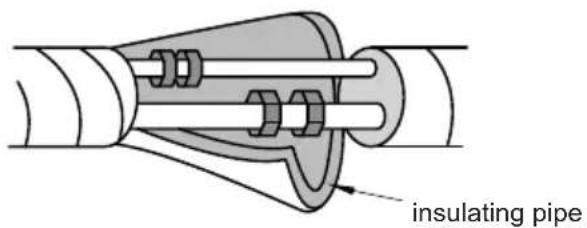

Connect the pipe of indoor unit

1. Aim the pipe joint at the corresponding bellmouth.
2. Pretighten the union nut with hand.

pipe joint union nut pipe

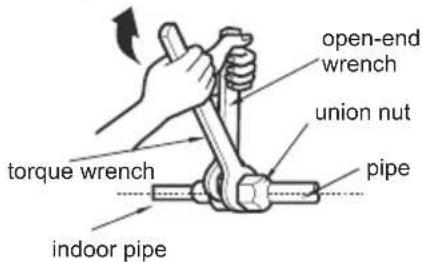

1. Adjust the torque force by referring to the following sheet. Place the open-end wrench on the pipe joint and place the torque wrench on the union nut. Tighten the union nut with torque wrench.

open-end wrench union nut torque wrench pipe indoor pipe

Hex nut diameter	Tightening torque (N·m)
1/4"	15~20
3/8"	30~40
1/2"	45~55
5/8"	60~65
3/4"	70~75

1. Wrap the indoor pipe and joint of connection pipe with insulating pipe, and then wrap it with tape.

insulating pipe

Step 6: Install drain hose

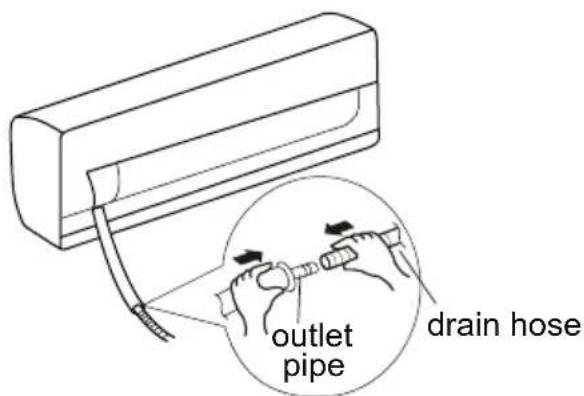

1. Connect the drain hose to the outlet pipe of indoor unit.

outlet pipe drain hose

1. Bind the joint with tape.

outlet pipe drain hose tape

drain hose insulating pipe

NOTE

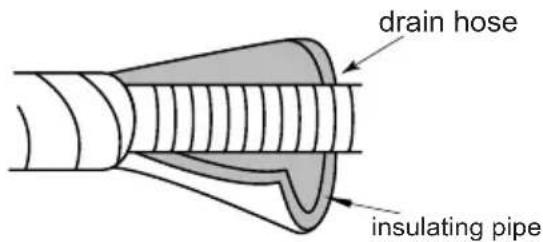

• Add insulating pipe in the indoor drain hose in order to prevent condensation.
  • The plastic expansion particles are not provided.

Step 7: Connect wire of indoor unit

NOTICE

• All wires of indoor unit and outdoor unit should be connected by a professional.
• If the length of power connection wire is insufficient, please contact the supplier for a new one. Avoid extending the wire by yourself.
• For the air conditioner with plug, the plug should be reachable after finishing installation.

• For the air conditioner without plug, an air switch must be installed in the line. The air switch should be all-pole parting and the contact parting distance should be more than 3mm.

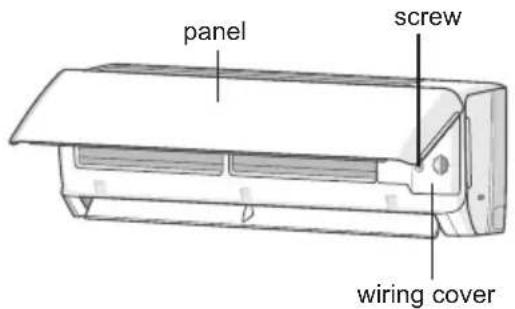

• Open the panel, remove the screw on the wiring cover and then take down the cover.

panel screw wiring cover

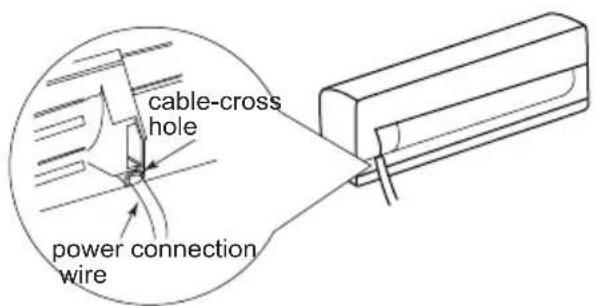

1. Make the power connection wire go through the cable-cross hole at the back of indoor unit and then pull it out from the front side.

cable-cross hole power connection wire

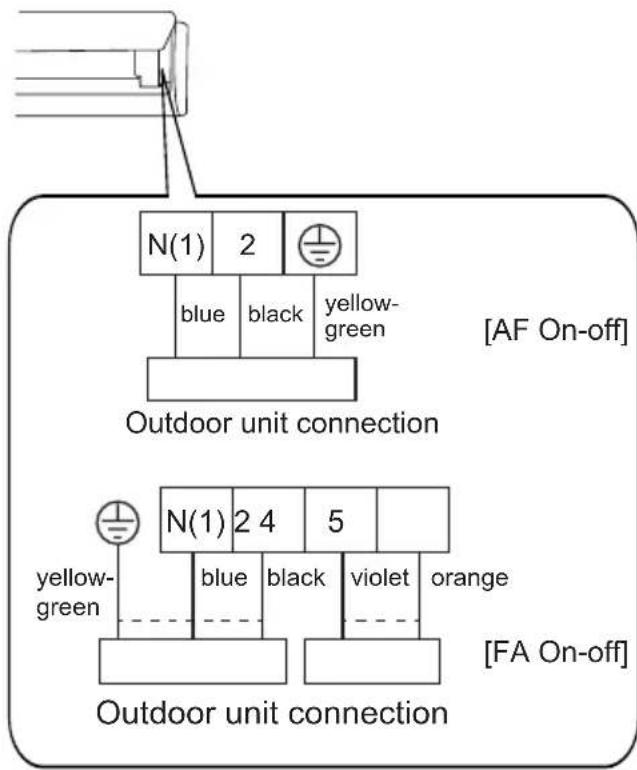

1. Remove the wire clip; connect the power connection wire to the wiring terminal according to the color; tighten the screw and then fix the power connection wire with wire clip.

NOTICE

- The wiring board is for reference only, please refer to the actual one.

1. Put wiring cover back and then tighten the screw.
2. Close the panel.

Step 8:

Bind up pipe

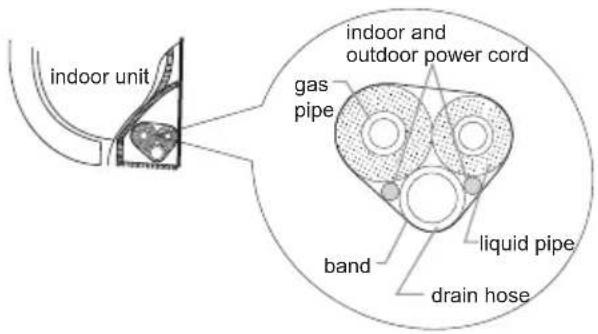

1. Bind up the connection pipe, power cord and drain hose with the band.

indoor unit gas pipe indoor and outdoor power cord liquid pipe band drain hose

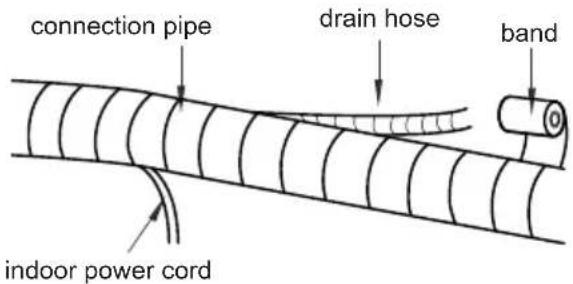

1. Reserve a certain length of drain hose and power cord for installation when binding them. When binding to a certain degree, separate the indoor power and then separate the drain hose.

connection pipe drain hose band indoor power cord

1. Bind them evenly.
2. The liquid pipe and gas pipe should be bound separately at the end.

NOTICE

• The power cord and control wire can't be crossed or winding.
  • The drain hose should be bound at the bottom.

Step 9:

Hang the indoor unit

1. Put the bound pipes in the wall pipe and then make them pass through the wall hole.
2. Hang the indoor unit on the wall-mounting frame.
3. Stuff the gap between pipes and wall hole with sealing gum.
4. Fix the wall pipe.
5. Check if the indoor unit is installed firmly and closed to the wall.

indoor outdoor wall pipe sealing gum upper hook lower hook of wall-mounting frame

NOTICE

- Do not bend the drain hose too excessively in order to prevent blocking.

Installation of outdoor unit

Step 1:

Fix the support of outdoor unit (select it according to the actual installation situation)

1. Select installation location according to the house structure.
2. Fix the support of outdoor unit on the selected location with expansion screws.

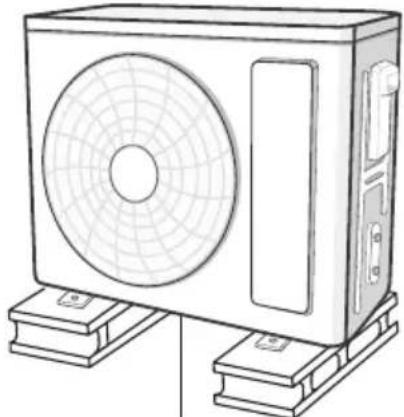

Line drawing of a front-mounted air conditioner unit with fan and base (no text or symbols)

at least 3cm above the floor

NOTICE

• Take sufficient protective measures when installing the outdoor unit.
- Make sure the support can withstand at least four times of the unit weight.
- The outdoor unit should be installed at least 3cm above the floor in order to install drain joint. (for the model with heating tube, the installation height should be no less than 20cm.)
- For the unit with cooling capacity of 2300W \~ 5000W, 6 expansion screws are needed; for the unit with cooling capacity of 6000W\~8000W, 8 expansion screws are needed; for the unit with cooling capacity of 10000W\~16000W, 10 expansion screws are needed.

Step 2:

Install drain joint (only for some models)

1. Connect the outdoor drain joint into the hole on the chassis, as shown in the picture below.
2. Connect the drain hose into the drain vent.

NOTICE

- As for the shape of drainage joint, please refer to the current product. Do not install the drainage joint in the severe cold area. Otherwise, it will be frosted and then cause malfunction.

drain vent drain hose chassis outdoor drain joint

Step 3:

Fix outdoor unit

1. Place the outdoor unit on the support.
2. Fix the foot holes of outdoor unit with bolts.

foot holes foot holes

Step 4:

Connect indoor and outdoor pipes

1. Remove the screw on the right handle of outdoor unit and then remove the handle.

handle screw

NOTE

• When there're multiple cables cross-hole passing through it, the cross-hole of handle should be knocked off and eliminate the sharp burrs for avoid damaging the cables.
  • Only applicable for some models.

1. Remove the screw cap of valve and aim the pipe joint at the bellmouth of pipe.

liquid valve liquid pipe gas pipe gas valve

1. Pretighten the union nut with hand.

pipe joint union nut

1. Tighten the union nu t with torque wrench by referring to the sheet below.

Hex nut diameter	Tightening torque(N·m)
1/4"	15~20
3/8"	30~40
1/2"	45~55
5/8"	60~65
3/4"	70~75

Step 5:

Connect outdoor electric wire

1. Remove the wire clip; connect the power connection wire and signal control wire (only for cooling and heating unit) to the wiring terminal according to the color; fix them with screws.

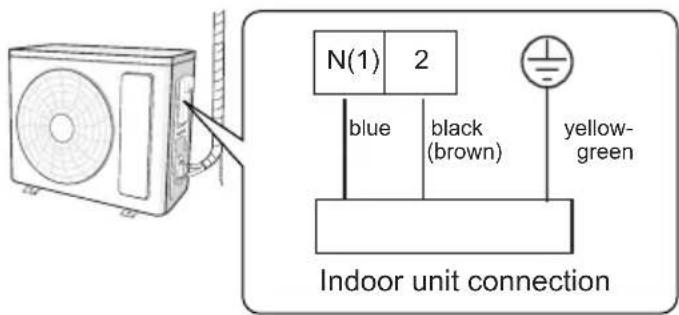

N(1) 2 blue black (brown) yellow- green Indoor unit connection

[AF On-off]

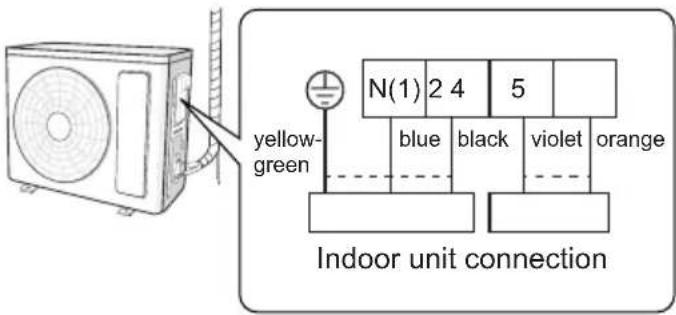

N(1) 2 4 5 yellow-green blue black violet orange Indoor unit connection

[FA On-off]

NOTICE

- The wiring board is for reference only, please refer to the actual one.

1. Fix the power connection wire and signal control wire with wire clip (only for cooling and heating unit).

NOTICE

• After tighten the screw, pull the power cord slightly to check if it is firm.
• Never cut the power connection wire to prolong or shorten the distance.

Step 6:

Neaten the pipes

1. The pipes should be placed along the wall, bent reasonably and hidden possibly. Min. semidiameter of bending the pipe is 10cm.

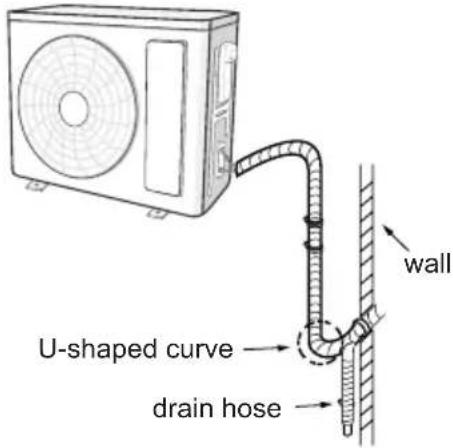

2. If the outdoor unit is higher than the wall hole, you must set a U-shaped curve in the pipe before pipe goes into the room, in order to prevent rain from getting into the room.

U-shaped curve drain hose wall

NOTICE

- The through-wall height of drain hose should not be higher than the outlet pipe hole of indoor unit.

the drain hose can't raise upwards.

- The water outlet can't be placed in water in order to drain smoothly.

The water outlet can't be placed in water

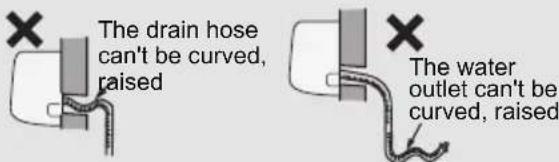

- Slant the drain hose slightly downwards. The drain hose can't be curved, raised and fluctuant, etc.

Simple line drawing of a rectangular object with a checkmark and a ruler beside it (no text or symbols)

✗ The drain hose can't be curved, raised

The drain hose can't be curved, raised The water outlet can't be curved, raised

Test and operation

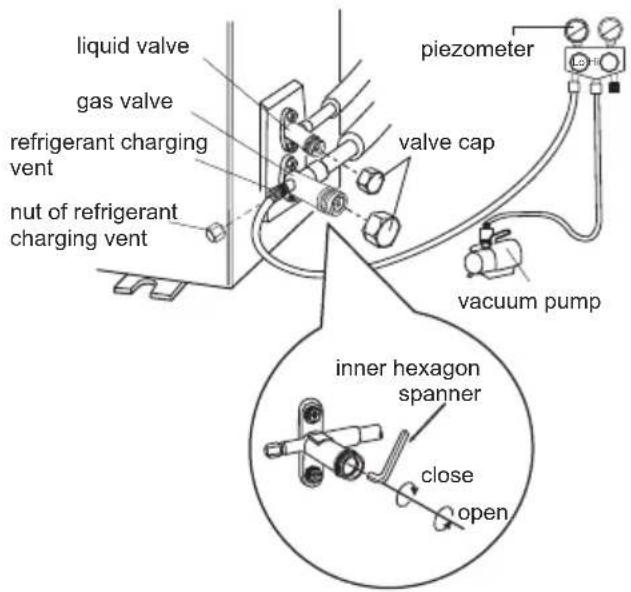

Use vacuum pump

1. Remove the valve caps on the liquid valve and gas valve and the nut of refrigerant charging vent.
2. Connect the charging hose of piezometer to the refrigerant charging vent of gas valve and then connect the other charging hose to the vacuum pump.
3. Open the piezometer completely and operate for 10-15min to check if the pressure of piezometer remains in -0.1MPa.
4. Close the vacuum pump and maintain this status for 1-2min to check if the pressure of piezometer remains in -0.1MPa. If the pressure decreases, there may be leakage.
5. Remove the piezometer, open the valve core of liquid valve and gas valve completely with inner hexagon spanner.
6. Tighten the screw caps of valves and refrigerant charging vent.
   Reinstall the handle.7.

liquid valve gas valve refrigerant charging vent nut of refrigerant charging vent piezometer valve cap vacuum pump inner hexagon spanner close open

Leakage detection

1. With leakage detector:
   Check if there is leakage with leakage detector.
2. With soap water:
   If leakage detector is not available, please use soap water for leakage detection. Apply soap water at the suspected position and keep the soap water for more than 3min. If there are air bubbles coming out of this position, there's a leakage.

Check after installation

- Check according to the following requirement after finishing installation.

Items to be checked	Possible malfunction
Has the unit been installed firmly?	The unit may drop, shake or emit noise.
Have you done the refrigerant leakage test?	It may cause insufficient cooling(heating) capacity.
Is heat insulation of pipeline sufficient?	It may cause condensation and water dripping.
Is water drained well?	It may cause condensation and water dripping.
Is the voltage of power supply according to the voltage marked on the nameplate?	It may cause malfunction or damage the parts.
Is electric wiring and pipeline installed correctly?	It may cause malfunction or damage the parts.
Is the unit grounded securely?	It may cause electric leakage.
Does the power cord follow the specification?	It may cause malfunction or damage the parts.
Is there any obstruction in the air inlet and outlet?	It may cause insufficient cooling(heating) capacity.
The dust and sundries caused during installation are removed?	It may cause malfunction or damage the parts.
The gas valve and liquid valve of connection pipe are open completely?	It may cause insufficient cooling (heating) capacity.
Is the inlet and outlet of piping hole been covered?	It may cause insufficient cooling (heating) capacity or waste electricity.

Test operation

1. Preparation of test operation

• The client approves the air conditioner.
• Specify the important notes for air conditioner to the client.

2. Method of test operation

• Put through the power, press "ON/OFF" button on the remote controller to start operation.
• Press MODE button to select AUTO, COOL, DRY, FAN and HEAT to check whether the operation is normal or not.
• If the ambient temperature is lower than 16^ , the air conditioner can't start cooling.

Configuration of connection pipe

1. Standard length of connection pipe: 5m, 7.5m, 8m.

2. Min. length of connection pipe is 3m.

3. Max. length of connection pipe is shown as below.

Max. length of connection pipe

Cooling capacity	Max. length of connection pipe(m)
5000Btu/h (1465W)	15
7000Btu/h (2051W)	15
9000Btu/h (2637W)	15
12000Btu/h (3516W)	20
18000Btu/h (5274W)	25
24000Btu/h (7032W)	25
28000Btu/h (8204W)	30
36000Btu/h (10548W)	30
42000Btu/h (12306W)	30
48000Btu/h (14064W)	30

1. The additional refrigerant oil and refrigerant charging required after prolonging connection pipe.

- After the length of connection pipe is prolonged for 10m at the basis of standard length, you should add 5ml of refrigerant oil for each additional 5m of connection pipe.

- The calculation method of additional refrigerant charging amount(on the basis of liquid pipe): Additional refrigerant charging amount = prolonged length of liquid pipe × additional refrigerant charging amount per meter

- Basing on the length of standard pipe, add refrigerant according to the requirement as shown in the table. The additional refrigerant charging amount per meter is different according to the diameter of liquid pipe. See the following sheet.

Additional refrigerant charging amount for R22, R407C, R410A and R134a

Piping size		Outdoor unit throttle
Liquid pipe	Gas pipe	Cooling only(g/m)	Cooling and heating(g/m)
1/4"	3/8" or 1/2"	15	20
1/4" or 3/8"	5/8" or 3/4"	15	50
1/2"	3/4" or 7/8"	30	120
5/8"	1" or 1 1/4"	60	120
3/4"	-	250 250
7/8"	-	350 350

Pipe expanding method

NOTICE

Improper pipe expanding is the main cause of refrigerant leakage. Please expand the pipe according to the following steps:

A: Cut the pipe

• Confirm the pipe length according to the distance of indoor unit and outdoor unit.
• Cut the required pipe with pipe cutter.

pipe pipe cutter 90° × leaning × uneven × burr

B: Remove the burrs

- Remove the burrs with shaper and prevent the burrs from getting into the pipe.

pipe shaper downwards

C: Put on suitable insulating pipe

D: Put on the union nut

- Remove the union nut on the indoor connection

pipe and outdoor valve; install the union nut on the pipe.

union pipe pipe

E: Expand the port

- Expand the port with expander.

expander hard mold pipe

NOTICE

- "A" is different according to the diameter, please refer to the sheet below:

Outer diameter (mm)	A(mm)
	Max Min
Φ6 - 6.35(1/4")	1.3 0.7
	1.6 1.0	Φ9 - 9.52(3/8")
Φ12-12.7(1/2")	1.8 1.0
Φ15.8-16(5/8")	2.4 2.2

F: Inspection

- Check the quality of expanding port. If there is any blemish, expand the port again according to the steps above.

smooth surface improper expanding the length is equal leaning damaged surface crack uneven thickness

Working temperature range

AF On--off

	Indoor side DB/WB(°C)	Outdoor side DB/WB(°C)
Maximum cooling	32/23 48/30

NOTE

- The operating temperature range (outdoor temperature) for cooling only unit is 18°C\~48°C.

FA On-off

	Indoor side DB/WB(°C)	Outdoor side DB/WB(°C)
Maximum cooling	32/23	43/31
Maximum heating	27/- 24/18

NOTE

- The operating temperature range (outdoor temperature) for cooling only unit is 18°C\~43°C; for heat pump unit is -7°C\~43°C.

SAMSUNG

QUESTIONS OR COMMENTS?

COUNTRY CALL	OR VISIT US ONLINE AT
SOUTH AFRICA 0860	SAMSUNG (726 7864) www.samsung.com/za/support
NAMIBIA 08 197	267 864	www.samsung.com/africa_en/support
ZAMBIA	3434
MAURITIUS	800 5050
NIGERIA 0800 726	7864
GHANA 0800 100	077
KENYA 0800 545	545
UGANDA 0800 300	300
TANZANIA 0800	780 089
REUNION 0262 50	88 80	www.samsung.com/africa_fr/support
Cote D'lvoire 8000	0077
SENEGAL 800 00	0077
CAMEROON 67095	0077
MOZAMBIQUE 84 726	7864	www.samsung.com/africa_pt/support
SUDAN	1969	www.samsung.com/eg/support

Black and white barcode image with vertical lines forming a pattern of repeating patterns

66139905525

Climatiseur

Illustration showing hands holding a honeycomb and a bowl with food being filled (no text or symbols)

Illustration of a rectangular air conditioner unit with ventilation grilles and three arrows indicating airflow direction (no text or symbols)

AVERTISSEMENT

tuyau isolant

Line drawing of a wall-mounted air conditioner unit with fan and base mount (no text or symbols)

Simple line drawing of a rectangular object with a checkmark and a measuring tape, no text or symbols present.

Black and white barcode image with vertical lines and a central dot

66139905525

Ar condicionado

Illustration showing two methods: a hand holding a honeycomb panel and a bowl with a tray of food (no text or symbols)

3. Instalar o filtro

Illustration of a rectangular air conditioner unit with ventilation grilles and three arrows indicating airflow direction (no text or symbols)

AVISO

Line drawing of a dual-panel air conditioner unit with fan and base (no text or symbols)

Simple line drawing of a rectangular object with a checkmark and a diagonal line extending from it (no text or symbols)

B: Eliminar as rebarbas

Black and white barcode image with vertical lines on both sides

66139905525
