Product type	Electric sit-stand desk
Brand	IKEA
Model	BEKANT 802.783.05
Adjustable height (EU version)	64 to 125 cm
Adjustable height (NA version)	57.4 to 122.4 cm
Maximum load	70 kg
Noise level	Less than 55 dB(A)
Operating temperature	+5 to +40 °C
Storage temperature	-10 to +50 °C
Humidity	20% to 80% at 30 °C
Power supply	DC 29 V, 200 W (220 W for Japan)
Power supply manufacturer	ROL ERGO
Main functions	Electric height adjustment for sitting or standing work
Safety	Removable safety key, automatic stop at end of travel, do not lift people
Maintenance	Check screw tightness after 1 week of use
Repairability	Replaceable electrical parts after disconnection; contact IKEA customer service if problem persists
Usage conditions	Indoors, dry premises (office or similar)
Recycling pictogram	Mandatory selective sorting (crossed-out bin)

Frequently Asked Questions - BEKANT 802.783.05 IKEA

How to adjust the height of the BEKANT desk?

Insert the safety key into the manual control socket. Ensure no object obstructs the movement. Press the up or down arrow button to raise or lower the desktop.

What is the maximum load supported by the desk?

The maximum load is 70 kg. Do not overload the table to avoid damaging the motors.

What to do if the desk does not move at all?

Check that all cables are correctly connected, the safety key is inserted, and the wall outlet is powered. Disconnect the power cable for 1 minute then reconnect.

How to reset the desk after a problem?

Press the up and down buttons simultaneously for at least 8 seconds. Then hold the down button until the desk slowly lowers to the lowest point. The desk is then reset.

Can the desk be used by children?

Yes, from 8 years old, under adult supervision. Children must not play with the device. The safety key must be removed and kept out of reach of children when the desk is not in use.

What safety precautions should be taken when adjusting the height?

Maintain a safe distance to avoid getting caught. Remove office chairs before any movement. Ensure no fixed objects obstruct the desktop's travel to prevent tipping.

How to maintain the BEKANT desk?

After about 1 week of use, check that all screws are properly tightened. Clean with a damp cloth. For any repair, first disconnect the power cable.

Can I use the desk continuously with frequent adjustments?

The motors can run continuously for a maximum of 1 minute, then must rest for about 9 minutes before reuse to avoid overheating.

What to do if only one column moves?

Try to reset the desk (see question 'How to reset'). If the problem persists, contact IKEA customer service.

Is the desk recyclable?

Yes, the crossed-out bin pictogram indicates it must be sorted separately. Follow local regulations for recycling electrical and electronic waste.

USER MANUAL BEKANT 802.783.05 IKEA

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Translated from the original instructions.

Advice and instructions for BEKANT sit/stand desk.

Sound level: lower than 55 dB(A)

Height setting interval:

EU-version: 64-125 cm

NA-version: 57,4-122,4

Maximum load: 70 kg

Temperature interval at usage:

+5 up to +40 degrees C

Temperature interval at storage:

-10 up to +50 degrees C

Humidity: 20% up to 80% at +30 degrees C.

Power supply unit: DC 29V, 200W / 220W (JP)

Manufacturer: ROL ERGO

Model:

ASW0579-2902002W /

ASW0643-29020002W (JP)

This appliance shall only be used together with the included power supply unit

Every person who is responsible for this table at installation or employment of the table in daily use or in service and repair work should carefully read these instructions. Keep these instructions close to your sit/stand table.

Installation instructions

• The table is assembled according to separate assembly instructions.
• Connect the cable from one leg to the other. Connect the hand control to one of the leg and the power-supply to the other leg. The cables to the legs, hand control and power supply should be placed in the accompanying net. Place the electrical cables so that they do not get damaged, see assembly instruction.
• Connect the electrical cable to a wall socket. NB! The electrical cable must have full mobility.
• Insert the safety key in the socket on the hand control.
• The table is now ready for use. The motors stop automatically when the table reaches its lowest and highest position respectively.

Usage of the table

• The table shall only be used as a working table with the possibility to continuously adjust working height between sitting and standing position. The table shall only be used indoors and in dry premises (office environment or similar).
• The table must not be overloaded - maximum load is 70 kg/154 lbs. The motors may be run continuously for maximum 1 minutes. Afterward, the motors must stand by for approx. 9 minutes before they can be used again.

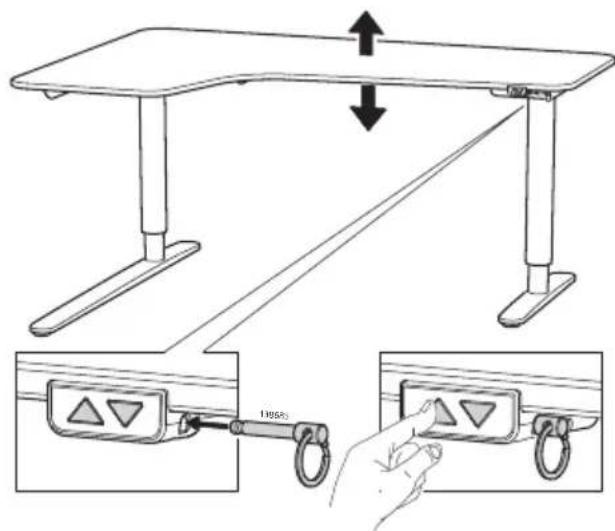

Follow these instructions when adjusting table height:

1. Insert the safety key in the socket on the hand control.
2. Make sure no objects are in the way of the table adjusting height freely.
3. In order to run the table up/down, press the manoeuvre button with an arrow pointing up and down respectively.

Safety regulations

• When the table is run up/down, keep the necessary safety distance to avoid the risk to get squeezed between the moving table top and fixed objects in the surrounding area.
• When the table is run up/down the user shall keep watch so that nobody is injured or no object is damaged. The table top must not bump into a fixed object so that the table is overturned. Always remove any office chair before the table is run up/down.
• When the table is left unattended, the safety key must be removed from the hand control and placed out of reach of children.
• The table tripod must not be altered or reconstructed in any way. In service and repair work of the table, the electrical cable must always be disconnected from the wall socket.
• Alterations to the control box are absolutely forbidden!
• The table must not be used as a hoisting device for persons.

Maintenance and repair instructions

• After approx. 1 week of use, check that the screws are properly tightened.

- If the table cannot be lowered or raised, check the connections between the legs and the wall socket and be sure the safety key is inserted in the hand control.

- If any part of the electrical system is replaced, the electrical cable must first be disconnected from the wall socket. Replace the electrical part and then connect the electrical cable to the wall socket. The table is now ready for use.

If the table still does not work, please contact your nearest IKEA store or customer service.

EU Declaration of Conformity is included in the packaging as a separate document.

Manufacturer: IKEA of Sweden AB

(commercial registration number: 556074-7551)

Address: Box 702, SE-343 81 Älmhult, SWEDEN

Telephone no.: [phone]

SAVE THESE INSTRUCTIONS

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Perform a reset by

Simultaneously pressing the up and down buttons for minimum of 8 second

Press and hold the down button and the desk will slowly move the lowest point possible

The desk/ stand is ready for normal use

TroubleshootingIKEA BEKANT - iDrive
Problem Check Try
The underframe will not move. 1. Make sure that all cables are undamaged and connected.2. Make sure that the safety key is correctly inserted into the hand control.3. Unplug the desk from the wall socket for approximately one minute and reconnect.	Connect the cables and insert the safety key.Follow the installation instructions and perform a reset.If problem remains, contact IKEA customer service.
Only one leg is moving. Perform a reset. If there's still	only one leg moving, contact IKEA costumer service.
Both legs are moving but at different speeds.		Perform a reset. If legs still are moving at different speeds, contact Ikea customer service.
The underframe only moves short distances.	Make sure that the desk is not overloaded, and that the safety key is correctly inserted in the hand control.	Move any load off the desk and insert the safety key securely.Perform a reset. If the problem remains, contact IKEA customer service.
The underframe stops and reverses during operation.	Make sure that nothing is blocking the table.	Remove the obstacle. Perform a reset. If the problem remains, contact IKEA customer service.
The underframe can only move in one direction (up or down).		Perform a reset. If problem remains, contact IKEA customer service.
The desk is not horizontal.
