BF 3000 MA - Lighting BRENNENSTUHL - Free user manual and instructions

USER MANUAL BF 3000 MA BRENNENSTUHL

EN Operating instructions 7

FR Mode d'emploi 12

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Line drawing of a simple rectangular object with a horizontal bar and base, no text or symbols present

Electric charger with two power inputs and a black cable, labeled 'E' (no text or symbols on the charger body)

D C

AKKU-LADEANZEIGE (B)

Technical line drawings of two mechanical components with no visible text or symbols

Technical line drawing of two identical mechanical support structures with tripod supports (no text or symbols)

Operating Instructions Mobile 360° LED Rechargeable Light

BF 3000 MA

Note: Before using the floodlight, please carefully read the operating instructions and store them in a proper location!

SAFETY INSTRUCTIONS

1. Before use, always check the floodlight and/or the power supply unit for any possible damage. Never use the floodlight or the power supply unit in case of any damage. If this is the case, please refer to an electrician or the manufacturer's service address.

Non-compliance poses a risk of fatal injury from electrical current!

1. Do not use the floodlight in explosive atmospheres with flammable liquids, gases or dusts. Risk of death!
2. Keep the floodlight away from children. Children are not aware of the risks imposed by electric current.
3. Only use the supplied power supply unit and cable to operate the device. Use of any other power supply unit can cause damage to the battery or an explosion!
4. To avoid dazzling or blinding, do not look directly into the light.
5. A destroyed protective cover cannot be replaced. The floodlight has to be disposed of.
6. During the charging process, the product is not IP54-compliant (dust-protected and protected against splashing water).

Not suitable for applications with external dimmers.

TECHNICAL DATA

LED floodlight Power adapter
Model BF 3000 MA Model id	identifier YN-15WA135100EU
Art. No.	1171410301	Input voltage	100-240 V
Power 30 W Input AC frequen	cy 50-60 Hz
IP, IK	IP 54, IK 08	Output voltage	13,5 V
Safety class	III	Output current	1,0 A
Charging input	13,5 V/1,0 A	Output power	13,5 W
Charging duration	~ 4,5 h	Average active efficiency	84,92 %
Operating temperature	-10°C - +40°C	Efficiency at low load (10 %)	80,95 %
Protective cover dimension	∅ 200 x 85,8 mm	No-load power consumption (Standby)	0,071 W
Dimensions	205 x 200 x 222,5 mm	Power factor	0,413
Weight	1,57 kg	Current	0,4 A
Max. projected area	456 m2

This LED floodlight is suitable for indoor and outdoor lighting purposes.

COMMISSIONING

SWITCHING THE FLOODLIGHT ON/OFF

Switch on the floodlight.

The floodlight is lit with 100 % light intensity,

By pressing several times, the light intensity is set to 100% – 50% – 25%, pressing once more switches the floodlight off.

The lower the brightness selected, the longer the floodlight will burn.

If the switch is left in any of its "on" positions for longer than 5 seconds, then pressing it once again will always turn it off.

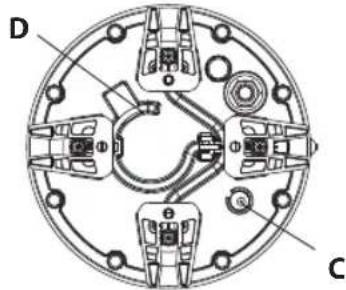

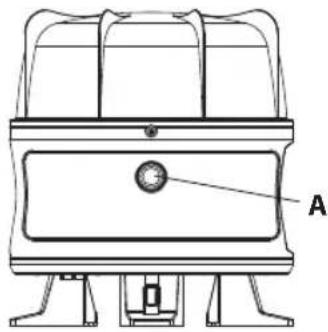

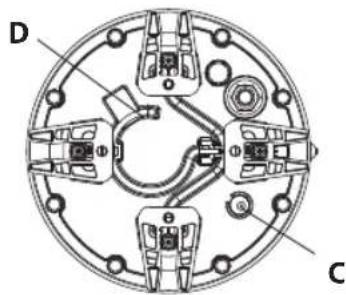

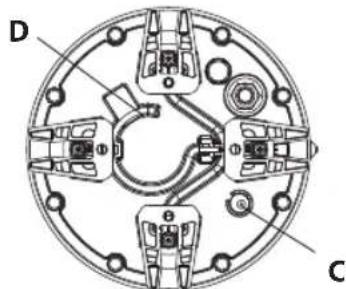

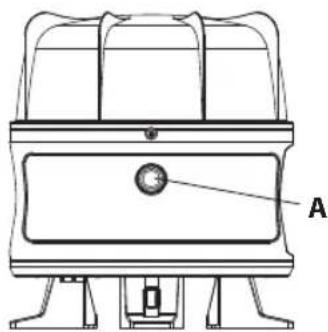

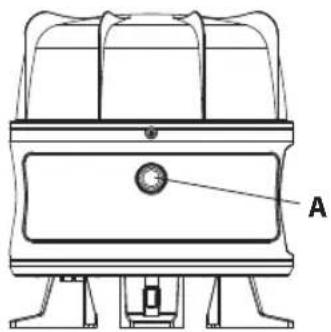

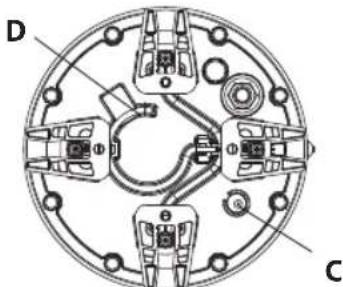

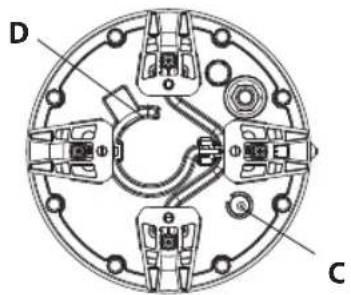

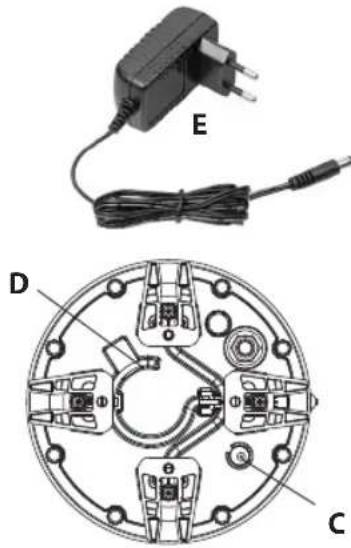

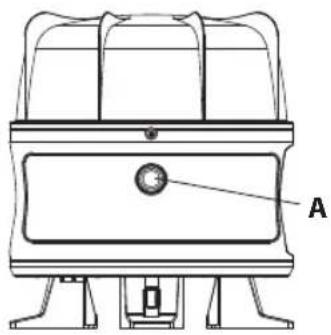

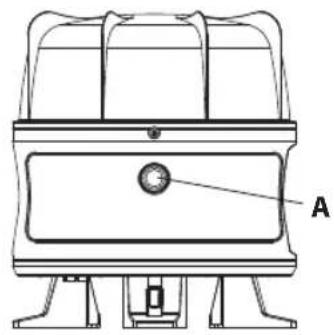

A: On/Off and function switch

D: Hook

B: Battery, status and charge indicator

E: Charger

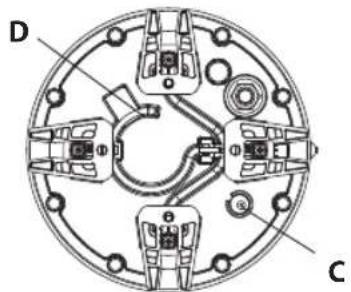

C: DC charging socket

Black and white photo of a charging plug connected to a cable with a small connector (no text or symbols visible)

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Line drawing of a simple rectangular object with a horizontal panel and base, labeled B (no text or symbols)

D C

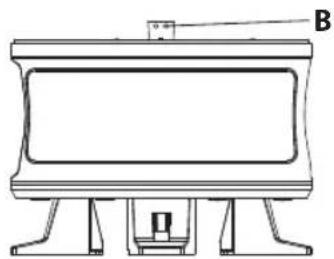

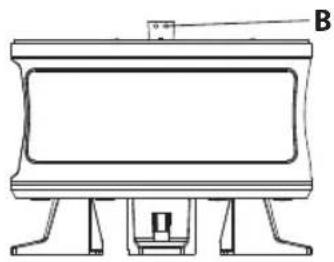

BATTERY CHARGE INDICATOR (B)

While the battery is charging, the red LED of the battery charge indicator (B) lights up.

When the battery is fully charged, the green LED of the battery charge indicator (B) is lit.

When the battery is almost empty, the spotlight flashes 5 times and the red LED of the battery charge indicator (B) flashes continuously. After this, the spotlight will continue to light up for approx. 10 minutes before the deep discharge protection switches off the light.

This leaves enough time to finish the work.

CHARGING THE BATTERY (C)

Charge your battery using the supplied power supply unit (E) only.

1. To ensure optimum function, we recommend fully discharging the battery on the first use and fully charging it afterwards.

2. The charging status of the battery is indicated by the battery status indicator (see description above).

3. If the device is not used for longer periods of time, charge the battery at regular intervals of approx. 3 months to ensure a long service life.

4. After charging, always close the charging port with the cover cap.

OPERATION

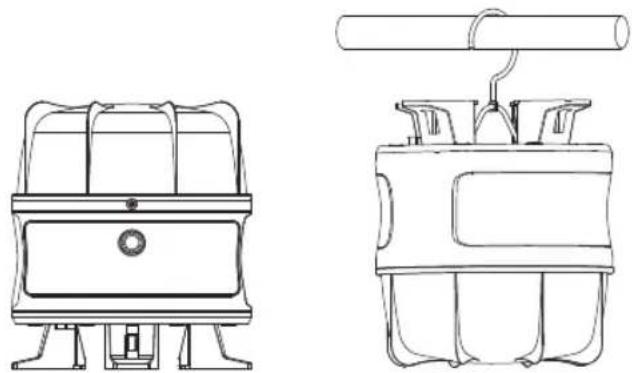

Upright: Place the light on a dry and level surface.

Hanging: Hang the light on a suitable pipe.

Technical line drawings of two mechanical components with no visible text or symbols

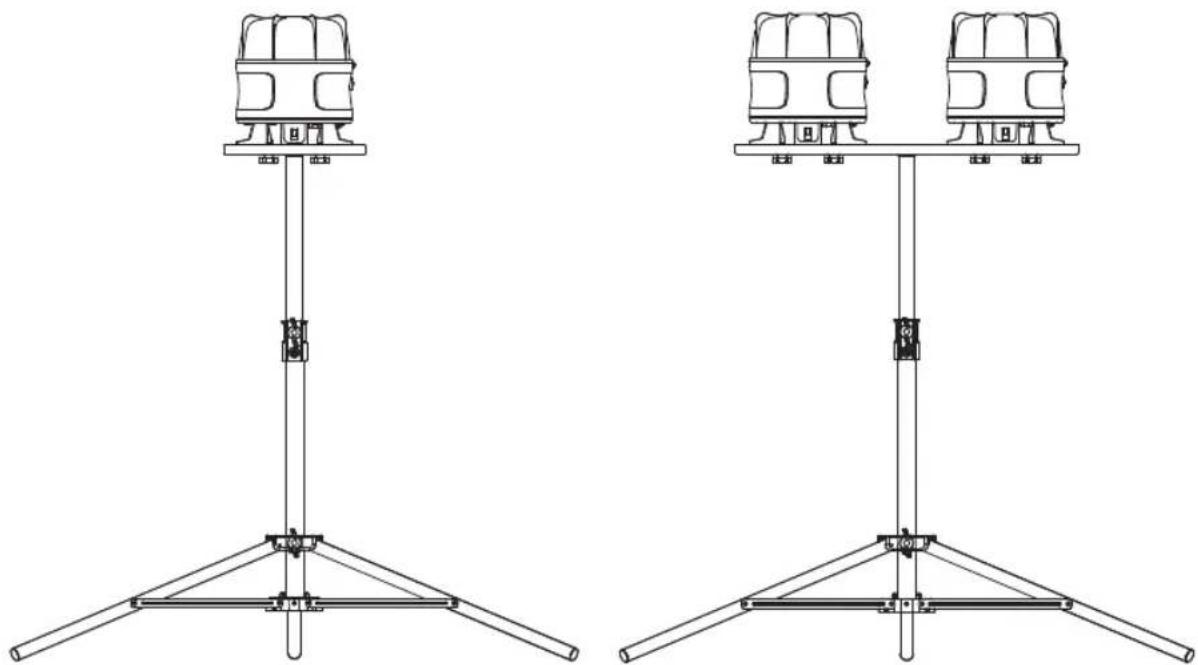

On a stand (not included in the scope of delivery)

The floodlight can also be mounted on Brennenstuhl tripods either individually or in pairs. If two floodlights are mounted, you will – in some cases – need the CB 70 cross beam

1172640059 as an accessory.

Suitable accessories are available on our homepage www.brennenstuhl.com

Technical line drawing of two identical tripod-mounted radar or radar equipment with no text or symbols

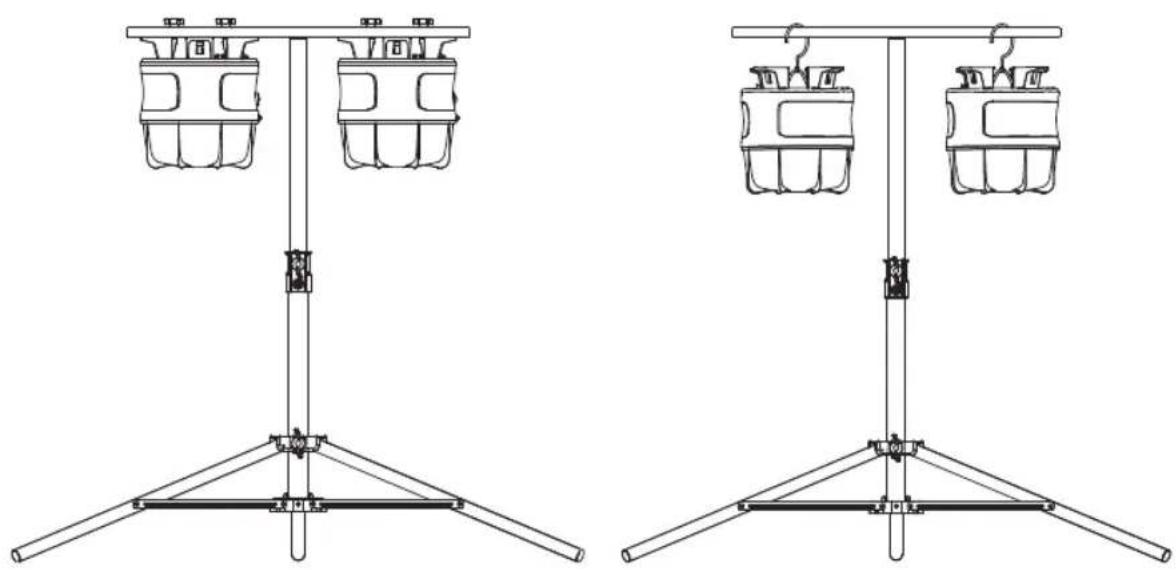

Vertically screwed single floodlight Bolted on hanging light

(just TS 250 1170610020

and TS 170 1170610010

and TS 300 9171991100)

Bolted on hanging light Hanging on a hook

CABLE WRAP

The cable can be wrapped around a groove in the light for transport and storage.

MAINTENANCE

Diagram showing a device with an 'IN' label and a cross symbol pointing to a black rectangular component labeled 'LED'

ATTENTION! The LED lamp does not contain components that require maintenance. The light source in this lamp cannot be replaced; if the light source has reached the end of its service life, the entire lamp has to be replaced. The lamp may not be opened.

CLEANING

Before cleaning, disconnect the floodlight from the mains power.

Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.

For possibilities of disposal of the used appliance, please contact your local or municipal administration.

Batteries and rechargeable batteries may not be disposed of in household waste!

As a consumer, you are legally obligated to dispose of all batteries and rechargeable batteries at a collection point in your municipality/your district or in a shop so that they can be disposed of in an environmentally-friendly manner, otherwise there are possible risks to the environment and human health.

EU DECLARATION OF CONFORMITY

The EU declaration of conformity is deposited at the manufacturer.

UK DECLARATION OF CONFORMITY

The UK declaration of conformity is deposited with the manufacturer.

ADDRESSES

For more information please visit the Service/FAQ section on our homepage, www.brennenstuhl.com.

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Technical line drawing of a mechanical component with base and support legs (no text or symbols)

Electrical wiring diagram showing a power adapter connected to a cable, with labeled components D and C (no text or symbols beyond labels)

TÉMOIN DE CHARGE (B)

Technical line drawings of two mechanical components with no visible text or symbols

Technical line drawing of two identical mechanical support structures with tripod supports (no text or symbols)

LED LED IN

DÉCLARATION DE CONFORMITÉ UE

Black electric plug with two power inputs and a black cable, labeled 'E' (no text or symbols on the plug itself)

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Technical line drawing of a mechanical component with base and support legs (no text or symbols)

D C

OPLAADINDICATOR ACCU (B)

Technical line drawings of two mechanical components with no visible text or symbols

Technical line drawing of two identical tripod-mounted radar or radar equipment with no text or symbols

Diagram showing a device with an 'IN' label and a cross symbol pointing to a black rectangular component labeled 'LED'

Black-and-white photo of a flat capacitor connected to a cable with a small terminal, labeled 'E' (no text or symbols on the capacitor itself)

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Technical line drawing of a simple rectangular frame with supports and a small inset component labeled B (no text or symbols)

D C

Technical line drawings of two mechanical components with no visible text or symbols

Technical line drawing of two identical tripod-mounted radar or radar equipment with dual supports (no text or symbols)

LED LED IN LED

Black-and-white photo of a DC power adapter with a cable and terminal connector (no text or symbols visible)

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Line drawing of a simple rectangular object with a central blank space and a small protrusion labeled 'B' (no text or symbols on the object itself)

D C

LADDNINGSINDIKERING (B)

Technical line drawings of two mechanical components with no visible text or symbols

Technical line drawing of two identical tripod-mounted industrial equipment with cylindrical components (no text or symbols)

Diagram showing a device with an 'IN' label and a cross symbol pointing to a black rectangular component labeled 'LED'

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

Technical line drawing of a rectangular electronic device with base and top supports (no text or symbols)

Black electric plug with two terminal inputs and a black cable with a connector, labeled 'E' (no text or symbols on the plug itself)

D C

INDICADOR DE CARGA DE LA BATERÍA (B)

Technical line drawings of two mechanical components with no visible text or symbols

Technical line drawing of two identical mechanical support structures with vertical supports and mounting brackets (no text or symbols)

LED LED IN

Black electric plug with two terminal inputs and a black cable, labeled 'E' (no text or symbols on the plug itself)

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Technical line drawing of a simple electrical enclosure or lamp base with no text or symbols

D C

WSKAŹNIK STANU NAŁADOWANIA AKUMULATORA (B)

Technical line drawings of two mechanical components with no visible text or symbols

Technical line drawing of two identical tripod-mounted industrial equipment with dual cylindrical components (no text or symbols)

Technical line drawing of two identical mechanical device setups with three cylindrical components mounted on tripod stands (no text or symbols)

LED LED IN

Black-and-white photo of a flat capacitor connected to a cable with a small connector (no text or symbols visible)

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Line drawing of a simple rectangular object with a horizontal panel and base, labeled B (no text or symbols)

D C

INDIKÁTOR STAVU AKUMULÁTORU (B)

Technical line drawings of two mechanical components with no visible text or symbols

Technical line drawing of two identical tripod-mounted radar or radar equipment with no text or symbols

Electric charger with two power points and a black cable, labeled 'E' (no text or symbols on the charger body)

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Line drawing of a simple rectangular object with a central blank space and supports (no text or symbols)

D C

AKKUMULÁTOR-TÖLTÉSJELZŐ (B)

Technical line drawings of two mechanical components with no visible text or symbols

Technical line drawing of two identical mechanical support structures with tripod supports (no text or symbols)

Technical line drawing of two identical mechanical device setups with three cylindrical components mounted on tripod supports (no text or symbols)

LED LED IN LED

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

Line drawing of a simple rectangular object with a horizontal bar and base, labeled B (no text or symbols)

Electric power adapter with attached cable and terminal connector (no visible text or symbols)

D C

Technical line drawings of two mechanical components with no visible text or symbols

Technical line drawing of two identical tripod-mounted industrial equipment stand designs (no text or symbols)

Technical line drawing of two identical mechanical lifting devices with no text or symbols

LED LED IN

Technical line drawing of a mechanical component with labeled point A (no text or symbols beyond label)

Technical line drawing of a mechanical component with base and support legs (no text or symbols)

Black electric plug with two leads and a black cable, labeled 'E' (no additional text or symbols visible)

D C

AKÜ ŞARJ GÖSTERGESİ (B)

Technical line drawings of two mechanical components with no visible text or symbols

Technical line drawing of two identical tripod-mounted radar or radar equipment with no text or symbols

Diagram showing a device with an 'IN' label and a cross symbol pointing to a black rectangular component labeled 'LED'

Black-and-white photo of a flat capacitor connected to a cable with a small plug, labeled 'E' (no text or symbols on the device itself)

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Technical line drawing of a mechanical component with base and support structure (no text or symbols)

D C

AKUN LATAUSTILAN NÄYTTÖ (B)

Technical line drawings of two mechanical components with no visible text or symbols

Technical line drawing of two identical tripod-mounted industrial equipment with no visible text or symbols

Technical line drawing of two identical mechanical device setups with three cylindrical components mounted on tripod stands (no text or symbols)

Technical line drawing of a mechanical device with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical component with base and support structure (no text or symbols)

Black and white photo of a charging plug with a cable, labeled 'E' (no text or symbols on the device itself)

D C

Technical line drawings of two mechanical components with no visible text or symbols

Technical line drawing of two identical mechanical support structures with tripod supports (no text or symbols)

Technical line drawing of two identical mechanical device setups with three cylindrical components mounted on tripod supports (no text or symbols)

LED LED IN

Black-and-white photo of a flat capacitor connected to a cable with a small connector (no text or symbols visible)

Technical line drawing of a mechanical component with labeled part A (no text or symbols beyond label)

Technical line drawing of a mechanical component with base and support legs (no text or symbols)

D C

INDICADOR DE CARGA DA BATERIA (B)

Technical line drawings of two mechanical components with no visible text or symbols

Technical line drawing of two identical tripod-mounted industrial equipment with mounting brackets (no text or symbols)

Projetor individual aparafusado na vertical Aparafusado na vertical

(apenas TS 250 1170610020

e TS 170 1170610010

e TS 300 9171991100)

Aparafusado suspenso Suspenso com gancho

ENROLAMENTO DO CABO

LED LED IN LED

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Technical line drawing of a mechanical device with base mount and control panel (no text or symbols)

Black electric plug with two leads and a coiled cable, labeled 'E' (no text or symbols on the plug itself)

D C

AKU LAADIMISNÄIDIK (B)

Technical line drawings of two mechanical components with no visible text or symbols

Technical line drawing of two identical tripod-mounted industrial equipment with cylindrical components (no text or symbols)

Technical line drawing of two identical mechanical device setups with three cylindrical components mounted on tripod stands (no text or symbols)

Diagram showing a device with an 'IN' label and a cross symbol pointing to a black rectangular component labeled 'LED'

Black and white photo of a connected power adapter with a cable, labeled 'E' (no text or symbols on the device body)

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Line drawing of a simple rectangular object with a horizontal panel and base, labeled B (no text or symbols)

D C

ZOBRAZENIE STAVU AKUMULÁTORA (B)

Technical line drawings of two mechanical components with no visible text or symbols

Technical line drawing of two identical tripod-mounted industrial equipment with no visible text or symbols

Diagram showing a device with an 'IN' label and a cross symbol pointing to a black rectangular component labeled 'LED'

Black and white photo of a charging plug with a black cable and a small connector, labeled 'E' (no text or symbols on the device itself)

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Line drawing of a simple rectangular object with a horizontal panel and base, labeled B (no text or symbols)

D C

BATERIJSKI INDIKATOR POLNJENJA (B)

Technical line drawings of two mechanical components with no visible text or symbols

S stativom (ni dobavljen zraven)

Technical line drawing of two identical tripod-mounted radar or radar equipment with no text or symbols

Stoječe privit posamezni reflektor Stoječe privit

(samo TS 250 1170610020

in TS 170 1170610010

in TS 300 9171991100)

Technical line drawing of two identical mechanical device setups with three cylindrical components mounted on tripod stands (no text or symbols)

Obešeno privit Obešeno s kavljem

NAVITJE KABLOV

Diagram showing a device with an 'IN' label and a cross symbol pointing to a black rectangular component labeled 'LED'

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Technical line drawing of a mechanical component with base and support legs (no text or symbols)

Black and white photo of a charging plug with two leads and a coiled cable (no text or symbols visible)

D C

AKUMULIATORIAUS IKROVOS INDIKATORIUS (B)

Technical line drawings of two mechanical components with no visible text or symbols

Su stovu (tiekimo komplekte néra)

Technical line drawing of two identical tripod-mounted radar or radar equipment with no text or symbols

Technical line drawing of two identical mechanical device setups with three cylindrical components mounted on tripod stands (no text or symbols)

Pakabinti prisukti Pakabinti kabliu

KABELIO SUVYNIOJIMAS

LED LED IN

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Line drawing of a simple rectangular object with a central blank space and a small protrusion, labeled 'B' at the top (no text or symbols on the object itself)

Black and white photo of a charging plug with a cable, labeled 'E' (no text or symbols on the device itself)

D C

AKUMULATORA UZLĀDES INDIKATORS (B)

Technical line drawings of two mechanical components with no visible text or symbols

Technical line drawing of a mechanical support structure with two cylindrical components mounted on a tripod (no text or symbols)

Line drawing of a simple mechanical device with two hanging baskets and three supports (no text or symbols)

Pakarināts aiz āka

KABELA UZTĪŠANA

LED LED IN
