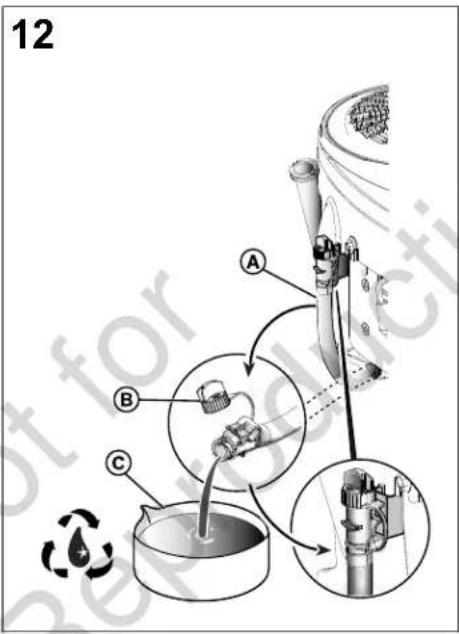

Change the Engine Oil....16

Air Filter Assembly (Cartridge with pre-cleaner)....16

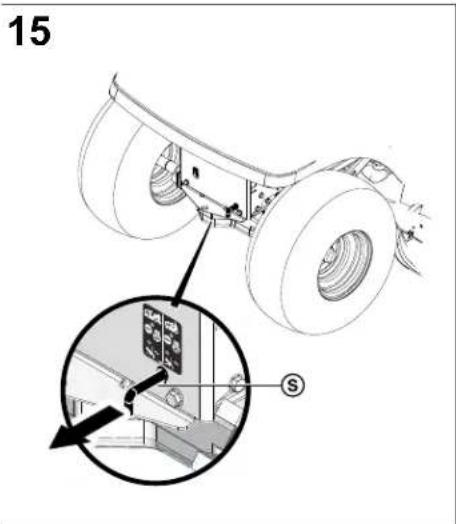

Push the Tractor By Hand.... 17

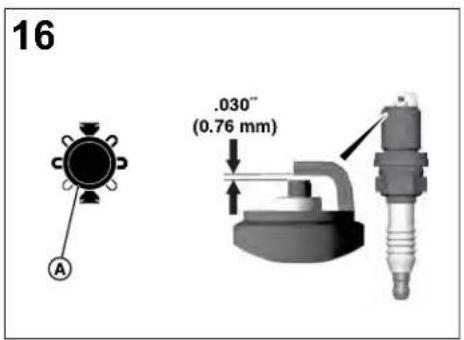

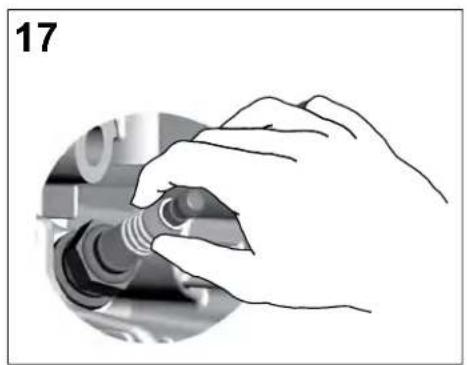

Check the Spark Plugs.... 17

Towed Equipment....17

Clean the Mower Deck (if equipped)....17

Storage....17

Troubleshooting....19

Troubleshooting the Rider....19

Troubleshooting the Mower....19

Specifications....20

Specifications Chart 20

Power Ratings Disclaimer.... 21

Products Covered by This Manual

The products that follow are covered by this manual:

2691481-00, 2691481-01, 2691481-02, 2691487-00,

2691487-01, 2691487-02, 2691487-03, 2691683-00,

2691683-01, 2691684-00, 2691685-00, 2691700-00,

2691701-00, 2691701-01, 2691702-00, 2691703-00,

2691714-00, 2691715-00, 2691926-00, 2691926-01,

2691927-00, 2691927-01, 2691928-00, 2691928-01,

2691929-00, 2691929-01, 2692020-00, 2692023-00

General Information

For additional information, refer to the Customer Contact Guide included with the unit.

The illustrations in this document are representative.

Your unit might look different from the images

shown. LEFT and RIGHT are referenced from the operator's position.

The use of Important and Note in the text shows clarifications, exceptions, or alternatives to the procedures.

All language translations of this document derive from the initial English source file.

Recycle all packaging, used oil, and batteries according to applicable government regulations.

European Office Contact Information

For questions regarding European emissions, please contact our European office at:

Max-Born-Straße 2, 68519 Viernheim, Germany.

European Union (EU) Stage V (5): Carbon Dioxide (CO₂) Values

Carbon dioxide values of Briggs & Stratton® EU Type-Approval Certificate engines can be found by entering CO2 into the search window on BriggsandStratton.com.

Declaration of Conformity Statement

This product complies with all relevant regulations and directives; for details, please see the product specific

Declaration of Conformity (DOC) sheet that is part of the instructions which are accompanying the unit.

Operator Safety

Save these instructions

Save these instructions for future reference. This manual contains safety information to make you aware of the hazards and risks associated with the product and how to avoid them. It also contains important instructions that must be obeyed during the initial set-up, operation, and maintenance of the product.

This product is designed and intended for cutting well maintained grass and is not intended for other purposes.

It is important that you read and understand these instructions before you attempt to start or operate this equipment.

Make sure that you are fully familiar with the controls and the correct use of the product.

Know how to stop the unit and disengage controls quickly.

Slope Identification Guide

How to measure the slope of a lawn surface with a smartphone or an angle finder tool:

WARNING

Do not operate on slopes greater than 10 degrees.

1. Use a straight edge at least two (2) feet long (A, Figure 1). A 2x4 or a straight piece of metal works well.
2. Angle finder tools.

a. Use your smartphone: Many smartphones (B, Figure 1) have an inclinometer (angle finder) located under the compass application (app). Or, search an app store for an Inclinometer app.
b. Use angle finder tools: Angle finder tools (C and D, Figure 1) are available at local hardware stores or online (also called inclinometer, protractor, angle meter, or angle gauge). Dial type (C) or digital type (D) work, others may not. Read and obey the user instructions supplied with the angle finder tool.

1. Put the two (2) feet long straight edge along the steepest part of the lawn slope. Put the board up and down the slope.

2. Lay the smartphone or angle finder tool on the straight edge and read the angle in degrees. This is the slope of your lawn.

Note: A paper gauge slope identification guide is included in your product literature packet and is also available to download from the manufacturer's website.

Safety Symbols and Meanings

Symbol Meaning
	Safety information about hazards that can result in personal injury.
	Read and understand the Operator's Manual before you operate or service the unit.
	Remove the key and read the Operator's Manual before you service the unit.
	Stop
	Fire hazard
	Explosion hazard
	Shock hazard
	Toxic fume hazard
	Moving parts
	Wear eye protection.
	Hazardous chemical

Symbol Meaning
	Hot surface hazard
	Amputation hazard
	Thrown objects hazard
	Keep a safe distance
	Keep children away
	Amputation hazard
10° Max.	Roll-over hazard
10° max.

Safety Alert Symbol and Signal Words

The safety alert symbol identifies safety information about hazards that can result in personal injury. A signal word (DANGER, WARNING, or CAUTION) is used with the alert symbol to indicate the likelihood and the potential severity of injury. In addition, a hazard symbol may be used to represent the type of hazard.

DANGER indicates a hazard which, if not avoided, will result in death or serious injury.

WARNING indicates a hazard which, if not avoided, could result in death or serious injury.

CAUTION indicates a hazard which, if not ded, could result in minor or moderate injury.

NOTICE indicates information considered important but not hazard-related.

Safety Decals

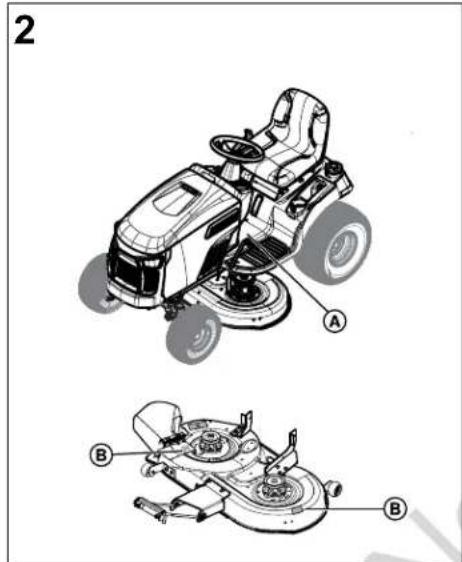

Before you operate the unit, read the safety decals. Compare Figure 2 to the decals shown in the table that follows. The cautions and warnings are for your safety. To avoid personal injury or damage to the unit, understand and obey the safety decals.

IMPORTANT: If the safety decals become worn or damaged, and cannot be read, order replacement decals from your local dealer.

E DANGER - AMPUTATION AND DISMEMBERMENT HAZARD: To avoid injury from rotating blades and moving parts, keep safety devices (guards, shields and switches) in place and working.

F Do not mow when children or others are around. DO NOT carry riders especially children even with the blades off. Do not mow in reverse unless absolutely necessary. Look down and behind – before and while you drive the unit in reverse.

G Consult technical literature before technical repairs or maintenance. When you leave the machine, stop the engine, set the parking brake to the lock position, and remove the ignition key.

H Keep by-standers and children a safe distance away. Remove objects that can be thrown by the blade. Do not mow without the discharge chute in place.

I Do not mow without discharge chute or entire grass catcher in place.

J To avoid injury from rotating blades, stay clear of deck edge and keep others away.

A A B C D E F G H

B I J 7106109

Safety Decal Icon Definitions

Compare the letters (A-J) in the safety decal icons to the safety definitions listed in the table that follows.

A WARNING: Read and understand the Operator's Manual before you use this machine. Know the locations and functions of all controls. Do not operate this machine unless you are trained.

B DANGER - LOSS OF TRACTION, SLIDING, STEERING AND CONTROL ON SLOPES HAZARD: If the machine stops forward motion or starts to move on a slope, stop the blades, and slowly drive off the slope.

C DANGER - FIRE HAZARD: Make sure the unit is free of grass, leaves, and excess oil. Do not add fuel while the engine is hot or on. Stop the engine. Let the engine cool for at least 3 minutes before you add fuel. Do not add fuel indoors, in an enclosed trailer, garage or other enclosed areas. Remove spilled fuel. Do not smoke while you operate this machine.

D DANGER - TIPPING AND SLIPPING HAZARD: Mow up and down slopes not across. Do not operate on slopes more than 10 degrees. Avoid sudden and sharp (fast) turns while on slopes.

Battery Safety Decal

Pb DANGER/POISON PELIGRO/VENENO SHIELD EYES. EXPLOSIVE GASES CAN CAUSE BLINNESS OR INJURY. NO CUTTER • SPARKS • FLANGES • SMOUNG SULFING AID CAN CAUSE BLINNESS OR SEVERE BURNEL. FLUSH EYES IMMEDIATELY WITH WATER. Keep OUT OF THE REACH OF CHILDREN. READ ALL INSTRUCTIONS. DO NOT OPEN BATTERY! DO NOT TIP 12V Made a LDA with LTR and Impact the risks Pb

	Warning: Fire Hazard - Keep children, open flames and sparks away from the battery, which could ignite explosive gases.
	Warning: Sulfuric acid can cause blindness or severe burns - Always wear safety goggles or a face shield when working on or near a battery.
	Warning: Batteries produce explosive gases - Read and understand the Operator's Manual before using this machine.
	Important: Do not discard a battery in the trash - Contact local authorities for disposal and/or recycling of batteries.
	Flush eyes immediately with water. Get medical help fast.

Safety Messages

WARNING

Read, understand, and obey all the instructions and warnings in the Operator's Manual and on the machine, engine, and attachments before you operate this machine. Failure to obey the safety instructions in this manual and on the equipment could result in death or serious injury.

• Only let operators who are responsible, trained and familiar with the instructions and physically capable to operate the machine.
• Do not operate the machine while under the influence of alcohol or drugs.
• Wear safety glasses and closed toe footwear.
• Do not put hands or feet near rotating parts or under the machine. Keep clear of the discharge opening at all times.
• Keep the machine in good working order. Replace worn or damaged parts.
• Be careful when you service the blades. Wrap the blades or wear gloves. Replace damaged blades. Do not repair or alter the blades.
• Use full width ramps when you load and unload a machine for transport.
  • See attachment or accessory for proper wheel weights or counterweights.
• To help prevent fires, keep machine free of grass, leaves, or other unwanted material. Clean remaining oil or fuel spillage. Remove fuel soaked debris and let the machine to cool before storage.

WARNING

Running engine gives off carbon monoxide, an odorless, colorless, poison gas. Breathing carbon monoxide can cause headaches, fatigue, dizziness, vomiting, confusion, seizures, nausea, fainting or death.

• Operate equipment ONLY outdoors.
• Keep exhaust gas from entering a confined area through windows, doors, ventilation intakes, or other openings.

Features and Controls

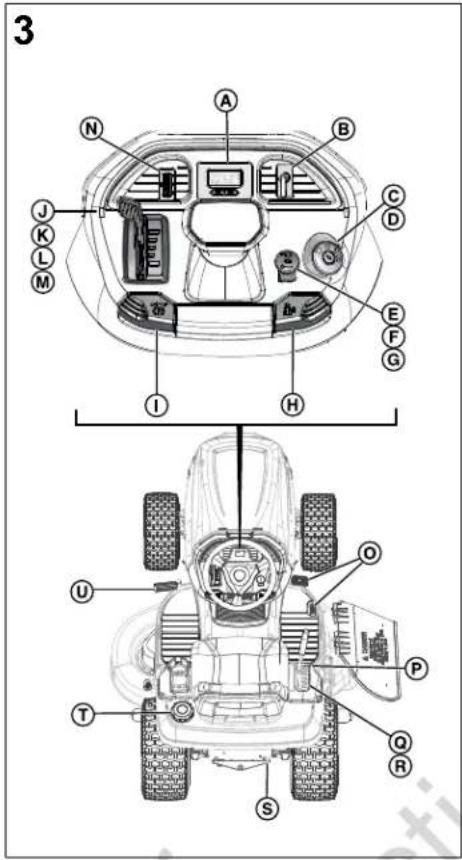

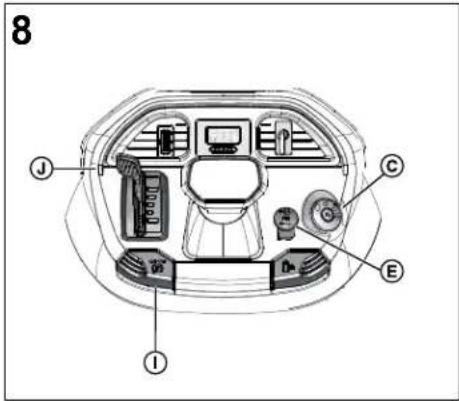

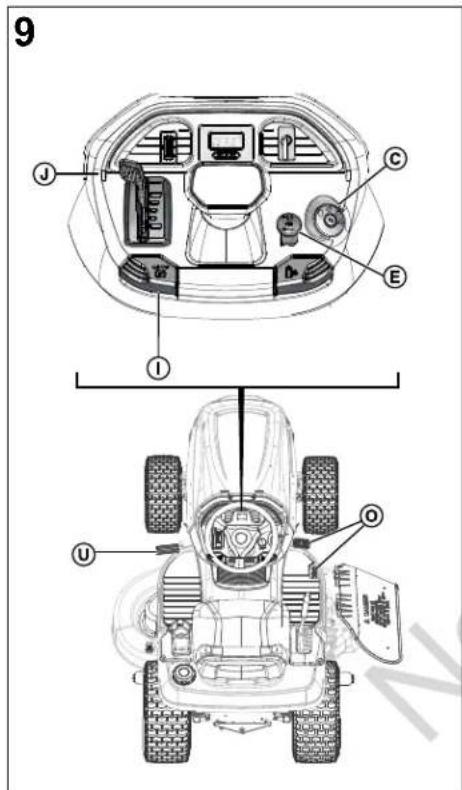

Make sure that the callout letters in Figure 3 agree with the features and controls listed in the table that follows.

Control Symbols and Meanings

A
Electronic Dash Panel

B

Option (RMO)

C lg

OFF

ON

START

DH

E P

10)

FP

O), Engage Blades

GP

O), Disengage Blades

H

1

J

K
bottle Control SLOW Position

L Throttle Control FAST Position
M Ch
N Fuel Level Gauge (if equipped)
O Ground Seat Rentals
P Seat Adjustment Lever
Q Mo
R He tch
S Trans lease Lever
T Fuel T
U Brake Pedal

Electronic Maintenance Display

Note: When you start the unit, the Total Hours show on the maintenance display. The total hours will set to 0 after 999.9.

Display Total Hours, Trip Hours, and Clock

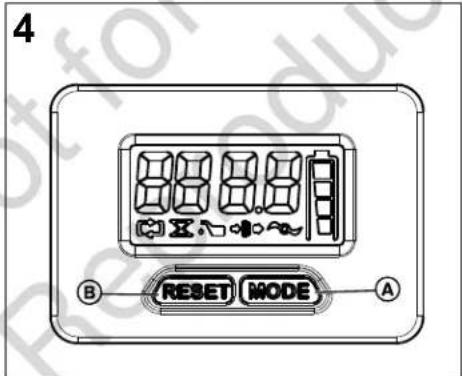

1. Push MODE (A, Figure 4) for less than 1 second to show the Trip Hours.

2. Push RESET (B) for more than 3 seconds to set the Trip Hours to 0.

3. Push MODE for less than 1 second to show the Clock. See Set the Clock section.

4. Push MODE for less than 1 second to show the Total Hours.

Set the Clock

1. Push MODE (A, Figure 4) for more than 3 seconds. The hours will flash on the display.
2. Push RESET to adjust the hours.
3. Push MODE for less than 1 second to save the setting. The minutes will flash on the display.
4. Push RESET to adjust the minutes.
5. Push MODE for less than 1 second to save the setting.

Maintenance Display

OIL CHANGE - This message shows after 50 hours of operation. After you change the oil and filter, push MODE two times to show OIL HRS. Then, push and hold MODE for 3 seconds to set the timer to zero. The display will automatically clear.

AIR FILTER CHECK - This message shows after 25 hours of operation. After you clean or change the air filter, push MODE three times to show AIR FILTER HRS. Then, push and hold MODE for 3 seconds to set the timer to zero. The display will automatically clear.

CHANGE BLADES - This message shows after 100 hours of operation. After you change the blade, hold the RESET button for more than 3 seconds to set the timer to zero. The display will automatically clear.

LOW BATTERY - This message shows when a battery voltage problem occurs. The display will automatically clear after servicing of the battery.

Note: The LOW BATTERY message shows on the display before all other messages. Do the servicing of the battery first. Then, do a check for other maintenance messages.

Operation

Read the Operator Safety section before you operate this machine. Make sure that you know the controls and how to stop the unit.

Operating Area

1. Know the area where you plan to operate the mower.
2. Make sure that the area is free of unwanted material that could be picked up by the blades and thrown.

DANGER

This machine is capable of throwing objects that could injure bystanders or cause damage to buildings.

• Do not operate the machine without the entire grass catcher, discharge chute, or other safety devices in place and functioning properly. Check frequently for signs of wear or deterioration and replace as needed.

• Clear the operating area of any objects which could be thrown by or interfere with the operation of the machine.

• Move the rider mower outside, before you start the engine.

WARNING

Engines give off carbon monoxide, an odorless, colorless, poison gas. Breathing carbon monoxide can cause nausea, fainting, or death.

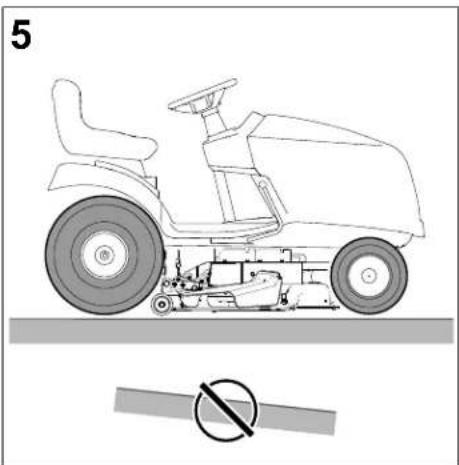

1. Note all slopes and drop-offs.

DANGER

Operating on slopes, or near water, or drop-offs can result in loss of control and roll-over.

• Mow up and down slopes not across.
• Reduce speed and be careful on slopes.
• Do not operate on slopes over 10 degrees, which is a 3.5 foot rise over a 20 foot length.
• Give yourself a minimum of two mower widths of clearance around water, retaining walls, or drop-offs.

- Avoid mowing wet grass.

- Do not operate machine under any condition where traction, steering, or stability is in question. Tires could slide even if the wheels are stopped.

- Avoid starting and stopping on slopes.

- Avoid making sudden changes in speed or direction.

• Make turns slowly and gradually.

- Be careful while operating machine with a grass catcher or other attachment(s). They can affect the stability of the machine.

- Follow the manufacturer's recommendation for weight limits for towed equipment and towing on slopes. See Towed Equipment.

1. Make sure that the operating area is clear of bystanders, especially children.

DANGER

This rider mower is capable of amputating hands and feet.

• Stop the mower when children or others are near.
• Keep children out of the operating area and under the watchful care of a responsible adult.
• Do not carry passengers, especially children, even with the blade(s) shut off. Children can fall off and be seriously injured or interfere with the safe machine operation. Children who have been given rides in the past can suddenly appear in the mowing area for another ride and be run over or backed over by the machine.
• Use care when approaching blind corners, shrubs, trees, or other objects that obscure vision.

Safety Interlock System Tests

This machine is equipped with a Safety Interlock System. Do not attempt to bypass or tamper with the switches and devices.

WARNING

If the machine does not pass a safety test, do not operate the machine. See an Authorized Dealer.

Test 1 — Engine will NOT crank if:

• Power Take Off (PTO) switch is ON, OR
- Brake pedal is NOT fully pushed down (parking brake OFF)

Test 2 — Engine will crank and start if:

• PTO switch is OFF, AND
• Brake pedal is fully pushed down (parking brake ON).

Test 3 — Engine will SHUT OFF if:

• Operator rises off seat with PTO engaged, OR
• Operator rises off seat with brake pedal NOT fully pushed down (parking brake OFF).

Test 4 — Mower Blade Stopping Time Check

The mower blades and mower drive belt will come to a complete stop in five seconds after the PTO switch is OFF. If the mower drive belt does not stop in five seconds, see an Authorized Service Dealer.

Test 5 — Reverse Mowing Option (RMO) Check

• The engine will STOP when reverse travel is attempted with the PTO switched ON and the Reverse Mowing Option (RMO) not activated.
• The RMO light will come on when the RMO has been activated.

DANGER

Mowing in reverse can be hazardous to bystanders. Tragic accidents can occur if the operator is not alert to the presence of children. DO NOT activate the Reverse Mowing Option (RMO) if children are present. Children are often attracted to the machine and the mowing activity.

Engine

Check and Add Engine Oil

Use Briggs & Stratton ^® Warranty Certified oils for best performance. Other high-quality detergent oils are acceptable if classified for service SF, SG, SH, SJ or higher. Do not use special additives.

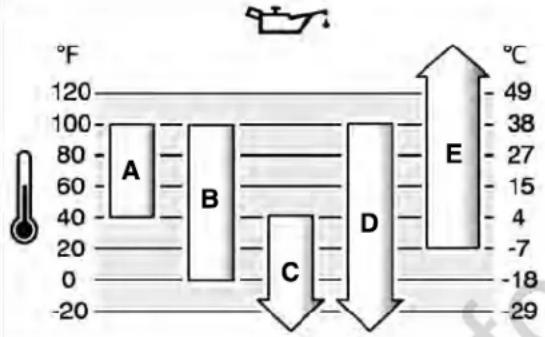

Outdoor temperatures determine the proper oil viscosity for the engine. Use the chart to select the best viscosity for the outdoor temperature range expected.

A	SAE 30 - Below 40 °F (4 °C) the use of SAE 30 will result in hard starting.
B	10W-30 - Above 80 °F (27 °C) the use of 10W-30 can cause increased oil consumption. Check oil level more frequently.
C	5W-30
D	Synthetic 5W-30
E	Vanguard® Synthetic 15W-50

*Below 40°F (4°C) the use of SAE 30 will result in hard starting.
**Above 80°F (27°C) the use of 10W-30 can cause increased oil consumption.

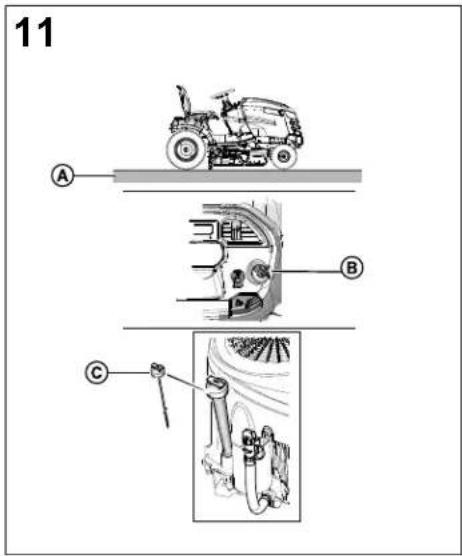

1. Put the unit on a level surface as shown in Figure 5.
2. Stop the engine and remove the key. Make sure that the oil fill area is clean.

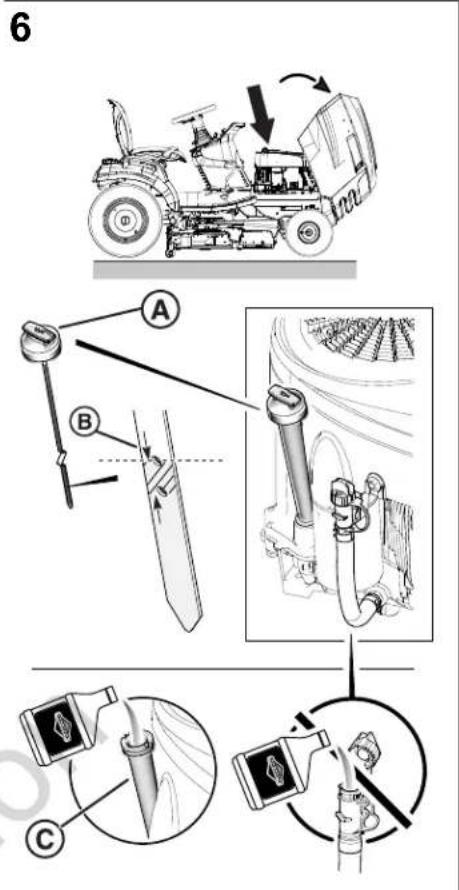

3. Remove the dipstick (A, Figure 6). Remove the remaining oil from the dipstick.
4. Install and tighten the dipstick.
5. Remove the dipstick again, and check the oil level.
6. Make sure that the oil level is at the top of the FULL mark (B) on the dipstick.
7. If the oil level is FULL, install and tighten the dipstick.
8. If the oil level is LOW, add oil into the oil fill tube (C).
   Note: DO NOT add oil at the quick oil drain (if equipped).
9. Wait one minute, and check the oil level again.
10. Install and tighten the dipstick.

Oil Pressure

If the oil pressure is too low, a pressure switch (if equipped) will either stop the engine or activate a warning device on the equipment. If this occurs, stop the engine and check the oil level with the dipstick.

If the oil level is below the ADD mark, add oil until it touches the FULL mark. Start the engine and check for the correct oil pressure before you operate the machine.

If the oil level is between the ADD and FULL marks, DO NOT start the engine. Contact an Authorized Service Dealer to correct the oil pressure.

Fuel Recommendations

Fuel must meet these requirements:

• Clean, fresh, unleaded gasoline.
• A minimum of 87 octane/87 AKI (91 RON). High altitude use, see below.
  • Gasoline with up to 10% ethanol (gasohol) is acceptable.

NOTICE Do not use unapproved gasolines, such as E15 and E85. Do not mix oil in gasoline or modify the engine to run on alternate fuels. Use of unapproved fuels will damage the engine components, which will not be covered under warranty.

To protect the fuel system from gum formation, mix a fuel stabilizer into the fuel. See Storage. All fuel is not the same. If start or performance problems occur, change fuel providers or brands. This engine is certified to operate on gasoline. The emissions control system for carbureted engines is EM (Engine Modifications). The emissions control systems for engines with electronic fuel injection are ECM (Engine Control Module), MPI (Multi Port Injection), and if equipped an O2S (Oxygen Sensor).

High Altitude

At altitudes over 5,000 feet (1524 meters), a minimum 85 octane/85 AKI (89 RON) gasoline is acceptable.

For carbureted engines, high altitude adjustment is required to maintain performance. Operation without this adjustment will cause decreased performance, increased fuel consumption, and increased emissions. Contact a Briggs & Stratton Authorized Service Dealer for high altitude adjustment information. Operation of the engine at altitudes below 2,500 feet (762 meters) with the high altitude adjustment is not recommended.

For Electronic Fuel Injection (EFI) engines, no high altitude adjustment is necessary.

Add Fuel

WARNING

Fuel and its vapors are extremely flammable and explosive. Always handle fuel with extreme care. Failure to Observe these safety instructions can cause fire or explosion which could result in severe burns or death.

When Adding Fuel

• Stop the engine and let the engine cool at least 3 minutes before you remove the fuel cap.
• Extinguish all cigarettes, cigars, pipes, and other sources of ignition.
• Fill fuel tank outdoors or in well-ventilated area.
• Do not overfill fuel tank. To allow for expansion of the fuel, do not fill above the bottom of the fuel tank neck.
• Keep fuel away from sparks, open flames, pilot lights, heat, and other ignition sources.
• Check fuel lines, tank, cap, and fittings frequently for cracks or leaks. Replace if necessary.
• If fuel spills, wait until it evaporates before you start the engine and avoid creating any source of ignition.

• Use only an approved fuel container.

• Remove unwanted material from the fuel cap area.

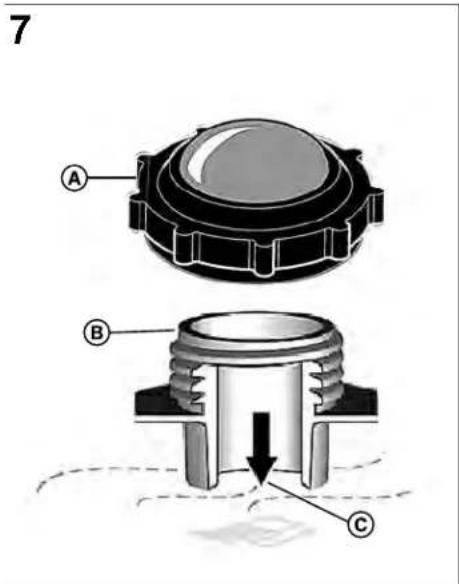

• Remove the fuel cap (A, Figure 7).
• Fill the fuel tank (B) with fuel. DO NOT fill above the bottom of the fuel tank neck (C).
• Install the fuel cap.

Start the Engine

WARNING

Fuel and its vapors are extremely flammable and explosive.

Fire or explosion can cause severe burns or death.

When you start the engine:

• Make sure that spark plug, muffler, fuel cap, and air cleaner (if equipped) are installed correctly.
• Do not crank the engine with spark plug removed.
• If the engine floods, set the choke (if equipped) to the OPEN/RUN position, move the throttle (if equipped) to the FAST position and crank until engine starts.

WARNING

Engines give off carbon monoxide, an odorless, colorless, poison gas.

Breathing carbon monoxide can cause nausea, fainting, or death.

Fire or explosion can cause severe burns or death.

• Start and operate the engine outdoors.

• Do not start or operate the engine in enclosed area, even if doors or windows are open.

• Check the oil level. See Check and Add Engine Oil.

• Make sure that the equipment drive controls are disengaged.

• Sit in the seat and lift UP the seat adjustment lever to lock the seat in position.
• Engage the parking brake control (I, Figure 8). Push the brake pedal, pull OUT the parking brake control, and release the brake pedal.
• Push the PTO switch (E) to disengage it.
• Set the throttle/choke control (J) to the CHOKE position.
  Note: A warm engine does not require choking.

Note: Some engines are equipped with a separate choke control.

Note: Some engines are equipped with a ReadyStart ^® feature, and do not feature a choke.

1. Put the key into the ignition switch (C) and turn it to the START position. For push-button start models, push the button two times and hold until the engine starts.
2. After the engine starts, move the throttle control to half speed. Make sure that the engine is ON for a minimum of 30 seconds. This will warm the engine.
3. Set the throttle control to the FAST position.

Note: In the event of an emergency, turn the ignition switch to the OFF position. This will STOP the engine. See Stop the Engine.

Note: If the engine does not start after 2 or 3 attempts, contact an Authorized Service Dealer.

Stop the Engine

Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death.

- Do not choke the carburetor to stop the engine.

1. Release the ground speed pedals (O, Figure 9).
2. Disengage the Power Take-Off (PTO) switch (E). Wait for all moving parts to stop.
3. Move the throttle control (J) to the SLOW position.
4. Turn the ignition key switch (C) to the OFF position. Remove the key.
5. Engage the parking brake control (I). Push the brake pedal (U), pull UP on the parking brake control, and release the brake pedal.

In the event of an emergency, turn the ignition switch to the OFF position. This will STOP engine.

Tractor Operation

1. Sit in the seat and adjust the seat so that you can comfortably reach all the controls. See Features and Controls.
2. Engage the parking brake:

A. Fully push DOWN on the brake pedal.
B. Pull UP on the parking brake control.
C. Release the brake pedal.

1. Disengage the PTO.
2. Start the engine. See Start the Engine.
3. Disengage the parking brake:

A. Fully push DOWN on the brake pedal.
B. Push IN the parking brake control.
C. Release the brake pedal.

1. Push DOWN on the speed control pedal to move forward. Release the pedal to STOP.

Note: The further down the pedal is pushed the faster the tractor will move.

1. Stop the tractor:

A. Release the speed control pedals.
B. Set the parking brake.
C. STOP the engine. See Stop the Engine.

Cruise Control

1. Push DOWN on the ground speed pedal (O, Figure 3). See Features and Controls.
2. When you reach the desired speed, pull UP on the cruise control. The cruise control will lock in one of its five locking positions.
3. Push DOWN on the brake pedal (U, Figure 3) or on the ground speed pedal to disengage the cruise control. See Features and Controls.

Mowing

DANGER

This machine is capable of amputating hands and feet, and throwing objects. Failure to obey the safety instructions could result in serious injury or death.

• Only operate the machine in daylight hours or good artificial light.
• Avoid holes, ruts, bumps, rocks, or other hidden hazards.

Uneven terrain can overturn the machine or cause operator to lose their balance or footing.

• Do not direct discharge material toward anyone. Avoid discharging material against a wall or obstruction as material may ricochet back toward the operator.
• Stop the blade(s) when crossing gravel surface.

• Do not leave a running machine unattended. Always park on level ground, disengage the attachment, set parking brake, stop engine and remove starter insert or key.

• Engage the parking brake control (I, Figure 3).

• Make sure the PTO switch (E) is disengaged.

• Start the engine. See Start the Engine.

• Set the throttle control (J) to the FAST position.

• Engage the PTO to activate the mower blades.
• Use the Height-of-Cut Electric Switch (R) to set the cutting height to the desired level. See Adjusting the Mower Cutting Height.
• Disengage the parking brake control, then begin to mow.
• Disengage the PTO.
• STOP the engine. See Stop the Engine.

WARNING

The engine will STOP if the reverse ground speed pedal is depressed while the PTO is ON and the RMO has not been activated. Always disengage the PTO OFF before tractor operation. Sudden loss of drive could create a hazard.

CentreCut™ Mower Decks

Some models feature a CentreCut ^™ mower deck that can be configured for side discharge or rear eject operation.

To convert between available mower deck configurations, see your dealer.

WARNING

A complete Configuration Kit must be fully installed on the CentreCut ^™ mower deck before operation. Do not operate the unit without a complete Configuration Kit fully installed. See your dealer.

Adjust the Mower Cutting Height

The mower lift lever (Q, Figure 3) lowers the deck to cutting position or raises the deck to the transport position.

1. Lower the deck:

A. Slightly pull back on the mower lift lever.
B. Push the mower lift lever to the left.
C. Push DOWN on the mower lift lever.

1. Raise the deck:

A. Pull UP on the mower lift lever.
B. Lock in the notch to the right.

Note: DO NOT cut when the deck is raised to transport position.

Note: The height-of-cut switch (R, Figure 3) controls the mower cutting height. It adjusts the cutting height between 1.5

- 3.5 in. (2.5 - 8.89 cm). See Specifications.

Reverse Mowing Option (RMO)

DANGER

Mowing in reverse can be hazardous to bystanders. Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. Never assume that children will remain where you last saw them.

• Keep children out of the operating area and under the watchful care of a responsible adult.
• Do not carry passengers, especially children, even with the blade(s) shut off. Children can fall off and be seriously injured or interfere with the safe machine operation. Children who have been given rides in the past can suddenly appear in the mowing area for another ride and be run over or backed over by the machine.
• Do not mow in reverse unless absolutely necessary. Always look down and behind before and while backing.
• If the machine mows in reverse without Reverse Mowing Option activated, see an authorized dealer immediately.

Illustration of a person using a grassy tractor with a steering wheel (no text or symbols)

1. Engage the Power Take-Off (PTO) (E, Figure 3).
2. Set the Reverse Mowing Option (RMO) key (B) to the ON position.
3. The L.E.D. light comes on.
4. The operator mows in reverse.

Note: Remove the key to restrict access to the RMO.

Maintenance

WARNING

Unintentional sparking can result in fire or electric shock. Unintentional start-up can result in entanglement, traumatic amputation, or laceration.

Before adjustments and repairs:

• Disconnect the spark plug wire. Keep it away from the spark plug.
• On electric start engines, disconnect the battery at the negative (-) terminal.
• Use ONLY the correct tools.
• DO NOT tamper with the governor spring, links, or other parts to increase engine speed.
• Replacement parts must be of the same design and installed in the same position as the original parts. Other parts may not perform as well, may damage the unit, and may result in injury.
• DO NOT strike the flywheel with a hammer or hard object because the flywheel can shatter during operation.

Maintenance Schedule

RIDER AND MOWER

Every 8 Hours or Daily

Check the Safety interlock system.

Remove unwanted material from the rider, mower deck, and engine compartment.

Every 25 Hours or Annually\*

Check the tire pressure.

Check the mower blade stopping time.

Check for loose hardware on the rider and mower.

Every 50 Hours or Annually

Clean the battery and cables.

Check the rider brakes.

See a Briggs & Stratton Authorized Service Dealer Annually

Lubricate the rider and mower.

Mower blades check**

*Whichever comes first.

**Check the mower blades more often in regions with sandy soils or high dust conditions.

ENGINE

First 5 Hours

Change the engine oil.

Every 8 Hours or Daily

Check the engine oil level.

Every 25 Hours or Annually

Clean the air filter and pre-cleaner.**

Every 50 Hours or Annually\*

Change the engine oil.

Replace the oil filter.

Annually

Replace the air filter.

ENGINE

Replace the pre-cleaner.

See Dealer Annually to

Inspect the muffler and spark arrester.

Replace the spark plugs.

Replace the fuel filter.

Clean the air cooling system.

*Whichever comes first.
**Clean more often in dusty conditions or when airborne material is present.

Tire Pressure Check

For the correct traction and the best mowing performance, make sure that the tire inflation pressure is 12-14 psi (0,82-0,96 bar). Refer to Tire Pressure Check in the Maintenance Schedule. Also, see Tire Inflation Pressure in the Specifications section.

Note: There can be a difference in tire inflation pressure from the "Maximum Inflation" shown on the side of the tires.

Battery Maintenance

Clean the Battery and Cables

WARNING

When you remove or install battery cables, always disconnect the NEGATIVE (black) cable FIRST and reconnect it LAST. If not done in this order, the positive terminal can be shorted to the frame by a tool.

Note: DO NOT remove or connect the battery cable while the engine is ON.

1. STOP the engine. Remove the key.

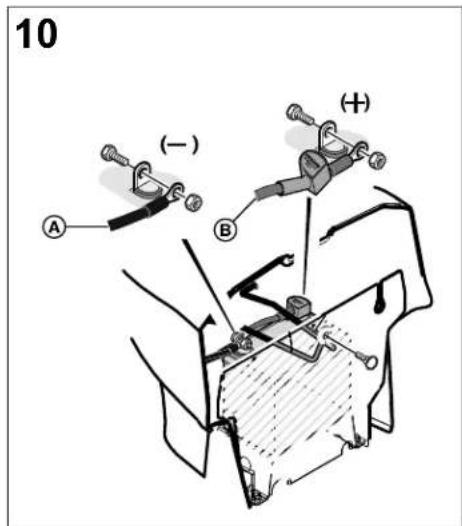

2. Disconnect the NEGATIVE (-) cables (A, Figure 10) from the battery first.
3. Disconnect the POSITIVE (+) cables (B) from the battery last.
4. Clean the battery surface with baking soda and water.
5. Use a wire brush and terminal cleaner to to clean the battery terminals and cable ends.
6. Lubricate the battery terminals with petroleum jelly or non-conducting grease.
7. Install the battery.
8. Connect the POSITIVE (+) cables to the battery first.
9. Connect the the NEGATIVE (-) cables to the battery last.

Charge the Battery

WARNING

Keep open flames and sparks away from the battery. Gasses from the battery are very explosive.

A dead battery or one too weak to start the engine can be the result of a defect in the charging system or other electrical component. If there are doubts about the cause of the problem, see an Authorized Service Dealer. To replace the battery, see Clean the Battery and Cables.

Mower Blade Stop Time

WARNING

If the mower blade does not STOP in 5 seconds or less, the clutch must be adjusted. DO NOT operate the machine until the adjustment has been corrected by a Briggs & Stratton Authorized Service Dealer.

After the Power Take-Off (PTO) switch turns OFF, the mower blades and mower drive belt must STOP in 5 seconds or less. If the mower drive belt does not STOP in 5 seconds, contact Briggs & Stratton Authorized Service Dealer for repairs.

Change the Engine Oil

1. Put the rider on a level surface (A, Figure 11).
2. Stop the engine and remove starter insert or key (B).
3. Clean the oil fill and filter areas.
4. Remove the dipstick (C).
5. Disconnect the oil drain hose (A, Figure 12)
6. Carefully remove the cap (B), and lower the hose into an approved container (C).
7. After the oil has drained, install the cap tightly, then attach the hose to the side of the engine.

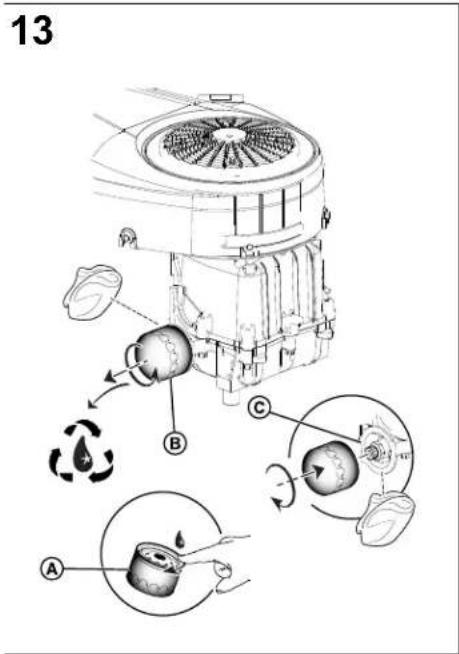

8. Remove the oil filter (B, Figure 13) and discard.
9. Lightly lubricate the oil filter gasket (A) with clean oil.
10. Install the oil filter by hand until the gasket touches the oil filter adapter (C). Then, tighten the oil filter 1/2 to 3/4 turns.
11. Add oil. Refer to the Check and Add Oil section.

Air Filter Assembly (Cartridge with pre-cleaner)

WARNING

DO NOT start or operate the engine without an air cleaner assembly or air filter as it is a fire hazard.

NOTICE DO NOT use pressurized air or solvents to clean the air filter. Pressurized air can damage the filter and solvents will dissolve it.

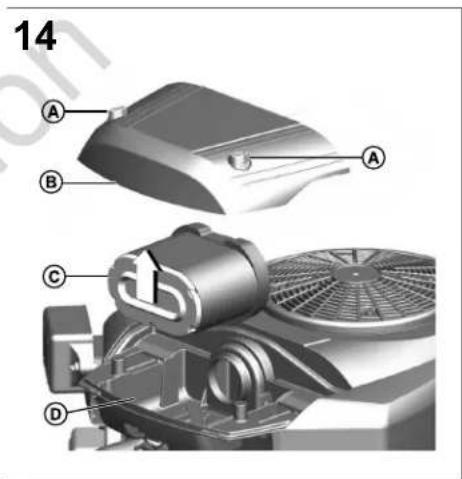

1. Loosen the fasteners (A, Figure 14) and remove the cover (B).
2. Remove the air cleaner assembly (C) and disassemble it.
3. Remove unwanted material or debris that can get into the carburetor throat (D).

4. Remove the pre-cleaner from the air filter.

5. Lightly tap the air filter on a hard surface to loosen debris. If the air filter is dirty, replace it.

6. Soak the pre-cleaner in liquid detergent and water. Let it fully air dry. DO NOT lubricate the pre-cleaner.
7. Assemble the dry pre-cleaner to the air filter.
8. Install the air filter assembly.
9. Install the cover and tighten the fasteners.

Push the Tractor By Hand

1. Disengage the Power-Take-Off (PTO) (E, Figure 3).
2. STOP the engine. See Stop the Engine.
3. Pull the transmission release lever (S, Figure 15). Then, push the lever down to lock in position.
4. The rider can be pushed by hand.

WARNING

Towing the unit will cause transmission damage. Do not use another vehicle to push or pull this unit. Do not actuate the transmission release lever while the engine is ON.

Check the Spark Plugs

WARNING

Unintentional sparking can result in fire or electric shock.

Unintentional start-up can result in entanglement, traumatic amputation, or laceration.

When you test for spark:

• Use an approved spark plug tester.
• DO NOT check for spark with the spark plug removed.

NOTICE Spark plugs have different heat ranges. It is important that the correct spark plug is used, otherwise, engine damage can occur. Replace the spark plug with the same type or equivalent one.

Clean the Spark Plugs

Clean the spark plugs with a wire brush and sturdy knife. DO NOT use abrasives.

Check the Spark Plug Gap

Use a spark plug feeler gauge (Å, Figure 16) to check the gap between the two electrodes. When the gap is correct, the gauge will drag slightly as you pull it through the gap.

To adjust the spark plug gap, use a spark plug gauge and gently bend the curved electrode. Make sure that you do not touch the center electrode or the porcelain.

Install the Spark Plugs

Tighten the spark plug with your fingers, and then, tighten it with a wrench as shown in Figure 17.

• 180 in-lbs (20 Nm), OR
- 1/2 turn when you install the original spark plug, OR
- 1/4 turn when you install a new spark plug.

Towed Equipment

1. Before you tow the unit, make sure that the hitch is designed for towing.
2. Attach towed equipment ONLY at the hitch point.
3. For towed equipment and towing on slopes, make sure that the weight limit recommendations are correct.
4. Gross weight (trailer and load) of 400 lb (181.4 kg).
5. Maximum of 20 lb (9.1 kg) foot up or down on the tongue.

6. Go from a 10^ limit to a 5^ limit on slopes.

7. DO NOT let children or others in or on towed equipment.

8. The weight of the towed equipment on slopes can cause loss of traction and loss of control.
9. DO NOT shift to neutral and coast down hill.

Clean the Mower Deck (if equipped)

Note: Use the washout port (C, Figure 18) to clean the bottom of the mower deck.

1. Put the rider on a smooth level surface.

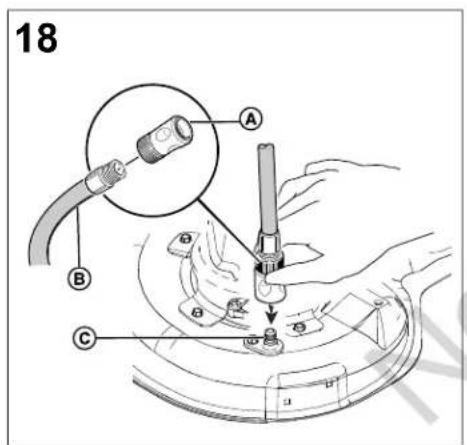

2. Attach the quick disconnect (A, Figure 18) to the garden hose (B) and then connect to the washout port (C) on the mower deck.
3. Turn the water ON.
4. Start the engine. See Start the Engine.
5. Set the Height-of-Cut to the highest position. See Adjust the Mower Cutting Height.
6. Engage the Power Take-Off (PTO) to activate the mower blades. The rotation of the blades and the water will clean the bottom of the mower deck.
7. Disengage the PTO.
8. Stop the engine. See Stop the Engine.
9. Turn the water OFF.
10. Remove the garden hose and quick disconnect from the washout port (C).

Storage

WARNING

Never store the unit (with fuel) in an enclosed, non-ventilated structure. Fuel vapors can travel to an ignition source (such as a furnace, water heater, etc.) and cause an explosion.

- Store away from furnaces, stoves, water heaters, or other appliances that have pilot lights or other ignition sources because they can ignite fuel vapors.

Equipment

Turn OFF the Power Take-Off (PTO), and set the parking brake. Remove the starter insert. Let the machine cool.

If you remove the battery, the battery life will increase. Make sure that the battery is in a cool, and dry location, and keep

it fully charged. If the battery is left in the unit, disconnect the negative cable.

Fuel System

Fuel can become stale when kept in a storage container for more than 30 days. Each time you fill the container with fuel, add fuel stabilizer to the fuel as specified by the manufacturer's instructions. This keeps fuel fresh and decreases fuel-related problems or contamination in the fuel system.

It is not necessary to drain fuel from the engine when fuel stabilizer is added as instructed. Before storage, turn the engine ON for 2 minutes to move the fuel and stabilizer through the fuel system.

Before starting the machine after it has been stored:

• Check all fluid levels. Check all maintenance items.
• Do all recommended checks and procedures found in this manual.
• Make sure the engine is warm before you use it.

Troubleshooting

Troubleshooting the Rider

PROBLEM LOOK FOR REMEDY
The engine will not turn over or start.	The brake pedal is not pushed down. Fully push down on the brake pedal.
	The fuel tank is empty. If engine is hot, let it cool, and then fill the fuel tank again.
	The PTO switch is in ON position. Set the PTO switch to the OFF position.
	The cruise control is engaged. Set the cruise control to the NEUTRAL/OFF position.
	The engine is flooded. Disengage the choke.
	The battery terminals are dirty. Refer to Clean the Battery and Cables.
	The battery is discharged or dead. Charge or replace the battery.
	Loose or broken wiring. Visually check wiring. If wires are frayed or broken, see an Authorized Service Dealer.
The engine starts hard or runs poorly. The fuel mixture is too rich. Clean the air filter.
	Low oil level. Check and add oil as required. The engine knocks.
	Incorrect grade of oil. Refer to the Check and Add Engine Oil section.
Excessive oil consumption.	The engine is too hot. Check the engine fins, blower screen, and air cleaner (if equipped).
	Incorrect grade of oil.	Refer to the Check and Add Engine Oil section.
	Too much oil in crankcase.	Drain excess oil.
The engine exhaust is black.	The air filter is dirty.	Refer to the Air Filter Assembly section.
	The choke is closed.	Open the choke.
The engine runs, but the rider will not drive.	The speed control pedals are not pushed down.	Push down on the speed control pedals.
	The transmission release lever is in the PUSH position.	Move the transmission release lever to the DRIVE position.
	The parking brake is engaged.	Disengage the parking brake.
The rider steers hard or handles poorly.	Incorrect tire inflation.	Refer to the Check Tire Pressure section.

Note: For all other problems, contact an Authorized Service Dealer.

Troubleshooting the Mower

PROBLEM LOOK FOR REMEDY
The mower cut is uneven.	The tires are not correctly inflated.	Refer to theTire Pressure Checksection.
The mower cut looks rough.	The engine speed is too slow.	Set to FAST throttle.
	The ground speed is too fast.	Slow down.
The engine stalls easily with the mower engaged.	The engine speed is too slow.	Set to FAST throttle.
	The ground speed is too fast.	Slow down.
	Dirty or clogged air cleaner.	Refer to theAir Filter Assemblysection.
	Height-of-Cut is set too low.	Cut tall grass at maximum Height-of-Cut during first pass.
	The engine is not at the operating temperature.	START the engine, and let it warm for several minutes.
The engine starts, and the rider drives, but the mower will not cut.	The Power-Take Off (PTO) is disengaged.	Engage the PTO.

Note: For all other problems, contact an Authorized Service Dealer.

Specifications

Specifications Chart

Item 2691481, 2691487, 2691683, 2692020, 2692023		2691714
Engine EXi SeriesTM Briggs & Stratton EXi SeriesTM	Briggs & Stratton
Displacement 656 cc 656 cc
Electrical System 9-Amp 9-Amp
Battery 12V - 195CCA / 230CCA 12V - 195CCA / 230CCA
Oil Capacity 64 oz (1,9 L) 64 oz (1,9L)
Spark Plug Gap .030 in (.76 mm) .030 in (.76 mm)
Spark Plug Torque 180 lb-in (20 Nm) 180 lb-in (20 Nm)
Fuel Tank Capacity 13.2 L 11 L
Transmission
Make and Type	Tuff Torq®K46 Tuff Torq	®K46
Chassis
Front Wheel Size 15 x 6-6	15 x 6-6
Front Wheel Inflation Pressure 12 - 14 psi (0,82 - 0,92 Bar)	12 - 14 psi (0,82 - 0,92 Bar)
Rear Wheel Size	20 x 8-8	20 x 8-8
Rear Wheel Inflation Pressure	10 psi (0,68 Bar)	10 psi (0,68 Bar)
Item	2691700, 2691701, 2691715	2691702, 2691685, 2691703
Engine EXi SeriesTM Briggs & Stratton PXi SeriesTM	Briggs & Stratton
Displacement 656 cc 725 cc
Electrical System 9-Amp 9-Amp
Battery 12V - 195CCA / 230CCA 12V - 230CCA
Oil Capacity 64 oz (1,9 L) 64 oz (1,9 L)
Spark Plug Gap .030 in (.76 mm) .030 in (.76 mm)
Spark Plug Torque 180 lb-in (20 Nm) 180 lb-in (20 Nm)
Fuel Tank Capacity 11 L	11 L
Transmission
Make and Type	Tuff Torq®K46 Tuff Torq	®K46
Chassis
Front Wheel Size 15 x 6-6	15 x 6-6
Front Wheel Inflation Pressure 12 - 14 psi (0,82 - 0,92 Bar)	12 - 14 psi (o,82 - 0,92 Bar)
Rear Wheel Size	22 x 10-8	22 x 9.5-12
Rear Wheel Inflation Pressure	10 psi (0,68 Bar)	10 psi (0,68 Bar)
Item	2691926, 2691928	2691927, 2691929
Engine EXi SeriesTM Briggs & Stratton PXi SeriesTM	Briggs & Stratton
Displacement 656 cc 725 cc
Electrical System 9-Amp 9-Amp
Battery 12V - 195CCA / 230CCA 12V - 230CCA
Oil Capacity 64 oz (1.9 L) 64 oz (1.9 L)
Spark Plug Gap .030 in (.76 mm) .030 in (.76 mm)
Spark Plug Torque 180 lb-in (20 Nm) 180 lb-in (20 Nm)
Fuel Tank Capacity 15 L	15 L
Transmission
Make and Type	Tuff Torq®K46 Tuff Torq	®K46
Chassis
Front Wheel Size 15 x 6-6	15 x 6-6
Front Wheel Inflation Pressure 12 - 14 psi (0,82 - 0,92 Bar)	12 - 14 psi(0,82 - 0,92 Bar)

Item 2691926, 2691928 2691927, 2691929
Rear Wheel Size 22 x 10-8 22 x 9.5-12
Rear Wheel Inflation Pressure 10 psi (0,68 Bar) 12 psi (0,82 Bar)

Power Ratings Disclaimer

Power Ratings: The gross power rating for individual gasoline engine models is labeled in accordance with SAE (Society of Automotive Engineers) code J1940 Small Engine Power & Torque Rating Procedure, and is rated in accordance with SAE J1995. Torque values are derived at 2600 RPM for those engines with "rpm" called out on the label and 3060 RPM for all others; horsepower values are derived at 3600 RPM. The gross power curves can be viewed at www.BRIGGSandSTRATTON.COM. Net power values are taken with exhaust and air cleaner installed whereas gross power values are collected without these attachments. Actual gross engine power will be higher than net engine power and is affected by, among other things, ambient operating conditions and engine-to-engine variability. Given the wide array of products on which engines are placed, the gasoline engine may not develop the rated gross power when used in a given piece of power equipment. This difference is due to a variety of factors including, but not limited to, the variety of engine components (air cleaner, exhaust, charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this engine.

A B C D E F G H

B

① 7106193 ② ③

Illustration of a person riding a grassy tractor with a dotted line indicating motion (no text or symbols)

A B C D E F G H

B

Four yellow safety warning signs with pictograms and Chinese labels, including correct/incorrect actions and a numbered step ①.

DANGER/POISON SHIELD EXCELLE EXPLOSING GASES CAN CAUSE BLINNESS OR FLUSTRY, NO EXIT • SPANKS • FLAMES • SMOKING PELIGRO/VENENO SULPURE ACID CAN CAUSE BLINNESS OR SEVERE BURNS, FLUSH EYES IMMEDIATELY WITH WATER Failure to prevent severe after discharge, change for children of a long of 100 gm. KEEP OUT OF THE REACH OF CHILDREN READ ALL INSTRUCTIONS. DO NOT OPEN BATTERY! DO NOT TIP! 12V More is able with Oil and water Pb

Illustration of a person operating a grassy tractor with a steering wheel (no text or symbols)

A B C D E F G H

B

Warning sign showing hazard symbols and safety instructions for workers on a bridge, including collision avoidance, safety change, and contact.

DANGER/POISON SHIELD EXCELLE EXPLOSING GASES CAN CAUSE BLINNESS OR FLUSTRY, NO EXIT • SPANKS • FLAMES • SMOKING PELIGRO/VENENO SULPURE ACID CAN CAUSE BLINNESS OR SEVERE BURNS, FLUSH EYES IMMEDIATELY WITH WATER Failure to prevent severe after discharge, change for children of a long of 100 gm. KEEP OUT OF THE REACH OF CHILDREN READ ALL INSTRUCTIONS. DO NOT OPEN BATTERY! DO NOT TIP! 12V More is able with Oil and gas needed. Pb

Illustration of a person riding a grassy tractor with a steering wheel (no text or symbols)

A B C D E F G H

B

Warning sign showing hazard symbols and safety instructions for workers on a bridge, including collision avoidance, lifting weight, and using a valve.

DANGER/PO/SON SHERD EYES. EXPLOSIVE GASES CAN CAUSE BLESSNESS OR INJURY, NO ENTER • SPARKS • FLAMES • SMOKING PELIGRO/VENENO SULFURIC ADDI CAN CAUSE BLESSNESS OR SOVERE BURNS, FLURM EYES IMMEDIATELY WITH WATER Battery to put into action after alarm charge, change for failure of 1 hour and 20 hours. KEEP OUT OF THE REACH OF CHILDREN READ ALL INSTRUCTIONS. DO NOT OPEN BATTERY! DO NOT TIP! 12V Mark is Life with 10% and important materials Pb

Illustration of a person riding a grassy tractor with a dotted line indicating a trail or path (no text or symbols)

A B C D E F G H

B

① 7106109 ② ③

Illustration of a person using a grassy tractor with a dotted line indicating motion (no text or symbols)

A B C D E F G H

B

Warning sign showing hazard symbols and safety instructions for workers, including collision avoidance, mechanical device, and safety symbols

Pb CO2 -100% #1731

DANGER/PO/SON SHIELD EYES. EXPLOSIVE GABES CAN CAUSE BINDNESS OF FLUSTRY. NO ENTER + SPARKS + FLAMES + SMOKING PULFURIC ACIDS CAN CAUSE BINDNESS OR SOVERE BUTTING. FLUSH EYES IMMEDIATELY WITH WATER. $ safety to put into service for your health? Change for your life? Can you need to be able to get a better safety KEEP OUT OF THE REACH OF CHILDREN. READ ALL INSTRUCTIONS. DO NOT OPEN BATTERI? DO NOT TIP? 12V Make a list with Oil and importers needed. Pb

Illustration of a person using a grassy tractor with a dotted line indicating motion (no text or symbols)

Not for Reproduction

Spécifications

A B C D E F G H

B

Warning sign showing hazard symbols and safety instructions for workers, including collision avoidance, handover, and contact with a device.

Illustration of a person riding a grassy tractor with a dotted line indicating a trail or path (no text or symbols)

Attrezzature trainate

Aanhanguitrusting....166

A B C D E F G H

B

① 7106199 ② ③

Definities pictogrammen veiligheidsstickers

Illustration of a person riding a grassy tractor with a dotted line indicating motion (no text or symbols)

A B C D E F G H

B

① 7106199 ② ③

Forklaringer som gjelder skiltene som angår sikkerhet

Klipping i revers (RMO)

Illustration of a person using a grassy tractor with a dashed line indicating motion (no text or symbols)

Sett inn tennpluggene

A B C D E F G H

B

7106109 ① ② ③

DANGER/PO/SON SHIELDS EYES, EXPLOSIVE GARES CAN CAUSE BLINNESS OR FLUORK. NO ENTERS • SPARKS • FLAMES • SMOUNG SULFURIC ACID CAN CAUSE BLINNESS OR SOVERE BUTTING. FLUSH EYES IMMEDIATELY WITH WATER. Battery is put into secure after date errors, change for failure of them and 10 items. KEEP OUT OF THE REACH OF CHILDREN. READ ALL INSTRUCTIONS. DO NOT OPEN BATTERIT: DO NOT TIP! 12V Make a 100mm in 500x400mm diameter Pb

A Painel de Instrumentos Eletrónico

B Op - C, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z, A, C,D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y,Z, A, B, C,D, E, F, G, H, I, J, K, L, M,N, O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D, E, F, G, H, I, J, K, L, M,N, O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,E, F, G, H, I, J, K, L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,E, F, G, H, I, J, K, L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,E, F, G, H, I, J, K, L, M,M,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,E, F, G, H, I, J, K, L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,E, F, G, H, I, J, K, L,M,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,E, F, G, H, I, J, K, L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,E, F, G, H, I, J, K,L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,D,E,F, G, H, I,J, K, L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,D,E,F, G, H, I,J, K, L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,D,E,F, G, H, I,J,K, L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,D,E,F, G, H, I,J,K, L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,D,E,F, G, H, I,j,K, L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,D,E,F, G, H, I,J,K, L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,D,E,F, G, H,I,J,K, L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,D,E,F, G, H, I,J,K, L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,D,E,F, G,H, I,J,K, L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,D,E,F, G,H, I,J,K, L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,D,E,F,G,H, I,J,K, L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,D,E,F,G,H, I,J,K, L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,D,E,G,H, I,J,K, L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,D,E,F,G,H, I,J,K, L, M,N,O, P, Q, R, S, T, U, V, W, X, Y, Z, A, B, C,D,D+E,F,G,H,I,G,H,J,G,H,K,L,G,H,L,M,G,H,L,N,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,LP,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L:P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L.P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L ,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H,L,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H , P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,T,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T,P,G,H,T ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G.H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,GH ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G:H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G,H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G- ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G - ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,GH ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-L ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-I ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-II ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-N ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-H ,P,G-C,D,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E:F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E.F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E+F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,f,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,EF,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E,F,E, G H I J K I J K I J K I J K I J K 、 G H I J K I J K I J K I K I J K I J K I J K I J 、 G H I J K I J K I J K I G H I J K I J K I J K I I J K I J K I J K I J K . (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) G (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G)(G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (C) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) G (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) GH (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) (G) \( \left( \mathrm{G}\right) \left( \mathrm{H}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{II}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{III}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{V}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{IV}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{VI}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{U}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{O}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{H}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{II}\right) \left( \mathrm{II}\right) \left( \mathrm{II}\right) \left( \mathrm{II}\right) \left( \mathrm{II}\right) \left( \mathrm{II}\right) \left( \mathrm{II}\right) \left( \mathrm{II}\right) \left( \mathrm{II}\right) \left( \mathrm{II}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{I}\right) \left( \mathrm{II}\right) \left( \mathrm{III}\right) \left( \mathrm{III}\right) \left( \mathrm{III}\right) \left( \mathrm{III}\right) \left( \mathrm{III}\right) \left( \mathrm{III}\right) \left( \

Illustration of a person riding a grassy tractor with a dotted line indicating motion (no text or symbols)

A B C D E F G H

B

① 7106159 ② J ③

Pb Hazard Loss Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity Electricity

DANGER/PO/SON SHIELD EYES. EXPLOSIVE GASES CAN CAUSE BILNDNESS OR INJURY. NO SWITCH • SPARDS • FLAMES • SMOKING PELIGRO/VENENO SULFURIC ACID CAN CAUSE BILNDNESS OR SEVERE BUTYS. FLUSH EYES IMMEDIATELY WITH WATER. Keep OUT OF THE REACH OF CHILDREN. READ ALL INSTRUCTIONS. DO NOT OPEN BATTERY! DO NOT TIP! 12V Make it Life with 100 gm pipe to make a Pb

Illustration of a person riding a grassy tractor with a dotted line indicating motion (no text or symbols)
