USER MANUAL Teakwood Glatz

EN Installation and operating instructions 18

Grasse [cm] [kg] [km/h (Bft)]

minimales

Gewicht

maximale

Windstärke*

PIAZZINO

03004030(5)

3505530(5)

300x300 5530(5)

TEAKWOOD

3004030(5)

3505530(5)

330x3307030(5)

[cm] [kg] [km/h (Bft.)]

3004030(5)
3505530(5)
300×3005530(5)

3004030(5)

3505530(5)

330× 3307030(5)

Optional accessories 19

Technical data

19

Safety information 20

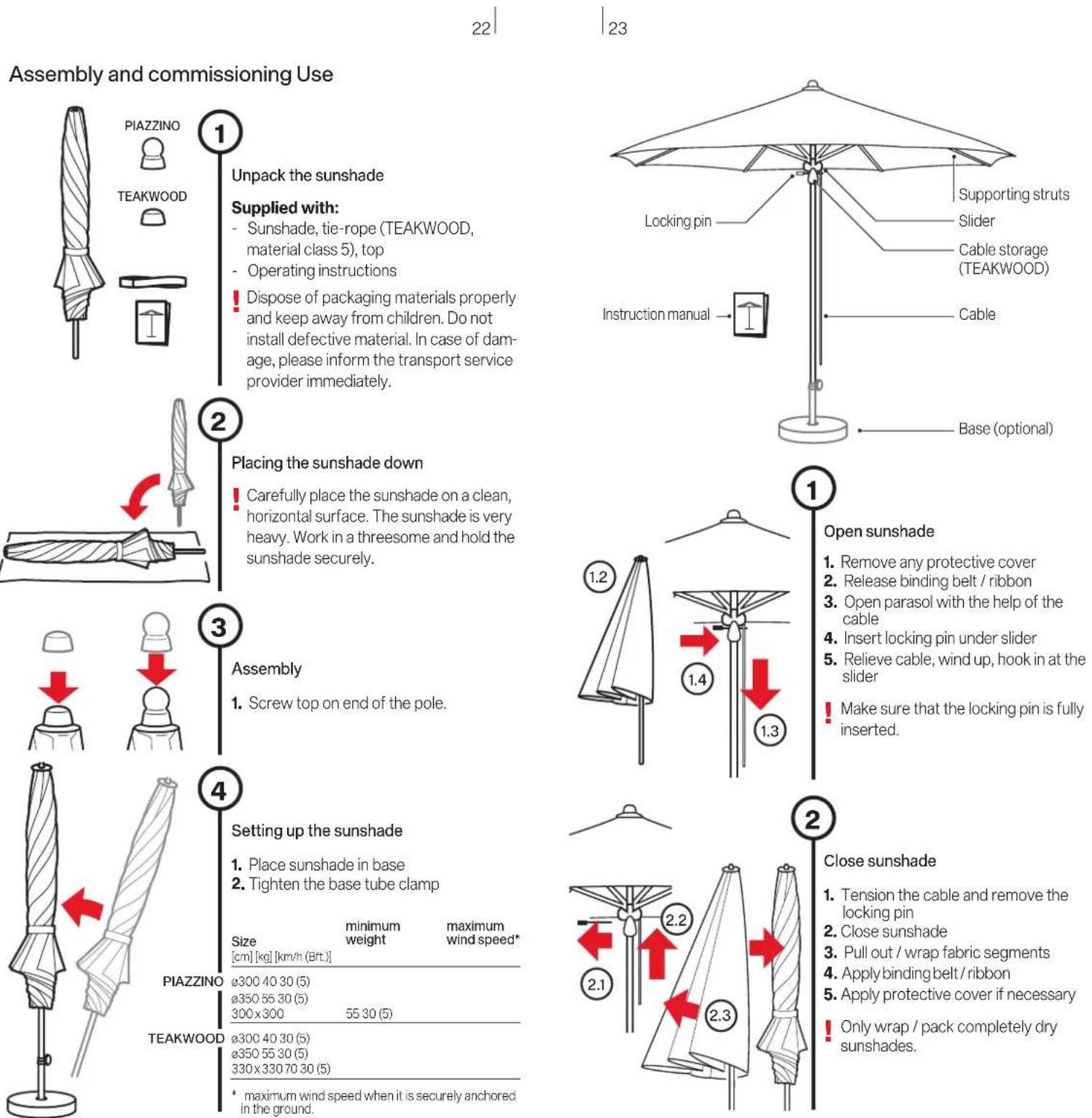

Installation and initial operation 22

Use 23

What to do if... 24

Care and maintenance 24

Disassembly 24

Warranty

25

Disposal 25

Intended use

The product serves as a device for the protection of the human body from solar radiation. The product may only be used in private households, in the catering and hotel sector or in a comparable environment. The product may only be used in accordance with these installation and operating instructions. Any use other than the uses described in these installation and operating instructions shall be considered improper use. We reserve the right to make modifications due to technical advances. In these instructions the PIAZZINO/ TEAKWOOD may also be referred to as 'the product' or 'sunshade'.

Warning words used

DANGEROUS Immediately dangerous situation which can result in death or severe injuries.

!CAUTION Potentially dangerous situation which can result in minor or moderate injuries.

INOTICE A situation that can lead to property damage.

19

Welcome

Congratulations on the purchase of your new PIAZZINO/TEAKWOOD. You have purchased a high quality sunshade. These instructions form part of this product. It contains important safety, usage and disposal information for users of the product. Please familiarise yourself with all the information listed before using the product. The product may only be used as described herein and for the use scenarios stated. If you continue to use it and care for it properly, your PIAZZINO/TEAKWOOD sunshade will serve you well for many years to come.

Optional accessories

A high quality range of accessories is included with your parasol: It includes, among other things, the following products, which go perfectly with your parasol:

• Base - Ground Socket
• Wall console - Protective cover
• OSYRION Spot

Consult your GLATZ dealer about this.

Technical data

Details when using the ground socket

Size [cm]	Base area [m2]	Closing height [cm]	Passage height [cm]	Overall height [cm]
ø300	6.4	95	205	260
ø350	8.7	80	205	270
300×300	9.0	50	205	275
ø300	6.4	135	220	285
ø350	8.7	105	215	285
330×330	10.9	45	220	285

Safety information

READ ALL THE SAFETY INFORMATION CAREFULLY AND MAKE SURE THAT YOU UNDERSTAND THEM.

• Follow all the instructions to avoid accidents, fire, explosions, electric shock or other hazards that could cause property damage and / or severe or fatal injuries.
• Ensure that each person using the product has read and observes these warnings and instructions.
• Keep these installation and operating instructions for the future. It must be passed on to subsequent users of the product.
• The manufacturer is not liable for material damages or injuries caused by incorrect use or the failure to observe the safety instructions. The warranty becomes invalid in such cases.
• The protective effect against hazardous UV radiation varies depending on the environment. Additional measures to protect your skin are possibly also necessary.
  Children must not play with the product.
• !DANGER Always keep children away from packaging material - this constitutes a choking hazard. Children underestimate risks. This product is not a toy.
• Children aged 8 years or over and persons with reduced physical, sensory or mental capabilities, lack of experience or knowledge may only use the appliance if they are supervised by a person who is responsible for their safety or if they have been shown how to use the appliance safely and they have understood the risks inherent in its use. Cleaning and maintenance tasks may not be carried out by children without supervision.
• Do not use the device if you are suffering from a lack of concentration /attention or under the influence of drugs, alcohol or medication.
• The product must be placed in a base or a ground sleeve that is firmly anchored.
• Do not allow the product to fall or knock against anything.
• Check the span of the sunshade before opening / closing it.
• Make sure there are no persons / objects in the movement area when opening / closing it. Otherwise, injuries / damage may occur.
• IDANGER Close the sunshade when the wind picks up, in stormy weather conditions and / or when snow is falling.
• Observe the specifications concerning the maximum per

missible wind speed for a fixed ground anchorage (ground sleeve inserted in concrete). The permissible wind speed is reduced if a different anchorage method is used.

• Unattended sunshades may not remain opened. Any damage is not covered by the warranty. Always secure closed sunshades with a binding belt / ribbon.
• Only use original accessories / spare parts.
• Product and technical modifications are not permitted.
• The sunshade must be monitored during opening and closing.
• Check sunshade and accessories regularly to be sure that no undue wear and tear or damage has occurred. If defects are found, have them repaired before further use.
• Do not use any solvents or abrasive cleaning agents.
• Dismantled sunshades should only be stored lying down.
• When using a fixed floor anchorage, the installation must be performed by specially trained persons in accordance with the separate installation instructions.
• Do no ignite a naked flame in the proximity of, or under, the parasol.
• Wood is a natural product and should not be exposed to rain for a long time.
• UV and weather influences can lead to color changes on the wood surface. These natural processes are no reason for complaints.
• The untreated teakwood in the TEAKWOOD can lead to slight discolorations in light-colored canopies.

Handling and maintenance

• Allow the sunshade to dry when open to prevent the formation of mould and discoluration.
• A protective sleeve protects the sunshade and will extend its service life.
• Only pull the protective sleeve over the dry sunshade when it is dry.
• Do not clean the protective sleeve in the washing machine. Do not use chemicals.
• Clean the sunshade cover when needed with lukewarm water, fine detergents and a sponge.
• Do not use any bleach or sharp objects, to avoid damage to the cover.
• Check the tightness of all screws from time to time and tighten them if necessary.
• If the sunshade is located in a highly exposed position, increased wear and tear must be expected. In such cases we recommend more intensive care and maintenance.
• In most cases, defective sunshades can be repaired by your GLATZ partner. Only use original replacement parts FROM GLATZ.

Disassembly

Dismantle the sunshade if it is not going to be used for a long time.

DANGER! DANGER OF TIPPING DANGER OF INJURY IF THE SUNSHADE TOPPLES OVER

1. Close and tie the sunshade properly.
2. Dismantle the sunshade in reverse mounting direction.
3. Store the sunshade in lying position together with all accessories in a dry place.

Warranty

Please contact your GLATZ partner before returning the product. The warranty on the sunshade lasts for 24 months from the date of purchase. The warranty expires in the following cases:

• External application of excessive force
• Inappropriate operation or maintenance of the sunshade
• Damage arising from force majeure

The wind guarantee for an open sunshade is limited. The maximum permissible wind speeds always require a fixed anchorage in the ground. If there are several sunshades, a minimum distance of 20cm must be maintained between any two of them. Likewise, a minimum distance of 20 cm must be maintained between the sunshade and walls.

Disposal

This symbol on the product, accessories or packaging indicates that the product must not be treated as unsorted domestic waste but must be disposed of separately. Dispose of the product at a designated recycling collection point. The packaging is made of environmentally friendly materials that can be disposed of at your local recycling facilities. By disposing of the product correctly, you will help to avoid possible environmental and health hazards. The product is made of metal and synthetic parts. End-of-life disposal must be carried out in accordance with regional environmental and waste regulations.
