USER MANUAL Colibri Buzz Rack

Line drawing of a car rear view with attached mechanical components, no text or symbols present

1 MAX 1 x 25kg MAX 1 x 55lbs

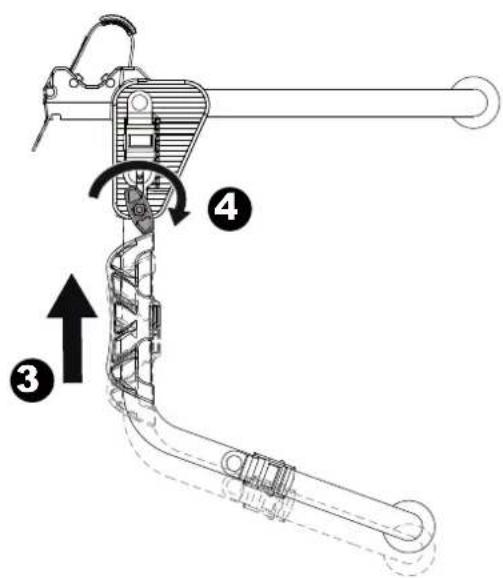

Technical diagram showing mechanical assembly steps with numbered annotations indicating motion directions

Technical diagram of a mechanical linkage system with numbered components and directional arrows indicating motion or assembly.

GB-US - Regular mounting: only attach to metallic edges!!!

Line drawing of a car viewed from the side, showing front and rear sections with no text or symbols

2

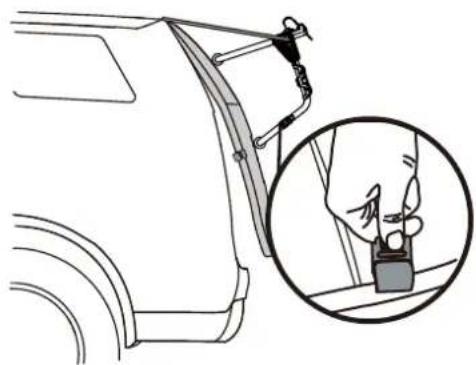

Line drawing of a car's seatbelt with an inset showing hand locking a lock (no text or symbols)

4

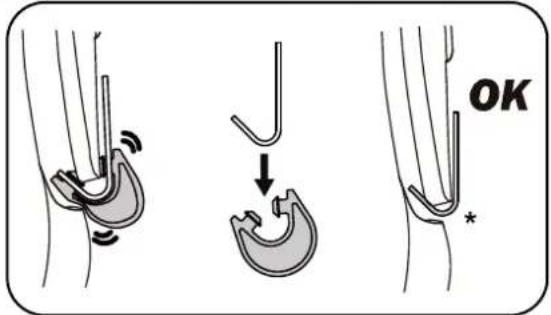

Diagram of a mechanical component with curved lines and an arrow indicating direction (no text or symbols)

6

Line drawing of a car front panel with two mounted sensors (no text or symbols)

8

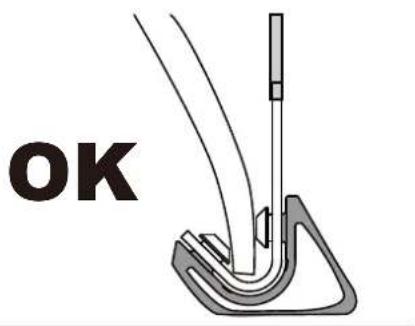

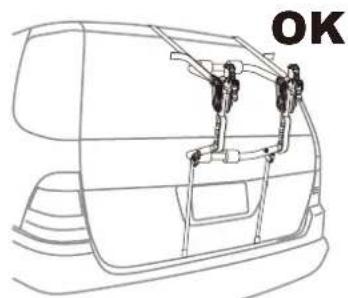

OK

1

Technical line drawing of a car door handle with an arrow indicating direction (no text or symbols)

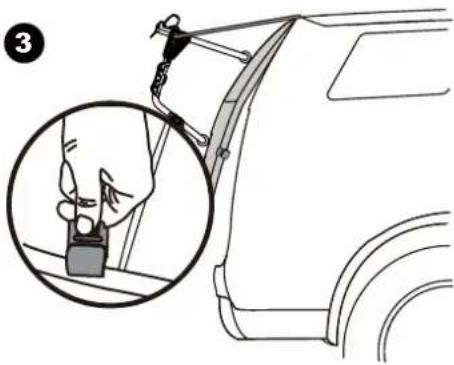

Diagram showing a hand inserting a car seatbelt into a vehicle compartment, with an inset magnified view of the seatbelt being inserted (no text or symbols present)

5

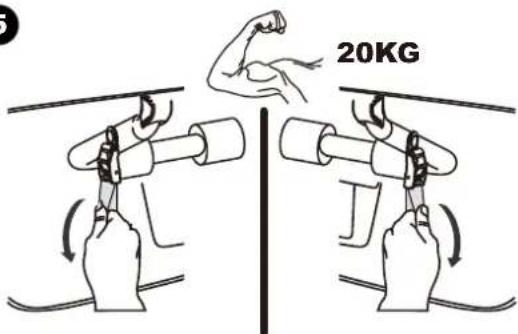

20KG

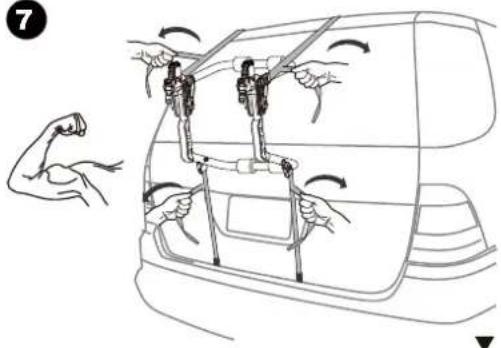

7

Line drawing of a car trunk with arms fastening and lifting a weight (no text or symbols)

					→→

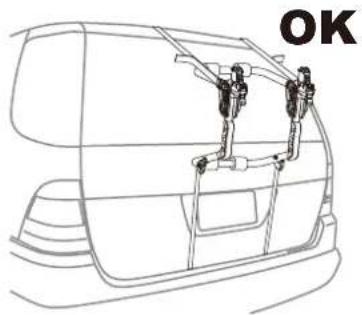

OK

GB-US - Mounting on vehicles without metal frame: with composite material trunk or hatch, or glass rear window, or back wind shield.

Line drawing of a car's rear window with no text or symbols

GB-US - Lower straps specific mounting

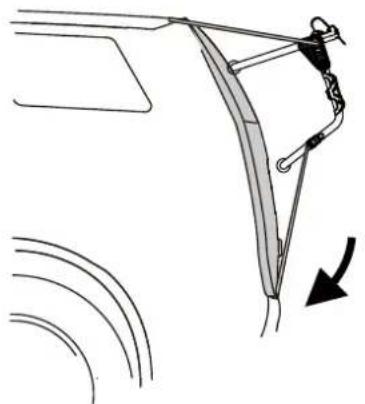

Technical line drawing of a car's side profile showing a bracket and seat assembly (no text or symbols)

2

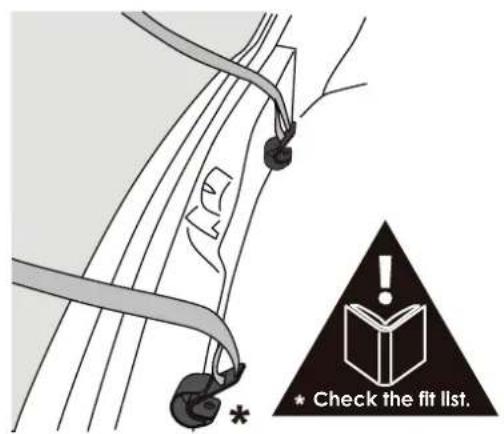

Check the fit list.

Diagram showing car exterior, front view, side view, and side-view of a vehicle with labeled components.

3

Diagram of a mechanical component with curved lines and an arrow indicating direction (no text or symbols)

4

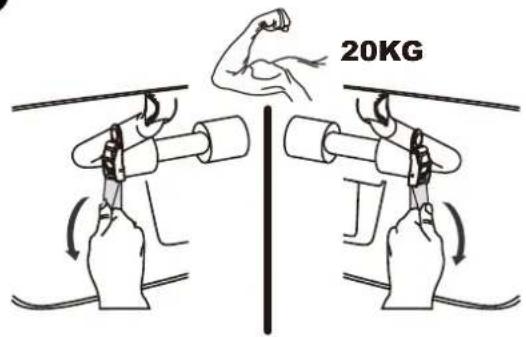

20KG

5

Line drawing of a car rear bumper with two mounted sensors (no text or symbols)

6

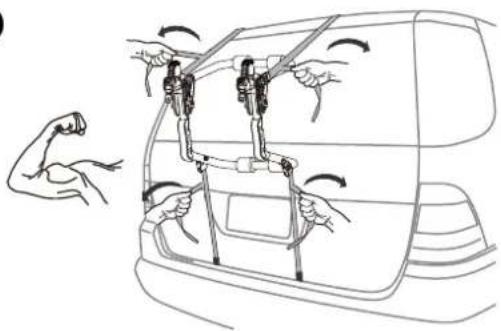

Line drawing of a vehicle rear panel with hands holding weights and arrows indicating movement (no text or symbols)

GB-US - Mounting of the bikes

Technical line drawing of a bicycle frame with mechanical components and a black arrow indicating a specific assembly (no text or symbols present)

2

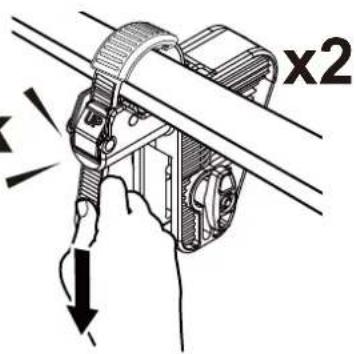

CLICK

x2

3

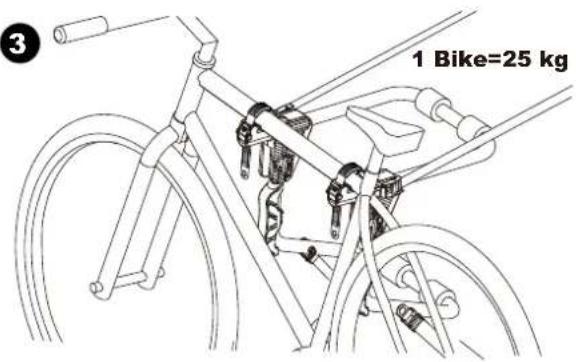

1 Bike=25 kg

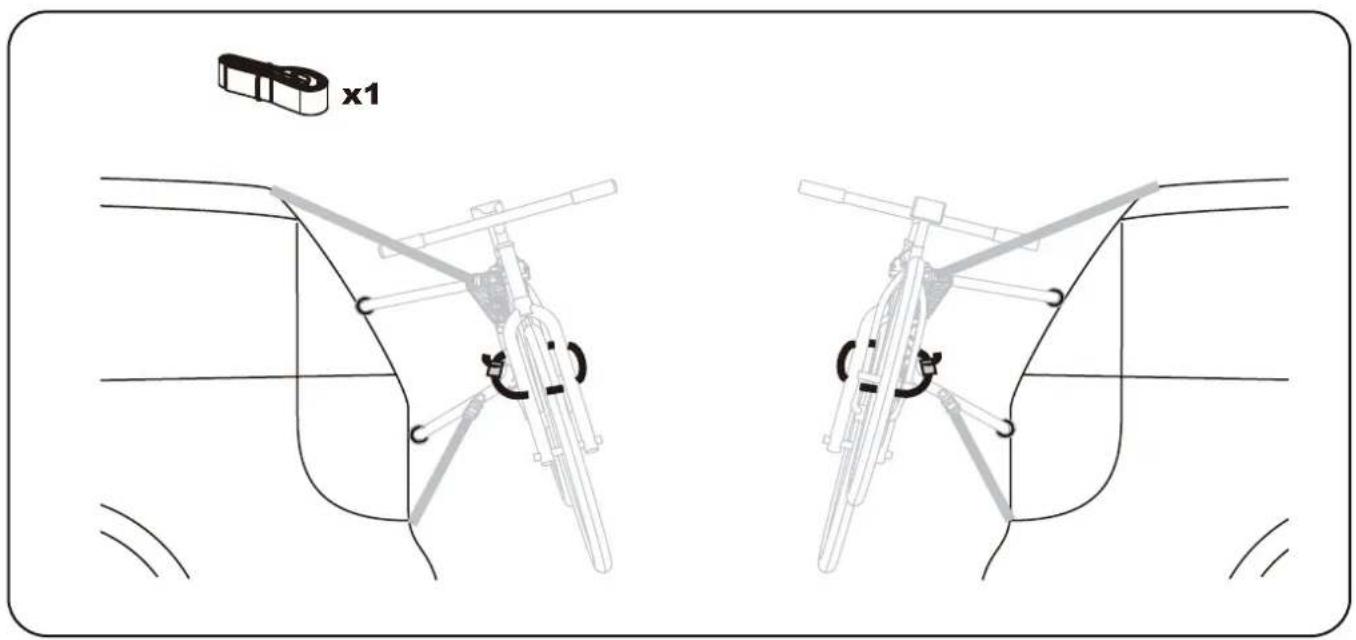

x1

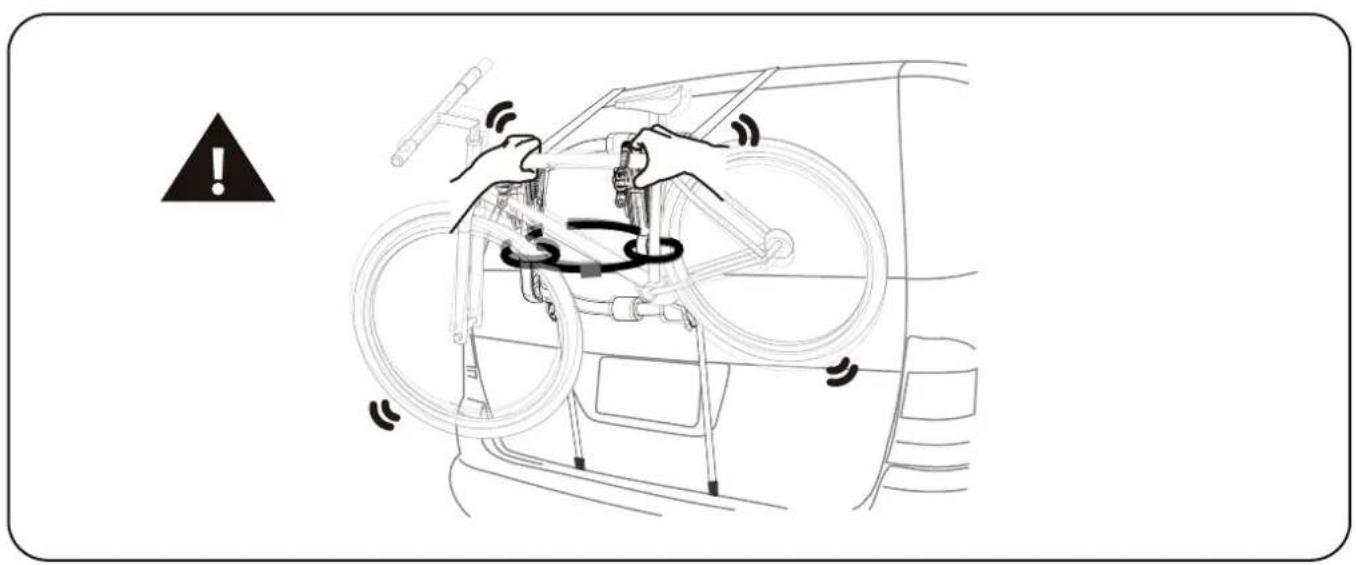

Diagram showing a hand washing bicycles inside a car, with warning symbol and accident warning label

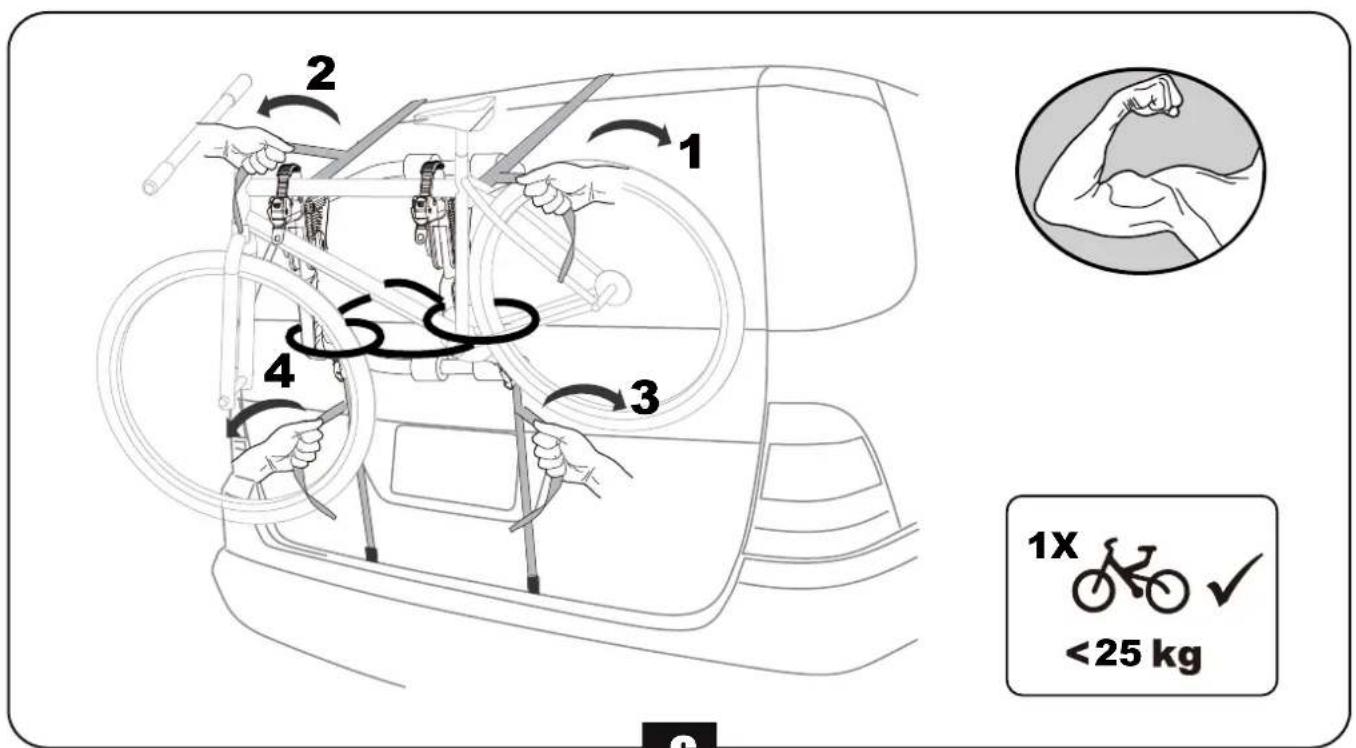

2 1 4 3 1X ✓ <25 kg

GENERAL REMARKS

1. Please read and observe the instructions carefully before you use the product, and keep them in a safe place for future use.
   Check the part list after opening the package. Make sure that all the parts are fully assembled according to the instruction before fitting it on your car.
2. The user is responsible for assembly and installation of this product, and the manufacturer disclaims any liability due to improper fitting or use of the product.
3. Failure to properly install this bike carrier and/or the bikes may cause damage to the vehicle and/or the bikes, and may result in personal injury.
4. Do not use this product for purposes other than those for which it is designed. Do not modify any components of the product. Remove the carrier if not in use.
   05.Do not use the carrier to carry more bikes than recommended. The weight of each bike cannot exceed 25kg/ 55lbs.
   06.Do not install the bike carrier on trailers, campers, or RVs.
5. This bike rack is not intended for transporting tandem, or recumbent bicycles.
   08.Do not transport bicycles with attached baby seats, panniers, wheel covers, full bike covers or motors.
6. Depending on the shape of your bicycle, BuzzRack cannot guarantee that it will fit properly on this carrier. You might have to use the BUZZGRIP for bicycle without top bar.

SAFE AND PROPER USE

1. Clean the surface of the tailgate before installing the rack.
2. Always use the safety strap to attach the bikes to the bike carrier.
3. Make sure that the tailgate of your car allows you to use a trunk rack - some elements like spoilers, wind defectors may not allow you to use a trunk rack.
4. Make sure that the tailgate of your car allows you to use a trunk rack - some elements like spoilers, wind defectors may not allow you to use a trunk rack.
5. Check if the back wiper will not interfere with the bike carriers before using it. If it does and it is an automatic one, please disconnect it.
6. If your vehicle is equipped with an automatic tailgate opening system, disable this function when using the bike carrier, and open the tailgate manually.
7. When loading the bicycles, remove all loose parts and accessories from bicycles (toolbars, baby carriers, pumps, etc.)
8. Always position the biggest/heaviest bike first and closest to the car, and then position the smaller bike after that.
9. The user is responsible for periodically verifying that all hardware, straps, knobs, hubs are securely tightened for safety purposes.
10. You might have to use extra protections to protect the bikes and the tailgate from scratches.
    11.Do not open the gate with the bikes installed on the carrier.
11. The locks used on this rack are theft deterrent.

ROAD SAFETY

1. If the bikes and/or the carrier obstruct the vehicle's tail lights and license plate, you must use an additional signal board.
2. Check before departure that the light board of the carrier is properly functioning.
3. The bicycle rack increases the vehicle's length, and the bicycles may increase its width and height. Be aware of this when passing through narrow or low clearance spaces and when reversing. Any loads exceeding the indicated dimensions must nevertheless respect existing regulations and be properly strapped down.
4. The load of rack and bicycles will affect driving. Do not exceed the speed limit, and do not drive faster than 120 km/h (75 mph).
5. Drive slowly over speed bumps. Respect the speed limit, and adapt your speed to the condition of the road.
6. Off-road driving is not recommended and could result in damage to your vehicle, hitch receiver, bike carrier, or your bikes.
7. If you hit a bump or a hole in the road, stop your vehicle and inspect the bikes and the carrier. If you notice anything wrong, remove the bikes and do not use the bike carrier.
8. Make sure there is a safe distance between the bikes and the ground, especially when entering a driveway.

MAINTAINING YOUR BICYCLE RACK

1. Periodically inspect the product for signs of wear, corrosion, and fatigue.
   02.Do not use the carrier with defective parts, contact the dealer to replace them before using it again.
2. Remove the product before entering an automatic car wash.
3. To keep your product in the best condition, it is recommended to remove the product from the car when not in use. Please be advised that this product is not designed to resist extreme weather conditions, especially seacoast air.
4. Lubricate the bolts in order to avoid corrosion.
