Buzzpro P10S - Bike rack Buzz Rack - Free user manual and instructions

Product Type	Tow ball bike rack
Brand	Buzz Rack
Model	Buzzpro P10S
Intended Use	Transport of bicycles on vehicle hitch
Hitch Compatibility	50 mm ISO tow ball
Load Capacity	Do not exceed the maximum 'S' load approved for the hitch
Main Functions	Securing and safe transport of bicycles
Safety	Safety straps provided to secure the load
Maintenance and Cleaning	Clean and degrease the ball before installation; lubricate screws and bolts regularly
Periodic Check	Check the tightness of all components before each trip
Signaling	Use a secondary system if lights or license plate are obscured
Speed Limit	Do not exceed 120 km/h (75 mph)
Usage Restrictions	Do not use on trailer, camper, or mobile home
Outdoor Maintenance	Remove the product in automatic car washes
Storage	Do not leave the product on the vehicle when not in use

Frequently Asked Questions - Buzzpro P10S Buzz Rack

How to install the Buzzpro P10S bike rack?

Clean and degrease the tow ball, then install the product according to the provided instructions. Make sure all clamping components are securely fastened before use.

What is the maximum number of bikes I can transport?

The manual does not specify the exact number of bikes. The total load (platform + bikes) must not exceed the maximum 'S' load approved for the hitch.

Can I open the trunk with the bike rack installed?

No, it is not recommended to open the trunk when the platform is installed.

What is the maximum allowed speed with the bike rack?

Never exceed 120 km/h (75 mph), even if the speed limit is higher.

How to maintain the bike rack?

Regularly inspect the product for wear, corrosion, or fatigue. Lubricate screws and bolts to prevent corrosion. Clean the tow ball before each installation.

What to do if a part is damaged?

Do not use the product if parts are damaged. Contact your dealer for advice or replacement parts.

Can I leave the bike rack on the car permanently?

It is recommended to remove the product when not in use. It is not designed to withstand extreme environments like salt air.

Is the bike rack compatible with all vehicles?

This product is designed for a 50 mm ISO tow ball. Do not install it on a trailer, camper, or mobile home.

Do I need to use additional straps?

You may need additional straps to secure the load. Always use the straps provided.

How to secure the bikes on the platform?

Use the provided safety straps to securely attach the bikes. Regularly check that the load is well distributed and that all components are tightened.

USER MANUAL Buzzpro P10S Buzz Rack

10.2 kg > 65mm MAX 75 kg 165 lbs Ø50mm

BUZZPRO P10S

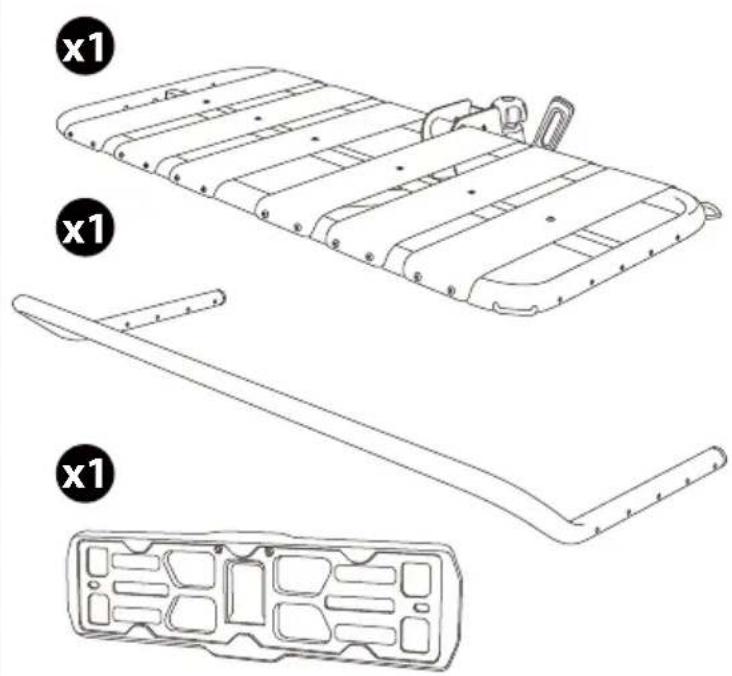

PART LIST

Technical line drawings of a vehicle chassis with labeled components (x1), showing internal compartments and structural elements.

x4 M6x72mm

x1 M6x40mm

Line drawing of a rectangular device with a handle and circular label 'x1' (no text or symbols on the device itself)

Technical line drawing of a coiled cable or hose assembly (no text or symbols)

Simple line drawing of a rolled-up belt or strap with a square cutout and a dashed pattern on the side (no text or symbols)

Illustration showing a hand pressing down on a surface before and after applying powder to a granular material (no text or symbols present)

Hexagonal warning sign with hand and arrow symbols (no text)

Technical line drawing of a mechanical component with no visible text or symbols

Mechanical component diagram showing a lever and gear assembly (no text or symbols)

QR code image containing encoded data, no visible human-readable text

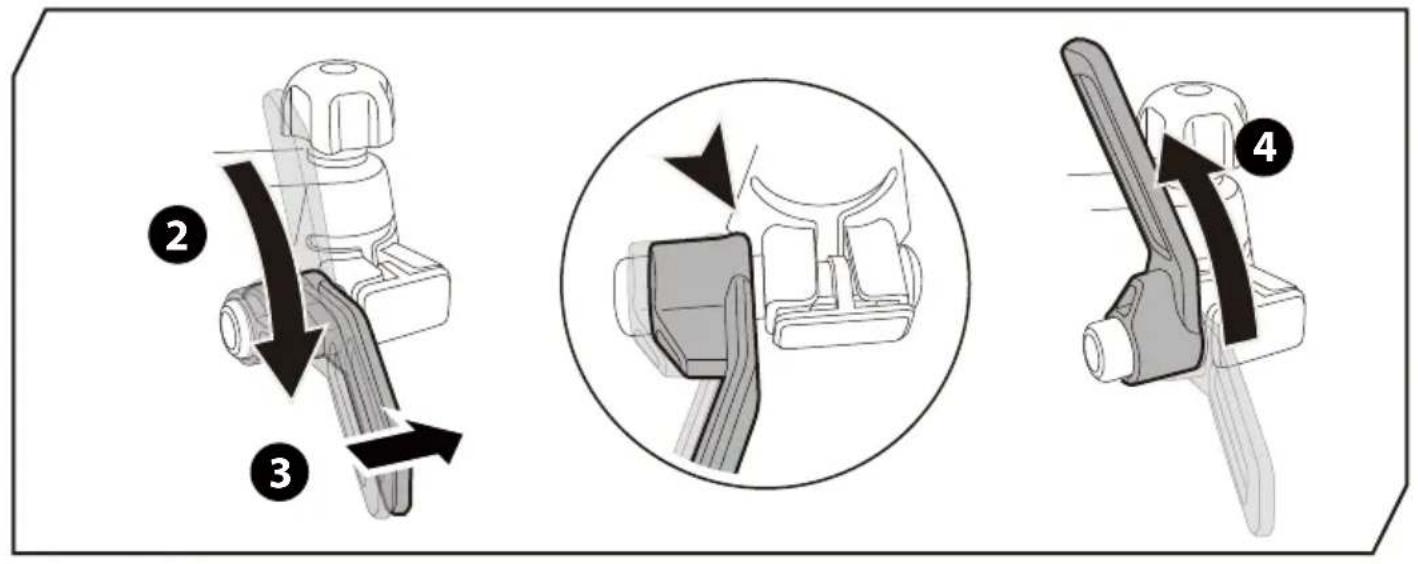

Diagram showing a car seatbelt buckle assembly with labeled parts and directional arrows indicating movement or positioning.

Diagram illustrating four steps of car seatbelting: before, after, inside, and after assembly.

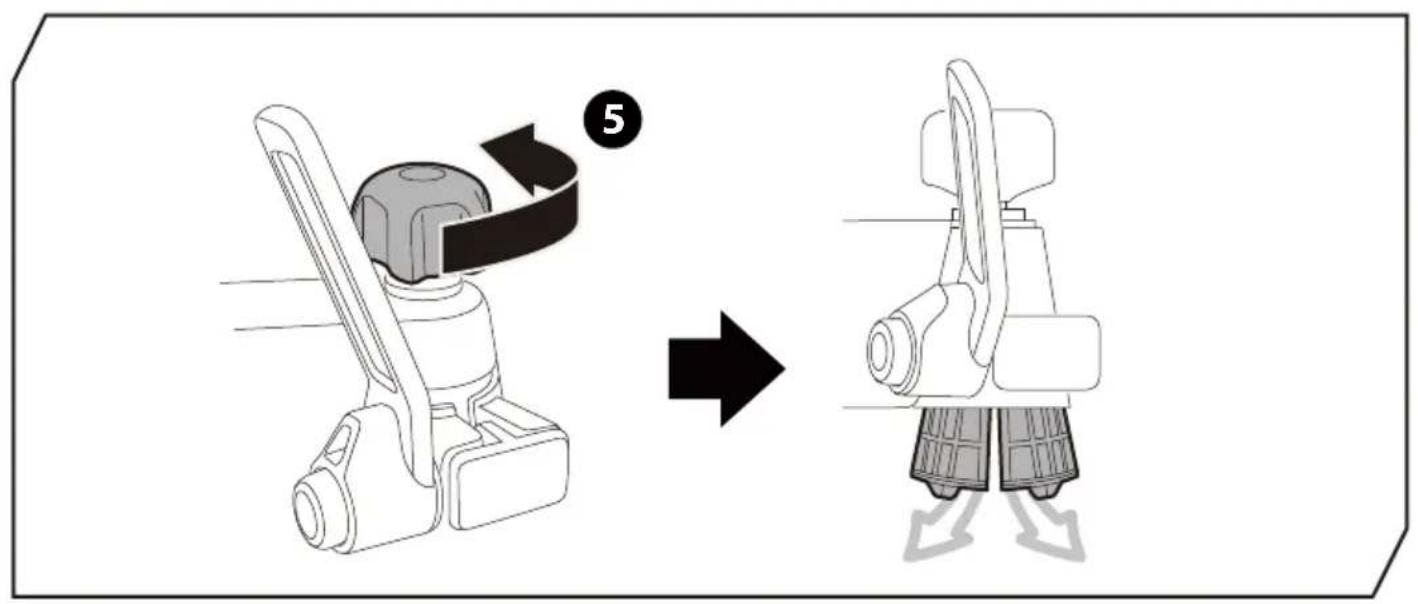

Diagram illustrating the process of a seatbelt switch mechanism, showing before and after states with labeled component 5.

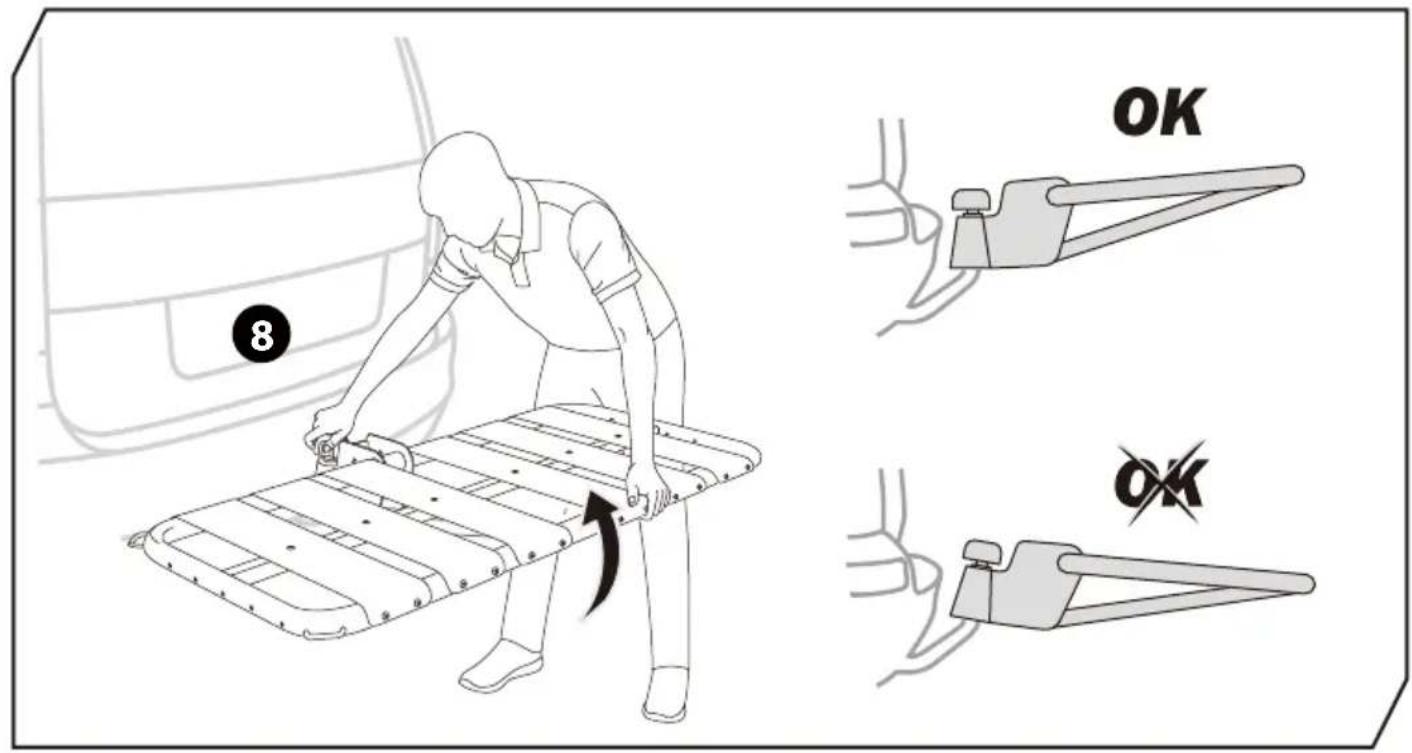

Diagram illustrating a person handling a vehicle chassis with labeled parts and directional arrows indicating movement or repair.

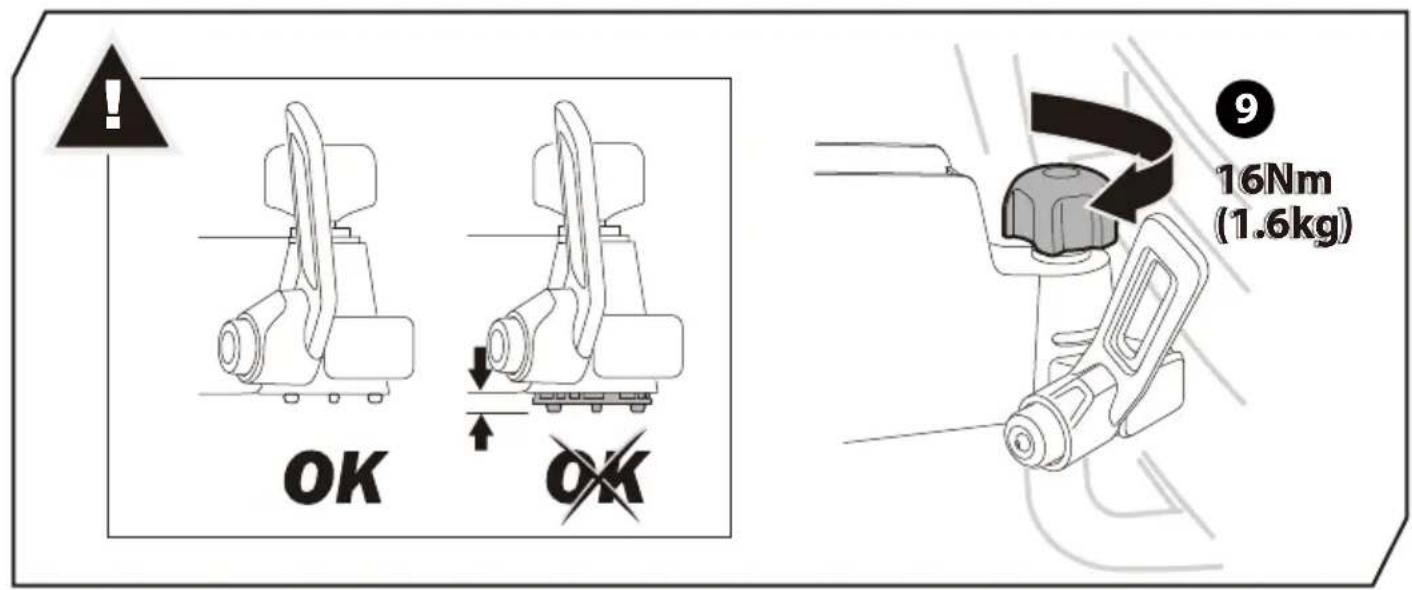

OK OK

OK OK 9 16Nm (1.6kg)

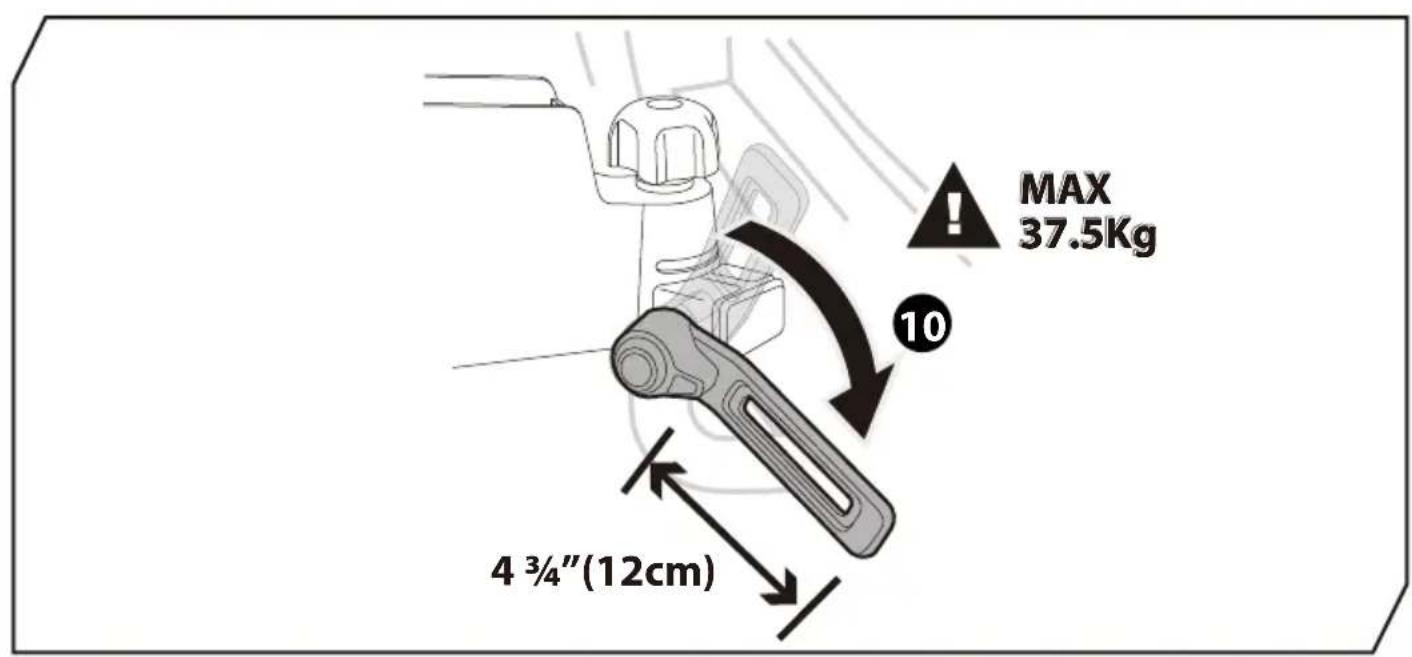

MAX 37.5Kg 10 4 3/4"(12cm)

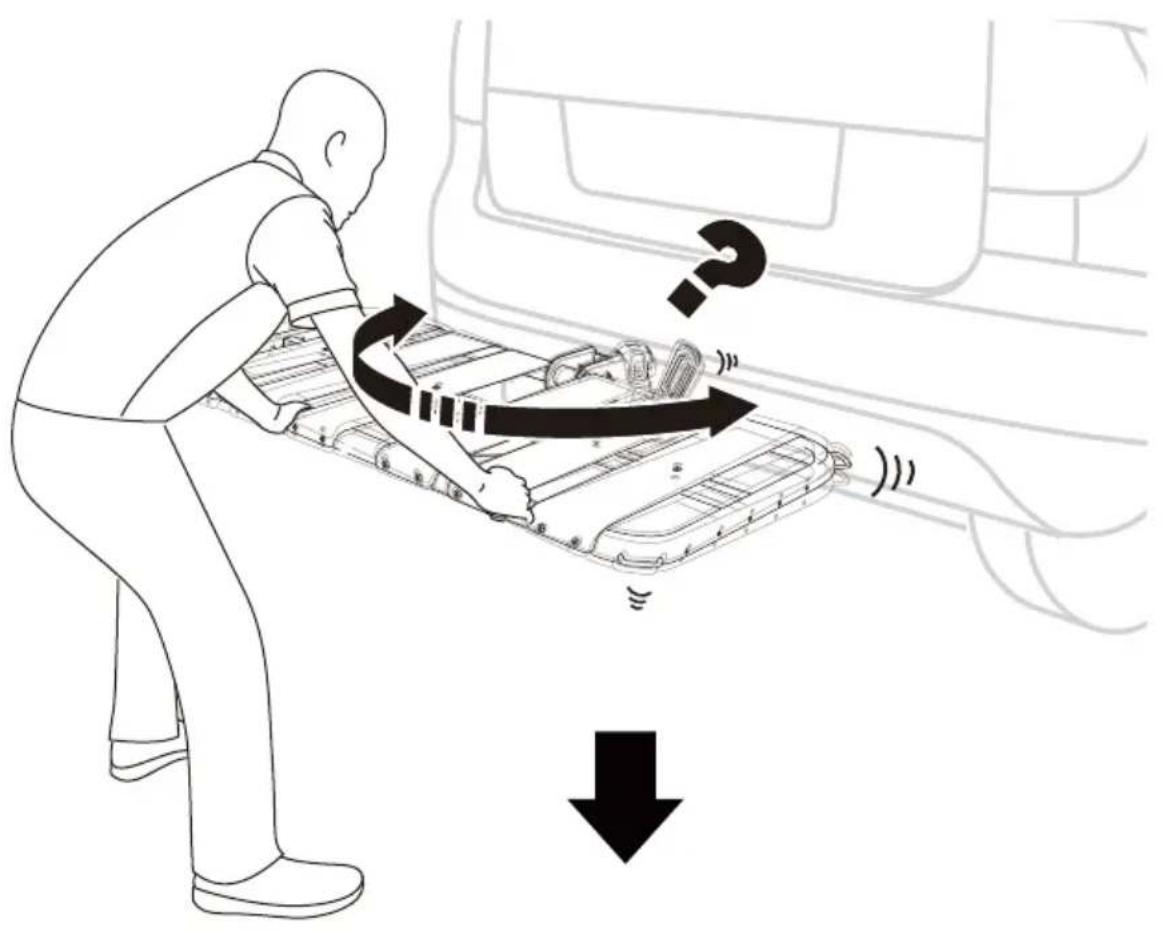

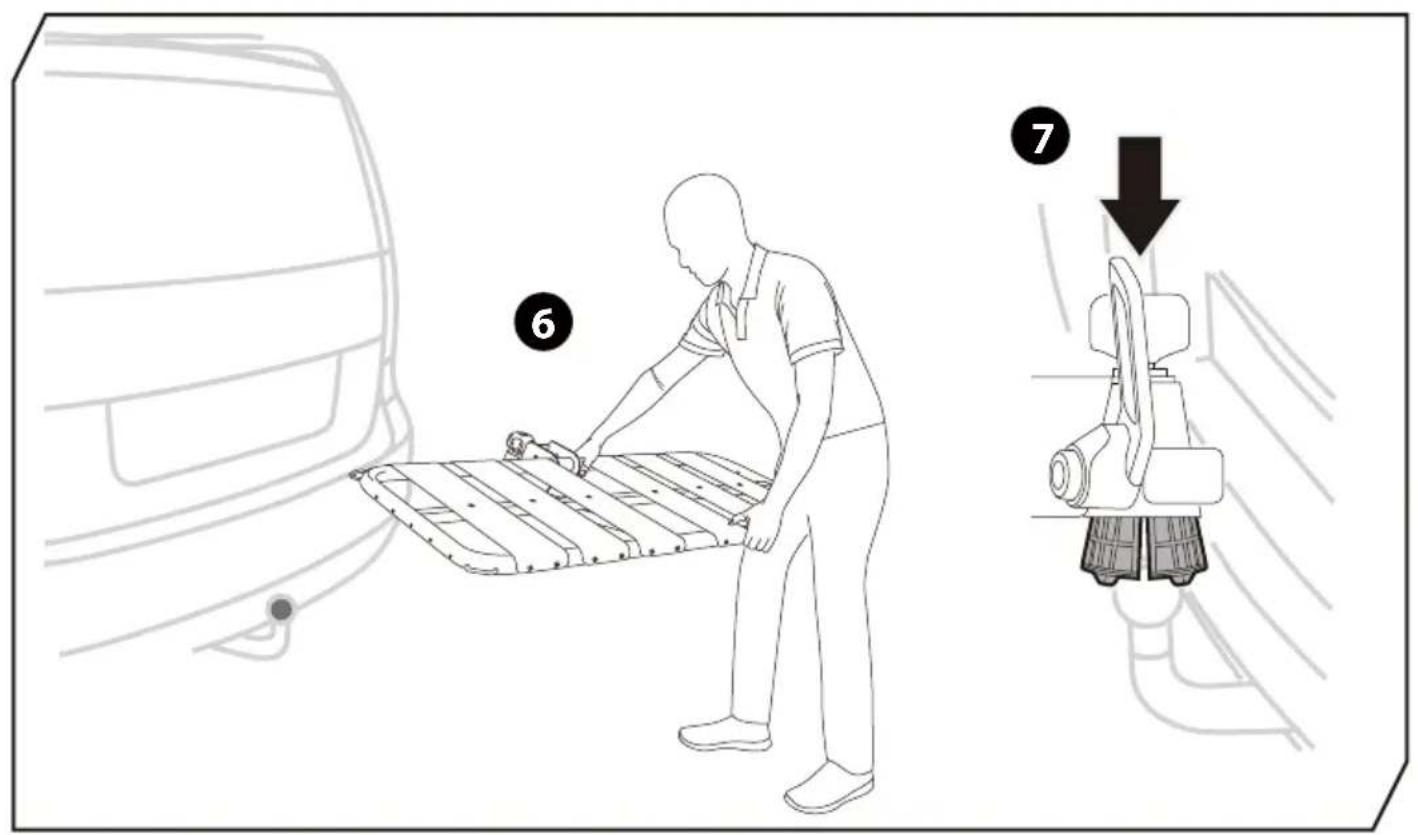

Diagram illustrating vehicle battery charging process with a person loading components and a question mark indicating unknown status.

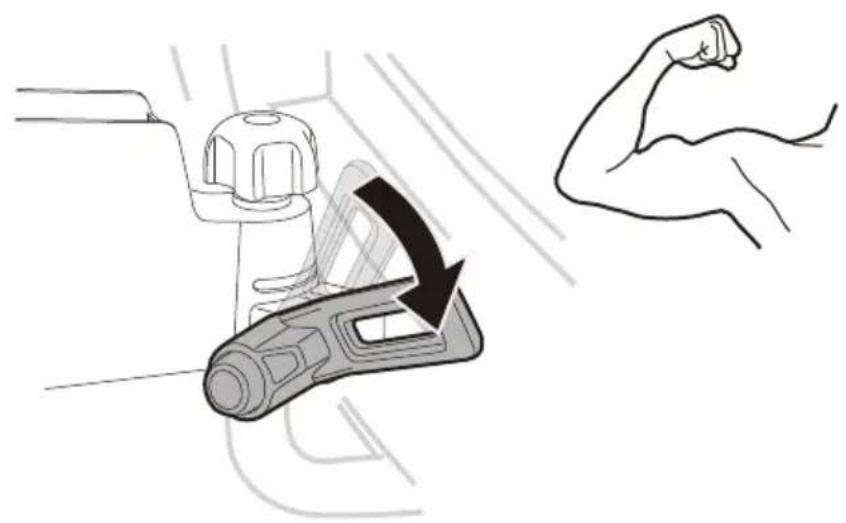

Illustration of a robotic device with a downward arrow indicating force or movement, next to a human arm flexing (no text or symbols present)

OK OK

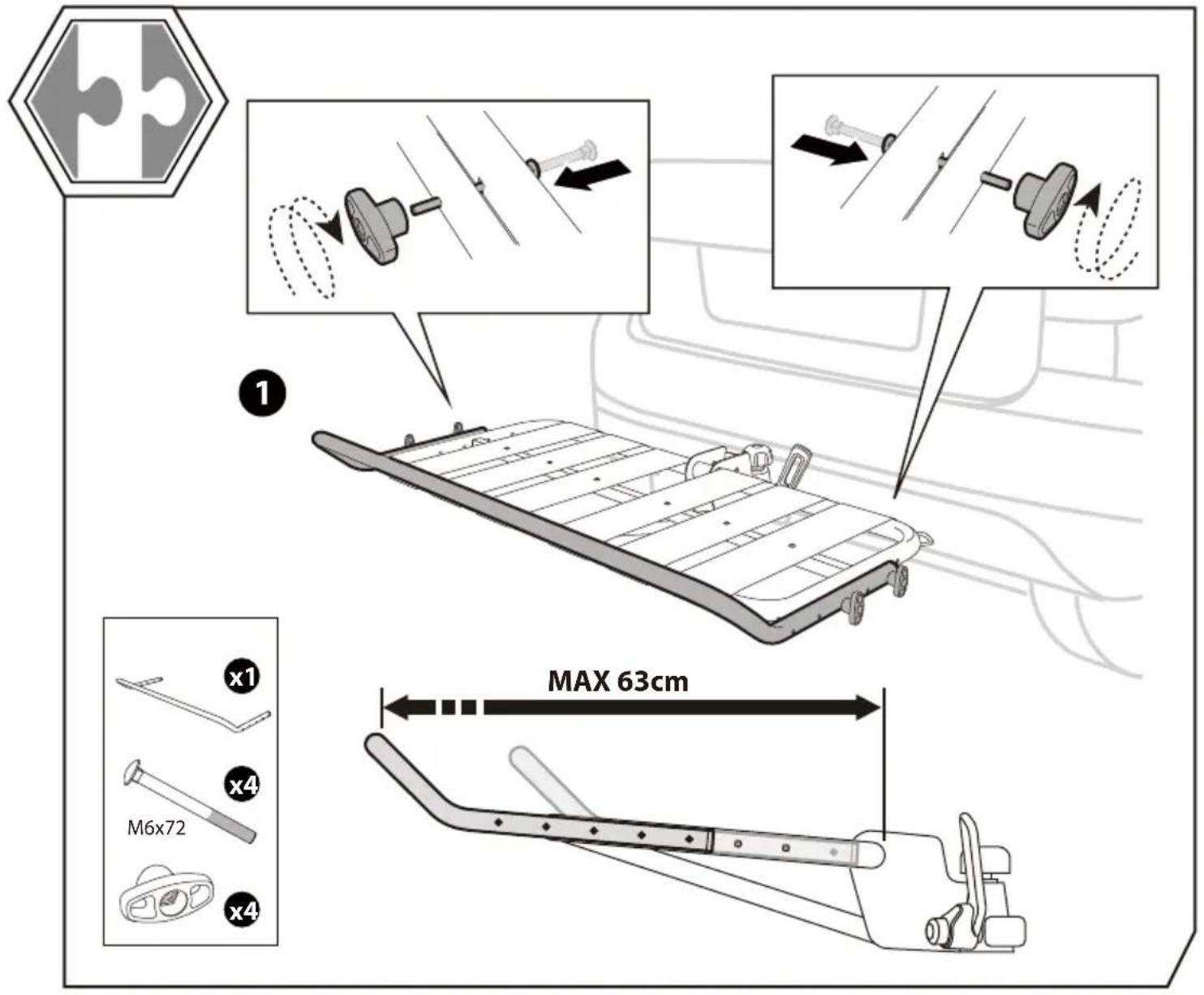

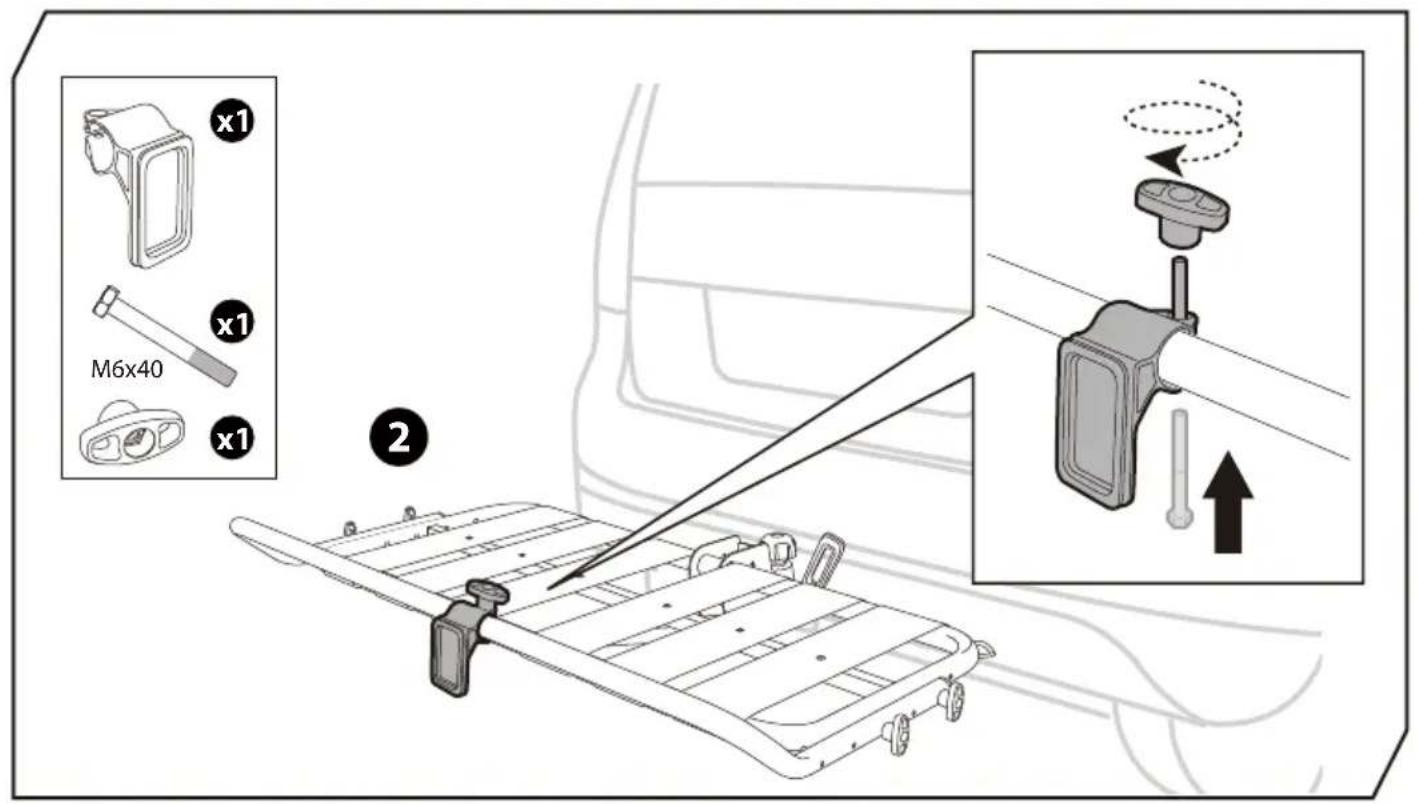

MAX 63cm x1 x4 M6x72 x4

x1 x1 M6x40 x1 ②

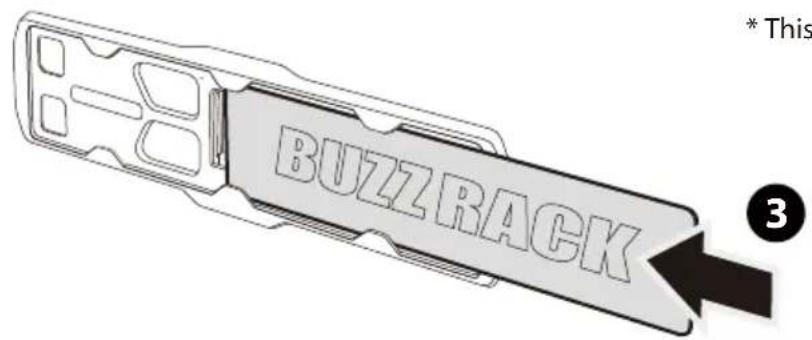

* This plate is not included.

BUZZRACK * This 3

Denmark only 504x120mm

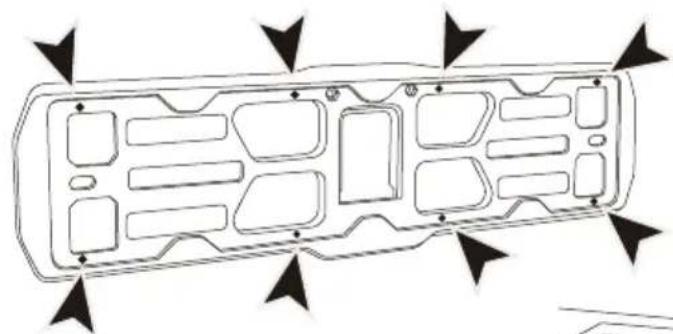

Technical line drawing of a vehicle front panel with mounting holes and directional arrows (no text or symbols)

Diagram of a mechanical component with arrows indicating motion, no text or symbols present

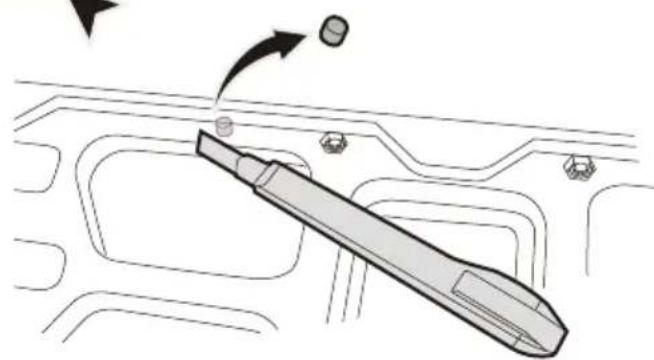

* This tool is not included.

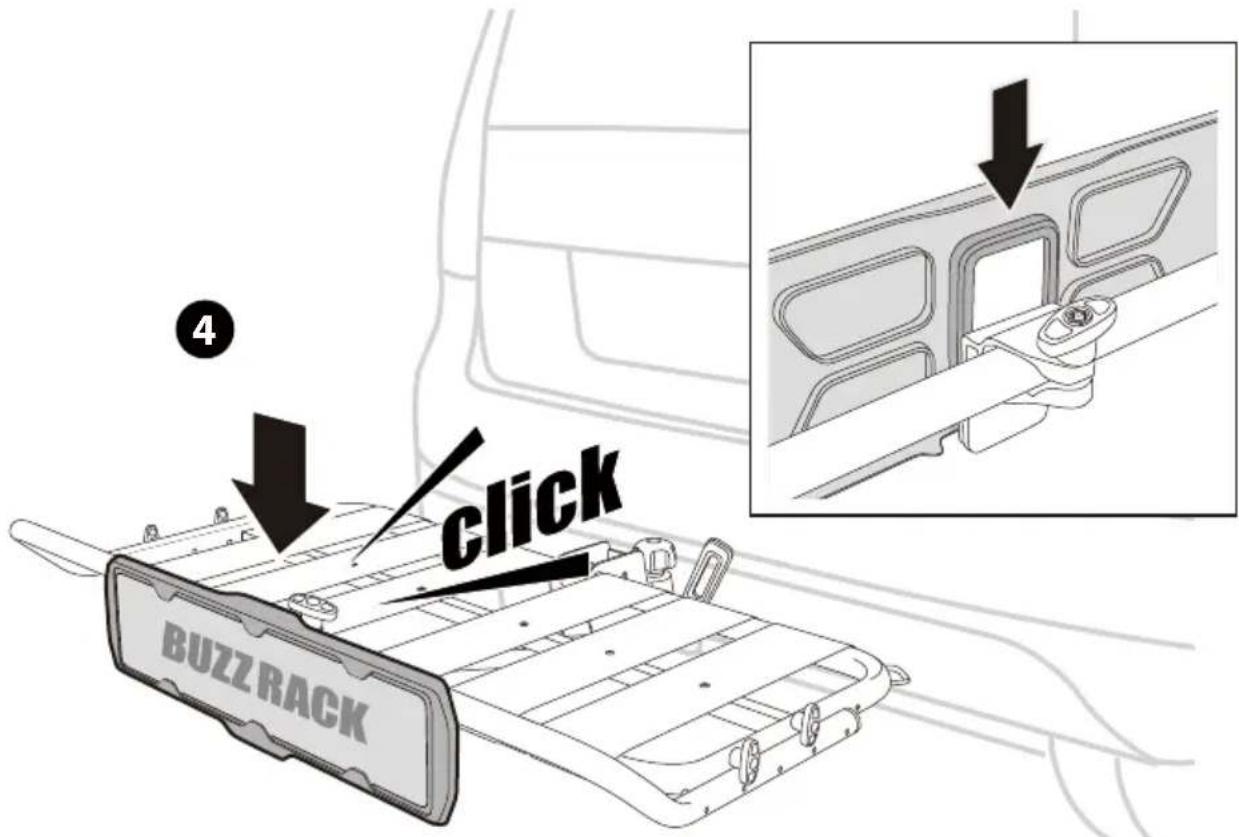

4 Click BUZZ RACK

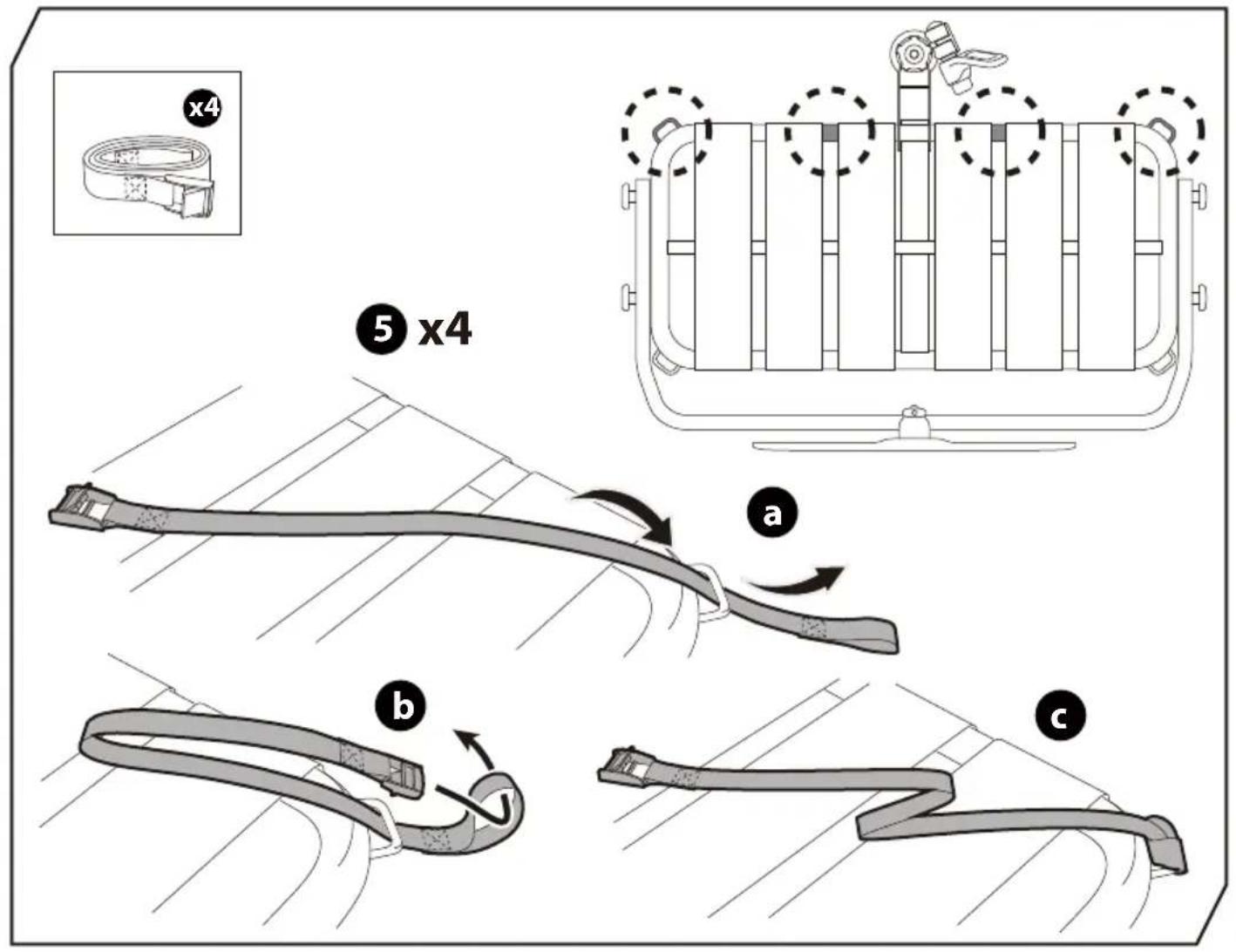

x4 ⑤ x4 a b c

x4 ⑥ x4

Computer monitor icon with warning triangle and exclamation mark (no text or symbols)

Line drawing of a hand holding a laptop and a mechanical device (no text or symbols)

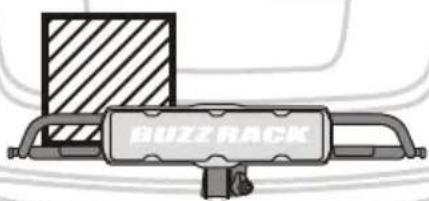

Illustration of a Buzzack device with hatched background (no text or symbols on device)

Illustration of a Buzz rack device with a shaded block and handle (no text or symbols)

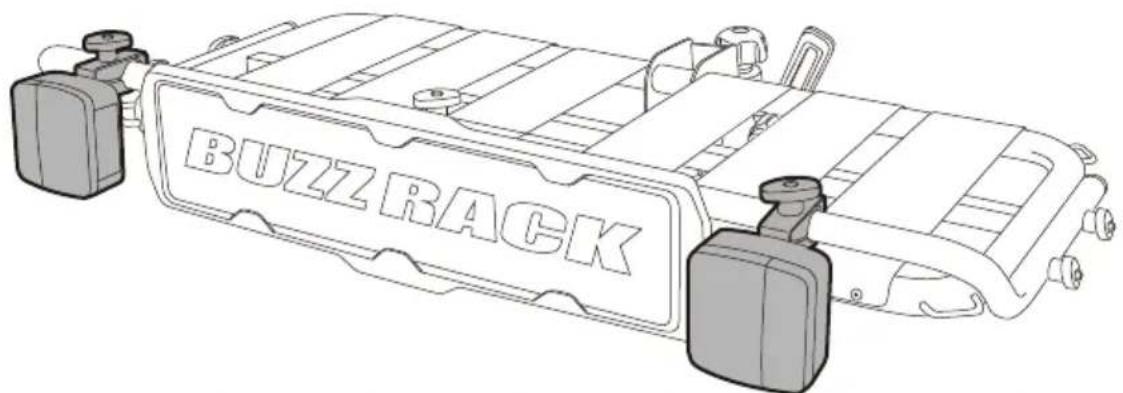

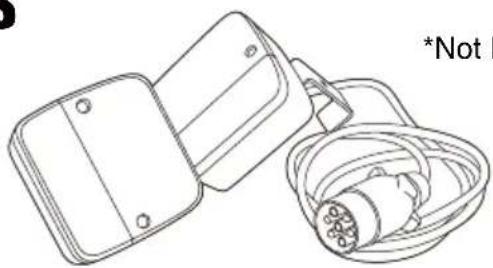

LIGHT KIT for P10S

Line drawing of a device with a rectangular housing and a coiled cable (no text or symbols)

*Not Included

BUZZ RACK

GENERAL REMARKS

1. Please read and observe the instructions carefully before you use the product, and keep them in a safe place for future use. Check the part list after opening the package. Make sure that all the parts are fully assembled according to the instruction before fitting it on your car.
2. The user is responsible for assembly and installation of this product, and the manufacturer disclaims any liability due to improper fitting or use of the product.
3. Failure to properly install the product and/or heavy loading may cause damage to the vehicle and/or the objects, and may result in personal injury.
4. Do not use this product for purposes other than those for which it is designed. Do not modify any components of the product. Remove the carrier if not in use.
5. Do not use the carrier to carry more weight than recommended in the chart in page one of the manual. Total weight limitation (platform + load) depends on the tow ball capacity "S" given by manufacturer.
6. Fits 50mm ISO tow balls. Always check the weight limitation of your towing system and never overload it.
7. Do not install the product on trailers, campers, or RVs.

SAFE AND PROPER USE

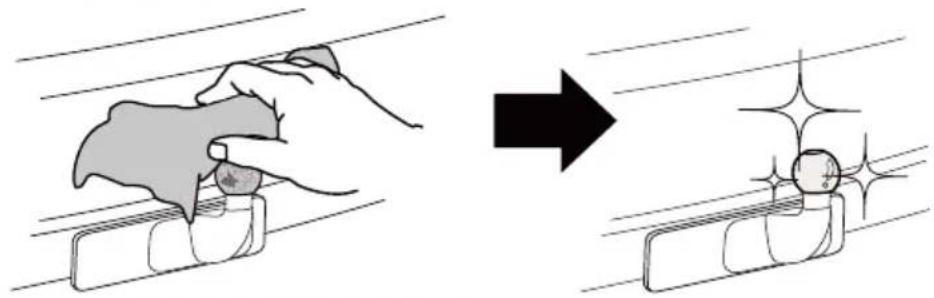

1. Please make sure you clean the surface of the towball completely before installing the rack.

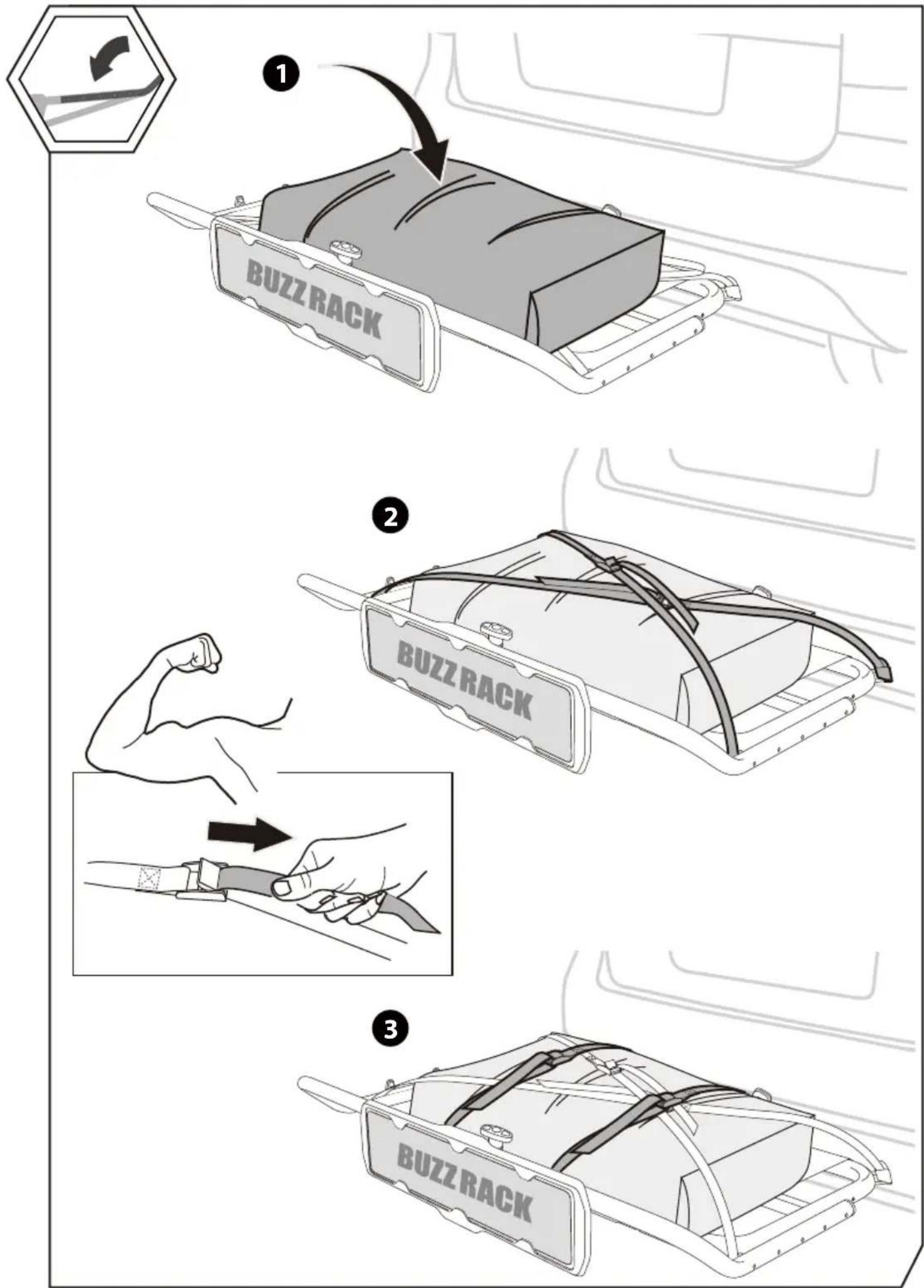

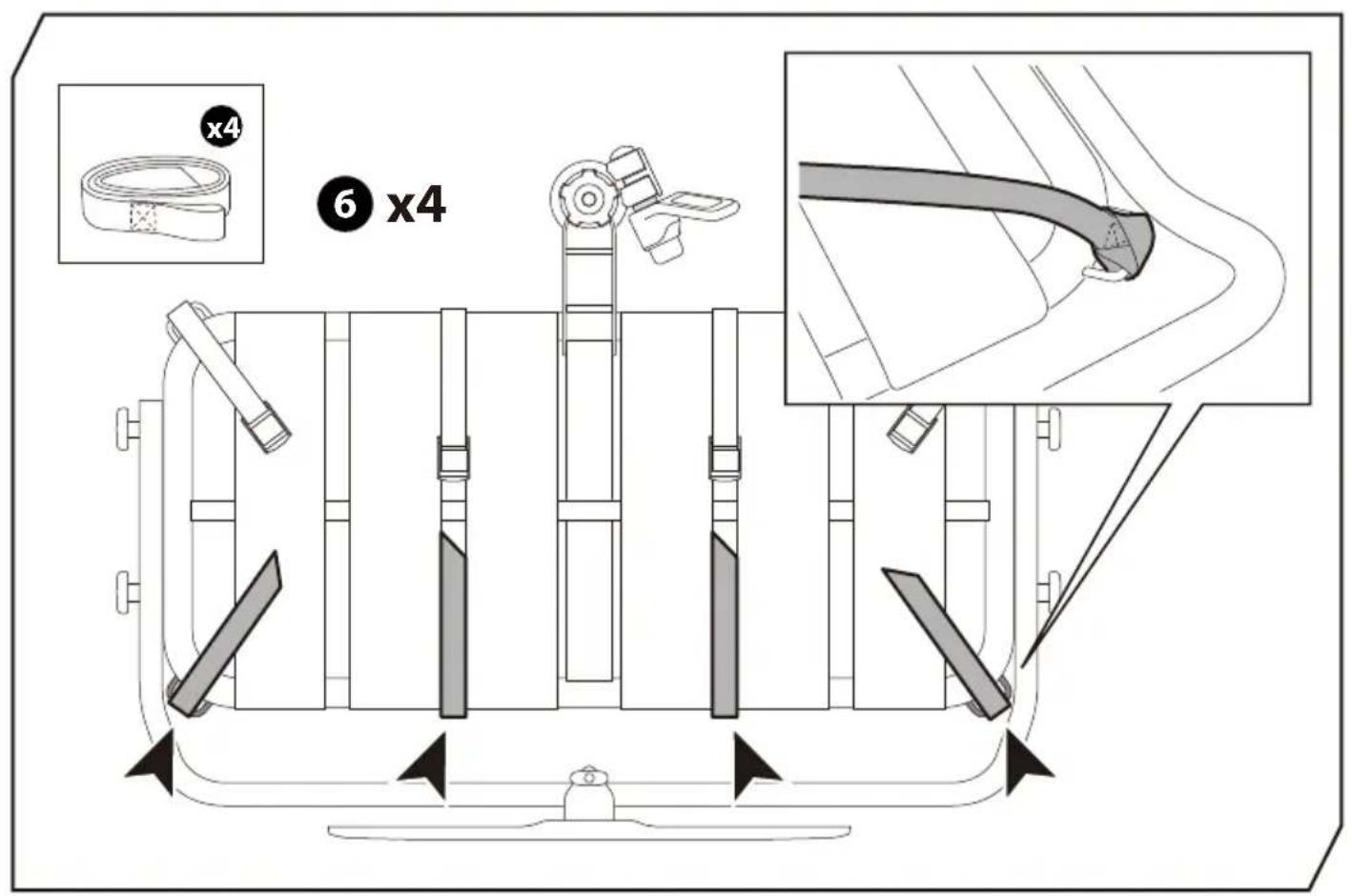

2. Always use safety straps provided to secure the load.
3. Always check that load is evenly distributed on the platform.
4. The user is responsible for periodically verifying that all hardware, straps, knobs, hubs are securely tightened for safety purposes.
5. You might have to use more webbings to secure your loading.
6. Do not open the gate with the platform installed on the carrier.
7. The locks used on this rack are theft deterrent.
8. Before leaving and at every stop, please check that all the parts and cargo are firmly tightened.

ROAD SAFETY

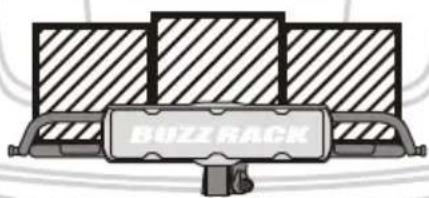

1. If the carrier obstructs the vehicle's tail lights and license plate, you must use an additional signal board.
2. The rack increases the vehicle's length and weight. Be aware of this when passing through narrow or low clearance spaces and when reversing. Any loads exceeding the indicated dimensions must nevertheless respect existing regulations and be properly strapped down.
3. The load on the rack will affect driving. Do not exceed the speed limit, and do not drive faster than 120 km/h (75 mph).
4. Drive slowly over speed bumps. Respect the speed limit, and adapt your speed to the condition of the road.
5. Off-road driving is not recommended and could result in damage to your vehicle, hitch receiver, platform, or your load.
6. If you hit a bump or a hole in the road, stop your vehicle and inspect the load and the carrier. If you notice anything wrong, remove the load and do not use the carrier.
7. Make sure there is a safe distance between the load and the ground, especially when entering a driveway.

MAINTAINING YOUR BICYCLE RACK

1. Periodically inspect the product for signs of wear, corrosion, and fatigue.
2. Do not use the carrier with defective parts, contact the dealer to replace them before using it again.
3. Remove the product before entering an automatic car wash.
4. To keep your product in the best condition, it is recommended to remove the product from the car when not in use. Please be advised that this product is not designed to resist extreme weather conditions, especially seacoast air.
5. Lubricate the bolts in order to avoid corrosion.
