Product Type	Smart Plug / Switch with RF Bridge
Brand	V-TAC
Model	VT-5144
Dimensions (approx.)	4.5 x 4.5 x 4 cm
Weight (approx.)	50 g
Power Supply	230 V AC, 50/60 Hz
Max Rated Current	10 A
Max Rated Power	2300 W
Connectivity	Wi-Fi 2.4 GHz (IEEE 802.11 b/g/n)
RF Bridge Frequency	433 MHz
RF Range (bridge to remote)	30 m in open space
Control App	eWeLink (iOS / Android)
Compatible Voice Assistants	Amazon Alexa, Google Assistant
Main Functions	Remote on/off via app, voice control, scheduling, RF control via built-in bridge
Number of Supported RF Remotes	Up to 4 remotes (16 buttons)
Maintenance and Cleaning	Unplug before cleaning; use a dry, soft cloth. Do not use abrasive or liquid products.
Security	Overload protection (built-in fuse). Automatic shutdown in case of overheating? Not specified.
Spare Parts and Repairability	No spare parts available; device not user-serviceable. In case of defect, contact after-sales service.
General Information	2-year warranty. CE, RoHS certifications. Operating temperature: 0°C to 40°C. Max humidity: 80%.

Frequently Asked Questions - VT-5144 V-TAC

How to pair the VT-5144 with the eWeLink app?

Make sure the device is powered on. Press and hold the power button for 5 seconds until the LED flashes 3 times. Open the eWeLink app, tap '+' then 'Quick Pair'. Select your 2.4 GHz Wi-Fi network and enter the password. Assign a name to the device and finish.

What if the quick pairing fails?

Use 'Compatible Pairing' mode by clicking the corresponding link in the app. Follow the same steps. If the problem persists, reset the device (hold button for 10 seconds) and try again.

How to add an RF remote to the bridge?

In the eWeLink app, open the RF bridge, tap 'Add RF Remote'. Hold the desired button until you hear a beep (red LED flashes fast). Press the button on the RF remote: two beeps confirm learning. The bridge supports up to 4 remotes (16 buttons).

What is the RF range between the bridge and the remote?

The maximum range is 30 meters in open space. Obstacles (walls, furniture) may reduce this distance.

How to set up Alexa with the VT-5144?

Install the Amazon Alexa app and log in. Enable the 'VTAC Smart Home' skill (via eWeLink). Link your eWeLink account. Discover devices with the voice command 'Alexa, discover devices' or via the app. You can then control the device by voice.

How to set up Google Home with the VT-5144?

In the Google Home app, tap '+' then 'Set up device'. Search for 'eWeLink' and log in with your credentials. Select the home and device to add. Finish. Use commands like 'OK Google, turn on/off the smart plug'.

Can I control the VT-5144 remotely?

Yes, via the eWeLink app, you can turn the device on/off from anywhere with an internet connection. The app also allows scheduling.

How to factory reset the VT-5144?

Press and hold the power button for about 10 seconds until the LED flashes rapidly then stabilizes. The device will be reset and ready for new pairing.

What is the warranty for the VT-5144?

The warranty is 2 years from the date of purchase. It covers manufacturing defects. Damage due to incorrect installation or abnormal wear is not covered.

Does the VT-5144 work with 5 GHz Wi-Fi?

No, the device only supports 2.4 GHz Wi-Fi. Make sure your router broadcasts on this band (separately or via a dedicated network).

USER MANUAL VT-5144 V-TAC

Black ceramic bowl with a flared rim and a narrow neck (no text or symbols visible)

02 YEAR WARRANTY\*

works with amazon alexa

works with the Google Assistant

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC Product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any other query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.

The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product.

(FR) INTRODUCTION & GARANTIE

(PL) WSTEP I GWARANCJAD

(RO) INTRODUCERE, GARANTIA

Download eWeLink APP by via APP Store Google Play Store (OR) Scan the below QR code to download the eWeLink APP, FAQ

GOOGLE PLAY

IOS

FAQ MULTI-LANGUAGE

MANUAL

INSTALLATION

WARNING

1. Please make sure to turn off the power before starting the installation.
2. Must be installed by professional electrician.

This marking indicates that this product should not be disposed of with other household wastes.

Caution, risk of electric shock.

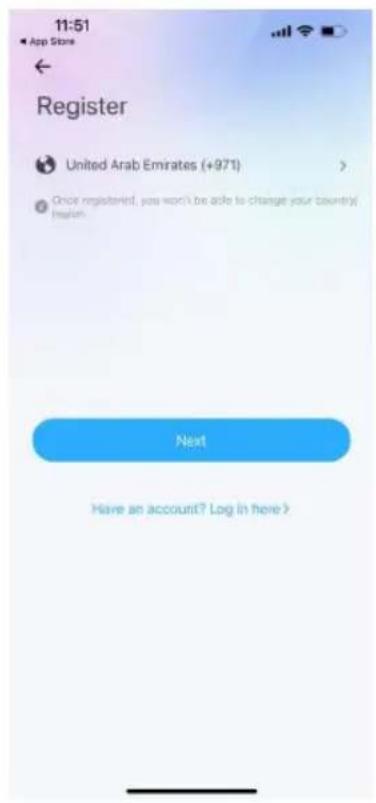

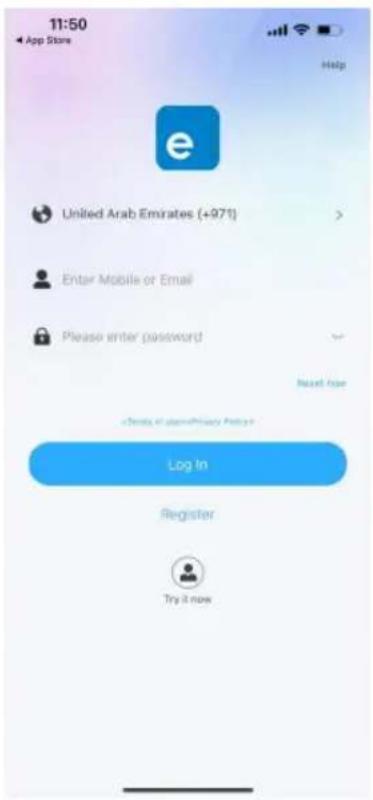

Step 1: Open the eWeLink App and register. If you already have an existing account with eWeLink, please proceed to logging in.

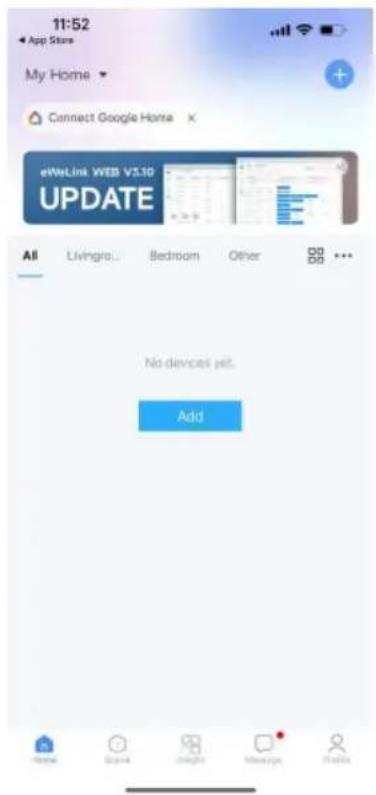

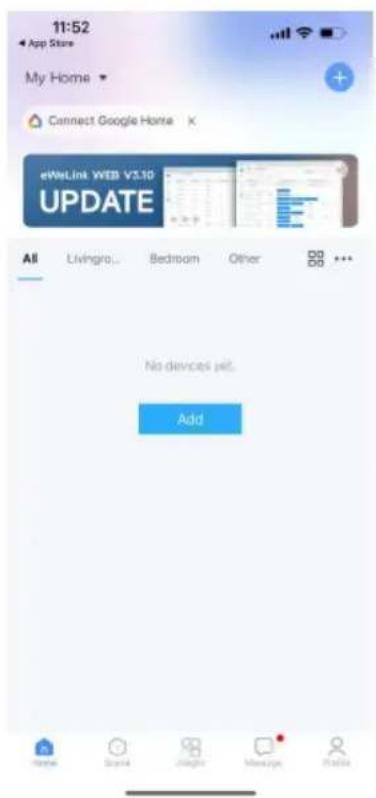

Step 2: To Add a New device tap on the “+” sign(as shown)

Step 3: Make sure your Smart device is powered ON

1) Tap and hold on the power button for 5 seconds to make the device available in pairing mode. Once in pairing mode the LED will start blinking 3 times repeatedly.
2) Tap on Next to start the pairing of device with the app. (Shown in the image)

Note: If you are facing any trouble while pairing in Quick Pairing mode please try to pair the device in Compatible Pairing Mode (Click on the link as shown on the image).

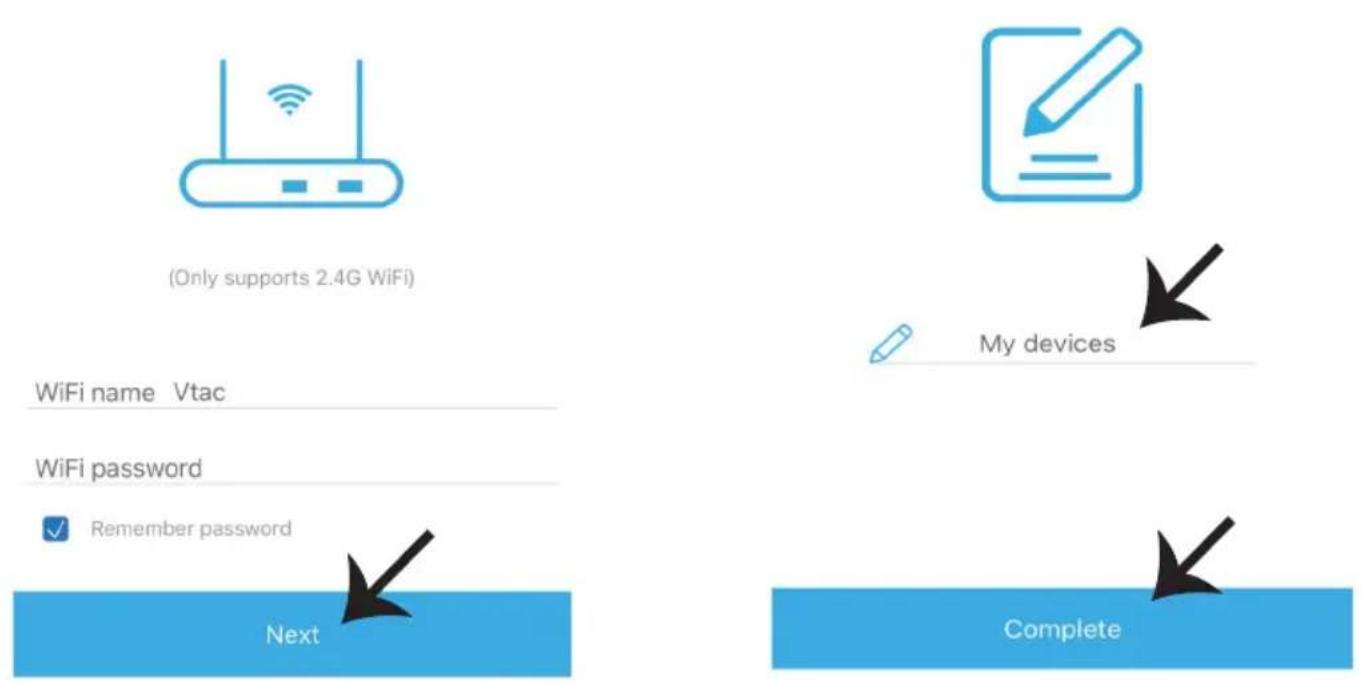

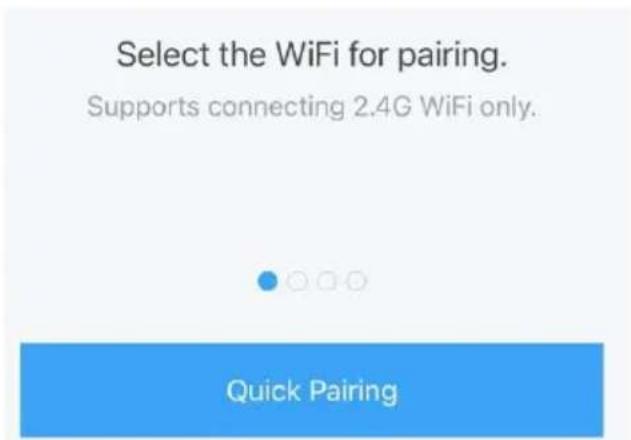

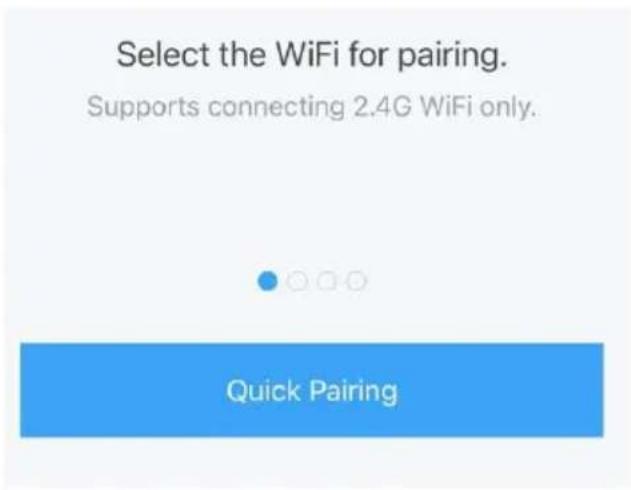

Step 4: Select your Wifi name and enter the password and tap on Next.

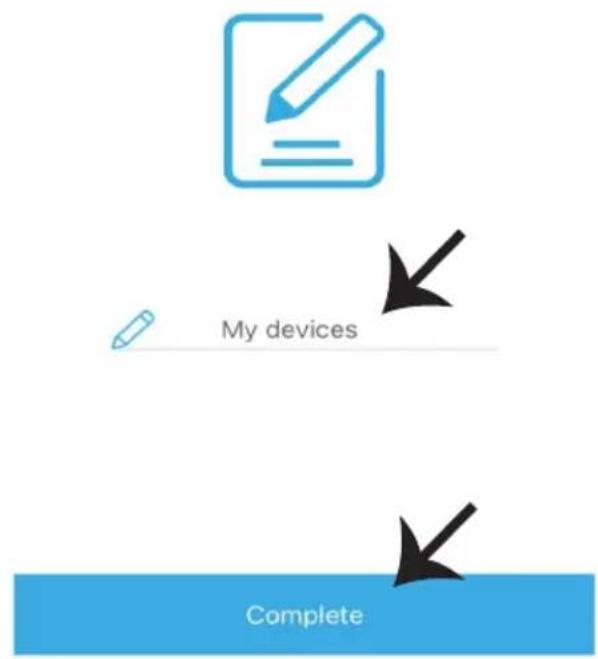

Step 5: Give a name to your device (Ex: Smart Plug/ smart switch) & tap on complete.

WiFi name Vtac

WiFi password

Remember password

Next

My devices

Step6: Your Device is now paired and will appear (Ex: as shown in the below image).

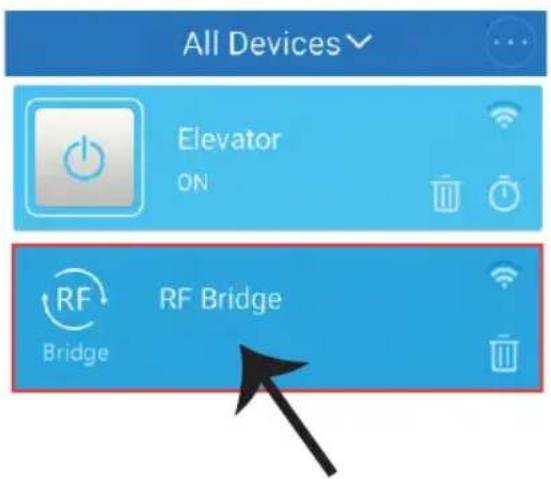

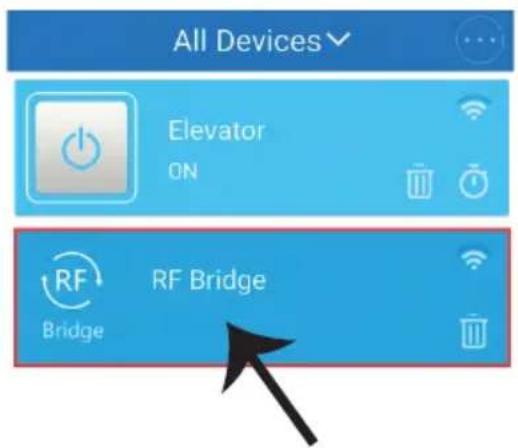

a) To tenter the device functionalities tap on RF bridge(as shown in Image A).

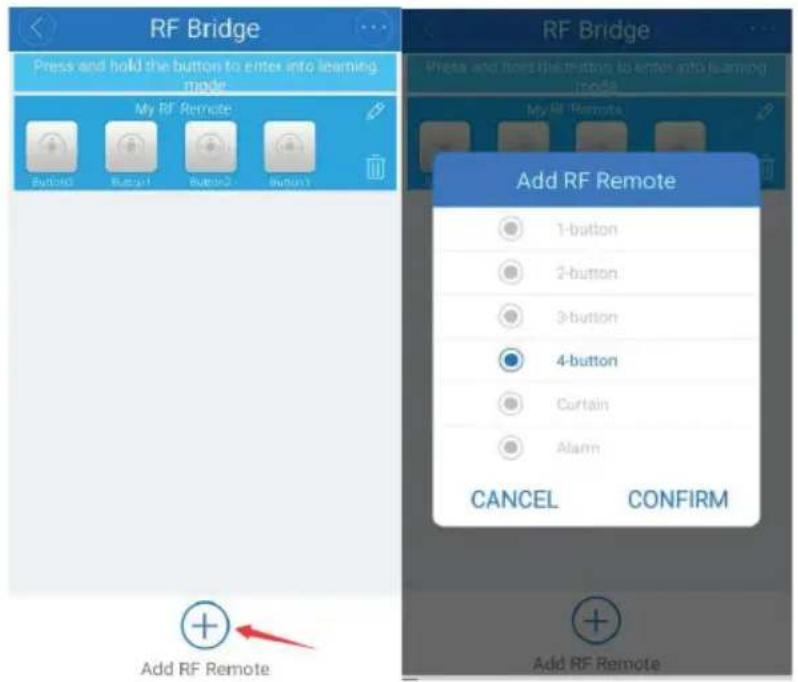

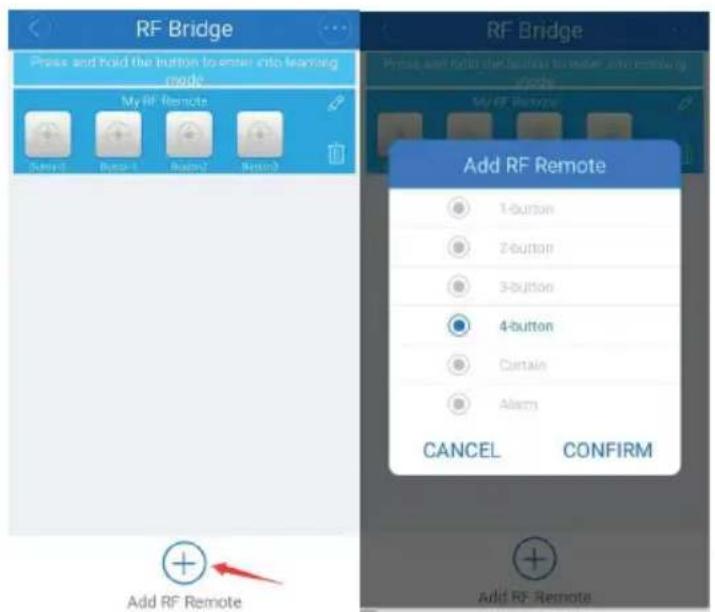

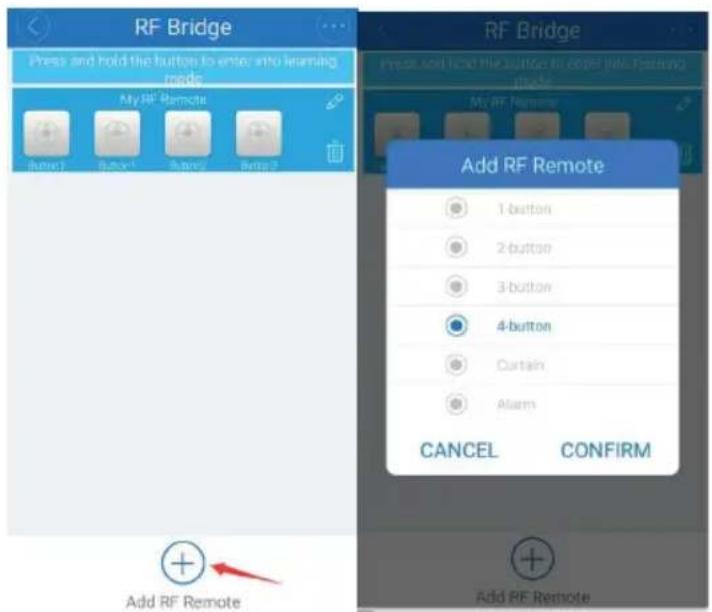

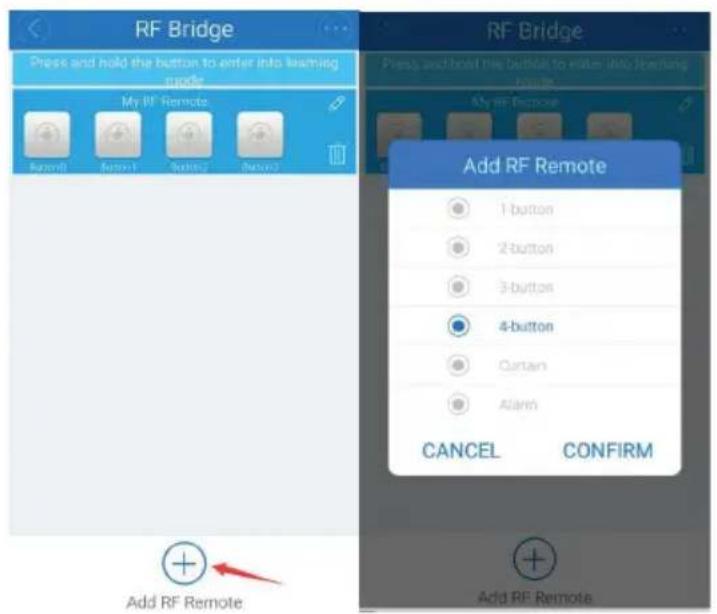

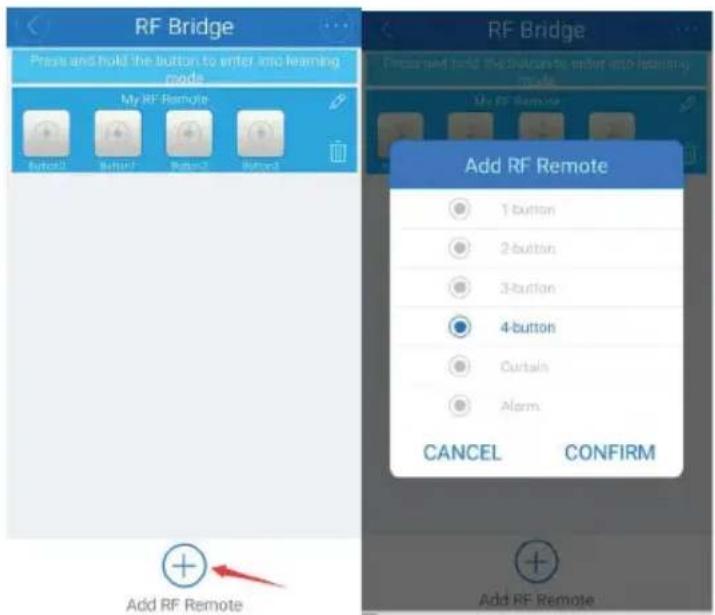

b) Tap on "Add RF Remote" (as shown below) and select the RF remote which needs to be added.

Note: One RF Bridge supports to add up to 4 RF Remote(4*4=16 button)

IMAGE A

Step7 (LEARNING MODE):

Press and hold Button(as shown) on the App until you hear a beep sound from the RFBridge, the red led of RF Bridge will start to blink rapidly, which means it has entered into learning mode. Then quickly press the any button of RF Remote. You will hear beep sound twice, and the red led of RF Bridge will blink twice. This means it has learned successfully. The Button will lighten. If you use other RF Remote to learn with Button, it will overwrite previous codes.

Please repeat above steps to learn otherbuttons. If it doesn't learn successfully in 1 minute, it will timeout and exit learning mode.

Note: Please keep the distance between RF Bridge and RF Remote within 30 meters. If you want to cancel the pairing buttons, please directly delete the RF Remote you have added. One RF Bridge supports to add up to maximum of 4 RF Remote

Step8 (Controlling RF Device):

Click the buttons that has been learned(paired) successfully to turn on/off related RF Devices. For example, if you have paired an RF Remote (button A) with on/off RF Switch, by adding the RF Remote to RF Bridge via App. After learning button “A” of RF Remote with Button(paired) on the App. You can directly click the Button on theApp to turn the device on/off from anywhere at any time. Once you click the button, the red led will flash once, it means it has successfully sent the signal.Note 1: You will not be able to see the device status change on the APP. Note 2: There’s no pairing/learning order. So you can pair the RF Devices with RFRemote first, then pair the RF Remote buttons with RF Bridge on App or vice versa.

ALEXA SETTINGS

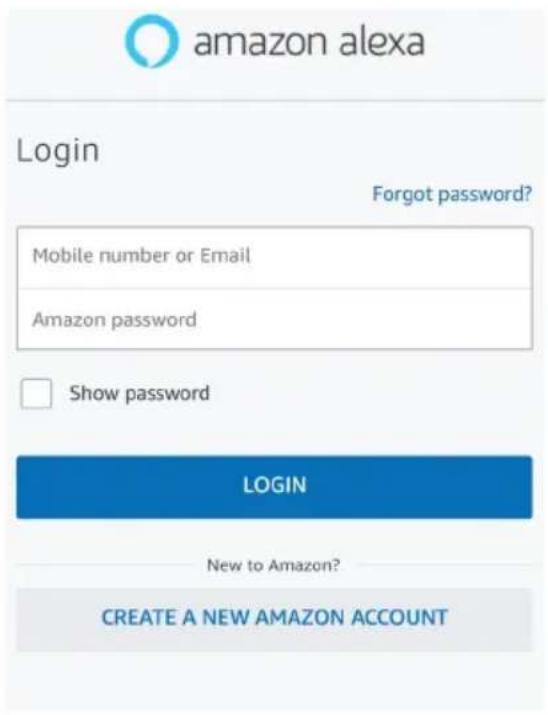

Step 1: Install the Amazon Alexa app via the App Store (iOS) or the Play Store (Android) and register. If you already have an existing account with Amazon Alexa, please proceed to logging in.

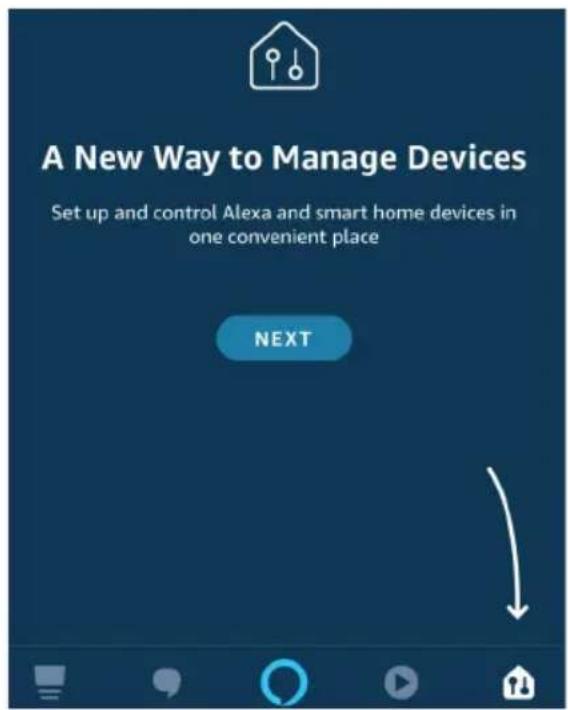

Step 3: On the Home page of Amazon Alexa App, Tap on the icon as shown on the image below.

Blue background with a black arrow pointing diagonally downward to the left (no text or symbols)

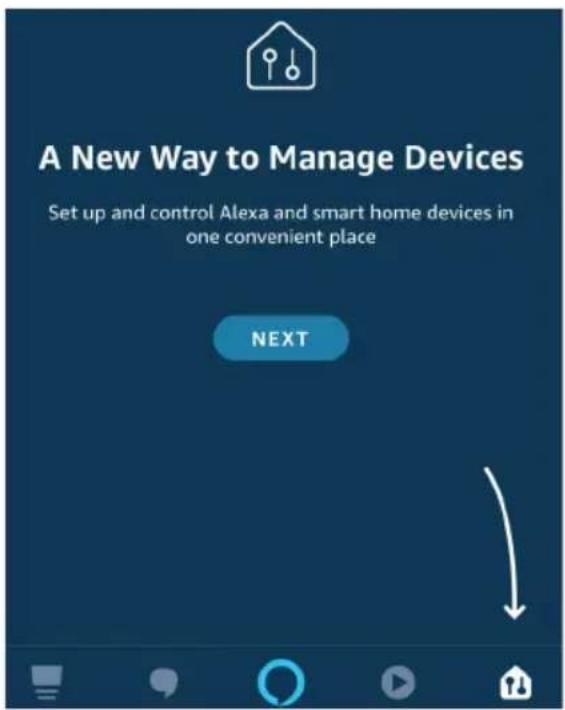

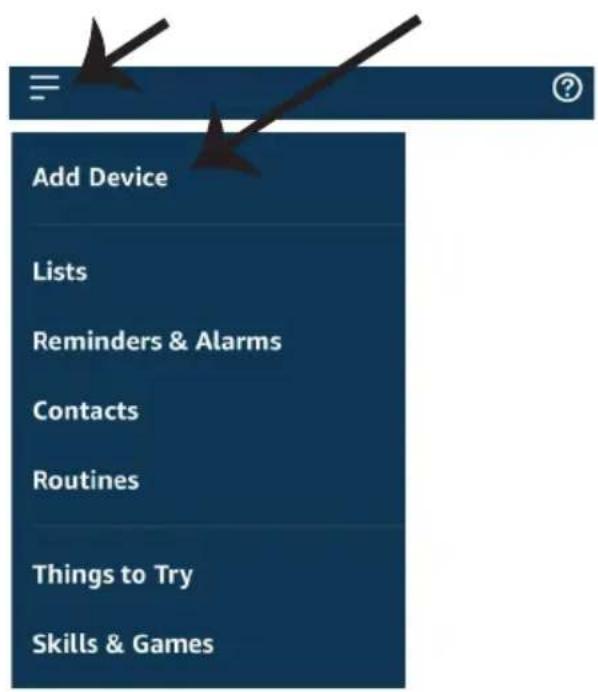

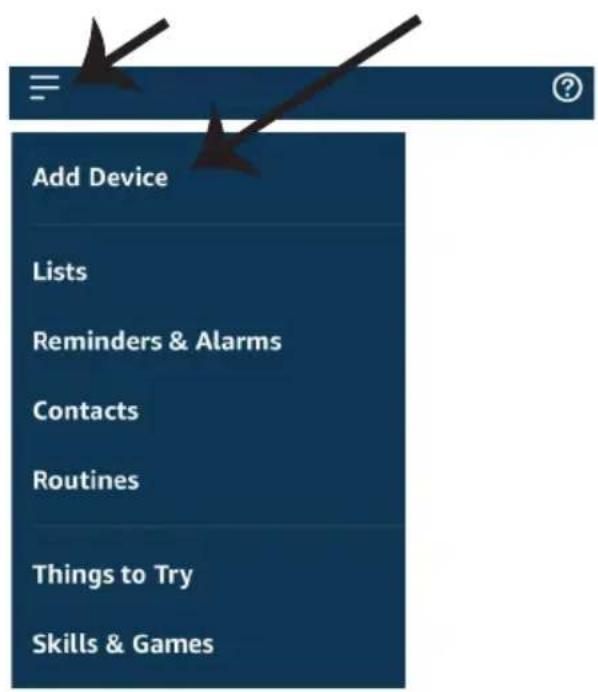

Step 2: Once you are on the Amazon Alexa home page, tap on the lower right icon — where the arrow is pointed— to add a new device and Enable Skills.

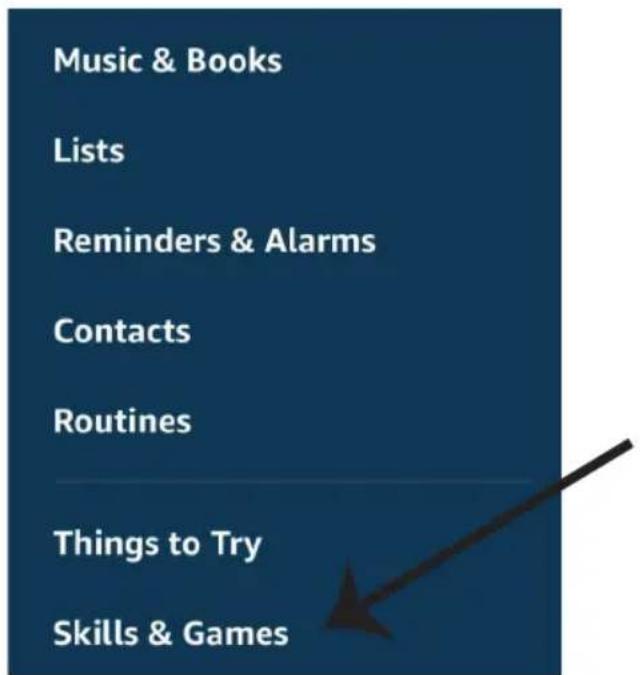

Step 4: Tap on "Skills & Games" as show below

Step 5: On the Search bar as shown type "eWeLink" and tap on the eWeLink skill as shown on the below image.

Search

eWeLink

2 Results

Sort: Relevance

Step 6: Tap on "ENABLE TO USE" to link eWeLink skill with Amazon Alexa app.

eWeLink

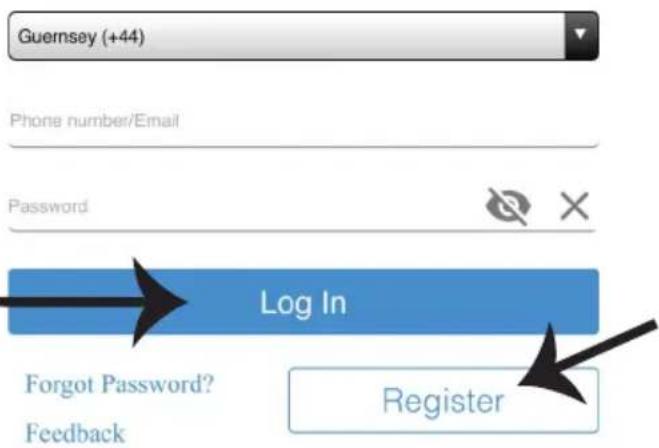

Step 7: Enter Login credentials of eWeLink and then tap on Log In. If you do not have a existing account please register by tapping on the register.

Step 8: a)Once you have successfully linked V-TAC Skill close the window & (b)tap on Discover device. Make sure Smart device is paired with eWeLink app.

a)

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

Step 9: Discover your smart device on Alexa. Once you have enabled the skill

A) You can use voice command "Alexa discover devices" to the Alexa device which you have.

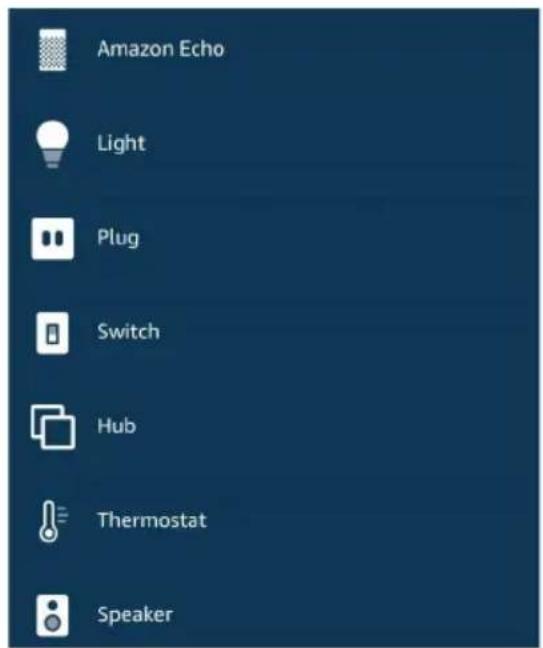

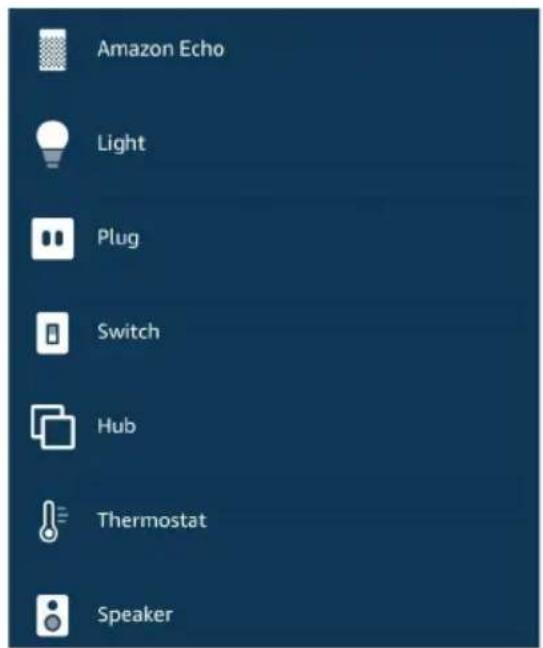

B) To add device manually on home page tap on which you are adding and tap on discover device.

Note: Discovering the device must be done every time the device's name is changed on the app.

ALEXA Commands

Now, you can control your smart device using voice commands on Alexa. Below are few example commands on how to use Alexa device:

➢! Alexa, turn ON Smart Plug
➢! Alexa, turn OFF Smart Plug

THINGS TO REMEMBER BEFORE STARTING INSTALLATION:

1. eWeLink App & Amazon Alexa App
2. Make sure you have Amazon Alexa Device(including Echo, Echo Tap, or Echo Dot)
3. Smart Home Device
4. Stable Wifi network

GOOGLE HOME SETTINGS

Step 1:

a&b) Install the Google Home app via the App Store (iOS) or the Play Store (Android) and register. If you already have an existing account with Google Home, please proceed to logging in. c) Create a New Home/choose from the existing home if any. d) Power ON the Google Home device and connect it to the App. (Then Proceed to step 2)

a. Welcome home

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including a triangle, circle, and rectangle (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

Step 2: Once you are on the Google home page, tap on the Add "+" icon—to add a new device and skill. And then tap on set up device as shown in below image.

a.

Play

Office

Broadcast

Add

Settings

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Step 3: Make sure the Smart device is paired with eWeLink app before starting step 3. Tap on the arrow section as highlighted in the below image.

Set up

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

Step 5: Sign In with your eWeLink Login credentials to Link the Smart Home device

Step 4: Type "eWeLink" on the search bar and tap on eWeLink icon from the drop down options as shown below.

eWeLink

Linked

Add new

eWeLink

Step 6:

a. Account will now be linked, please stay on the page you will be redirected in few seconds to select the device to add to your home. b. Select the device and tap on Next as show in image(b)

a. Done

assistant.google.com

Account is now Linked

b. ×

Choose device

Step 7: Select the Home where you would like to add the Smart Device under. (Or) you can create a New home in order to add the Smart Device to it.

Step 8: You have successfully added eWeLink device to your Google home App.

Choose a home

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

Off

On

Step 9: You can turn the device On/OFF by taping On/Off options as shown below. (OR) You can tap on the name(Ex:Smart Plug as shown below) to redirect to new page.

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

Off

On

Smart Plug

Master bedroom

On

Google Commands:

Now, you can control your smart device using voice commands on Google Home. Below are a few example voice commands on how to use Google Home device:

➢! OK Google, turn ON Smart Plug
➢! OK Google, turn OFF Smart Plug

THINGS TO REMEMBER BEFORE STARTING INSTALLATION:

1. eWeLink App & Google Home App
2. Make sure you have Google Home Device
3. Smart Home Device
4. Stable Wifi network

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
