Product Type	Smart Plug / Smart Switch
Brand	V-TAC
Model	VT-5007
Dimensions	5 × 5 × 5 cm (estimated)
Weight	100 g (estimated)
Power Supply	AC 110-240 V, 50/60 Hz
Maximum Current	16 A (estimated)
Maximum Power	3680 W (estimated)
Connectivity	Wi-Fi 2.4 GHz
App	V-TAC Smart Home (iOS and Android)
Voice Assistants	Amazon Alexa, Google Assistant
Main Functions	Remote on/off, scheduler, timer, access sharing
Maintenance and Cleaning	Unplug before cleaning, use a dry cloth
Safety	Cut off power before installation, professional electrician installation recommended
Spare Parts and Repairability	Not user-repairable, contact after-sales service
Warranty	2 years
General Information	Smart plug compatible with home automation systems, requires a stable Wi-Fi network

Frequently Asked Questions - VT-5007 V-TAC

How to install the V-TAC Smart Home app?

Download the V-TAC Smart Home app from the App Store (iOS) or Google Play Store (Android). Create an account or log in, then follow the pairing steps.

How to pair the VT-5007 plug with the app?

Make sure the plug is powered on. Press and hold the power button for 5 seconds until the indicator blinks (pairing mode). In the app, tap '+' then 'Quick Pairing'. Select your Wi-Fi network and enter the password.

What to do if quick pairing fails?

Try the Compatible Pairing Mode: in the app, instead of 'Quick Pairing', click on the 'Compatible Pairing Mode' link and follow the instructions.

How to control the plug with Amazon Alexa?

Install the Amazon Alexa app, enable the V-TAC Smart Home skill in 'Skills & Games', log in with your V-TAC account, then say 'Alexa, discover devices'. You can then use commands like 'Alexa, turn on the plug'.

How to control the plug with Google Assistant?

In the Google Home app, tap '+' then 'Set up device'. Search for 'VTAC Smart Home' and link your account. Follow the steps to add the device to your home. Use commands like 'OK Google, turn on the plug'.

Can you schedule times for the plug?

Yes, in the V-TAC Smart Home app, select the device then the Schedule or Timer option. You can set time ranges with daily or weekly repetition.

How to share access to the plug with another user?

In the app, open the device and tap Share. Enter the recipient's email address. They will need a V-TAC Smart Home account to accept the share.

Does the plug work without internet?

No, the plug requires an active Wi-Fi connection and internet access for remote control. In case of internet outage, local schedules may not work.

What are the safety precautions during installation?

Always turn off the power supply before installation. Installation should be done by a professional electrician. Make sure the wire gauge complies with local standards to prevent fire hazard.

How to reset the VT-5007 plug to factory settings?

Press and hold the power button for about 10 seconds until the indicator flashes rapidly. Release, the plug will restart in pairing mode.

USER MANUAL VT-5007 V-TAC

WEEE Number: 80133970

INSTALLATION INSTRUCTION

WIFI LAMP HOLDER

Close-up of a white LED light bulb with metal screw base (no text or symbols visible)

Pairing button

V-TAC SMART HOME

works with amazon alexa

02 YEAR WARRANTY*

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC Product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any other query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product.

TABLE OF CONTENTS

ENGLISH....1-15

FRENCH....16-25

GERMAN....26-35

BULGARIAN....36-45

CROATIAN....46-55

PORTUGUESE....56-65

SPANISH....66-75

HUNGARIAN....76-85

ITALIAN....86-95

GREEK 96-105

POLISH 106-115

ROMANIAN....116-125

CZECH....126-135

(FR) INTRODUCTION & GARANTIE

(PL) WSTEP I GWARANCJAD

(RO) INTRODUCERE, GARANTIA

Download V-TAC SMART HOME APP by via APP Store Google Play Store (OR) Scan the below QR code to download the V-TAC SMART HOME APP, FAQ

QR code image containing encoded data, no visible human-readable text

GOOGLE PLAY

QR code image containing encoded data, no visible human-readable text

IOS

QR code image containing encoded data, no visible human-readable text

FAQ

QR code image containing encoded data, no visible human-readable text

MULTI-LANGUAGE MANUAL

INSTALLATION

WARNING!

1. Please make sure to turn off the power before starting the installation.
2. Must be installed by professional electrician.

This marking indicates that this product should not be disposed of with other household wastes.

Caution, risk of electric shock.

SAFETY INSTRUCTION

STEP ①: AFTER TAKING OUT THE NEW LAMP HOLDER, FIRST CHECK WHETHER THE PARTS OF THE LAMP HOLDER ARE INTACT, AND INSTALL IT IF THERE ARE NO PROBLEMS.
STEP ②: BEFORE INSTALLATION, YOU NEED TO TURN OFF THE ELECTRIC POWER, THEN CLEAN THE OLD LAMP HOLDER AND TIGHTEN THE NEW LAMP HOLDER CLOCKWISE. DO NOT USE EXCESSIVE FORCE WHEN TIGHTENING TO AVOID DAMAGING THE SCREW.
STEP ③: AFTER SCREWING, CHECK WHETHER THE MIDDLE PIECE OF METAL IS CONNECTED TO THE LIVE WIRE. AFTER THE CONNECTION IS COMPLETE, THE LIGHT BULB CAN BE INSTALLED, AND IT CAN BE USED AFTER BEING POWERED ON.
NOTE ①: WHEN INSTALLING THE LAMP HOLDER, YOU MUST FIRST CONFIRM WHETHER THE LAMP HOLDER WE INSTALLED MEETS THE VOLTAGE STANDARD, WHETHER THE MAXIMUM POWER IS NOT EXCEEDED, WHETHER THERE IS ANY DAMAGE, ETC.
NOTE ②: THE MINIMUM CROSS-SECTION OF THE WIRE OF THE LAMP HOLDER SHOULD MEET THE MINIMUM CROSS-SECTIONAL AREA SPECIFIED BY THE COUNTRY, BECAUSE IF THE MINIMUM CROSS-SECTION OF THE WIRE OF THE LAMP HOLDER IS LOWER THAN THE MINIMUM CROSS-SECTIONAL AREA SPECIFIED BY THE COUNTRY, IT IS EASY TO CAUSE THE WIRE TO BURN OUT AND BURN THE LAMP HOLDER AND EVEN A FIRE ACCIDENT. THEREFORE, WHEN WE WIRE THE LAMP HOLDER, WE MUST CHOOSE A WIRE LARGER THAN THE MINIMUM CROSS-SECTION OF THE NATIONAL STANDARD TO ENSURE THE NORMAL OPERATION OF THE LAMP HOLDER IN THE FUTURE.

NOTE: The CE declaration of conformity can be downloaded using the link provided below. https://www.vtacexports.com/media/ftp-upload/certificates/DOC/EU/VT-5007-DOC-WI-FI%20LAMP%20HOLDER-EU.pdf

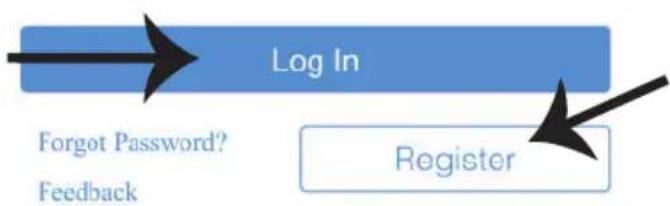

Step 1: Open the V-TAC Smart Home App and register. If you already have an existing account with V-TAC Smart Home, please proceed to logging in.

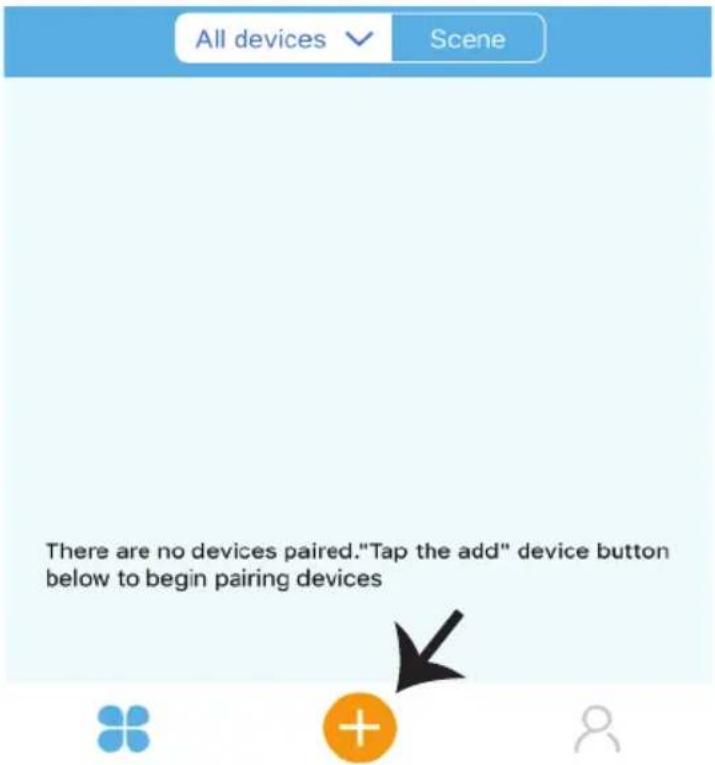

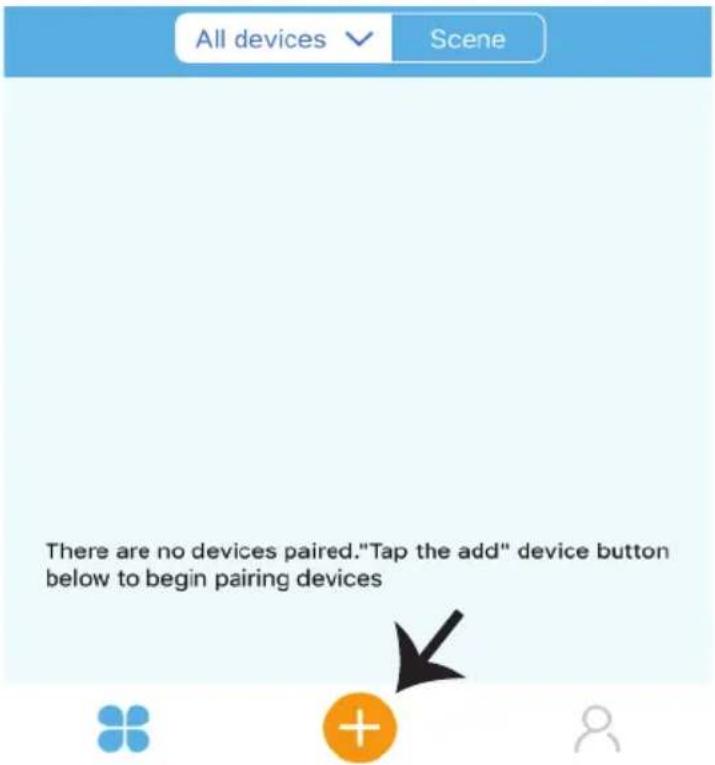

Step 2: To Add a New device tap on the "+" sign(as shown)

V-TAC SMART HOME

V-TAC smart home

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Step 3: Make sure your Smart device is powered ON

1) Tap and hold on the power button for 5 seconds to make the device available in pairing mode. Once in pairing mode the LED will start blinking 3 times repeatedly.

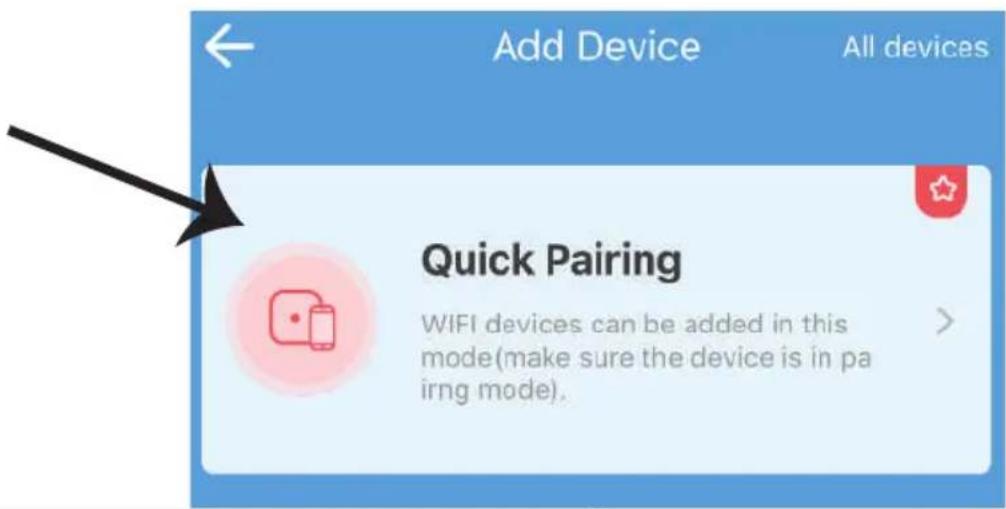

2) Tap on Next to start the pairing of device with the app. (Shown in the image)

Note: If you are facing any trouble while pairing in Quick Pairing mode please try to pair the device in Compatible Pairing Mode (Click on the link as shown on the image).

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairng mode).

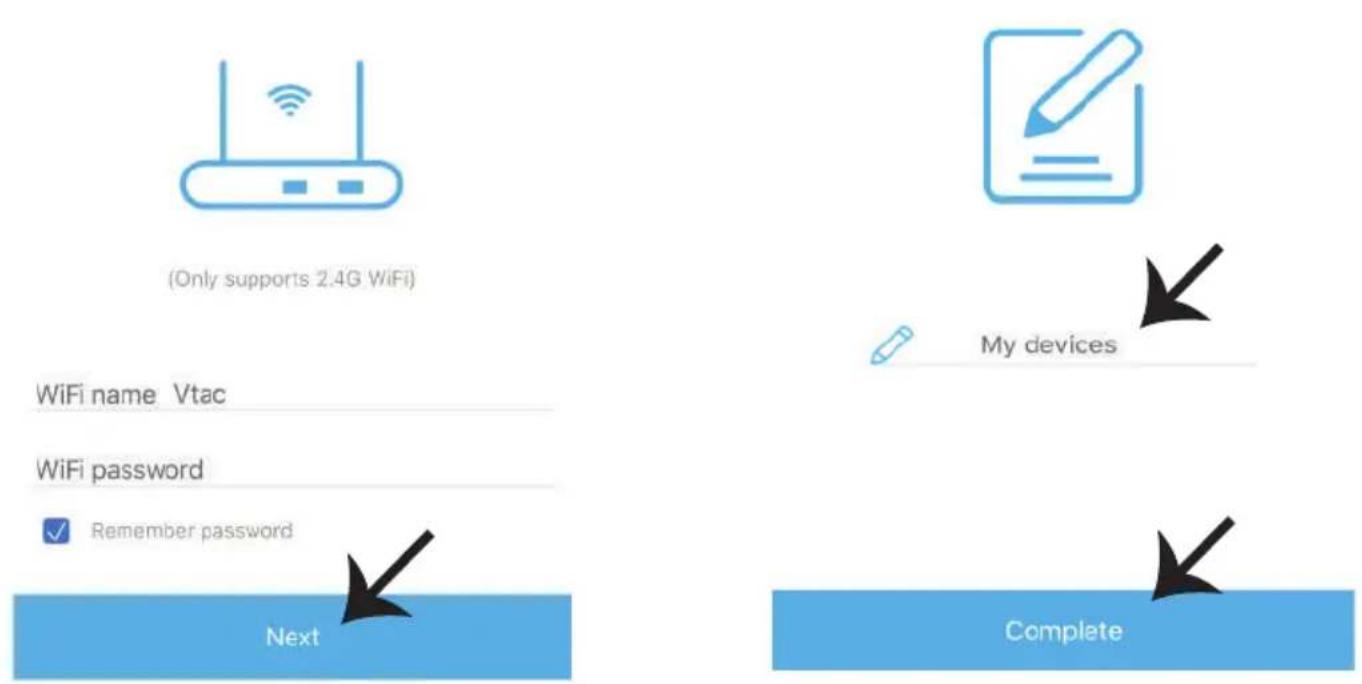

Step 4: Select your Wifi name and enter the password and tap on Next.
Step 5: Give a name to your device (Ex: Smart Plug/ smart switch) & tap on complete.

(Only supports 2.4G WiFi) WiFi name Vtac WiFi password ✓ Remember password Next My devices Complete

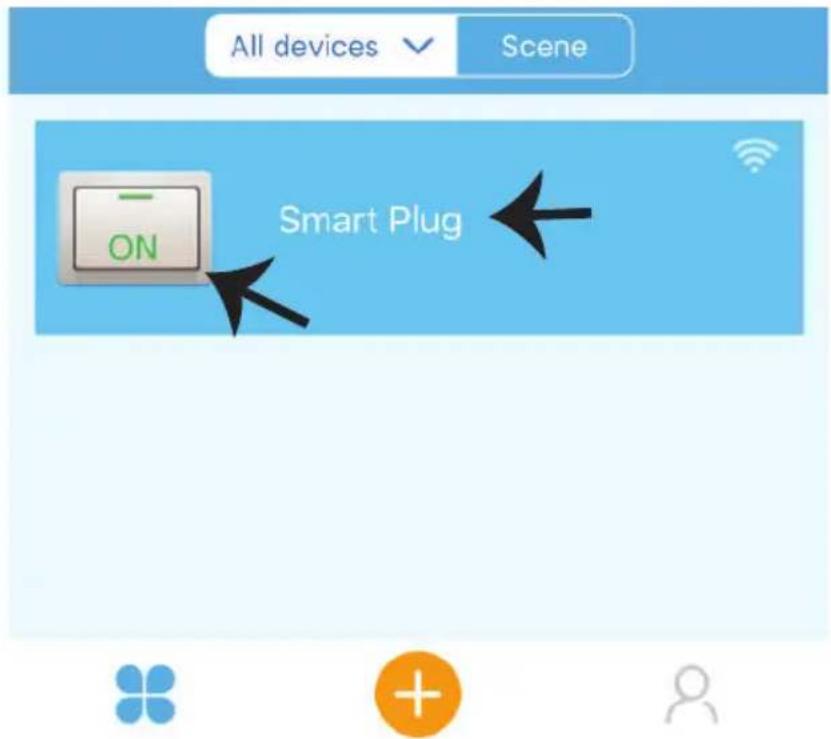

Step 6: Your device is now paired and will appear (Ex: as shown in the below image).

a) To turn the device ON/OFF tap on the ON/OFF icon(as shown in the below image).
b) To enter more settings of the Smart device tap on the Name(Ex: Smart Plug as shown below)

All devices Scene Smart Plug ON

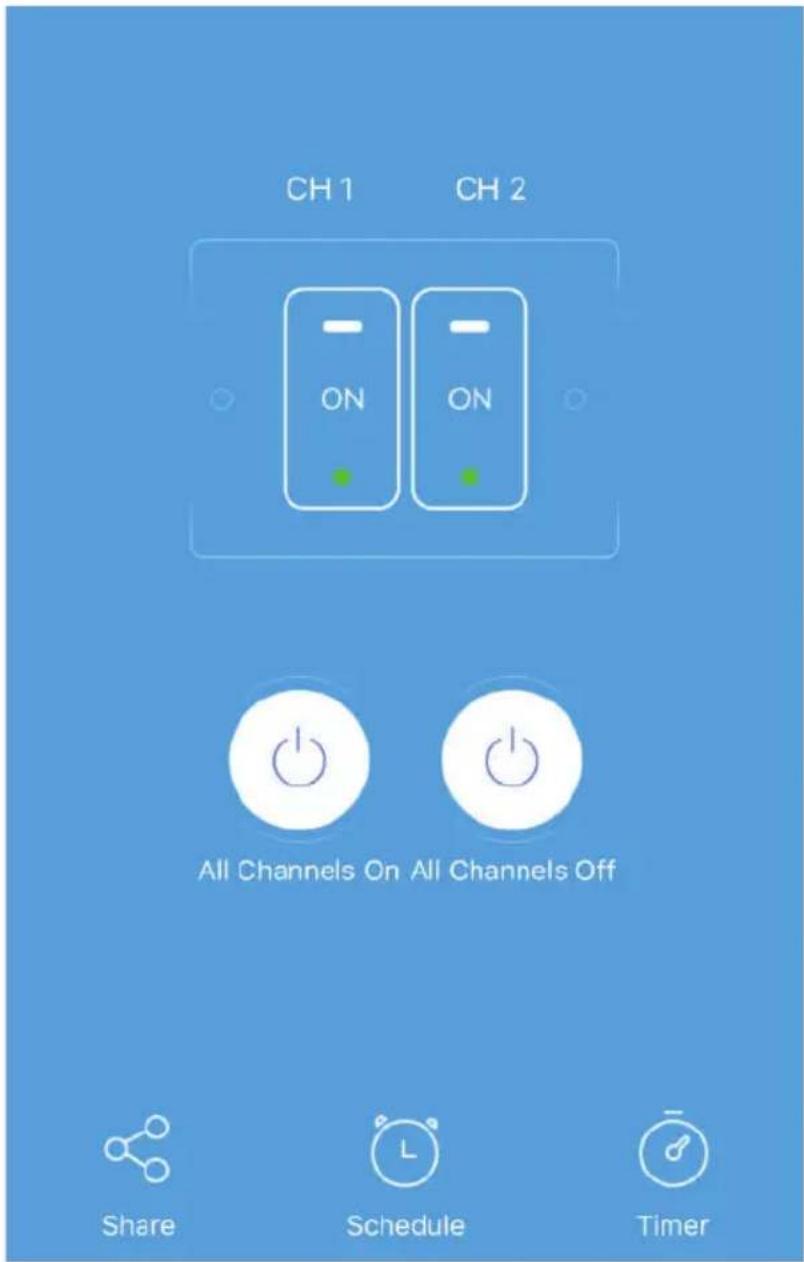

Step 7: V-TAC SMART HOME offers multiple features such as;

a) Share - This function allows you to share the access with another user.

b) Schedule: Schedule timer allows you to turn the device ON/OFF with flexibility of choosing date and time. This feature also allows Repeat mode using which you can set the desired configuration to daily OR any day of the week.

c) Timer : Timer function allows you to set "day-hour-minute" using which you can schedule the device to Turn ON/OFF

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

ALEXA SETTINGS

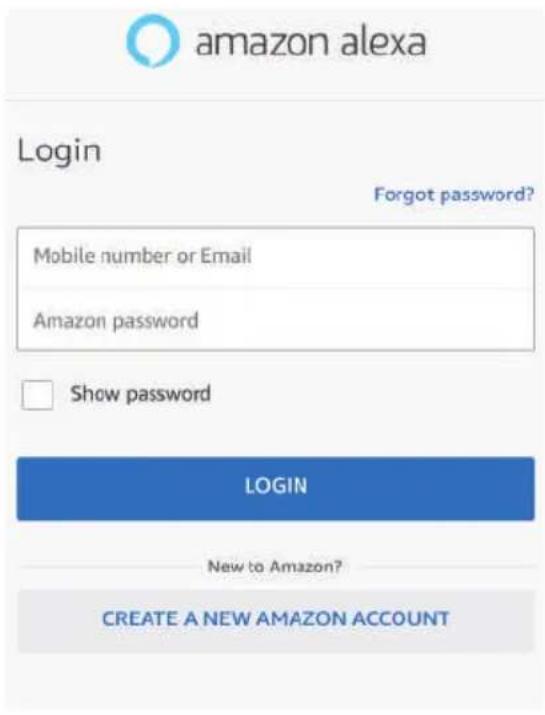

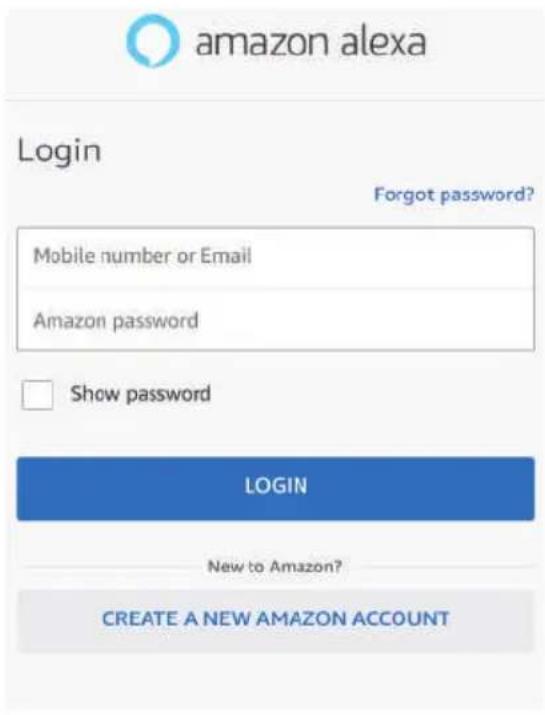

Step 1: Install the Amazon Alexa app via the App Store (iOS) or the Play Store (Android) and register. If you already have an existing account with Amazon Alexa, please proceed to logging in.

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Step 3: On the Home page of Amazon Alexa App, Tap on the icon as shown on the image below.

Blue background with a black arrow pointing diagonally down-right (no text or symbols)

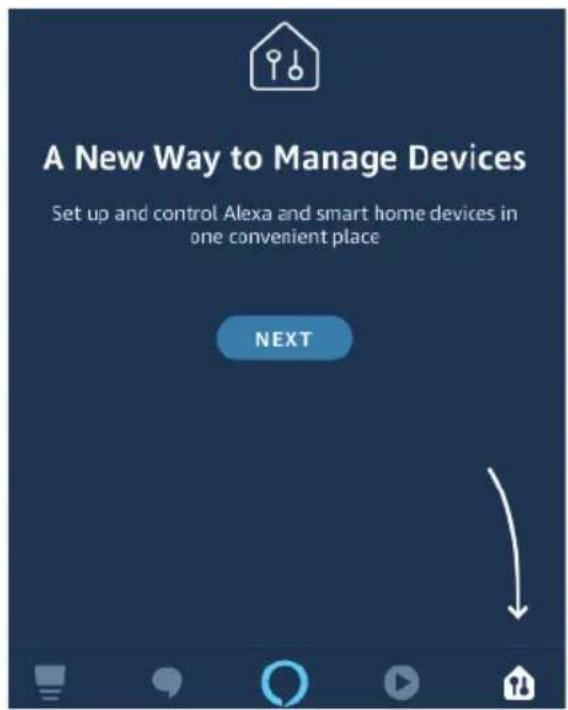

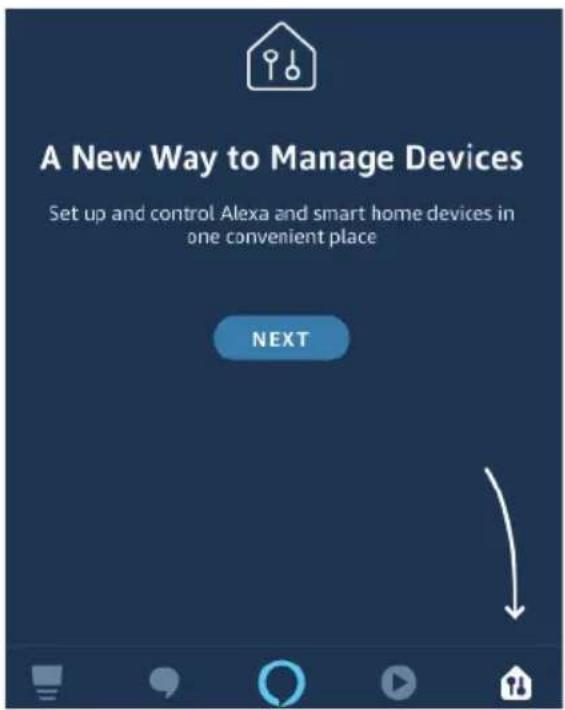

Step 2: Once you are on the Amazon Alexa home page, tap on the lower right icon — where the arrow is pointed— to add a new device and Enable Skills.

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

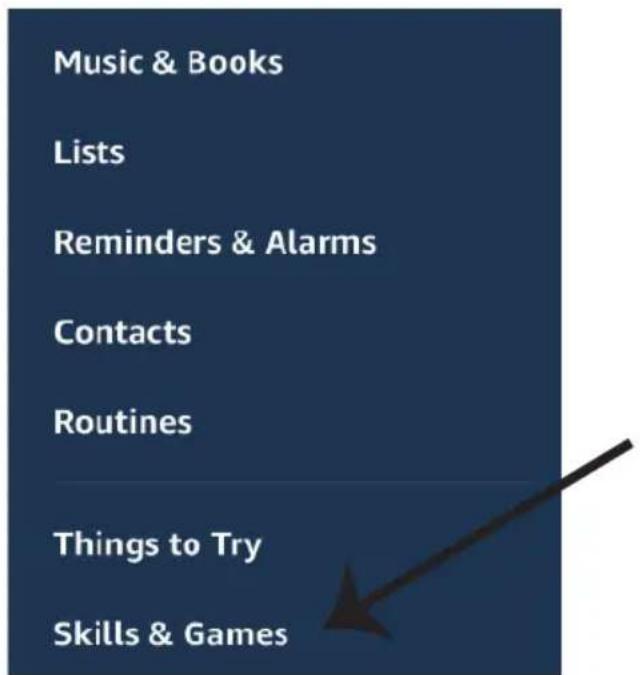

Step 4: Tap on "Skills & Games" as show below

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Step 5: On the Search bar as shown type "V-TAC Smart Home" and tap on the V-TAC Smart Home skill as shown on the below image.

Search

v-tac smart home 2 Results Sort: Relevance

V-TAC Smart Home

Smart Home

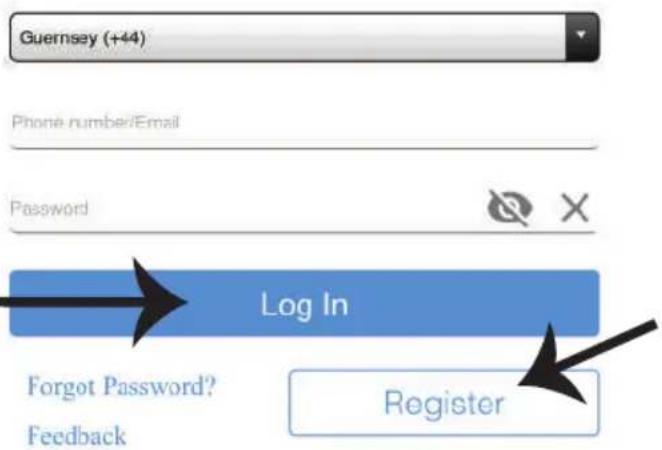

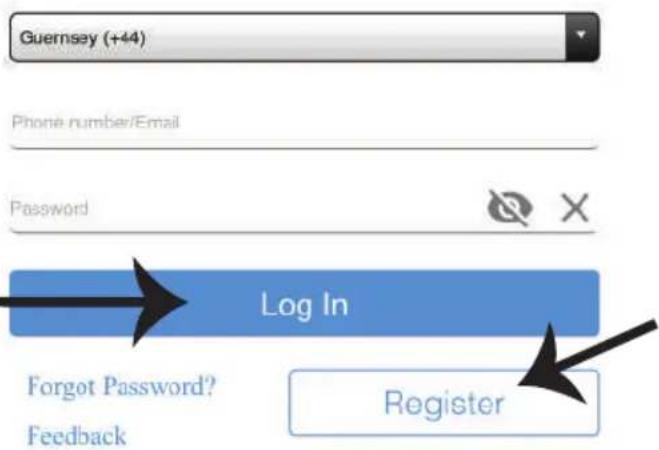

Step 7: Enter Login credentials of V-TAC Smart Home and then tap on Log In. If you do not have a existing account please register by tapping on the register.

V-TAC SMART HOME

Guernsey (+44) Phone number/Email Password Log In Forgot Password? Feedback Register

Step 6: Tap on "ENABLE TO USE" to link V-TAC Smart Home skill with Amazon Alexa app.

V-TAC Smart Home

ENABLE TO USE Account linking required

Step 8: a) Once you have successfully linked V-TAC Skill close the window & (b) tap on Discover device. Make sure Smart device is paired with V-TAC Smart Home app.

a)

amazon alexa T-Tac SMART

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Step 9: Discover your smart device on Alexa. Once you have enabled the skill

A) You can use voice command "Alexa discover devices" to the Alexa device which you have.

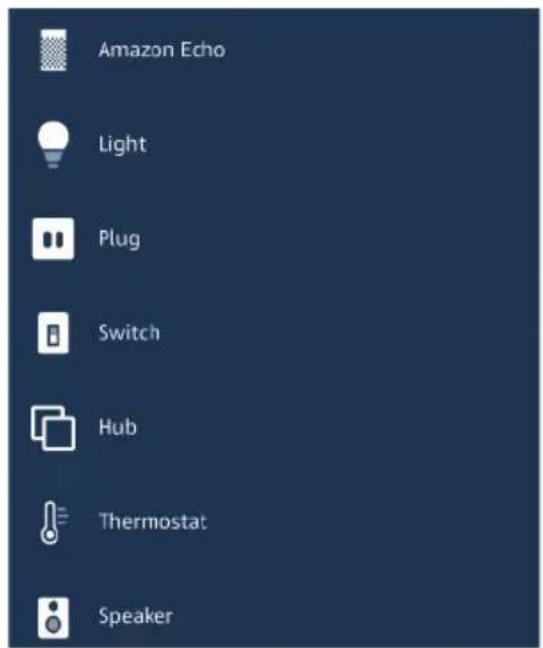

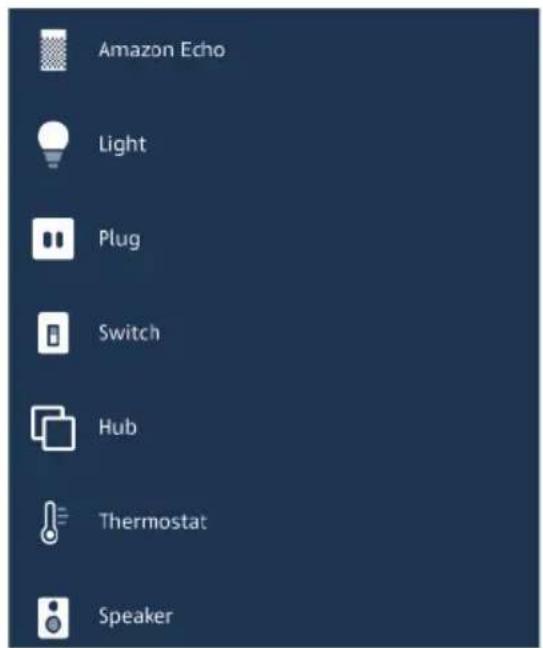

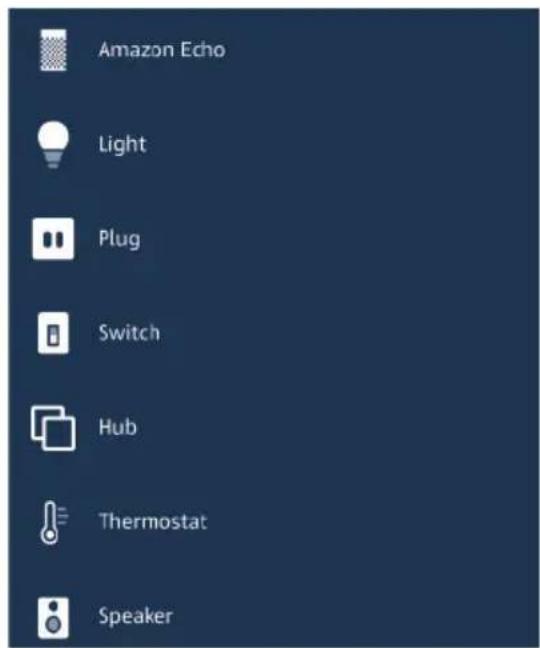

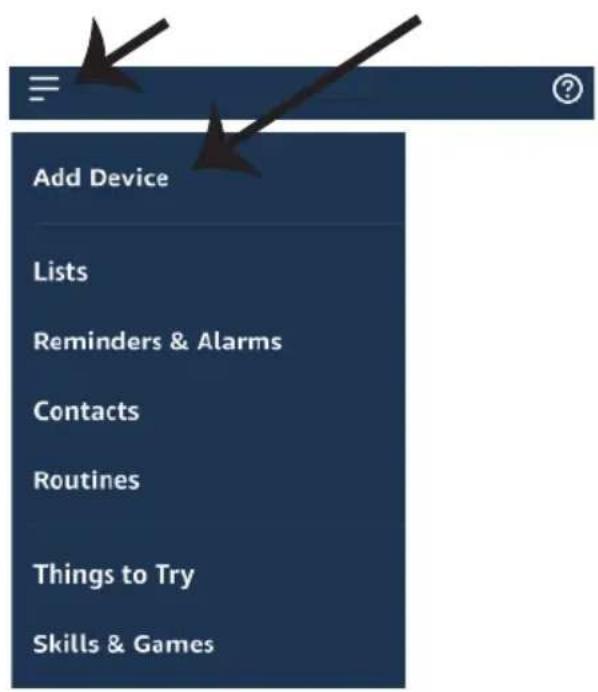

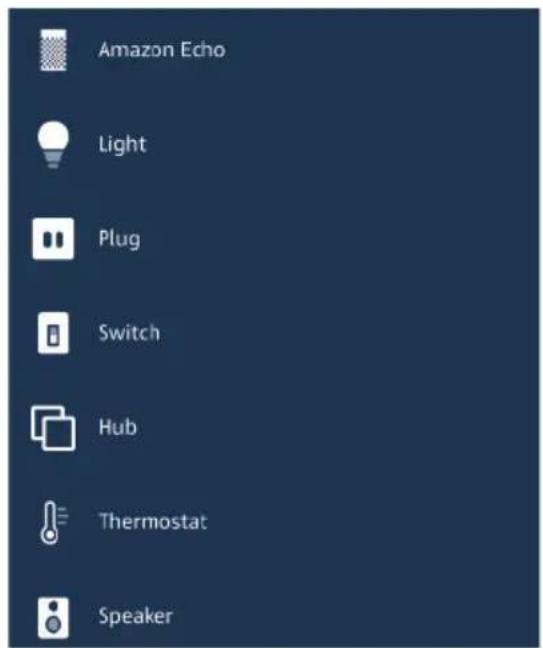

B) To add device manually on home page tap on and tap on Add device, select the device which you are adding and tap on discover device. (Ref Image B)

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Note: Discovering the device must be done every time the device's name is changed on the app.

ALEXA Commands

Now, you can control your smart device using voice commands on Alexa. Below are few example commands on how to use Alexa device:

➢! Alexa, turn ON Smart Plug
➢! Alexa, turn OFF Smart Plug

THINGS TO REMEMBER BEFORE STARTING INSTALLATION:

1. V-TAC Smart Home App & Amazon Alexa App
2. Make sure you have Amazon Alexa Device(including Echo, Echo Tap, or Echo Dot)
3. Smart Home Device
4. Stable Wifi network

GOOGLE HOME SETTINGS

Step 1:

a&b) Install the Google Home app via the App Store (iOS) or the Play Store (Android) and register. If you already have an existing account with Google Home, please proceed to logging in. c) Create a New Home/choose from the existing home if any. d) Power ON the Google Home device and connect it to the App. (Then Proceed to step 2)

a. Welcome home

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

Step 2: Once you are on the Google home page, tap on the Add "+" icon—to add a new device and skill. And then tap on set up device as shown in below image.

a.

Play

Office

Broadcast

Add

Settings

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Step 3: Make sure the Smart device is paired with V-TAC Smart Home app before starting step 3. Tap on the arrow section as highlighted in the below image.

Set up

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

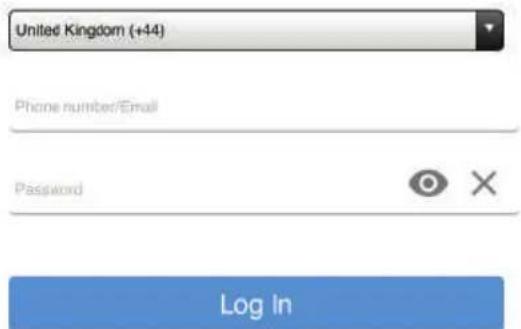

Step 5: Sign In with your V-TAC Smart Home Login credentials to Link the Smart Home device

V-TAC SMART

United Kingdom (+44) Phone number/Email Password Log In

Step 4: Type "Vtac" on the search bar and tap on V-TAC Smart Home icon from the drop down options as shown below.

Vtac

Linked

Add new

VTAC Smart Home

VTAC Smart Light

Step 6:

a. Account will now be linked, please stay on the page you will be redirected in few seconds to select the device to add to your home. b. Select the device and tap on Next as show in image(b)

a. Done

assistant.google.com

Account is now Linked

b. ×

Choose device

Smart Plug Switch

Step 7: Select the Home where you would like to add the Smart Device under. (Or) you can create a New home in order to add the Smart Device to it.

Step 8: You have successfully added V-TAC Smart device to your Google home App.

Choose a home

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

Off

On

Step 9: You can turn the device On/OFF by taping On/Off options as shown below. (OR) You can tap on the name(Ex:Smart Plug as shown below) to redirect to new page.

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

Off

On

Smart Plug

Master bedroom

On

Google Commands:

Now, you can control your smart device using voice commands on Google Home. Below are a few example voice commands on how to use Google Home device:

▶! OK Google, turn ON Smart Plug
➢! OK Google, turn OFF Smart Plug

THINGS TO REMEMBER BEFORE STARTING INSTALLATION:

1. V-TAC Smart Home App & Google Home App
2. Make sure you have Google Home Device
3. Smart Home Device
4. Stable Wifi network

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

CARACTÉRISTIQUES TECHNIQUES

MODÈLE	SKU BASE		ENTRÉE TENSION	MAX COURANT	SANS FIL STANDARD	MATÉRIAU	LES RADIOFRÉQUENCES PUISSANCE TRANSMISE	FRÉQUENCE FRÉQUENCE BANDE
VT-5007	8421	E27	AC: 90-250V	10A	WiFi 2.4Ghz	PC	20dBm	2.412-2.484 GHz

INSTALLATION DE L'APPLICATION

QR code image containing encoded data, no visible human-readable text

GOOGLE PLAY

QR code image containing encoded data, no visible human-readable text

IOS

QR code image containing encoded data, no visible human-readable text

FAQ

QR code image containing encoded data, no visible human-readable text

MULTI-LANGUES MANUEL

INSTALLATION

ATTENTION!

https://www.vtacexports.com/media/ftp-upload/certificates/DOC/

EU/VT-5007-DOC-WI-FI%20LAMP%20HOLDER-EU.pdf

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairng mode).

(Only supports 2.4G WiFi) WiFi name Vtac WiFi password ✓ Remember password Next My devices Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

RÉGLAGES ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue rectangular background with a black arrow pointing diagonally downward and a small horizontal line above it (no text or symbols)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Guernsey (+44) Phone number/Email Password Log In Forgot Password? Feedback Register

Rated: Guidance Suggested

ENABLE TO USE Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

NEXT >

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

SPEZIFIKATIONEN

MODELL	SKU	BASIS	EINGANG SPANNUNG	MAX STROM	DRAHTLOS STANDARD	MATERIAL	HOCHFREQUENZ LEISTUNG ÜBERTRAGEN	RADIO FREQUENZ BAND
VT-5007	8421	E27	AC: 90-250V	10A	WiFi 2.4Ghz	PC	20dBm	2.412-2.484 GHz

APP-INSTALLATION

QR code image containing encoded data, no visible human-readable text

GOOGLE PLAY

QR code image containing encoded data, no visible human-readable text

IOS

QR code image containing encoded data, no visible human-readable text

FAQ

QR code image containing encoded data, no visible human-readable text

MULTI-LANGUAGE MANUAL

INSTALLATION

WARNUNG!

https://www.vtacexports.com/media/ftp-upload/certificates/DOC/

EU/VT-5007-DOC-WI-FI%20LAMP%20HOLDER-EU.pdf

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairng mode).

(Only supports 2.4G WiFi) WiFi name Vtac WiFi password ✓ Remember password Next My devices Complete

All devices Scene Smart Plug

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

ALEXA-EINSTELLUNGEN

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue rectangular background with a black arrow pointing diagonally down-right and a small '≡' symbol above it (no text or symbols present)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Guernsey (+44) Phone number/Email Password Log In Forgot Password? Feedback Register

V-TAC Technologies Rated: Guidance Suggested

ENABLE TO USE Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, triangles, and circles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

NEXT >

In case of any query/issue with the product please reach out to us at [e-mail] V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

СПЕЦИФИКАЦИИ

QR code image containing encoded data, no visible human-readable text

GOOGLE PLAY

QR code image containing encoded data, no visible human-readable text

IOS

QR code image containing encoded data, no visible human-readable text

FAQ

QR code image containing encoded data, no visible human-readable text

MULTI-LANGUAGE MANUAL

ИНСТАЛИРАНЕ

ПРЕДУПРЕЖДЕНИЕ!

https://www.vtacexports.com/media/ftp-upload/certificates/DOC/

EU/VT-5007-DOC-WI-FI%20LAMP%20HOLDER-EU.pdf

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairing mode).

(Only supports 2.4G WiFi)

My devices

WiFi name Vtac

WiFi password

Remember password

Next

Complete

Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

НАСТРОЙКИ НА ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue background with a black arrow pointing diagonally down-right (no text or symbols)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games
    note1["Forgot Password?"]
    note2["Feedback"]

Rated: Guidance Suggested

ENABLE TO USE Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

Log In

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

TEHNIČKI PODACI

MODEL	SKU BAZA		ULAZNI NAPON	MAKS TRENUTNO	BEŽIČNI STANDARD	MATERIJAL	RADIJSKA FREKVENCIJA VLAST PRENOSI SE	RADIO FREKVENCIJA BEND
VT-5007	8421	E27	AC: 90-250V	10A	WiFi 2.4Ghz	PC	20dBm	2.412-2.484 GHz

INSTALACIJA APLIKACIJE

PREUZMITE APLIKACIJU V-TAC SMART HOME PUTEM TRGOVINE APP STORE GOOGLE PLAY STORE (ILI) SKENIRAJTE DONJI QR KOD ZA PREUZIMANJE APLIKACIJE V-TAC SMART HOME, FAQ

QR code image containing encoded data, no visible human-readable text

GOOGLE PLAY

QR code image containing encoded data, no visible human-readable text

IOS

QR code image containing encoded data, no visible human-readable text

FAQ

QR code image containing encoded data, no visible human-readable text

VIŠEJEZIČNI PRIRUČNIK

MONTAŽA

UPOZORENJE!

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Korak 3: Provjerite da li je Vaš pametni uređaj napunjen.

1) Pritisnite i zadržite gumb Power na 5 sekundi da biste uključili uređaj u Režim za uparivanje. Kada je režim za uparivanje uključen, LED će početi svjetlucati 3 puta uzastopno.
2) Kliknite Quick pairing da biste započeli uparivanje uređaja s aplikacijom.

Napomena: Ako imate bilo kakvih problema za vrijeme uparivanja u režimu Brzog uparivanja (Quick Pairing), molimo pokušajte upariti uređaj u režimu Kompatibilnog uparivanja (Compatible Pairing) (Pritisnite na vezu kao što je ukazano na slici).

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairng mode).

(Only supports 2.4G WiFi) WiFi name Vtac WiFi password ✓ Remember password Next My devices Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

POSTAVKE ZA ALEXA

Korak 1: Instalirajte aplikaciju Amazon Alexa s App Store-a (iOS) ili s Play Store-a (Android) i registrirajte ju. Ako već imate otvoren račun kod Amazon Alexa, jednostavno se prijavite.

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Korak 3: Na domaćoj stranici aplikacije Amazon Alexa, pritisnite na ikonu na način prikazan na slici ispod.

Blue background with a black arrow pointing diagonally down-right (no text or symbols)

Korak 2: Kada ste na domaćoj stranici Amazon Alexa, kliknite na ikonu dolje desno — kuda ukazuje strelica — za dodavanje novog uređaja i vještina.

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Korak 5: Na traci za pretraživanje, kao što je prikazano, upišite "V-TAC [p9Smart Home" i kliknite V-TAC Smart Home, kao što je prikazano na donjoj slici.

Search

v-tac smart home 2 Results Sort: Relevance

V-TAC Smart Home

Smart Home

Korak 7: Unesite vjerodajnice za V-TAC Smart Home, zatim kliknite na Prijavu (Log In). Ako nemate otvoren račun, registrirajte se na "Registracija" (Register).

V-TAC SMART HOME

Guernsey (+44) Phone number/Email Password Log In Forgot Password? Feedback Register

Korak 6: Kliknite "ENABLE TO USE" da biste povezali V-TAC Smart Home s aplikacijom Amazon Alexa.

V-TAC Smart Home

V-TAC Technologies

Rated: Guidance Suggested

ENABLE TO USE Account linking required

Korak 8: a) Kada ste uspješno povezali V-TAC vještinu, zatvorite prozor te & (b) kliknite na Pronadi uređaj. Provjerite da li je pametni uređaj uparen s V-TAC Smart Home aplikacijom.

a)

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Korak 9: Otkrijte svoj pametni uređaj u aplikaciji Alexa. Nakon aktiviranja opcije:

A) Možete uputiti glasovnu naredbu "Alexa discover devices" svom uređaju Alexa.

B) Da biste ručno dodali uređaj na početnu stranicu, kliknite Add device, odaberite uređaj koji želite dodati i kliknite Discover device.

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including a square, circle, and triangle (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

Korak 2: Kada uđete u Googlovu domaću stranicu, kliknite na ikonu Dodaj “+”— za dodavanje novog uređaja i vještine. Zatim pritisnite Postavi uređaj kao što je prikazano na slici ispod.

a.

Play

Office

Broadcast

Add

Settings

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Korak 3: Provjerite da li je Smart Device uparen s aplikacijom V-TAC Smart Homeprije nego što napravite korak 3. Kliknite na strelicu kao što je ukazano na slici ispod.

Set up

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

Korak 5: Prijavite se sa svojim V-TAC Smart Home Login vjerodajnicama da biste povezali Smart Home uređaj.

V-TAC SMART

United Kingdom (+44) Phone number/Email Password Log In

1. Etapa: U traku za pretraživanje upišite "Vtac" i kliknite ikonu V-TAC Smart Home na padajućem izborniku opcija, kao što je prikazano u nastavku:

Vtac

Linked

Add new

VTAC Smart Home

VTAC Smart Light

Korak 6:

Account is now Linked

b. ×

Choose device

Smart Plug Switch

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

Off

On

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

ESPECIFICAÇÕES

MODELO	SKU BASE		ENTRADA TENSÃO	MÁXIMO CORRENTE	SEM FIOS PADRÃO	MATERIAL	POTÊNCIA DE RADIOFREQUÊNCIA POTÊNCIA TRANSMITIDA	RÁDIO FREQUÊNCIA BANDA
VT-5007	8421	E27	AC: 90-250V	10A	WiFi 2.4Ghz	PC	20dBm	2.412-2.484 GHz

QR code image containing encoded data, no visible human-readable text

GOOGLE PLAY

QR code image containing encoded data, no visible human-readable text

IOS

QR code image containing encoded data, no visible human-readable text

FAQ

QR code image containing encoded data, no visible human-readable text

MANUAL MULTILINGUE

INSTALAÇÃO

ATENÇÃO!

https://www.vtacexports.com/media/ftp-upload/certificates/DOC/

EU/VT-5007-DOC-WI-FI%20LAMP%20HOLDER-EU.pdf

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairng mode).

(Only supports 2.4G WiFi) WiFi name Vtac WiFi password ✓ Remember password Next My devices Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

CONFIGURAÇÕES PARA ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue rectangular background with a black arrow pointing diagonally down-right and a small white line above it (no text or symbols)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Guernsey (+44) Phone number/Email Password Log In Forgot Password? Feedback Register

V-TAC Technologies Rated: Guidance Suggested

ENABLE TO USE Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

NEXT >

Off

On

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

ESPECIFICACIONES

MODELO	SKU BASE		ENTRADA TENSIÓN	MAX CORRIENTE	INALÁMBRICO ESTÁNDAR	MATERIAL	POTENCIA DE RADIOFRECUENCIA TRANSMITIDA	BANDA DE RADIOFRECUENCIA
VT-5007	8421	E27	AC: 90-250V	10A	WiFi 2.4Ghz	PC	20dBm	2.412-2.484 GHz

QR code image containing encoded data, no visible human-readable text

GOOGLE PLAY

QR code image containing encoded data, no visible human-readable text

IOS

QR code image containing encoded data, no visible human-readable text

FAQ

QR code image containing encoded data, no visible human-readable text

MANUAL MULTILINGÜE

INSTALACIÓN

iAVISO!

https://www.vtacexports.com/media/ftp-upload/certificates/DOC/

EU/VT-5007-DOC-WI-FI%20LAMP%20HOLDER-EU.pdf

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairng mode).

(Only supports 2.4G WiFi) WiFi name Vtac WiFi password ✓ Remember password Next My devices Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue background with a black arrow pointing diagonally down-right and a small horizontal line above it (no text or symbols)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Guernsey (+44) Phone number/Email Password Log In Forgot Password? Feedback Register

ENABLE TO USE Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

Choose a home You will be able to control the devices and services in this home. Smart-Home Office Smart Home Create another home NEXT > Smart-Home Add Settings Master bedroom 1 device Smart Plug Off On

Smart-Home Add Settings Master bedroom 1 device Smart Plug Off On Smart Plug On Smart Plug Master bedroom

Comandos de Google:

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

SPECIFIKÁCIÓK

MODELL	SKU BÁZIS		BEMENETI FESZÜLTSÉG	MAXIMÁLIS ÁRAM	VEZETÉK NÉLKÜLI SZABVÁNY	ANYAG	ÁTVITT RÁDIÓFREKVENCIÁS TELJESÍTMÉNY	RÁDIÓFRE KVENCIA-SÁV
VT-5007	8421	E27	AC: 90-250V	10A	WiFi 2.4Ghz	PC	20dBm	2.412-2.484 GHz

ALKALMAZÁS TELEPÍTÉSE

TÖLTSE LE A V-TAC SMART HOME APP-OT AZ APP STORE GOOGLE PLAY STORE-ON KERESZTÜL (VAGY) SZKENNELJE BE AZ ALÁBBI QR-KÓDOT A V-TAC SMART HOME APP LETÖLTÉSÉHEZ, GYIK

QR code image containing encoded data, no visible human-readable text

GOOGLE PLAY

QR code image containing encoded data, no visible human-readable text

IOS

QR code image containing encoded data, no visible human-readable text

FAQ

QR code image containing encoded data, no visible human-readable text

TÖBBNYELVÜ KÉZIKÖNYV

BEÁLLÍTÁS

FIGYELEM!

https://www.vtacexports.com/media/ftp-upload/certificates/DOC/

EU/VT-5007-DOC-WI-FI%20LAMP%20HOLDER-EU.pdf

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairng mode).

Simple line icon of a wireless router with Wi-Fi symbol (no text or labels)

(Only supports 2.4G WiFi)

My devices

WiFi name Vtac

WiFi password

Remember password

Next

Complete

Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

ALEXA BEÁLLÍTÁSAI

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue background with a black arrow pointing diagonally down-right (no text or symbols)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Guernsey (+44) Phone number/Email Password Log In Forgot Password? Feedback Register

V-TAC Technologies Rated: Guidance Suggested

ENABLE TO USE Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

NEXT >

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

SPECIFICHE

MODELLO	SKU BASE		TENSIONE DI INGRESSO	CORRENTE MASSIMA	STANDARD WIRELESS	MATERIALE	POTENZA TRASMESSA IN RADIOFREQUENZA	RADIO BANDA DI FREQUENZA
VT-5007	8421	E27	AC: 90-250V	10A	WiFi 2.4Ghz	PC	20dBm	2.412-2.484 GHz

QR code image containing encoded data, no visible human-readable text

GOOGLE PLAY

QR code image containing encoded data, no visible human-readable text

IOS

QR code image containing encoded data, no visible human-readable text

FAQ

QR code image containing encoded data, no visible human-readable text

MANUALE MULTILINGUE

INSTALLAZIONE

ATTENZIONE!

https://www.vtacexports.com/media/ftp-upload/certificates/DOC/

EU/VT-5007-DOC-WI-FI%20LAMP%20HOLDER-EU.pdf

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairng mode).

Simple line icon of a wireless router with two ports and a Wi-Fi symbol (no text or labels)

(Only supports 2.4G WiFi)

My devices

WiFi name Vtac

WiFi password

Remember password

Next

Complete

Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Simple graphic with a black arrow pointing to a blue background, no text or symbols present.

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Phone number/Email Password
    note1["Forgot Password?"]
    note2["Feedback"]

Rated: Guidance Suggested

ENABLE TO USE Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, triangles, and circles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

Log In

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

NEXT >

Off

On

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

SPECYFIKACJA

MODEL	SKU	PODSTAWA	NAPIĘCIE WEJŚCIOWE	MAKSYMALNY PRĄD	STANDARD BEZPRZEW ODOWY	MATERIAŁ	PRZESYŁANA MOC O CZĘSTOTLIWOŚCI RADIOWEJ	RADIO PASMO CZĘSTOTLIWOŚCI
VT-5007	8421	E27	AC: 90-250V	10A	WiFi 2.4Ghz	PC	20dBm	2.412-2.484 GHz

INSTALACJA APLIKACJI

POBIERZ APLIKACJĘ V-TAC SMART HOME APP PRZEZ APP STORE GOOGLE PLAY STORE (LUB) ZESKANUJ PONIŻSZY KOD QR, ABY POBRAĆ APLIKACJĘ V-TAC SMART HOME APP, FAQ

QR code image containing encoded data, no visible human-readable text

GOOGLE PLAY

QR code image containing encoded data, no visible human-readable text

IOS

QR code image containing encoded data, no visible human-readable text

FAQ

QR code image containing encoded data, no visible human-readable text

WIELOJĘZYCZNA
INSTRUKCJA
OBSŁUGI

INSTALACJA

OSTRZEŻENIE!

https://www.vtacexports.com/media/ftp-upload/certificates/DOC/

EU/VT-5007-DOC-WI-FI%20LAMP%20HOLDER-EU.pdf

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairng mode).

Simple line icon of a wireless router with WiFi signal (no text or symbols)

(Only supports 2.4G WiFi)

My devices

WiFi name Vtac

WiFi password

Remember password

Next

Complete

Complete

All devices Scene Smart Plug

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

USTAWIENIA ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Blue rectangular background with a black arrow pointing diagonally down-right and a small white line above it (no text or symbols)

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Rated: Guidance Suggested

ENABLE TO USE

Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

NEXT >

Off

On

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

ΠΡΟΔΙΑΓΡΑΦ'ΕΣ

QR code image containing encoded data, no visible human-readable text

GOOGLE PLAY

QR code image containing encoded data, no visible human-readable text

IOS

QR code image containing encoded data, no visible human-readable text

FAQ

QR code image containing encoded data, no visible human-readable text

https://www.vtacexports.com/media/ftp-upload/certificates/DOC/

EU/VT-5007-DOC-WI-FI%20LAMP%20HOLDER-EU.pdf

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairing mode).

(Only supports 2.4G WiFi) WiFi name Vtac WiFi password ✓ Remember password Next My devices Complete

All devices Scene Smart Plug ON

CH 1 CH 2 ON ON All Channels On All Channels Off Share Schedule Timer

PYOMISEIIS THΣ ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue rectangular background with a black arrow pointing diagonally down-right (no text or symbols)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Rated: Guidance Suggested

ENABLE TO USE

Account linking required

V-TAC has been successfully linked.

What to do next:

— Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including a triangle, square, circle, and partial rectangle (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

NEXT >

Off

On

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

SPECIFICATII

MODEL	SKU BAZA		TENSIUNE DE INTRARE	CURENT MAXIM	STANDARD FÄRÄ FIR	MATERIAL	RADIOFRECVENTÄ PUTERE TRANSMISÄ	RADIO BANDÄ DE FRECVENTÄ
VT-5007	8421	E27	AC: 90-250V	10A	WiFi 2.4Ghz	PC	20dBm	2.412-2.484 GHz

INSTALAREA APLICATIEI

DESCĂRCAȚI V-TAC SMART HOME APP PRIN INTERMEDIUL APP STORE GOOGLE PLAY STORE (SAU) SCANĂȚI CODUL QR DE MAI JOS PENTRU A DESCĂRCA V-TAC SMART HOME APP, FAQ

QR code image containing encoded data, no visible human-readable text

GOOGLE PLAY

QR code image containing encoded data, no visible human-readable text

IOS

QR code image containing encoded data, no visible human-readable text

FAQ

QR code image containing encoded data, no visible human-readable text

MANUAL ÎN MAI MULTE LIMBI

INSTALARE

AVERTISMENT!

https://www.vtacexports.com/media/ftp-upload/certificates/DOC/

EU/VT-5007-DOC-WI-FI%20LAMP%20HOLDER-EU.pdf

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

All devices √ Scene There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairng mode).

Simple line icon of a wireless router with two ports and a Wi-Fi symbol (no text or labels)

(Only supports 2.4G WiFi)

My devices

WiFi name Vtac

WiFi password

Remember password

Next

Complete

Complete

All devices Scene Smart Plug ON

CH 1 CH 2 ON ON All Channels On All Channels Off Share Schedule Timer

SETĂRILE ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue background with a black arrow pointing diagonally down-right (no text or symbols)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Rated: Guidance Suggested

ENABLE TO USE

Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

a. Office Play Broadcast Add Settings Office 1 device Office Speaker Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

Smart-Home

Add

Settings

Master bedroom

1 device

Smart Plug

NEXT >

Off

On

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B

SPECIFIKACE

MODEL	SKU	ZÁKL ADNA	VSTUPNÍ NAPĚTÍ	MAXIMÁLNÍ PROUD	BEZDRÁTOVÝ STANDARD	MATERIÁL	RADIOFREKVENCE PŘENÁŠENÝ VÝKON	RADIOFREKVENČNÍ PÁSMO
VT-5007	8421	E27	AC: 90-250V	10A	WiFi 2.4Ghz	PC	20dBm	2.412-2.484 GHz

INSTALACE APLIKACE

STÁHNĚTE SI APLIKACI V-TAC SMART HOME PROSTŘEDNICTVÍM OBCHODU APP STORE GOOGLE PLAY STORE (NEBO) NASKENUJTE NÍŽE UVEDENÝ QR KÓD A STÁHNĚTE SI APLIKACI V-TAC SMART HOME, FAQ.

QR code image containing encoded data, no visible human-readable text

GOOGLE PLAY

QR code image containing encoded data, no visible human-readable text

IOS

QR code image containing encoded data, no visible human-readable text

FAQ

QR code image containing encoded data, no visible human-readable text

VÍCEJAZYČNÁ PŘÍRUČKA

INSTALACE

POZOR!

https://www.vtacexports.com/media/ftp-upload/certificates/DOC/

EU/VT-5007-DOC-WI-FI%20LAMP%20HOLDER-EU.pdf

Please select a region

Phone number or email address

Password

Login

Reset Password

Register

There are no devices paired."Tap the add" device button below to begin pairing devices

Add Device All devices Quick Pairing WIFI devices can be added in this mode (make sure the device is in pairng mode).

Simple line icon of a wireless router with signal waves (no text or symbols)

(Only supports 2.4G WiFi)

My devices

WiFi name Vtac

WiFi password

Remember password

Next

Complete

Complete

All devices Scene Smart Plug ON

CH 1 ON CH 2 All Channels On All Channels Off Share Schedule Timer

NASTAVENÍ APLIKACE ALEXA

amazon alexa Login Forgot password? Mobile number or Email Amazon password Show password LOGIN New to Amazon? CREATE A NEW AMAZON ACCOUNT

Blue background with a black arrow pointing diagonally down-right (no text or symbols)

A New Way to Manage Devices Set up and control Alexa and smart home devices in one convenient place NEXT

Music & Books Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Phone number/Email Password
    note1["Forgot Password?"]
    note2["Feedback"]

Rated: Guidance Suggested

ENABLE TO USE Account linking required

V-TAC has been successfully linked.

What to do next:

→ Close this window to discover smart-home devices you can control with Alexa.

b)

Discover Devices

Smart Home devices must be discovered before they can be used with Alexa.

CANCEL DISCOVER DEVICES

Add Device Lists Reminders & Alarms Contacts Routines Things to Try Skills & Games

Amazon Echo Light Plug Switch Hub Thermostat Speaker

Your content and devices all in one place

b. Choose account

This account will be used to personalize your experience

d. Plug in your device

Make sure your device is nearby and connected to power, then try again

Abstract geometric shapes including squares, circles, and triangles (no text or symbols)

GET STARTED >

c. Choose a home

You will be able to control the devices and services in this home.

Create another home

Office
1 device

Office Speaker
Pause

b.

Add to Home

Set up device

Add home member

Create speaker group

Create new home

Add services

Music and audio

Videos and photos

Set up new devices or add existing devices and services to your home

New devices

Set up new devices

Google Home, smart displays and devices labelled 'Made for Google' such as C by GE smart bulbs

Works with Google

Have something already set up?

Link your smart home services such as Philips Hue and TP-Link

United Kingdom (+44) Phone number/Email Password Log In

Account is now Linked

b. ×

Choose device

Smart Plug Switch

You will be able to control the devices and services in this home.

Smart-Home

Office

Smart Home

Create another home

In case of any query/issue with the product please reach out to us at [e-mail]

V-TAC EUROPE LTD, Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
