USER MANUAL VT-5022 V-TAC

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance.
• Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service, in order to avoid any type of danger.

WARNING: Do not use the appliance if its cord, plug, or housing is damaged, nor after it malfunctions or has been dropped or damaged in any way.

- The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.

- This appliance is not intended to be used by persons with reduced physical, sensory, or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance in a safe way by a person responsible for their safety, and understand the hazards involved.

- Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.

- Keep the appliance and its cord out of reach of children under the age of 8.

- Do not try to repair the appliance by yourself. Contact the official Technical Support Service for advice.

- Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance functions properly. Turn off and unplug the appliance before cleaning it.

- Make sure the fan is not placed near drapes, curtains, or any objects that may be drawn into the fan.

• The minimum distance between the fan blades and the floor must be 2.3m . The minimum carrying capacity of the outlet box from which the fan is hung must be 45kg .
• Do not use the appliance in confined spaces with explosive or toxic vapours.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Make sure you install all-poles disconnection switch with a minimum distance of 3 mm between poles in the supply wiring to the ceiling fan.
• Switch off the power before connecting or repairing the fan.
• The electrical wiring must be in accordance with the local regulations.
• The fan must be properly grounded to avoid the risk of electric shocks. Never mount the fan in a moist or wet room. Be careful when working near the rotating blades.
• This appliance must be installed in accordance with the national electrical installation regulations.
• Ensure that the fan is switched off from the supply mains before removing the guard.
• If unusual oscillating movement is observed, immediately stop using the ceiling fan and contact the manufacturer, its service agent or suitably qualified persons.
• The replacement of parts of the safety suspension system device shall be performed by the manufacturer, its service agent or suitably qualified persons.
• The mounting of the suspension system shall be performed by the manufacturer, its service agent or suitably qualified person.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) away from their reach.

IMPORTANT: Shut off the main electric switch during installation or maintenance. It is recommended to switch off the plug of the automatic switch before the fan (Both mains and fan switch should be not powered).

• Do not use outdoors. The product must be installed in a dry place, where it is not exposed to water or moisture.
• Do not connect the fan motor to a dimmer switch. This could result in malfunction or motor damage.
• It is not recommended that ceiling fans and gas appliances operate in the same room at the same time.
• The fan must be completely turned off and stopped before reversing the fan direction. This will prevent the fan motor and controller from getting damaged.
• Do not insert any object into the fan blades during operation. This will damage the blades and upset the balance of the fan causing the unit to wobble.
• After the fan is completely installed make sure all base and fan blade fixings are secured and tightened to prevent any problems.
• Some of the connections may loosen due to the fan's natural movement. Check the support connections brackets and blade attachments twice a year to make sure they remain secured. If any are loose, tighten.

• The use of electrical appliances requires notion of some basic rules, such as:

• Do not touch the appliance with wet hands or feet

• Never expose the appliance to atmospheric conditions (rain, sun, etc.).
• Do not use the device next to potentially explosive or inflammable liquids or gases.

- This product is intended for household use ONLY & not for commercial or outdoor use.

- Keep batteries out of the reach of children and animals, they could cause damage if swallowed. If they were swallowed, contact your doctor immediately.

• If any visible signs of damage, holes or deterioration are observed, avoid direct contact between batteries and skin, eyes or mucous membranes. If batteries leak and get into contact with eyes, immediately wash them with abundant water. Contact your doctor immediately.
• Please make sure to turn off the power before starting the installation.
• Installation should only be done by a certified electrician.

This marking indicates that this product should not be disposed of with other household wastes.

Caution, risk of electric shock.

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.

WEEE Number: 80133970

INSTRUCTION MANUAL DECORATIVE CEILING FANS (VT-5022)

Circular architectural or mechanical component with concentric rings and radial slots, no visible text or symbols

SKU:7934

Circular metallic fan or vent with radial blades, no text or symbols visible

SKU:7935

TECHNICAL DATA

1) φ60*H20cm LED Decorative ceiling fan
2) AC Motor
3) 360° Air Flow
4) 7 ABS Blades
5) Revolutions per minute:1100±10 RPM
6) 3 speeds and light remote control
7) 35W LED 3 IN 1 CCT
8) (3000K/4000K/6500K) light
9) Acrylic Shade
10) Power: 220V,50Hz,45W (Energy-saving)
11) G.W.: 5.3KGS / N.W.: 3.8KGS

MULTI-LANGUAGE MANUAL QR CODE

QR code image containing encoded data, no visible human-readable text

Please scan the QR code to access the manual in multiple languages.

PARTS AND COMPONENTS

• Before installation and disassembly of ceiling fans, please turn off the power supply first. Installation must be in the order of grounding wires, fire wires/ zero wires. Disassembly and assembly must be in the order of zero wires/fire wires/grounding wires in order to avoid electric shock.
  • Install the cross panel to the ceiling, Reference

REMOTE CONTROL AND WIRING INSTRUCTION

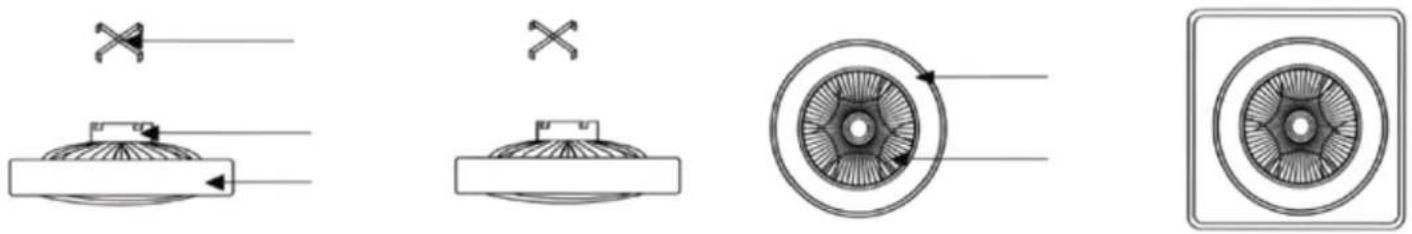

- Connect the power cord, The fan is then hung onto the mounted cross panel and the screws on the panel are locked. Make sure it's secure.

Four technical diagrams showing mechanical components with arrows indicating motion or force, no text or symbols present.

REMOTE CONTROL AND WIRING DIAGRAM

- Connect the wires following the colour codes remote control as stated below

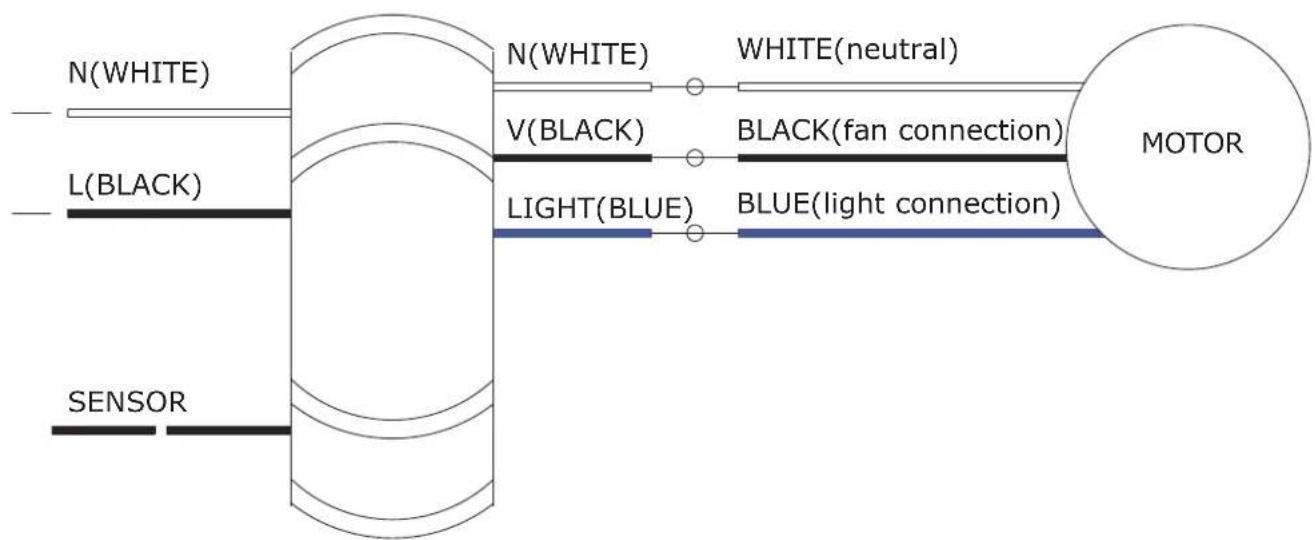

WIRING DIAGRAM

FIG 9

WARNING: Before using the direction switch, turn the fan off and make sure the fan has stopped rotating in order to prevent possible injuries and motor damage. Change direction by pushing the switch up or down when the fan is off.

REMOTE CONTROL

Use the remote control to turn the fan on and off and to change speed.

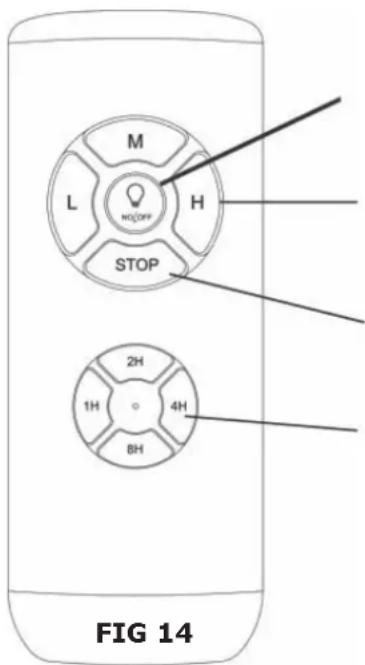

M L H NO/OFF STOP 2H 1H 4H 8H FIG 14

LIGHT ON/OFF

Fan Speed

H - Highest speed

M - Medium speed

L - Lowest speed

FAN STOP

Timer

1H-Fan auto turn off after 1 hour

2H-Fan auto turn off after 2 hours

4H-Fan auto turn off after 4 hours

8H-Fan auto turn off after 8 hours

REPLACING BATTERIES

1. To replace the remote control batteries, press the battery cover and slide it towards the arrow direction.
2. This remote control requires 2 x AAA 1.5V battery.
3. Reassemble the battery compartment cover.

WARNING:

• Always ensure the battery compartment cover is closed properly.
• Never leave the remote control directly exposed to sun light.
• Do not try recharging the discharged batteries by heating them or with a battery charger. Rechargeable batteries are always specified as so.
• Do not throw batteries into the fire, it could cause explosion.

CLEANING AND MAINTENANCE

1. Always disconnect the fan from the power supply and allow it to stop before cleaning it.

2. Clean the outside surface with a soft damp cloth.

WARNING:

• Make sure the power is turned off at the main fuse or circuit panel before you attempt any repairs.
• Do not immerse then fan in water.
• Never use scouring pads, abrasive or chemical cleaners.
• Clean your fan periodically. Use only a cloth or brush. Metal finishes are finished with a lacquer to prevent tarnishing.
• Do not allow the product's inside parts to get wet (especially the circuit plate), this could be very dangerous and damage the fan.
• While the product is not in use, make sure it is unplugged from the power supply. To store it, place it in its original box and save it in a fresh and dry place until it is used again.
• In case of fault or doubt, do not try to repair the fan by yourself to avoid risk of fire or electric shock.
