USER MANUAL smart v2 Phil & Teds

INSTRUCTIONS - INSTRUCTIONS - INSTRUCCIONES - GERBRAUCH SANWEISUNG - INSTRUKSJONER - INSTRUKTJONER phil&teds FOR YOUR CHILD'S SAFETY READ THESE INSTRUCTIONS CAREFULLY BEFORE USE

phil&teds®

smart™

KEEP FOR FUTURE REFERENCE

philandteds.com

Congratulations on choosing the phil&teds smart™!

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

Configurations / Konfigurationen / Configuraciones / Configuratives

Features / Caractérisiques / Produkteigenschaften / Características / Kenmerken

Instructions / Gebrauchsanweisung / Instrucciones / Instructies

SMART™

Product Care / Conseils d'entretien / Produktpflege / Cuidado del producto / Productverzorging

GENERAL INSTRUCTIONS

This document contains important information and must be kept for future reference.

Please read thoroughly before commencing installation as incorrect installation can be dangerous.

Please register your product purchase through our online warranty registration by visiting: www.philandteds.com/register

This vehicle is intended for children from 6 months to 4 years.

Maximum weight in the upright main seat 44lbs/20kg

Maximum weight in the main seat (rear facing) 33lbs/15kg

Maximum weight in the travel™ system adapter 20lbs/9kg

Maximum weight in the peanut™ bassinet 20lbs/9kg

CLEANING & CARING

Check the smart™ for cuts & bruises. If your product is damaged in any way, or you're not sure how to use it, please consult our web support (www.philandteds.com/support) from where you can access a local customer care team.

Caring for smart™

Unlike children, your smart™ likes to stay clean.

• Brush dirt off frame and wheels regularly.
• Clean with non-abrasive household cleaner and a soft cloth.
• Wash off sand and salt after visiting the beach.
  • Always dry frame if wet.
• Fabrics can be sponge cleaned with warm water, using a mild natural soap.
• Do not use detergents or bleach.
• Store in a well ventilated space, away from direct sunlight (which can harm and fade fabric), and moisture.
• Improper care will void any warranties. Do not use the smart™ if deterioration is detected or suspected.

IMPORTANT IMPORTANT

• Always load/unload your children on level ground.
- Ensure the brake is engaged during the loading and unloading of children.
- Care should be taken if the stroller is used on stairs or escalators.
• Always use the safety strap.
- Excessive wear can reduce effectiveness and safety. Parts may need lubrication. Inspect essential components for:
- Fraying - especially webbing straps and safety harness.
- Wear - locks, snap fasteners, tyres, plastic and moving parts. Safety - locks must not be loose.
- Only use with smart™ accessories to avoid injuries.

Tyres

• Tyres are not under warranty.
• The smart™ uses EVA tyres - these are immune from punctures and eliminate the need for tube replacements etc.
• With use, the surface of the EVA tyre can show signs of minor pitting - this is normal for this material, and this does not affect performance of the product.

For rights & remedies, refer www.philandteds.com/warranty

SMART™

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

smart™ complies with requirements applicable in market of sale, refer www.philandteds.com/certification

WARNINGS

European Safety Standard states:

Read the instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

• This vehicle is intended for children from 6 months up to 4 years and up to a maximum weight of 20kg/44lbs.
• The buggy shall only be used for a maximum of 1 child.
  • Never leave your child unattended.
• Accessories or replacement parts that are not approved by the manufacturer or distributor should not be used.
• Any load attached to the handle and/or back of

the backrest and/or the sides of the stroller will affect stability of the stroller.

• Always use the restraint system.
• Always use the crotch strap in combination with the waist belt.
- Check that the seat unit attachment devices are correctly engaged before use.
- This product is not suitable for running or skating.
- Ensure that all locking devices are engaged before use.
- Use a harness as soon as your child can sit unaided.
- The parking device shall be engaged during the loading and unloading of children.
- The carry handles must be left out of the reclined position when in use (if applicable).
- To avoid injury ensure that your child is kept away when unfolding and folding this product.
- Do not let your child play with this product.

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

• This seat is not suitable for children under 6 months old.
• Do not place more than 3kg/7lbs in the parcel tray.

WARNINGS

American Safety Standard states:

• Never leave your child unattended in the stroller.
• This vehicle is intended for children from 6 months up to 4 years and up to a maximum weight of 20kg/44lbs.
• To prevent the stroller from becoming unstable, do not place parcels or accessory items anywhere except in the storage basket and pockets provided. Do not hang items such as shopping bags from the frame.
• Do not place more than 3kg/7lbs in the parcel tray. Excessive weight may cause a hazardous

unstable condition to exist.

- Always use the safety harness to avoid serious injury from falling or sliding out. Always secure all safety harness straps and ensure it's correctly fitted and adjusted to secure the child firmly.

WARNINGS

Australia / New Zealand Safety Standard states:

To avoid injury or death:

• Always apply the brakes whenever the stroller is stationary.
• Do not leave children unattended.
• Secure the child in the harness at all times.
• Do not carry extra children or bags on this stroller.
• Make sure children are clear of any moving parts if you adjust the stroller.
• Not recommended for a child under 6 months old.
• Use the harness at all times.

SMART™

Safety Warnings / Avertissements / Warnungen / Advertencias / Waarschuwing

• When not in use disconnect shoulder straps from the waist buckle, as harness can form loops that can lead to strangulation.
• It is unsafe to use accessories other than those approved by the vehicle manufacturer.
• Care should be taken if the stroller is used on stairs or escalators.
• The stroller should not be used near an open fire or exposed flame.
• Do not place more than 3kg/7lbs in the parcel tray.
• This vehicle is intended for children from 6 months up to 4 years and up to a maximum weight of 20kg/44lbs.
• Do not use a bassinet once a child can sit up unaided.
• Do not use this seat with any other models of stroller.

Blank white image with no visible content, text, or symbols.

Blank white image with no visible content, text, or symbols.

01 Handle
02 Sunhood
03 Wriststrap
04 Quick release fold
05 Universal connector
06 Brake
07 Rear guards
08 Rear axle
09 Rear wheels
10 Wheel release clip
11 Tailfree harness
12 Aerocore seatpad
13 Parcel tray
14 Foot rest
15 Front guards
16 Front wheels

01 Guldon

02 Capote

03 Sangle poignet

Illustration showing a person using a wheelchair to interact with a hand, highlighting the finger movement and lock mechanism.

11

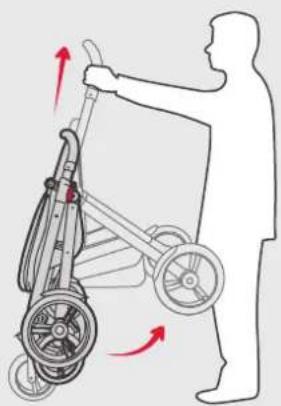

Illustration of a person pushing a stroller with red directional arrows indicating motion (no text or symbols)

2

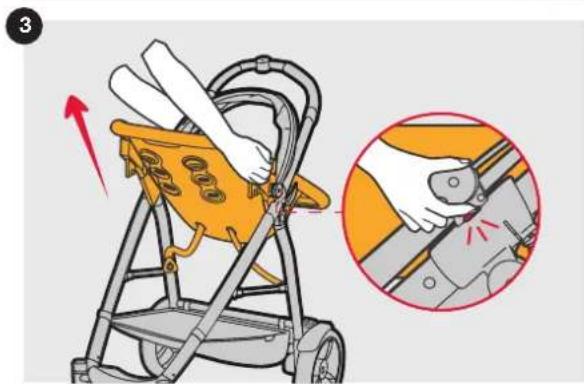

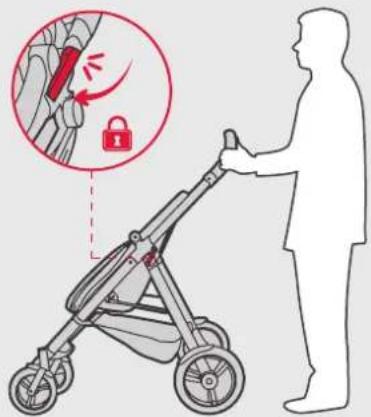

Illustration showing a person using a stroller to interact with a lock, with an inset highlighting the shock effect on the hand.

3

SMART™

Instructions / gebrauchsanweisung / instrucciones / instructies

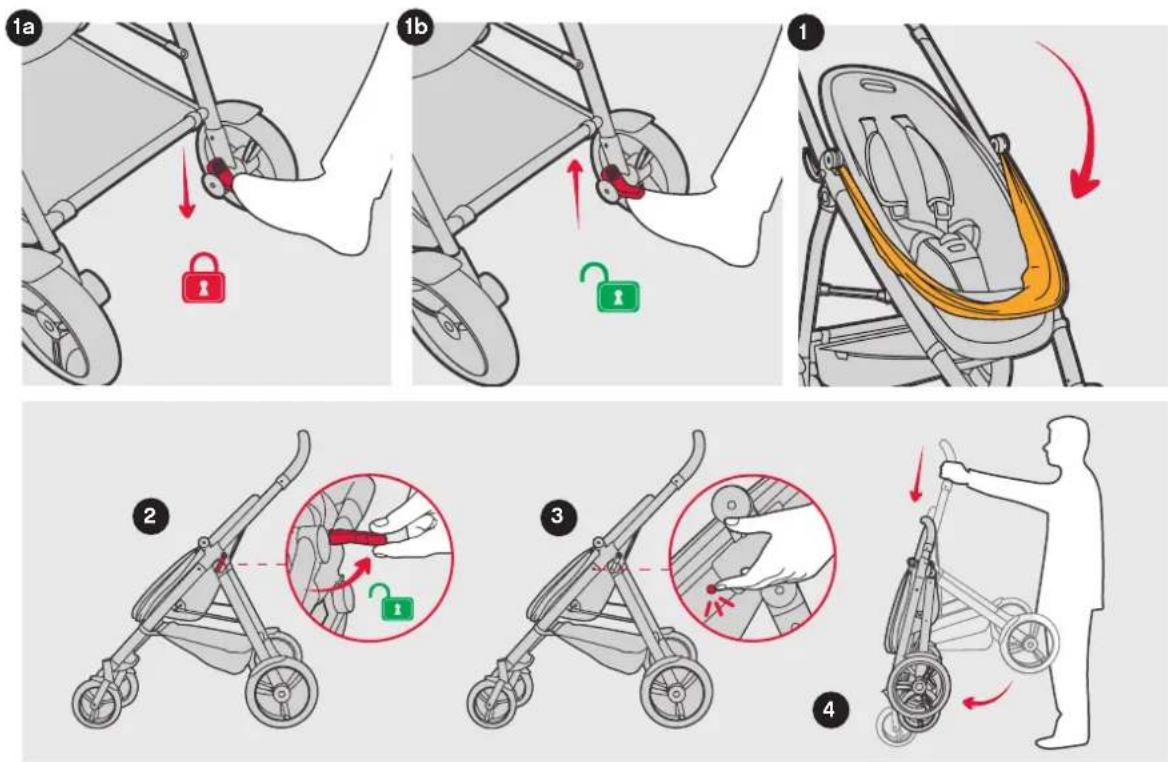

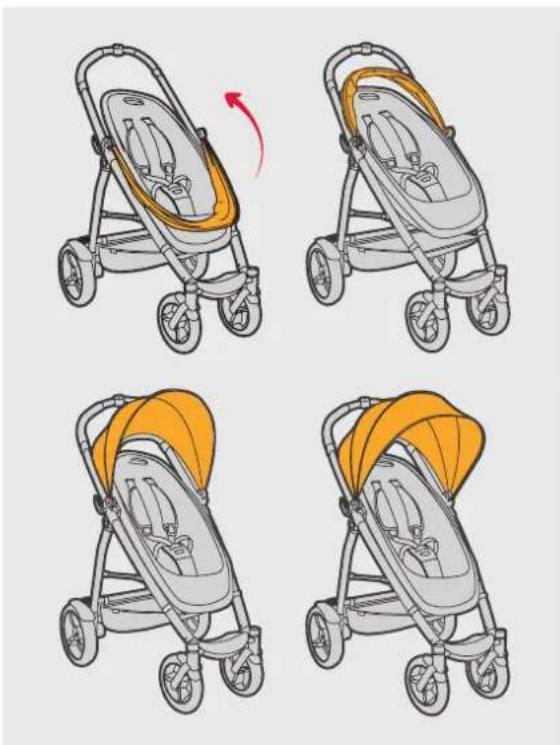

Four-panel illustration of a stroller with orange canopy, showing body positioning and rotation (no text or symbols)

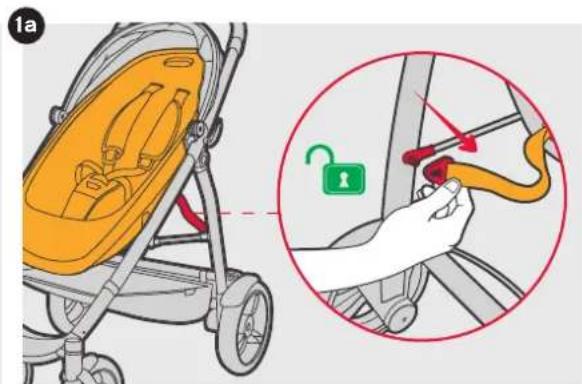

1a

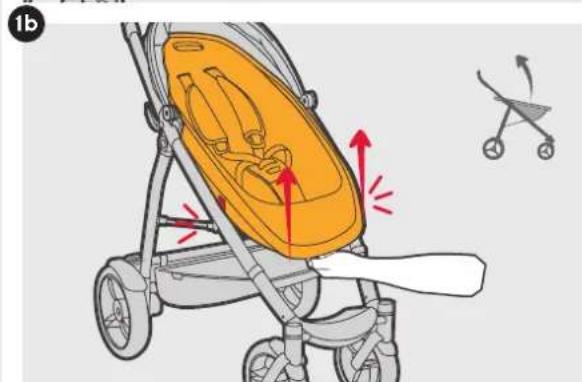

Illustration of a stroller with orange seat and red directional arrows indicating motion (no text or symbols)

1c2

Illustration of a baby stroller with orange seat and hands adjusting the seat, accompanied by a magnified inset showing hand positioning (no text or symbols)

●

Illustration of a person adjusting a yellow backpack on a ladder, with a red arrow indicating the motion direction (no text or symbols present)

Illustration of a person adjusting a yellow backpack on a ladder, with a red arrow indicating motion (no text or symbols present)

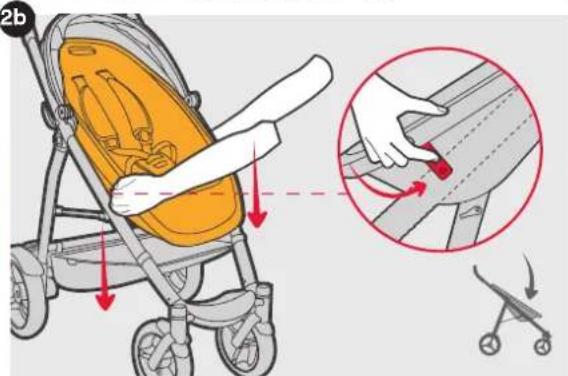

2b

Illustration showing a hand operating a stroller with a magnified detail of the handle, accompanied by instructional text.

SMART™

Instructions / gebrauchsanweisung / instrucciones / instructies

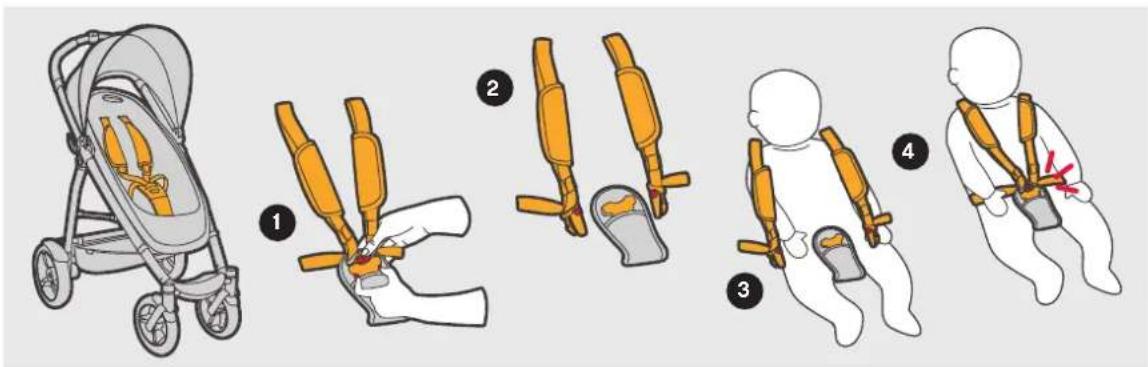

Illustration showing a stroller with orange seatbelt and four different positions of the child wearing a safety harness, labeled 1 to 4.

Illustration showing how to adjust the stroller's seatbelt using a lock and belt, with Chinese annotations.

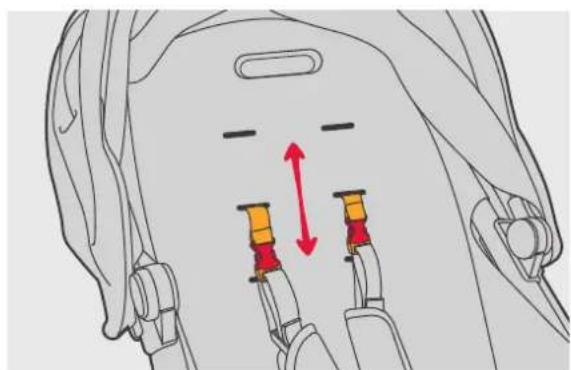

Diagram of a vehicle's seatbelt with two orange connectors and a red double-headed arrow indicating movement (no text or symbols)

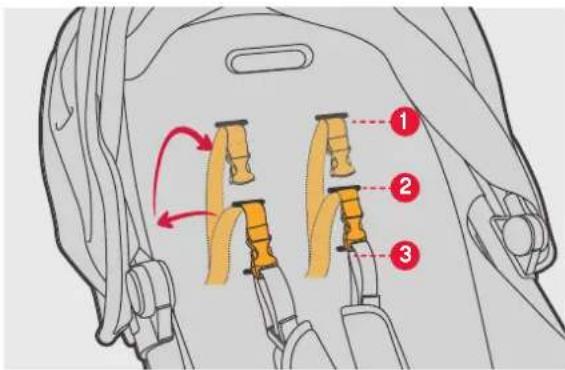

Diagram of car seatbelt components with numbered labels and directional arrows indicating movement or force

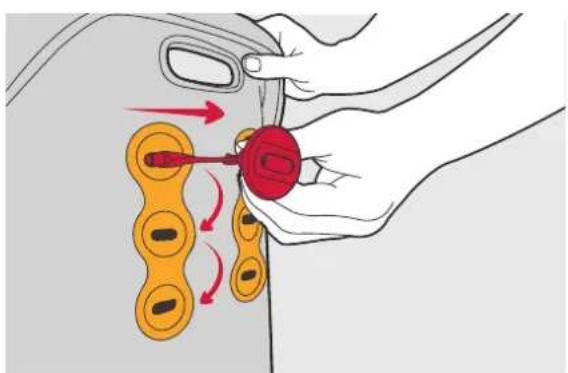

Illustration of a hand holding a red circular object with orange components, showing motion arrows (no text or symbols)

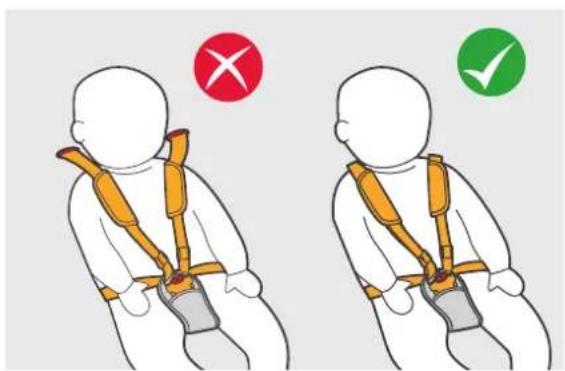

Illustration showing two scenarios of a person wearing orange safety harnesses with red and green checkmarks indicating failure or completion.

SMART™

Instructions / gebrauchsanweisung / instrucciones / instructies

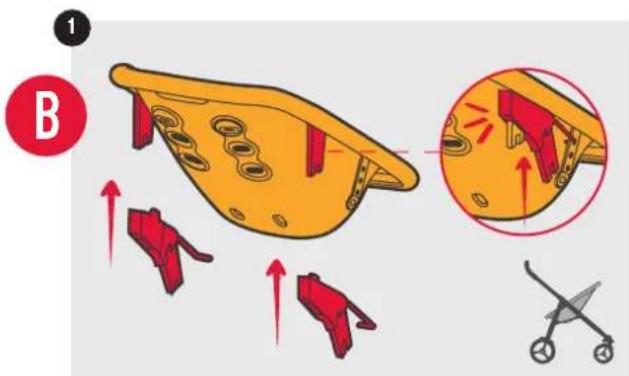

B 1

Illustration showing a car seatbelt mechanism with labeled parts and directional arrows indicating motion or safety instructions.

Illustration showing a hand operating a yellow safety seatbelt with a magnified inset showing tool cutting process.

Illustration showing a hand holding a yellow bag with red buttons, connected to a bicycle handle, with an inset showing hand positioning and lock mechanism.

SMART™

Instructions / gebrauchsanweisung / instrucciones / instructies

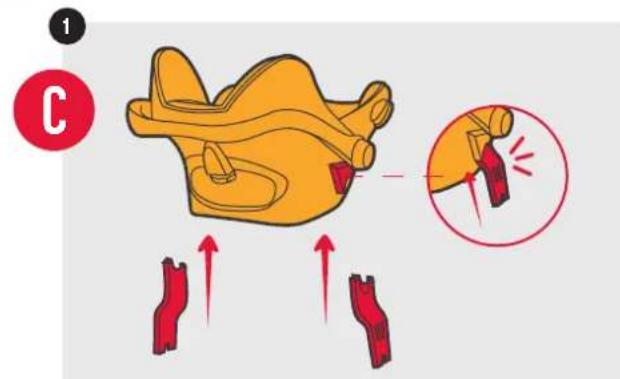

C

Diagram illustrating the use of a yellow bicycle seatbelt with red arrows indicating changes, alongside a magnified view of the seatbelt mechanism.

Illustration showing a hand using a tool to adjust the seatbelt, with an inset close-up highlighting the mechanism.

Illustration of a person using an orange backpack on a stroller, with a red arrow indicating motion (no text or symbols)

Illustration of an orange-colored baby pumproller with metal frame (no text or symbols)

Diagram showing a yellow bucket being lifted by a ladder, with red arrows indicating force direction and magnified detail view.

Illustration showing a hand operating a bucket with a tool, accompanied by a magnified view of the tool's adjustment.

Illustration of a hand pouring liquid into a yellow bucket on a stroller, with a red arrow indicating direction (no text or symbols)

Solid gray vertical bar with no text, symbols, or markings

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

We (Phil and Teds Most Excellent Buggy Company Ltd) own the intellectual property rights in our brands, designs and inventions featured in this publication. These include, without limitation, the phil&teds, adapt&survivel, &, INLINE trade marks and INLINE DOUBLE BUGGY shape. We actively pursue people who infringe our Intellectual property.

©Phil & Teds Most Excellent Buggy Company Ltd 2012.

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

© Phil and Teds Most Excellent Buggy Company Ltd 2012.

© Phil and Teds Most Excellent Buggy Company Ltd 2012.
