USER MANUAL 303985 Brandson

This product is only for well insulated rooms or suitable for occasional use.

Usage and safety instructions

• Read the manual completely before using the product! Keep this user manual carefully for future reference.
• Before using the heater, check whether the voltage indicated on the rating plate matches that of your mains supply!
• Do not pull the cable if you want to disconnect the plug from the power source. Always pull the plug itself!
• Never block the fan of the appliance. This could result in damage, a fire or electric shock!
• Never block the air inlet of the interior fan heater!
• Disconnect the plug from the power source if the appliance is not being used! Do not leave the fan heater unattended!
• This appliance emits a lot of heat

during operation. Therefore, touch only the operating controls. In case of doubt, use heat-resistant gloves.

• Keep flammable materials such as pillows, paper, clothing, curtains or other highly flammable objects away from the fan heater!
• This appliance is intended for personal use only!
• WARNING: This appliance is not provided with any mechanism for regulating the room temperature. The heater should not be used in small rooms, which are occupied by people who can not leave the room independently unless they are constantly supervised.
• Children younger than 3 years should be kept away from it, unless they are under constant supervision.
  Children between 3 and 8 years may

switch the appliance on and off only when they are supervised or have been instructed concerning the safe use of the appliance and have understood the resulting risks, provided that the appliance is placed or installed in its normal usage position.

• This appliance can be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the appliance, and understand the resultant dangers.

• Children should not play with the appliance.

• Cleaning and user maintenance should not be carried out by children without supervision.

• Caution - Some parts of the product may become very hot and cause burns. Be very careful if children or vulnerable persons are present.

• Never immerse it in water for cleaning. Wipe the body with a dry cloth.
• Place the appliance at a distance of least 1m from other objects.
• Use the product only on a flat surface.
• Disconnect the appliance from the mains when it is not being used or it is being cleaned.
• Keep the product at least 1 m away from flammable materials, such as furniture, curtains, bedding, clothing or paper.
• Ensure that the cable does not come into contact with any hot or moist surfaces.
• Do not turn on the appliance if you find a defect in the power cord. Contact the manufacturer of the product

in such cases.

• Never move the appliance during operation.
• The product should be opened or repaired only by qualified technicians!
• Remove the packaging material and check if the appliance is in proper working condition before using it.
• Ensure that children do not play with the appliance or packaging material!
• This product is not a toy!
• Close supervision is required if the product is used by or near children or frail persons.
• Do not use the appliance after a malfunction, if it has been dropped, or appears to be damaged in any way. Return the complete product to the manufacturer for inspection, repair or replacement.
• Ensure that the appliance is switched

off before disconnecting the mains cable. If you touch it, make sure that your hands are dry to avoid electric shock.

• Hold the heater only using the handle on the back.
• Do not use the heater in places such as garages, where petrol, paint, or other flammable materials are used or stored.
• This product should not be used near water, such as a bathtub, washbasin, swimming pool, etc., where there is a risk of immersion or splashing.
• Dust and lint deposits which get into the appliance are a common cause of overheating. Make sure that these deposits are removed regularly by disconnecting the heater from the socket, so that it can cool down and be

cleaned (as described in the section on "Cleaning and care").

• Never connect the appliance to an extension cable or power strip!
• Do not use it outdoors!
• Use the heater as described in this manual. Using the appliance for any other purpose which is not recommended by the manufacturer may cause fire, electric shock or physical injury and void the guarantee.
• CAUTION: Please do not cover!
• Do not cover the product during use or shortly after use (e.g., using a cloth, a blanket, a curtain, etc.) to prevent overheating of the product. There is

also a risk of fire!

Do not cover!

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

Fan heater
- User manual

2. Technical data

Power supply 220-240V ~ AC / 50/60 Hz
Power consumption max. 1500 W
Required fuse min. 16 A
Protection class	Protection class I
Features • 2 heat settings	• Adjustable temperature

Caution! Make sure that the total consumption of loads connected to one circuit does not exceed the maximum total load of the circuit fuse!

3. Function

You can heat the desired area with your Brandon heater. Thanks to the 2 heat settings, you can heat individually.

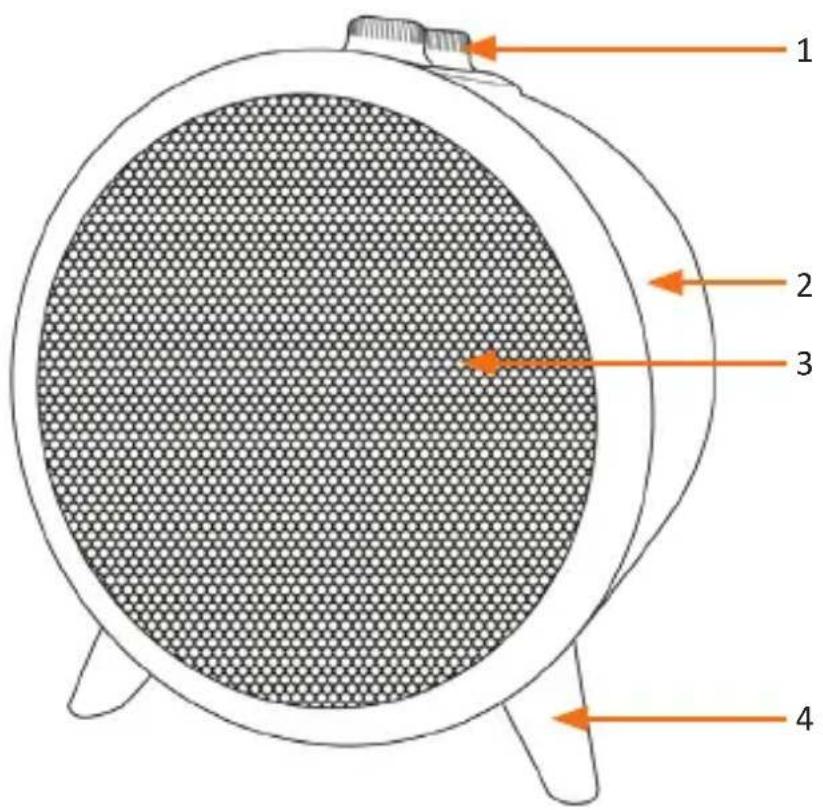

4. Product details

Operating controls

No. Disruption
1 Operating controls
2 Housing
3 Heating elements
4 Stand

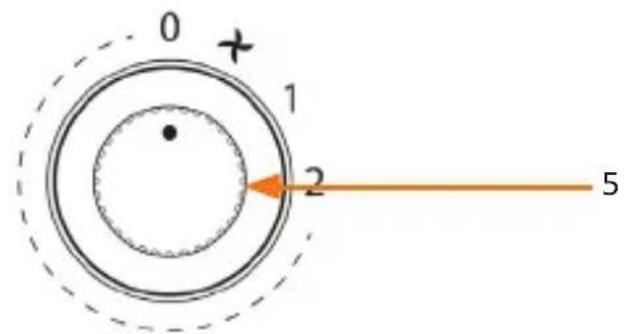

5 Power setting controller

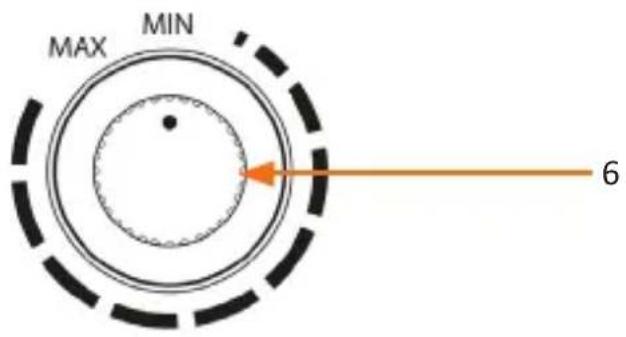

6 Temperature controller

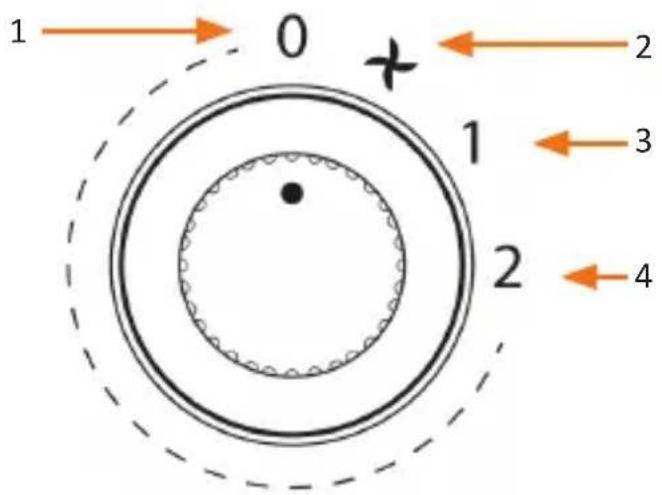

No. Disruption
1 Off
2 Only ventilation (about 25 W)
3 Heat setting 1 (about 750 W)
4 Heat setting 2 (about 1500 W)

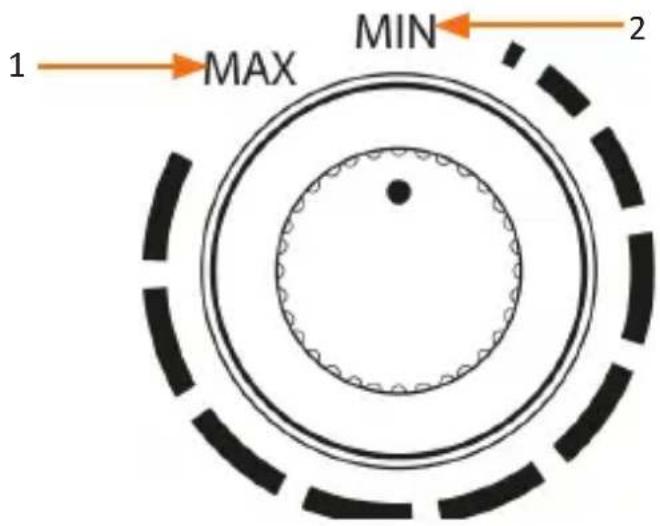

No. Discription
1 Maximum temperature setting
2 Minimum temperature setting

5. Installation

Take the appliance out of the package and remove all the packaging material. Then check the product for any damage. Place the heater on a flat surface. The heater has to be placed at least 1 m away from other objects and should not be kept directly under a socket.

Caution! Make sure that the appliance is not placed near flammable materials or any liquids. The air outlet should also not point in this direction.

Note: To ensure that the heater works and heats properly, the desired temperature must be set on the heater so that it is a couple of degrees higher than the room temperature. If the heater does not start heating, increase the desired temperature to activate the heating elements.

6. Initial use

Connect the appliance to a 220-240V AC socket. To start the appliance, turn the "Power regulator" at the top to the desired position.

Select the desired temperature using the "Temperature regulator". "MIN" is the lowest temperature and "MAX" is the highest. To switch the appliance off, turn the "Power regulator" to "0".

Alternatively, you can lower the temperature regulator till the appliance switches off by itself. This temperature is maintained almost constant by switching the appliance on and off automatically. Please remember that the appliance is switched on only if the thermostat setting is higher than the room temperature.

7. Overheating

Overheating generally occurs only if one of the openings of the fan heater is blocked. The appliance comes with a self-resetting thermal fuse. The heater switches off automatically once the overheating temperature is reached. The heater can be operated again once the fuse is reset.

8. Cleaning and Care

Completely switch off the appliance and disconnect it from the power supply before you start cleaning it.

Clean the housing with a slightly damp cloth, a vacuum cleaner or a dusting brush. Never use flammable, aggressive or scouring cleaning agents such as benzene or spirit to clean.

Clean the air inlet and outlet regularly using a vacuum cleaner.

If the appliance is not going to be used for a long time, then it must be protected against excessive dust and dirt.

9. Safety instructions and disclaimer

Never try to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the appliance away from high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for any damage before using it. The appliance should not be used if it was

subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the appliance, which is not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without prior intimation.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

11. Warranty and guarantee

Regardless of statutory warranty claims, the manufacturer provides a guarantee of at least 1 year (2 years in Germany) under the laws of your country. The warranty starts on the date of sale to the end user. The warranty only covers defects caused by material or manufacturing shortcomings. Warranty repairs should only be carried out by an authorized customer service centre. To assert your warranty claim, the original sales receipt (with date of sale) has to be enclosed.

The following are excluded from the warranty:

• Normal wear and tear
• Improper use such as overloading the appliance, unapproved accessories
• Damage caused by external influences, use of force or by foreign bodies
• Damage caused by not following the instructions in the manual, such as connecting to the wrong mains voltage or not following the assembly instructions
• Fully or partially dismantled appliances

Within the EU, this symbol indicates that this product should not be disposed of with household waste. Used appliances contain valuable materials that should be recycled to prevent harm to the environment or human health caused by uncontrolled disposal of waste. Please dispose your old appliances via appropriate collection centres or send the appliance for disposal back to the place where you bought it. It will then be sent for recycling.

WEEE directive: 2012/19/EU
WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 303985 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, or from the following Internet address: downloads.ganzeinfach.de

Model identifier(s): WDP-303985
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	Pnom	1,5	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	Pmin	0,75	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	Pmax,c	1,5	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	eI max	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	eI min	N/A	kW	single stage heat output and no room temperature control	No
In standby mode	elsb	0	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details				WD Plus GmbH Wohlenbergstraße 16 - 30179 Hannover

Notes

SERVICE

We hope you enjoy your new product in every way! If there is still something you're concerned about; please feel free to let us know. You're welcome to contact our service team at any time.
