305831 - Heating Brandson - Free user manual and instructions
Find the device manual for free 305831 Brandson in PDF.
| Product type | Fan heater |
| Brand | Brandson |
| Model | 305831 |
| Power supply | 220-240 V AC, 50 Hz |
| Power consumption | Level 1: 1000 W, Level 2: 2000 W |
| Dimensions (L x W x H) | 130 mm x 260 mm x 270 mm |
| Weight | Approximately 1070 g |
| Plug type | Type F plug (Schuko) |
| Ambient temperature | 0-3°C to 35-40°C |
| Settings | Temperature regulator, On/Off switch with speed selection (2 levels) |
| LED indicator | LED status indicator |
| Thermal protection | Overheat protection with automatic reset (replacement by a professional necessary after activation) |
| Intended use | Auxiliary heating for dry indoor spaces |
| Maintenance and cleaning | Wipe the housing with a dry cloth; do not immerse in water |
| Safety distance | At least 30 cm from other objects, 90 cm from flammable objects |
| Repairability | Any repair not carried out by the manufacturer voids the warranty; thermal protection requires replacement by a professional |
| Recycling | Do not dispose of with household waste; take to a recycling center or WEEE collection point |
Frequently Asked Questions - 305831 Brandson
User questions about 305831 Brandson
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Heating in PDF format for free! Find your manual 305831 - Brandson and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 305831 by Brandson.
USER MANUAL 305831 Brandson
This product is suitable only for well ventilated spaces or for occasional use.
Table of contents
- Deutsch .... 3
- English 12
- Français 20
- Italiano 30
- Español....39
- Read the manual completely before using the product!
- Before using the heater, check whether the voltage indicated on the rating plate matches that of your mains supply!
- Do not pull the cable if you want to disconnect the plug from the power source. Always pull the plug itself!
- Never block the fan of the device. This could damage the device or result in a fire or electric shock!
- Never block the air inlet of the interior fan heater!
- Disconnect the plug from the power source if the device is not being used! Do not leave the heater fan unattended!
- This device emits a lot of heat during operation. Hence touch only the operating controls. In case of doubt, use heat-resistant gloves.
- Keep flammable materials such as pillows, paper, clothing, curtains or other highly flammable objects away from the fan heater!
- This device is only intended for personal use!
- Caution! The fan heater is not suitable to be used in confined areas if they are occupied by persons who are not able to leave the room or the vehicle by themselves.
- The cleaning and the user maintenance should not be carried out by children.
- This device can be operated by children from 8 years of age and above,
as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the device, and understand the resultant dangers.
- CAUTION! Some parts of the product may become very hot and cause burns. Be very careful if children or frail persons are present.
- Never immerse it in water for cleaning. Wipe the body with a dry cloth.
- Place the device at least 30 cm from other objects.
- Use this device only on a flat surface.
- Disconnect the device when not in use or during cleaning.
- Keep the device at least 90 cm away from flammable materials, such as
furniture, curtains, bedding, clothing or paper.
- Never allow the cable to come in contact with hot or damp surfaces.
- Do not turn on the device if you find a defect in the power cord. Contact the manufacturer of the product in such cases.
- ATTENTION: Please do not cover!
- Never cover the product during operation or shortly after operation (e.g. with clothing, a blanket, a curtain, etc.) to avoid overheating of the product. There is also a fire hazard!
1. Scope of supply
- Fan heater
- User manual
2. Technical data
| Power supply 220-240 V AC / 50 Hz | |
| Power consumption Setting 1: 1000 W / | Setting 2: 2000 W |
| Dimensions (H x W x D) approx. 130 mm x 260 mm x 270 mm | |
| Weight approx. 1070 g | |
| Plug type Plug type F | |
| Ambient temperature + 0-3°C until 35-40°C | |
3. Function
The Brandon fan heater is a practical and cost-effective alternative compared to a conventional heater. Warm up the desired space using the fan heater so that you are not affected by low temperatures any more.

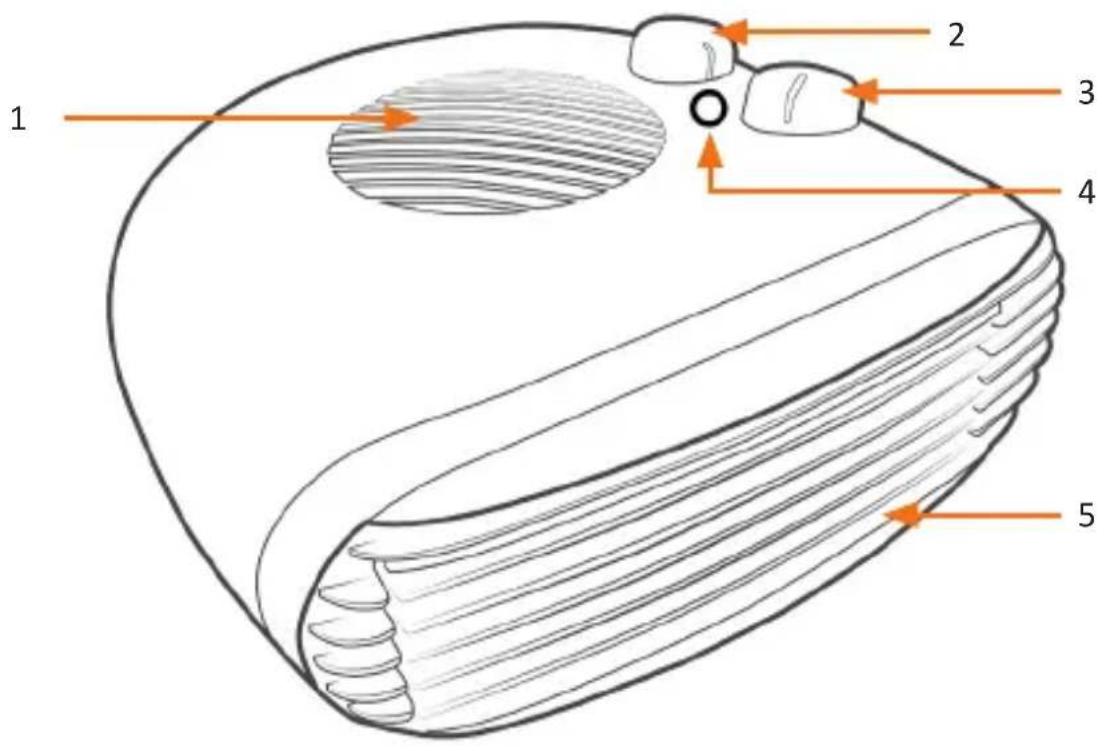

4. Product details
| 1 Air inlet | |
| 2 Temperature controller | |
| 3 Switch for On/Off/speed settings | |
| 4 Status LED | |
| 5 Air outlet |
5. Installation
When the device is put into operation for the first time, check the intactness of the product or components and their function again. Take the appliance out of the package and remove all packaging material. The fan heater has to be placed on a flat surface.
Caution! Ensure that the device is not placed near any flammable materials or fluids, or with the air discharge pointing in these directions. Never operate the device unattended and check it before each use for possible damage and correct mounting.
6. Initial use
Connect the device to a 230 V AC socket. To start the device, turn the "On/Off/Speed settings" switch, located on the top of the device, to the desired speed and select the desired temperature using the Temperature regulator.
7. Overheating
Overheating generally occurs only if one of the openings of the fan heater is blocked. This device comes with a non self-resetting thermal fuse. The heater switches off automatically once the overheating temperature is reached. The fan heater can be operated again only after the fuse is replaced by the manufacturer or an equally qualified person.
8. Safety instructions and liability disclaimer
Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.
9. Disposal instructions
Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points.
The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.
WEEE guideline: 2012/19/EU
WEEE register number: DE 67896761
WD Plus GmbH, herewith declares that this product 303051/305831 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, or at the following Internet address: downloads.ganzeinfach.de
Prohibition sign with red circle and black document icon, no text presenttext_image
Prohibition sign with red circle and black icon depicting a document or file, crossed by a diagonal line| Model identifier(s): WDP-305831 / 303051 | |||||||
| Item | Symbol | Value | Unit | Item | Unit | ||
| Heat output | Type of heat input, for electric storage local space heaters only (select one) | ||||||
| Nominal heat output | P_nom | 1,8-2 | kW | manual heat charge control, with integrated thermostat | NA | ||
| Minimum heat output (indicative) | P_min | 0,015 | kW | manual heat charge control with room and/or outdoor temperature feedback | NA | ||
| Maximum continuous heat output | P_max,c | 2 | kW | electronic heat charge control with room and/or outdoor temperature feedback | NA | ||
| Auxiliary electricity consumption | fan assisted heat output | NA | |||||
| At nominal heat output | el_max | 0 | kW | Type of heat output/room temperature control (select one) | |||
| At minimum heat output | el_min | 0 | kW | single stage heat output and no room temperature control | No | ||
| In standby mode | el_sb | 0 | kW | Two or more manual stages, no room temperature control | No | ||
| with mechanic thermostat room temperature control | Yes | ||||||
| with electronic room temperature control | No | ||||||
| electronic room temperature control plus day timer | No | ||||||
| electronic room temperature control plus week timer | No | |||||
| Other control options (multiple selections possible) | ||||||
| room temperature control, with presence detection | No | |||||
| room temperature control, with open window detection | No | |||||
| with distance control option | No | |||||
| with adaptive start control | No | |||||
| with working time limitation | No | |||||
| with black bulb sensor | No | |||||
| Contact details | WD Plus GmbHWohlenbergstraße 16 · 30179 Hannover | No | ||||
Notes
Notes
SERVICE
We hope you enjoy your new product in every way! If there is still something you're concerned about; please feel free to let us know. You're welcome to contact our service team at any time.

