USER MANUAL 303892 Brandson

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Technical diagram of a fan assembly with numbered parts and labeled connection points

Important safety guidelines for this device

• Use the device for the private and intended purpose only. This device is not intended for commercial use. Do not use the device outdoors and keep it away from heat and direct sunlight.
• Please do not keep the device in the immediate vicinity of water sources such as bathtub, shower, washbasin or swimming pool.
• Do not use this device with wet hands.

• If the device becomes moist or wet, pull out the power plug immediately. Maintain your own safety and do not touch any conductive material on the device.

• Protect the device from moisture (this device should not be immersed in liquids under any circumstances), sharp edges or large sources of dust.

• Please do not keep the device in the immediate vicinity of heat sources (e.g. ovens or heaters).
• Keep it on an appropriate surface so that it does not tip over.
• Unplug the power plug when the device is not in use, during transport or during cleaning.
• Never leave the fan unattended and choose a location in which the device is safe from the reach of animals and children.

• Operate the device only with the voltage mentioned on the device label.

• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the device and understand the hazards involved.

• Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
• Keep the device and its connection cable out of reach of children under 8 years.

• For the safety of your children, keep the packaging parts away from their reach (plastic bag, foils, carton or polystyrene).

• Do not allow small children to play with the foil or plastic bags as there is a risk of suffocation!

• While operating the device, ensure that the protective cage is closed.
• The fan, rotational switch and switches should not be blocked!
• It is not allowed to remove the grille for cleaning purposes once the fan is mounted.
• Never insert your body parts (e.g. fingers) or objects through the protective cage
• Ensure that your hair is not within the range of the protective cage as it may get caught in the air current.
• If the power cable of this device is damaged, it should be replaced by the manufacturer, his after-sales service

or by an equally qualified person, so as to prevent any risk.

• Allow the device to cool down before cleaning it, or pull out the power plug from the socket.
• Wipe the device housing with a damp cloth and dry it afterwards with a clean dry cloth. Never immerse the housing in water for cleaning.
• Once the fan is assembled, the protective cage should not be removed.

Thank you for choosing a Brandon product. Please read the following user manual carefully to have an enjoyable experience with your purchased product.

1. Scope of supply

• Fan
• User manual

2. Technical data

Input voltage 220 - 240V AC
Power input 50 W
Noise emission Workplace related emission value less than 70 dB(A)
Diameter approx. 40 cm
Oscillation Approx. 80° can be enabled / disabled
Dimensions Width 42cm, depth about 39cm,height about 104- 125cm (adjustable)
Features • Remote control	• Timer function• Oscillation

3. Functions

The Brandon pedestal fan has a powerful motor and 40cm rotor blades which ensure optimum ventilation even on hot days. Thanks to the three speed levels, adjustable angle of inclination and oscillation, you can adapt the fan to your individual requirements.

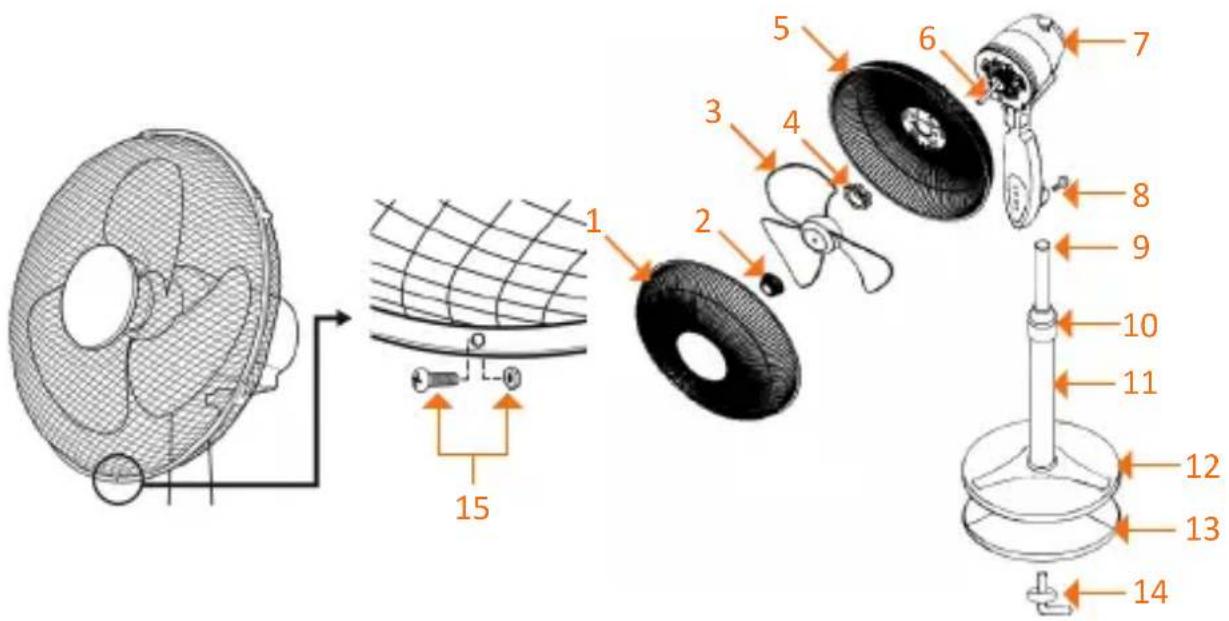

4. Product details

Exploded view diagram of a fan assembly with numbered parts and component labels

1 Protective	cage - front
2 Rotor blade	mounting nut
3 Rotor blade
4 Protective	cage - mounting nut
5 Protective	cage - rear
6 Rotor axis
7 Oscillation	knob
8 Pedestal -	locking screw
9 Inner pipe	for pedestal height adjustment
10 Height adjustment mechanism
11 Pedestal	-outer pipe
12 Pedestal	cover
13 Pedestal
14 Pedestal	mounting screw
15 Locking screw + safety nut

5. Assembly

Note: Screws, if not in the packaging bag, are usually all pre-assembled in the intended location.

Take the fan out of the package and check the device as well as the scope of delivery mentioned in the table above. Please contact the vendor if any part is missing or has been damaged. Place the rear protective cage (5) on the fan unit. Make sure that the handle is facing up.

Tighten the protective cage firmly using the mounting nut (4).

Then insert the rotor blade (3) onto the rotor axis (6) and fasten it using the appropriate mounting nut (2).

Caution: The mounting nut needs to be tightened counter-clockwise.

Mount the front protective cage (1) onto the rear protective cage. A hole is provided for a locking screw at the bottom of the two protective cages.

Insert the locking screw (15) through the hole of the front and rear guards and fasten it using the locking nut. Then connect the four mounting brackets to the side.

Take the pedestal (13), place the guard (12) on it and connect the outer pipe (11) to the pedestal.

Fix the outer pipe (11) to the pedestal (13) from below using the fastening screw (14).

Then slide the height adjustment mechanism (10) from above onto the inner pipe (9).

The fan and pedestal have to be finally assembled.

Attach the fan to the pedestal and secure it using the locking screw (8).

Note: The inner tube is inside the outer tube and can be pulled out with your finger. Make sure you loosen the nut before you can pull out the inner tube.

6. Usage

Keep the fan in an appropriate location and connect the device to a properly installed 220-240V AC socket.

By tipping the protective cage, you can change the angle of inclination according to your needs.

Press the "SWING" button on the remote control or on the fan, to enable the oscillation.

Press the "ON / SPEED" button on the remote control or on the fan to switch on the fan and adjust the desired speed.

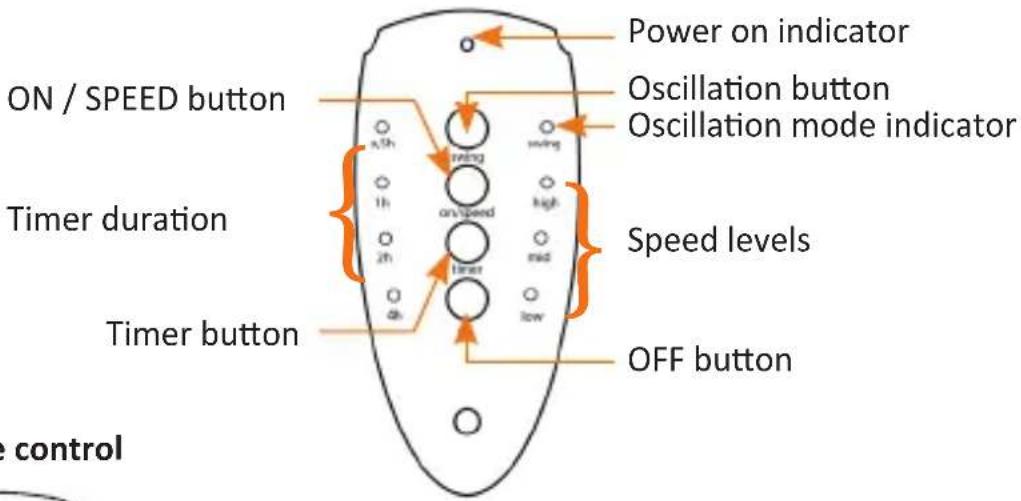

Operating controls on the fan

ON / SPEED button Timer duration Timer button Power on indicator Oscillation button Oscillation mode indicator Speed levels OFF button

Remote control

TIMER OFF SWING ON/ SPEED ON / SPEED

Key Function
TIMER Enables the Timer function.
OFF Switches the fan off.
SWING Enables the Oscillation.
ON / SPEED	Switches the fan on and changes the speed level

7. Cleaning

Attention! Pull out the power plug from the socket before starting with the cleaning process!

Use a slightly moist cloth for cleaning (wetted with water).

For cleaning, never immerse the device into water! This could lead to electric shock or fire!

8. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

9. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life

to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 303892 / 304966 conforms to the principle requirements and other relevant stipulations of Directive 2014/35/EU, 2014/30/EU and 2011/65/EU. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30719 Hanover
