USER MANUAL 304970 Brandson

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Important safety guidelines for this appliance

• Use the appliance for private and intended purpose only. This product is not intended for commercial use. Do not use it outdoors and keep it away from heat as well as direct sunlight.
• Please do not keep the appliance in the immediate vicinity of water sources such as a bathtub, shower, washbasin or swimming pool.
• Do not use the product with wet hands.
• If the appliance becomes moist or wet, pull out the power plug immediately.

• Ensure your own safety and do not touch any conductive material on the appliance.

• Protect the product from moisture (under no circumstances should the appliance be immersed in liquid), sharp edges or large sources of dust.

• Do not keep the appliance in the immediate vicinity of heat sources (e.g., ovens or heating system).
• Keep it on an appropriate surface so that it does not tip over.
• Unplug the power plug when the appliance is not in use, during transport or during cleaning.
• Never leave the fan unattended; keep it out of reach of animals and children wherever you use or store it.

• Operate the appliance only with the voltage mentioned on the specification label.

• This appliance may be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the appliance, and understand the resultant dangers.

• Children should not play with the appliance. Cleaning and user maintenance should not be carried out by children without supervision.
• Keep the appliance and its connection cable out of reach of children under 8 years.

• For the safety of your children, keep packaging parts out of their reach (plastic bag, foils, carton or polystyrene).

• Do not allow small children to play with the foil or plastic bags. Danger of suffocation!

• While operating the appliance, ensure that the protective cage is closed.
• The fan, rotational switch and switches should not be blocked!
• Ensure that the fan is disconnected from the power supply before removing the protective cage.
• Never insert your body parts (e.g., fingers) or objects through the protective cage.
• Ensure that your hair is not within the range of the protective cage as it may get caught in the air current.
• If the power cable of this appliance is damaged, it should be replaced by the manufacturer, his after-sales service

or by an equally qualified person, so as to prevent any risk.

• Allow the appliance to cool down before cleaning it, or disconnect the power plug from the socket.
• Wipe the appliance housing with a damp cloth and dry it afterwards with a clean dry cloth. Never immerse the housing in water to clean it.

Thank you for choosing a Brandon product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

Fan
- Remote control including button cell (CR2025)
- User manual

2. Technical data

Input voltage 220-240 V	AC 50-60 Hz
Power consumption 25 W
Noise emission Workplace related emission value LpA < 70 dB(A)
Rotor diameter approx. 38.5 cm
Oscillation Approx. 90° can be switched on / off
Tilt angle Approx. 30°
Dimensions	Width about 34 cm, depth about 33.5 cm, height about 46 cm or 86.5 cm
Features	·9 speed levels ·Oscillation option ·Timer function (1H, 2H, 4H, 8H) ·DC motor (Direct current motor) ·Quiet operation

3. Functions

The Brandon pedestal fan has an efficient DC motor and large 38.5 cm rotor blades which ensure optimum ventilation even on hot days. Thanks to the 9 speed levels, adjustable angle of inclination and oscillation function, you can adapt the fan to your individual requirements. Compared to conventional AC fans, up to 60% can be saved on energy costs with the DC motor fan with an identical air flow in ^3 . The input voltage of 220-240 V AC is converted to the DC required by the DC motor using an internal power adapter.

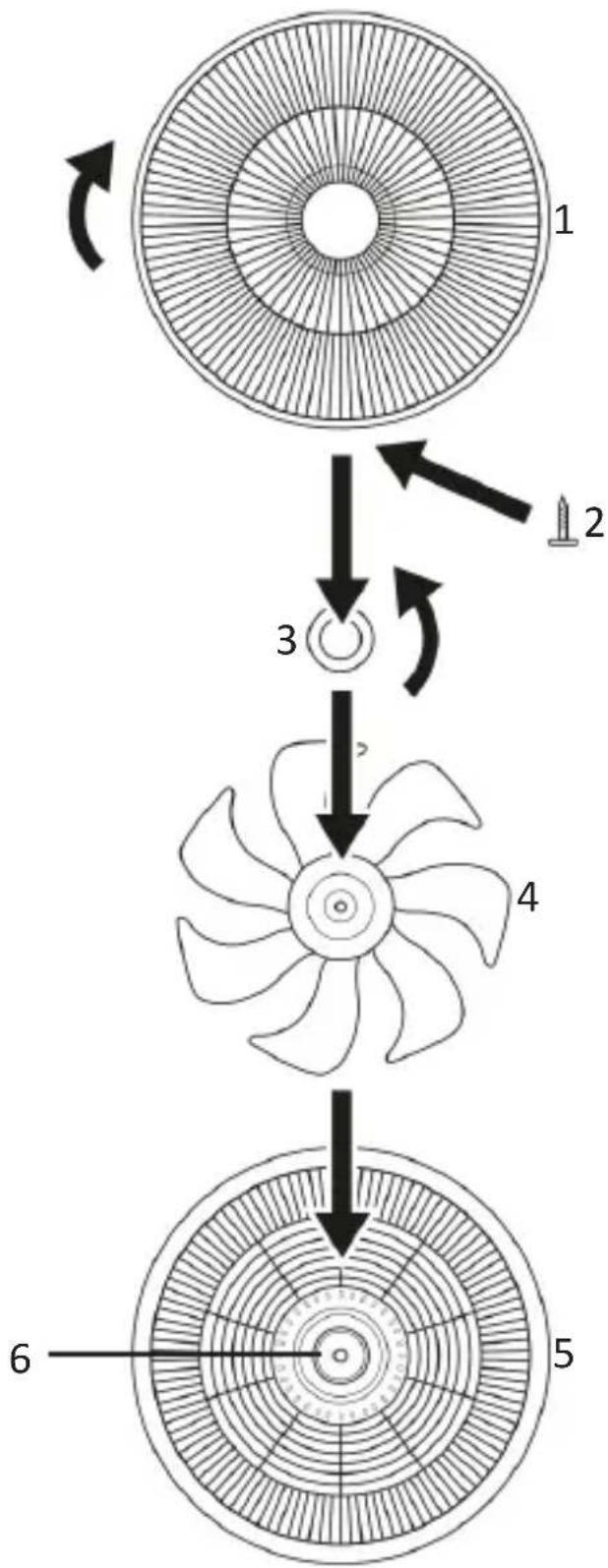

4. Product details

Assembly

1 Front	protective cage
2 Protective cage locking screw
3 Rotor	mounting screw
4 Rotor	blade
5 Rear	protective cage
6 Mounting screw
7 Extension rod
8 Stand
9 Connector

5. Assembly

Take the fan out of the package and check the appliance as well as the scope of delivery mentioned in the table above. Please contact the supplier if any part is missing or has been damaged.

1. Place the rear protective cage (5) on the motor unit.
2. Tighten the rear protective cage (5) firmly using the mounting screw (6).
3. Place the rotor blade (4) on the motor unit and screw it firmly using the rotor mounting screw (3).
4. Place the front protective cage (1) on the rear protective cage (5) and tighten it as previously shown in the picture.
5. Fasten the protective cages (1 + 5) using the protective cage locking screw (2).

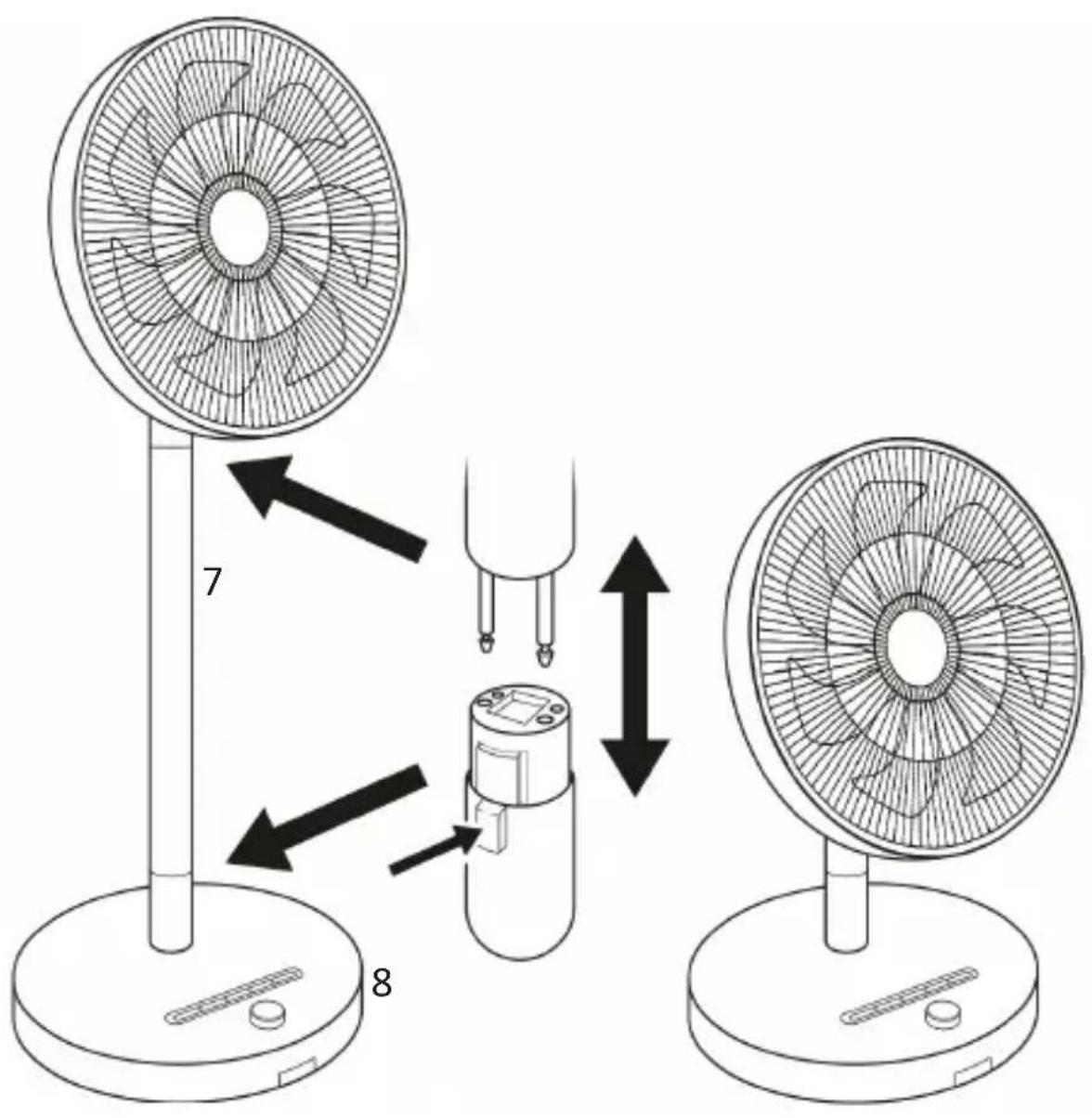

6. Fix the extension rod (7) on the stand (8) optionally.
7. Please insert the assembled motor unit on the extension rod (7) or on the connector on the stand (9) (depending on the preferred height).
8. Please connect the power cable first to a properly installed socket.
9. Make sure that the 2 projecting pins are inserted into the 2 concave holes of the base or the centre stand and fixed.
10. To remove the individual elements again, a knob is provided at the respective fixing points to unlock the rod and then remove it.

6. Before use

Before using the fan, make sure it is placed on a dry and flat surface. Damage can be caused if the fan is placed on an inclined or sloping surface.

Before moving the appliance, please switch it off and unplug it from the mains.

Hold the stand with both hands and lift the appliance for transport.

Insert the plug directly into a commonly available AC socket and ensure that the plug is firmly inserted into the socket. Turn off the fan, before disconnecting the plug.

Never remove the plug by pulling the power cord from the socket! Unplug the power cord from the socket by holding the plug and disconnecting it from the socket. Do not disconnect the plug from the socket if the appliance is being used.

Do not use a power adapter that does not match the current / voltage specified on the type plate of this appliance. Disconnect the plug from the socket and store the appliance in a safe place when it is not being used.

7. Usage

Keep the fan in an appropriate location and connect the appliance to a properly installed 220-240V AC socket.

By tipping the protective cage, you can change the angle of inclination according to your needs by up to 30^ .

Press the "Oscillation" button ( ) on the control unit or on the remote control to turn on the oscillation.

The fan has 9 different speed levels, which you can select using the "Speed levels" control knob on the fan, or the speed level buttons ( + ) on the remote control.

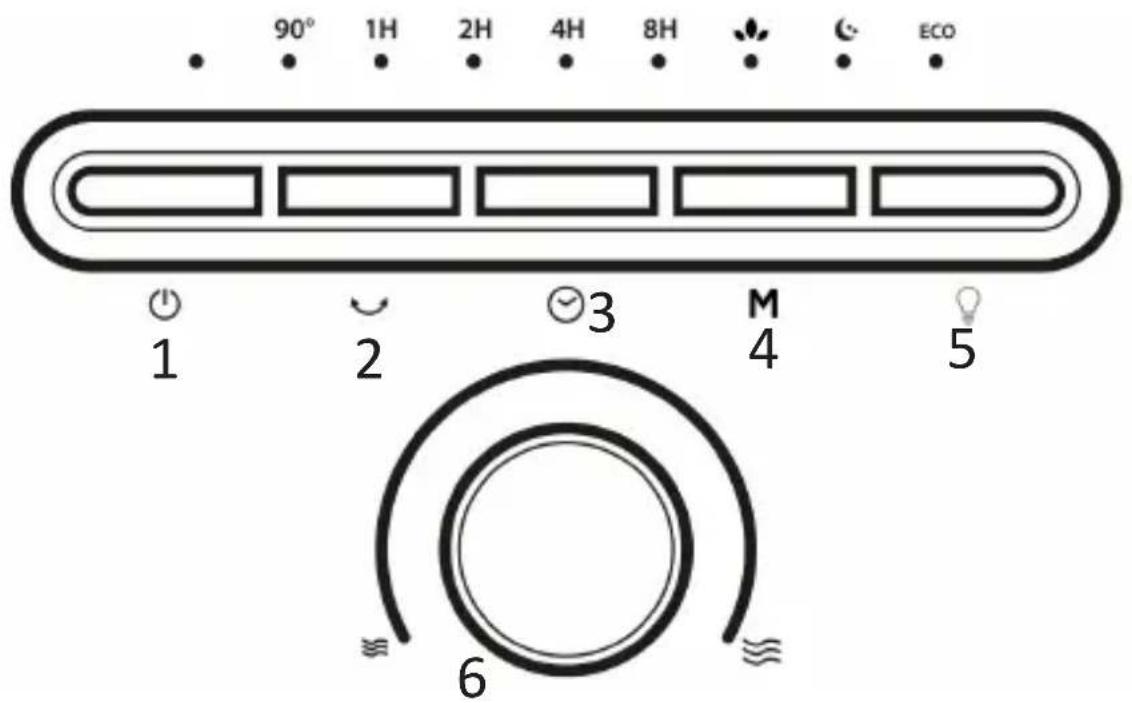

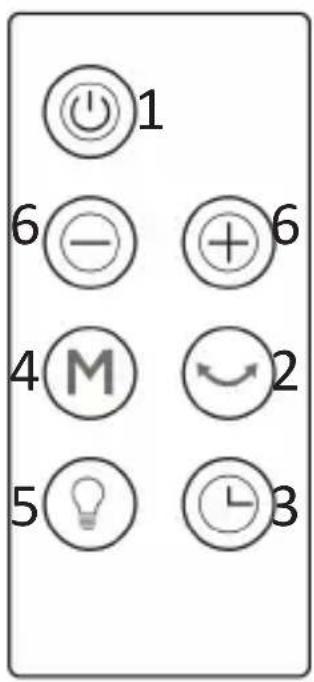

7.1 Button functions

But- ton	Function
1 ON / OFF button
2 Oscillation button
3 Timer button
4 Mode button
5 Brightness button
6	Speed control knob / Speed buttons

7.3 Timer function

The fan comes with 4 different timer settings and can be adjusted between 1 hour, 2 hours, 4 hours, and 8 hours. For this purpose, press the "Timer" button on the remote control or the operating panel of the fan. To increase the duration of the timer, press the button again.

7.4 Fan control

You can change between the 9 speed levels using the "+" and "-" buttons (6) on the remote control or the speed control knob (6) on the stand of the fan.

8. Remote control

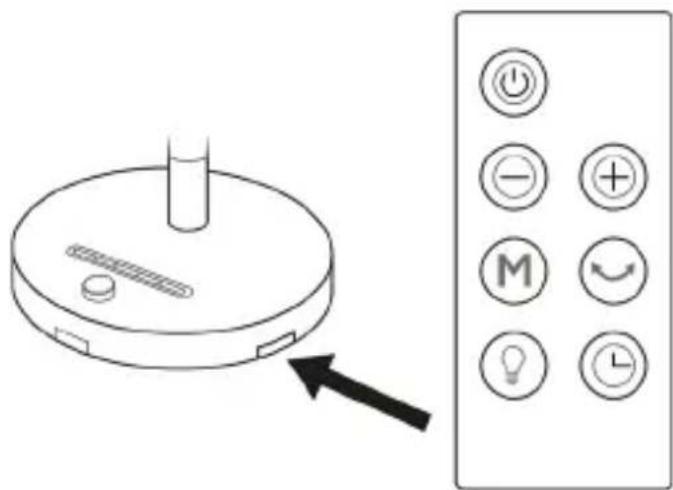

The fan has a storage compartment for the remote control. This compartment is located on the side of the stand.

8.1 Changing the battery

The remote control has a battery compartment at the bottom. Open the battery compartment and remove the CR2025 battery. Ensure that the polarity of the contacts is correct when replacing the battery.

9. Switching the LEDs on and off

You can adjust the LED light of the control elements as required using the brightness button (5).

10. Modes

Press the "Mode" button to select between three different modes. The table below describes the respective modes:

Mode Functions in the respective speed levels
	The fan simulates a "natural breeze". The appliance change speeds in a different sequence. The intensity depends on the previously selected speed level.
	The fan blows slowly and quietly and is suitable for use during sleep.
ECO	Based on the temperature and the wind speed;When starting this mode, the speed changes depending on the temperature.If the temperature is below or equal to 22°C, the speed is 1; at 23°C the speed is 2 etc. up to 33°C at the maximum speed level 9.

11. Cleaning

Pull out the power plug from the socket before starting the cleaning process! Use a slightly moist cloth for cleaning (wetted with water). Never immerse the appliance in water for cleaning. This could lead to electric shock or fire!

12. Safety instructions and disclaimer

Please do not try to open the appliance to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The appliance does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the appliance is not being used or during thunderstorms.

The appliance is not approved for outdoor use. Therefore, please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the appliance to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for any damages before using it. The appliance should not be used if it has been subject to impact or has been damaged in some other way. Please follow the local regulations and restrictions. Do not use the appliance for purposes other than those described in this manual. This product is not a toy.

Keep it out of the reach of children or mentally disabled persons. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification.

13. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

14. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of appliance that include batteries, the supplier is obliged to point out the following to the customer:

The customer is legally obliged to return used batteries. The customer can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery should not be disposed of in household waste.

WEEE directive: 2012/19/EU
WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 304970 complies with the fundamental requirements and the other relevant stipulations of the directive. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, https://downloads.ganzeinfach.de/
